Snowplough for tractor front-end loaders, LNV-250-E
DETAILS
Product conditions:
Product in good condition, refurbished by the manufacturer, shows signs of use.

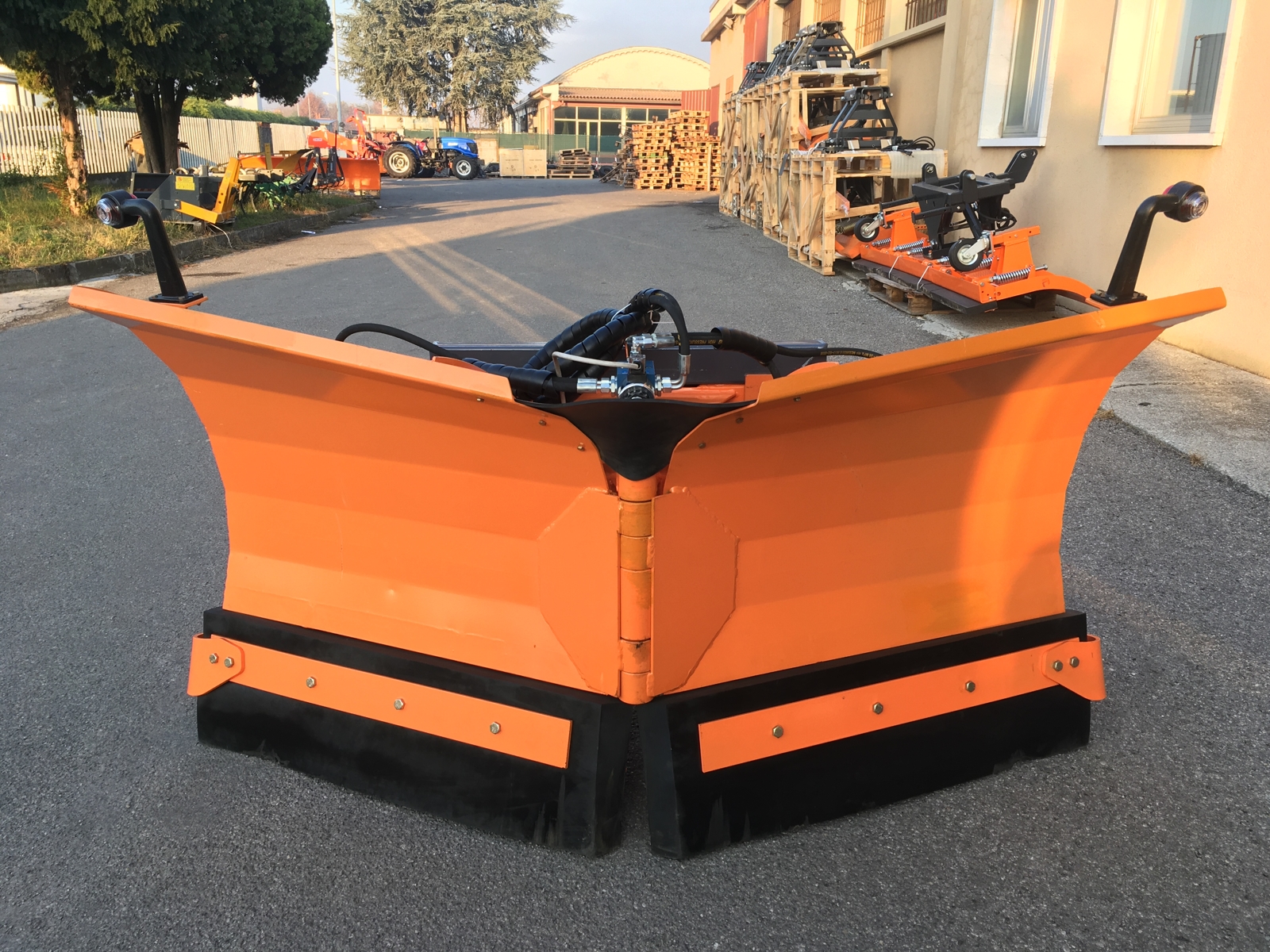

Snowplow 250cm for tractor front-end loaders - DELEKS® - Snow blade with EURO attachment - 2 independent plowing elements.
OVERVIEW
The LNV-250-E ‘V’ Snowplow has been designed for tractors front-end loaders, from 50 to 90hp tractors. Universal EURO attachment.

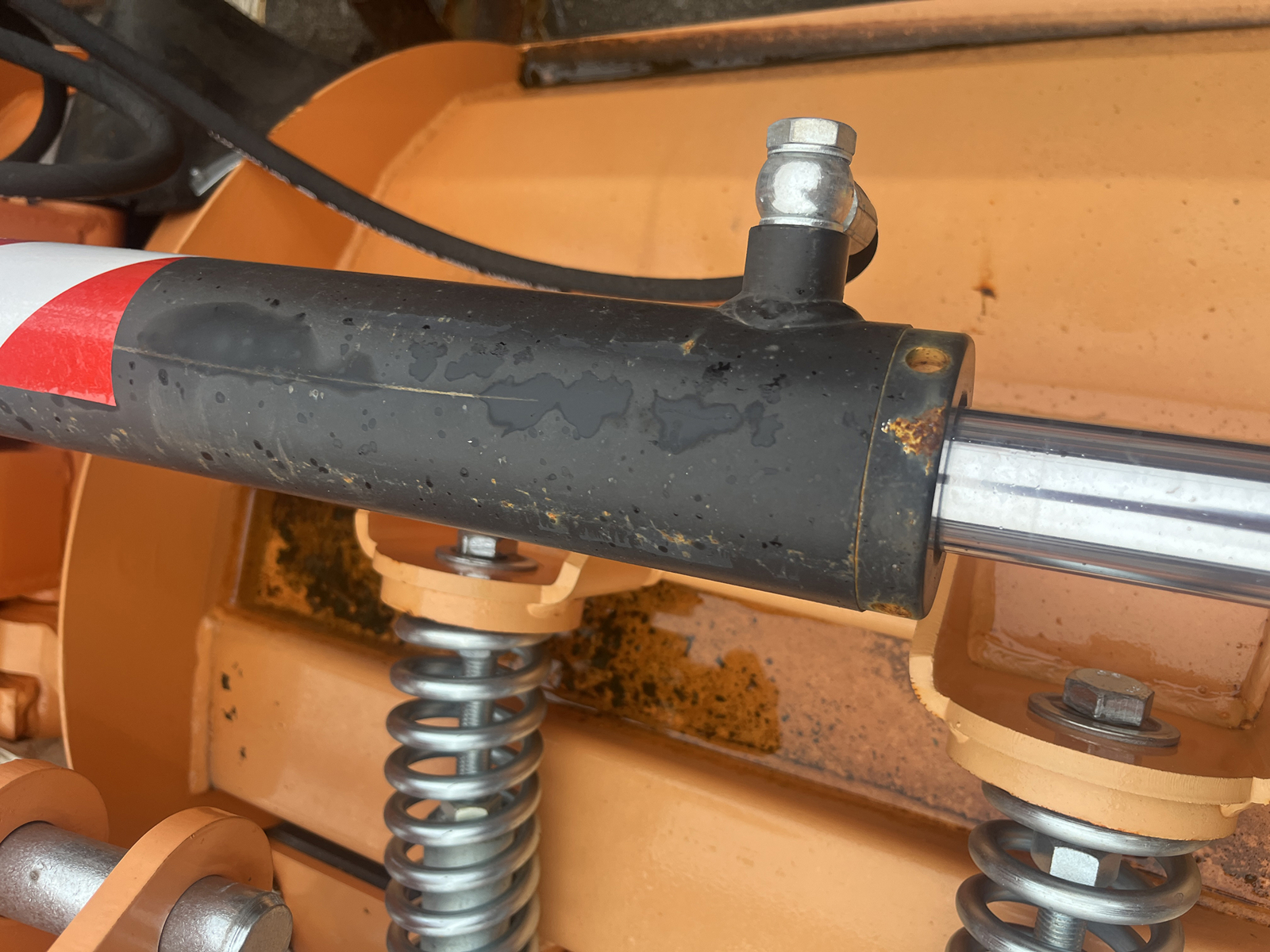

Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).

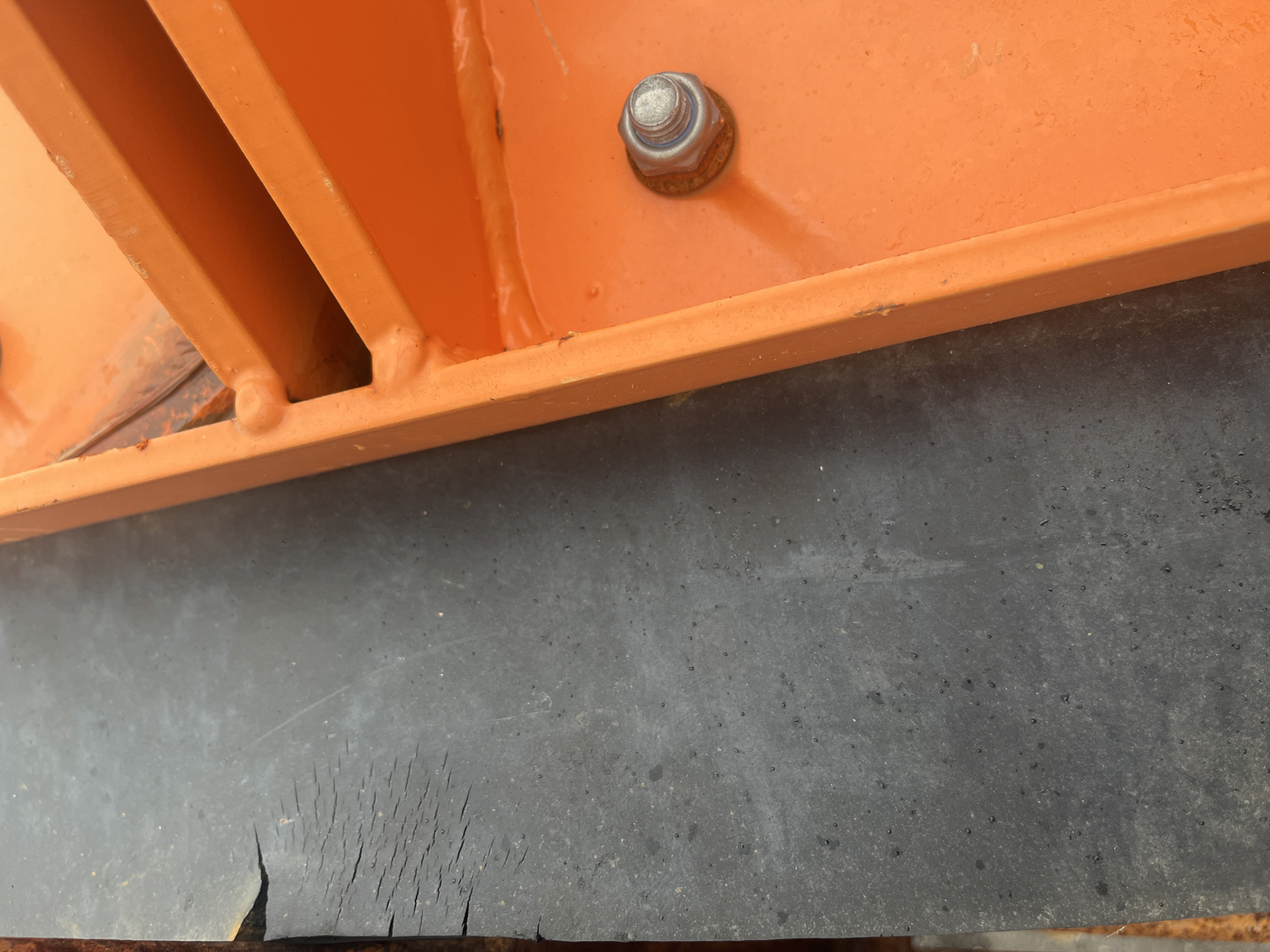

The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES
Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).

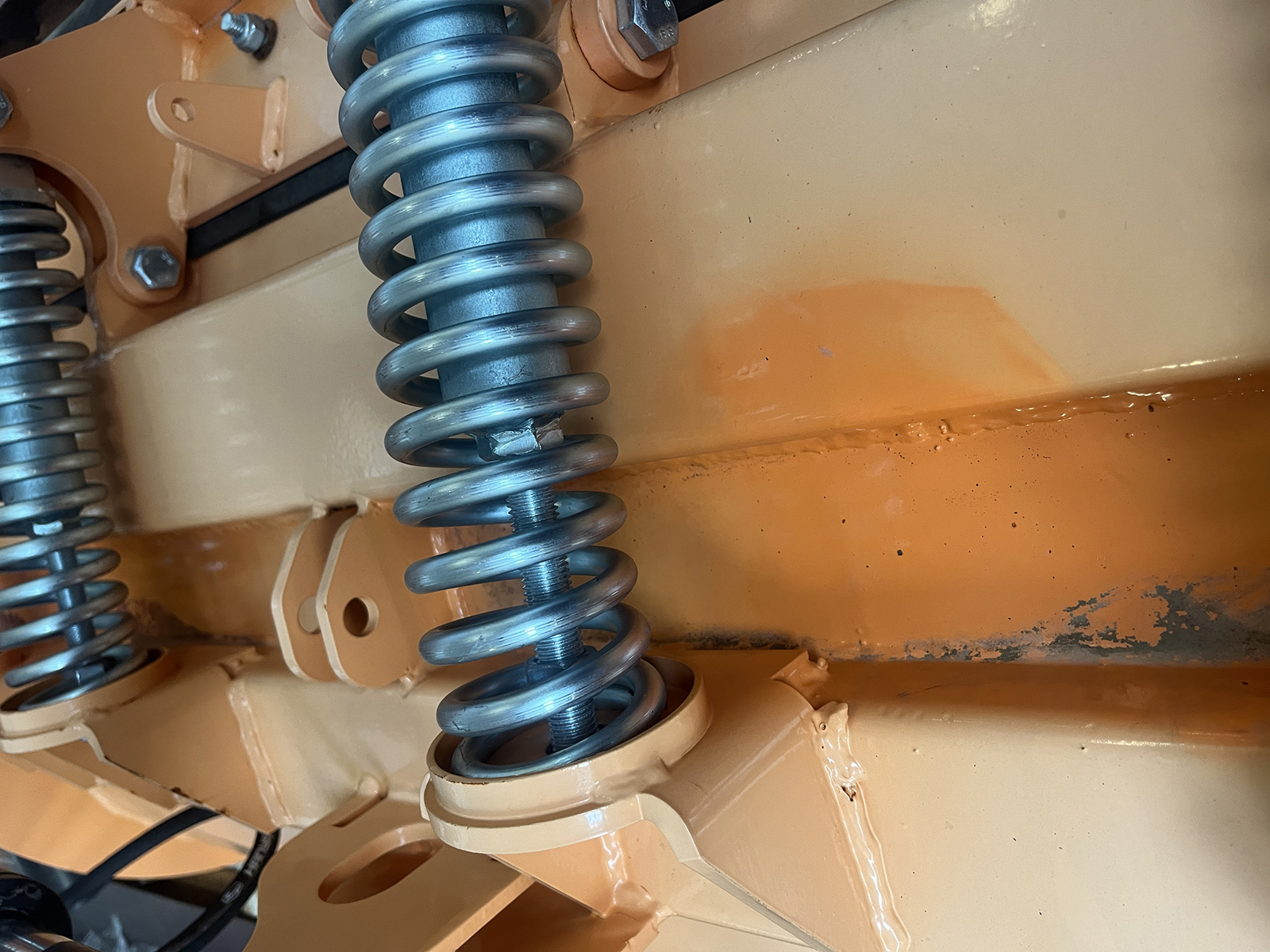

Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.
2 independent plowing elements.
Lateral oscillation system which allows a perfect adherence to the road surface.
Extremely easy installation and usage.
The EURO attachment is removable and replaceable with a 3-point hitch, or Skid steer attachment.
Perfect adherence to the road surface and homologated for road use.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 385.0 kg |
| Overall height | 1020.0 mm |
| Tractor Power Range | 50 - 90 Hp |
| Overall Length | 870.0 mm |
| Min./Max. Relief Pressure | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Interface | EURO |
| Angling (left/right) | 30° |
| Float | +/- 6° |
| Blade Height | 920.0 mm |
| Side edge thickness | 5.0 mm |
| Shock absorbers | 6 |
| Cutting Edge | Rubber |
| Cutting Edge Height | 265.0 mm |
| Cutting Edge Thickness | 50.0 mm |
| Trip Edge Quantity | 2 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm |
| Lights | √ |
| Removable Skid Shoes | x |
| Universal attachment sizes | See pictures |
| Working width (angled) | 2400.0 mm |
| Hydraulic Hoses | 2 x 2000.0 mm / connections 1.2" AGRI, WP 400 bar |
| Overall width | 2540.0 mm |
| Main frame thickness | 4.0 mm + reinforces |
| Hydraulic cylinder/s ø | 60.0/30.0 mm |
| Packing sizes | 2550.0*1000.0*800.0 mm |
