Snowplow for tractor front-end loaders, LN-200-E
DETAILS
Product conditions:

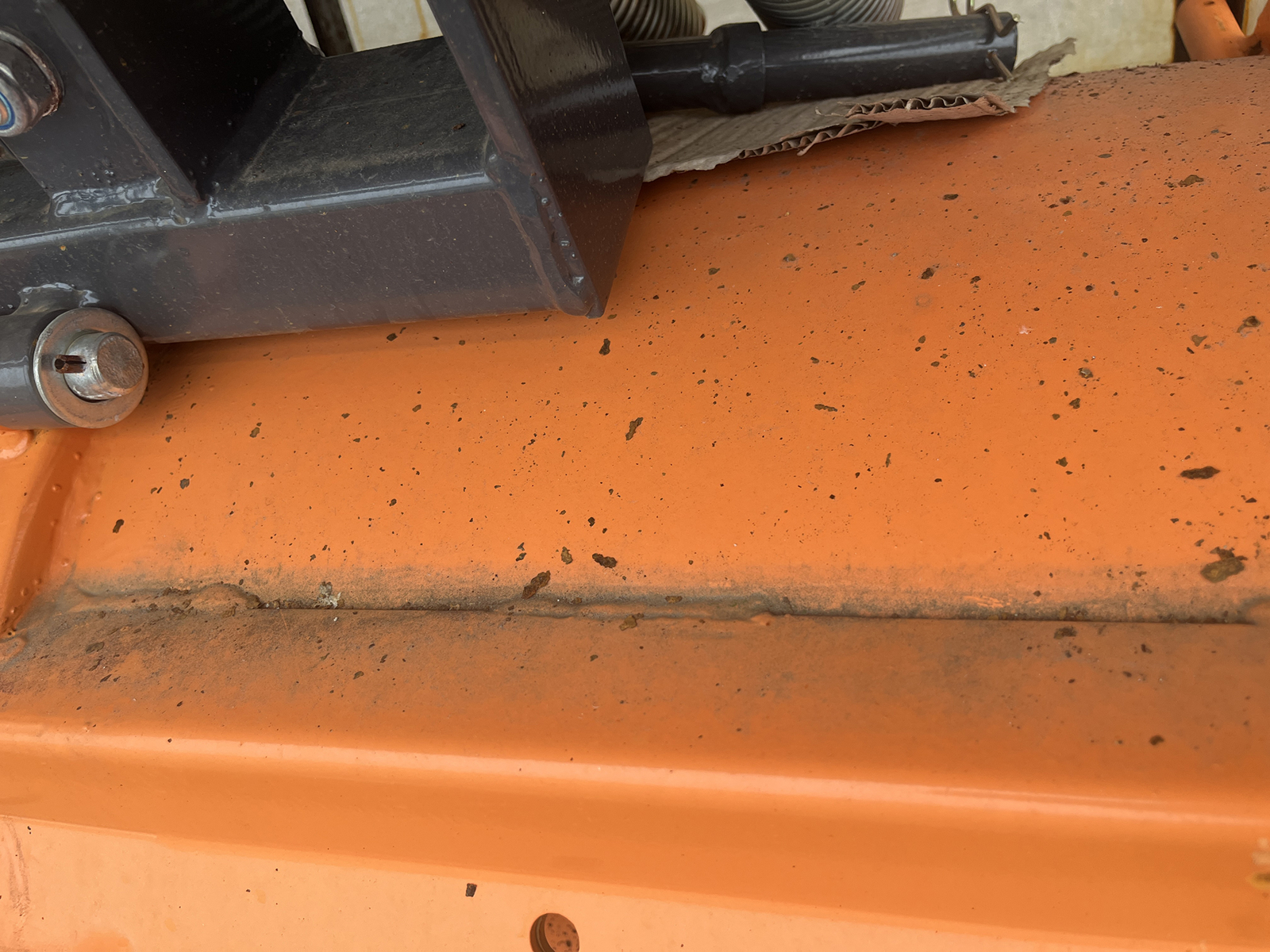

Product in good condition, refurbished by the manufacturer, shows signs of use.

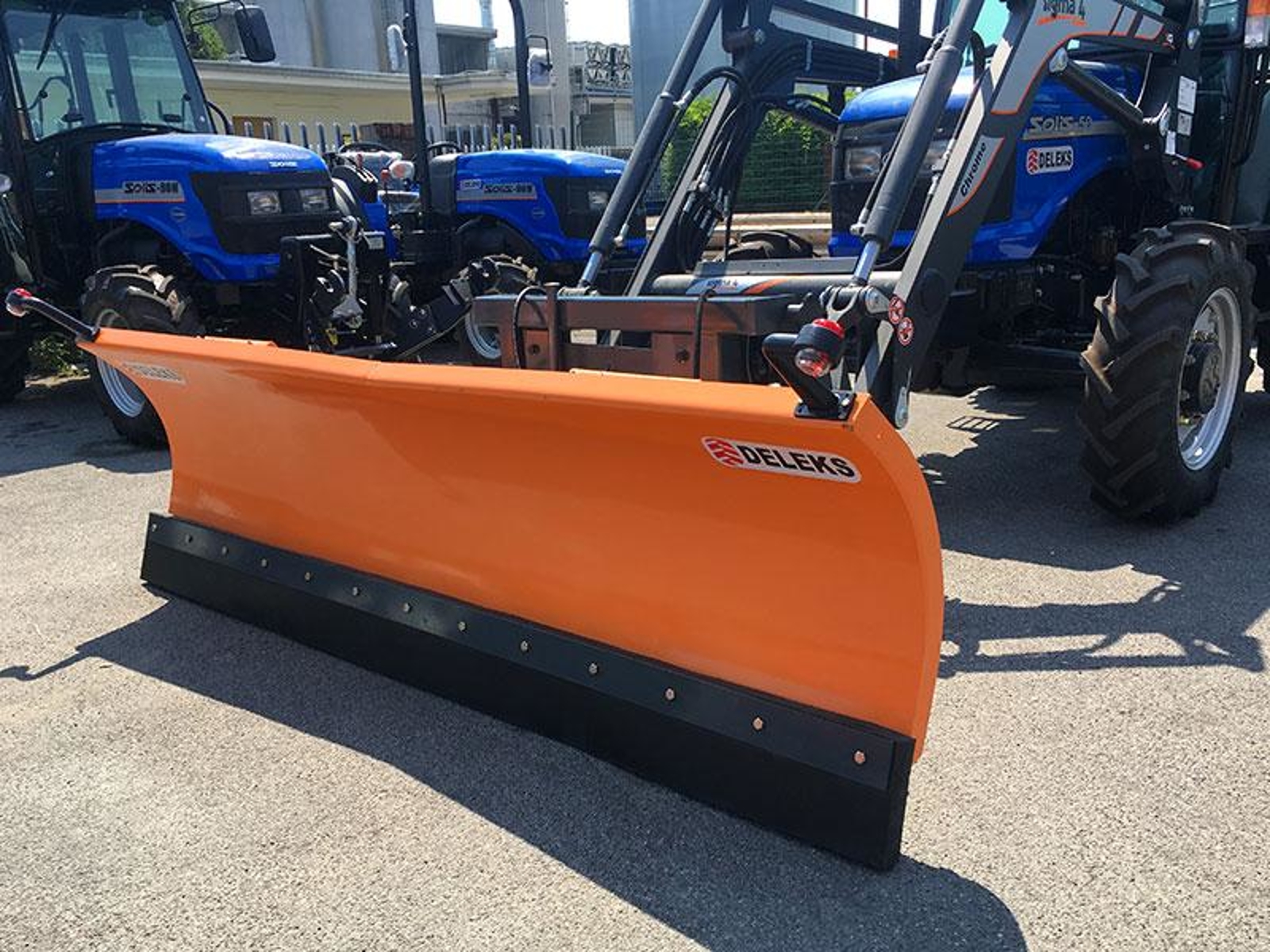

Snowblade 200cm for tractor front-end loaders, DELEKS® snow plough with Euro attachment - Homologated for road use.
OVERVIEW
LN-200-E Snowplow has been designed for tractors front-end loaders, from 40 to 80hp. Angling of the plow is done hydraulically. We supply 1.5m pipes that connect to the tractor. Supplied with skid shoes and marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES

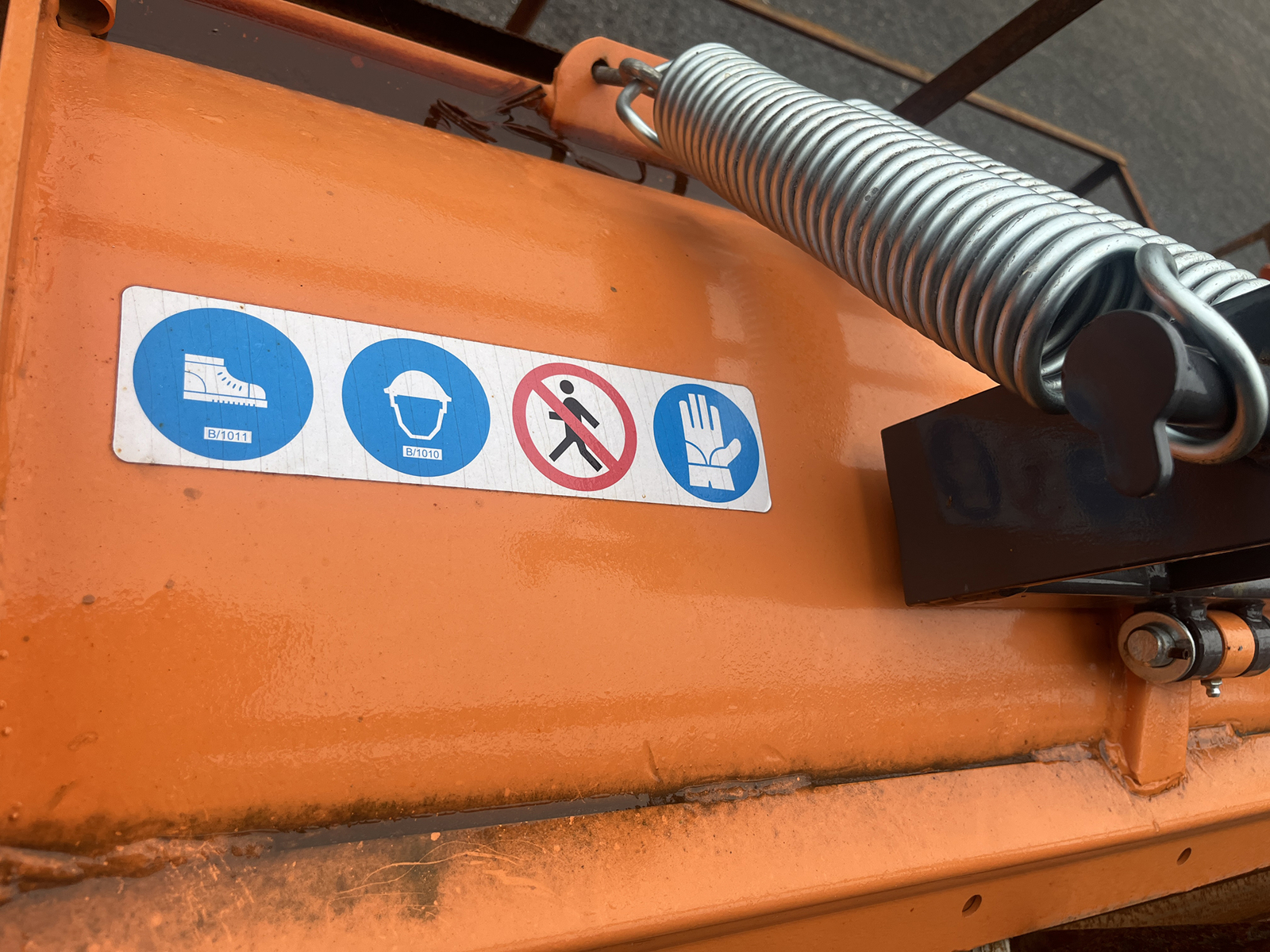

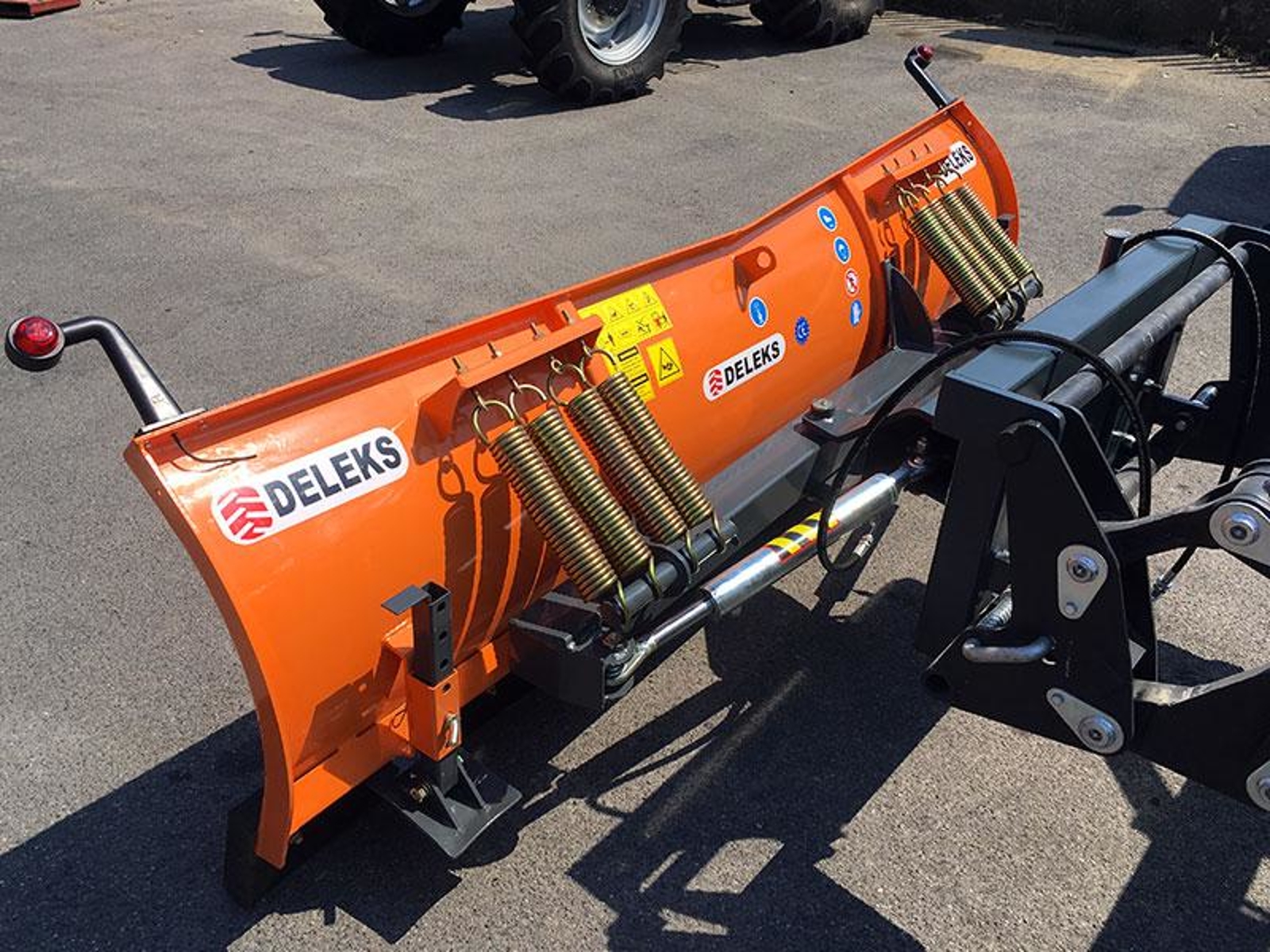

Shockproof system with 8 shock absorbing springs to operate in maximum safety.
Hydraulic system consists of two pistons brand Made in Italy for the right orientation / left.
Perfect adherence to the road surface and homologated for road use.
Extreme ease of assembly and use.
Adjustable torque slides, make work easier, reducing the pressure on the cutting edge, especially on rough surfaces such as gravel parking lots.
The EURO linkage is removable and replaceable with fitting plate, 3-point hitch, or Skid steer loaders.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 301.0 kg |
| Overall height | 700.0 mm |
| Tractor Power Range | 40 - 80 Hp |
| Overall Length | 950.0 mm |
| Min./Max. Relief Pressure | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Interface | EURO |
| Angling (left/right) | 27° |
| Float | +/- 4° |
| Blade Height | 700.0 mm |
| Side edge thickness | 8.0 mm |
| Shock absorbers | 8 |
| Cutting Edge | Steel or Rubber |
| Cutting Edge Height | 150.0 mm |
| Cutting Edge Thickness | 16.0 mm |
| Trip Edge Quantity | 1 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm |
| Lights | √ |
| Removable Skid Shoes | √ |

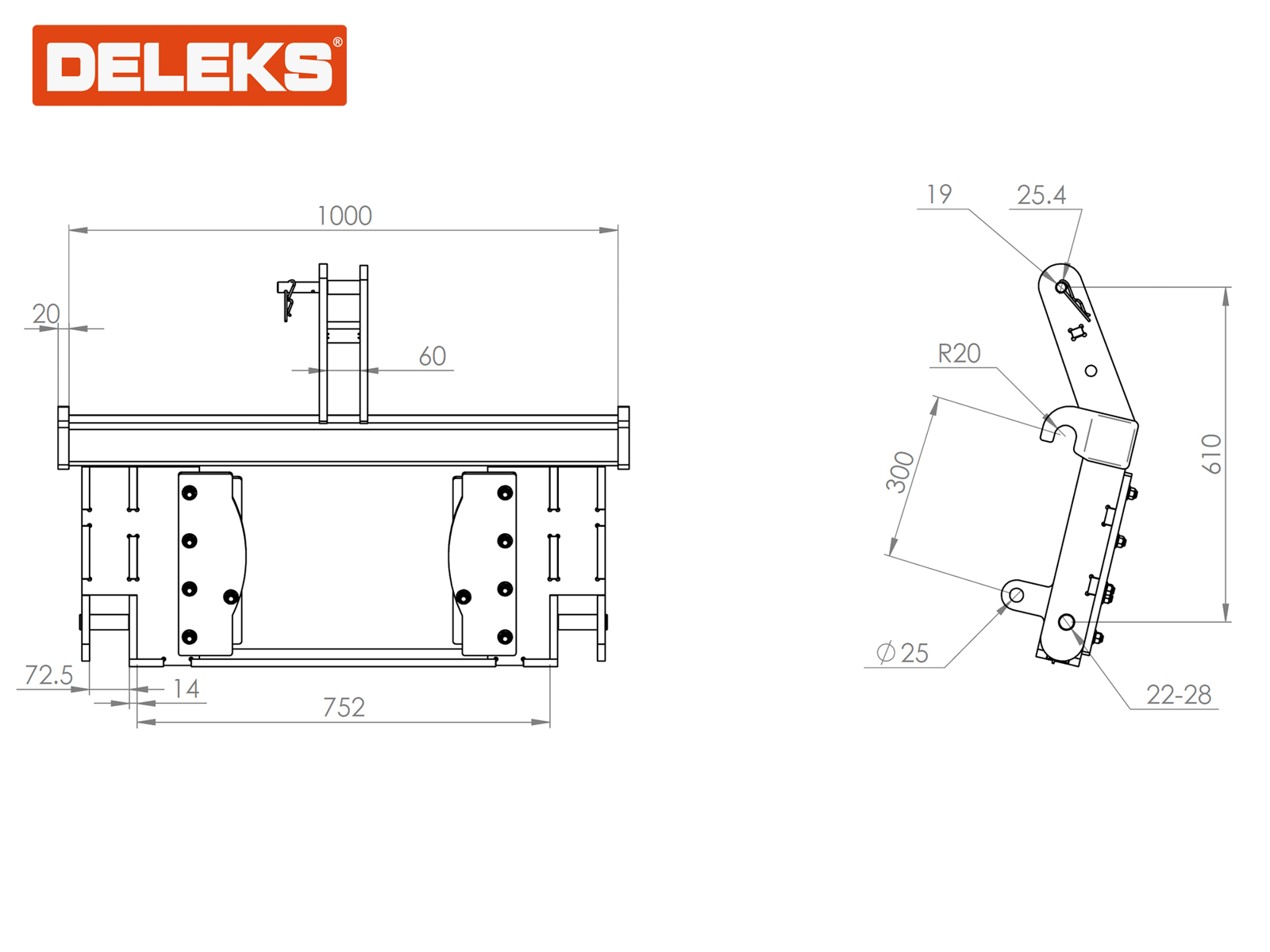

| Universal attachment sizes | See pictures |
| Working width (angled) | 1793.0 mm |
| Hydraulic Hoses | 2 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar |
| Overall width | 2013.0 mm |
| Main frame thickness | 5.0 mm |
| Hydraulic cylinder/s ø | 60.0/30.0 mm |
| Packing sizes | 2013.0*800.0*830.0 mm |
