Hydrostatic Crawler Mini Dumper, High dump, Briggs&Stratton engine, E-start
DETAILS

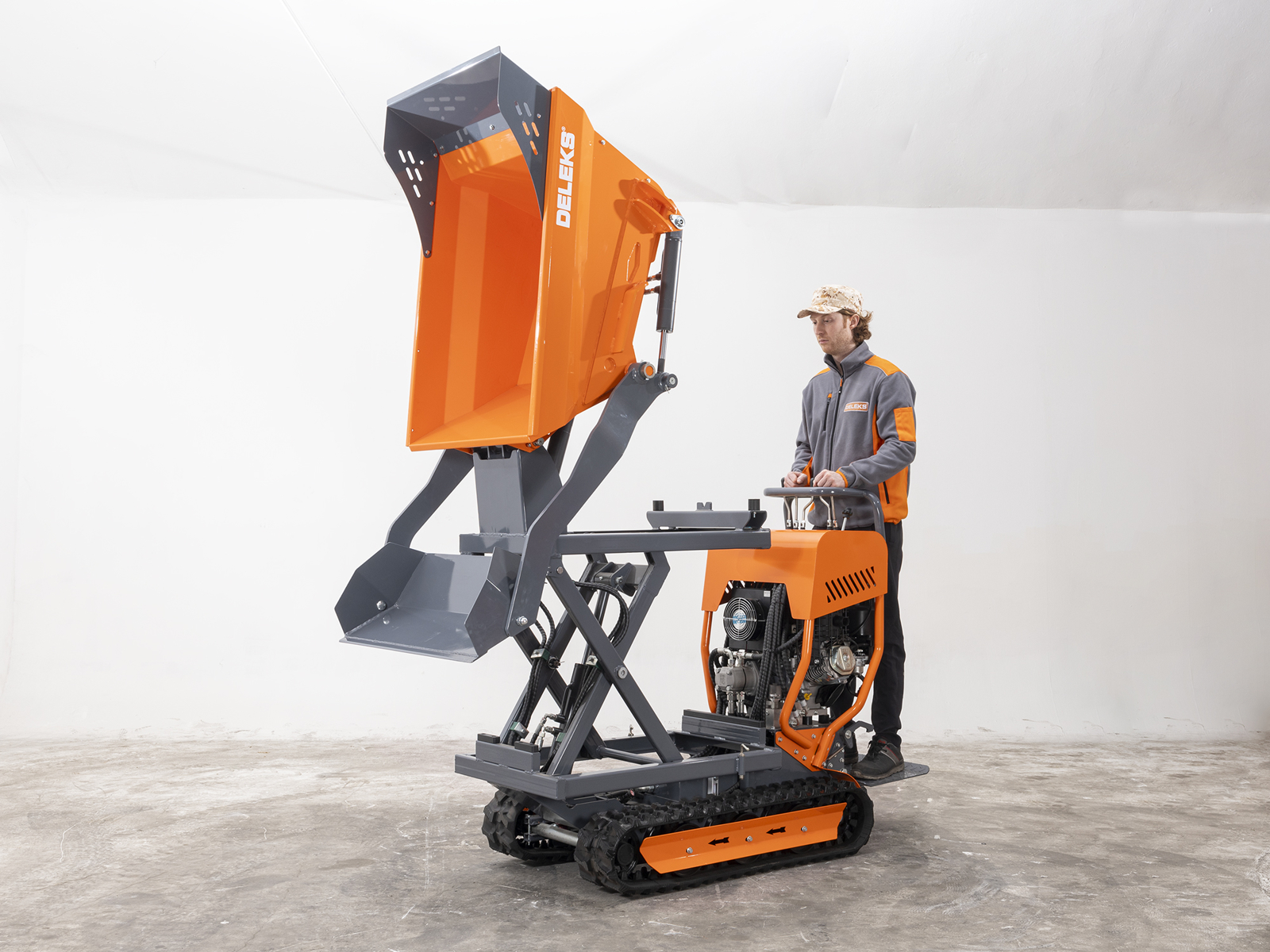

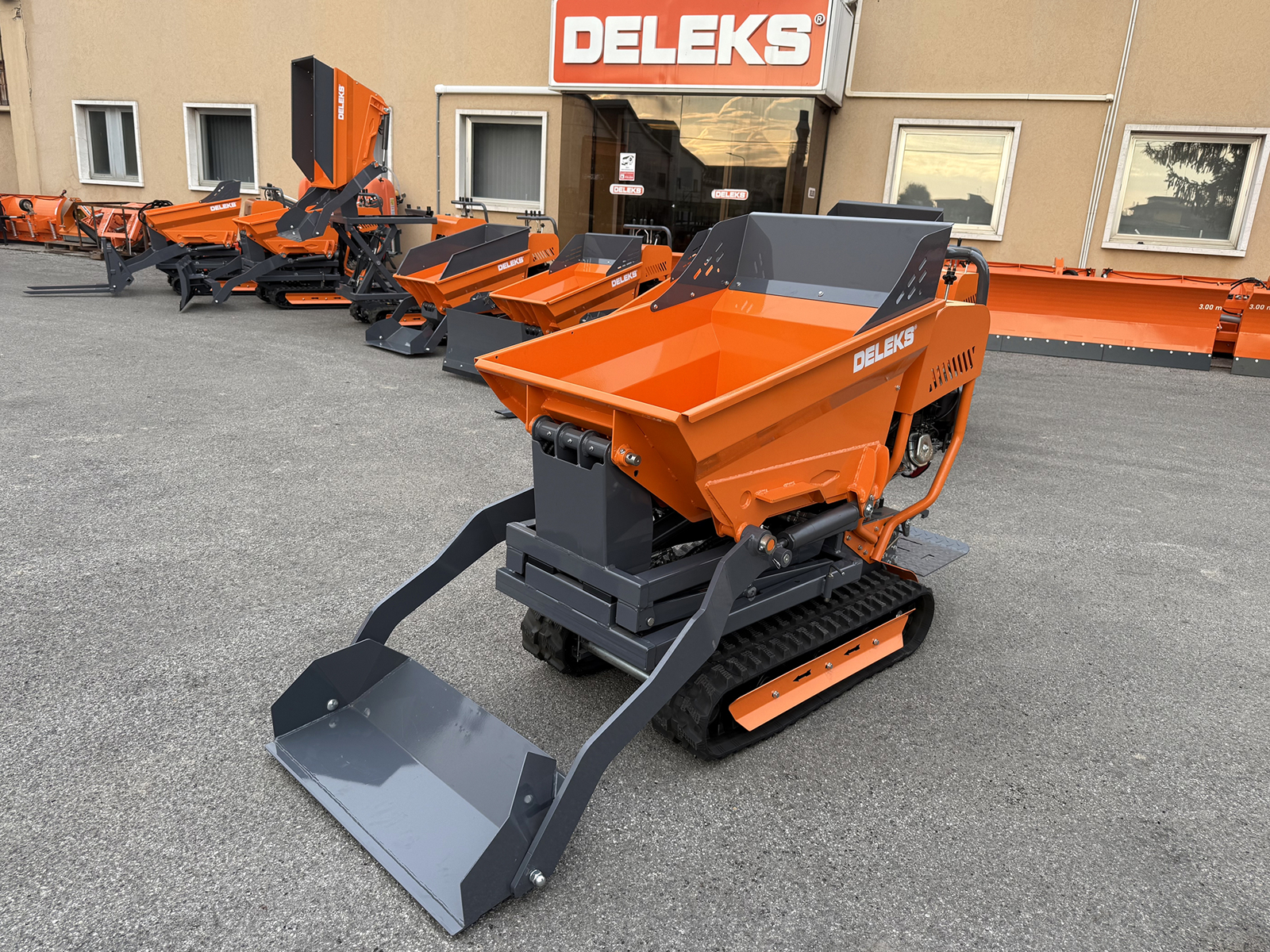

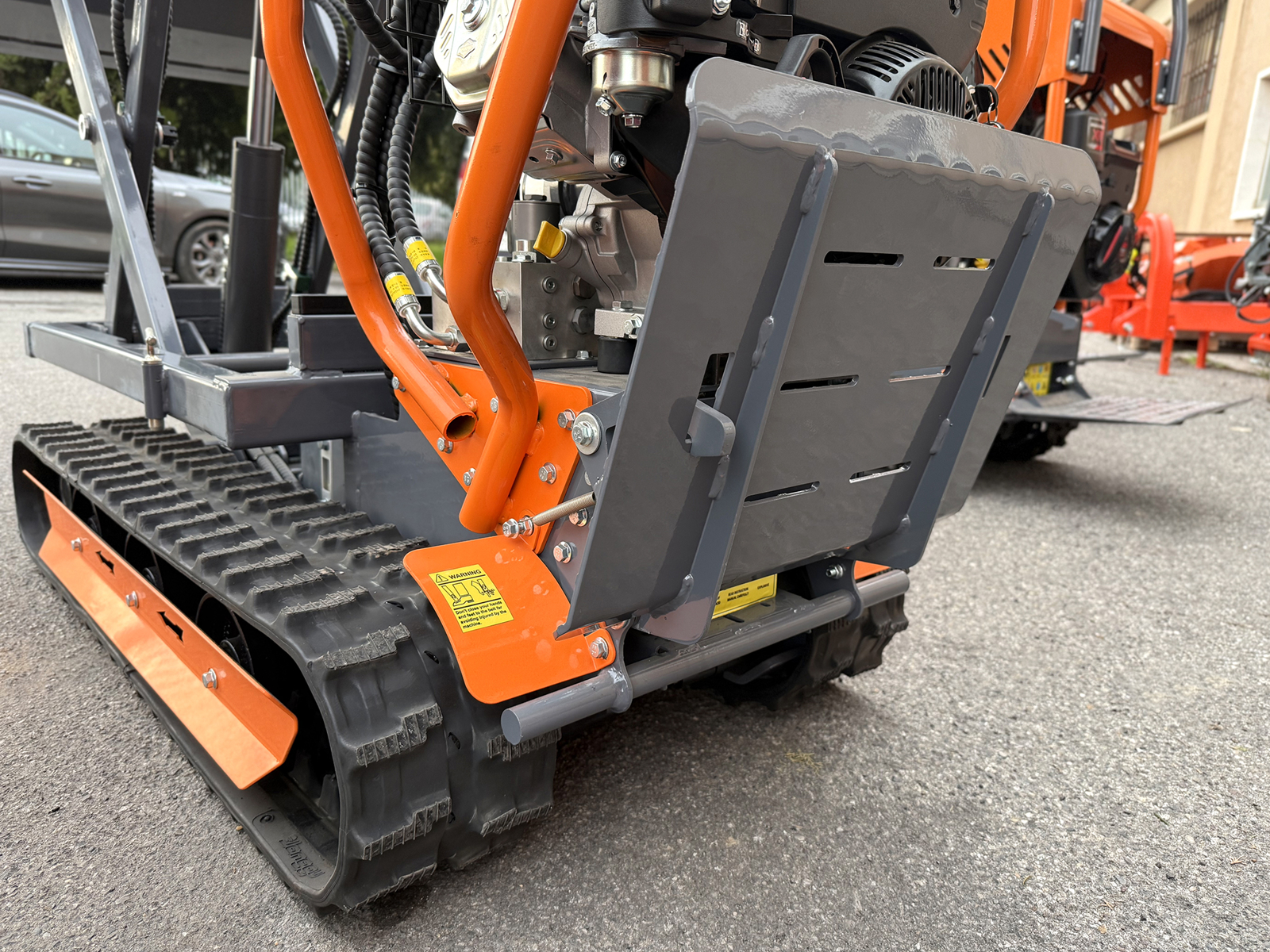

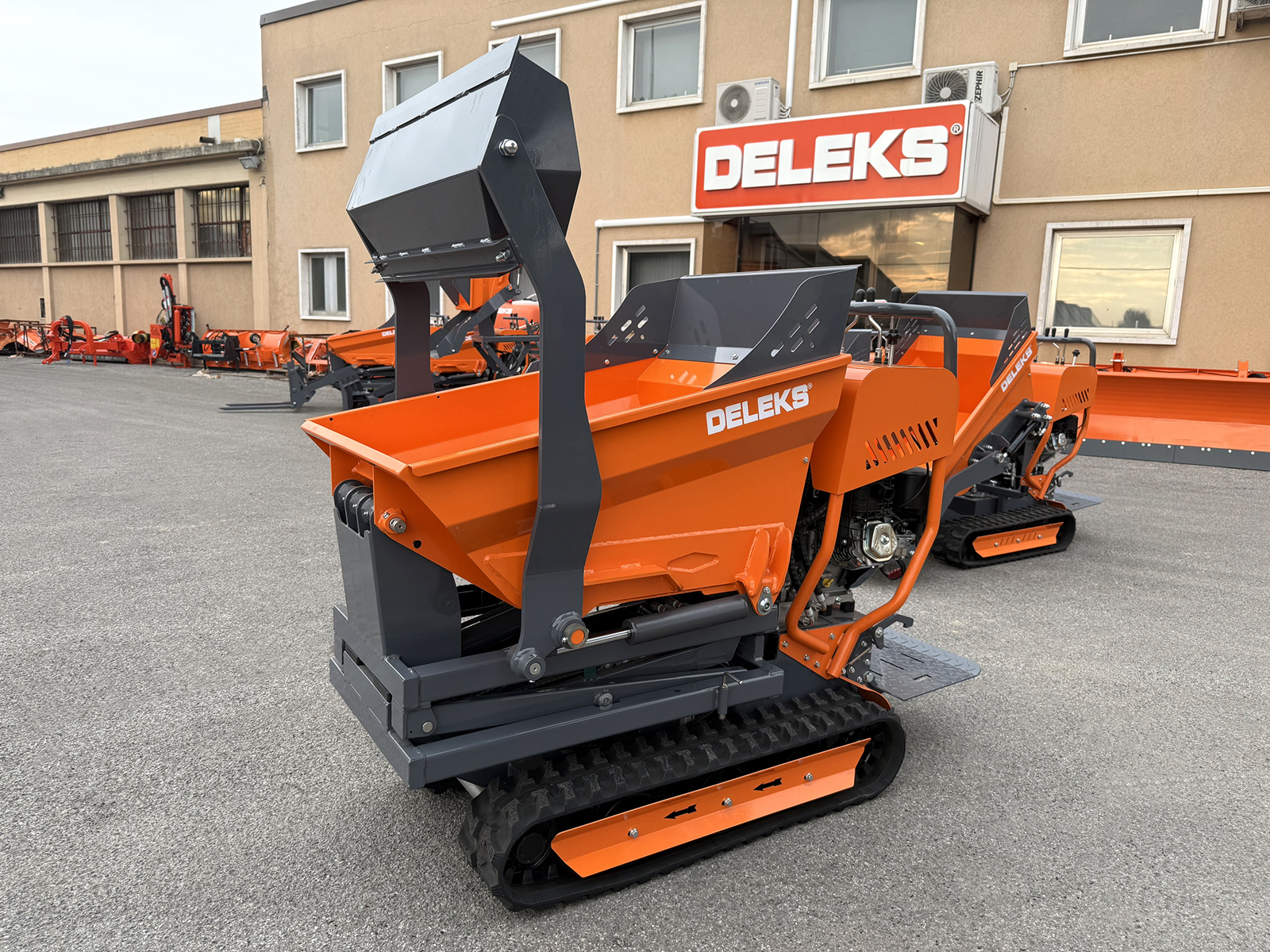

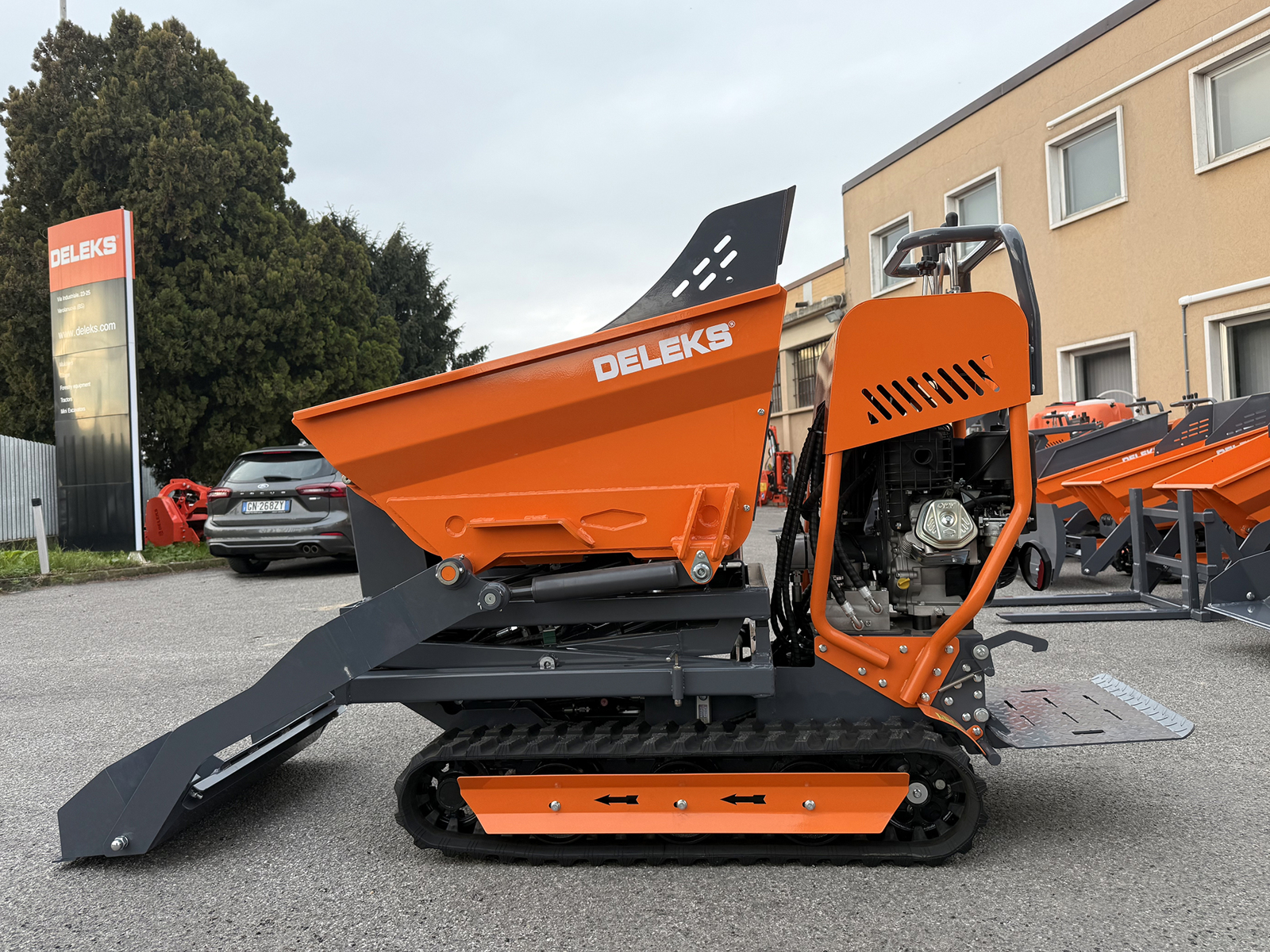

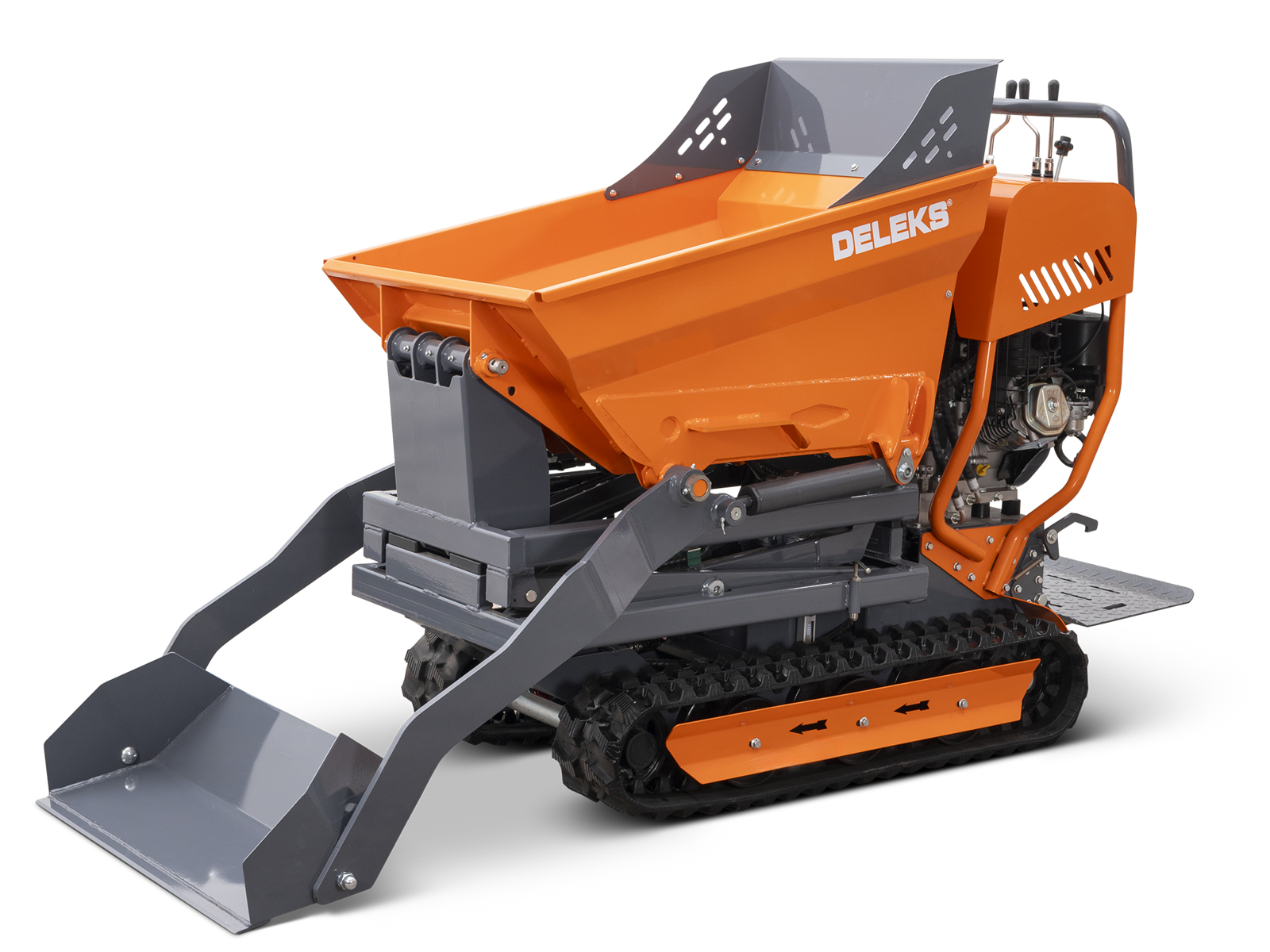

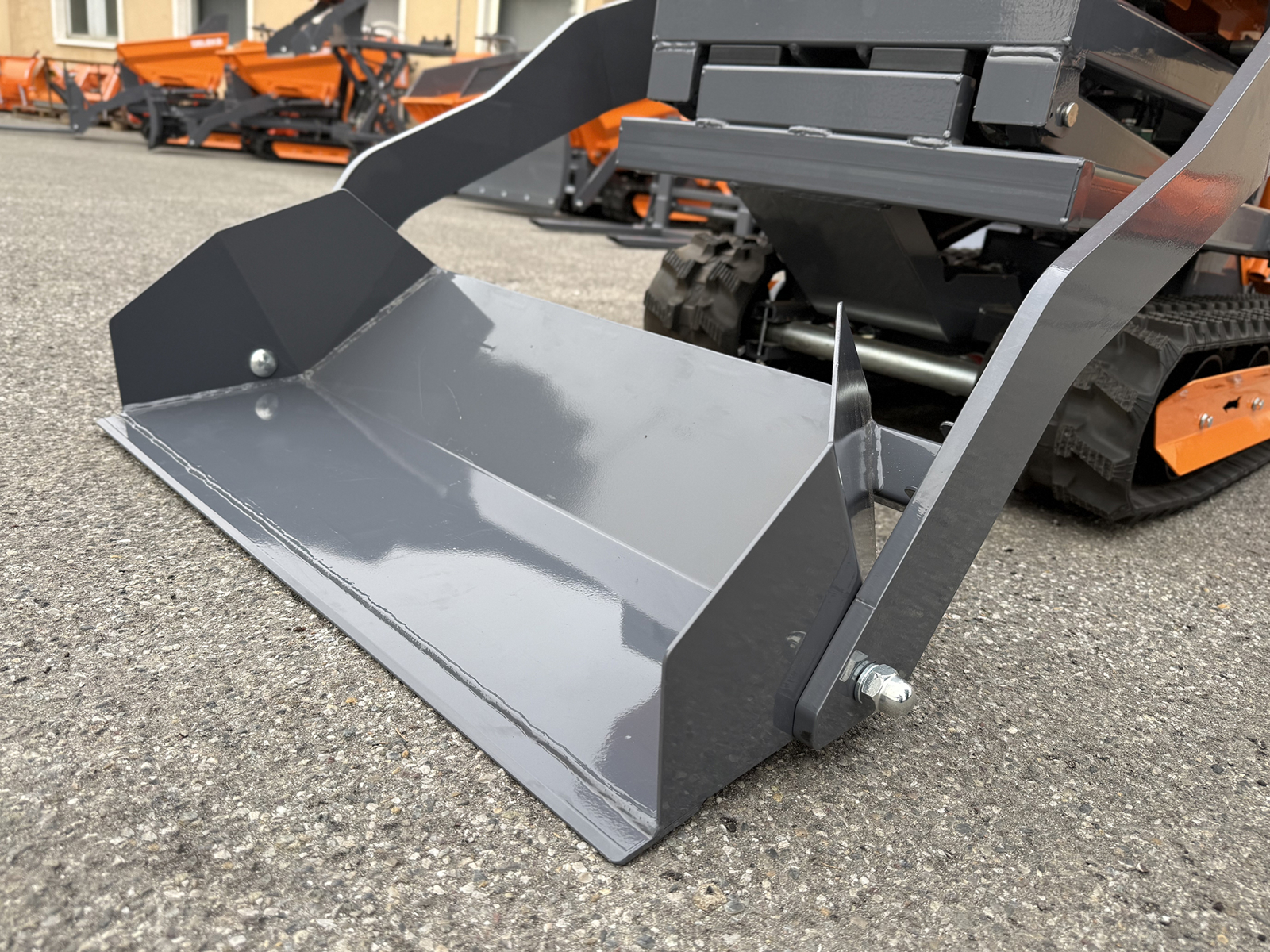

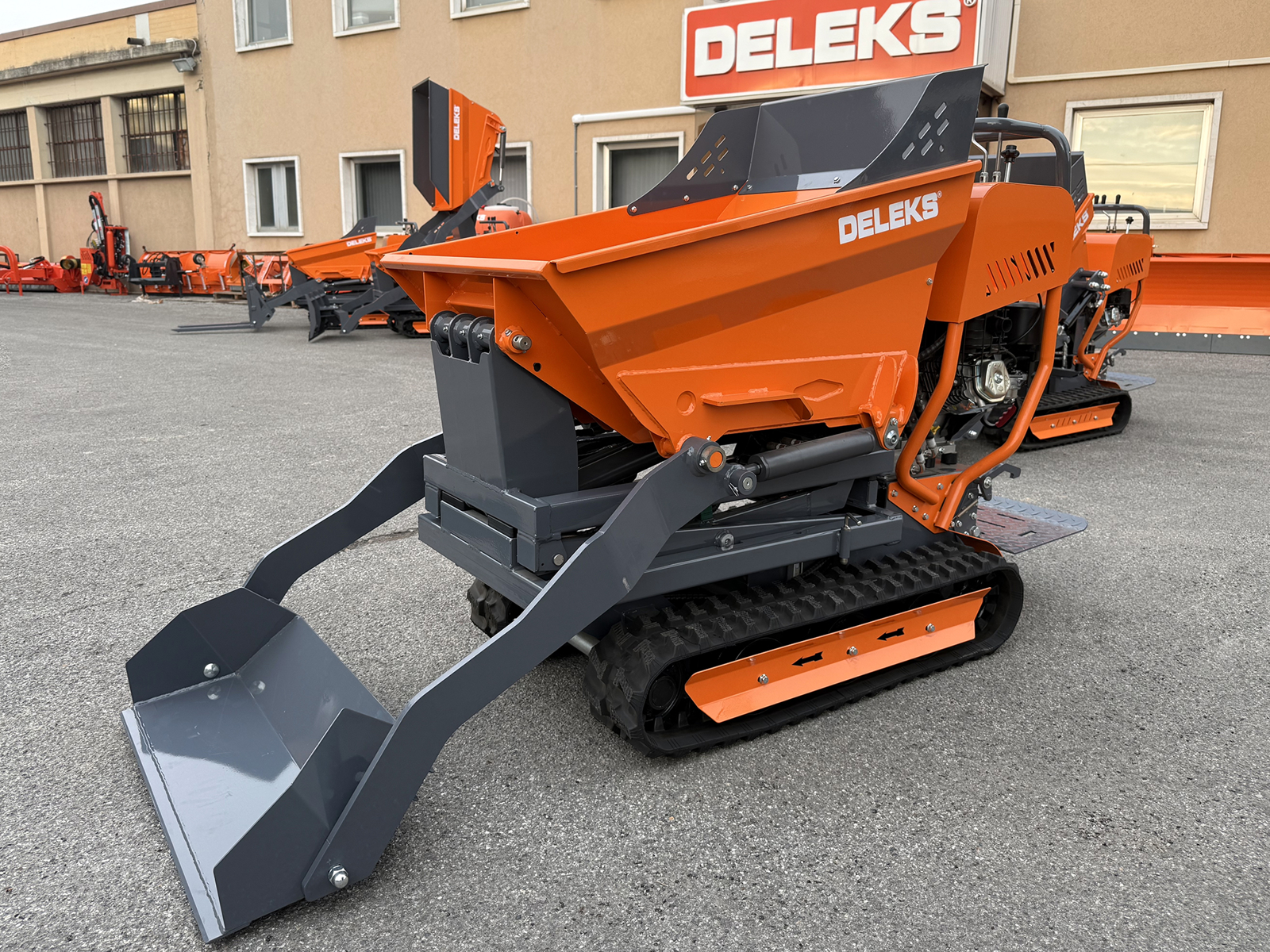

DELEKS® V3000H Self-loading tracked minidumper, high dump, hydrostatic transmission, operator platform, Briggs&Stratton engine, electric start.
APPLICATION
V3000H tracked minidumper suitable for loading and moving earth, sand, building material, waste, etc.

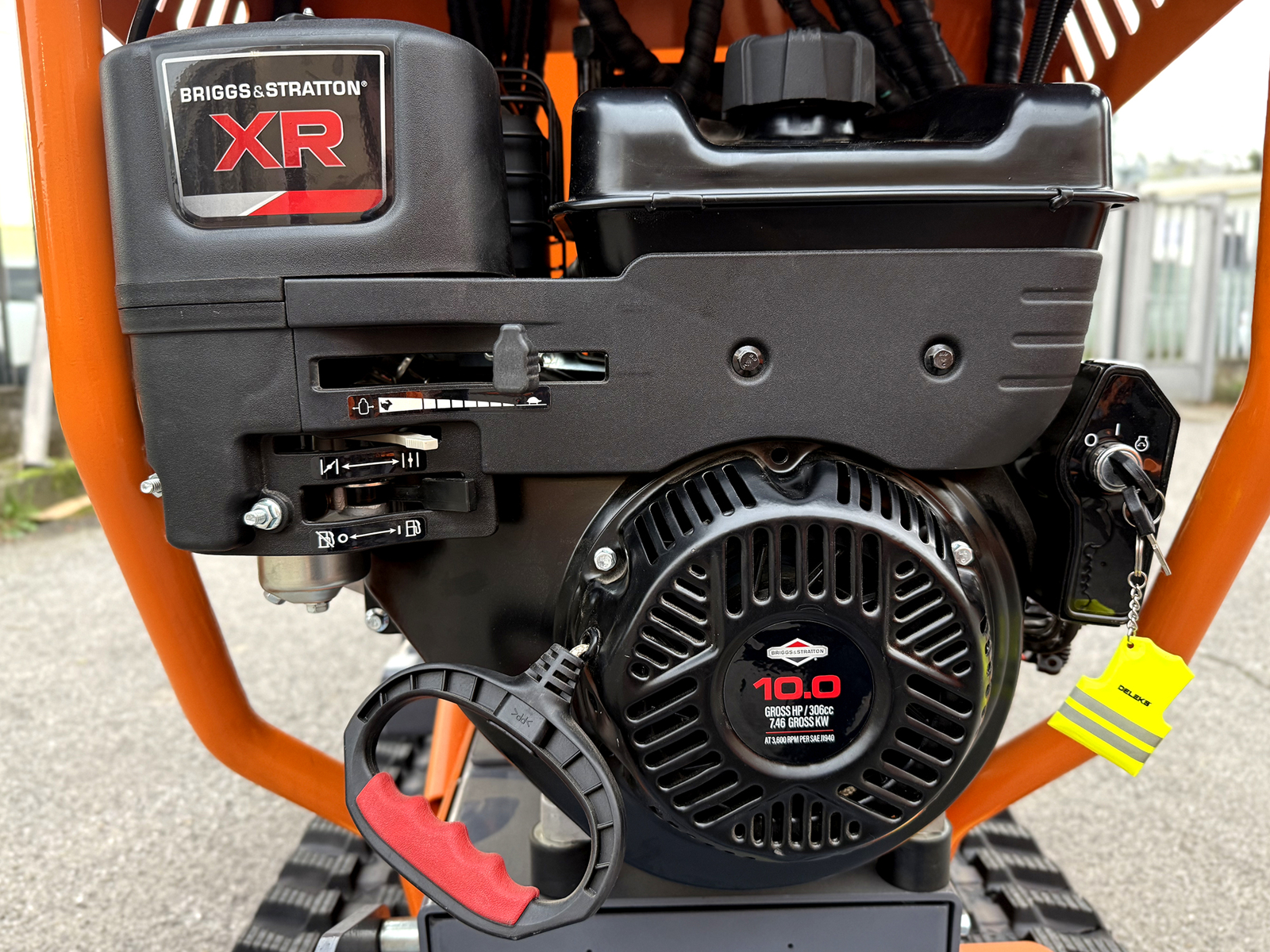

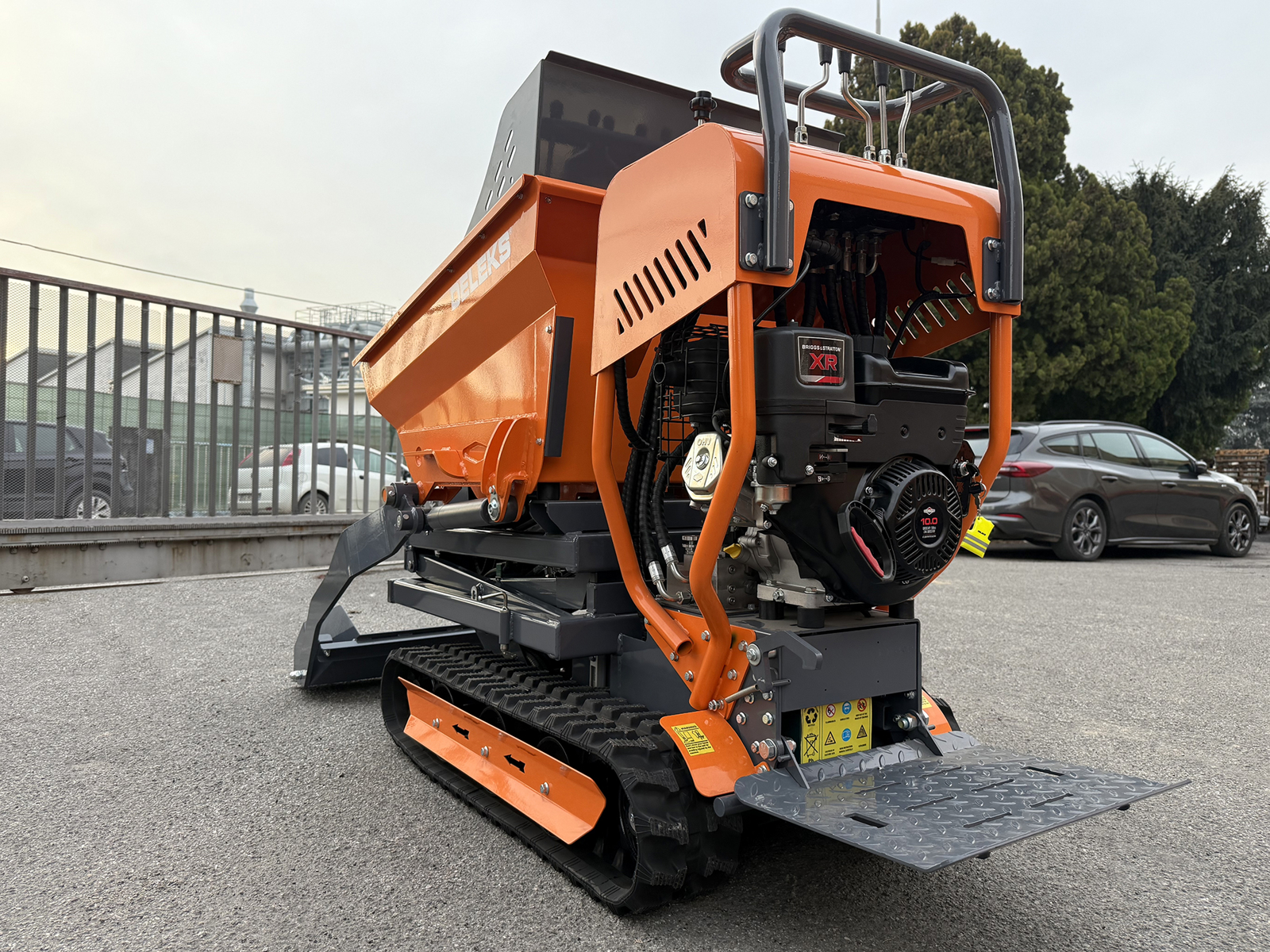

Briggs&Stratton XR10.0 engine, 10.0Hp /7.4 Kw, 306cc
Fuel: petrol

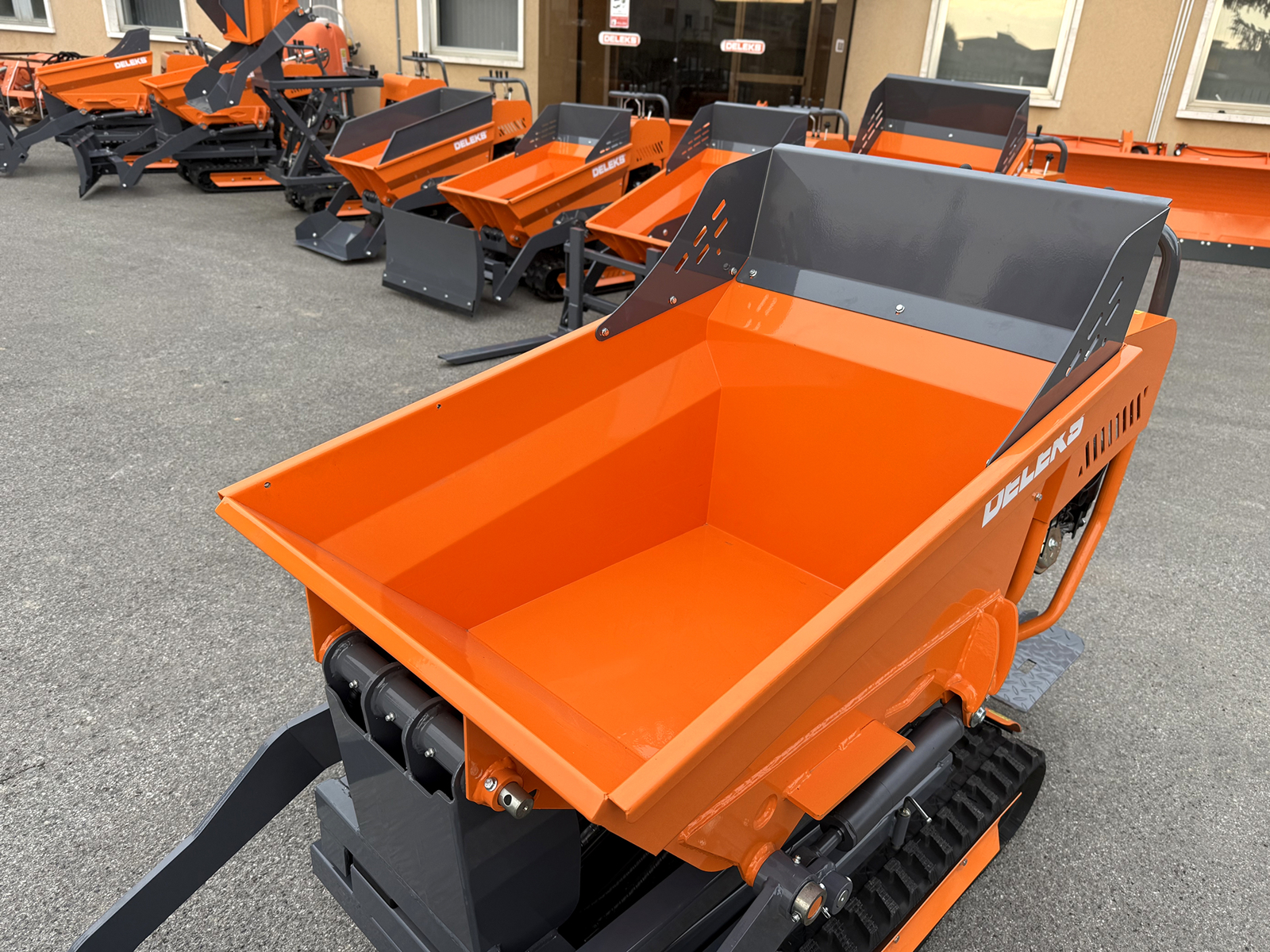

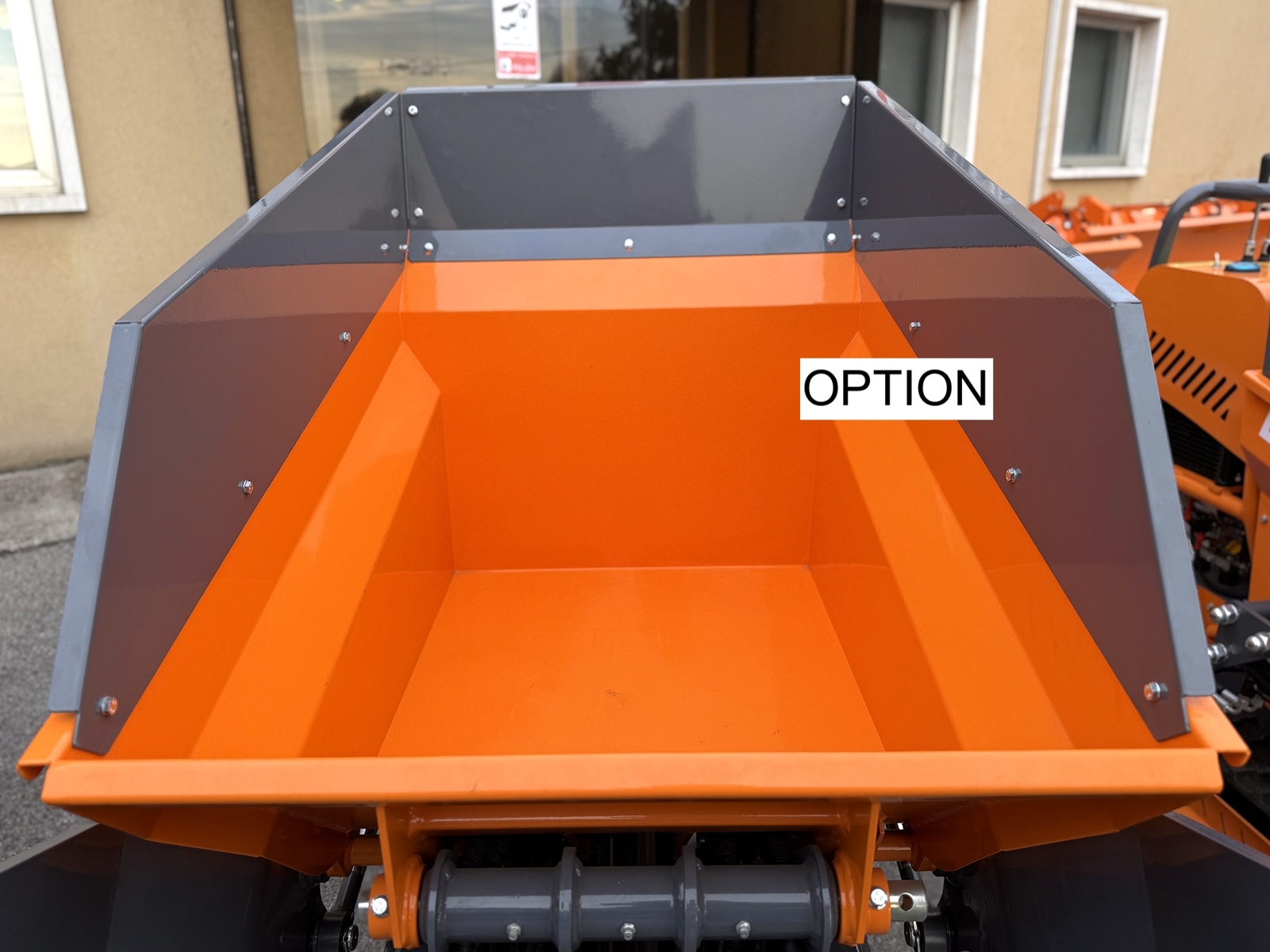

Body: dumper type with high tip
Capacity: 500 kg

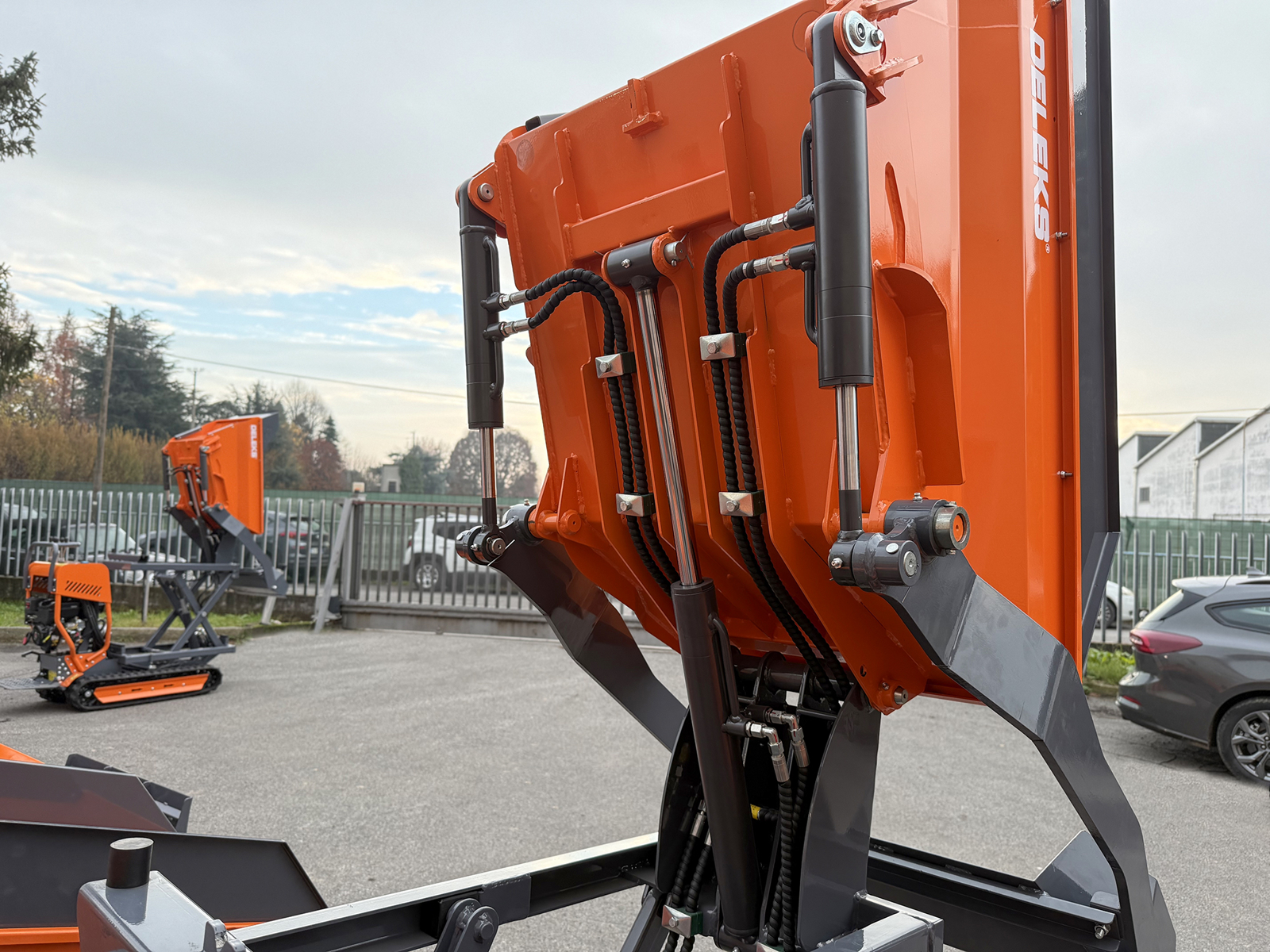

Tipping: hydraulic

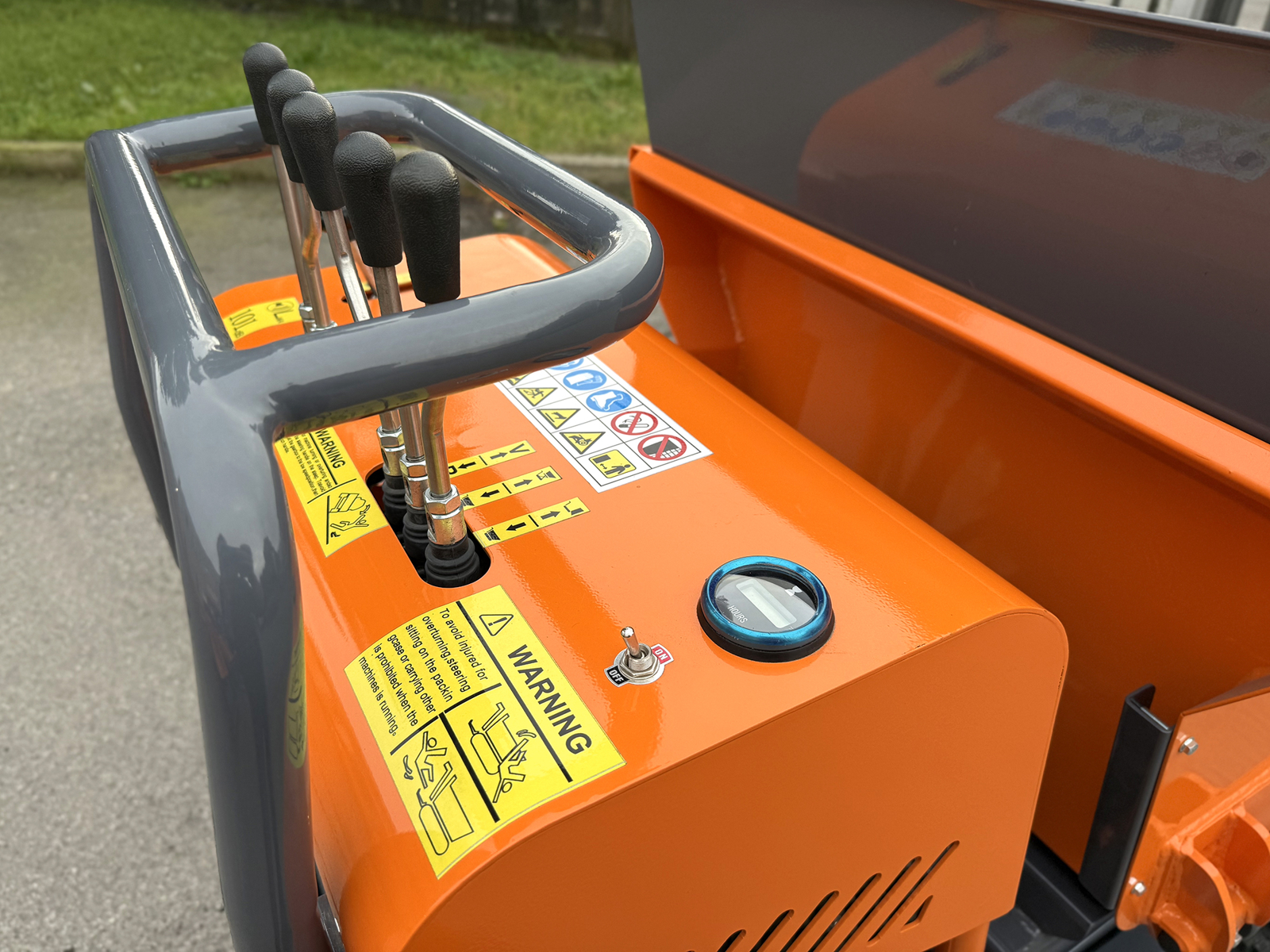

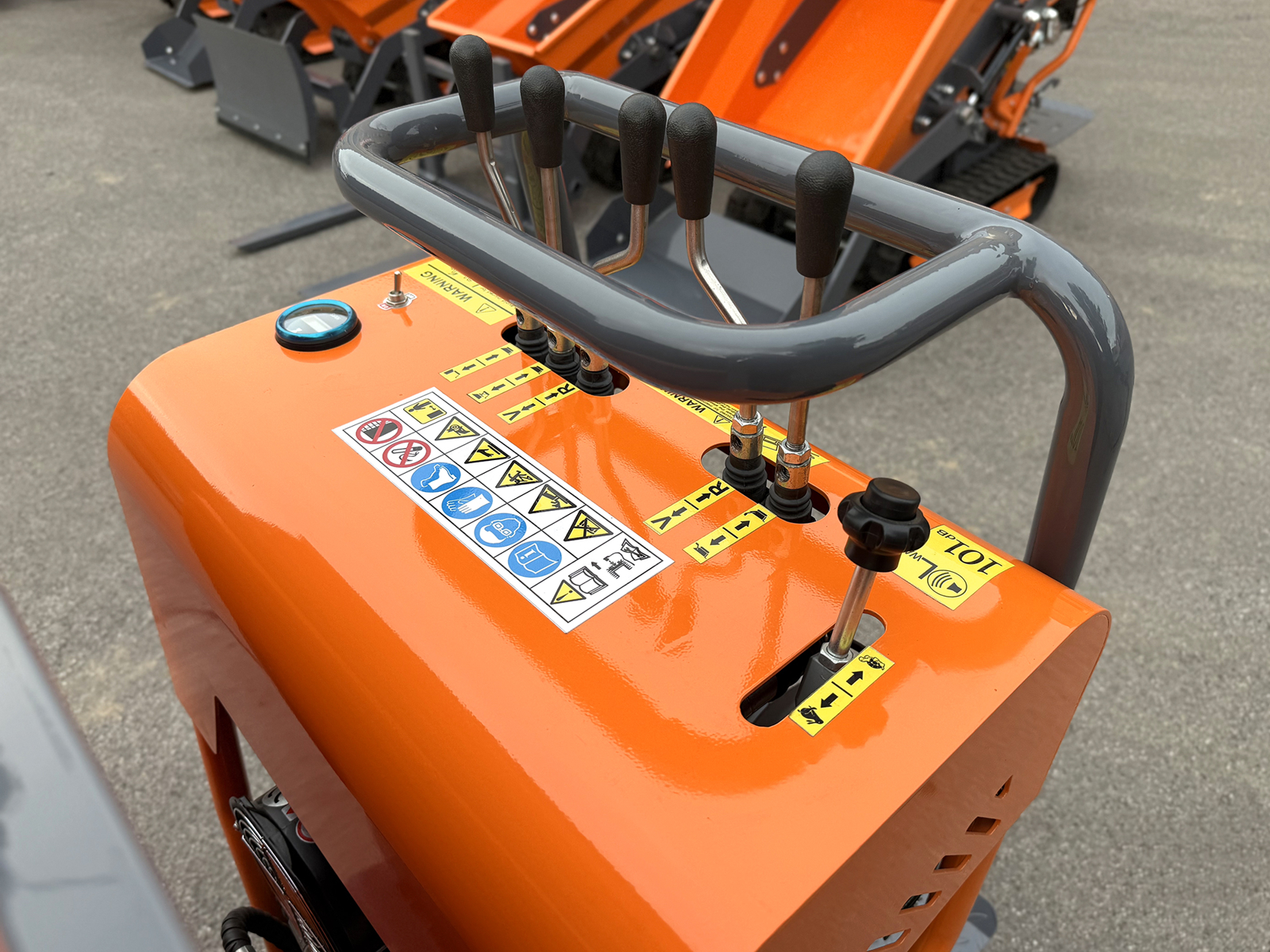

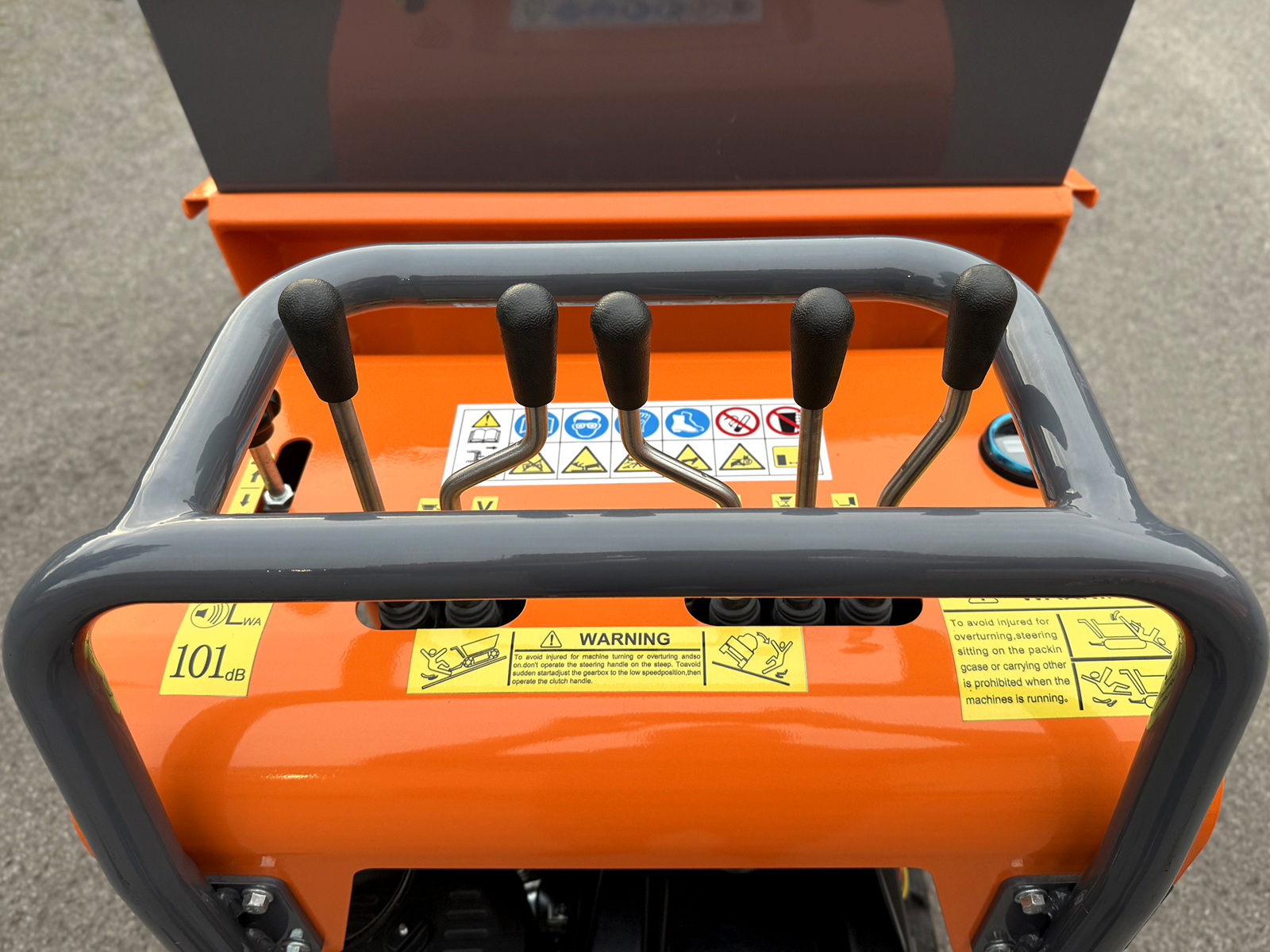

Driving system with lever controls

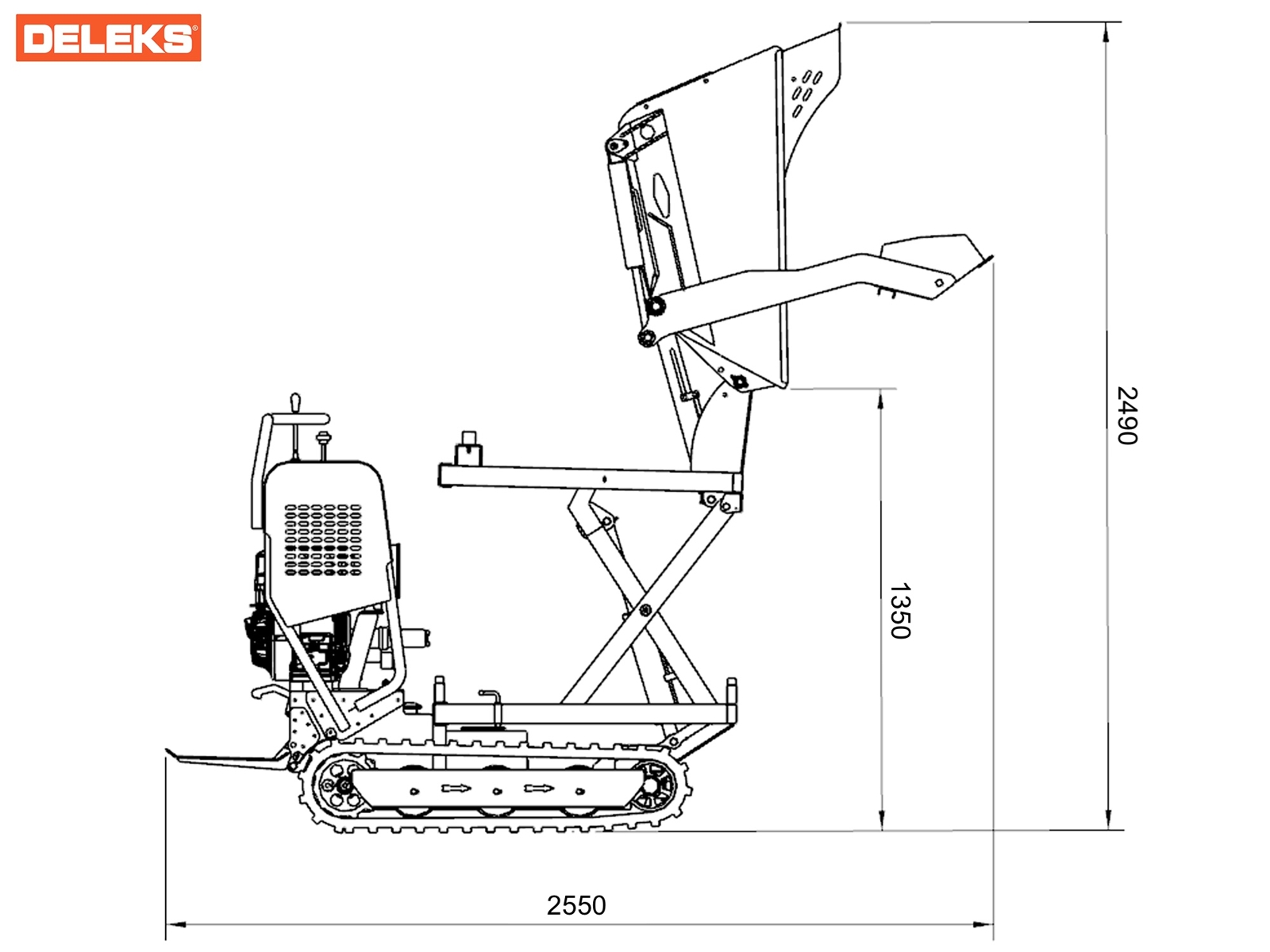

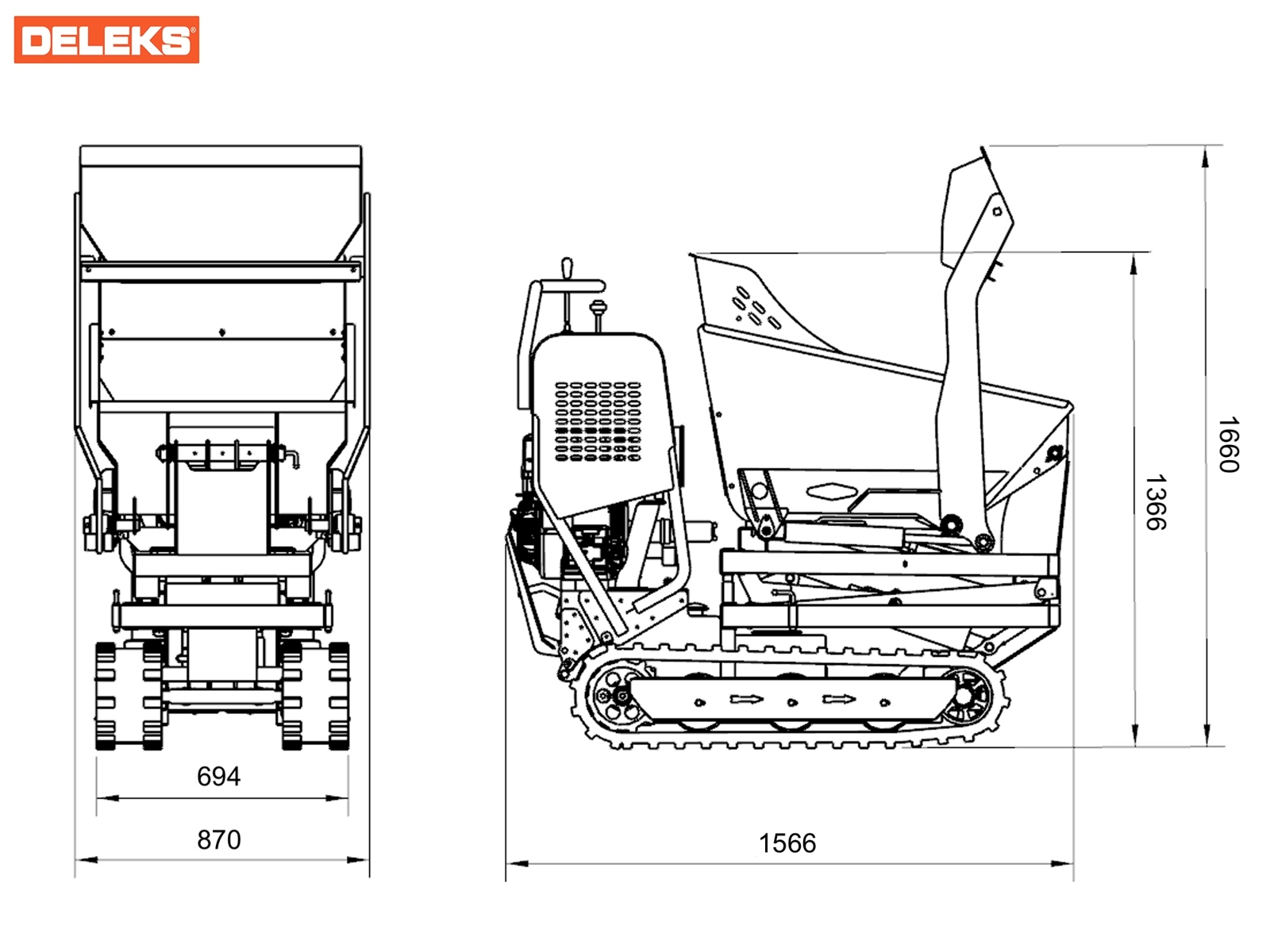

Measurements: see images

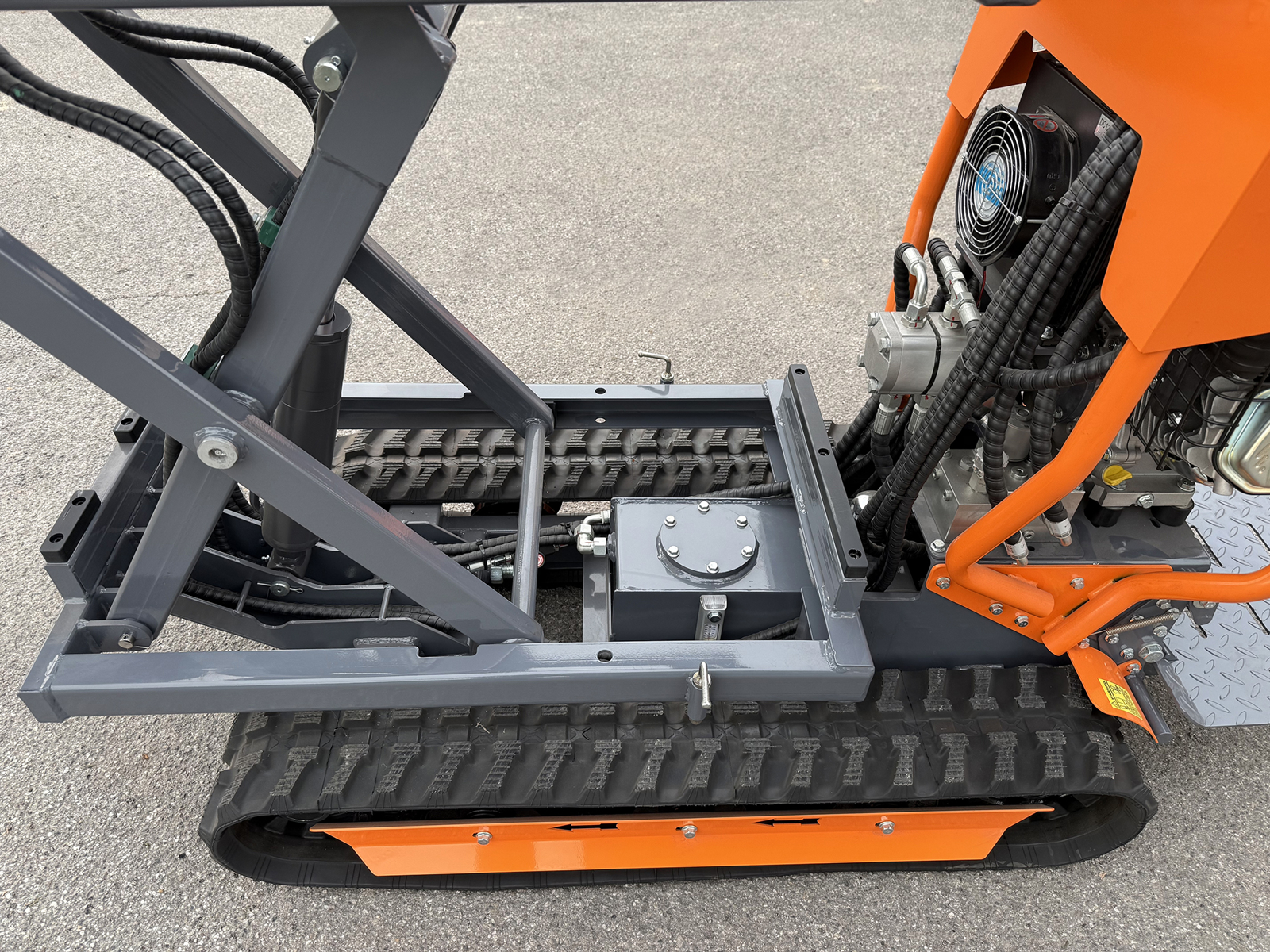

Track width/length: 170 mm x 1160 mm
ADVANTAGES

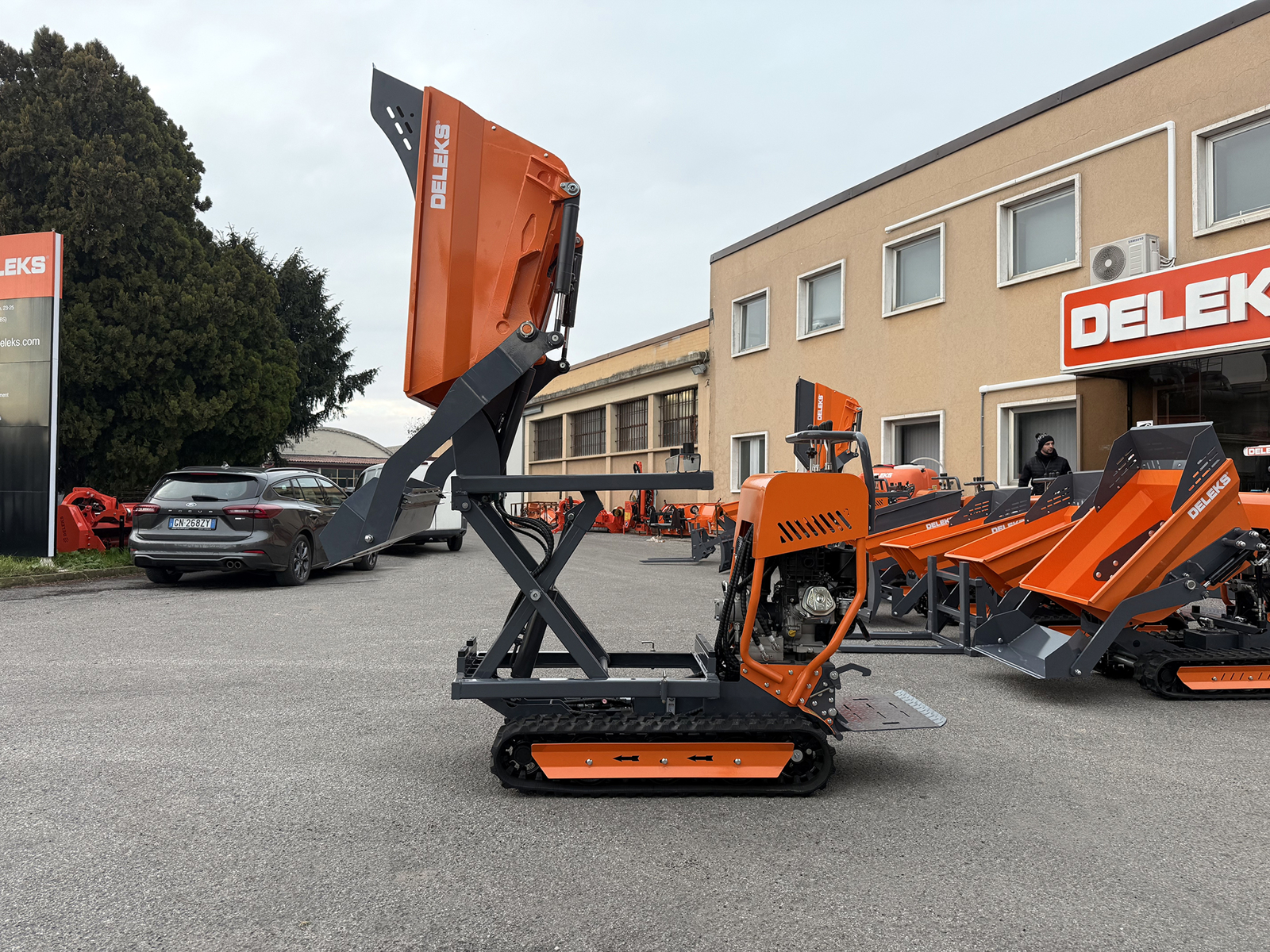

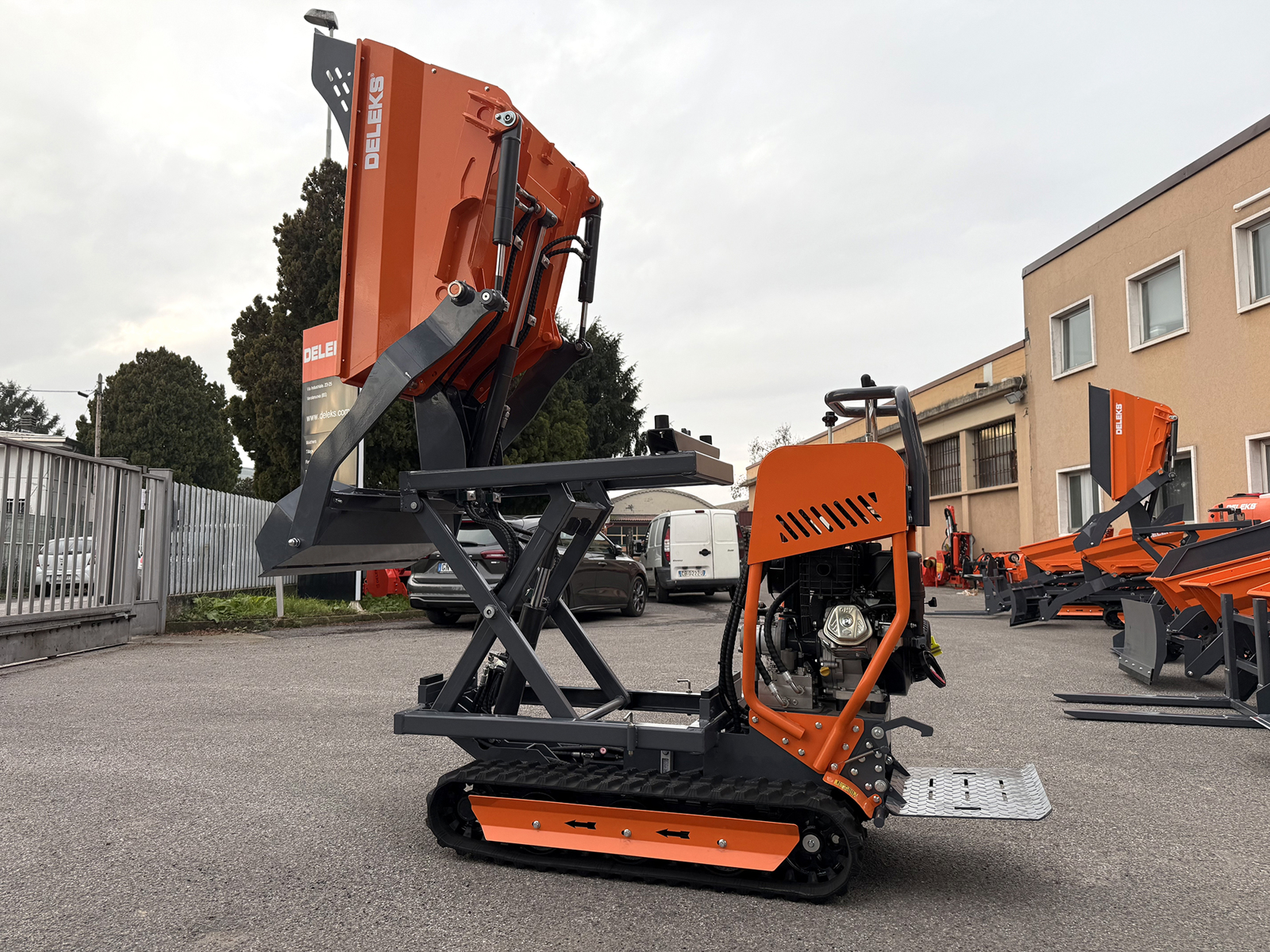

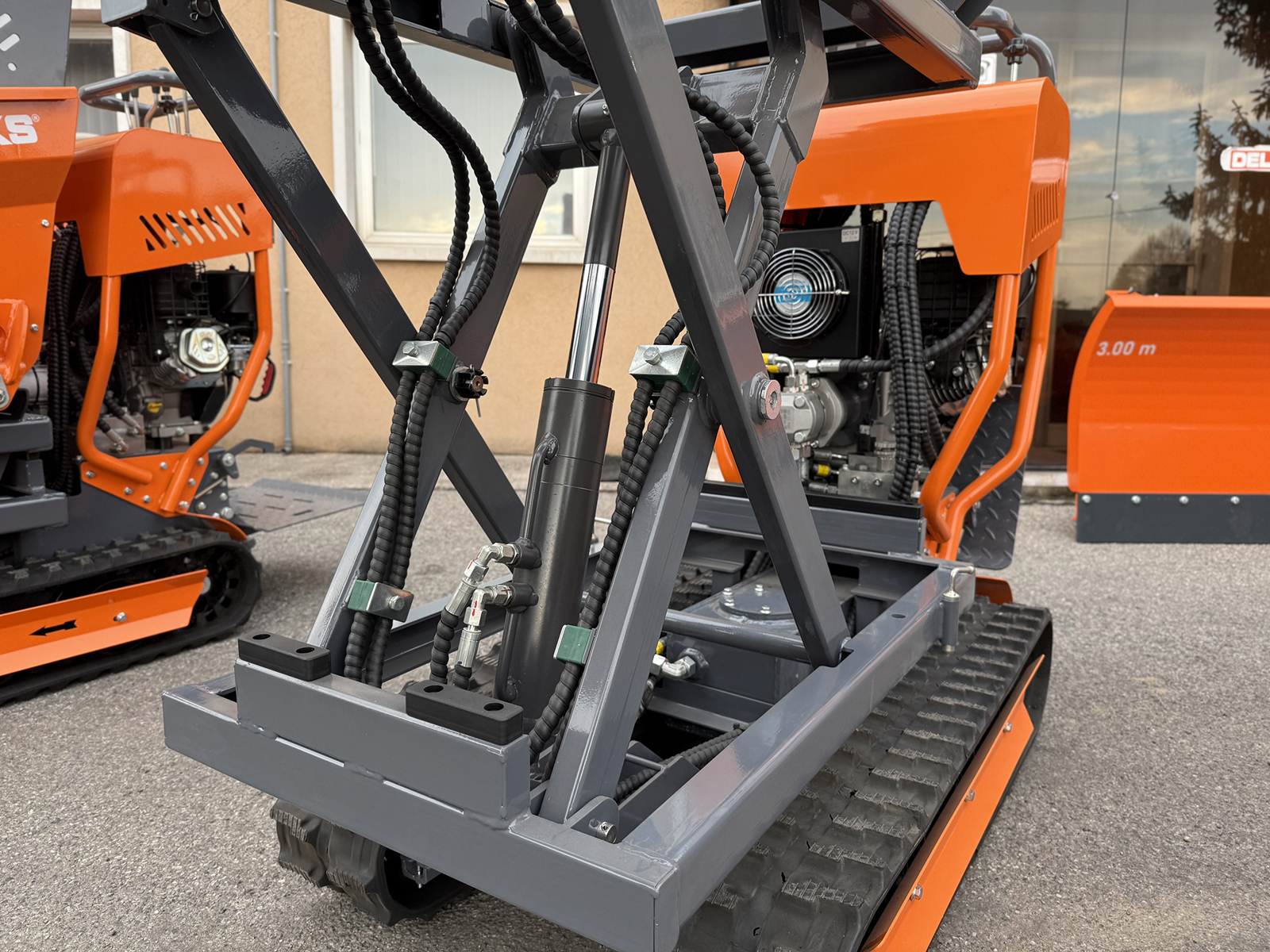

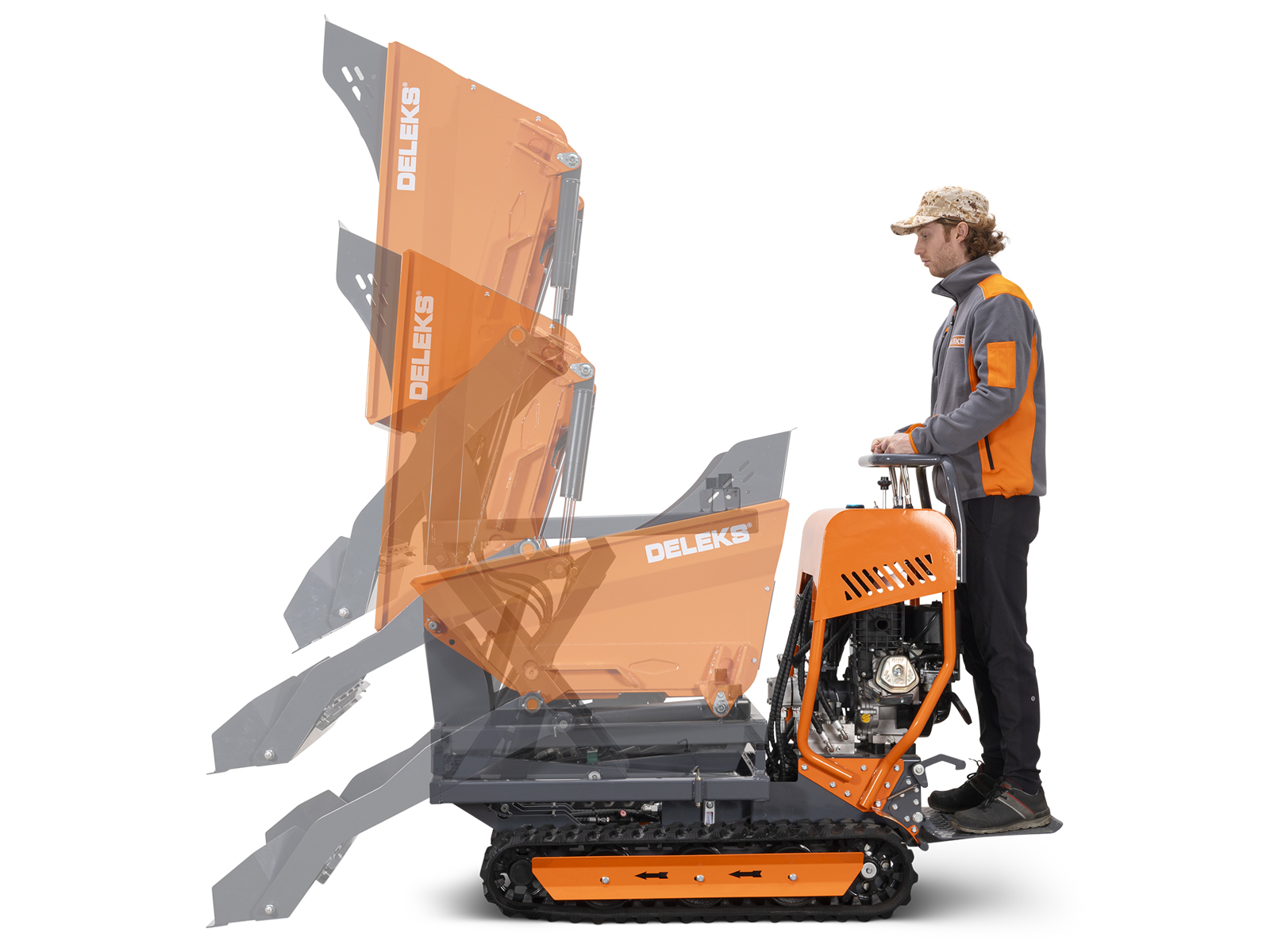

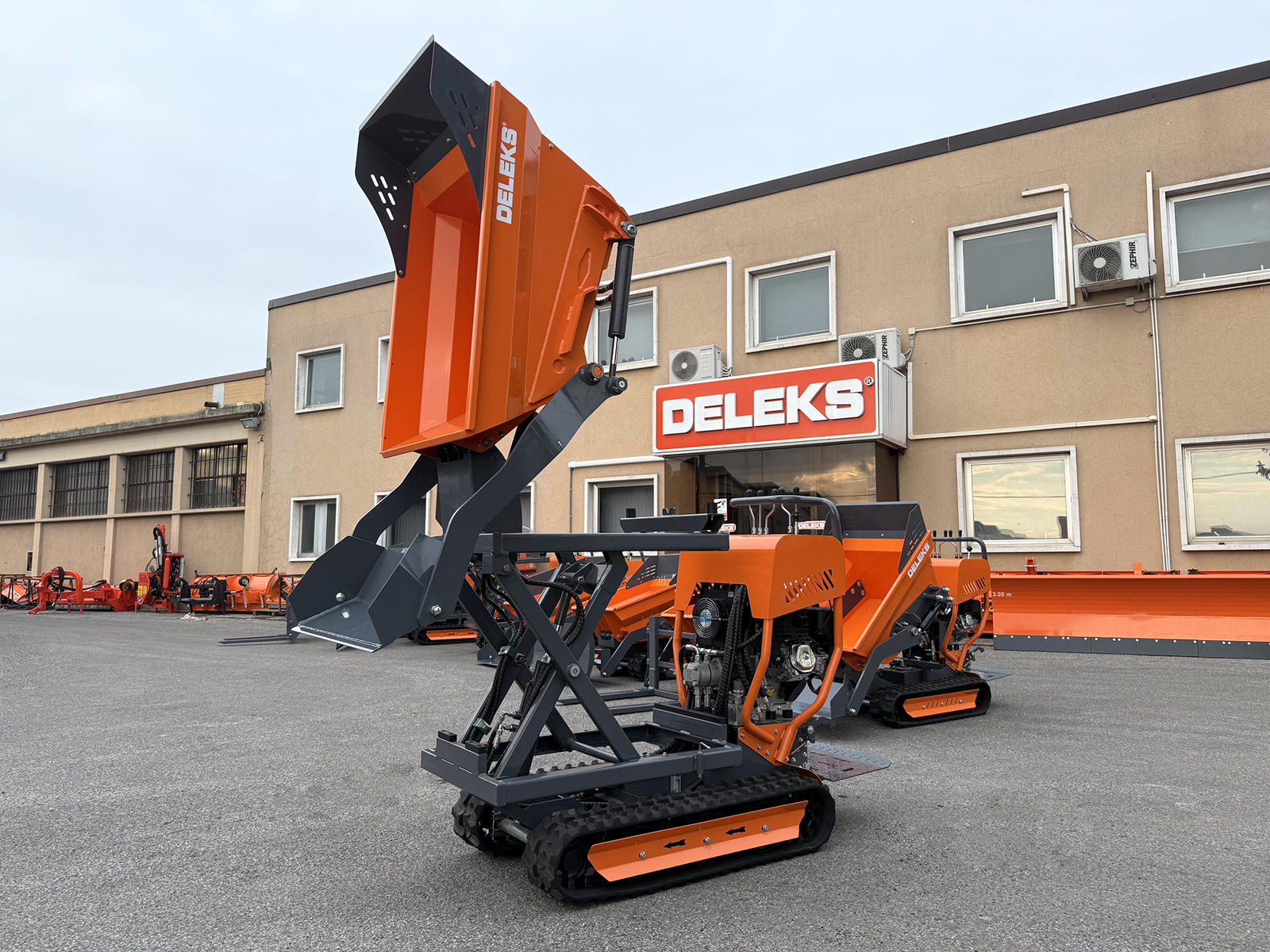

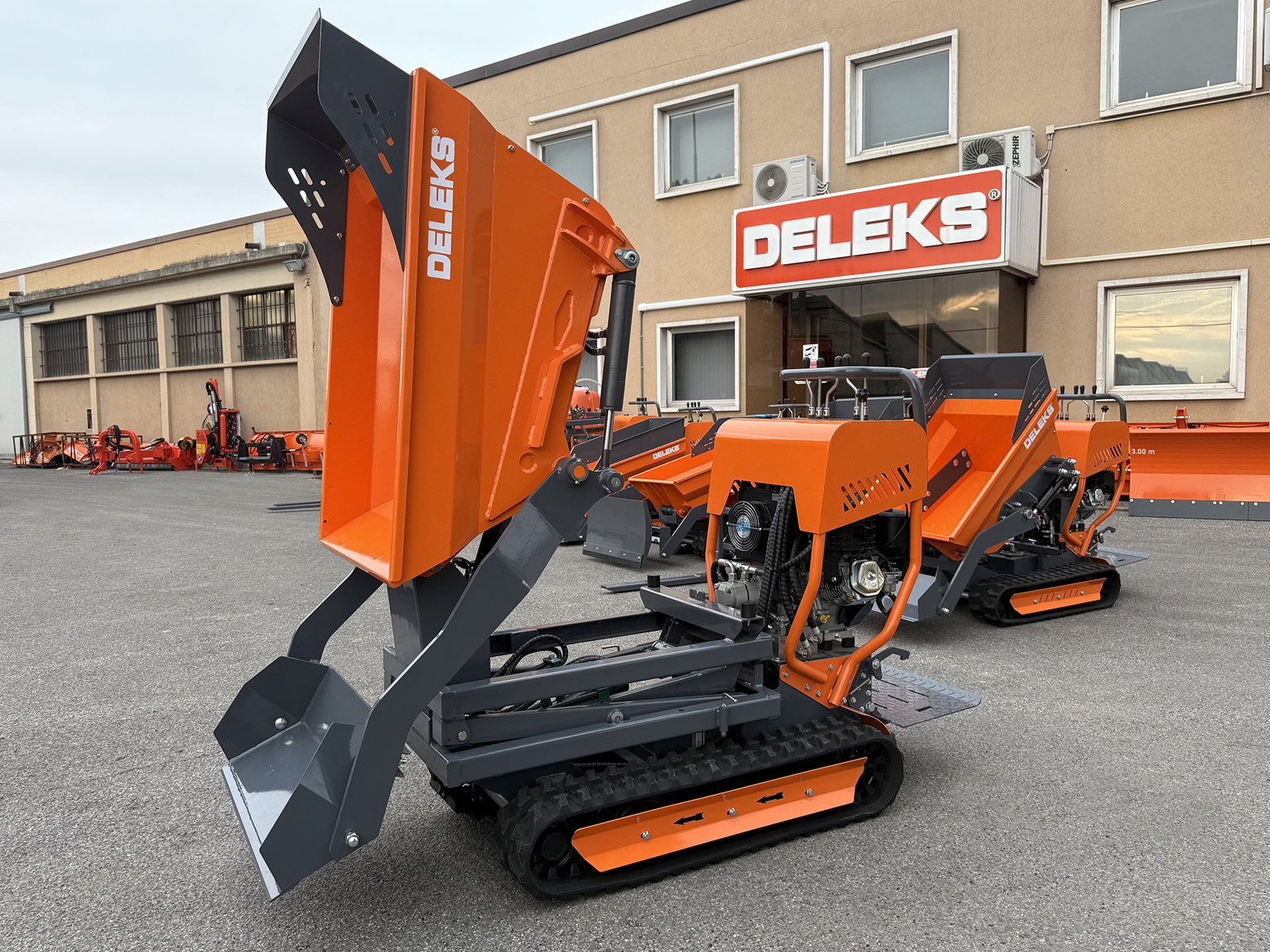

High dump for tipping onto the truck bed

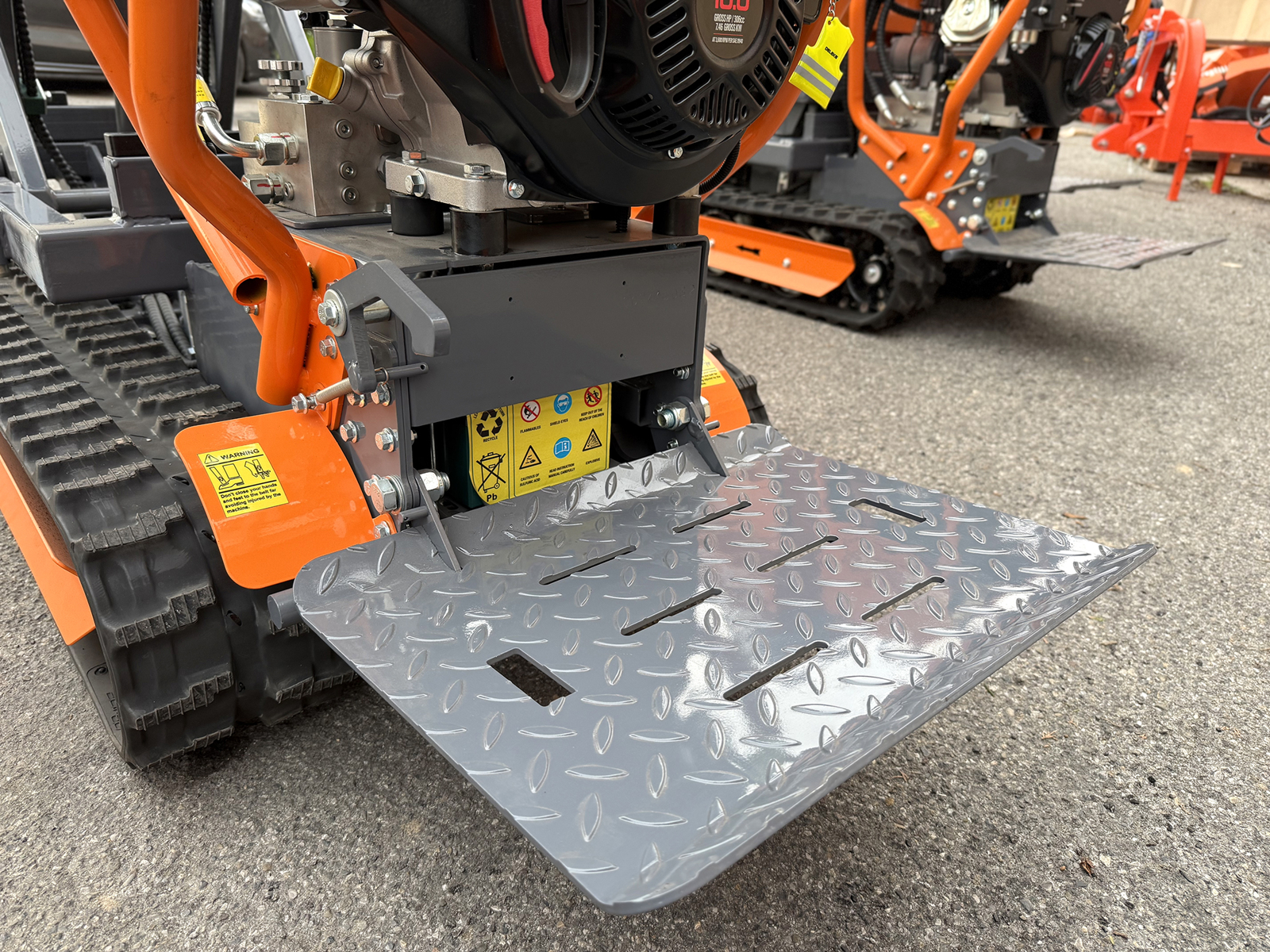

Operator platform

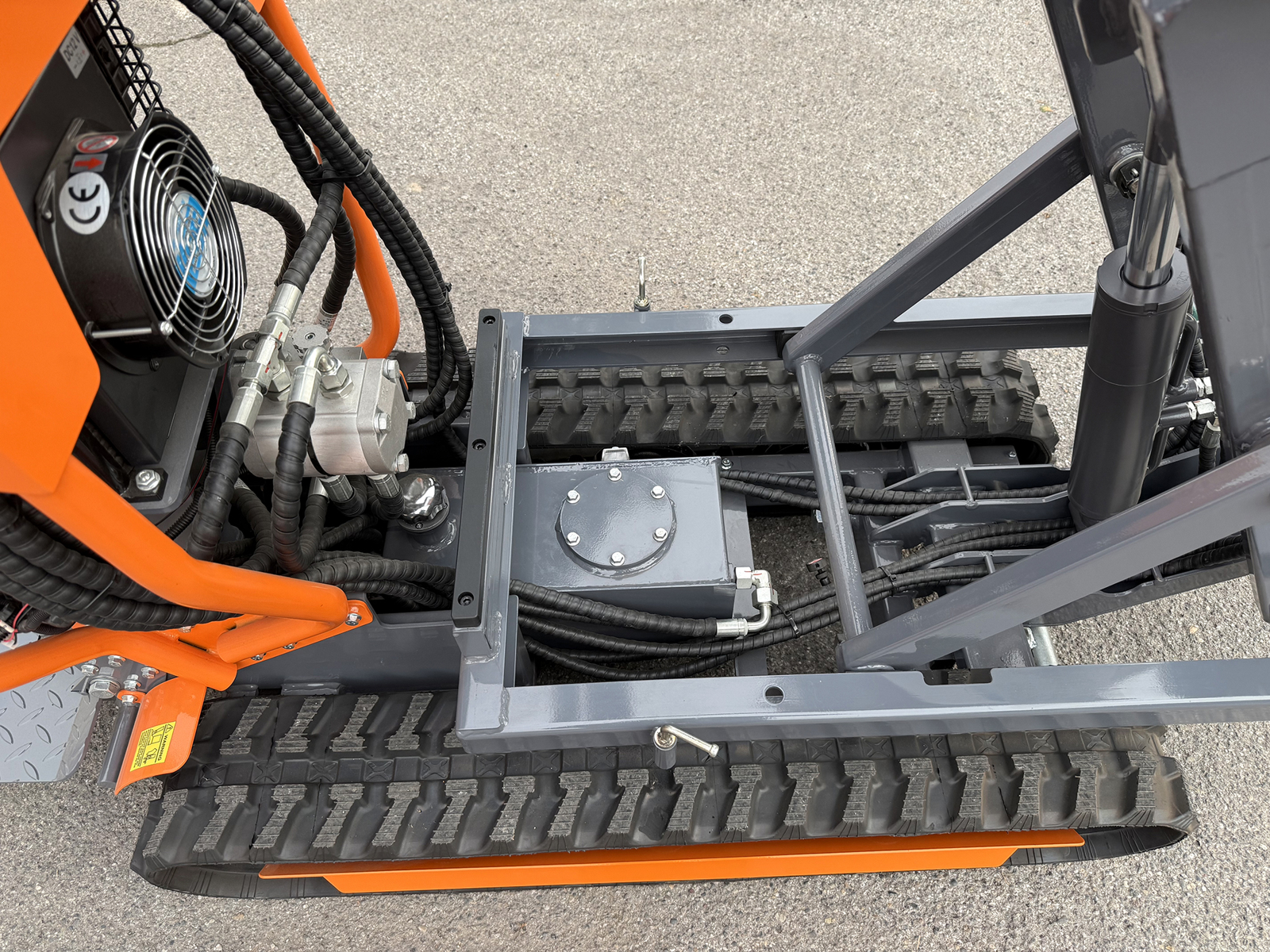

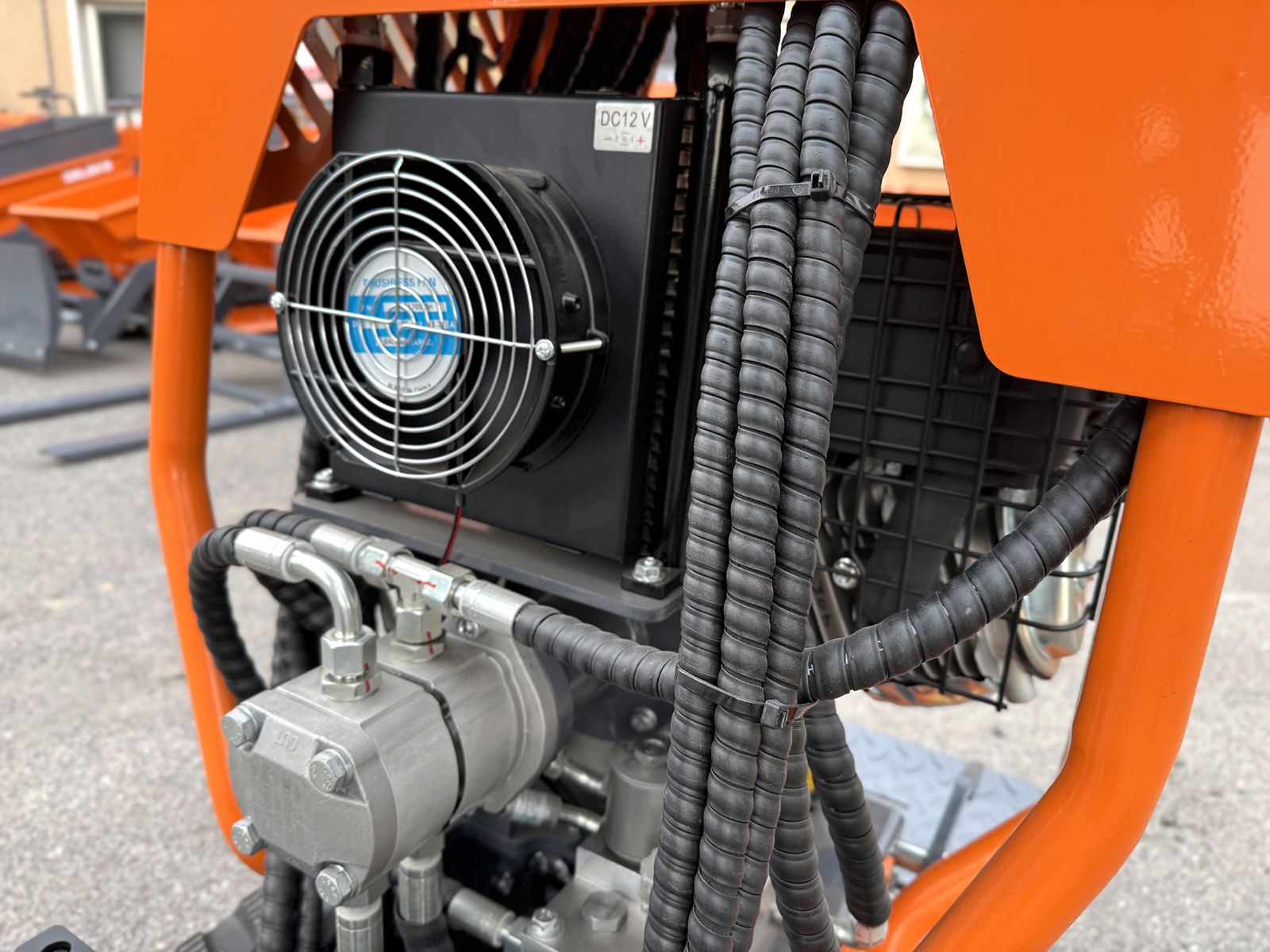

Hydrostatic transmission
Double speed (2 - 6 km/h)

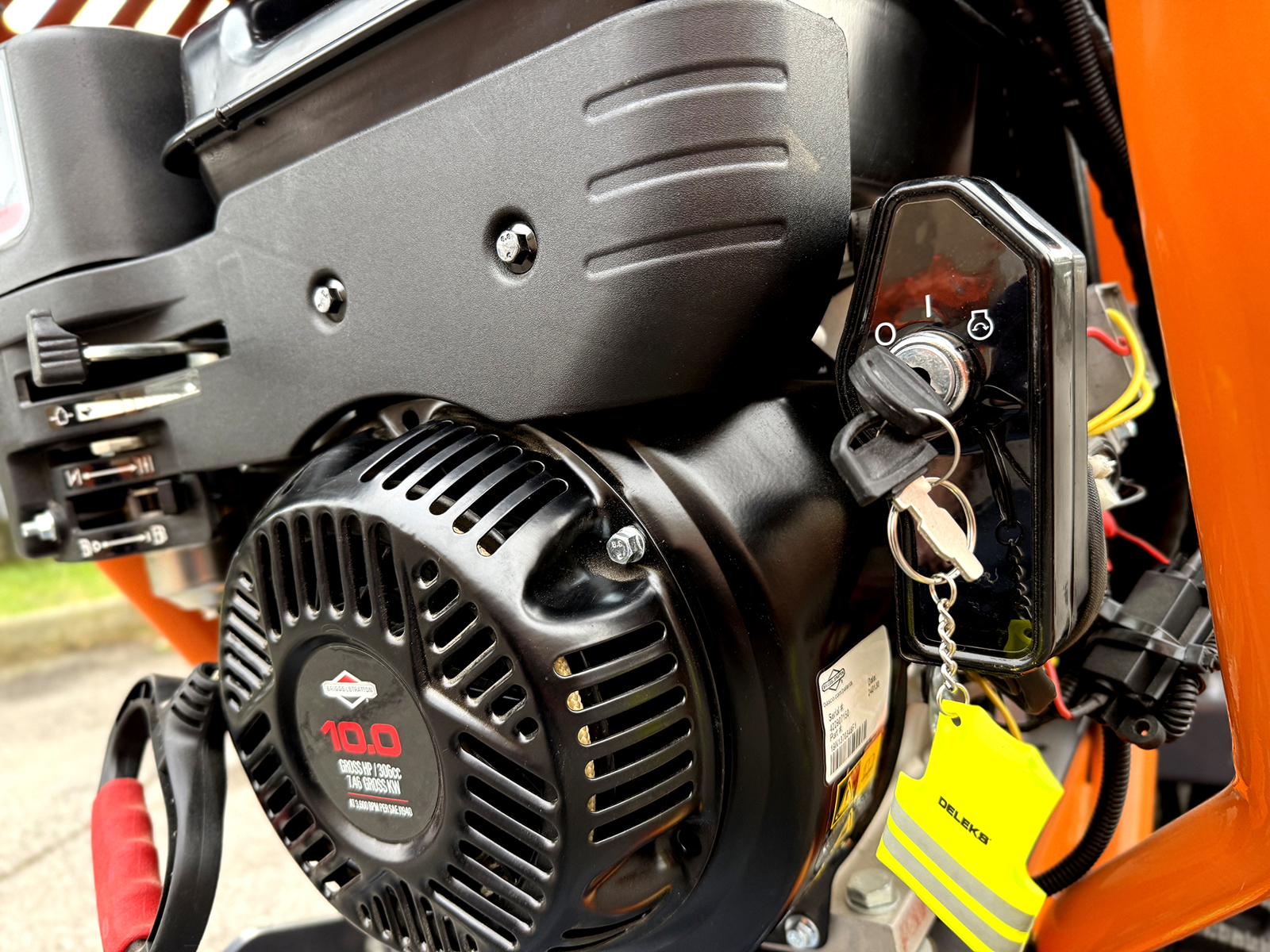

Electric start with key

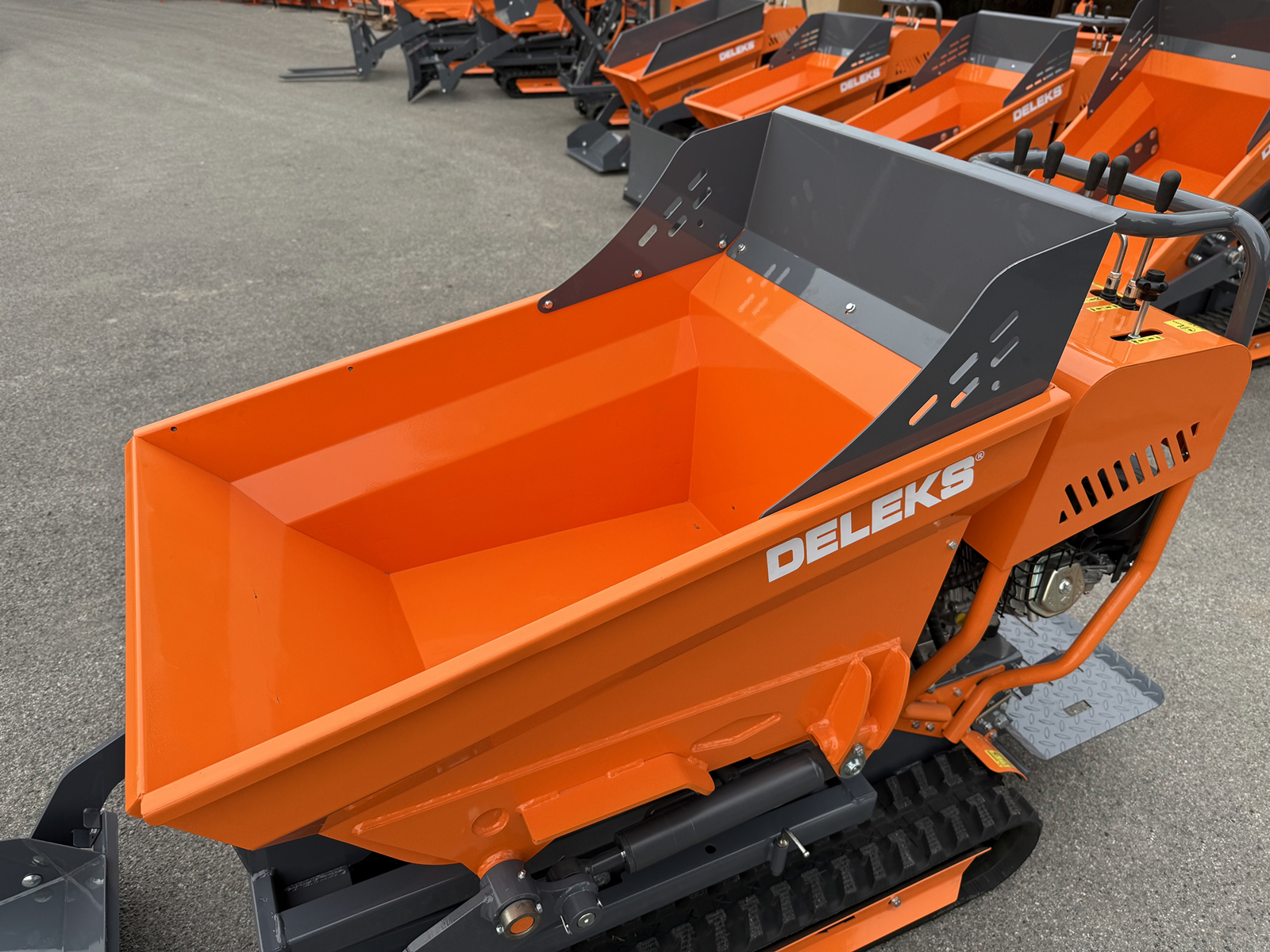

Reinforced body for heavy-duty work

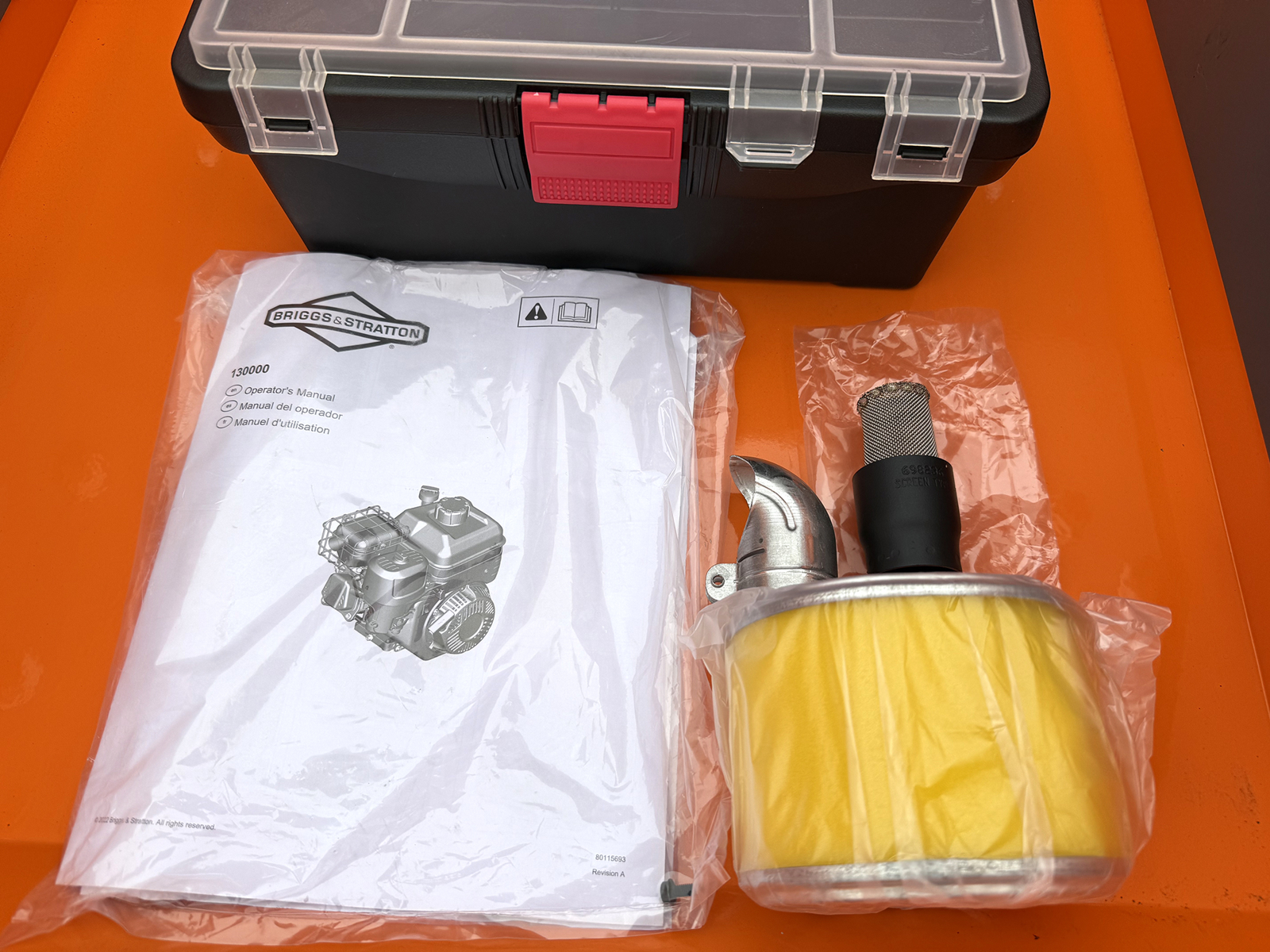

Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 870.0 mm |
| Weight | 520.0 kg |
| Load capacity | 500.0 kg |
| Overall length | 1566.0 mm |
| Tipping Mechanism | Hydraulic |
| Engine | 10.0Hp Briggs&Stratton XR10.0 306cc |
| Starter | E-start |
| Fuel consumption | 1 l/h |
| Bucket capacity (m3) | 0.20 |
| Packing sizes | 1700.0*900.0*1500.0 mm |
DETAILS
CLOSEDELEKS® V3000H Self-loading tracked minidumper, high dump, hydrostatic transmission, operator platform, Briggs&Stratton engine, electric start.
APPLICATION
V3000H tracked minidumper suitable for loading and moving earth, sand, building material, waste, etc.
Briggs&Stratton XR10.0 engine, 10.0Hp /7.4 Kw, 306cc
Fuel: petrol
Body: dumper type with high tip
Capacity: 500 kg
Tipping: hydraulic
Driving system with lever controls
Measurements: see images
Track width/length: 170 mm x 1160 mm
ADVANTAGES
High dump for tipping onto the truck bed
Operator platform
Hydrostatic transmission
Double speed (2 - 6 km/h)
Electric start with key
Reinforced body for heavy-duty work
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Overall width | 870.0 mm |
| Weight | 520.0 kg |
| Load capacity | 500.0 kg |
| Overall length | 1566.0 mm |
| Tipping Mechanism | Hydraulic |
| Engine | 10.0Hp Briggs&Stratton XR10.0 306cc |
| Starter | E-start |
| Fuel consumption | 1 l/h |
| Bucket capacity (m3) | 0.20 |
| Packing sizes | 1700.0*900.0*1500.0 mm |

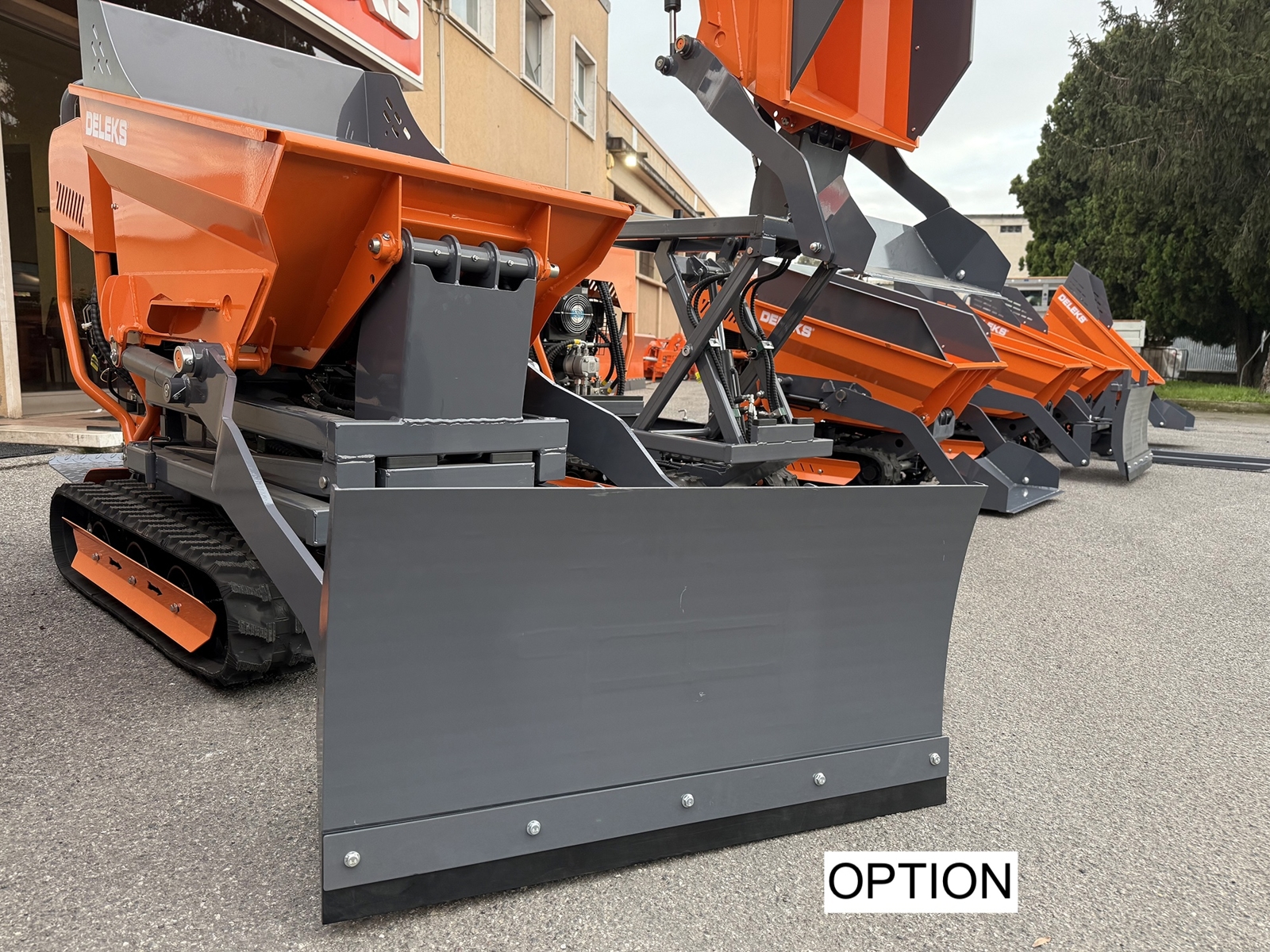

Optional
