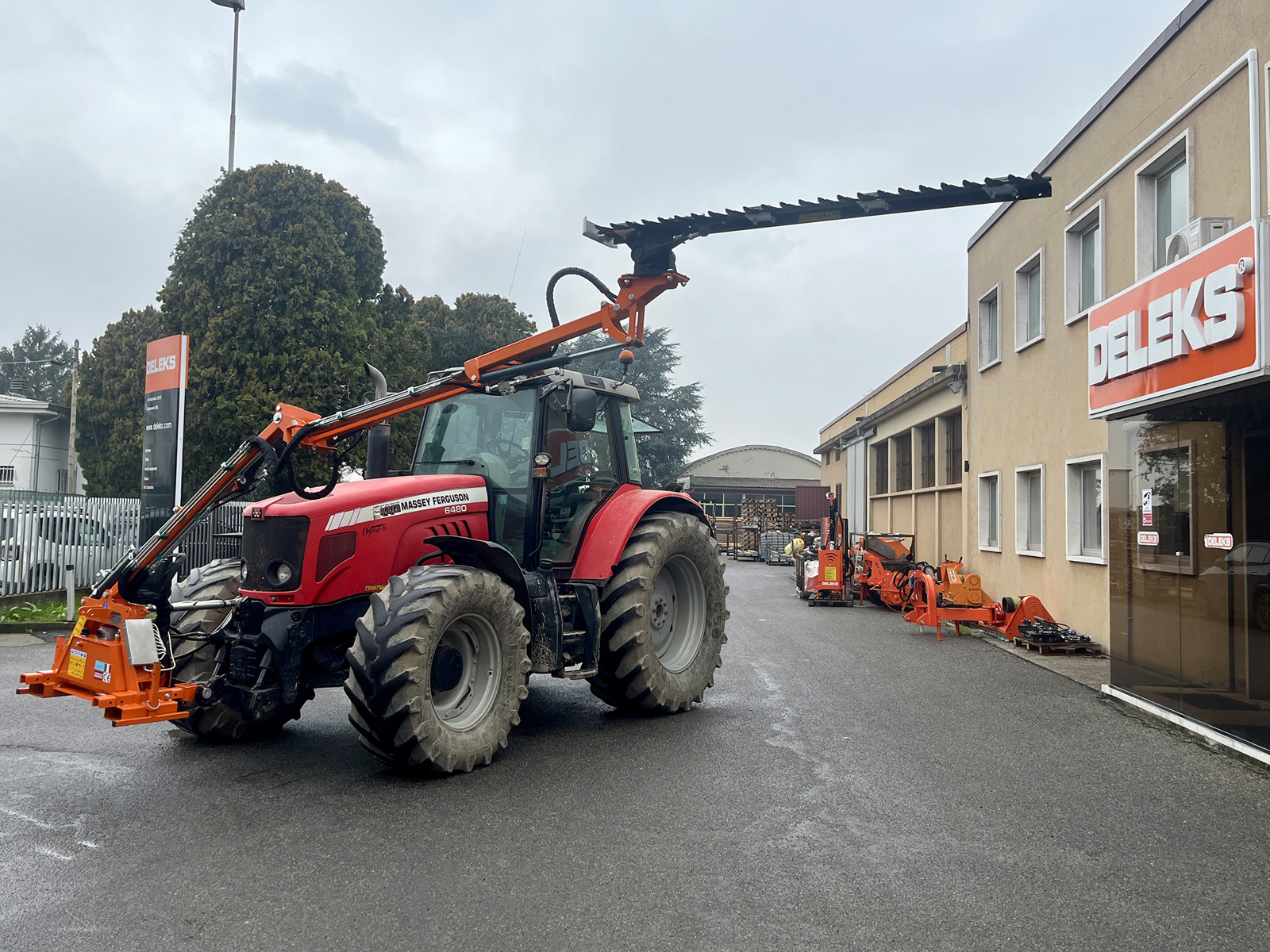

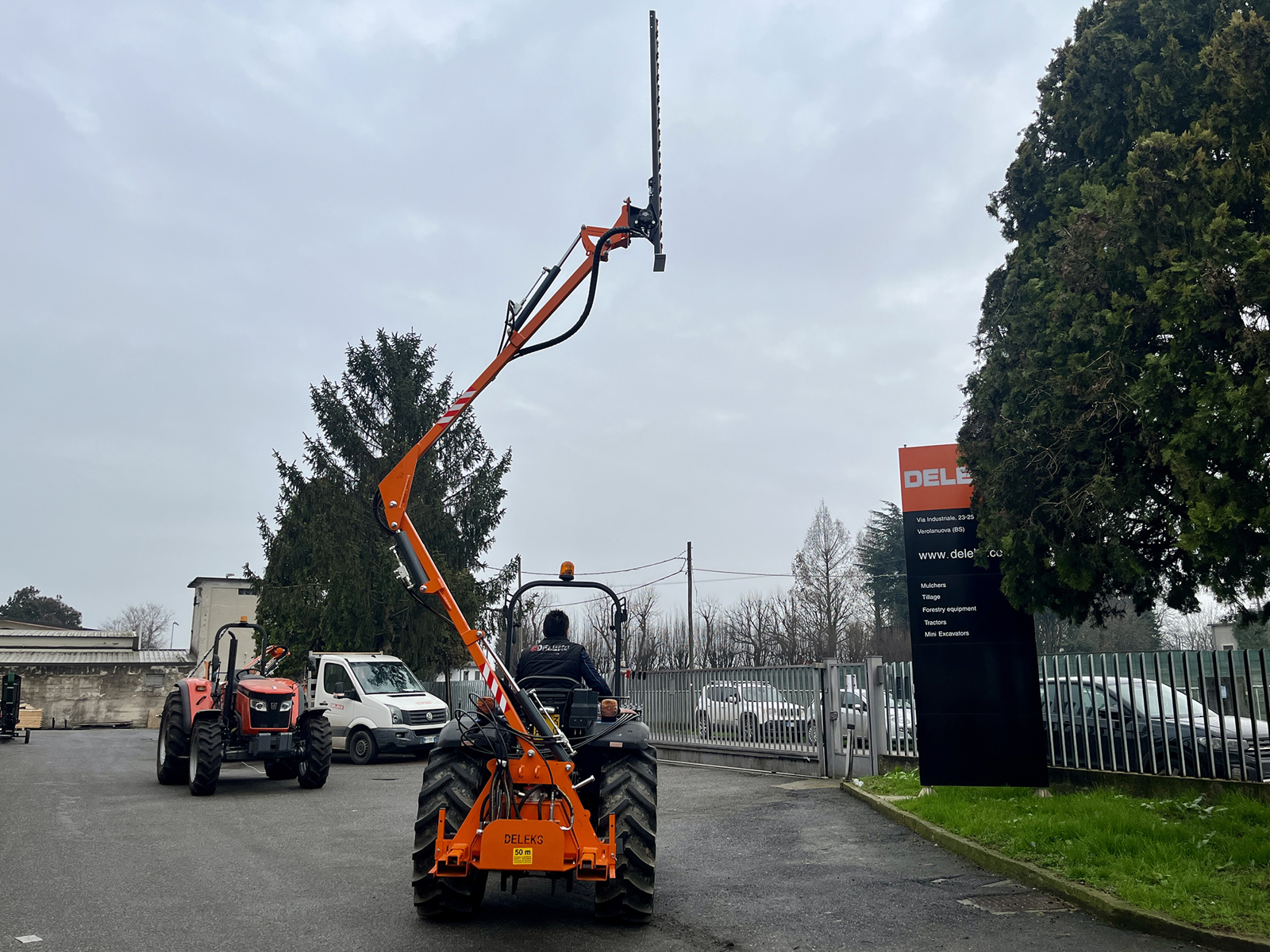

Hydraulic hedge bush cutter for tractor

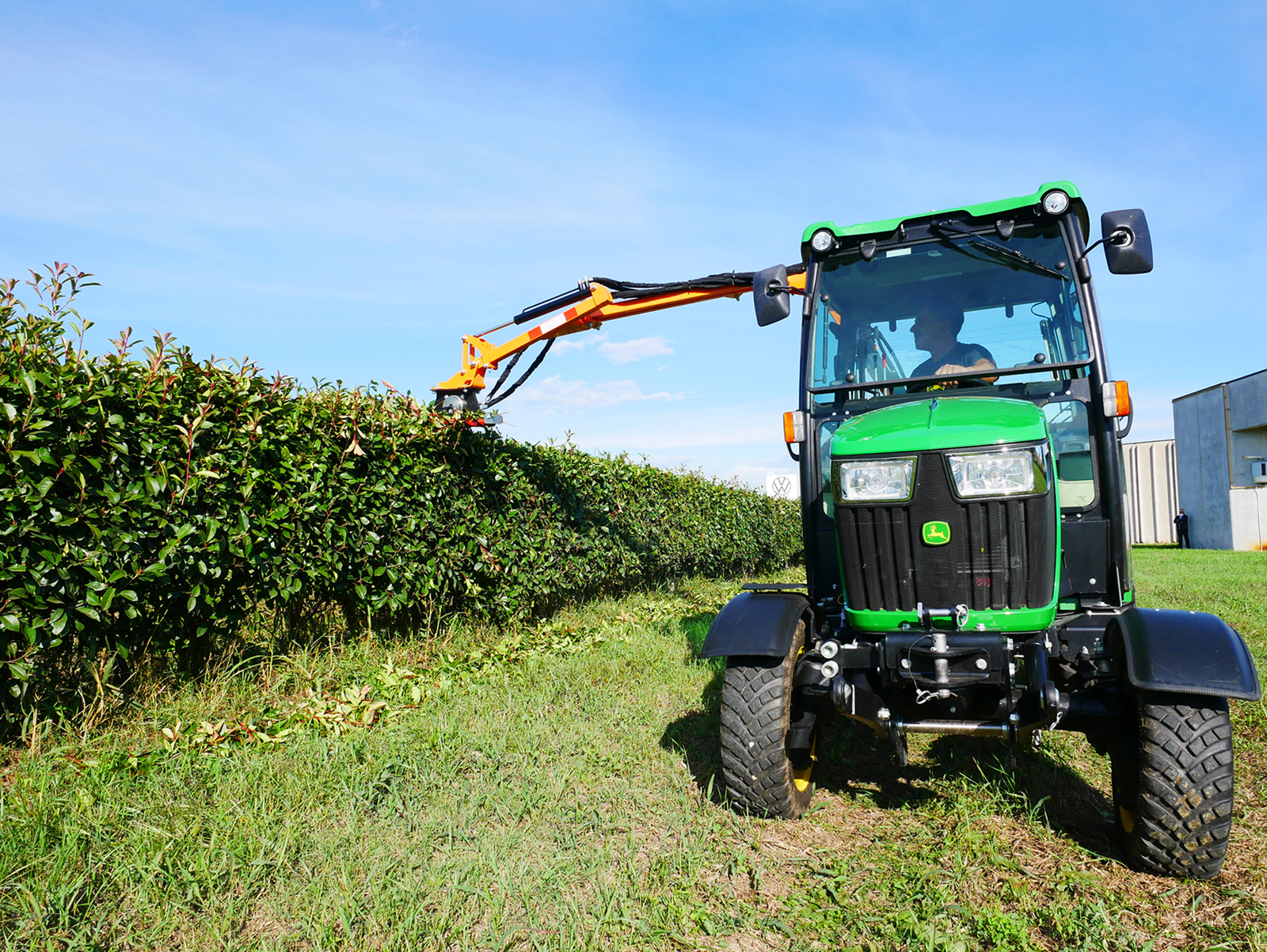

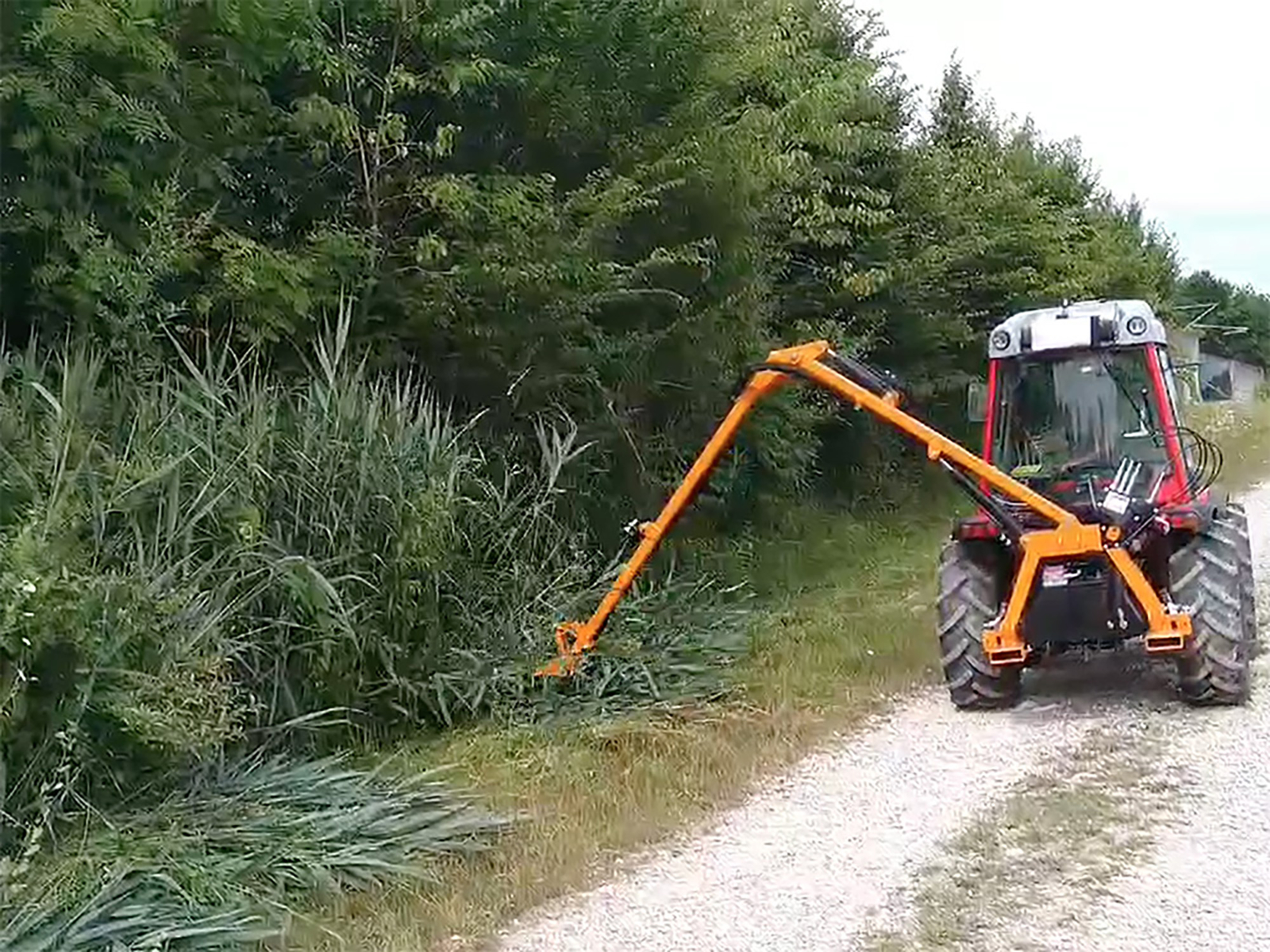

Field test
Chuck Norris Commercial
Review by Edd China (Wheeler Dealers)
Field test
DETAILS

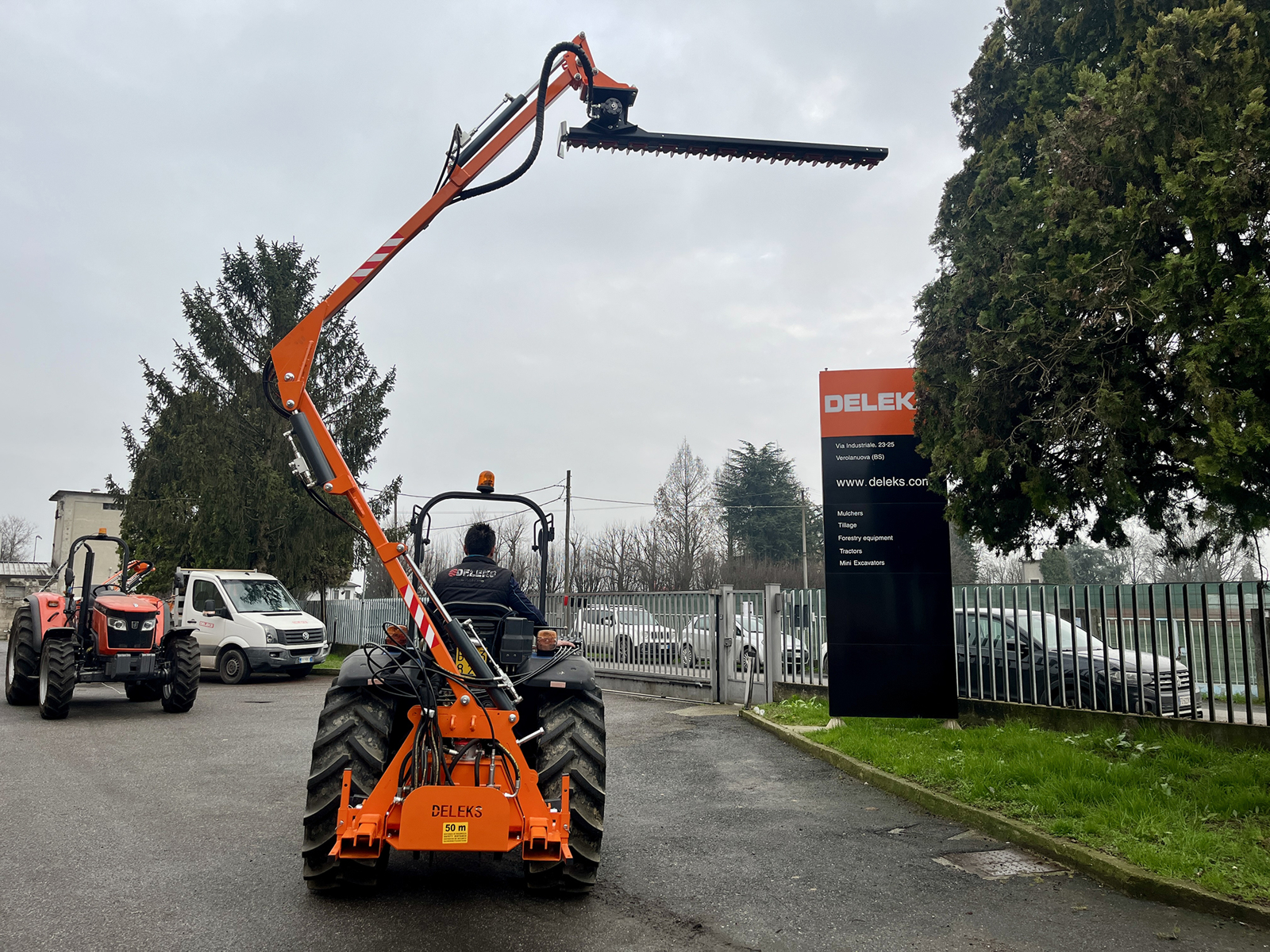

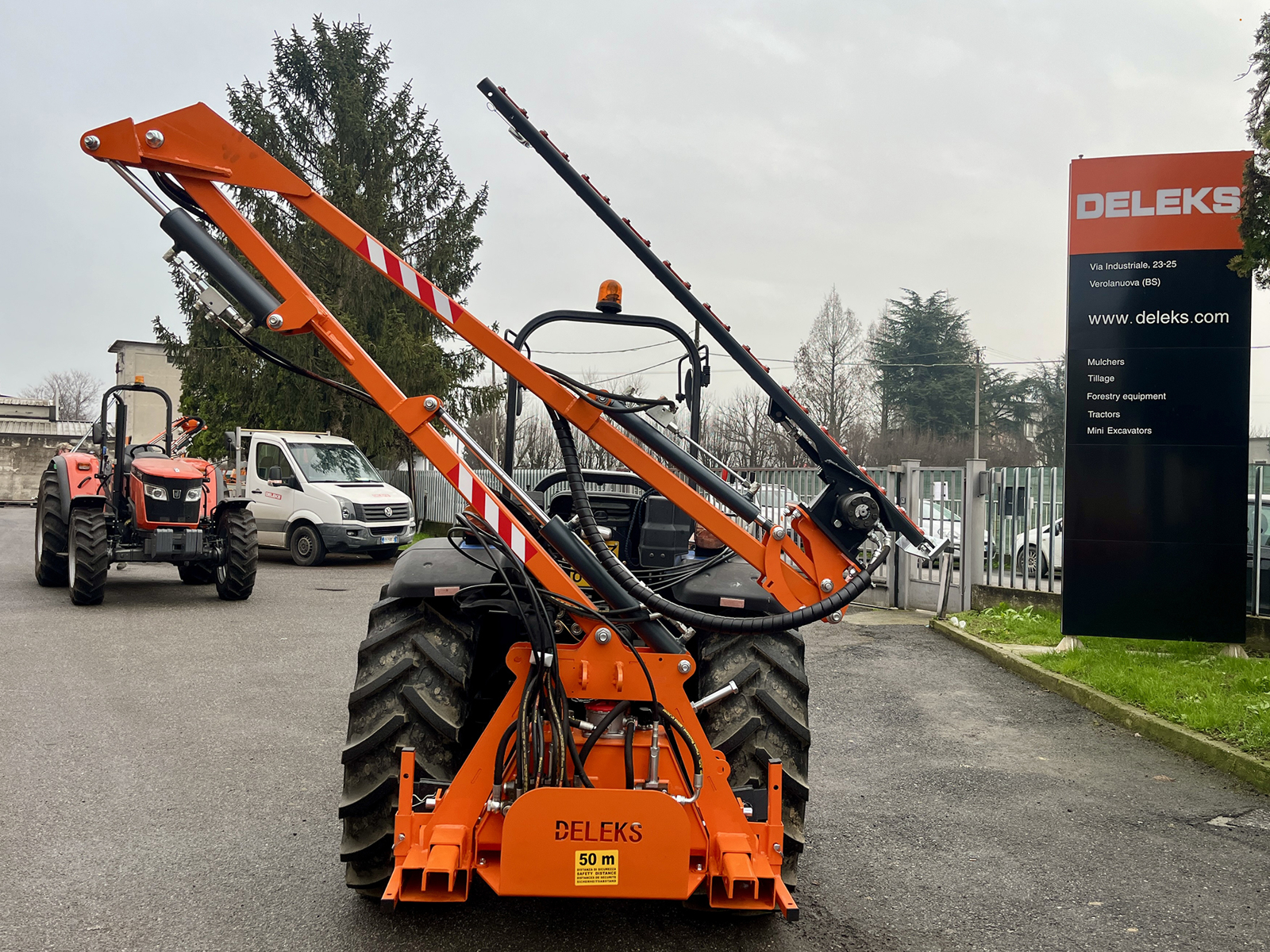

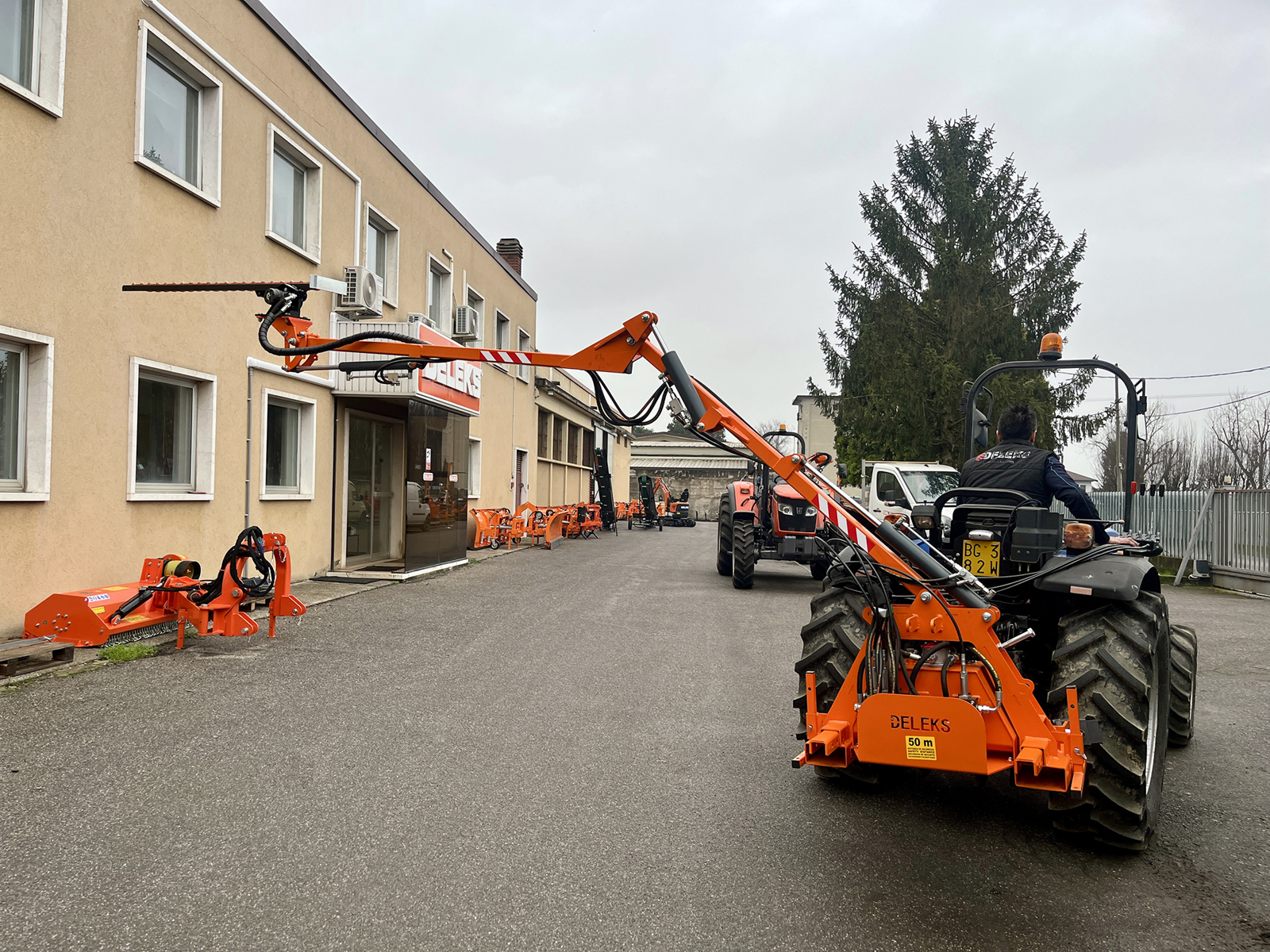

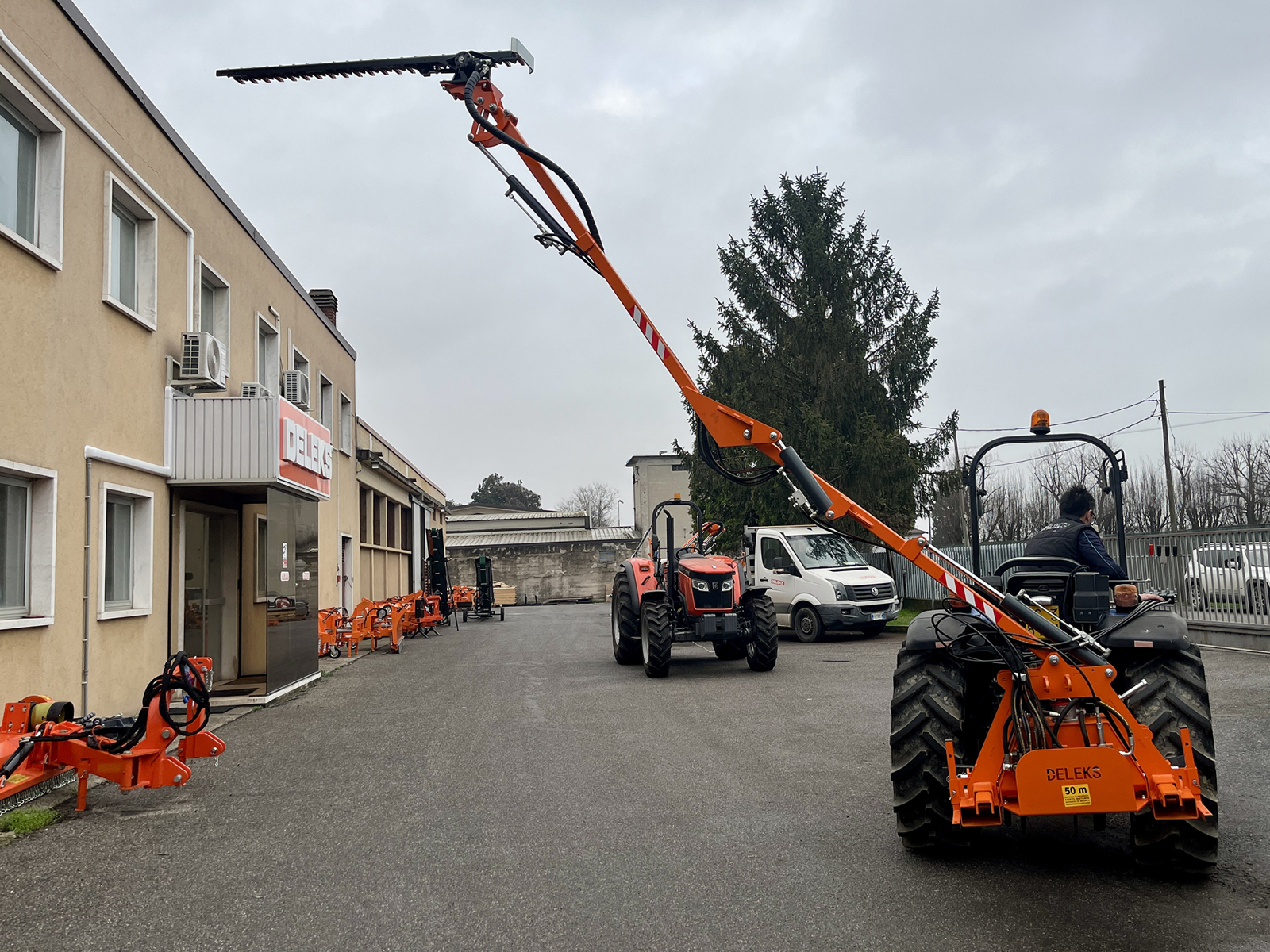

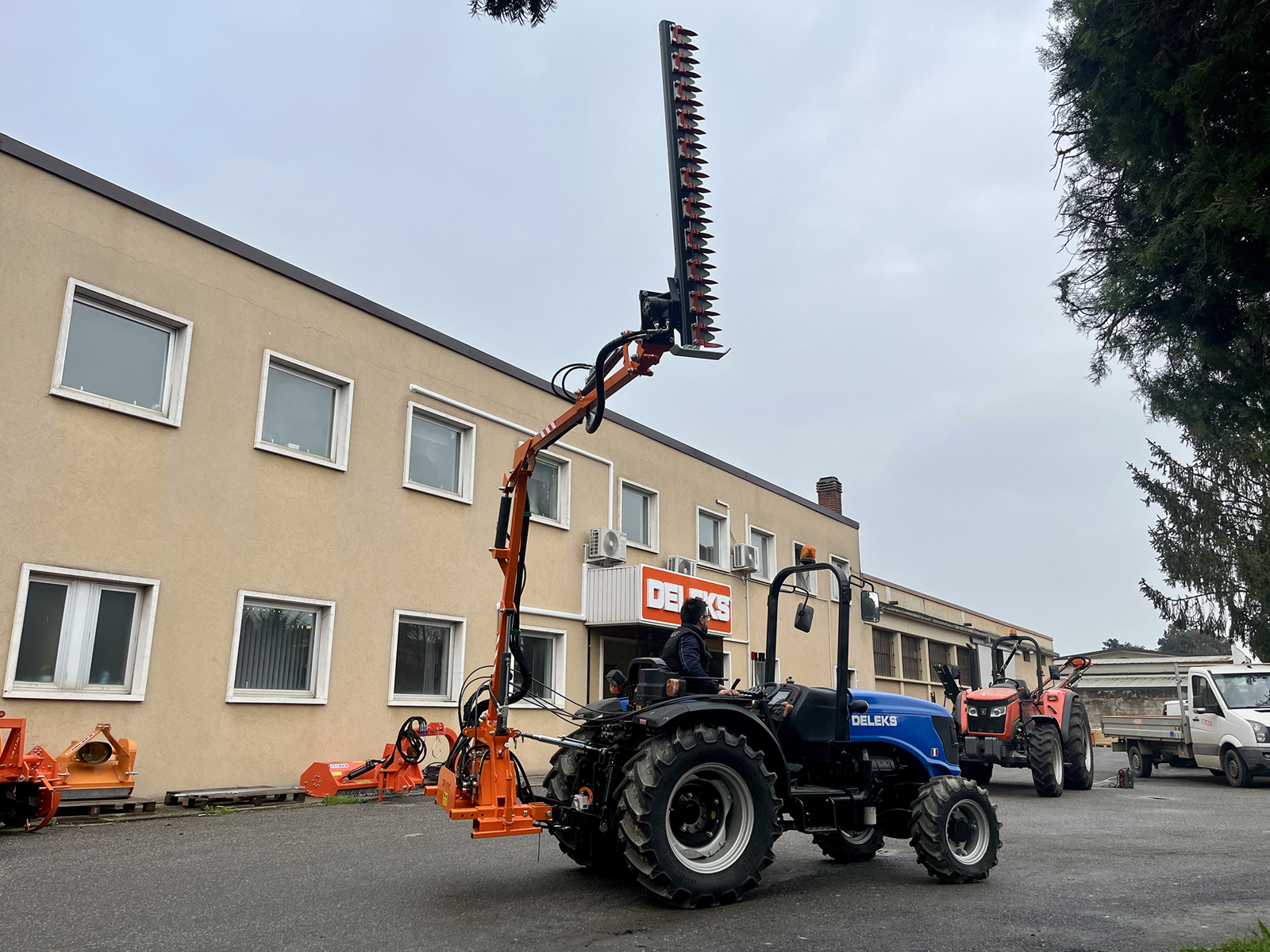

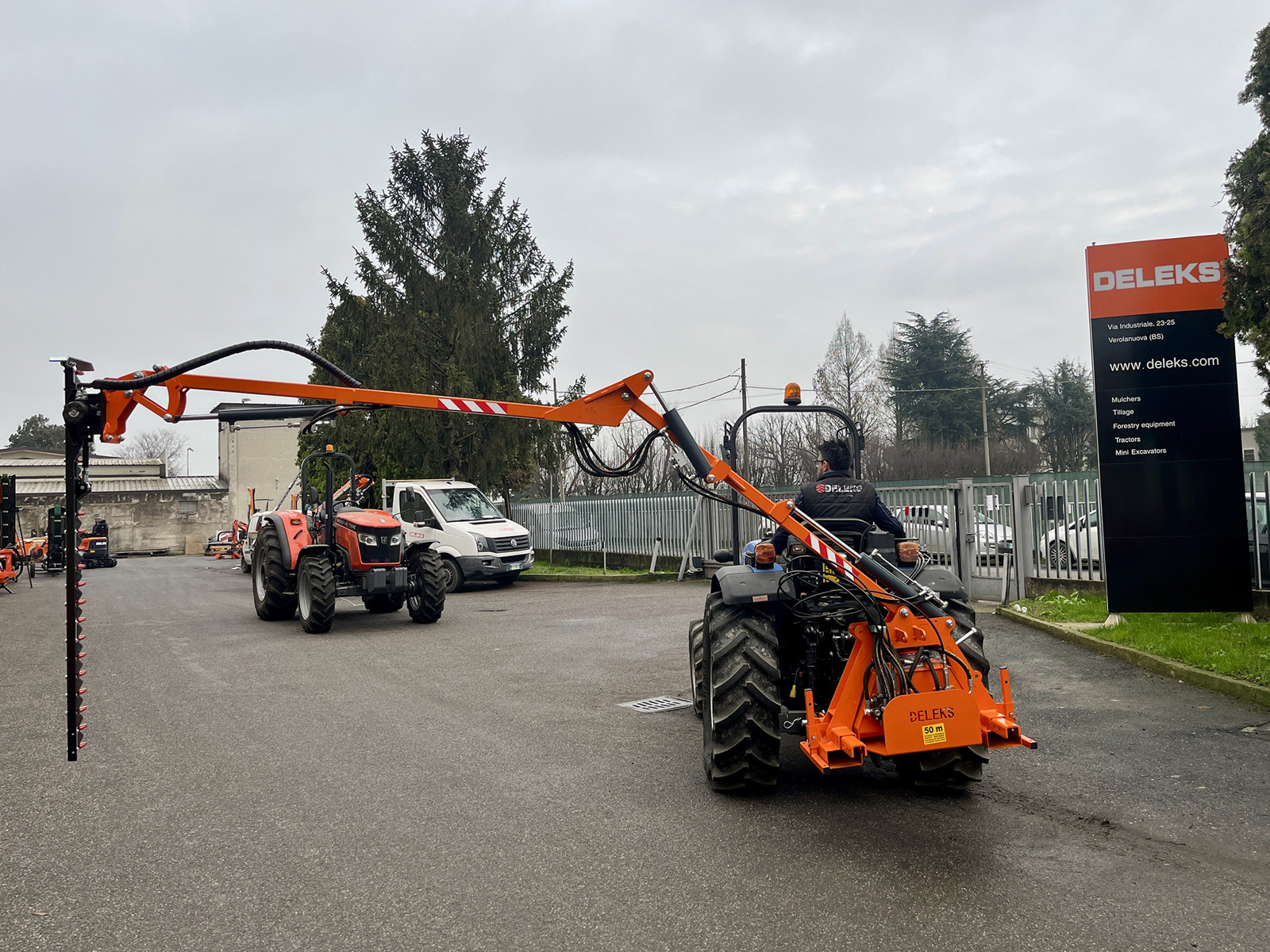

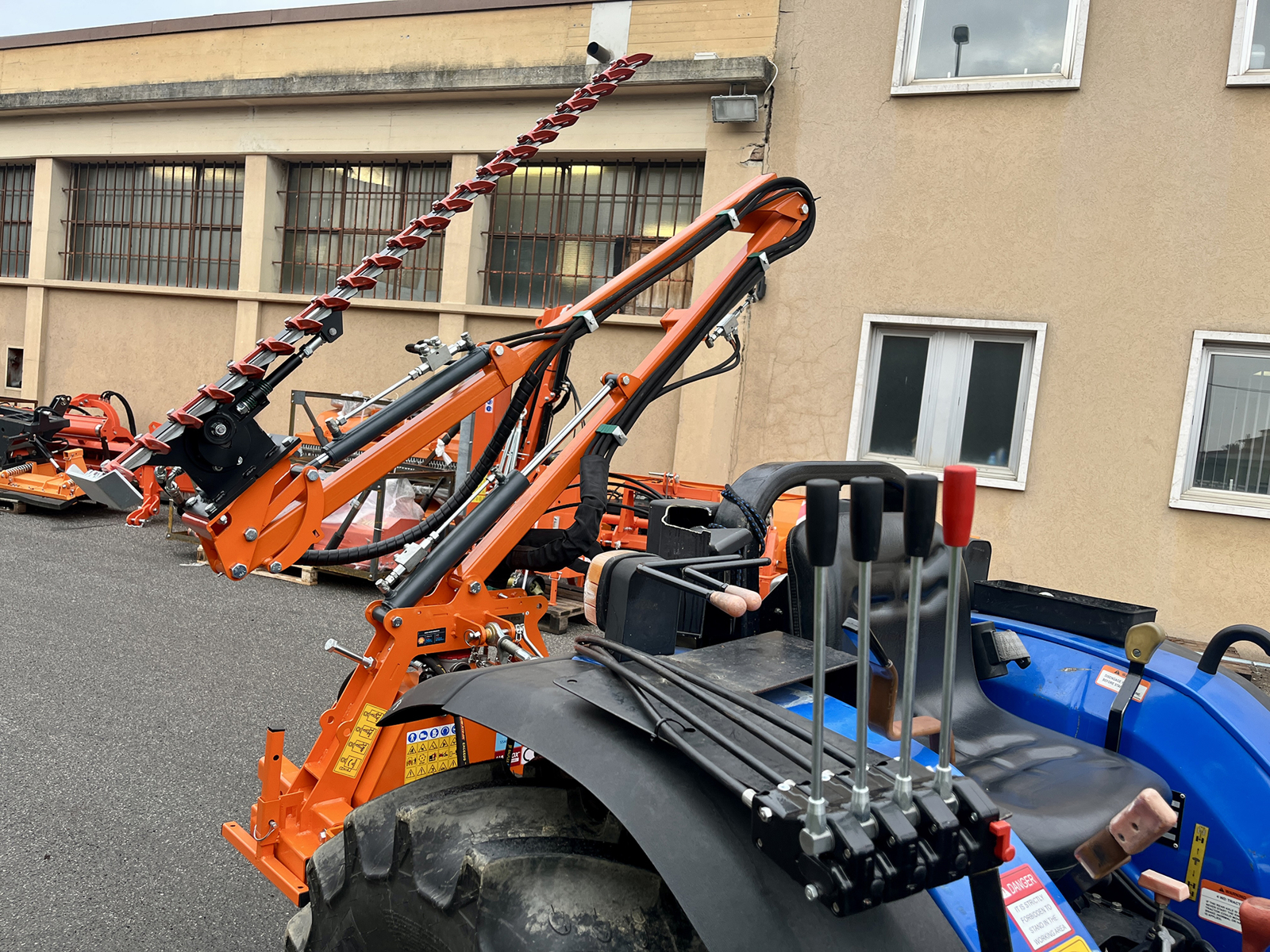

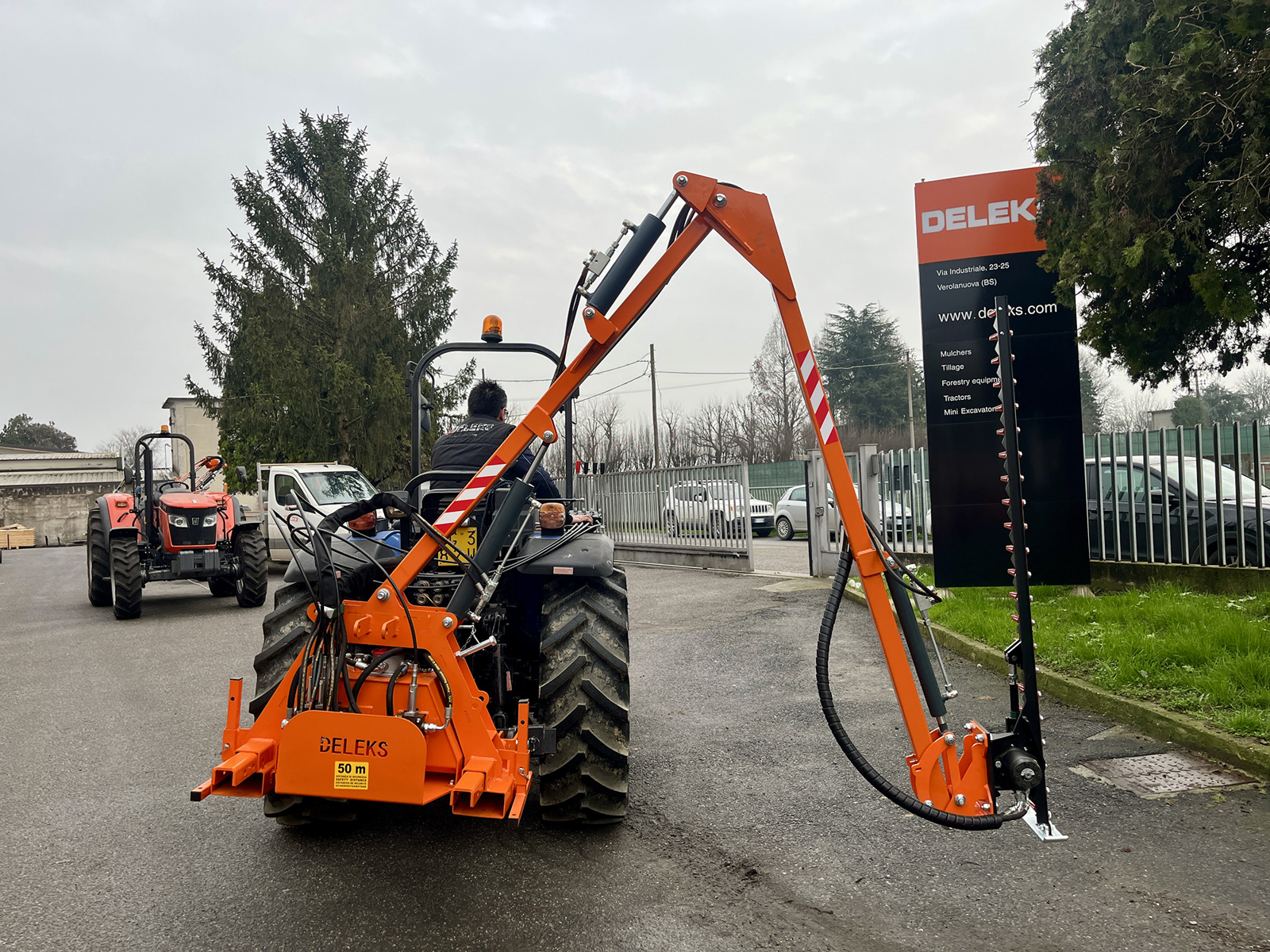

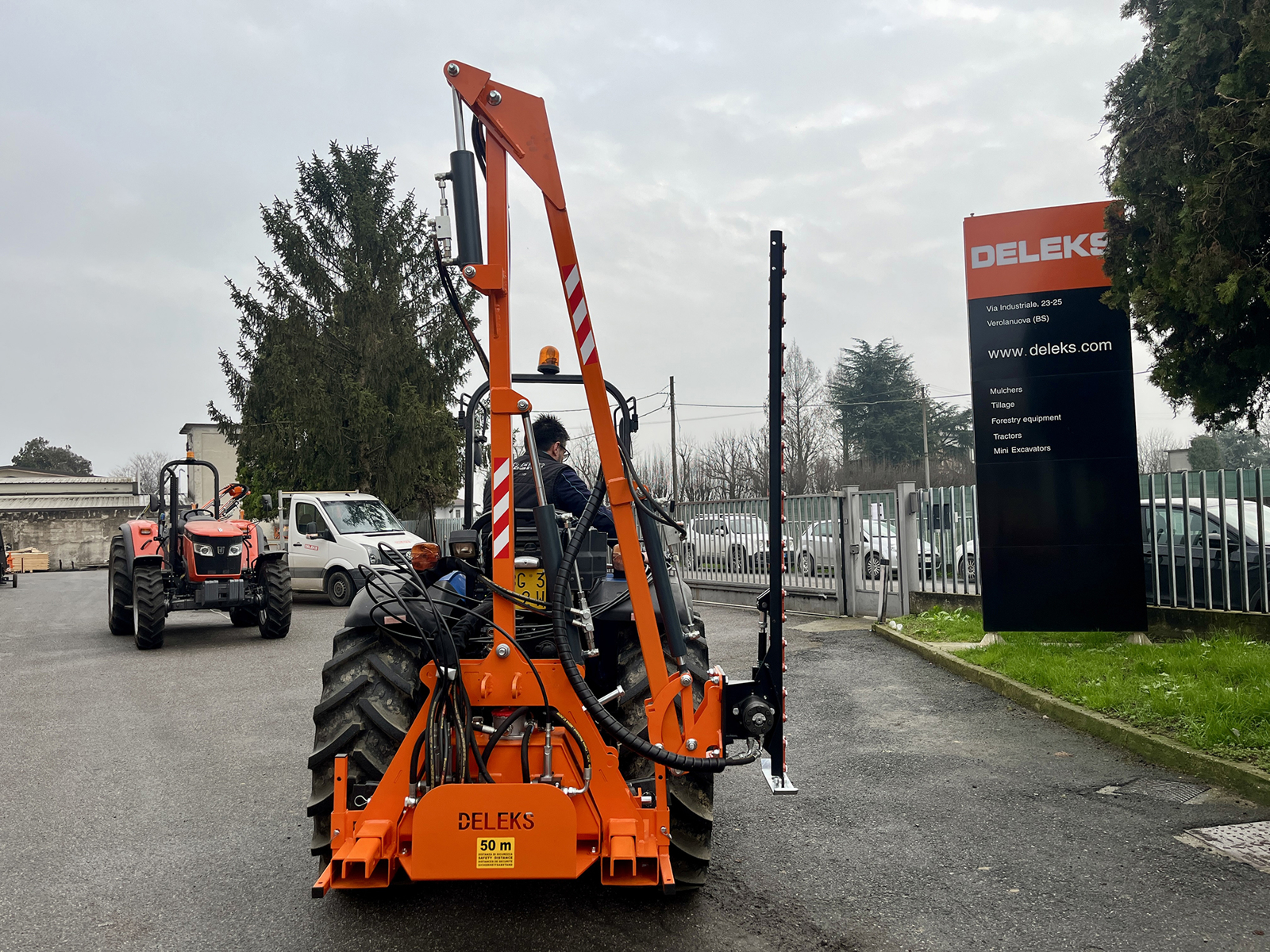

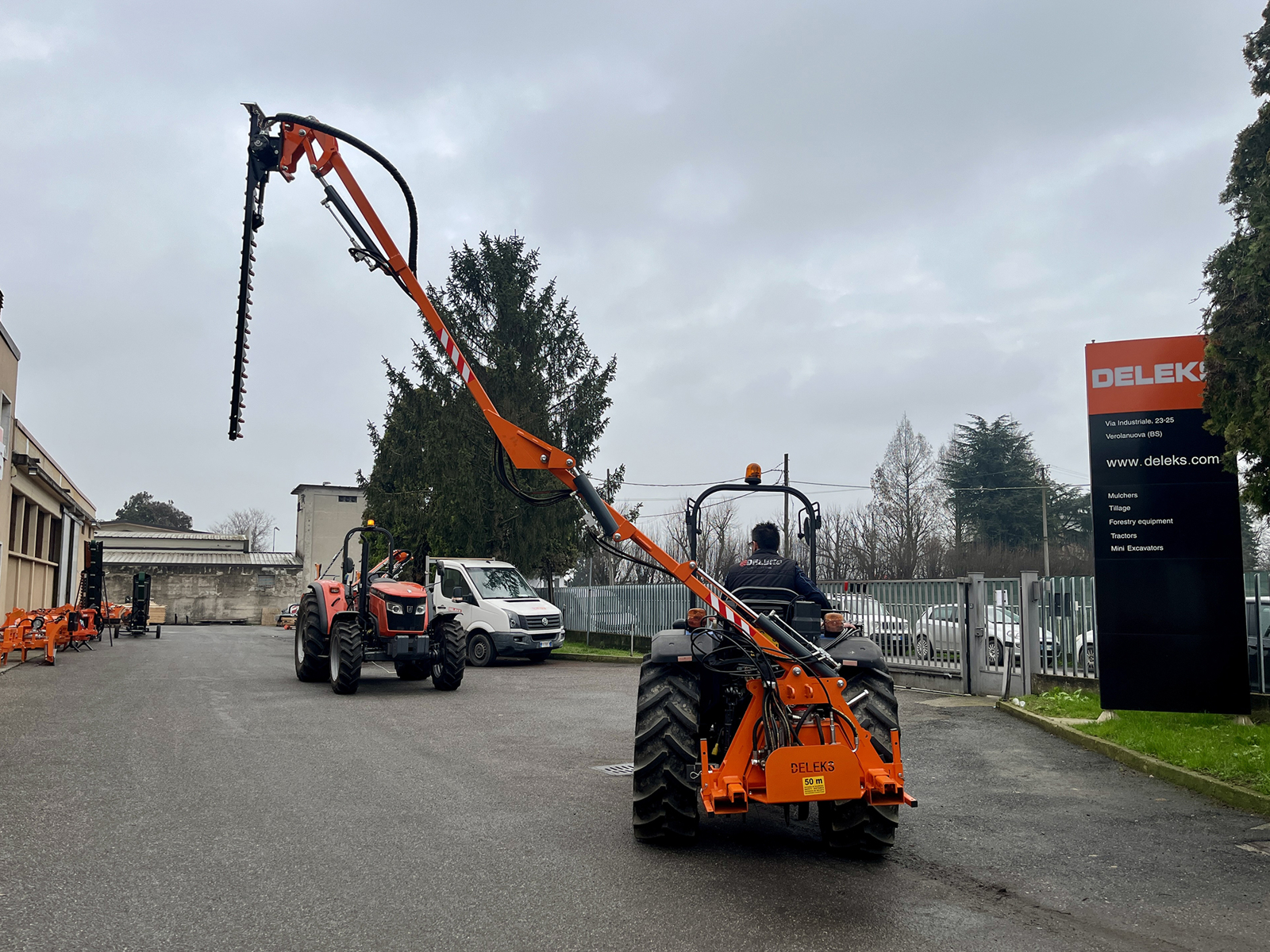

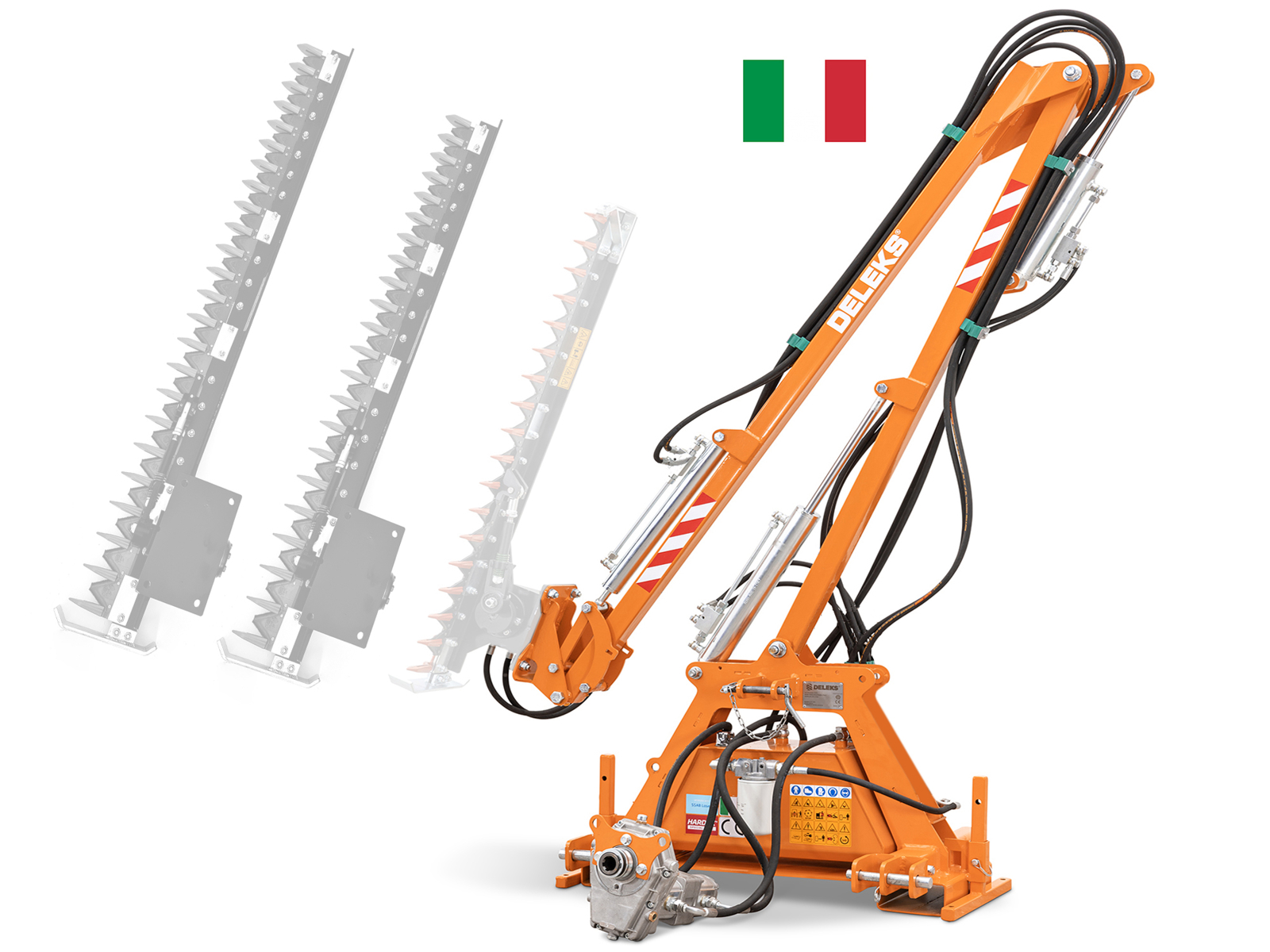

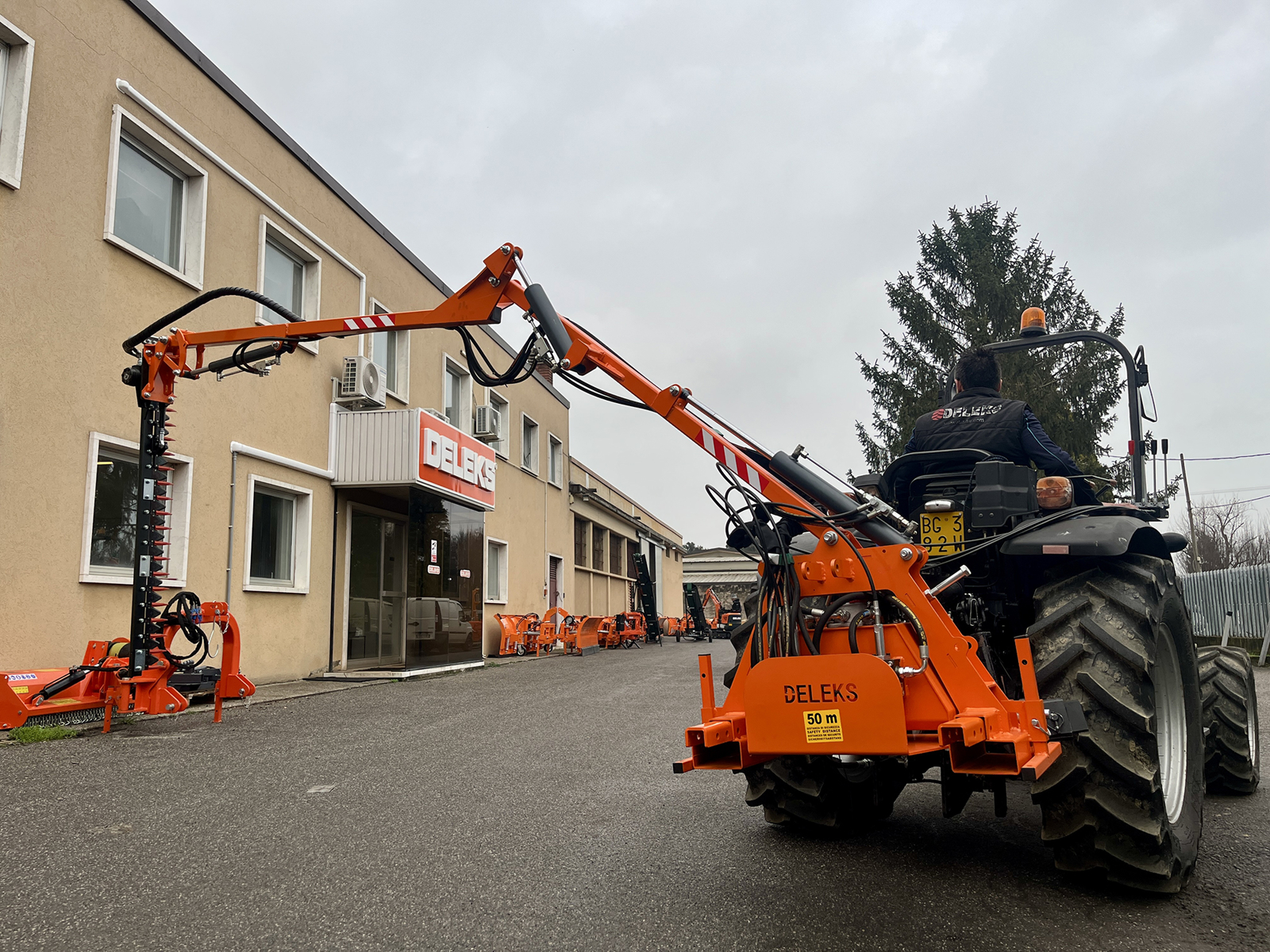

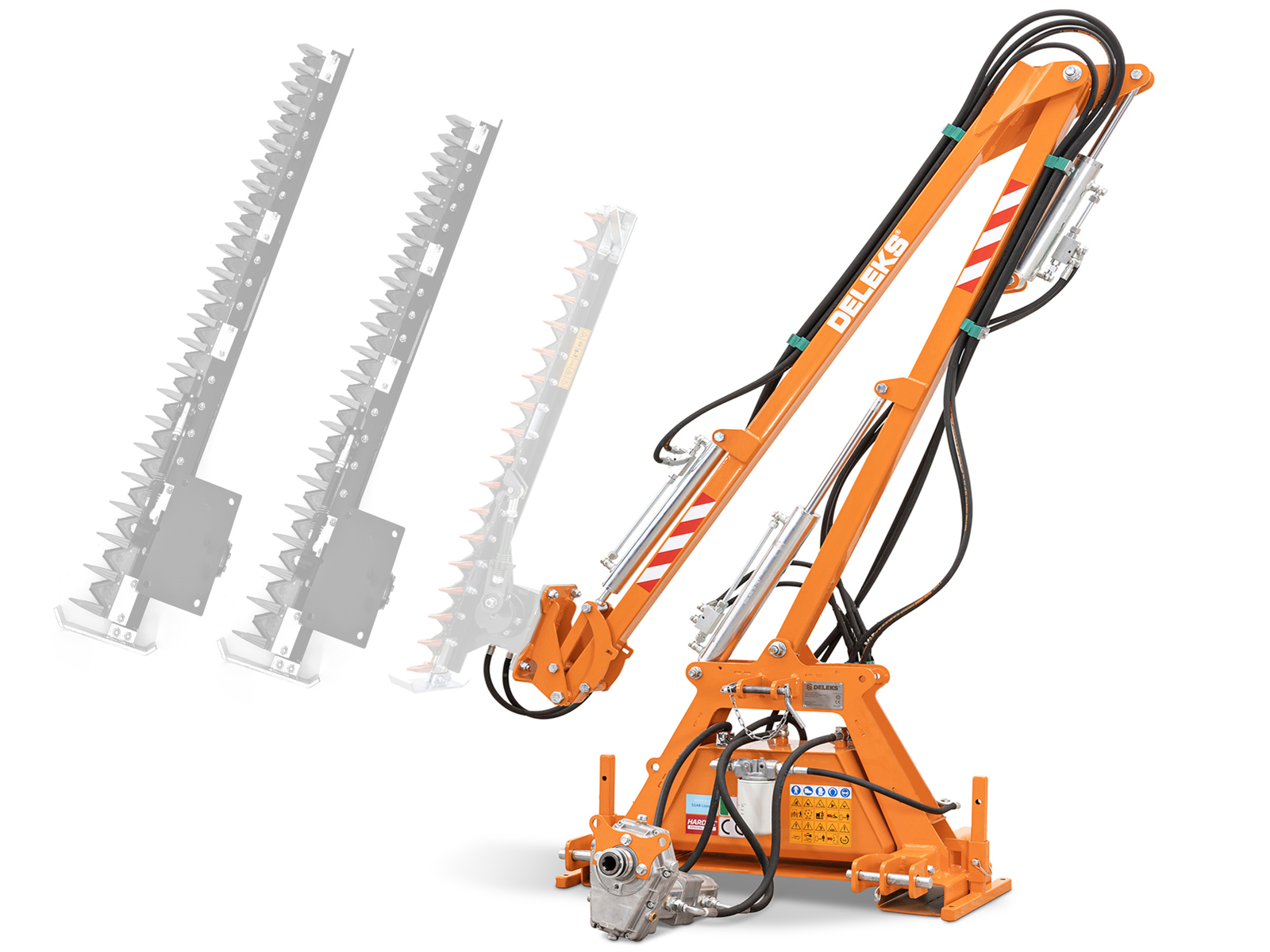

Hydraulic hedge cutter / boom mower for tractor - DELEKS® FALCO - double hydraulic PTO pump system - own hydraulic system, runs completely off the PTO - can mount a 130-160 or 180cm hedge trimmer bar.
* Machine body only, flailhead and fingerbar are optionals.
OVERVIEW

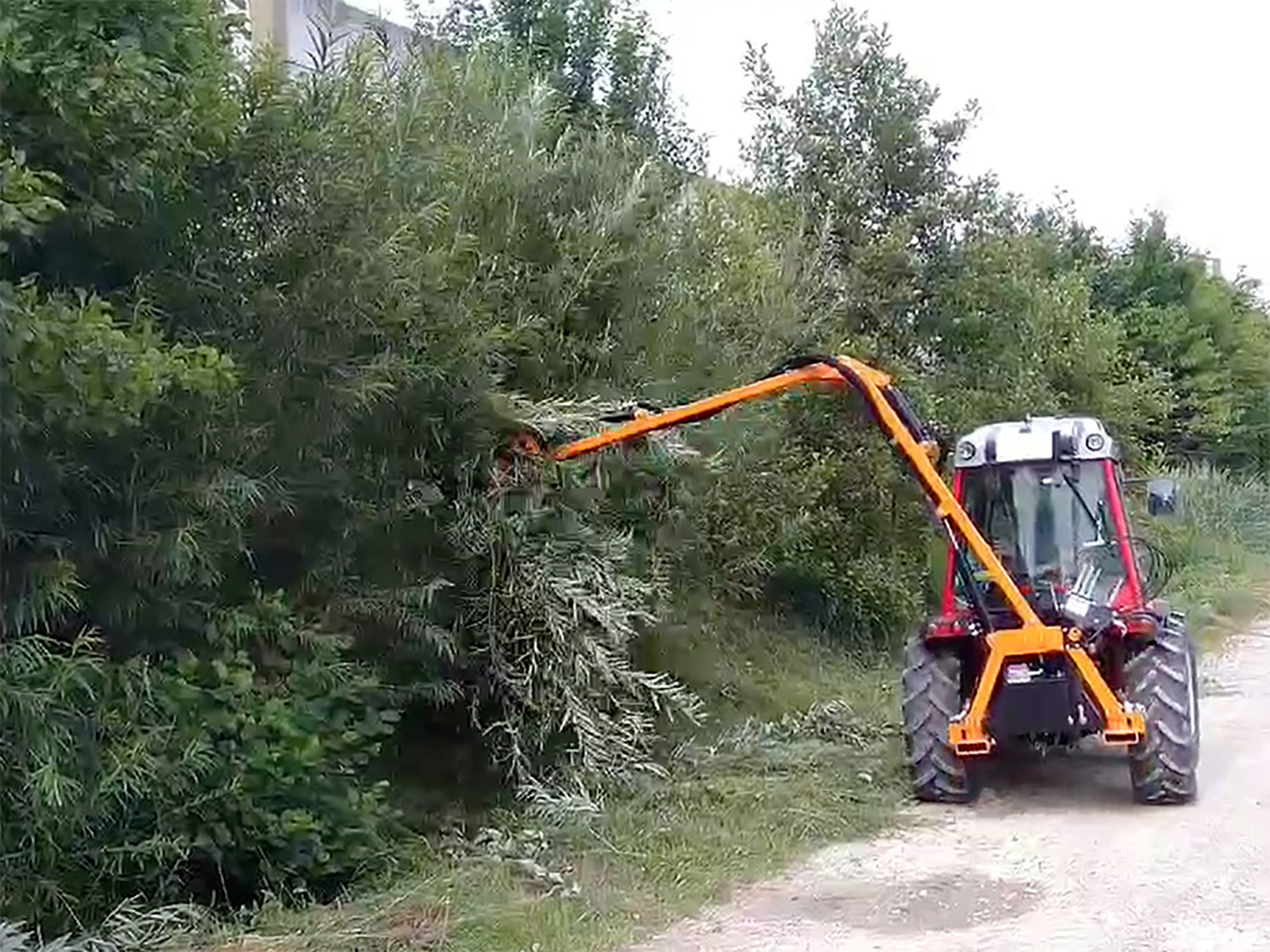

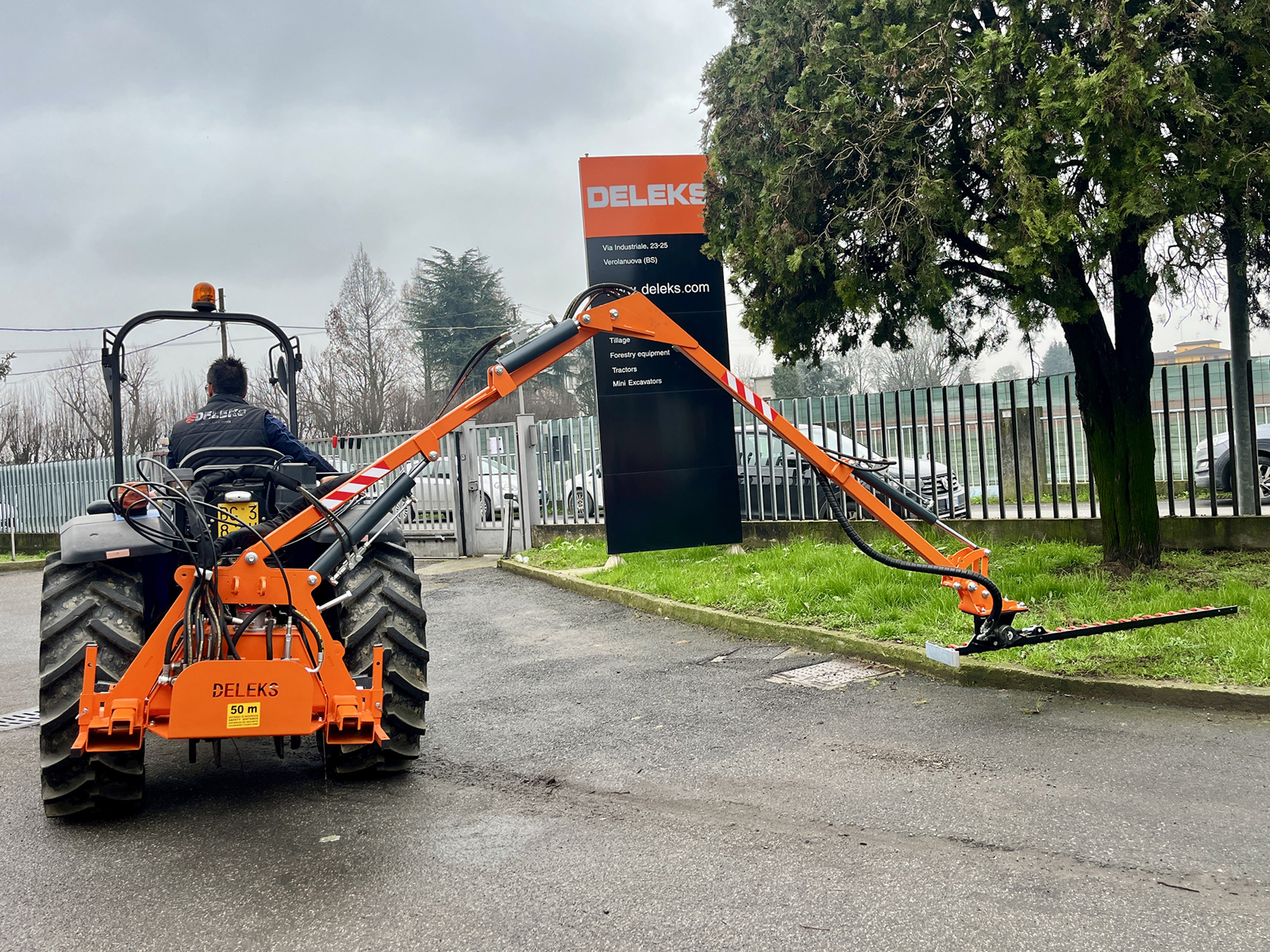

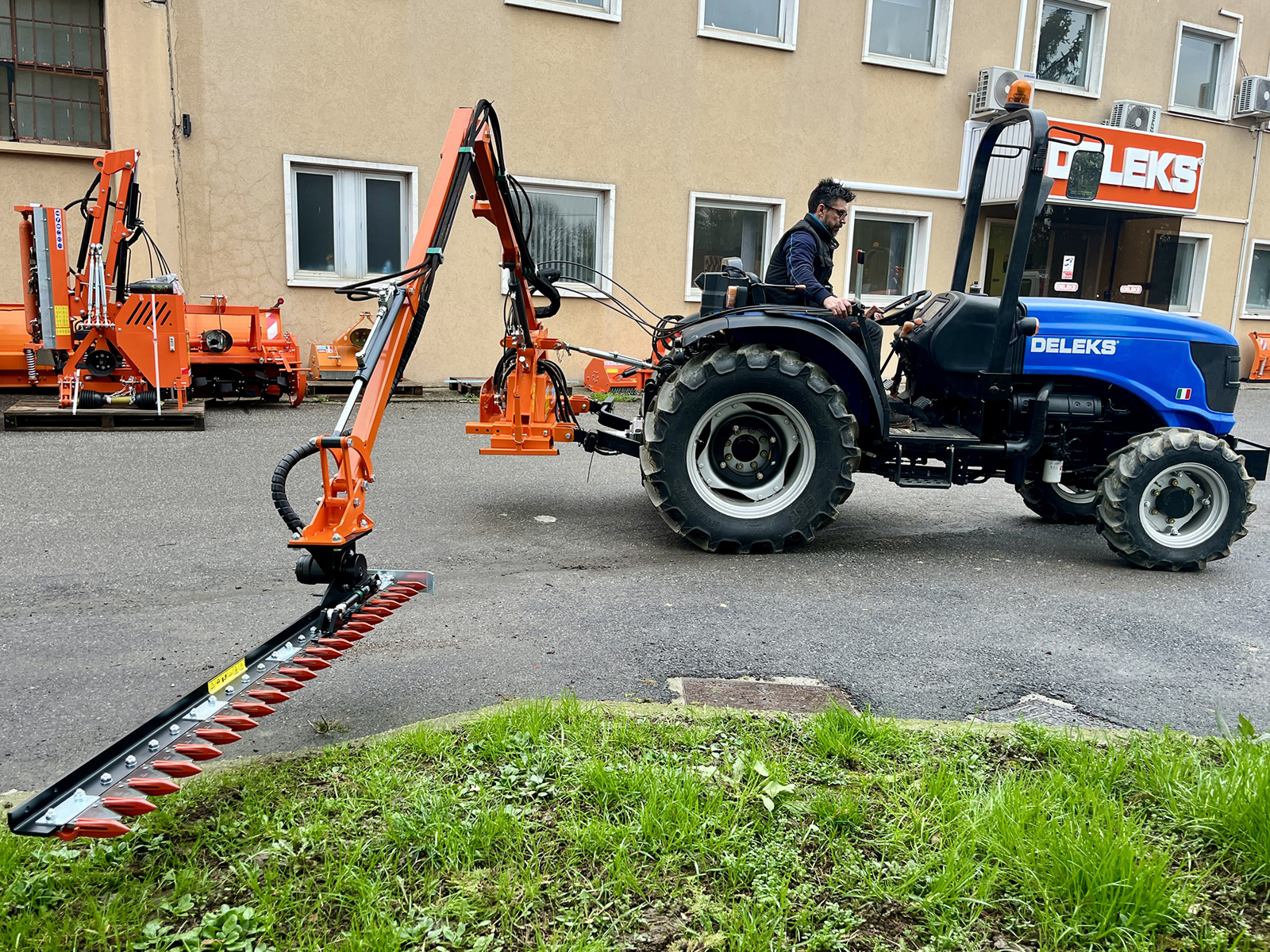

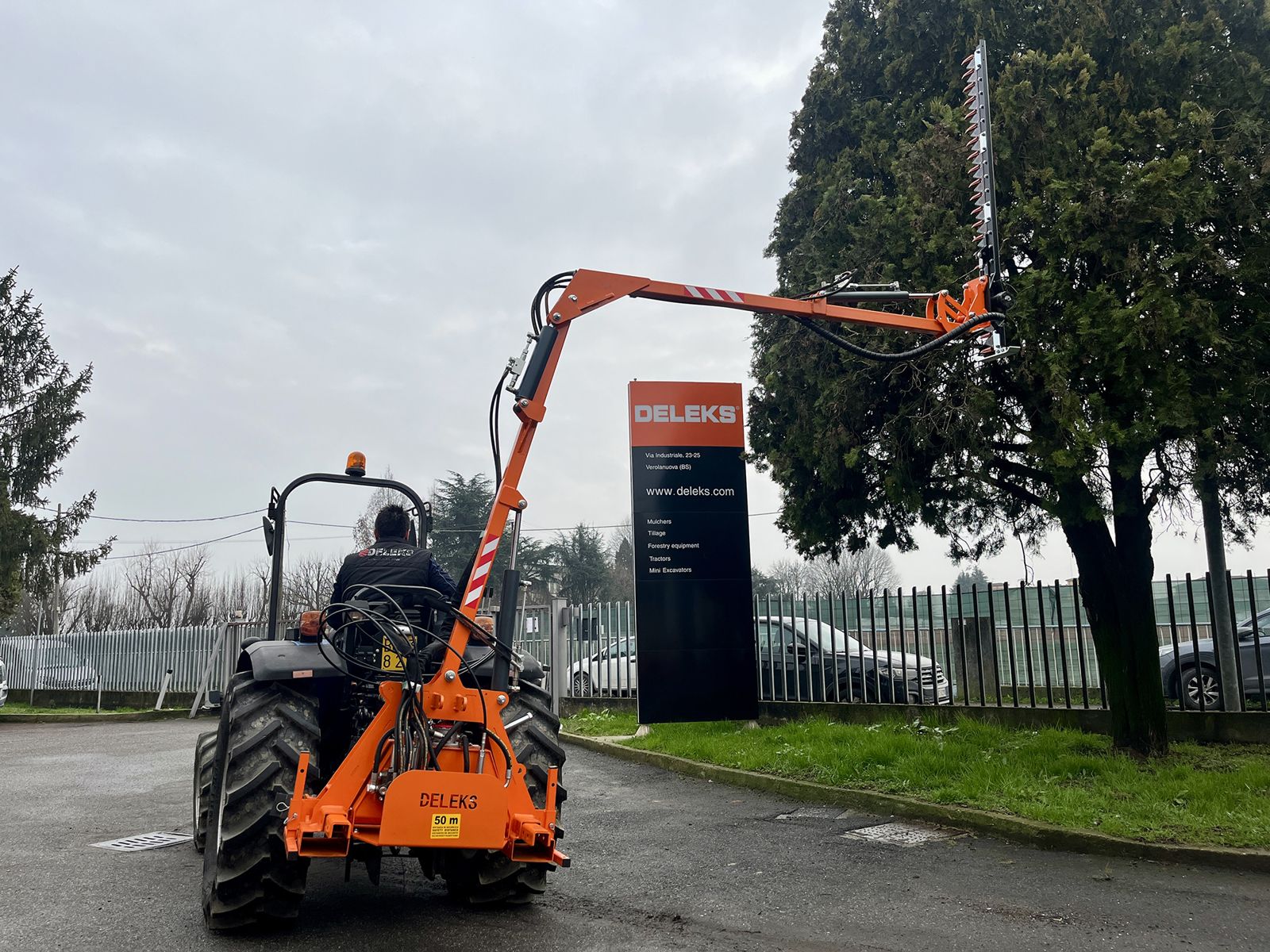

Ideal for compact and mid size tractors with a minimum gross weight of 800kg. Perfect for maintaining small bushes, trees and pruning edges. Works on both sides (right and left). This is a highly adaptive, easy to operate machine that cuts cleanly and environmentally without flailing your hedge to death.

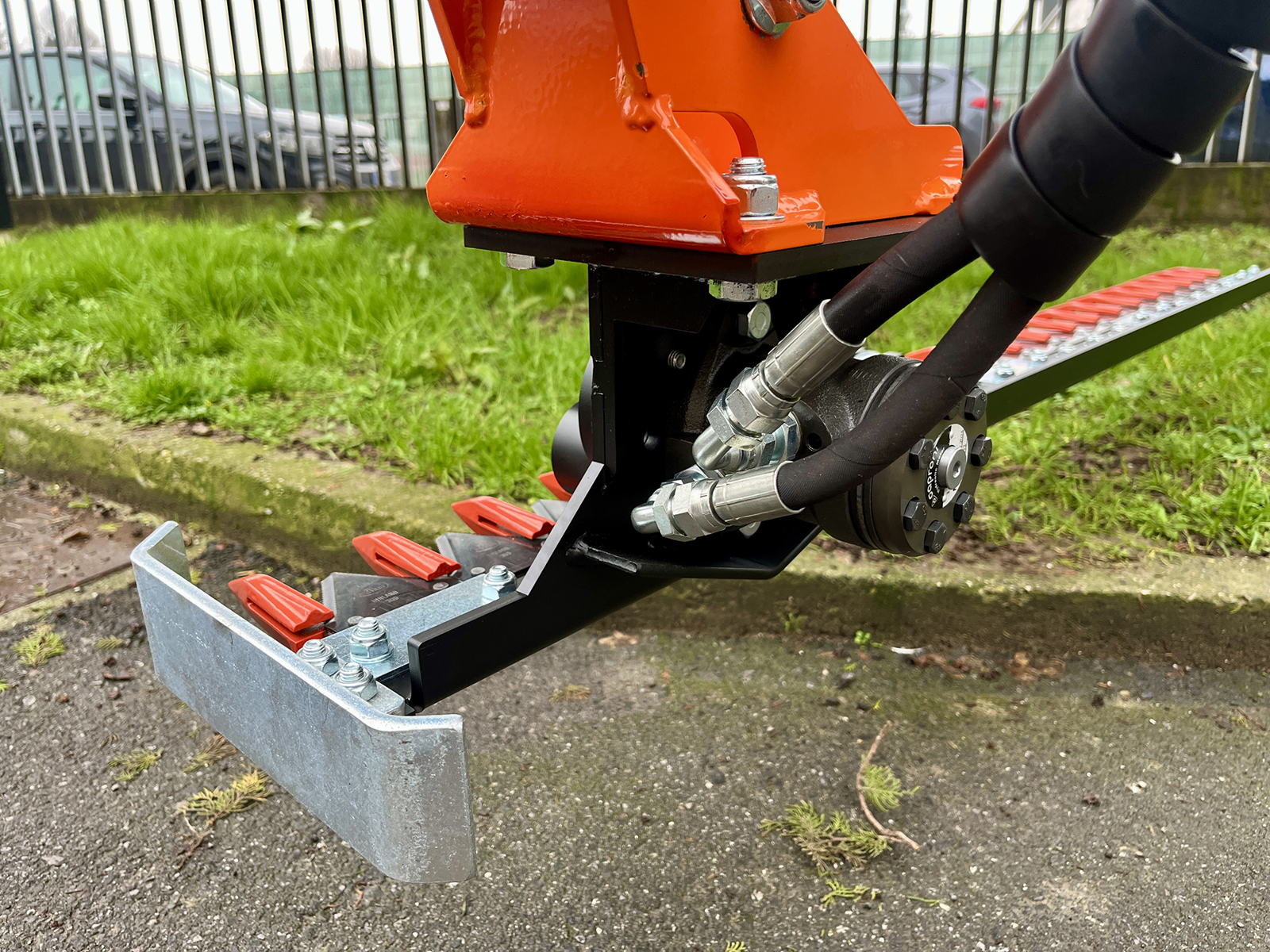

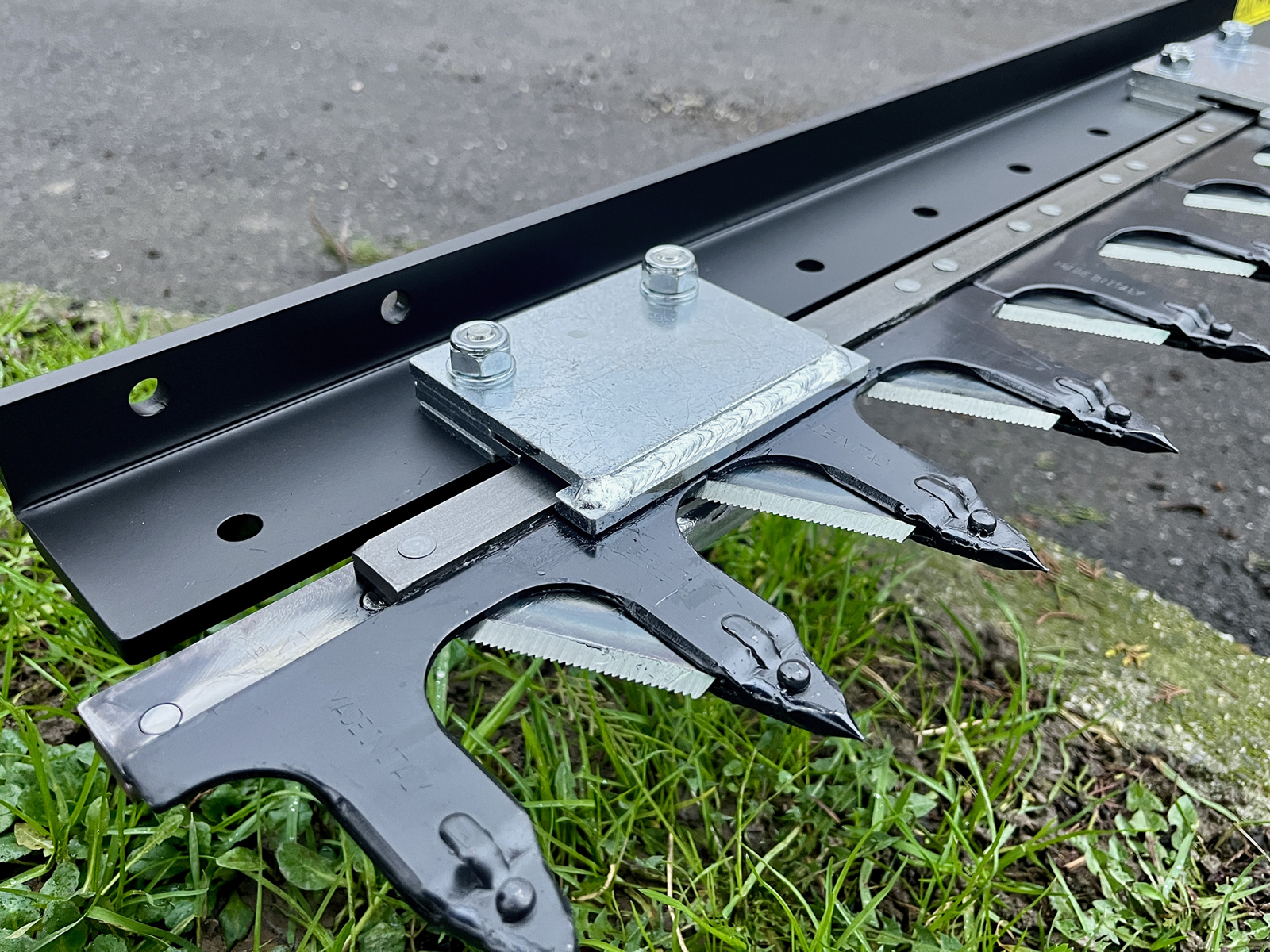

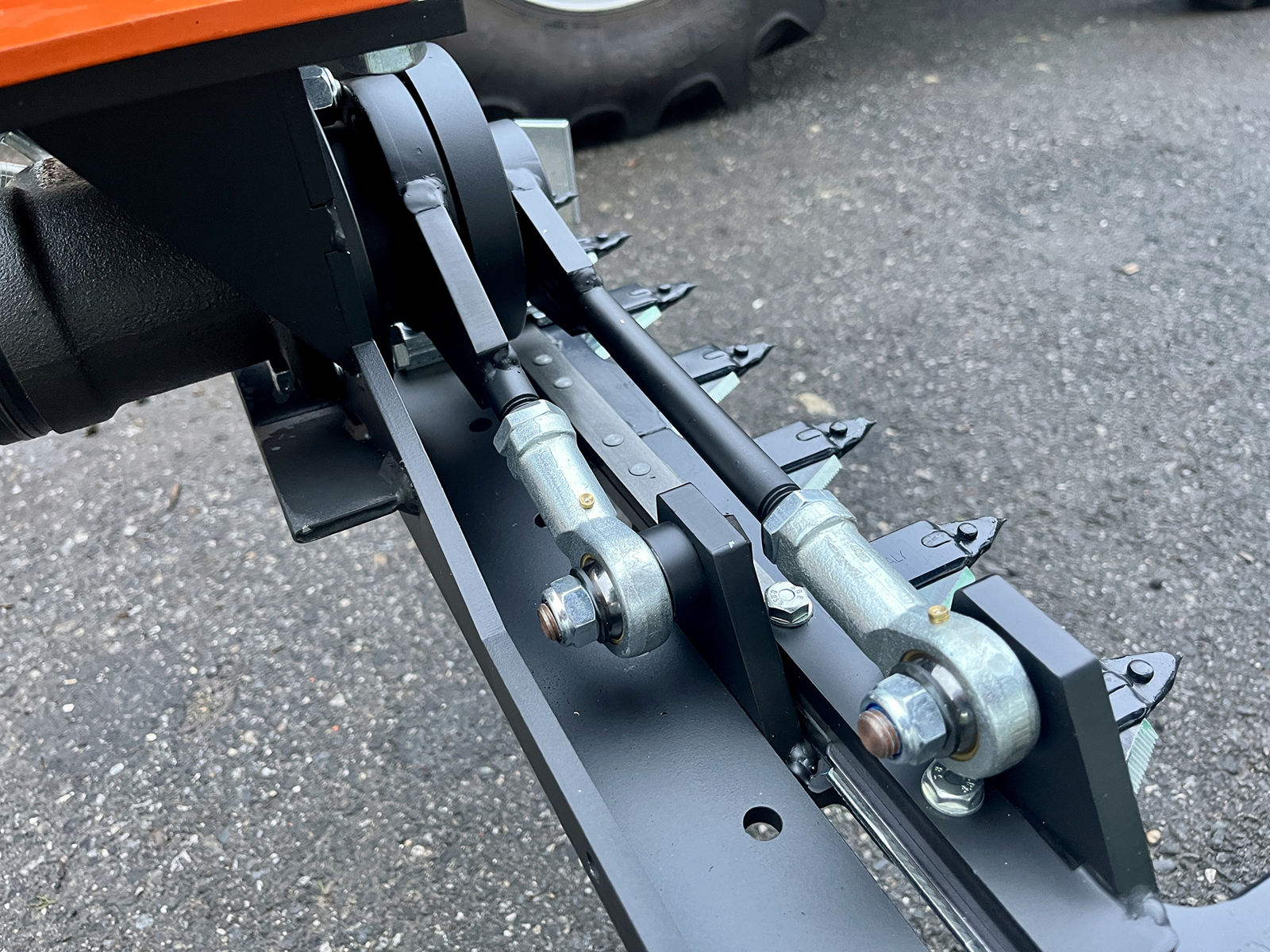

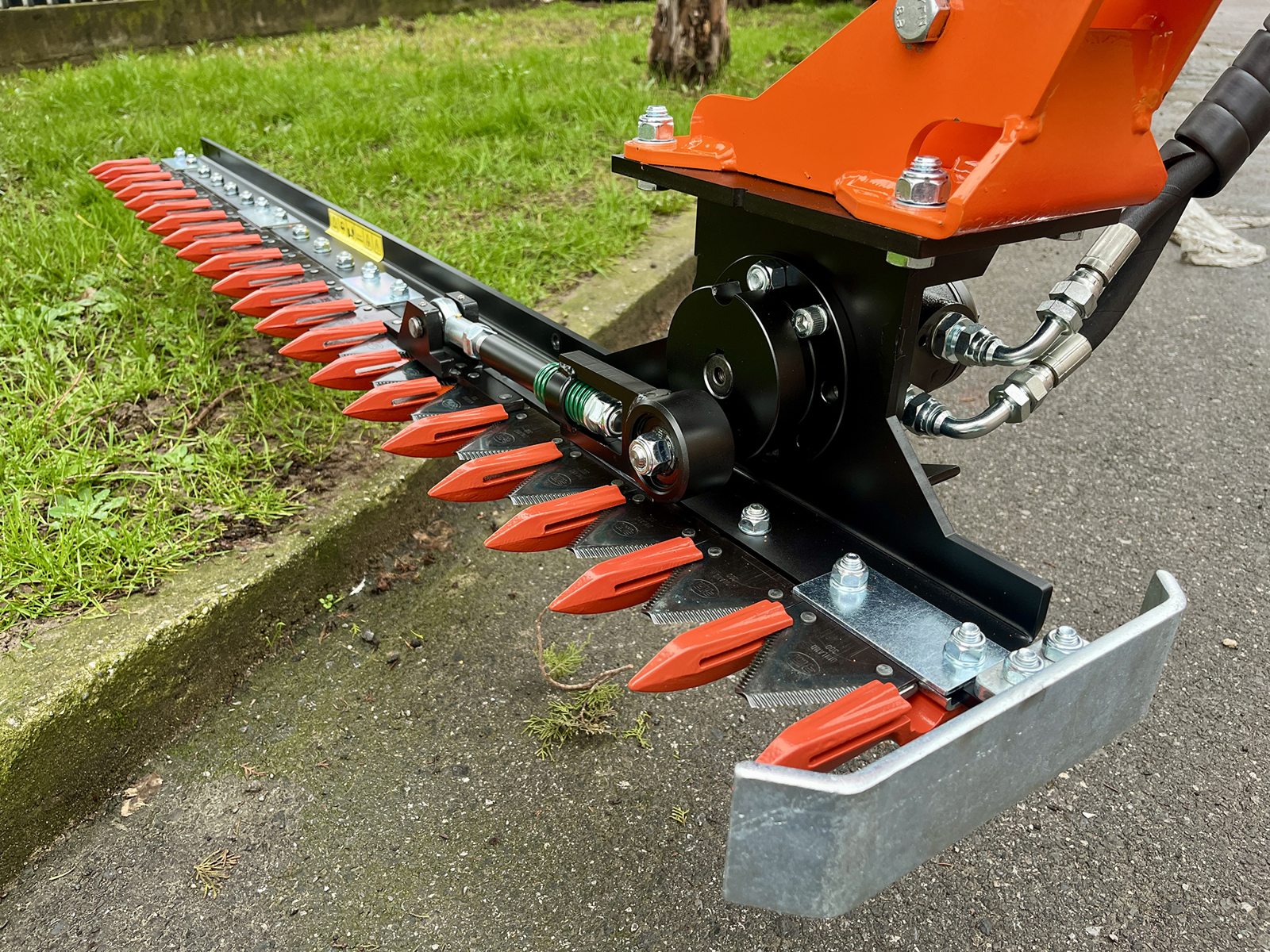

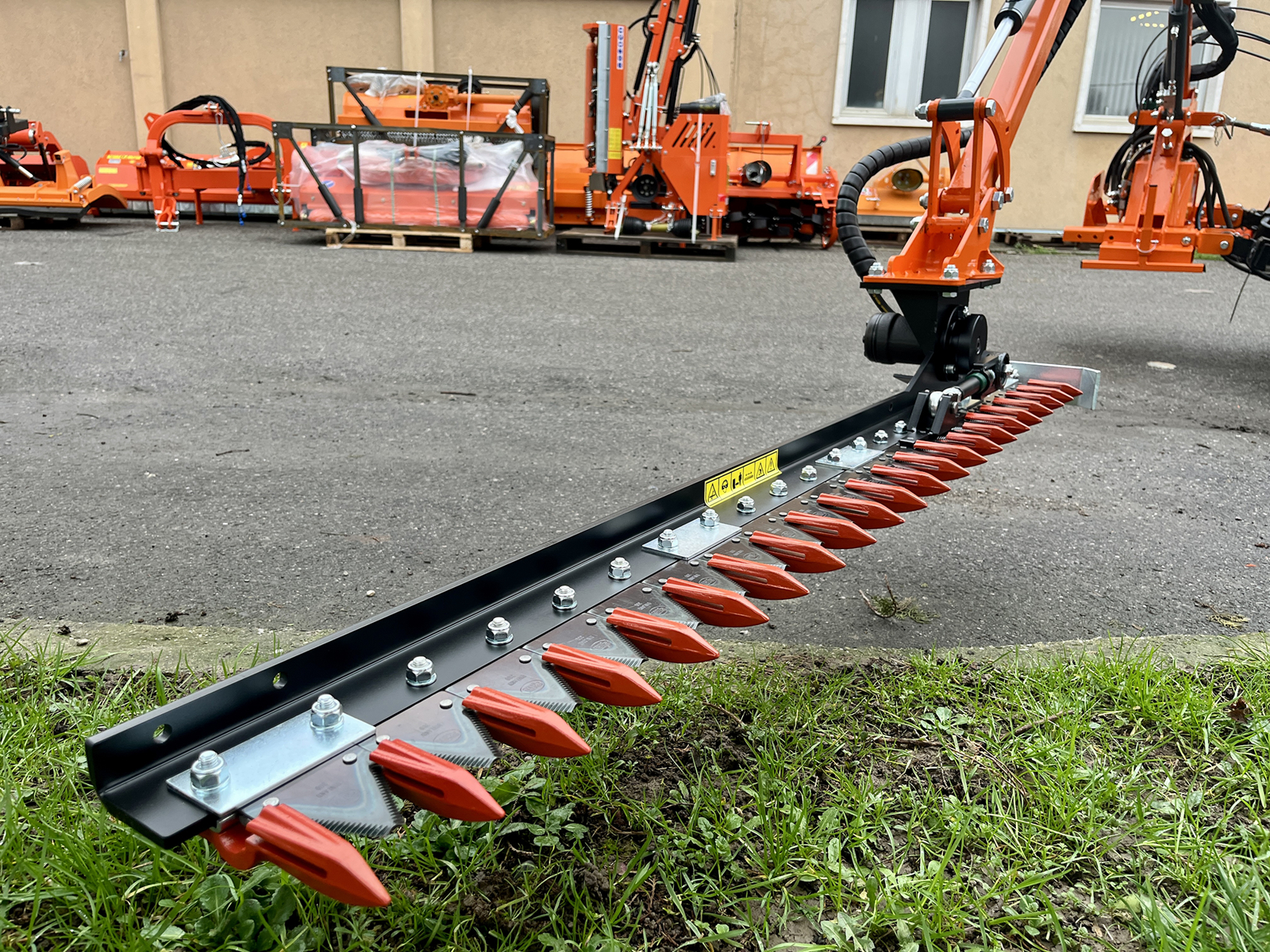

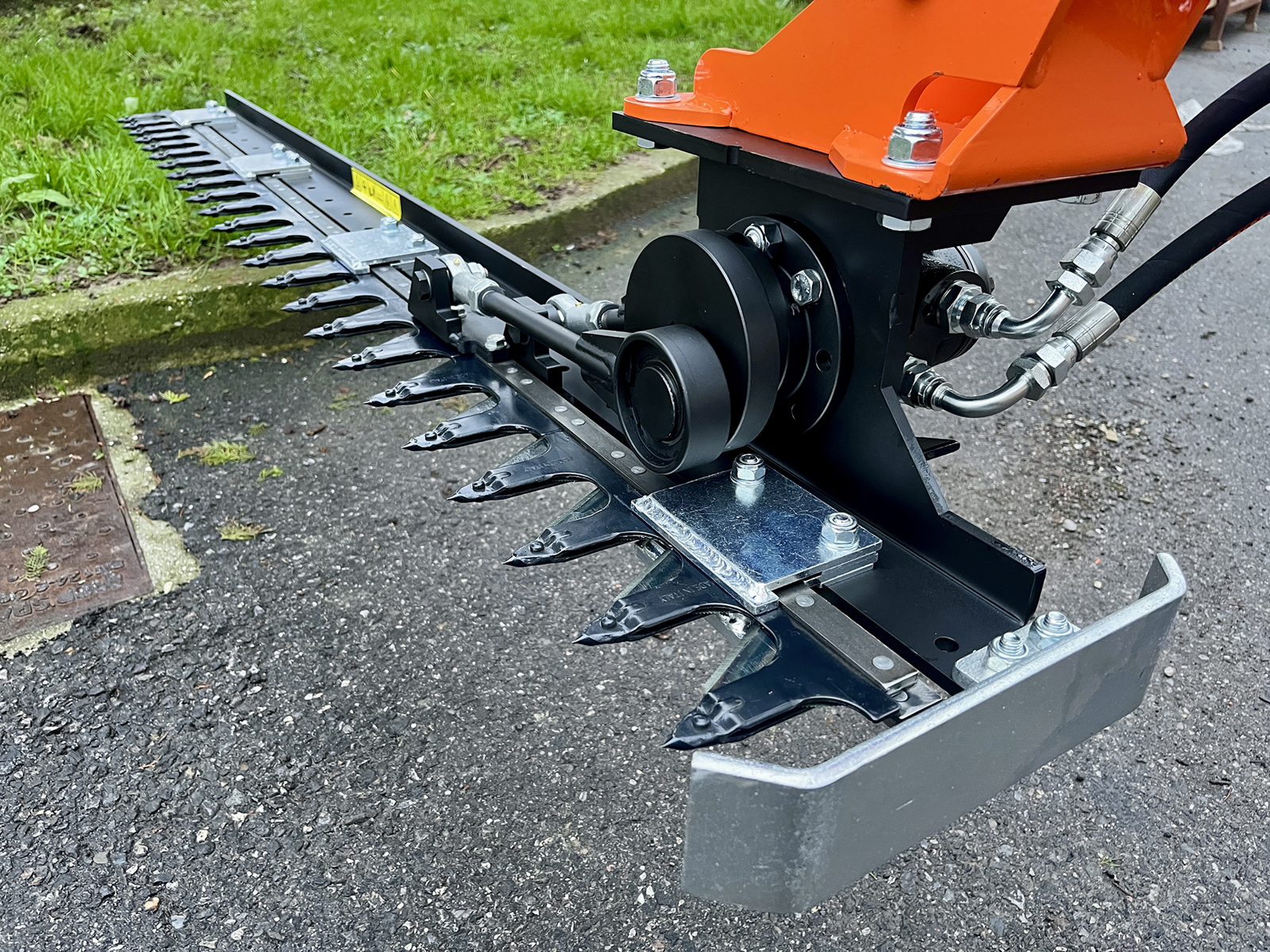

- With an HRS 130-160-180cm hedge trimmer bar attached, it is ideal for hedges and tree branches up to 2-3cm in diameter.
- With the HRD 130-160-180cm double hedge trimmer bar applied, it is ideal for grass, and precise work on hedges and trees with fine branches (max 1cm in diameter).
Machine weight without cutting accessory: 210 kg

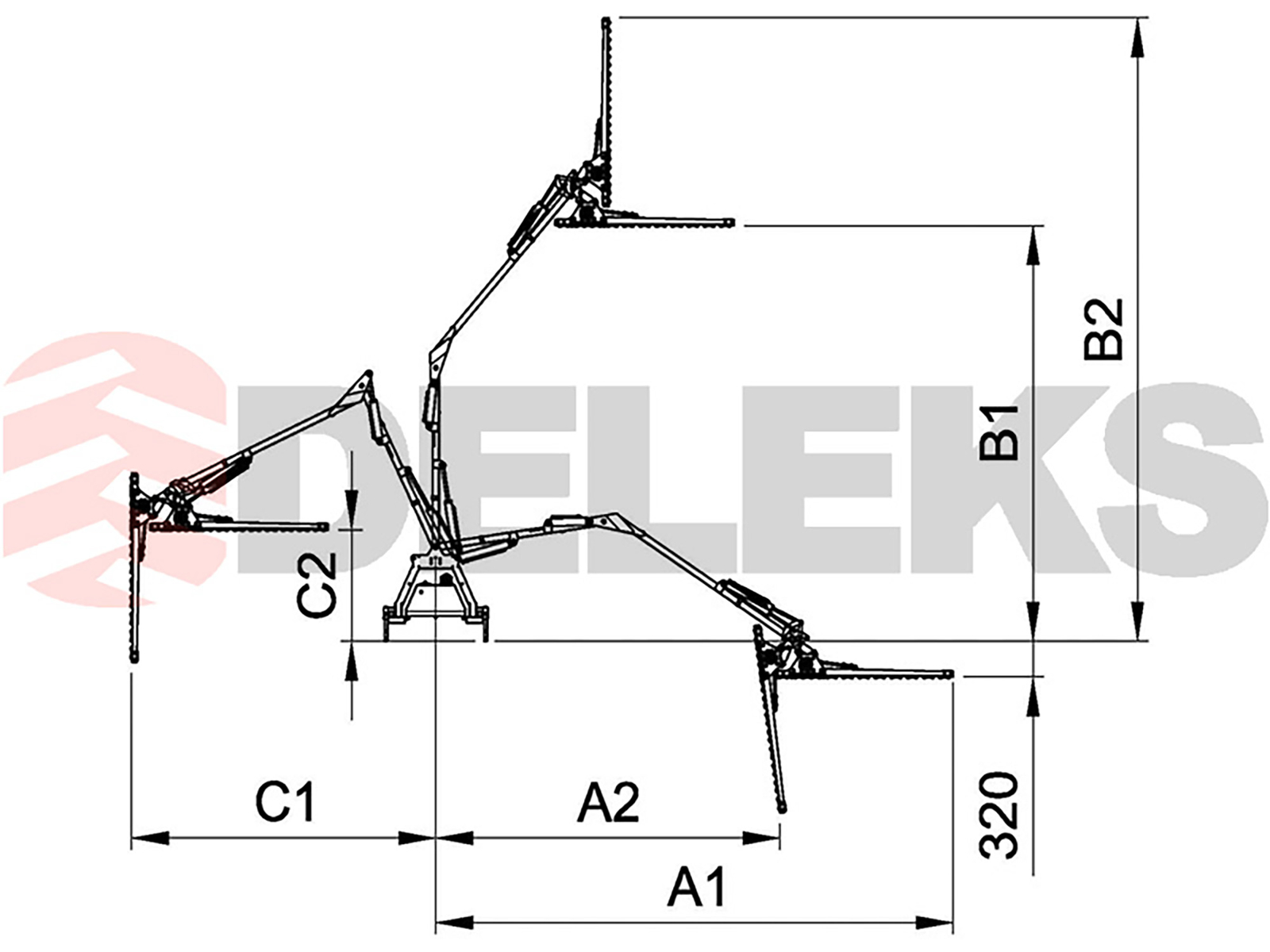

Cutting measures (see pictures):
A1: 4500 - 4700 - 4900 mm
A2: 3200 mm
B1: 3700 mm
B2: 5200 - 5400 - 5600 mm
C1: 2800 mm
C2: 1000 mm
Length of the hydraulic pipes to the distributor: 2500 mm.

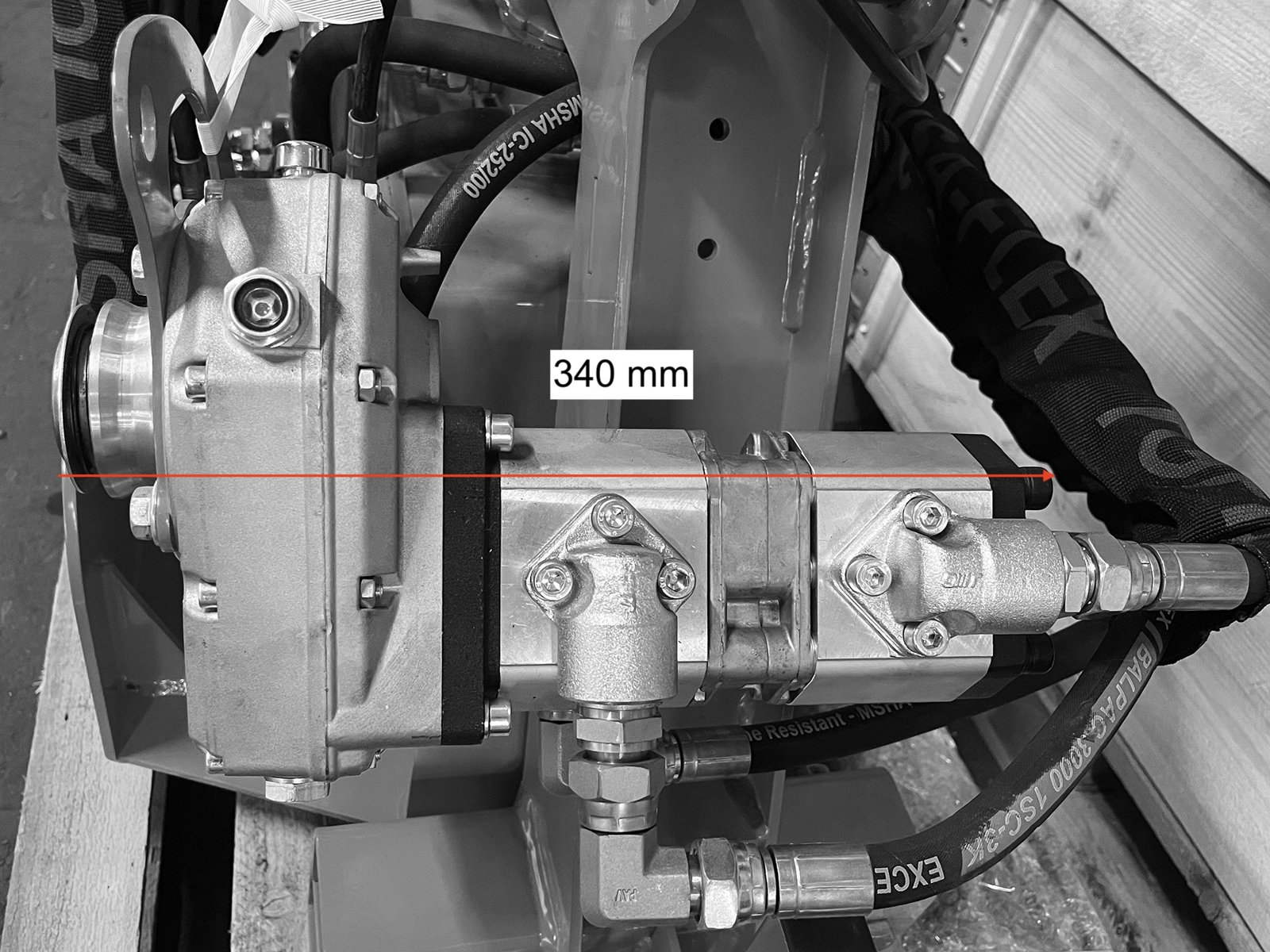

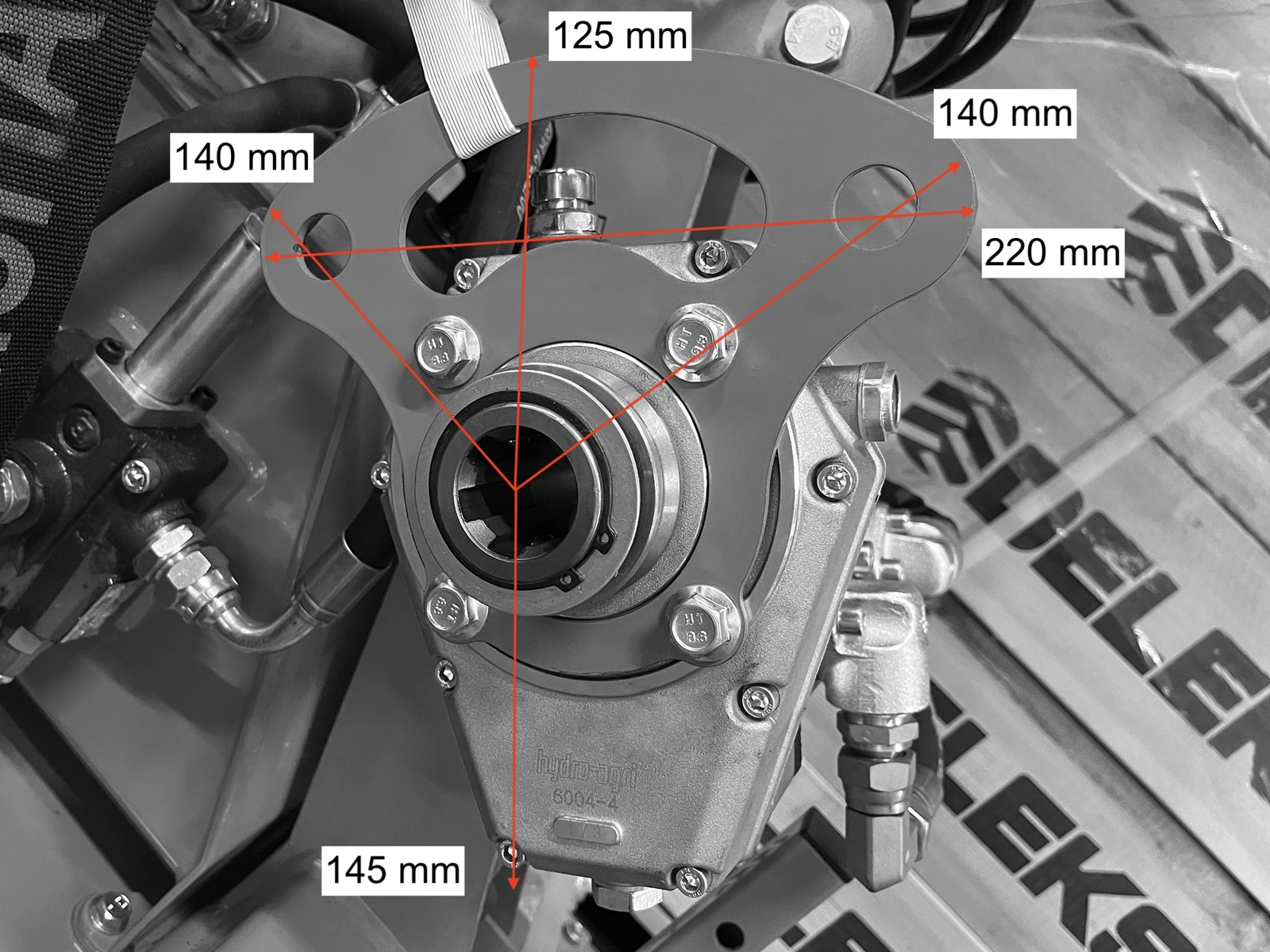

Length of the hydraulic pipes to the hydraulic pump (PTO): 900 mm.
BENEFITS & FEATURES

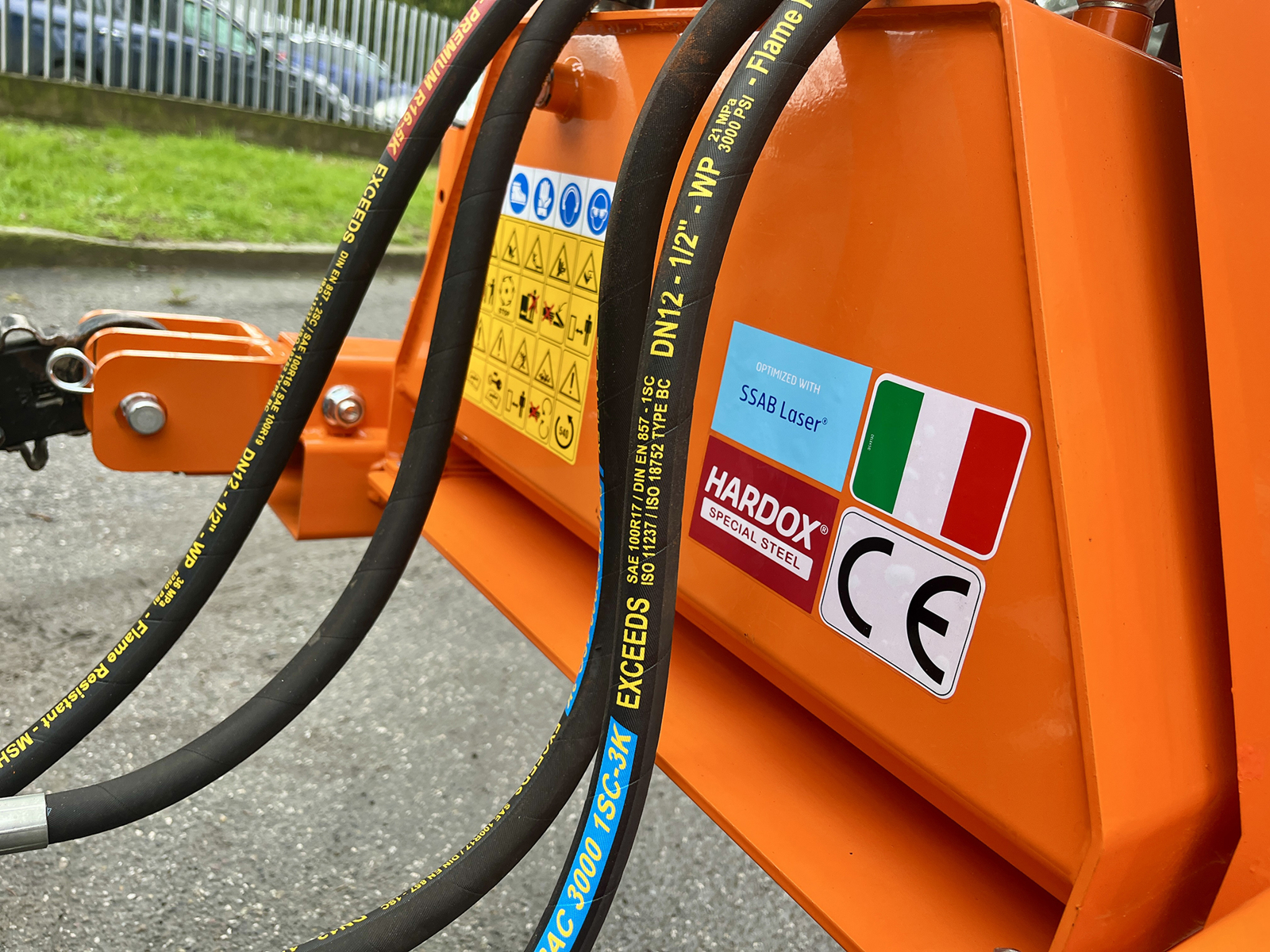

Frame entirely made with Swedish SSAB and HARDOX steel.
Very safe to operate as it does not have high speed flying obstacles from the cutter bar head, unlike a flail therefore it can be used safely without a cab on even the smallest tractors.

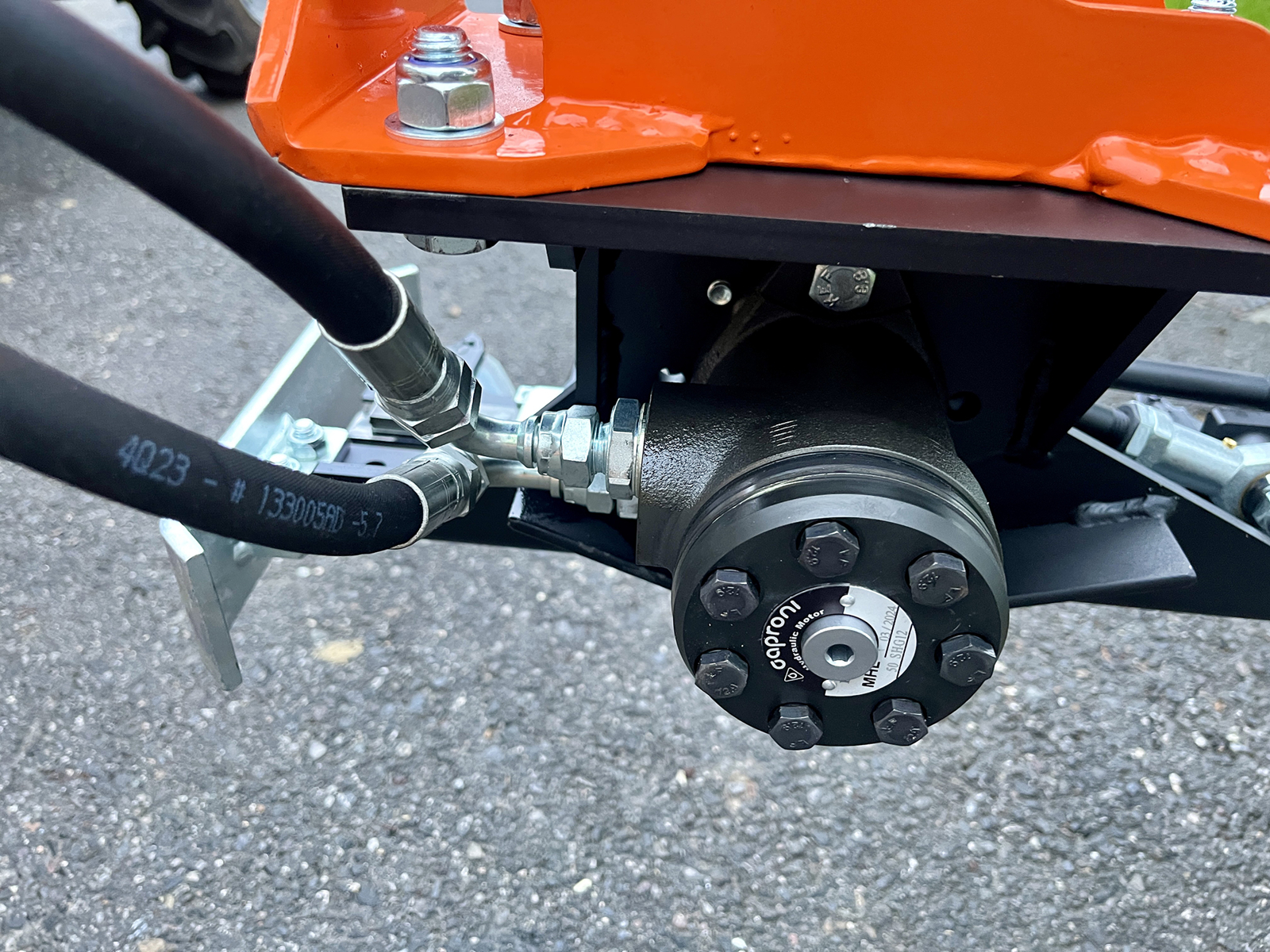

Has its own Hydraulic system: it runs completely off the PTO, no need to connect the tractors hydraulics.

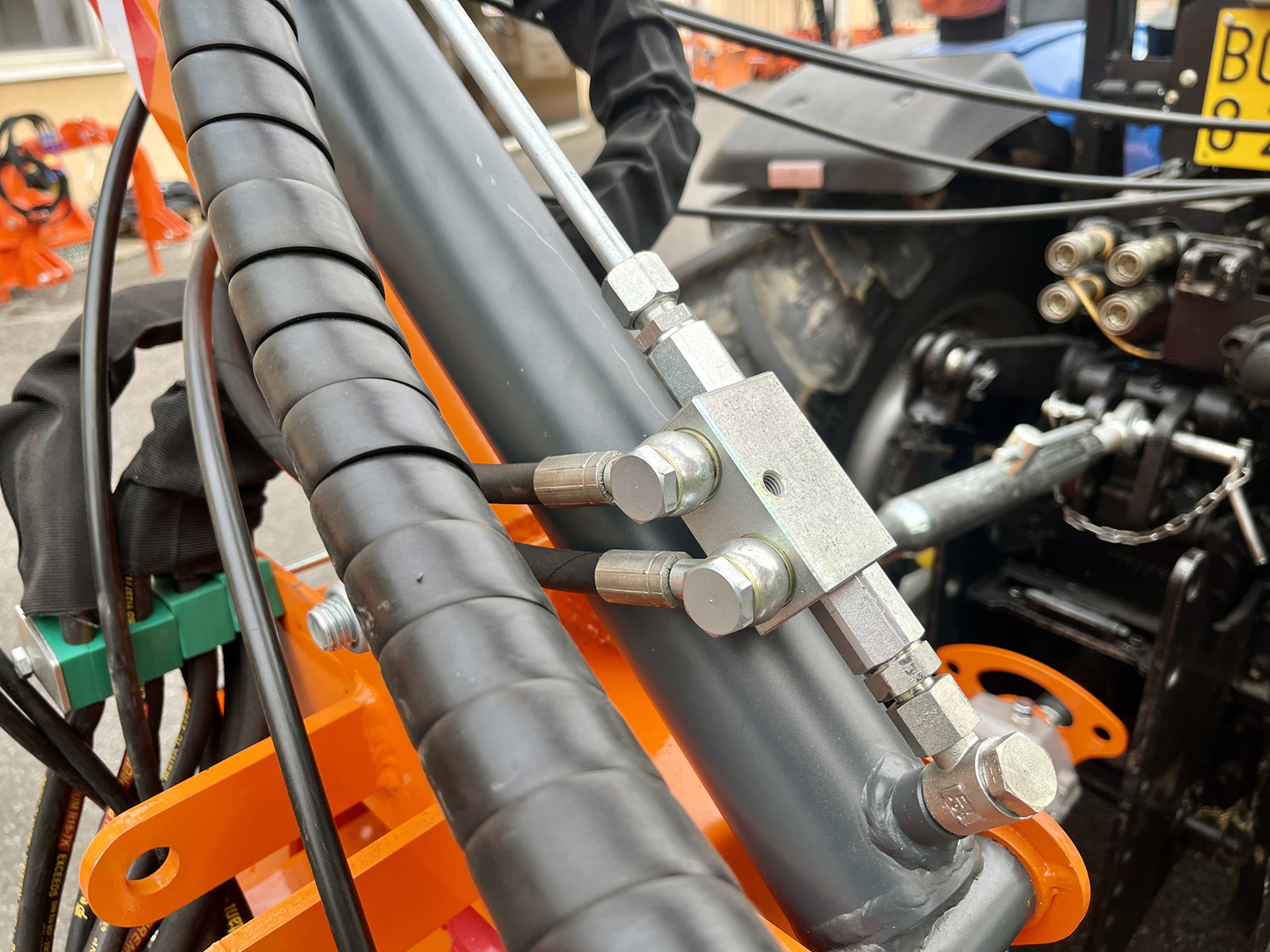

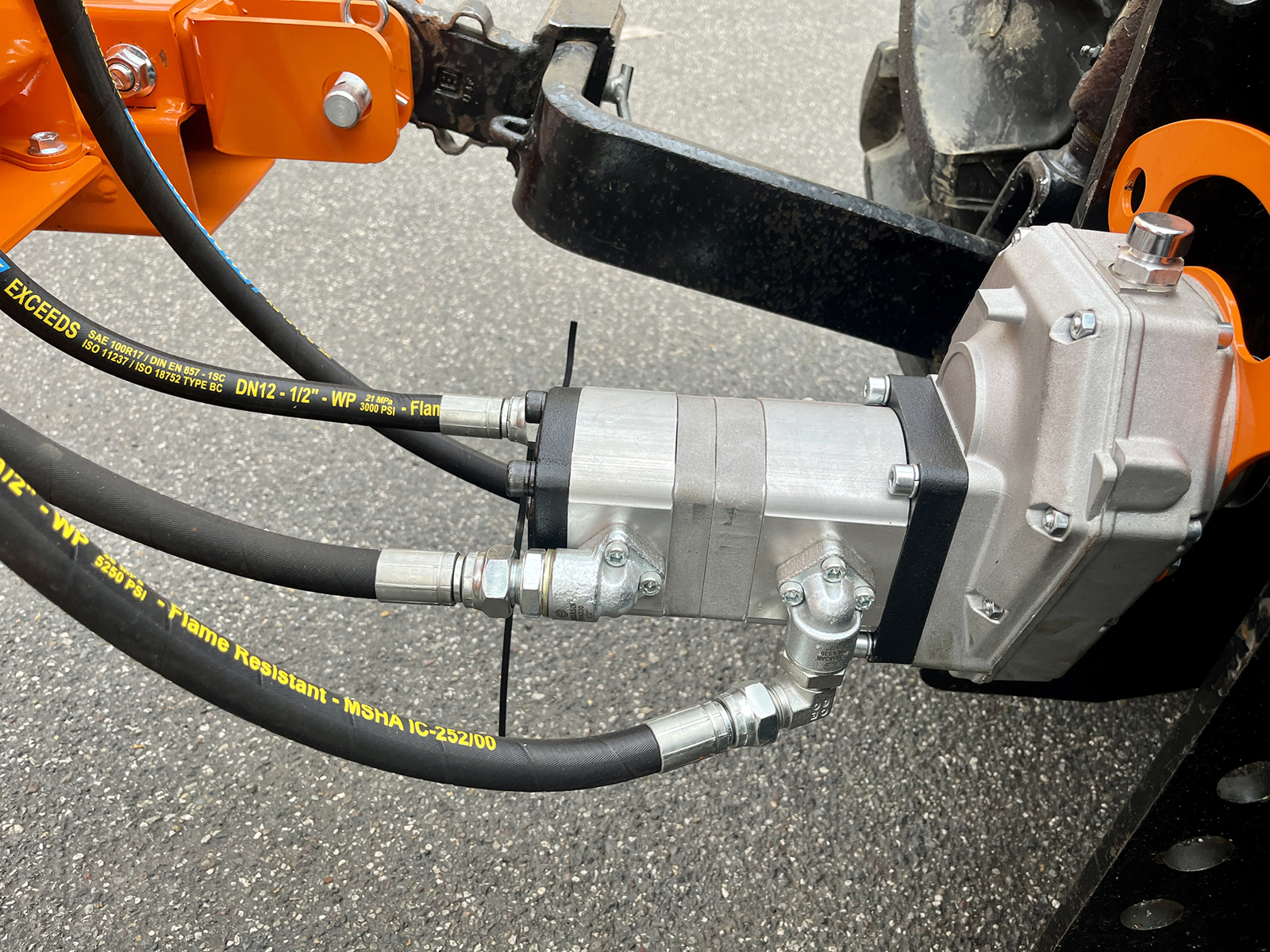

The double hydraulic pump system allows to move together the arm and the cutter bar.

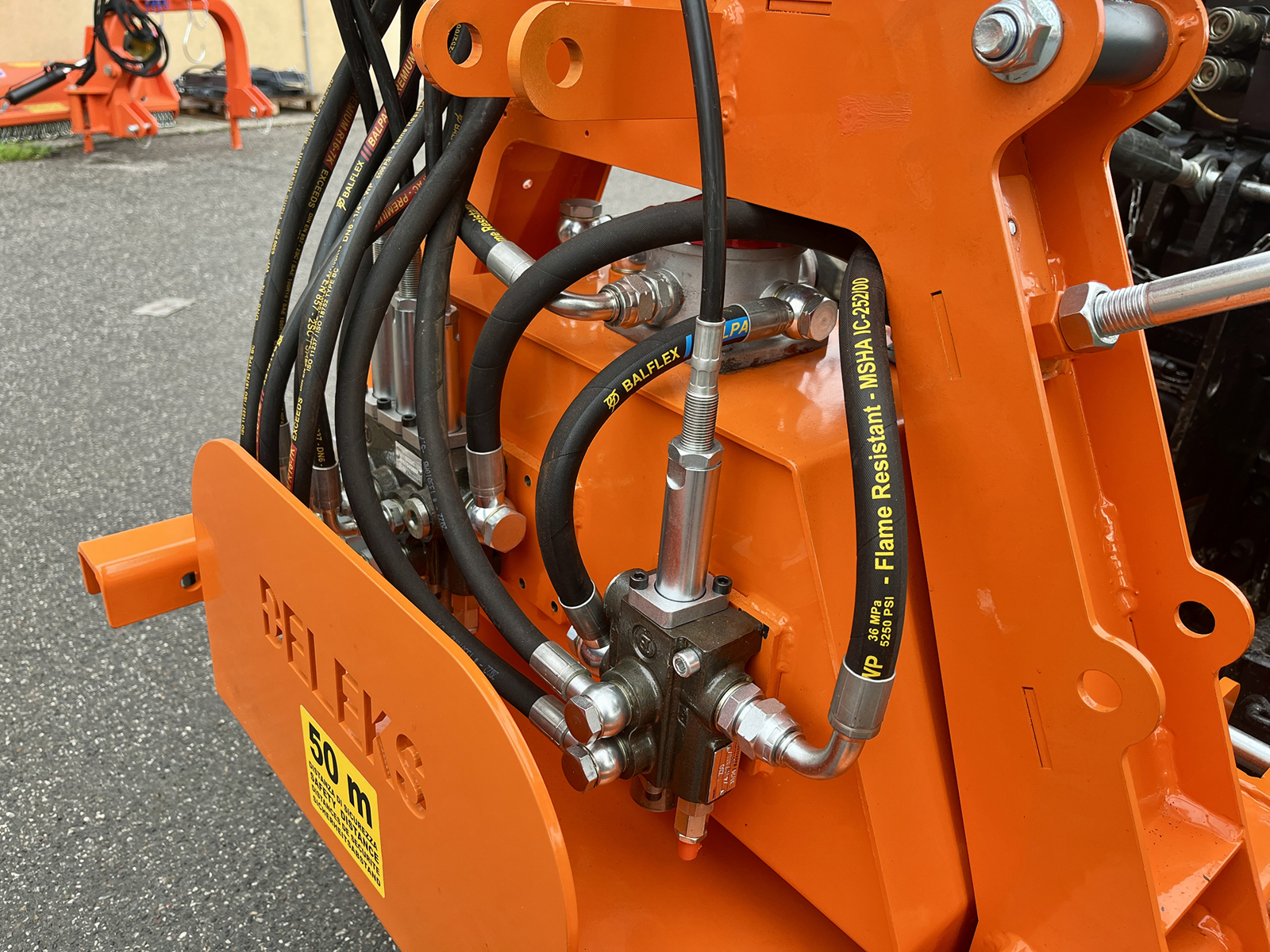

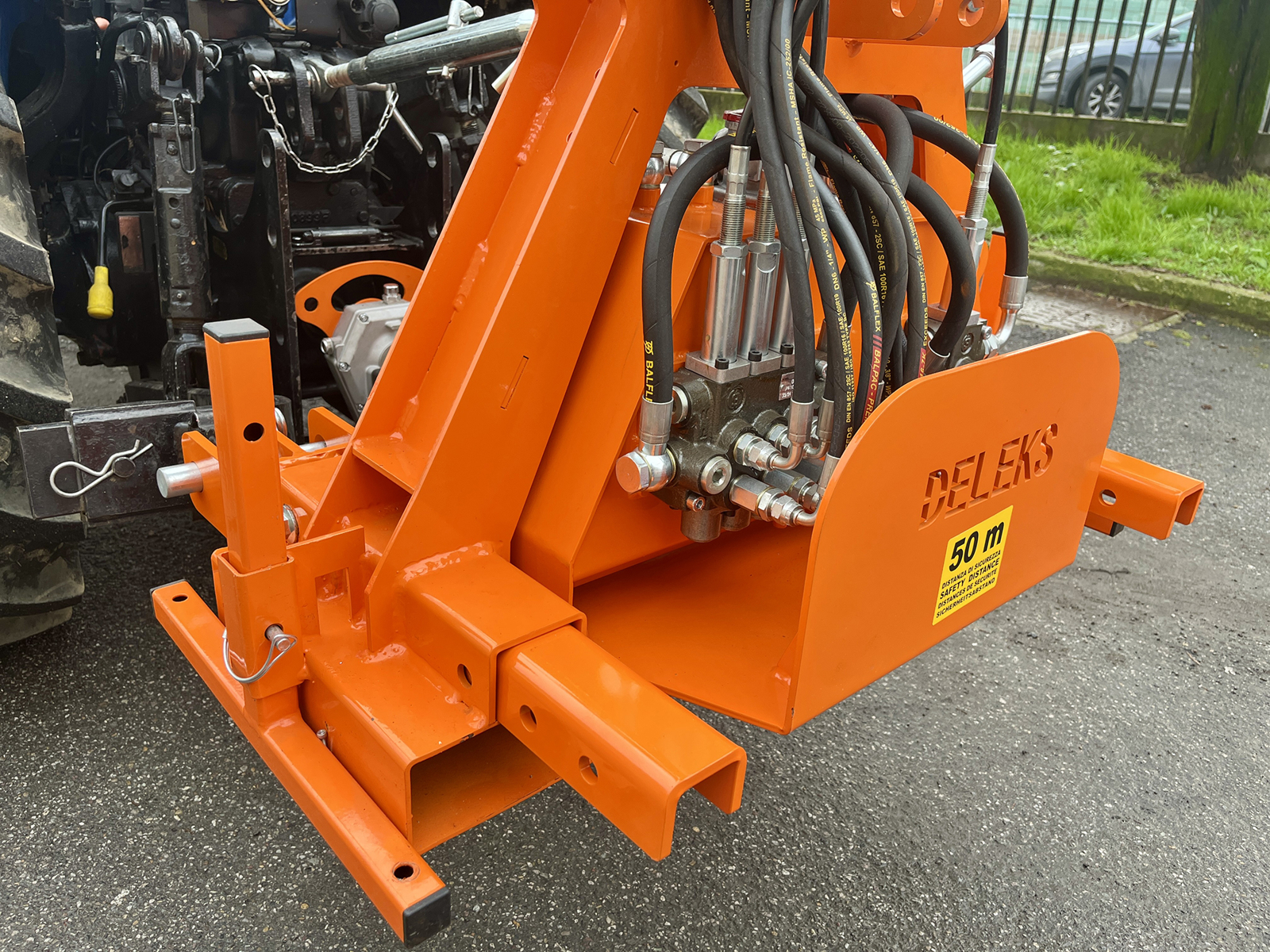

Efficient remote control with 4 levers and flexible hoses.

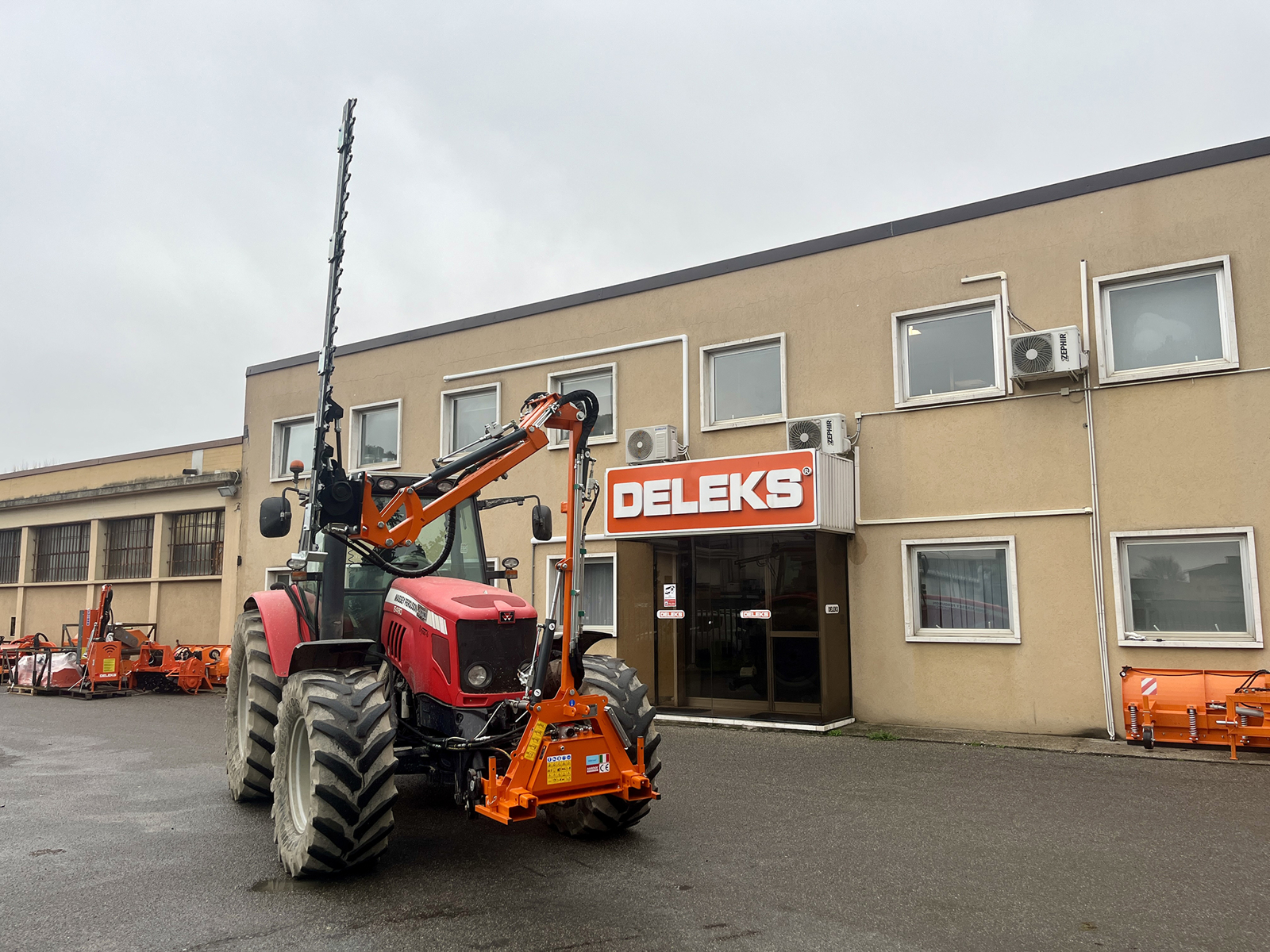

As a low weight machine, this cutter fits tractors universally, small to large, eg from small Kubota, Iseki, Mitsubishi, right up to 60hp mid size tractors.
20 L oil tank (already supplied level).
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
Note: Due to transport reasons, the main arm is temporarily fixed at a lower point, to limit the overall height. The assembly in working position will be carried out by the customer before the first use.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 1400.0 mm (closed) |
| Weight | 210.0 kg |
| Overall height | 2300.0 mm |
| Tractor Power Range | 20-60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 590.0 - 810.0 mm |
| Overall length | 400.0 mm |
| Transmission: Drive method | Hydraulic |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Min./Max. Relief Pressure | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |

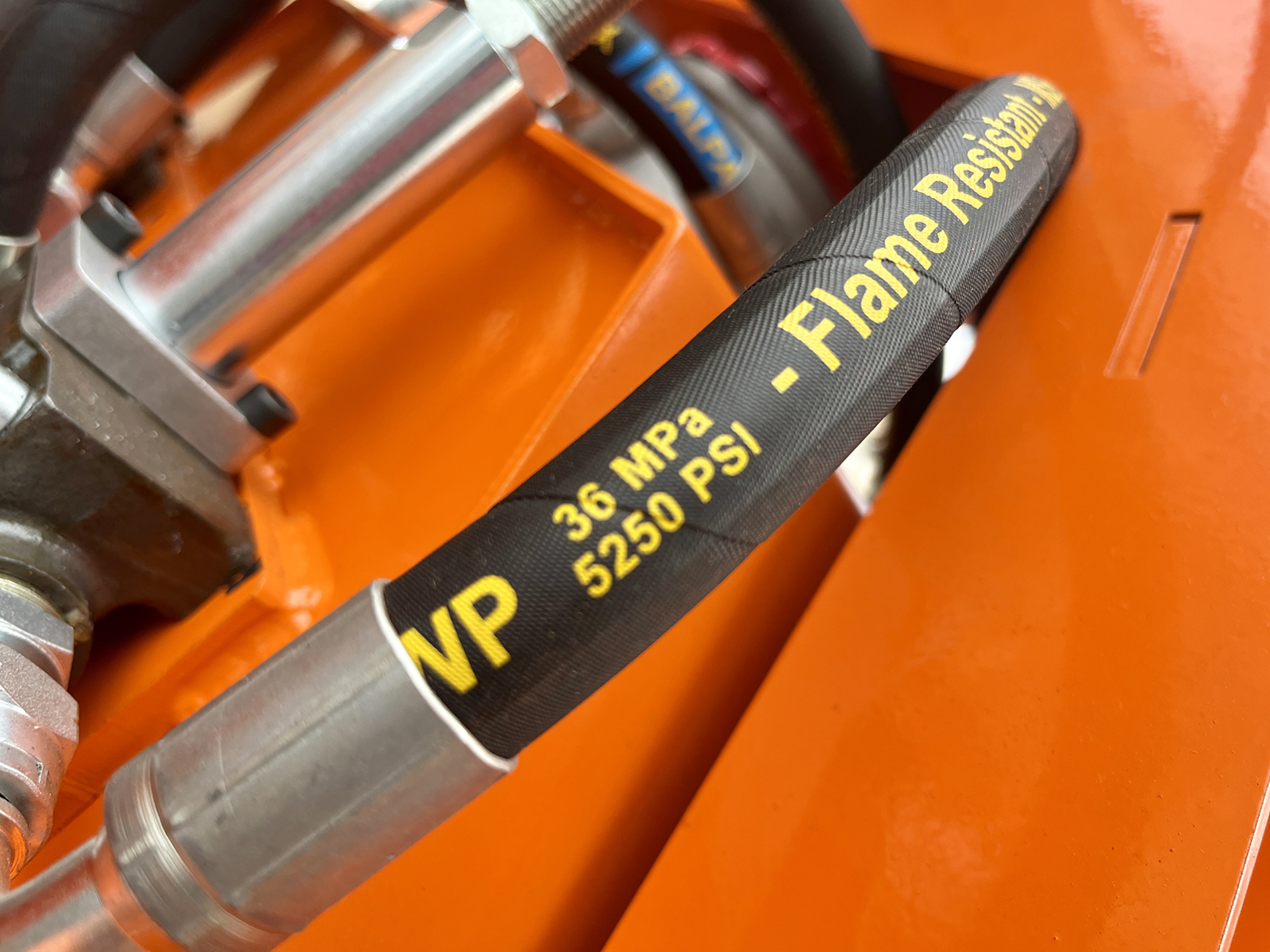

| Hydraulic Hoses | WP 400 Bar |
| Packing sizes | 1500.0*800.0*2000.0 mm |
