Wireless hydraulic hedge bush cutter for tractor

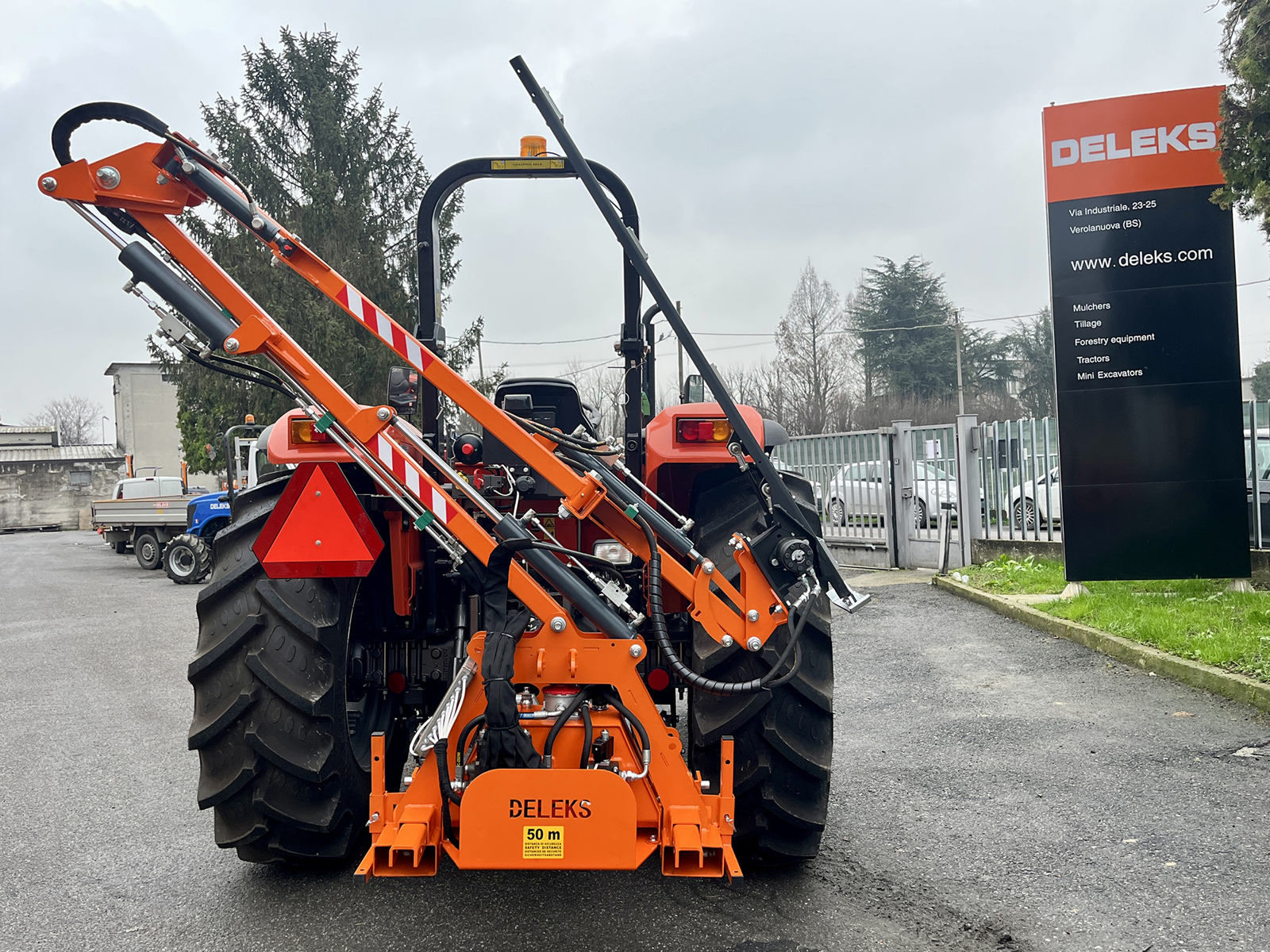

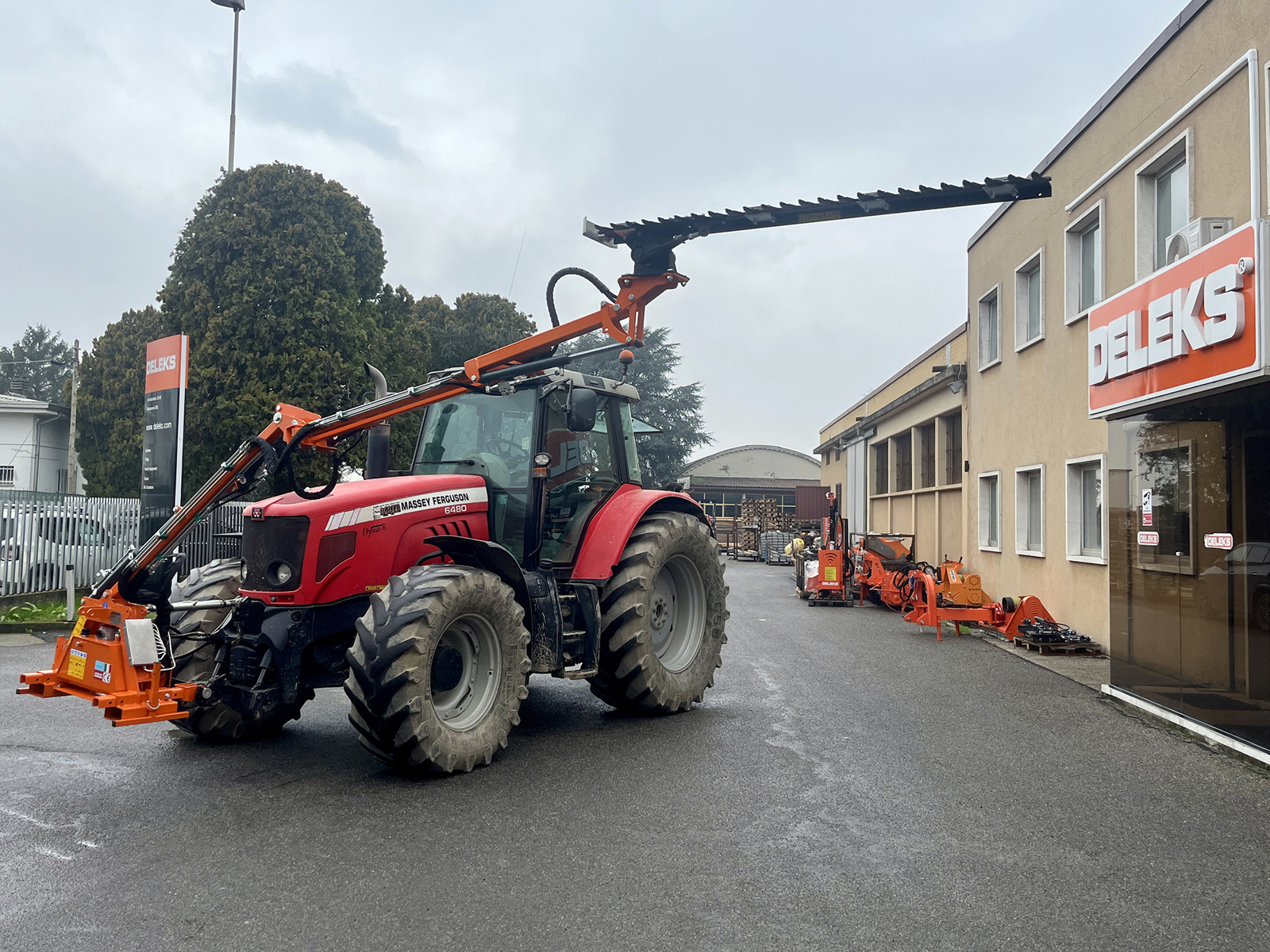

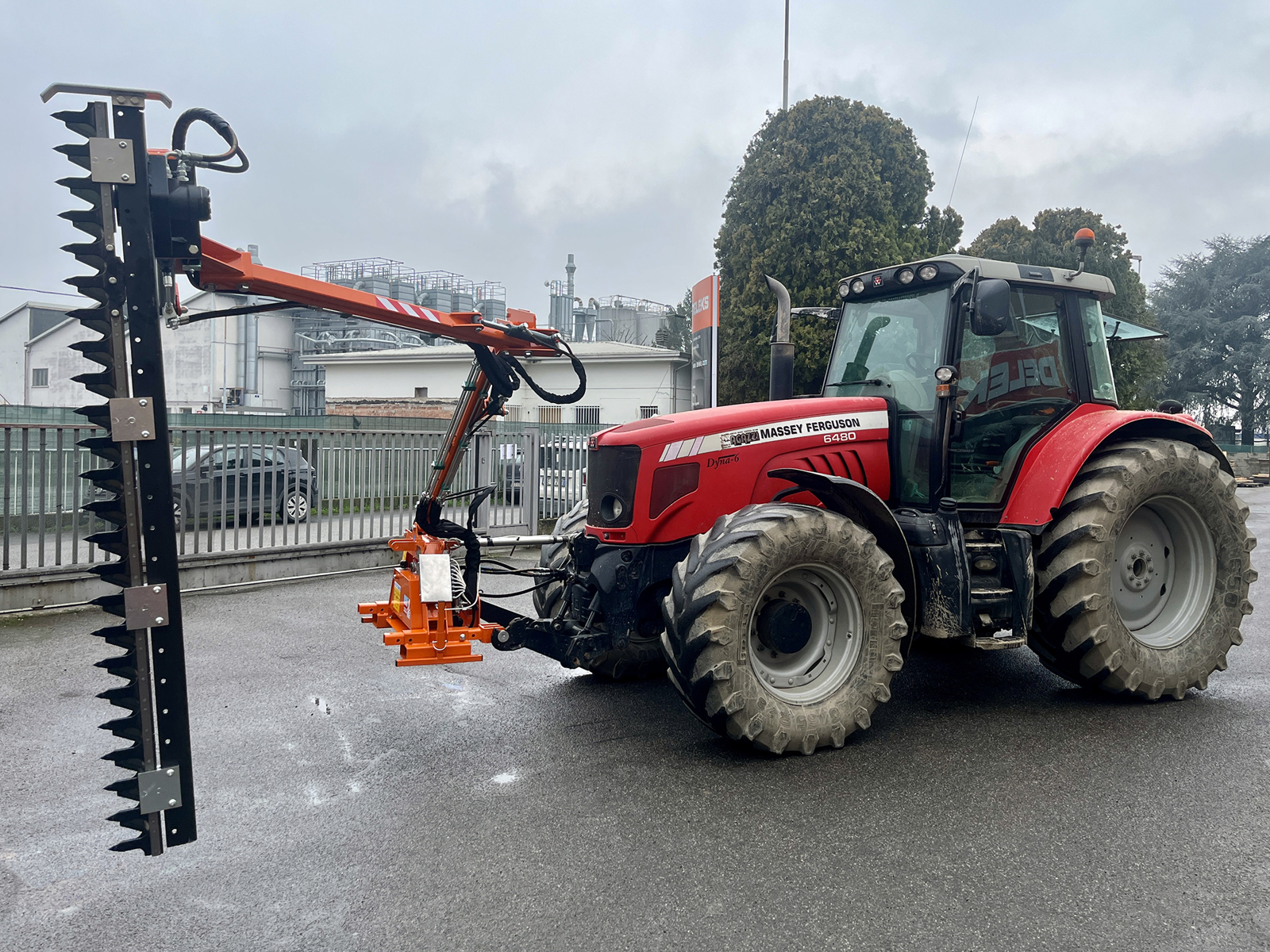

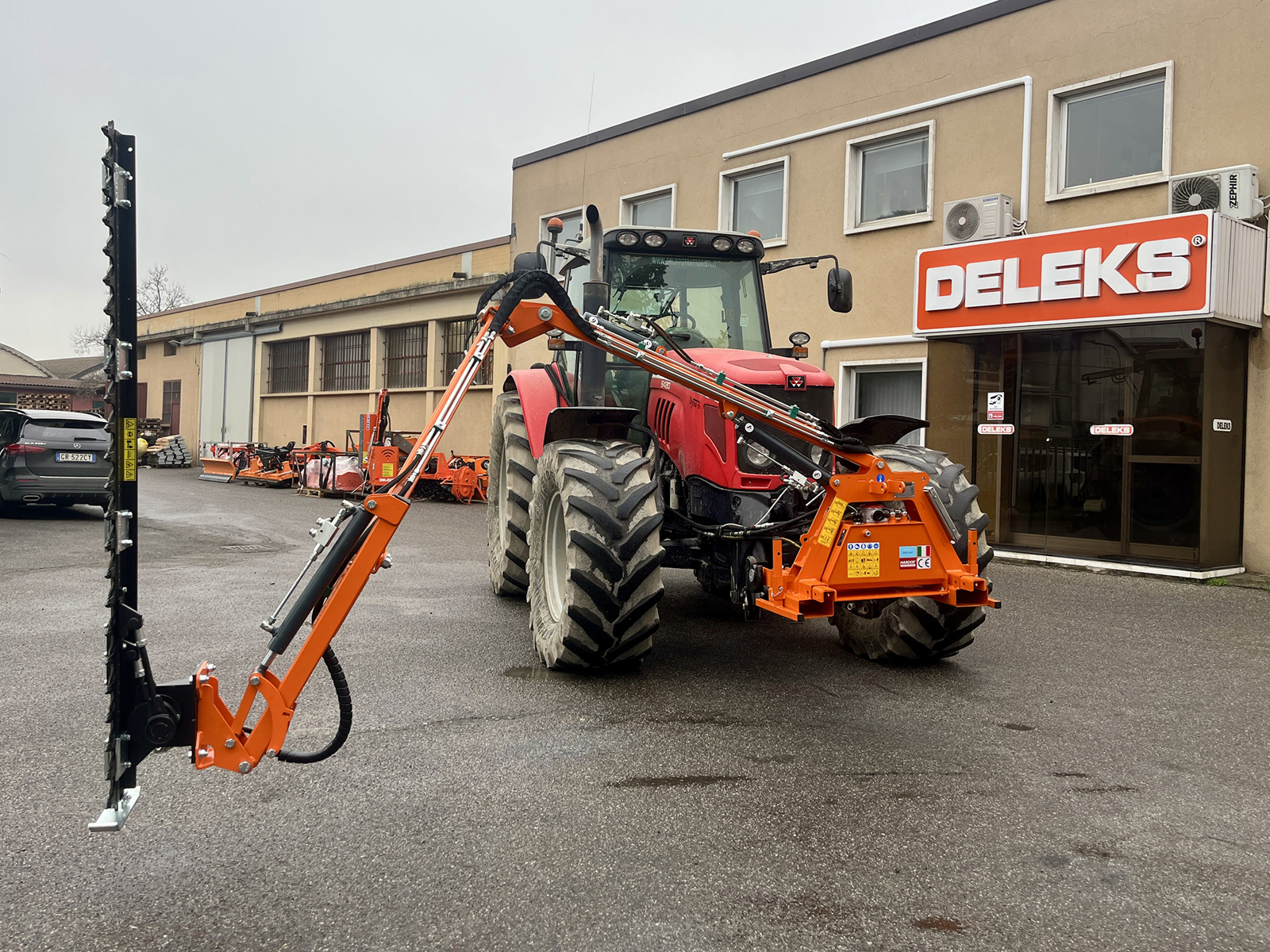

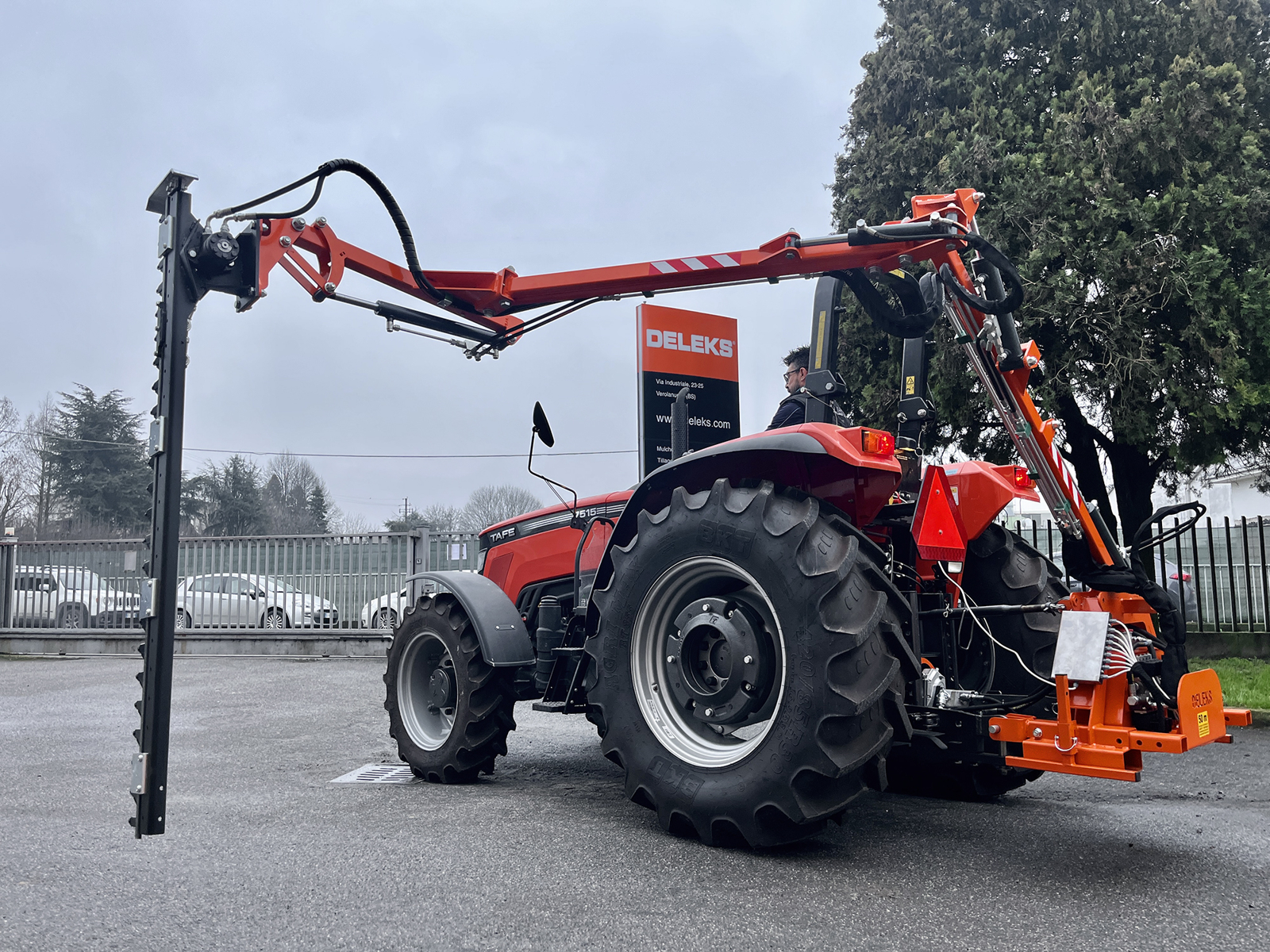

Hydraulic hedge cutter / boom mower for tractor - DELEKS^® FALCO-HW - double hydraulic PTO pump system - Wireless control system - own hydraulic system, runs completely off the PTO - can mount a 130-160 or 180cm hedge trimmer bar.

* Machine body only, flailhead and fingerbar are optionals.

OVERVIEW

Ideal for compact and mid size tractors with a minimum gross weight of 800kg. Perfect for maintaining small bushes, trees and pruning edges. Works on both sides (right and left). This is a highly adaptive, easy to operate machine that cuts cleanly and environmentally without flailing your hedge to death.

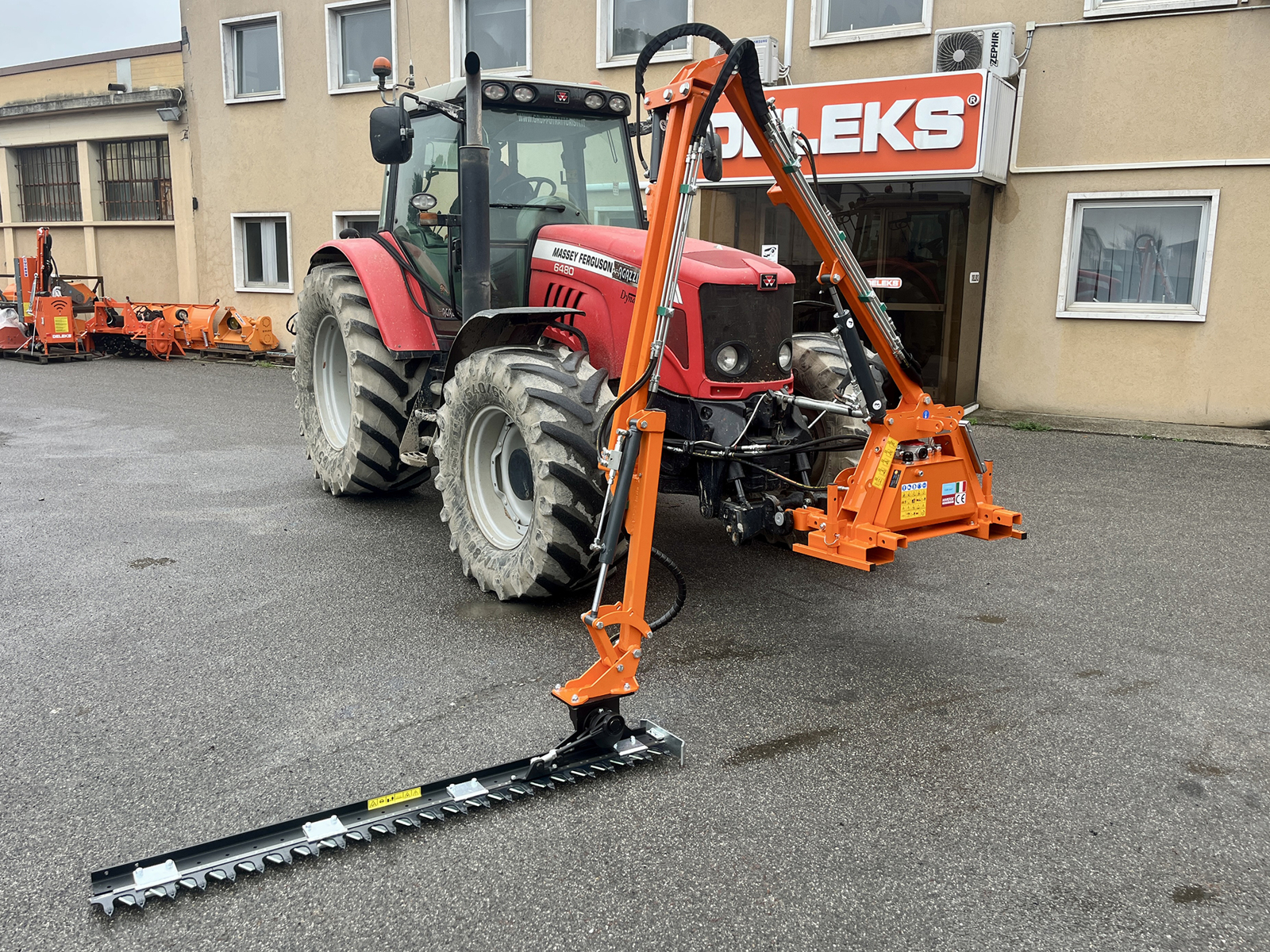

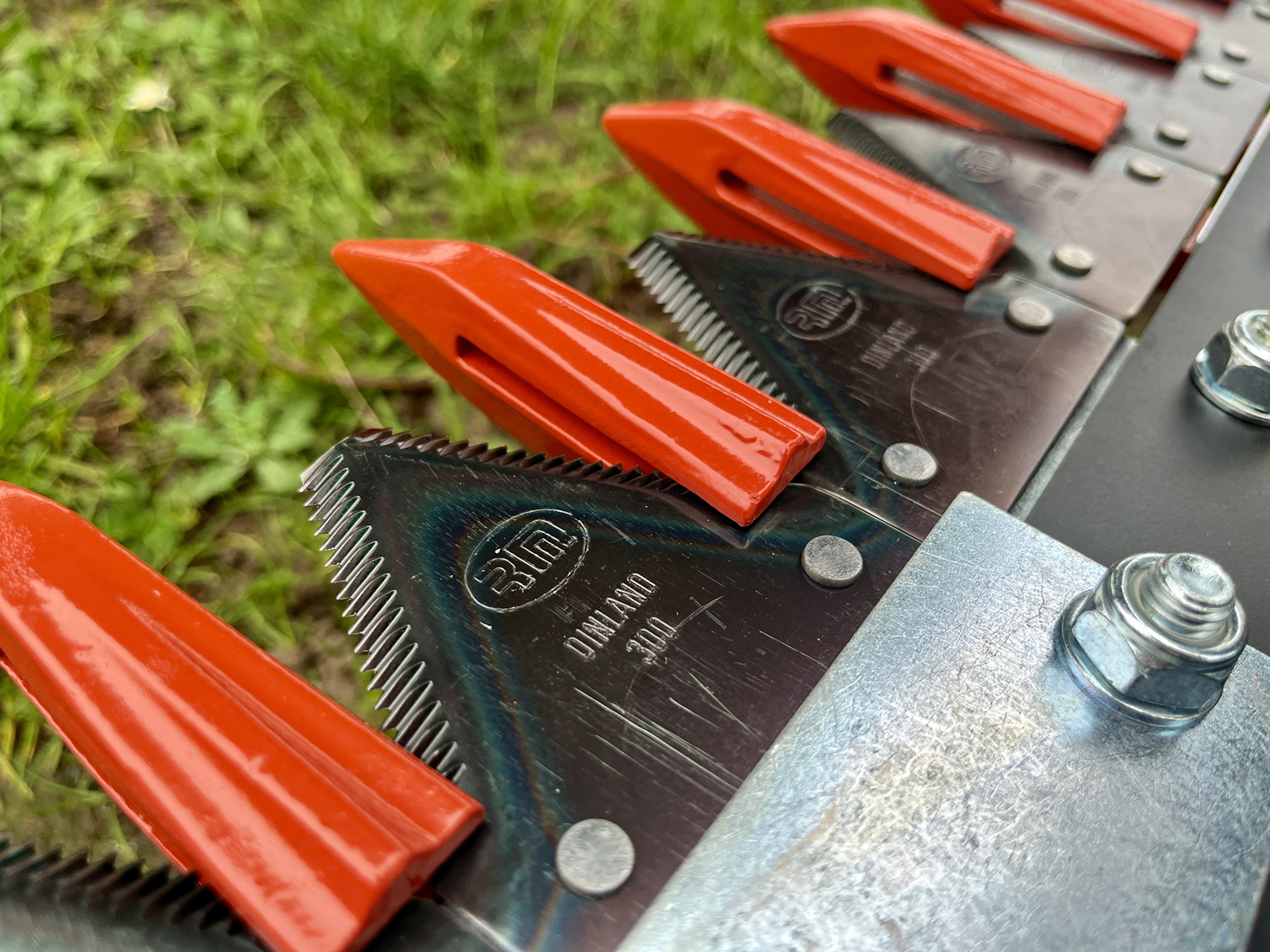

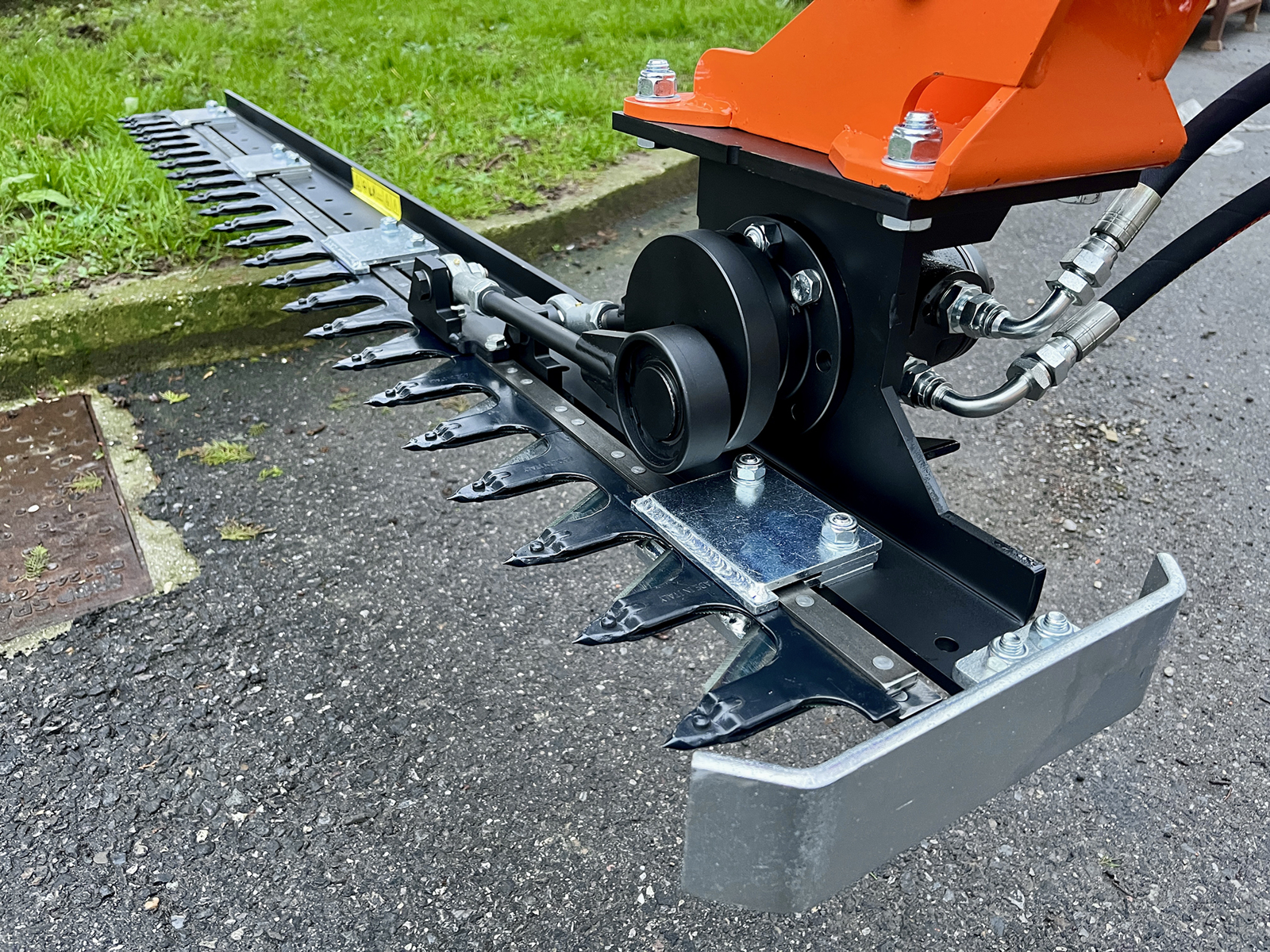

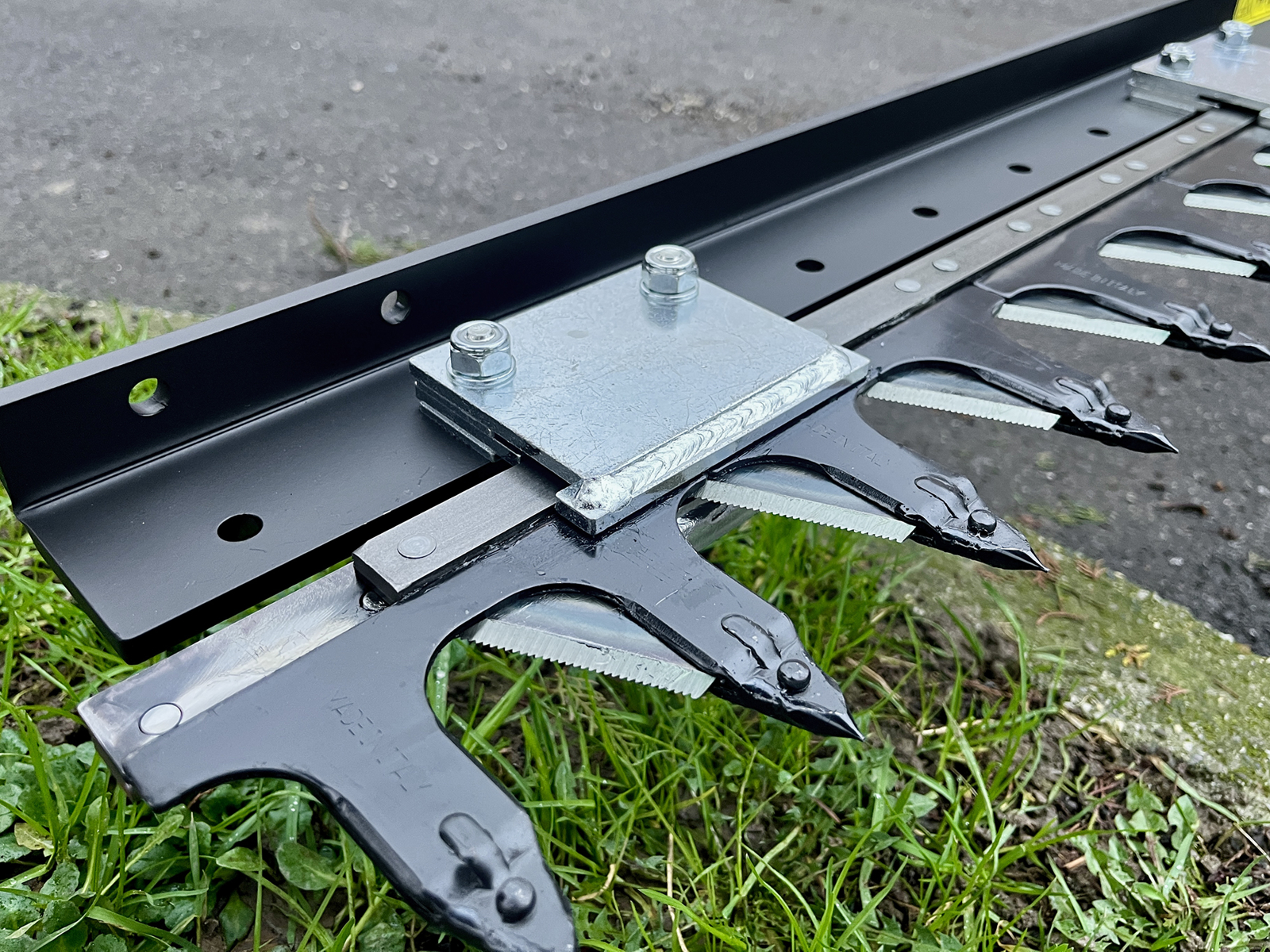

• With an HRS 130-160-180cm hedge trimmer bar attached, it is ideal for hedges and tree branches up to 2-3cm in diameter.

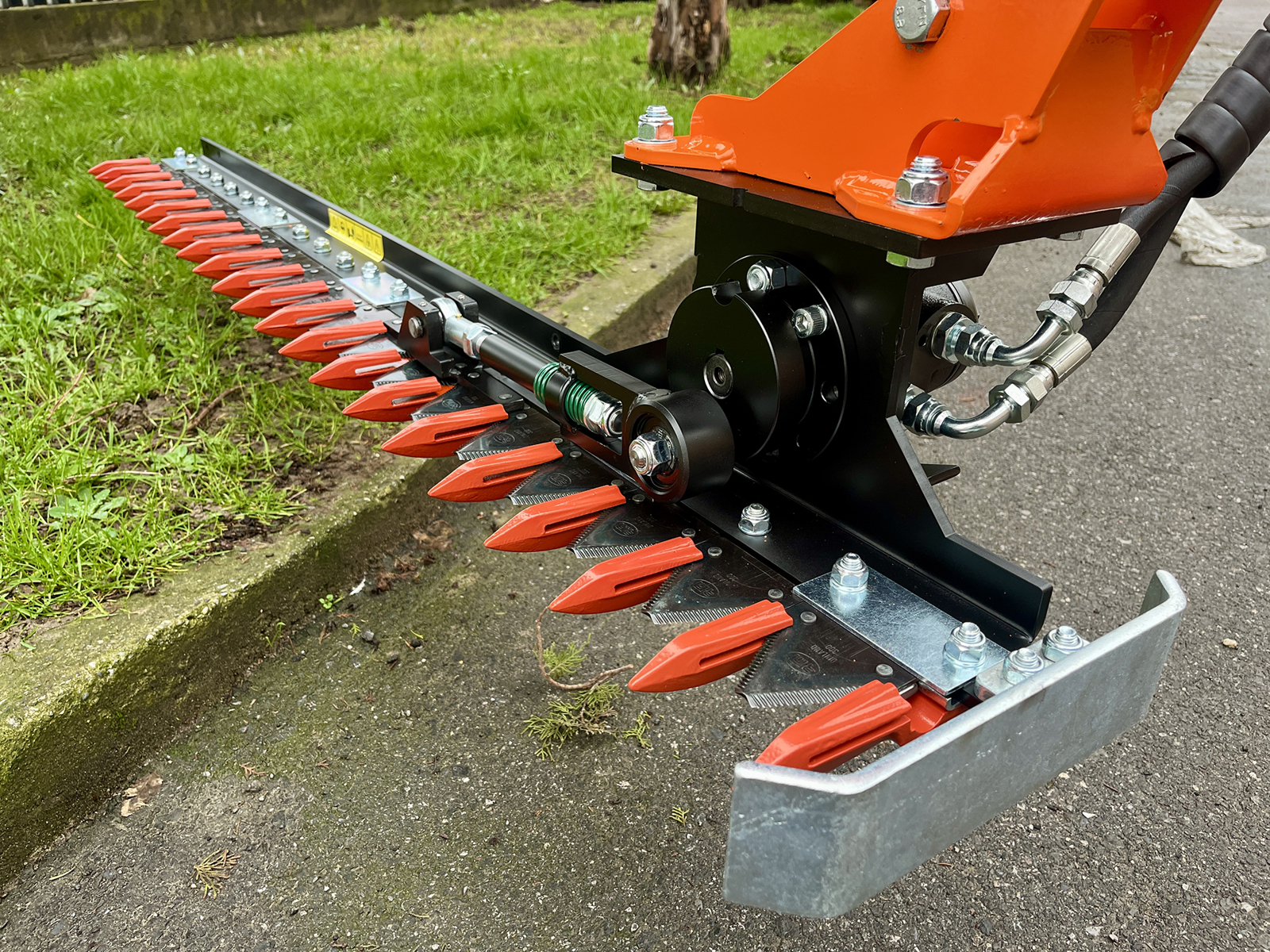

• With the HRD 130-160-180cm double hedge trimmer bar applied, it is ideal for grass, and precise work on hedges and trees with fine branches (max 1cm in diameter).

Machine weight without cutting accessory: 230 kg

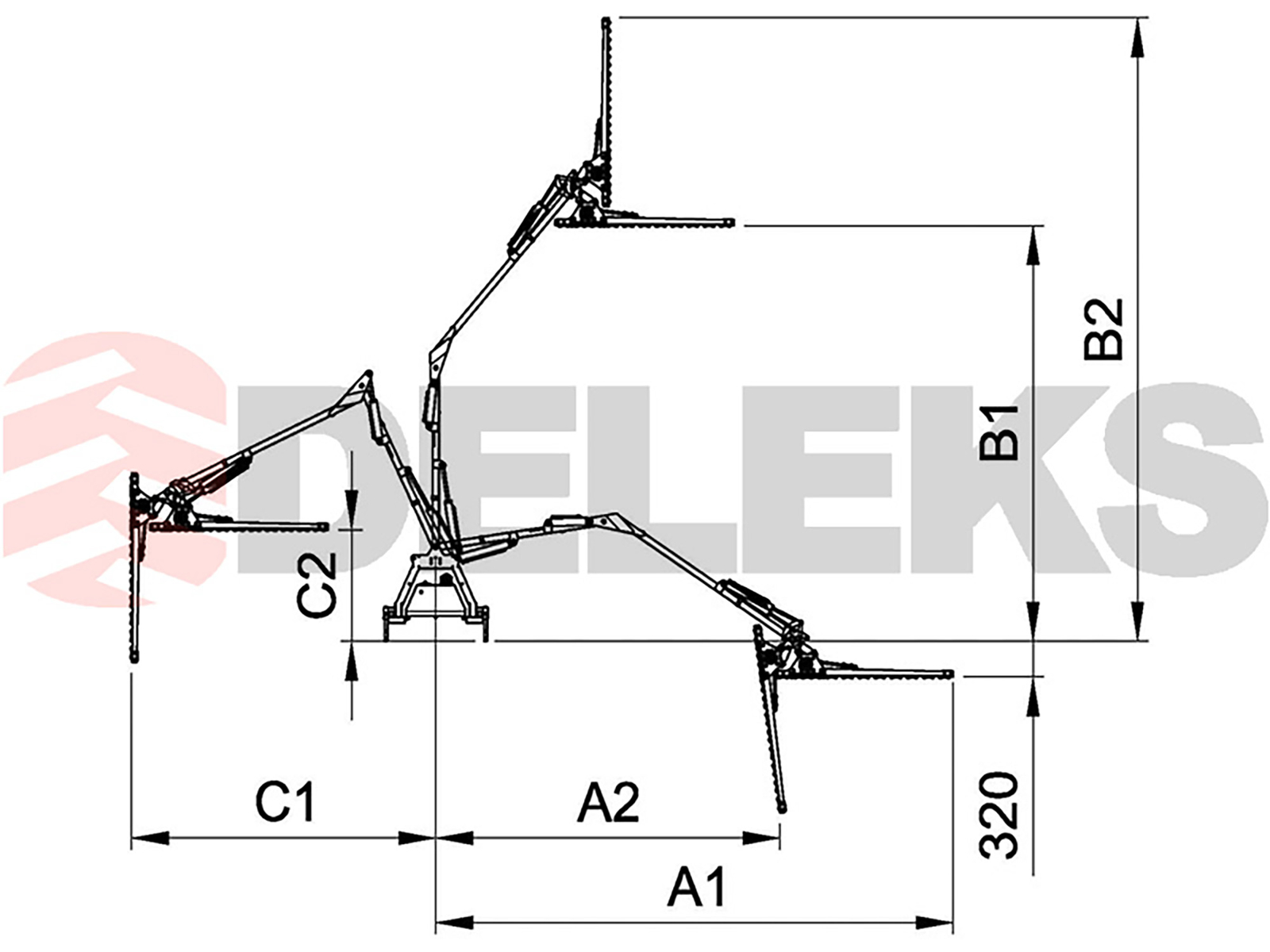

Cutting measures (see pictures):

A1: 4500 - 4700 - 4900 mm
A2: 3200 mm
B1: 3700 mm
B2: 5200 - 5400 - 5600 mm
C1: 2800 mm
C2: 1000 mm

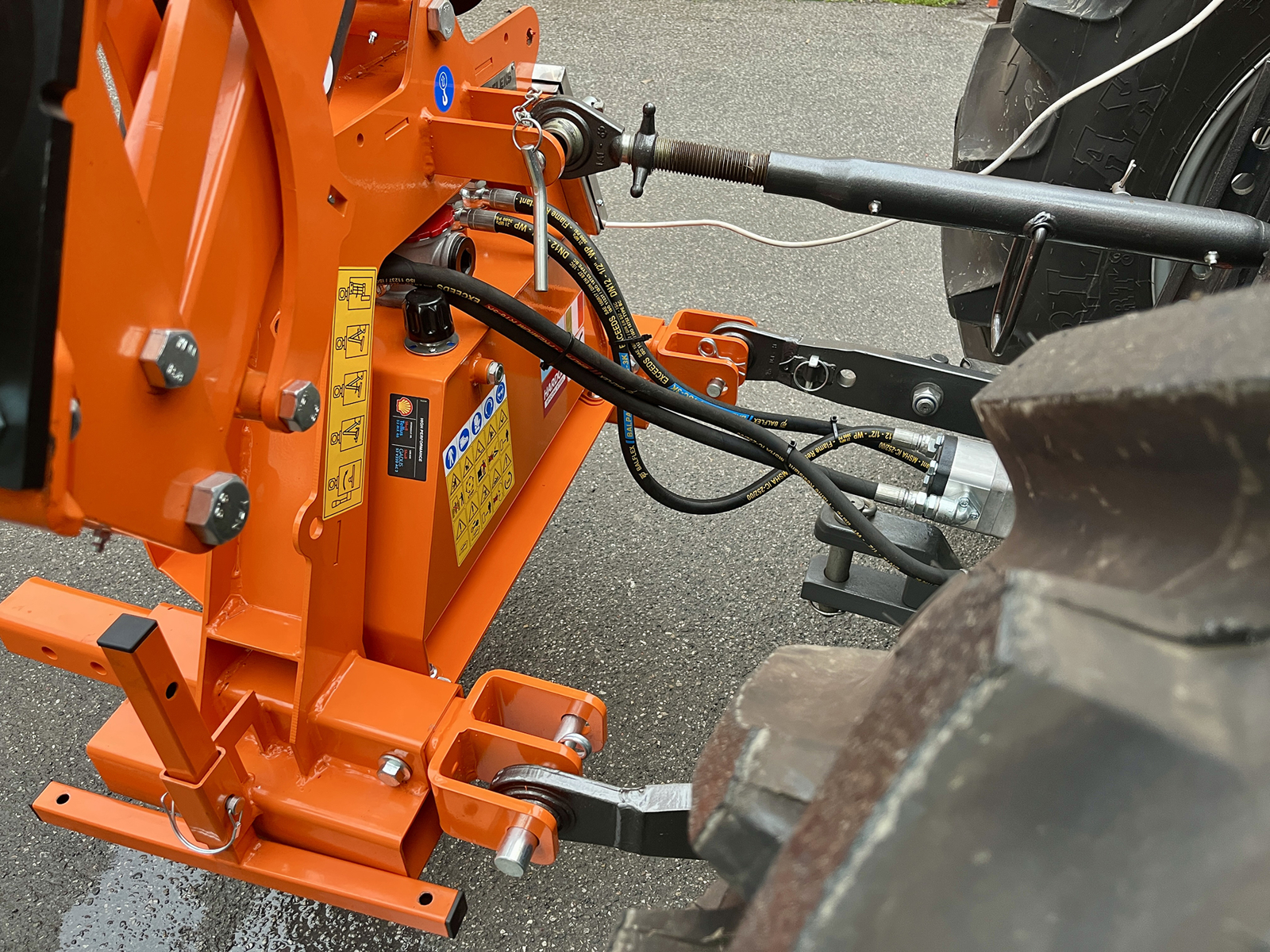

Length of the hydraulic pipes to the hydraulic pump (PTO): 900 mm.

BENEFITS & FEATURES

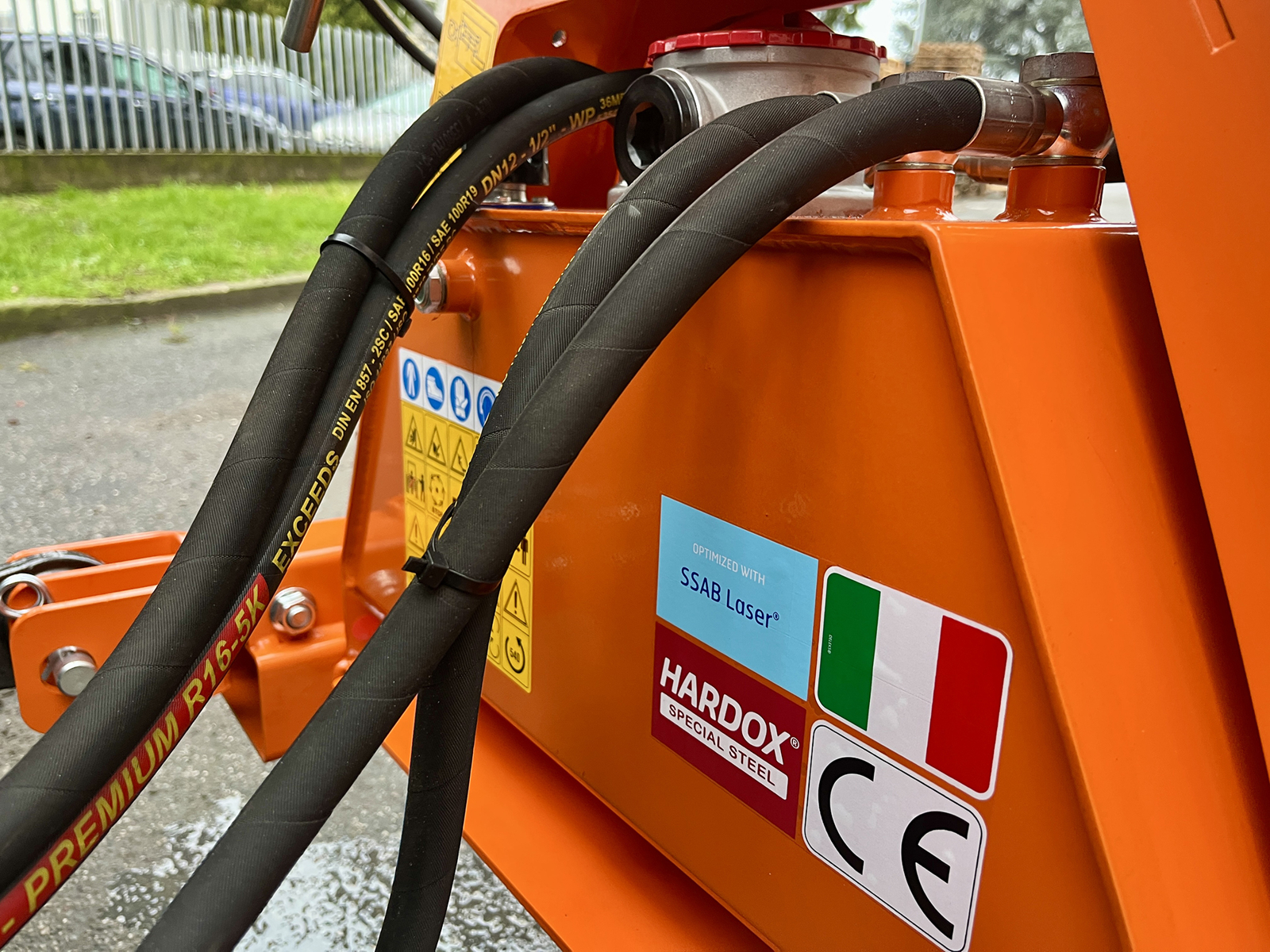

Frame entirely made with Swedish SSAB and HARDOX steel.

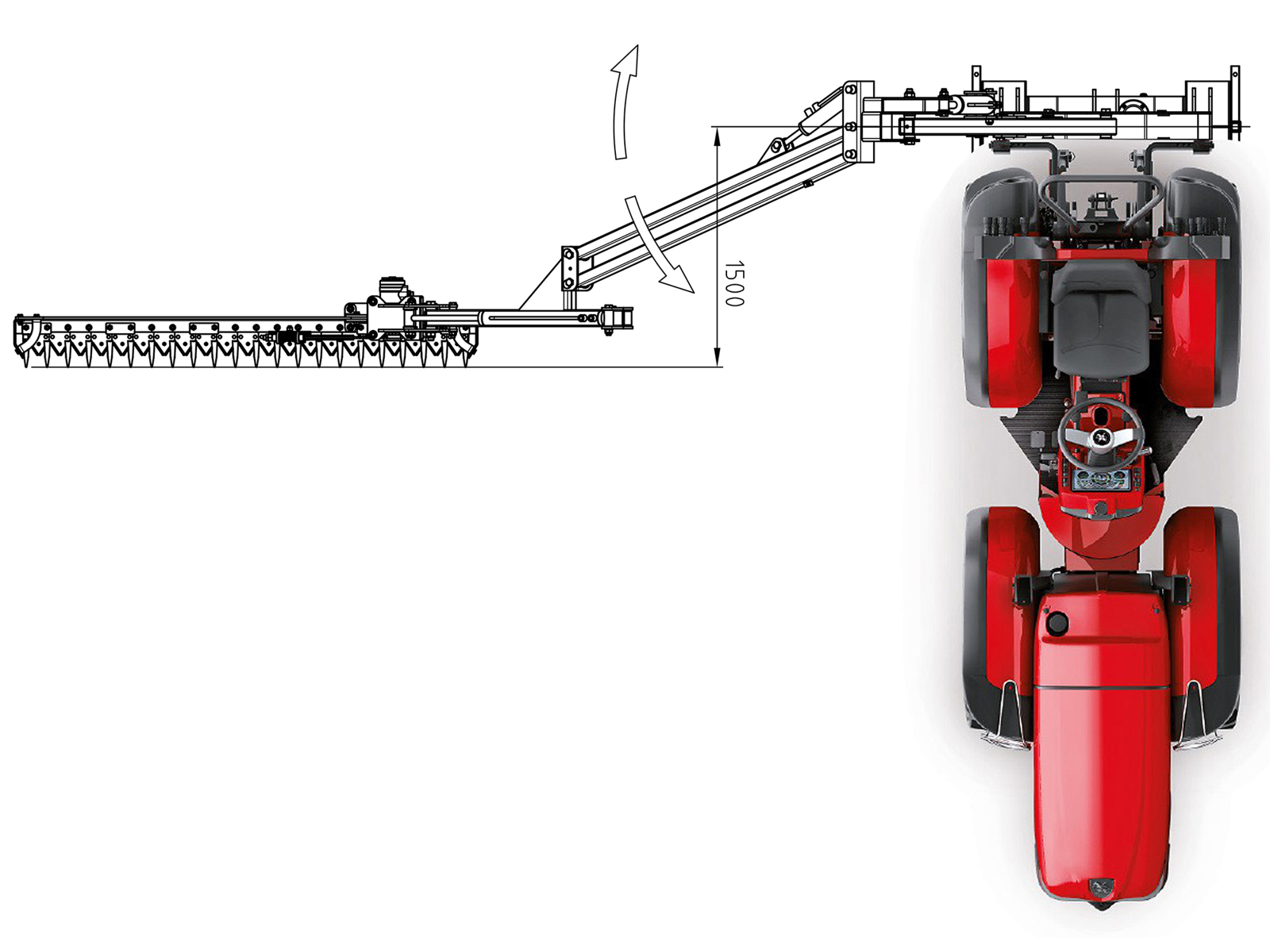

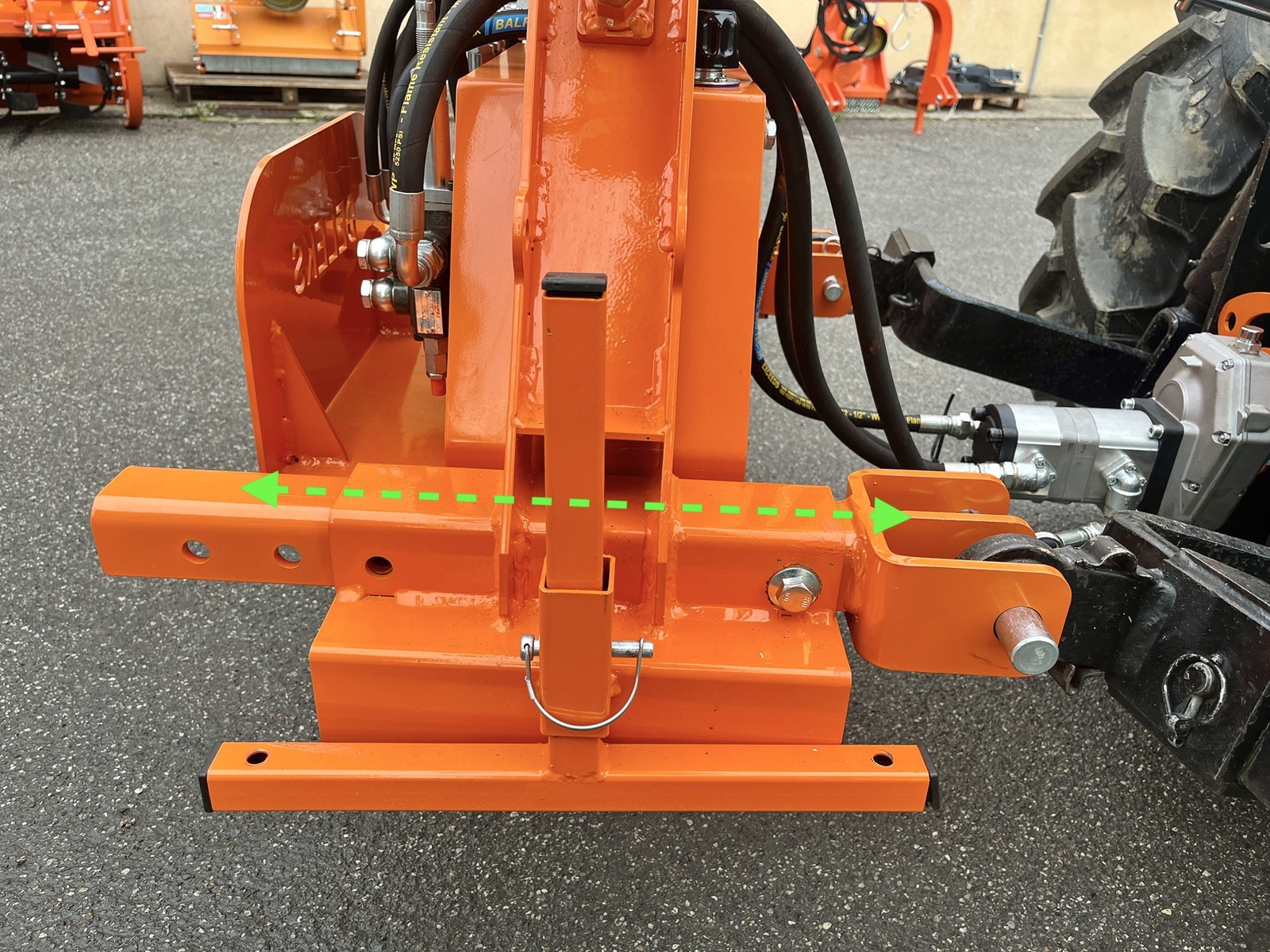

The cutting surface it’s able to move and advance on the driver’s side.

Very safe to operate as it does not have high speed flying obstacles from the cutter bar head, unlike a flail therefore it can be used safely without a cab on even the smallest tractors.

Has its own Hydraulic system: it runs completely off the PTO, no need to connect the tractors hydraulics.

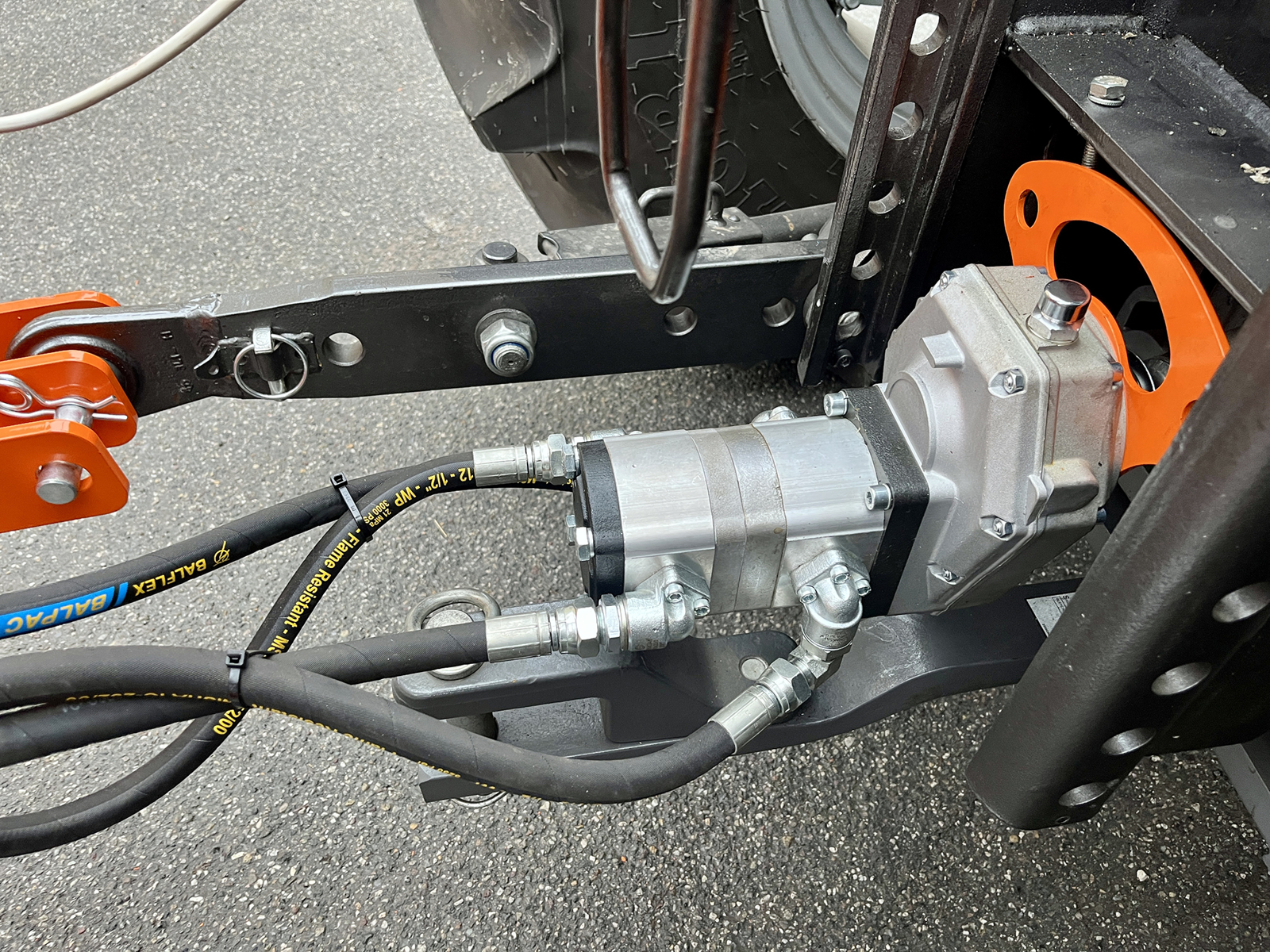

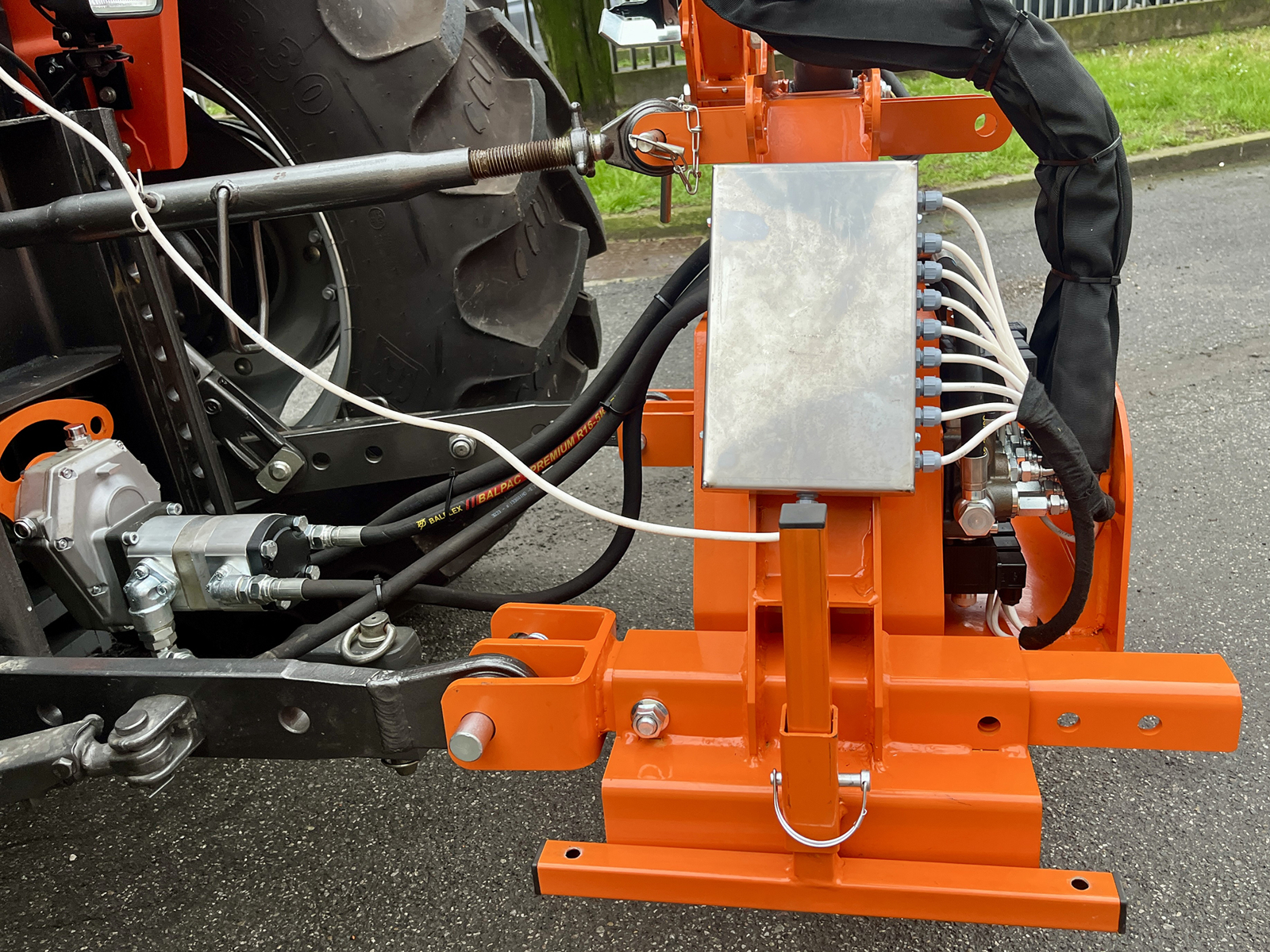

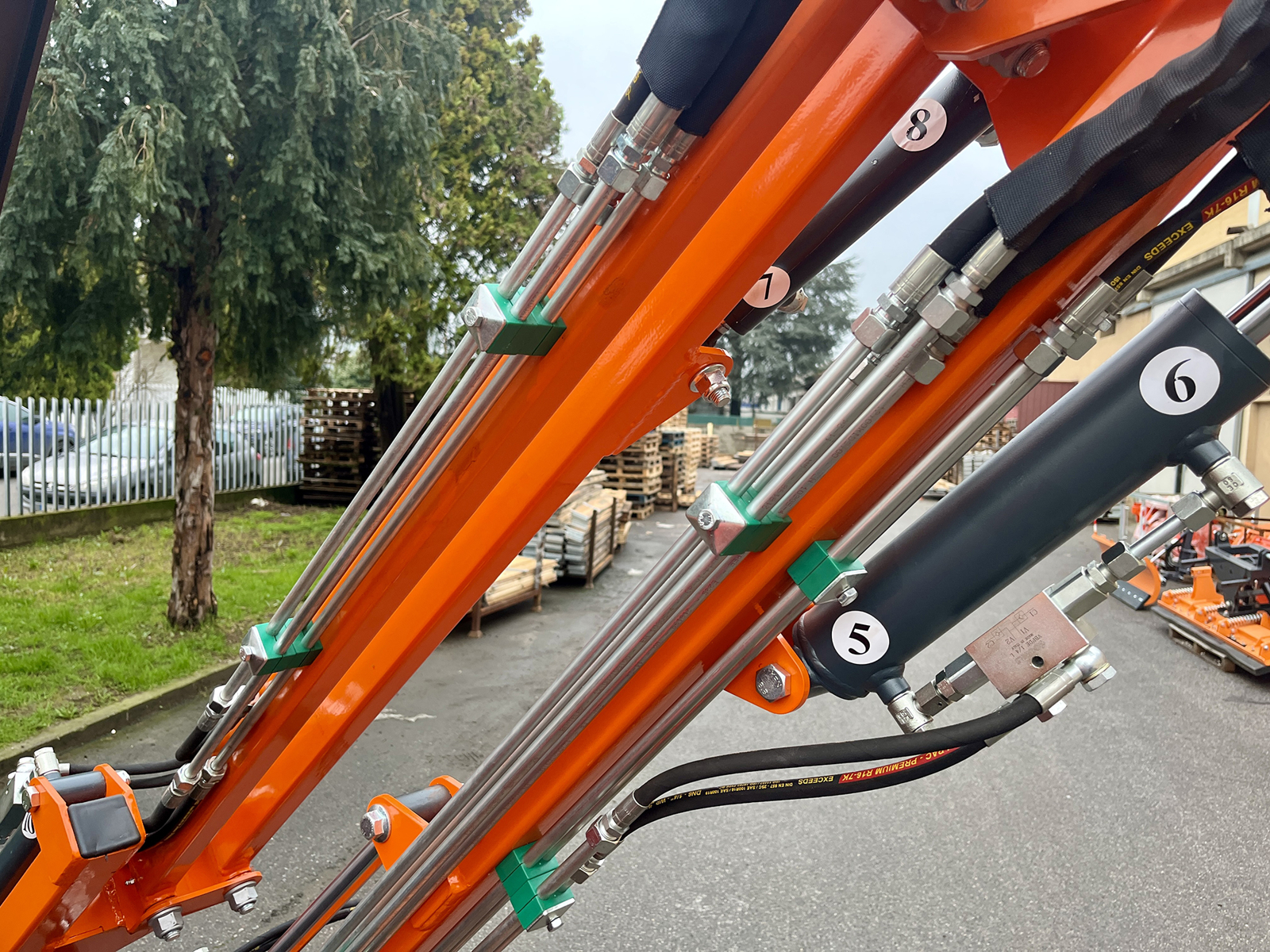

The double hydraulic pump system allows to move together the arm and the cutter bar.

The innovative wireless control system replaces the mechanical remote control with cables and sheaths.

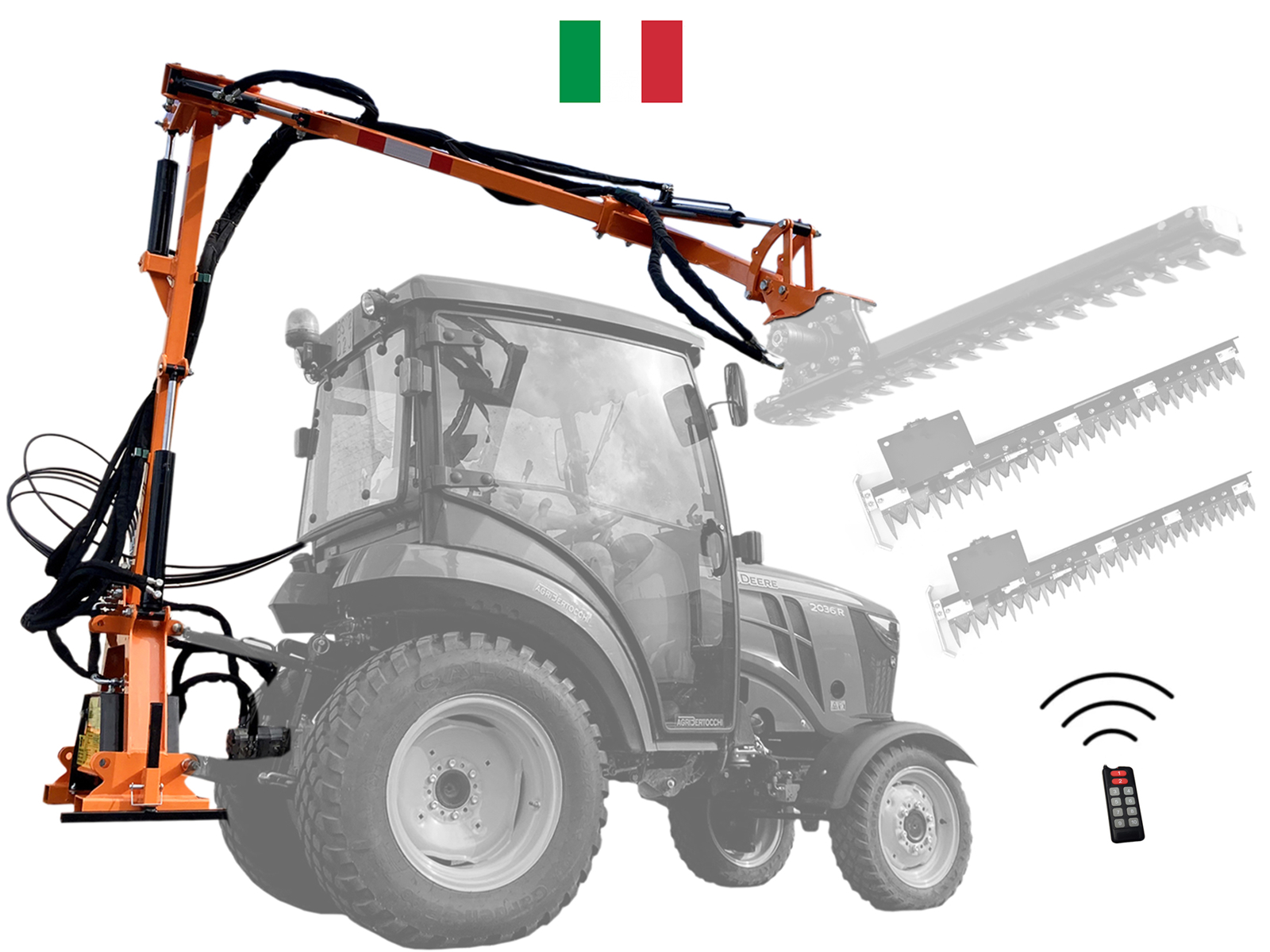

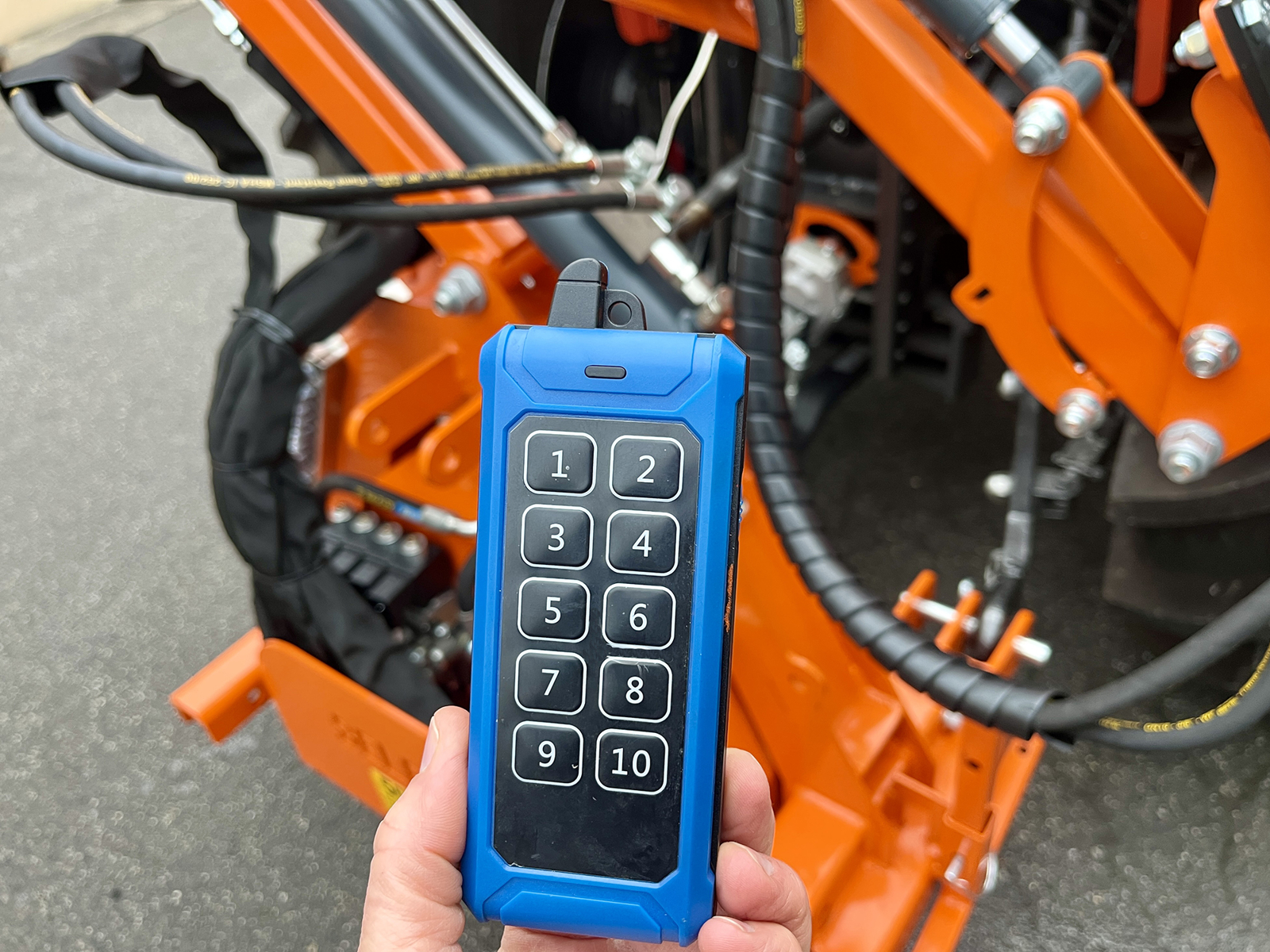

With the remote control supplied as standard, it will be possible to manage both the hydraulic pistons and the hedge trimmer bar, thus allowing the DELEKS^® FALCO to be mounted at the rear or front of the tractor without having the problem of how to get the distributor control cables into the cab.

The wireless system is not afraid of rain and does not need to be recharged, except by replacing the batteries in the remote control when they run out.

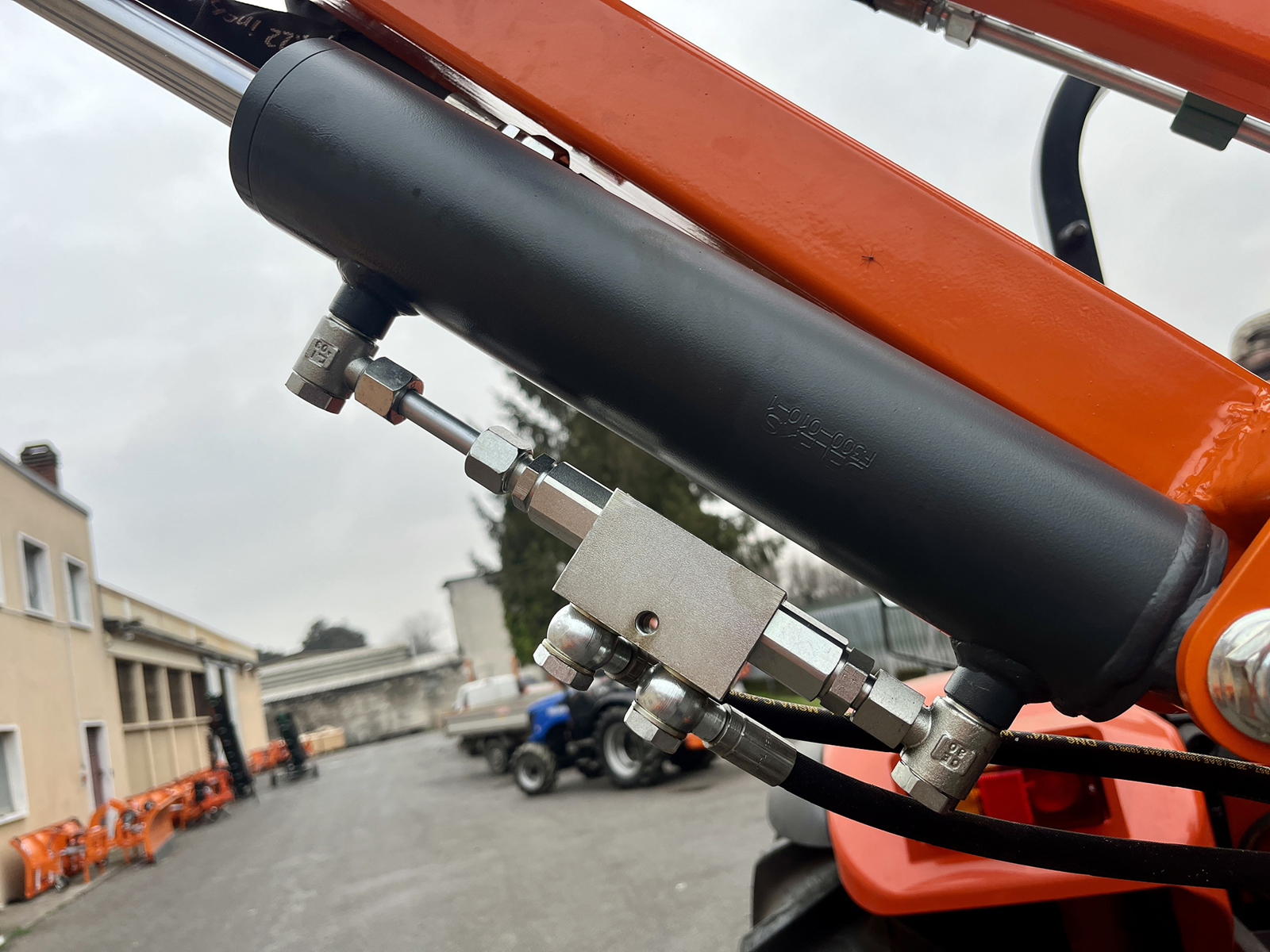

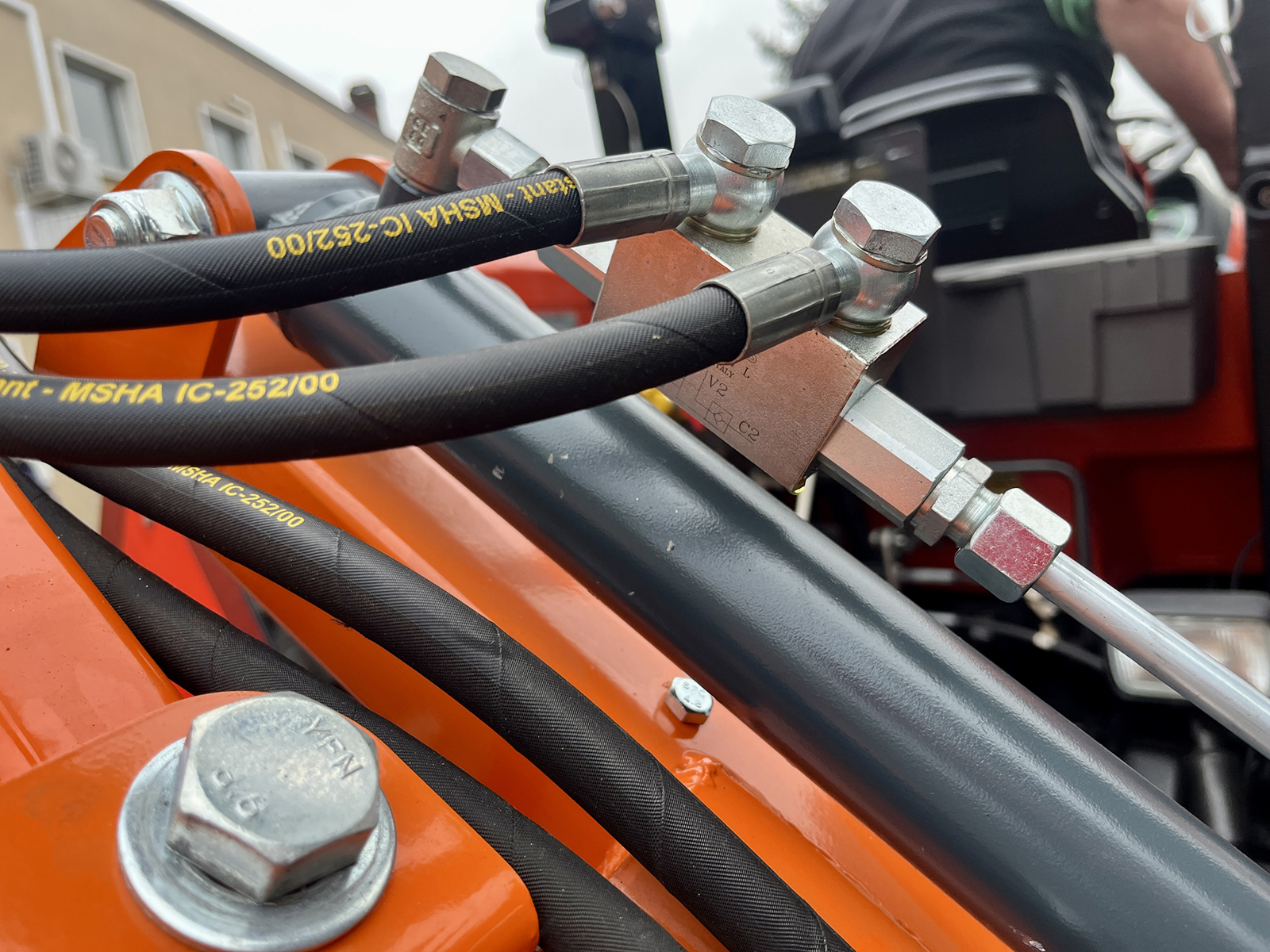

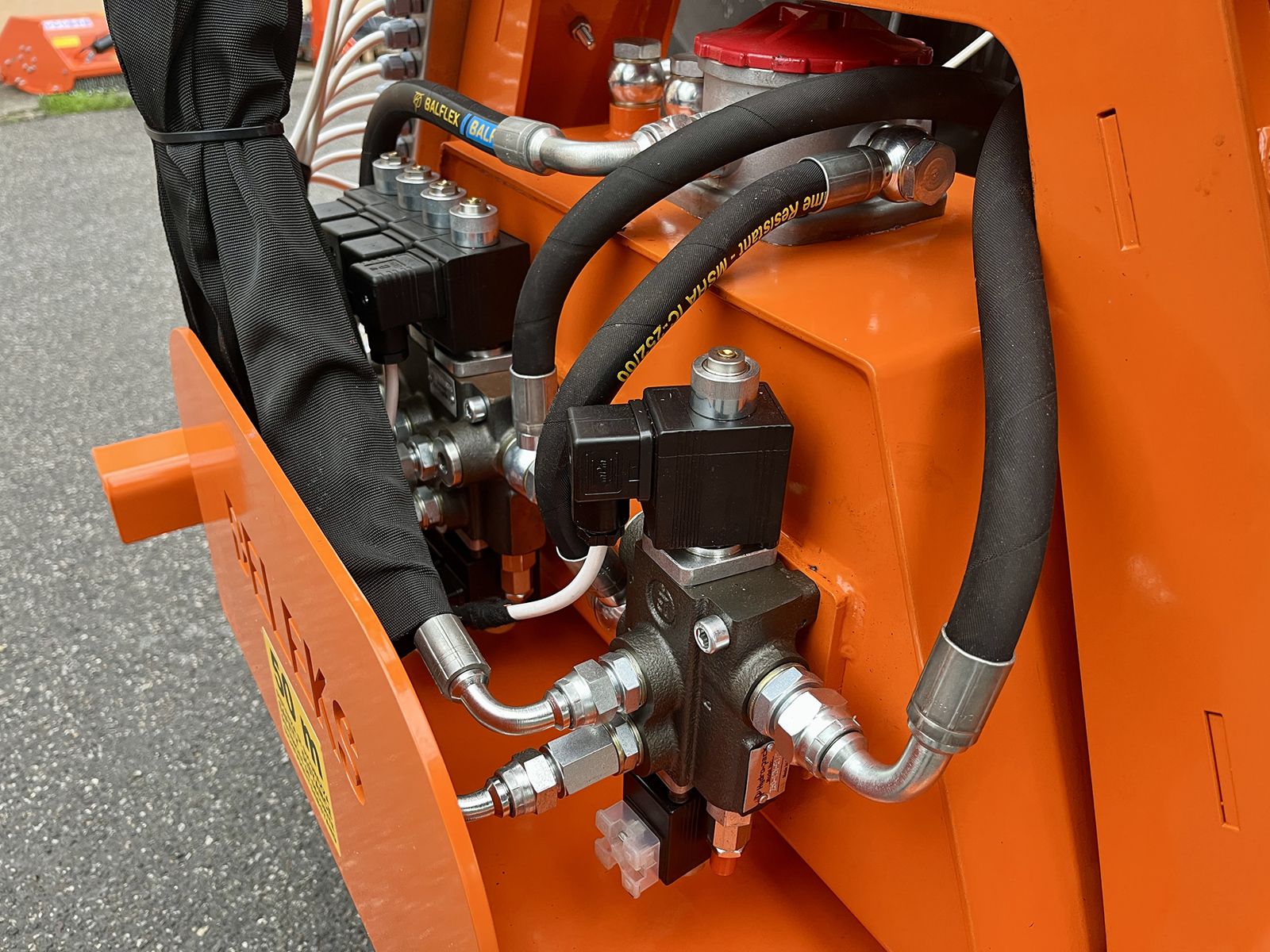

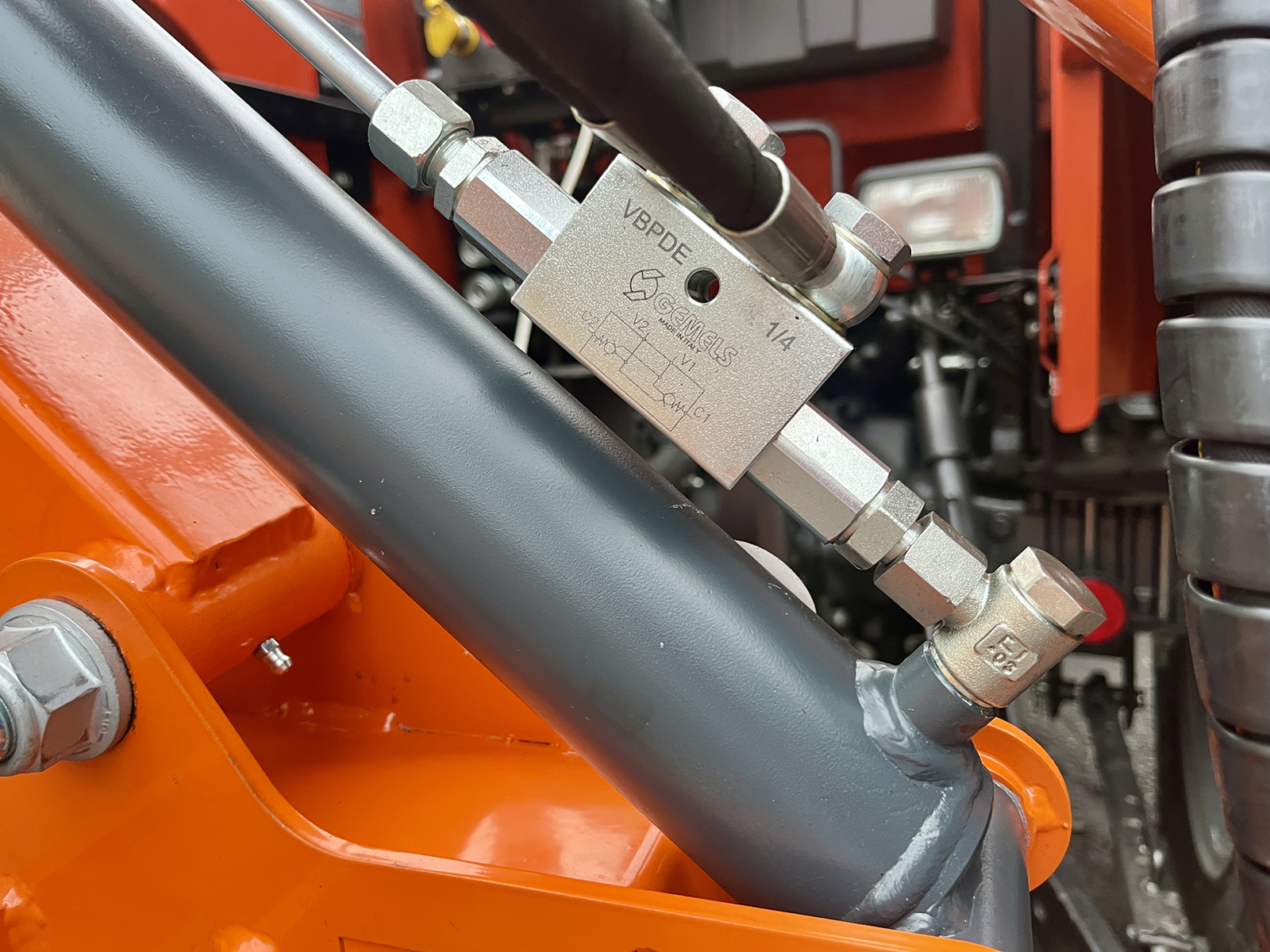

The hydraulic system managed by the wireless control is adjustable, to have a quicker or gentler management of the hydraulic pistons of the arm.

As a low weight machine, this cutter fits tractors universally, small to large, eg from small Kubota, Iseki, Mitsubishi, right up to 60hp mid size tractors.

20 L oil tank (already supplied level).

Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual

Note: Due to transport reasons, the main arm is temporarily fixed at a lower point, to limit the overall height. The assembly in  working position will be carried out by the customer before the first use.
