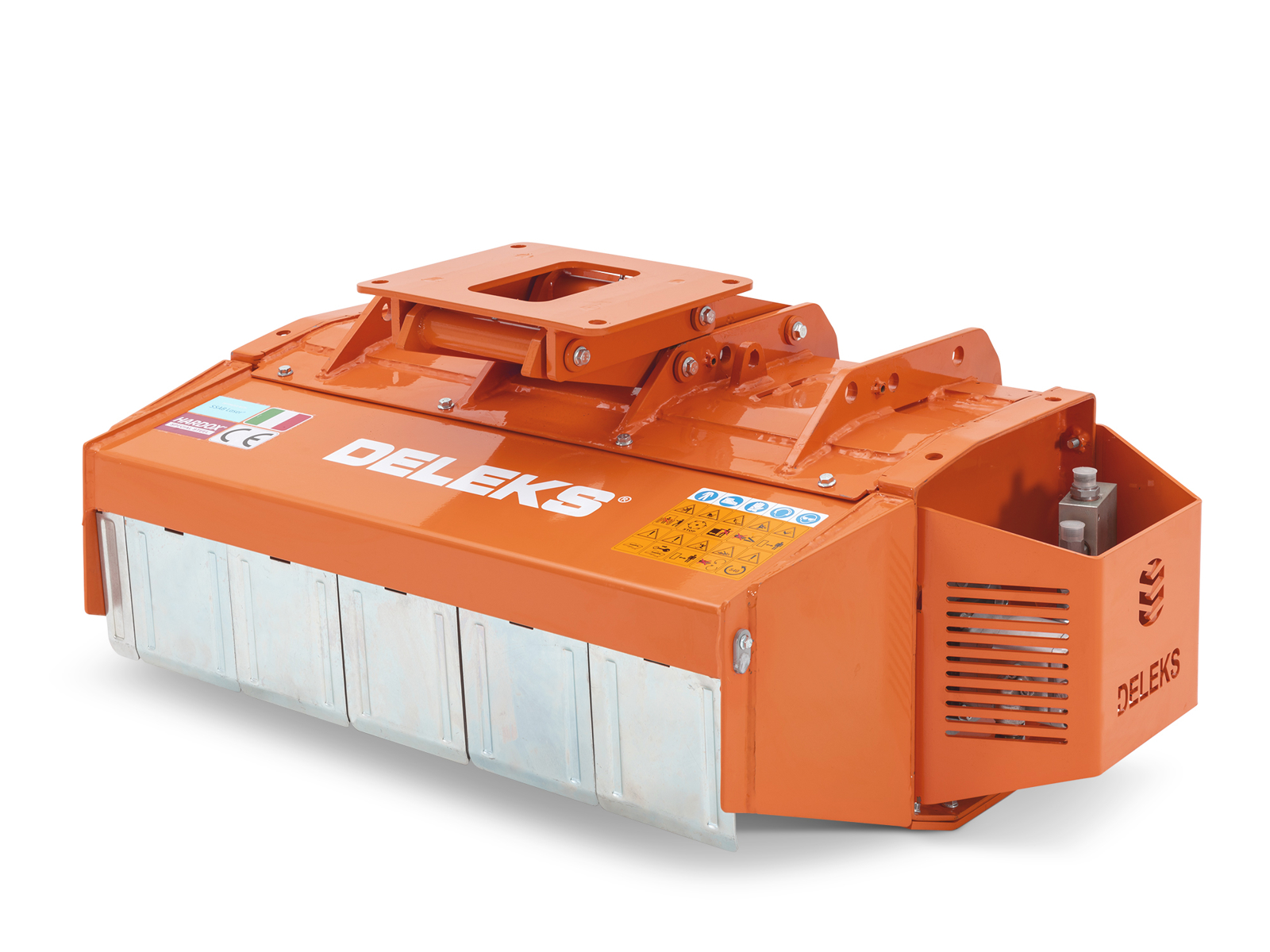

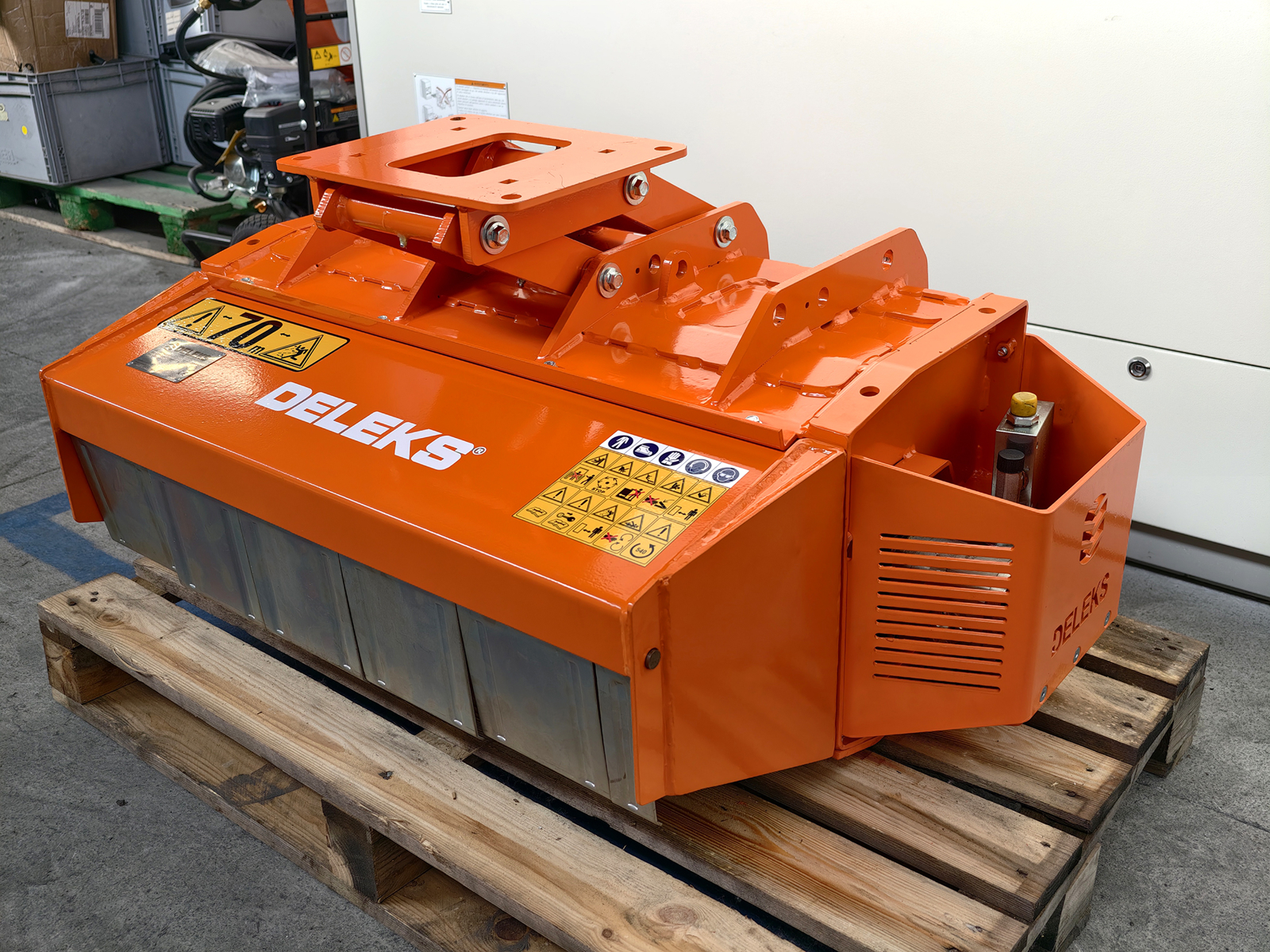

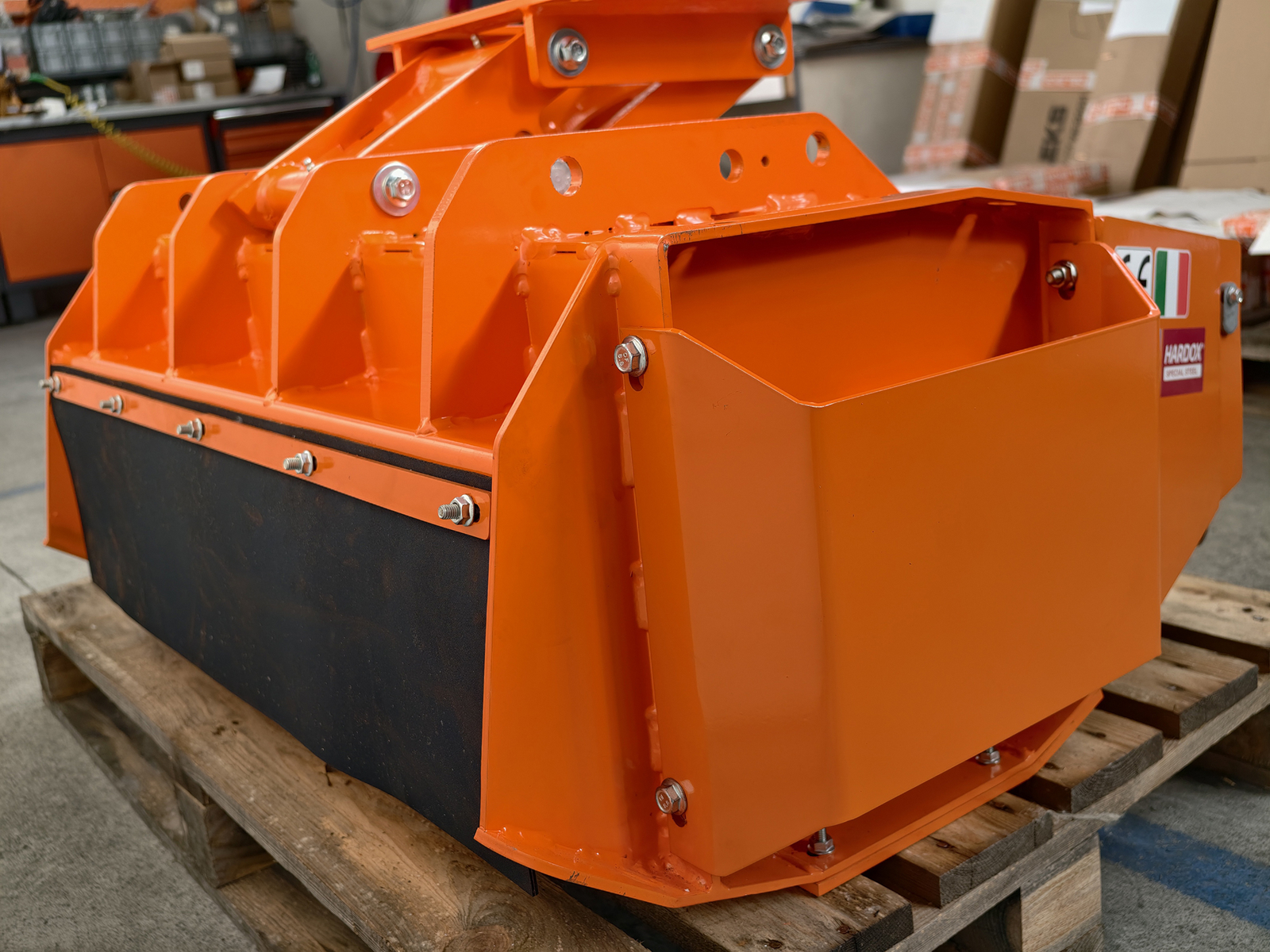

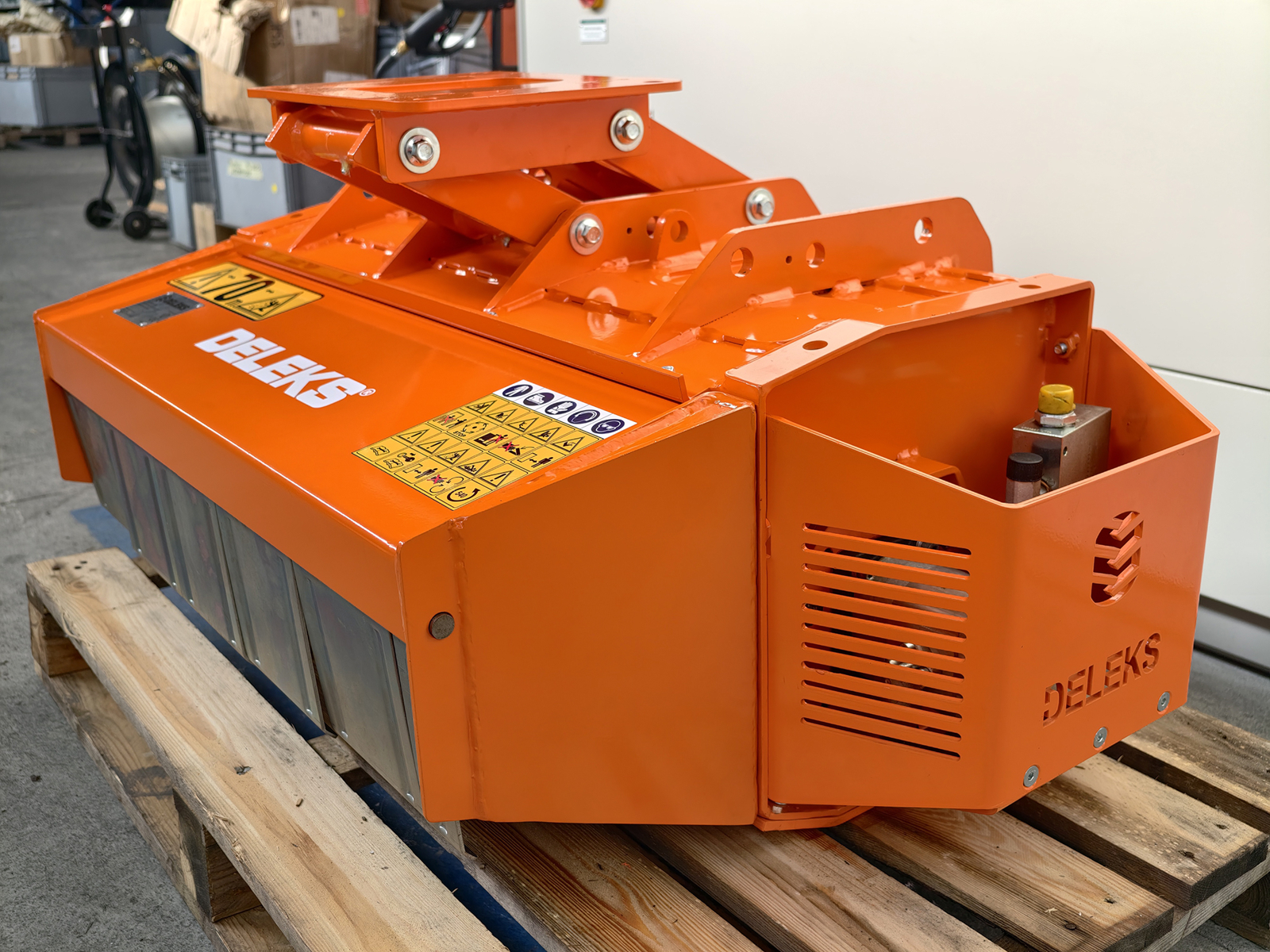

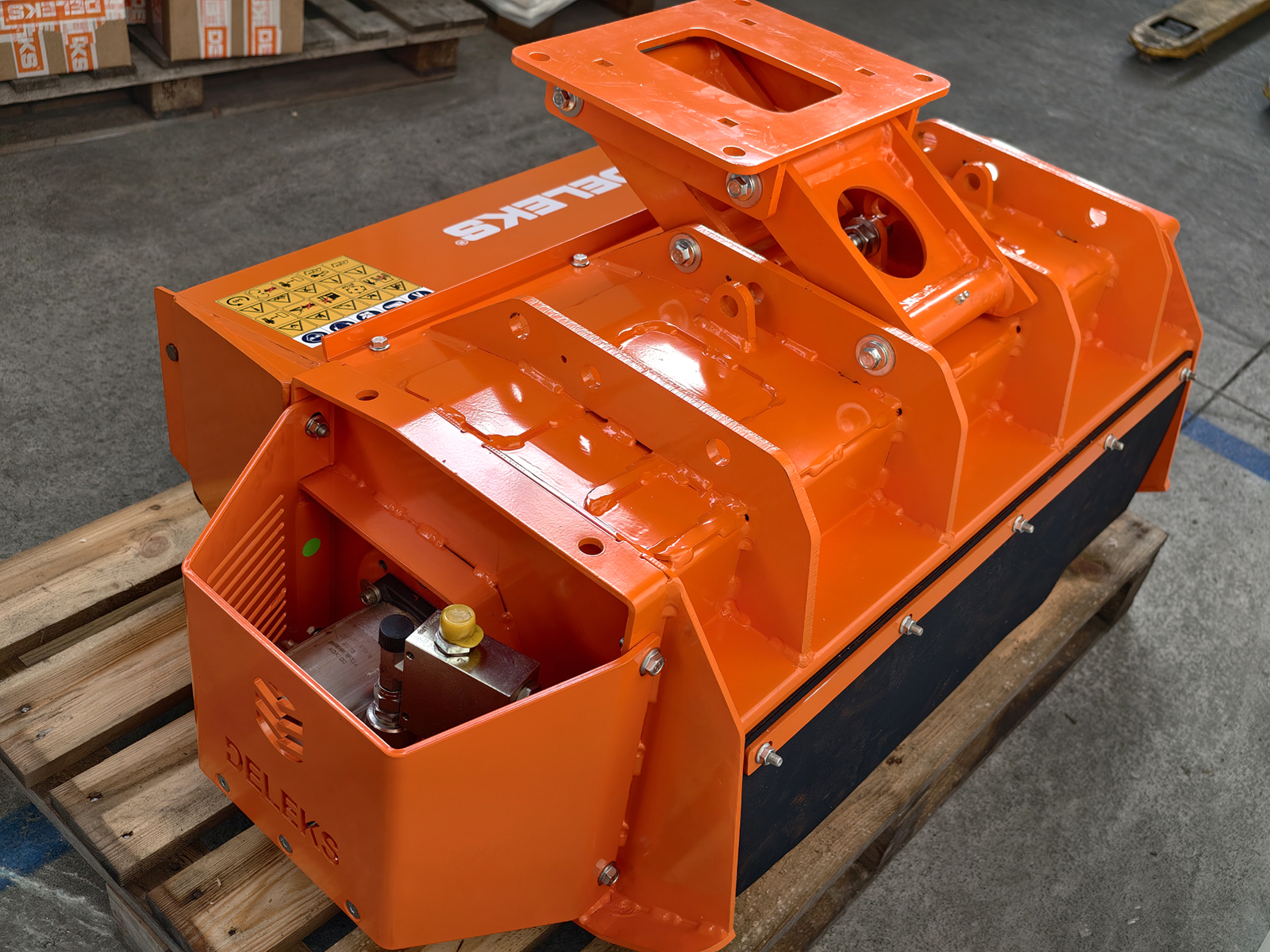

Excavator Mulcher Head - 80cm - hydraulic shredder
DETAILS

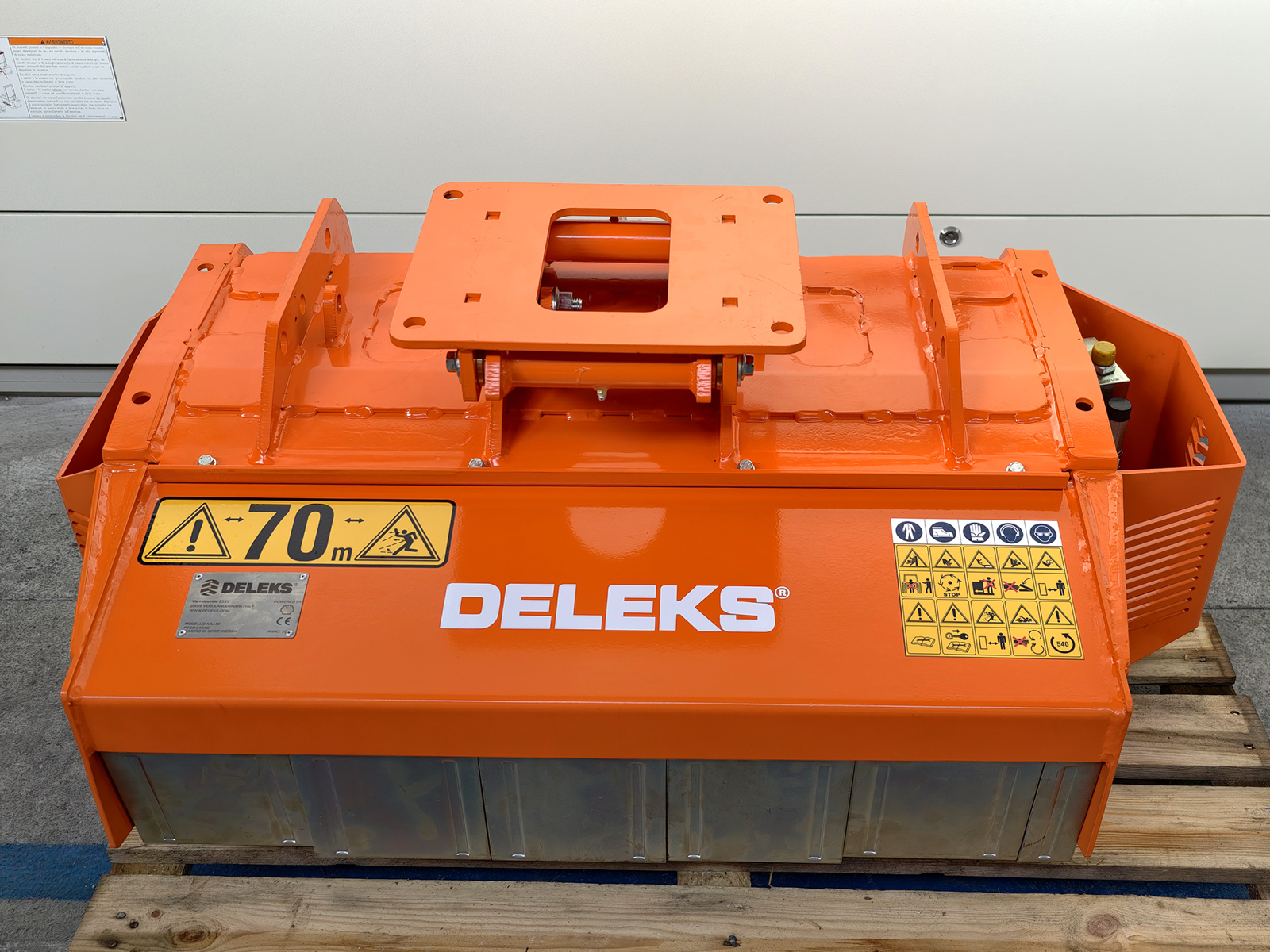

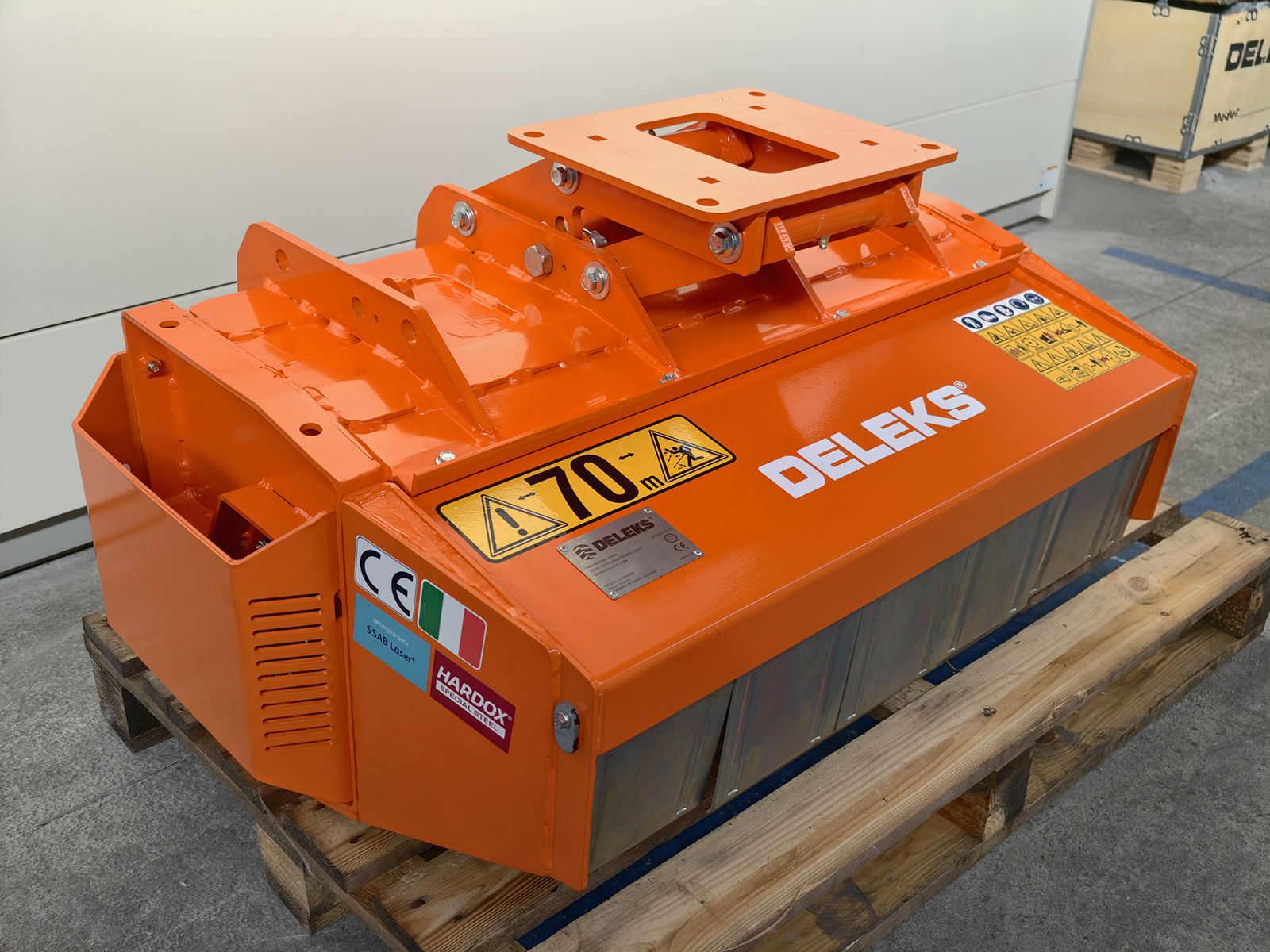

Digger Flail Shredder Head - DELEKS® - hydraulic brush cutter for excavator - 80cm / 215 kg - Made in Italy, 2 years warranty.
APPLICATION
DELEKS Brush Cutter for mini excavators 20-50 quintals.
Professional forestry mulcher, flail mower for excavators such as Bobcat, Takeuchi, Komatsu, Caterpillar, Neuson, Hitachi, JCB.
-
Operating weight: 215 kg
-
12 hammers
-

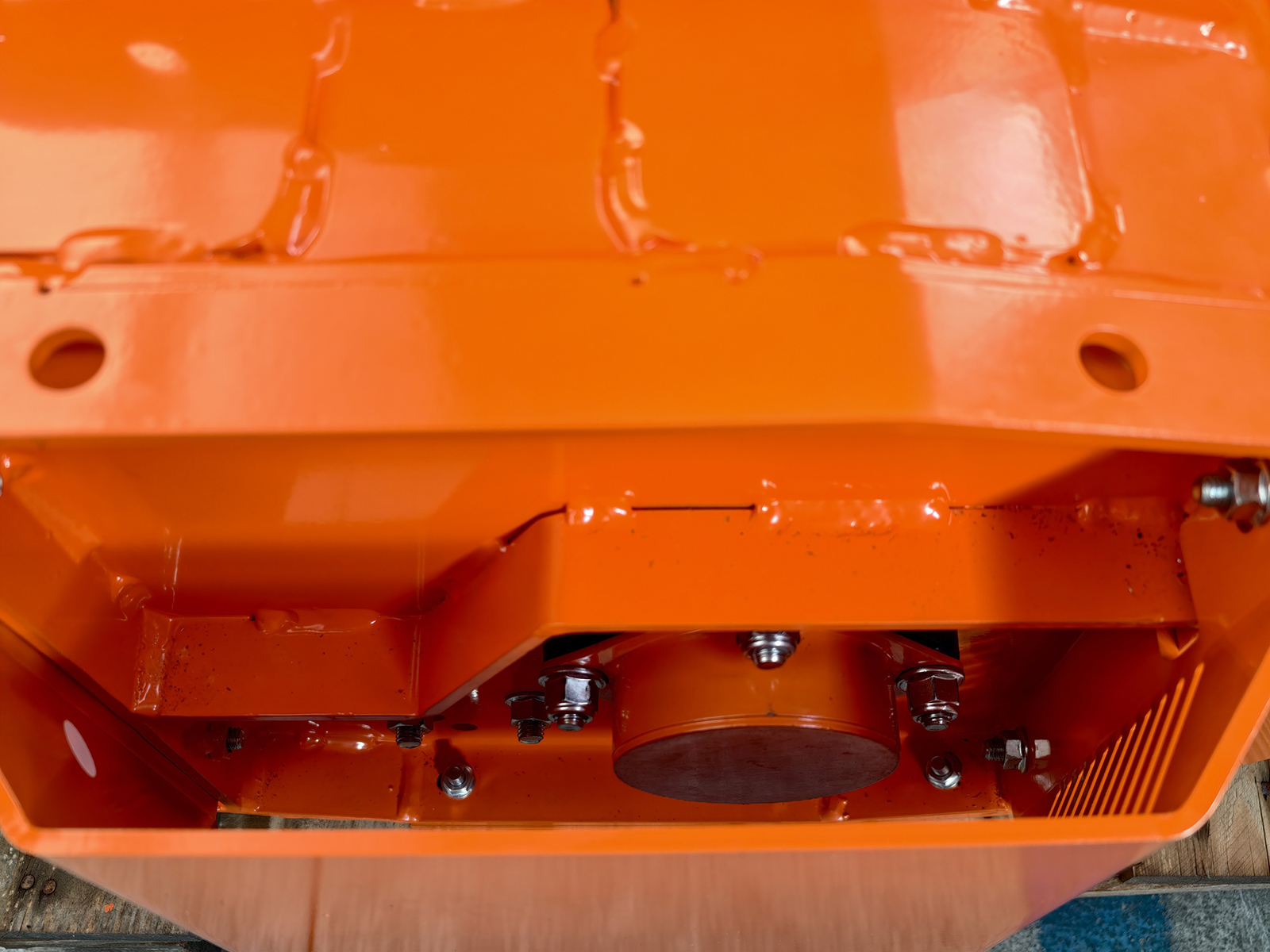

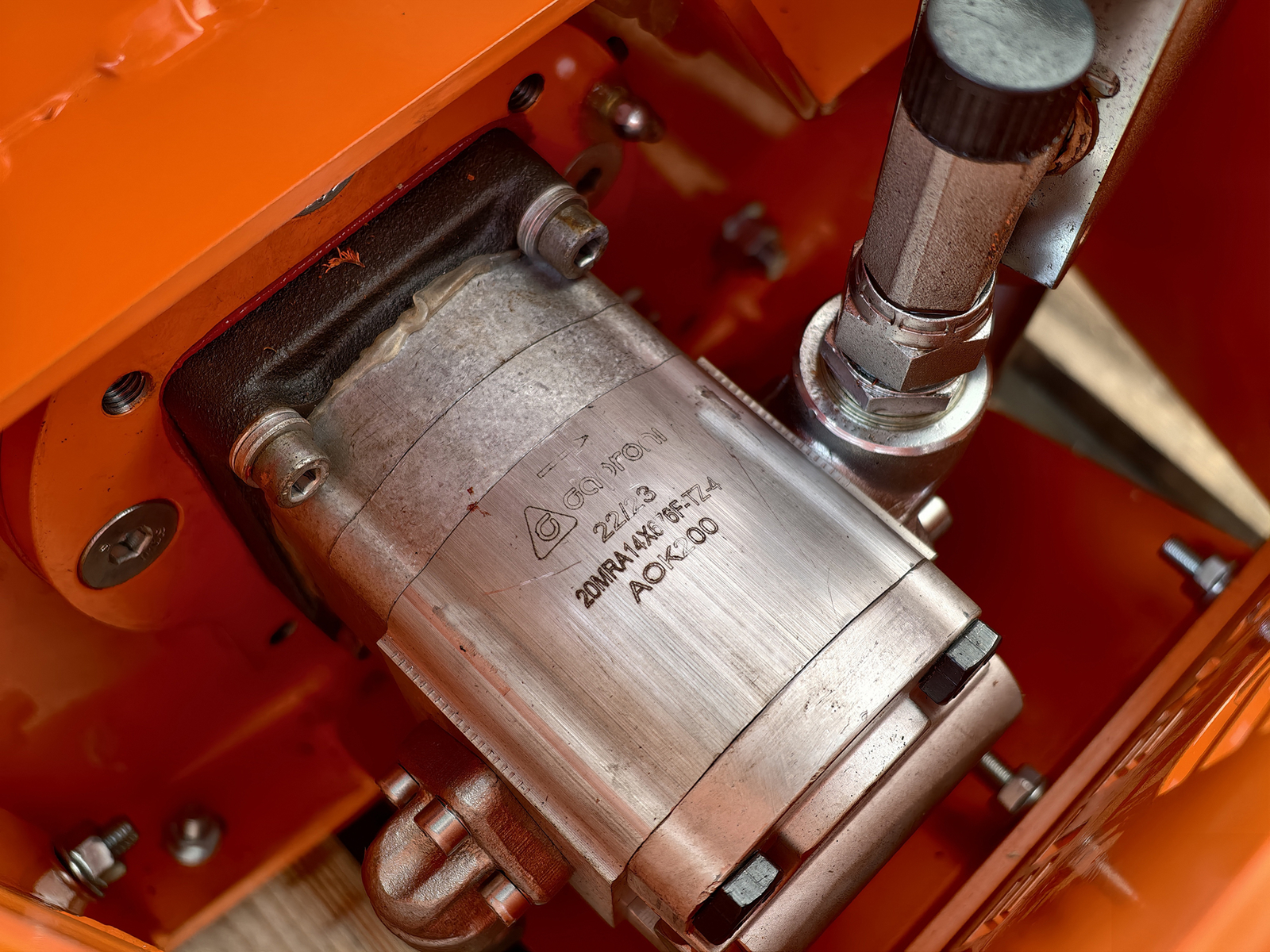

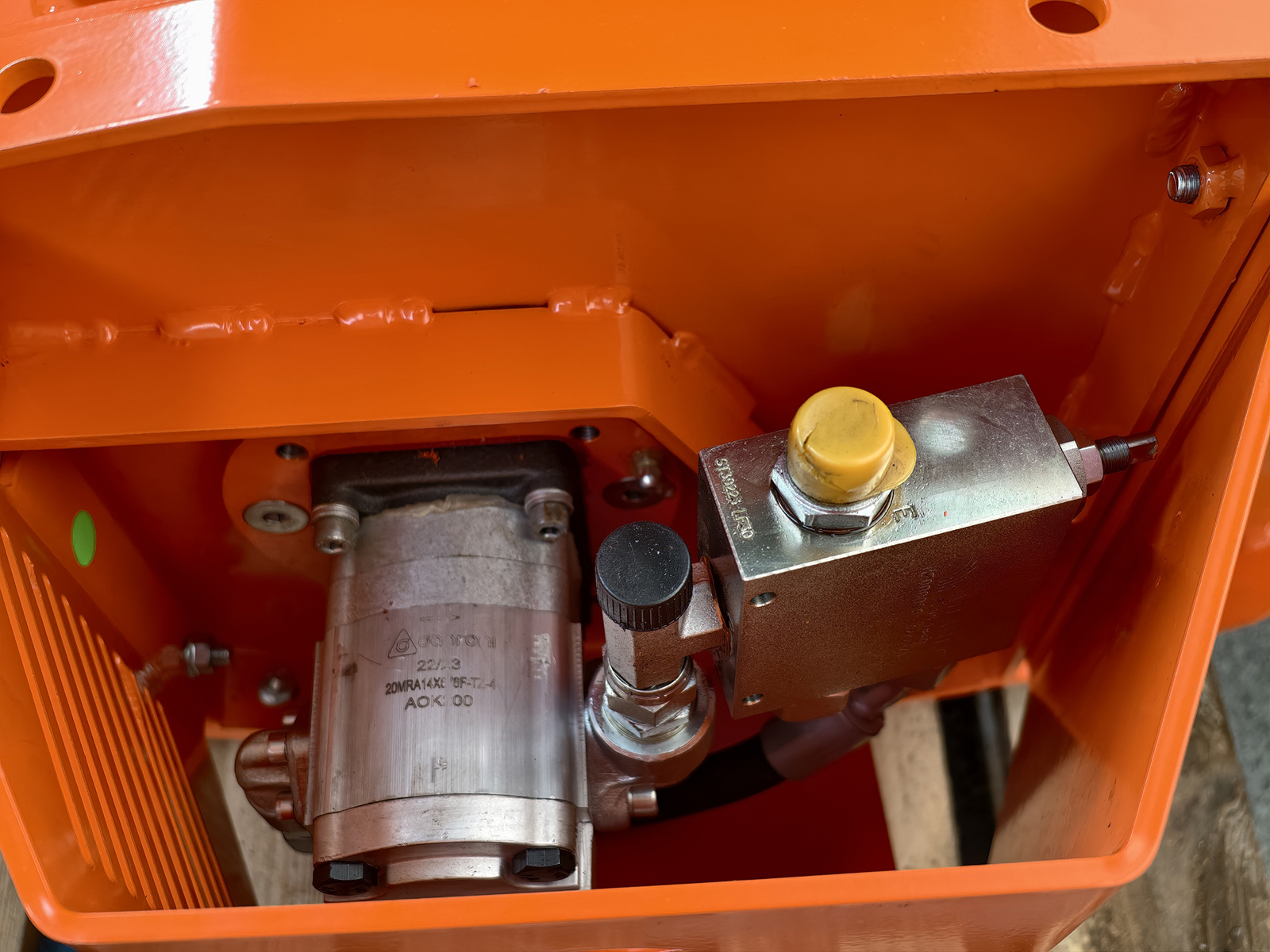

Caproni hydraulic motor
-
Reinforced rotor with Hardox steel
-

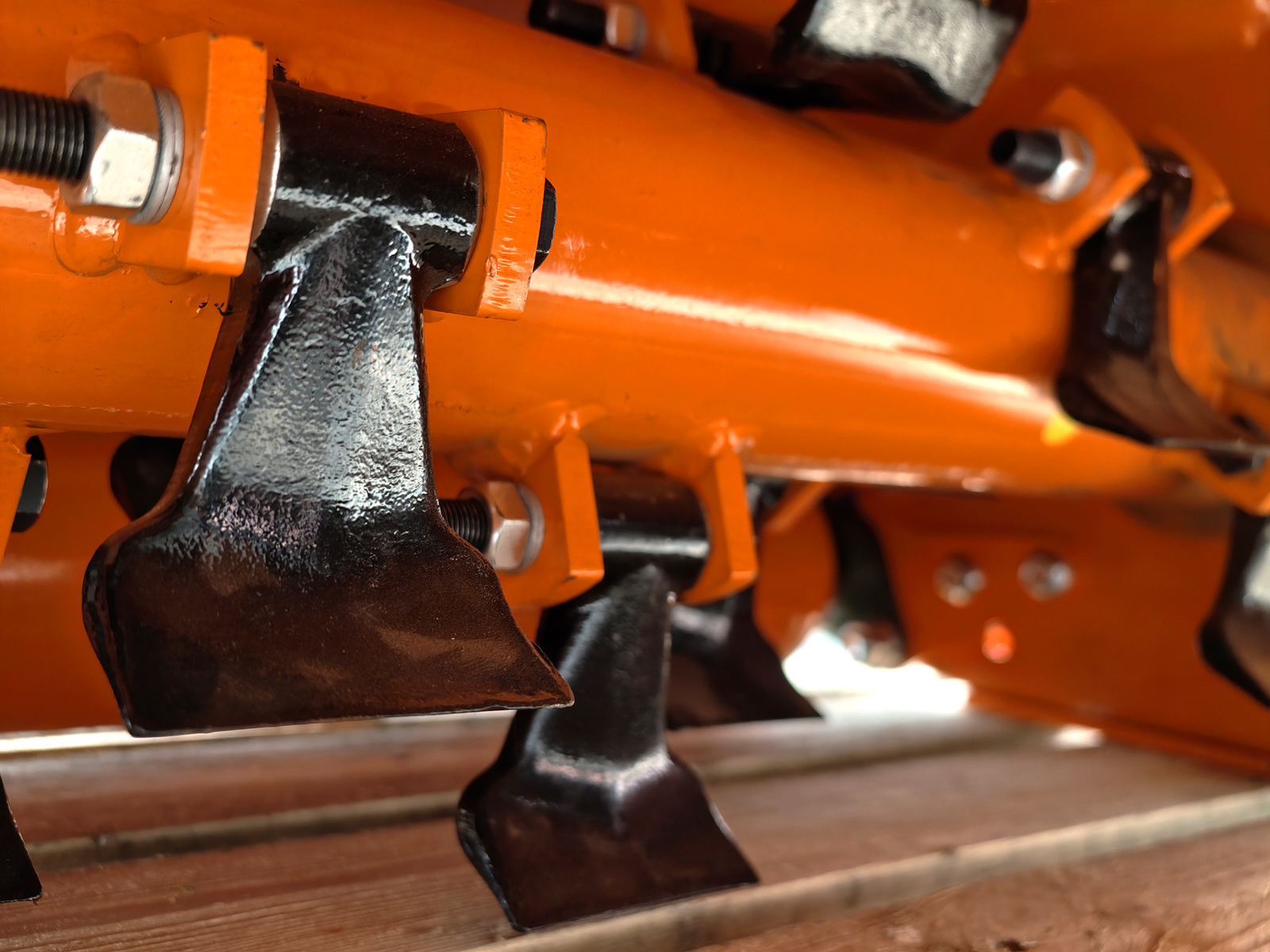

High-quality hammers by Poncial
-

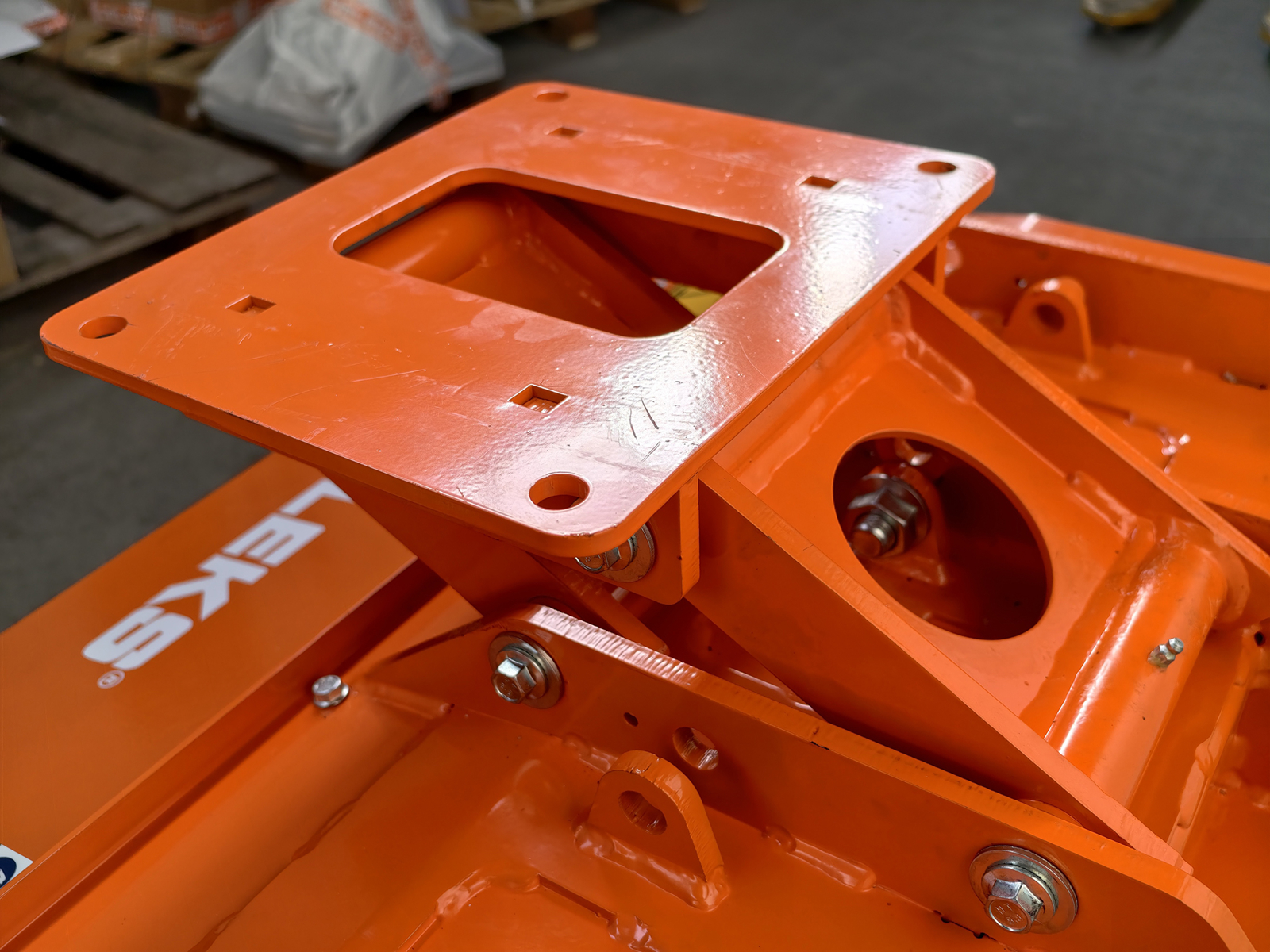

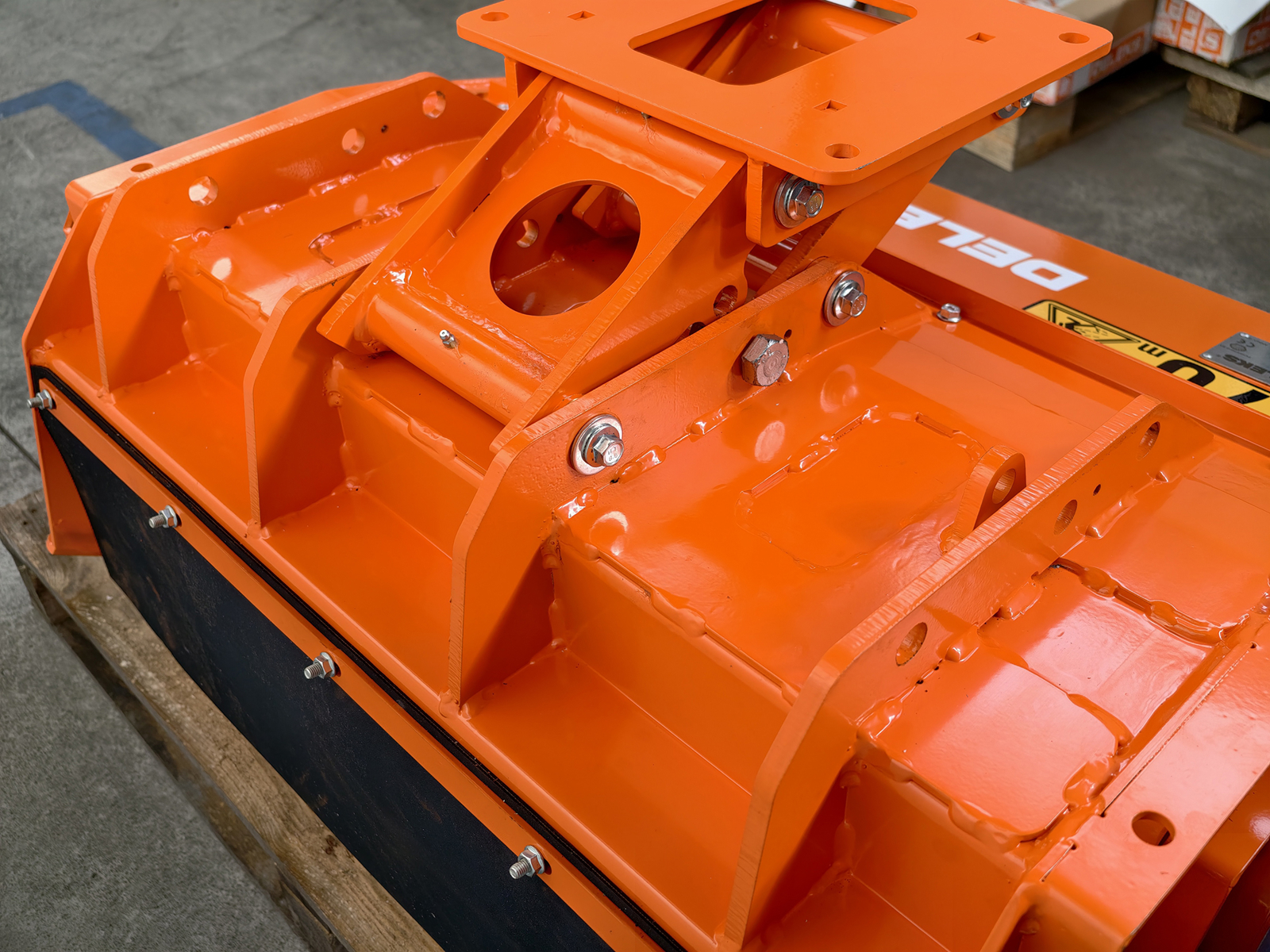

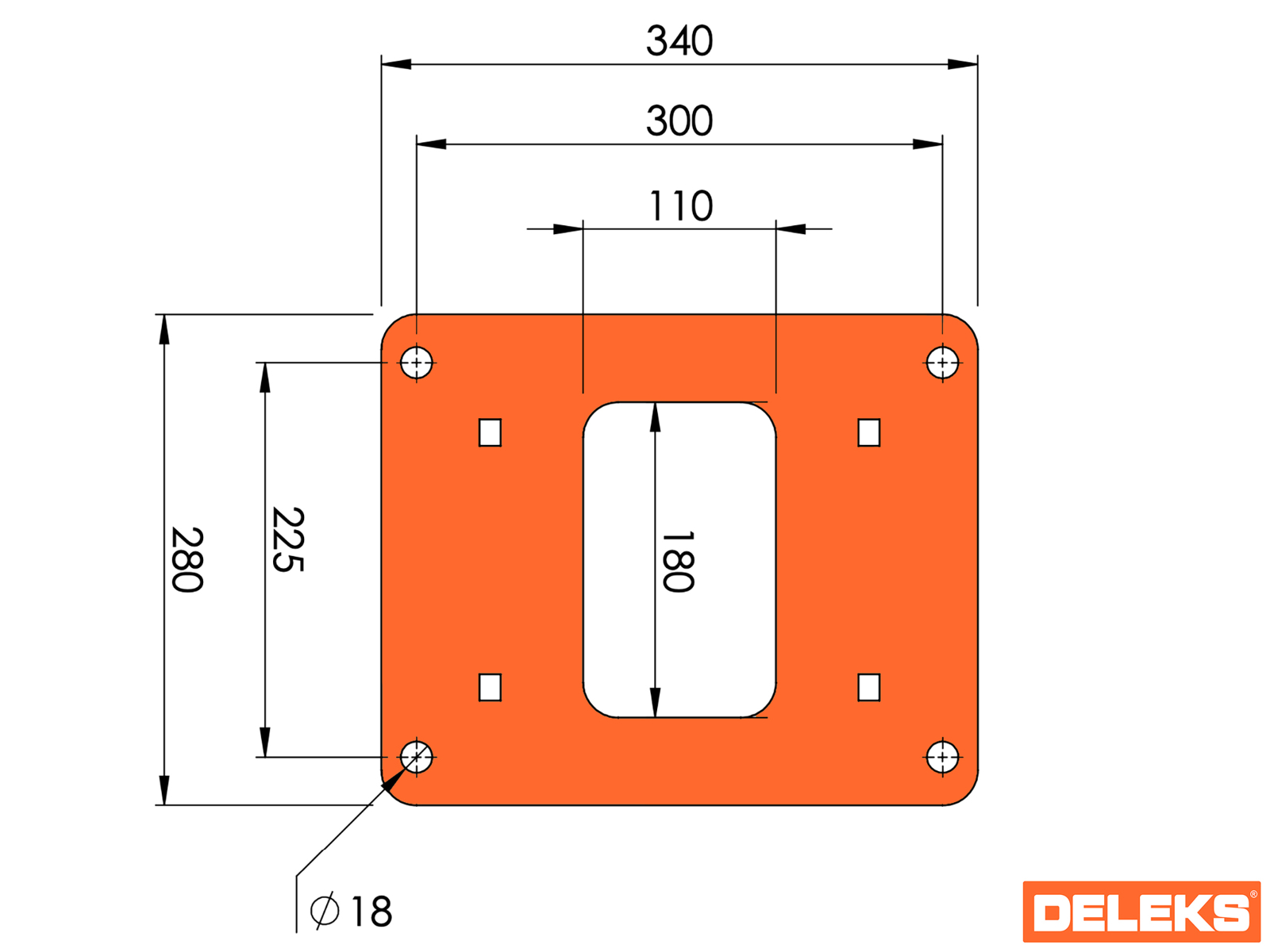

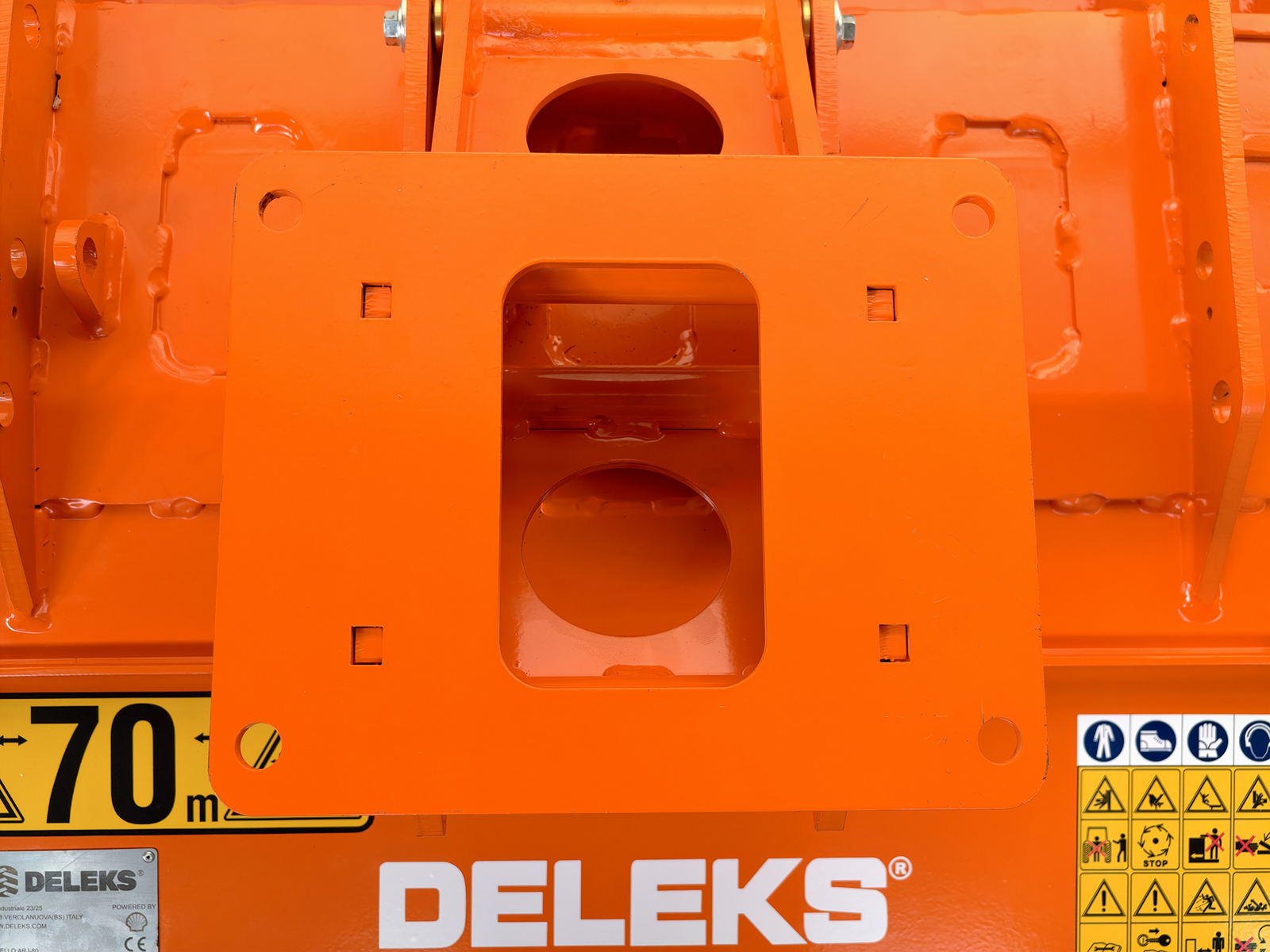

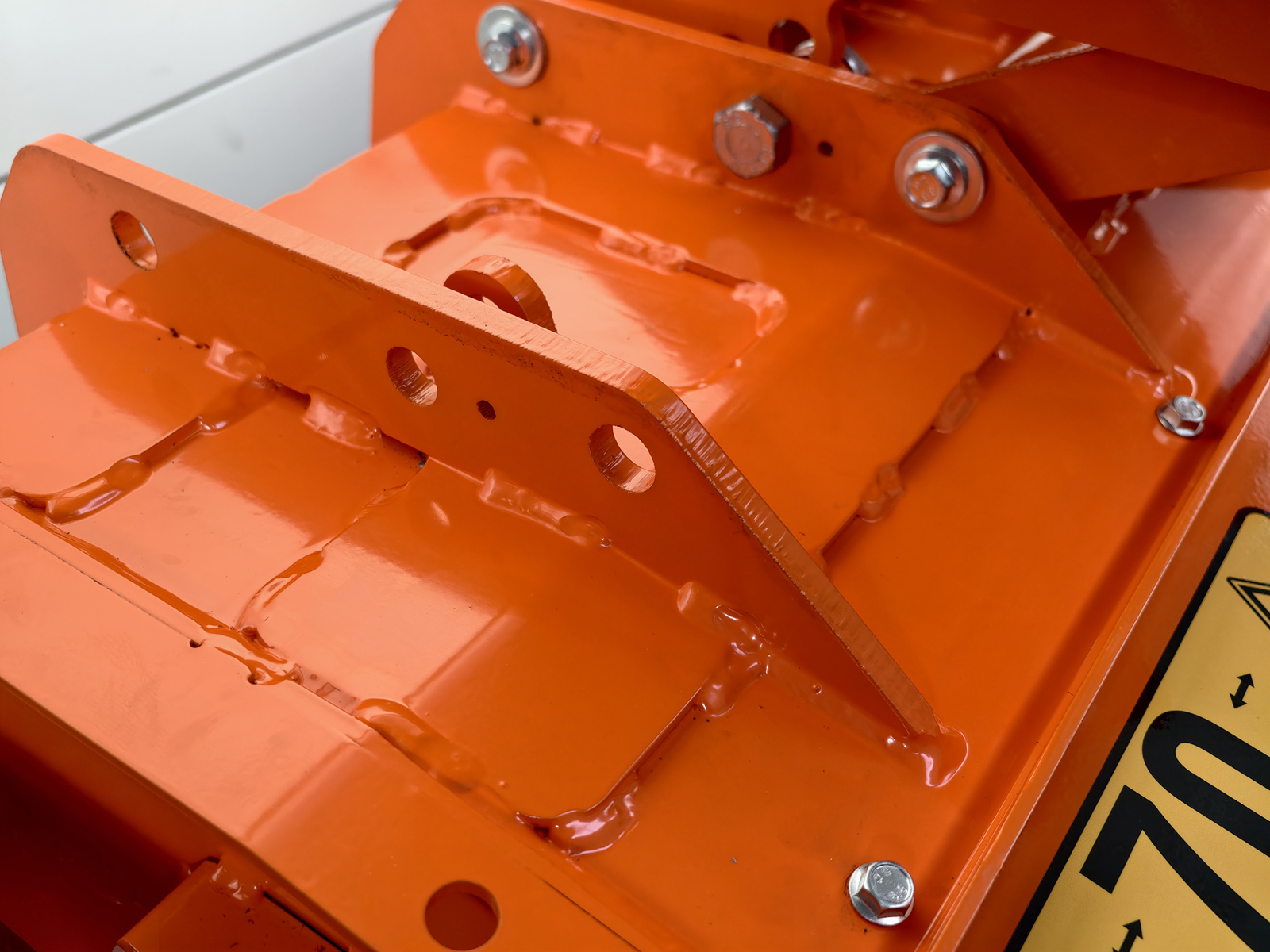

Suspension linkage to the excavator
-
Adjustable height roller and skids
-
Suitable for cutting grass, trees, and shrubs with trunk diameters up to 4 cm.
It is advisable to have a hydraulic oil cooling system.
Machine requirements:
A dual pump system is preferable:
1 for the tracks
1 for the auxiliary services (pump with at least 20/100 l/min)
Documentation supplied with the item:
-
EC Declaration of Conformity
-
Invoice/Receipt
-
User and Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 800.0 mm |
| Overall width | 1168 mm |
| Min / Max cutting height | 8/58mm |
| Weight | 215.0 kg |
| Hood height | 650 |
| Number of Hammers | 12 |
| Maximum cutting diameter | 4.0 cm |
| Main hood thickness | 5 mm |
| Rotor: diameter | 4.5" |
| Rotor: bearings type and size | SKF 2210 |
| Rotor: sheet thickness | 10 MM |
| Rear roller: diameter | 139.7 mm |
| Rear roller: bearings type and size | UCFL206 |
| Min./Max. Flow | 20-100 l/min |
| Hood length | 680mm |
| Working pressure | 200bar |
| Packing sizes | 1200*800*600.0 mm |
