Sideshift Flail Mower, Offset Side Mulcher For Tractors - Wide angle pto shaft
Giraffa
DETAILS

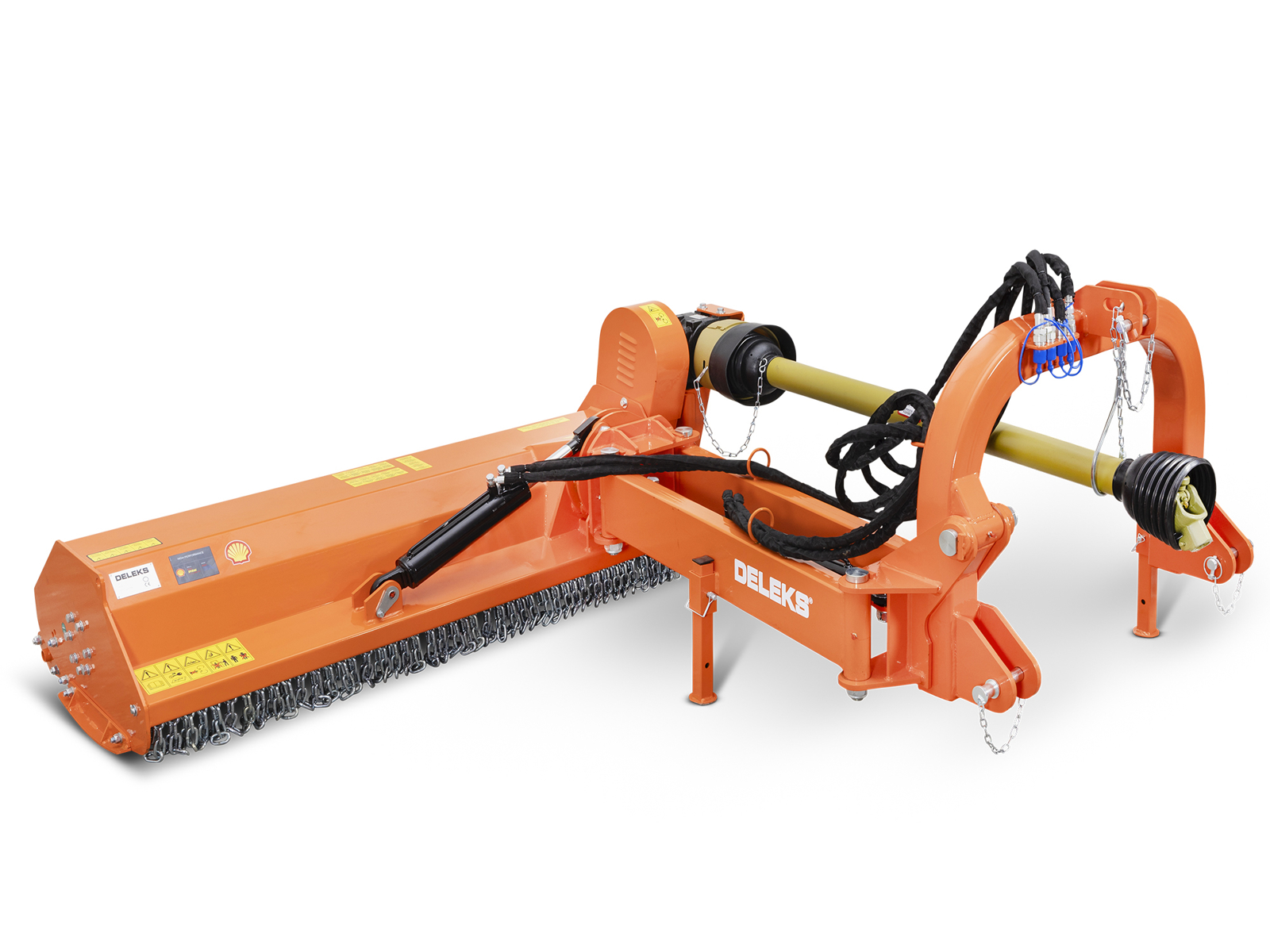

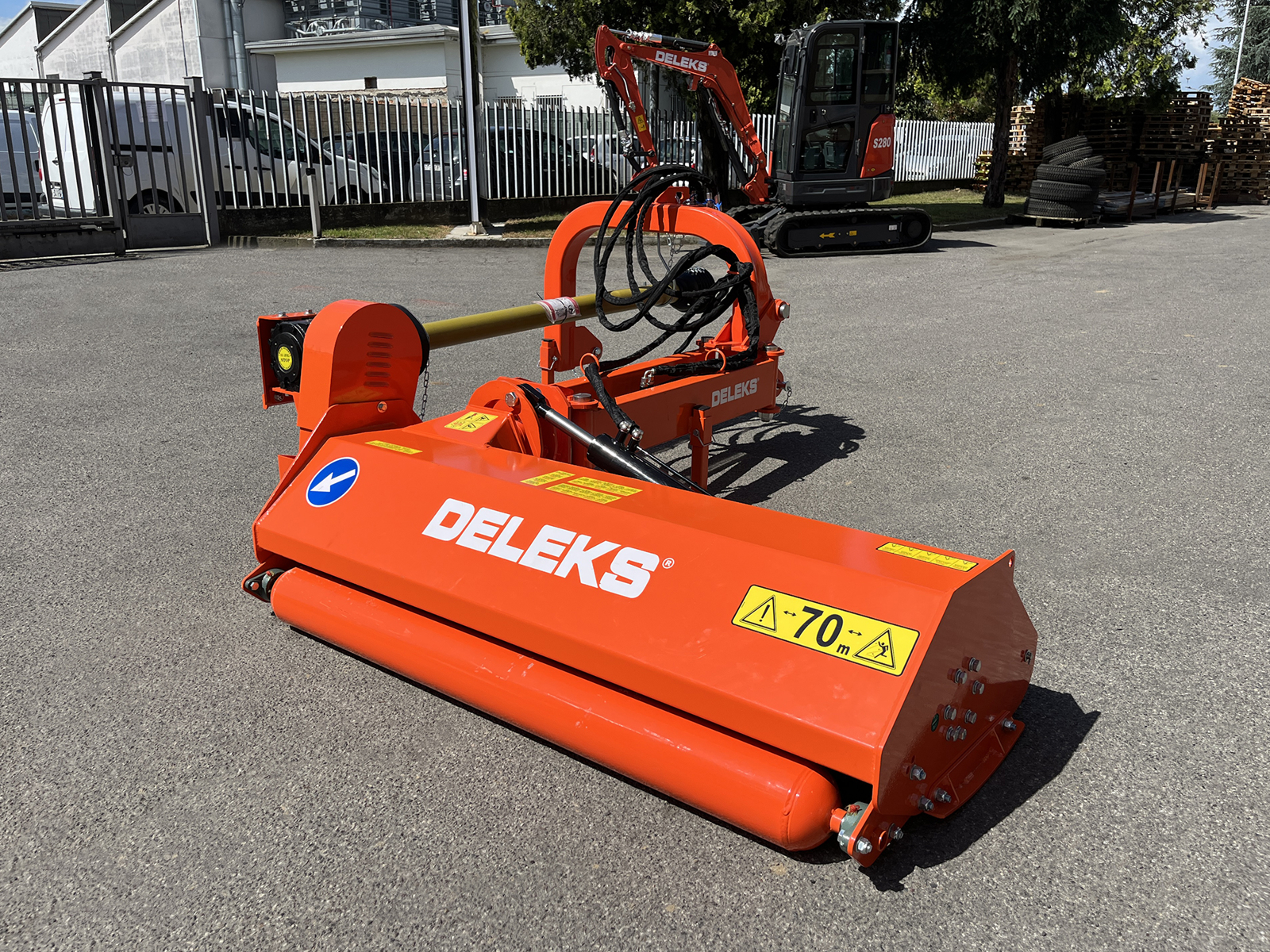

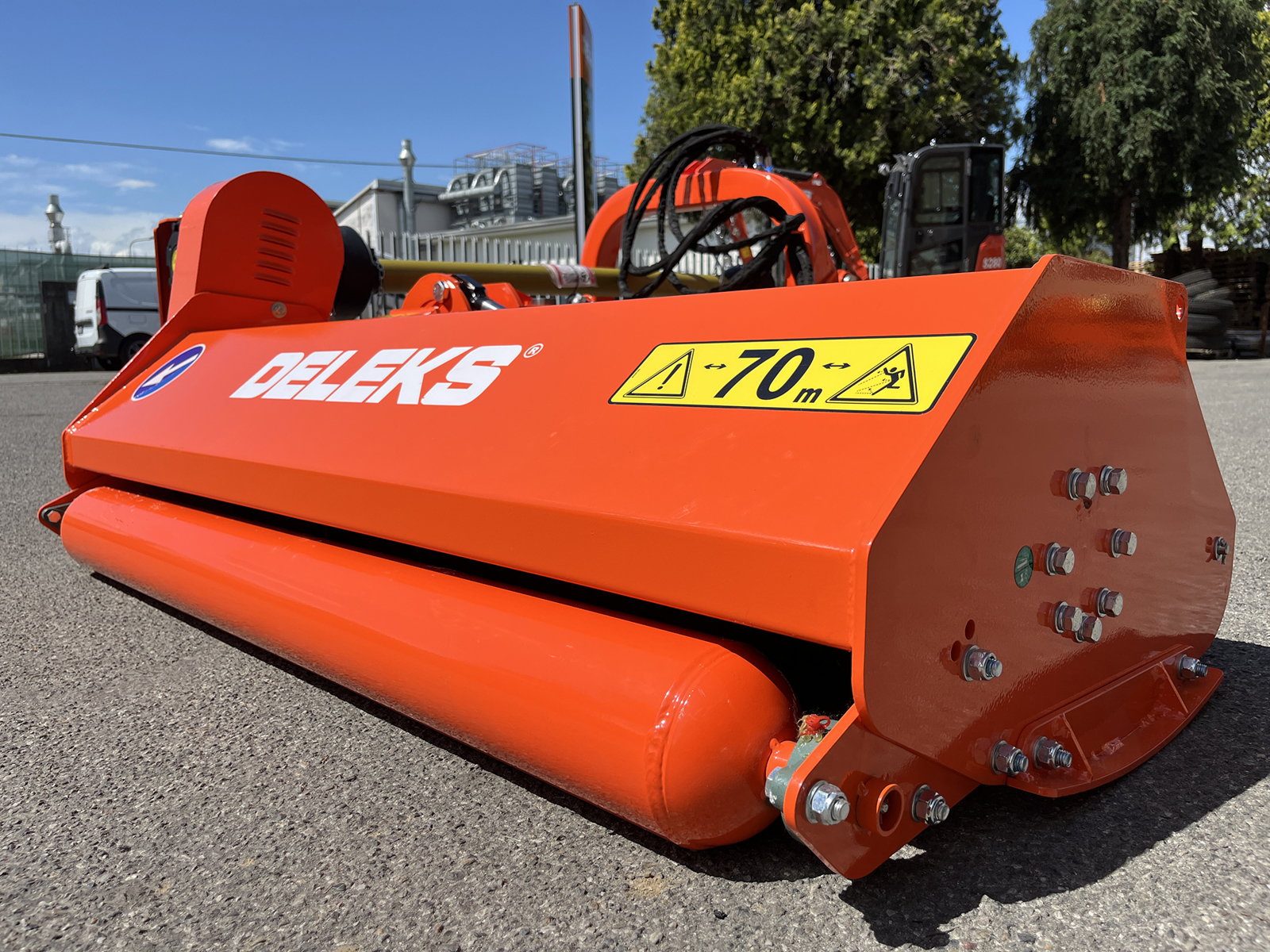

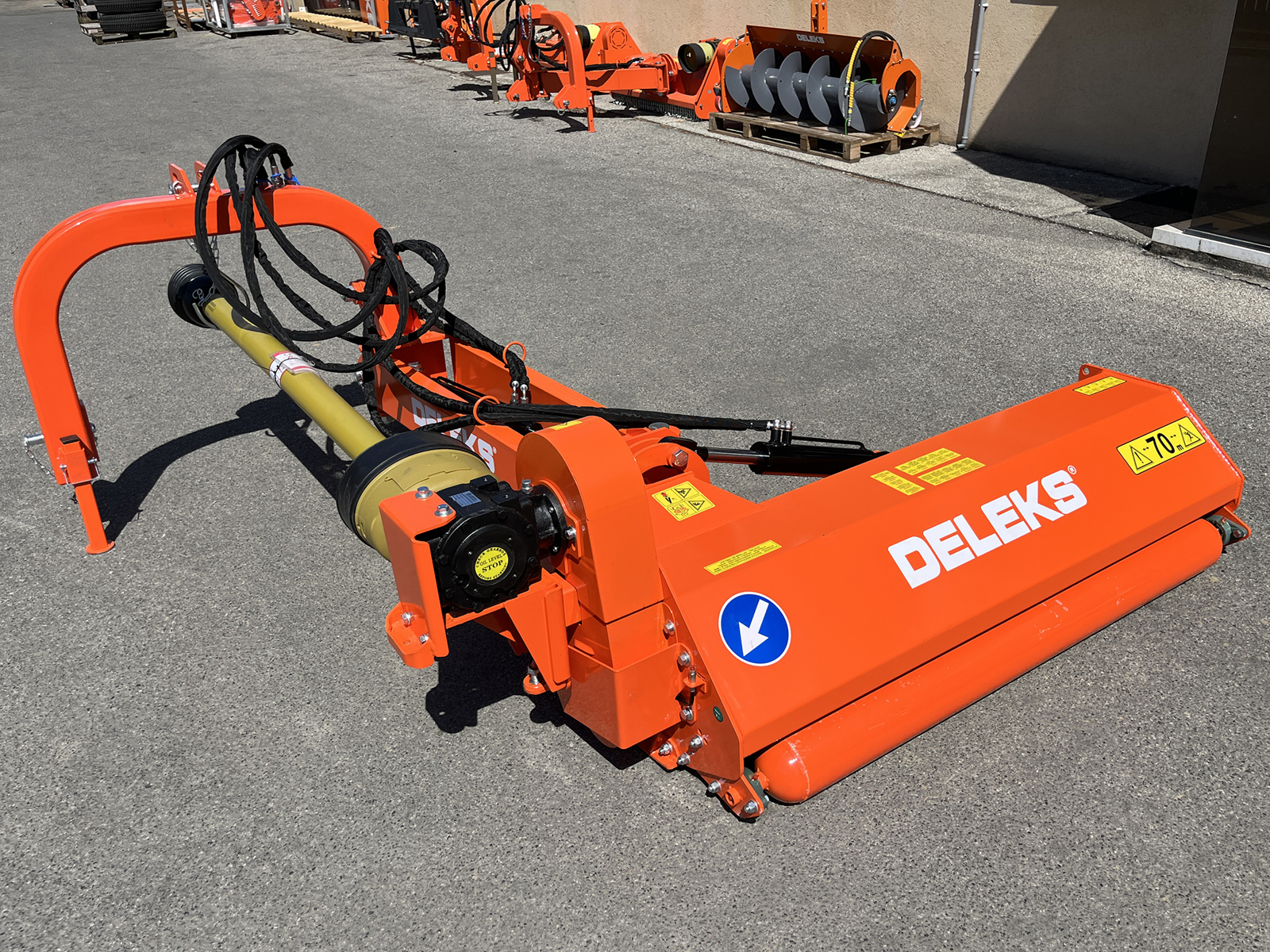

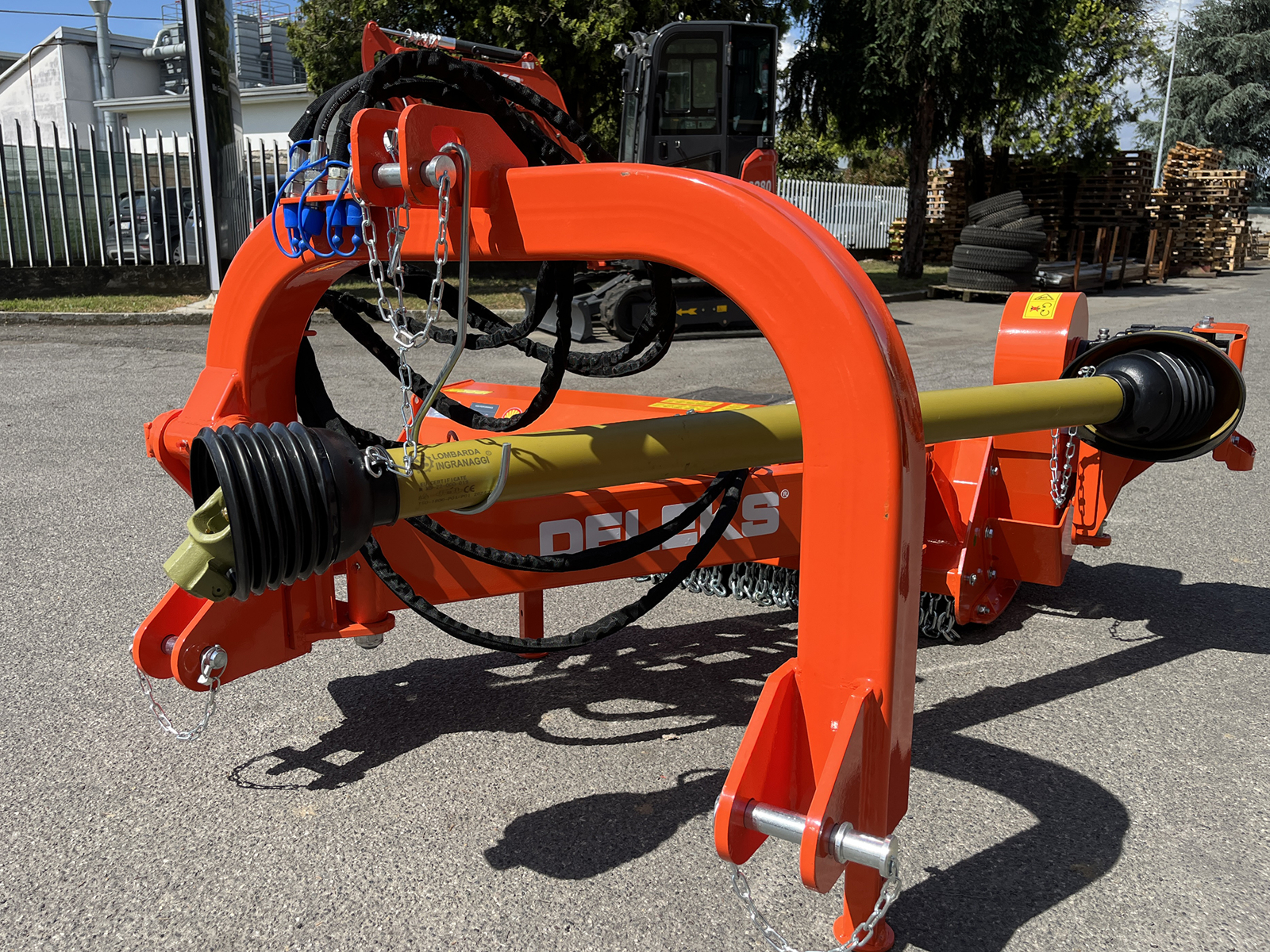

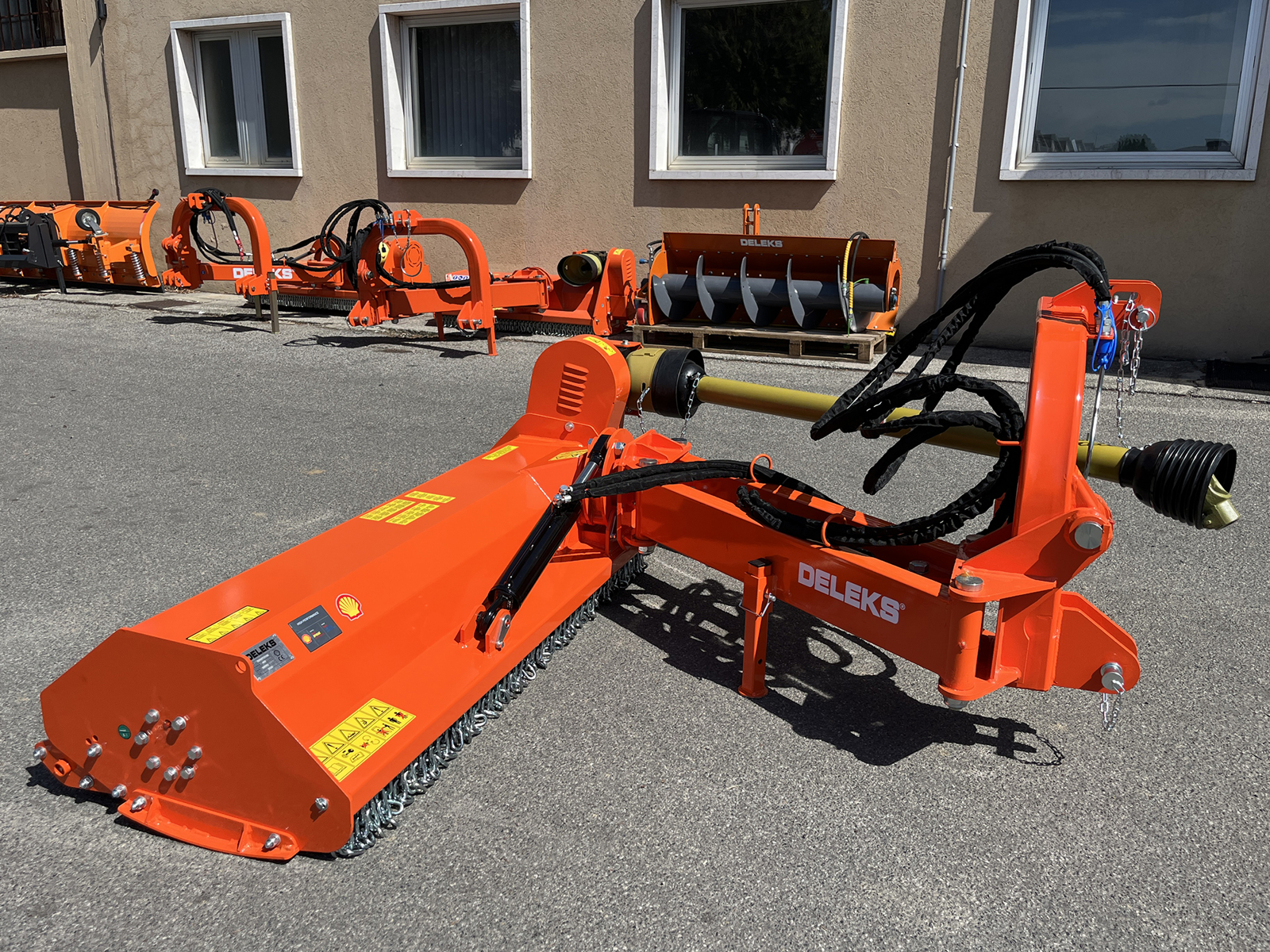

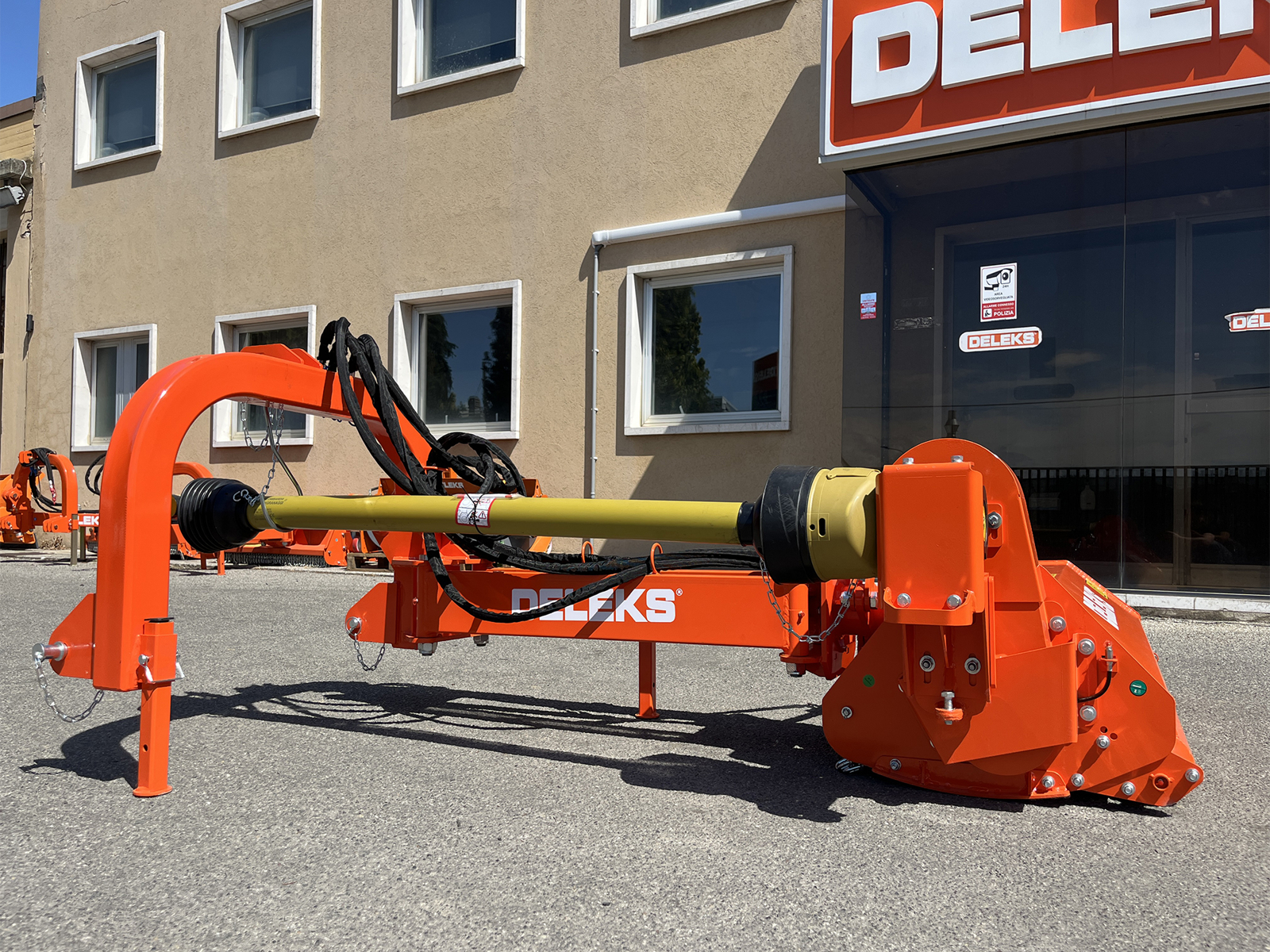

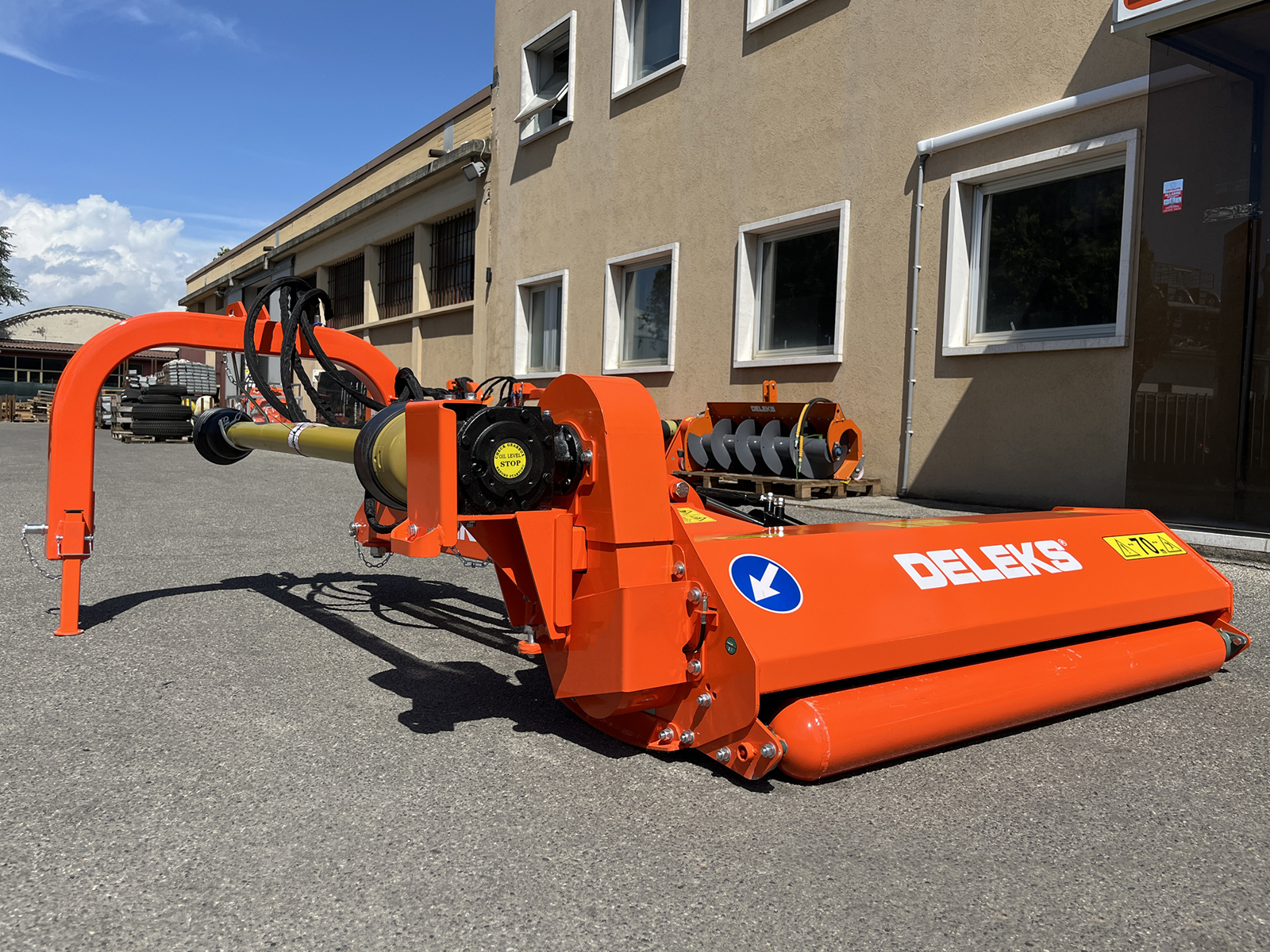

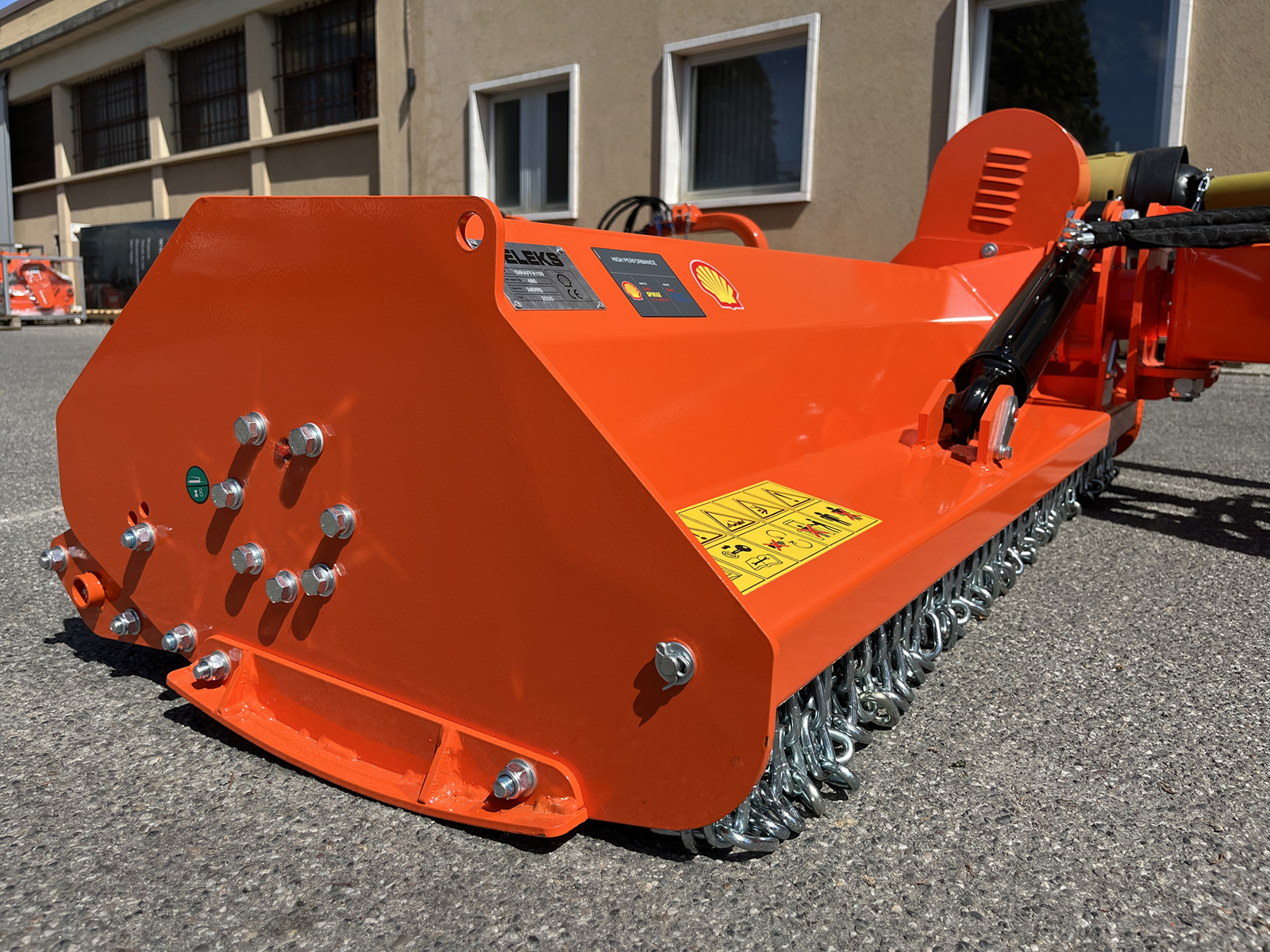

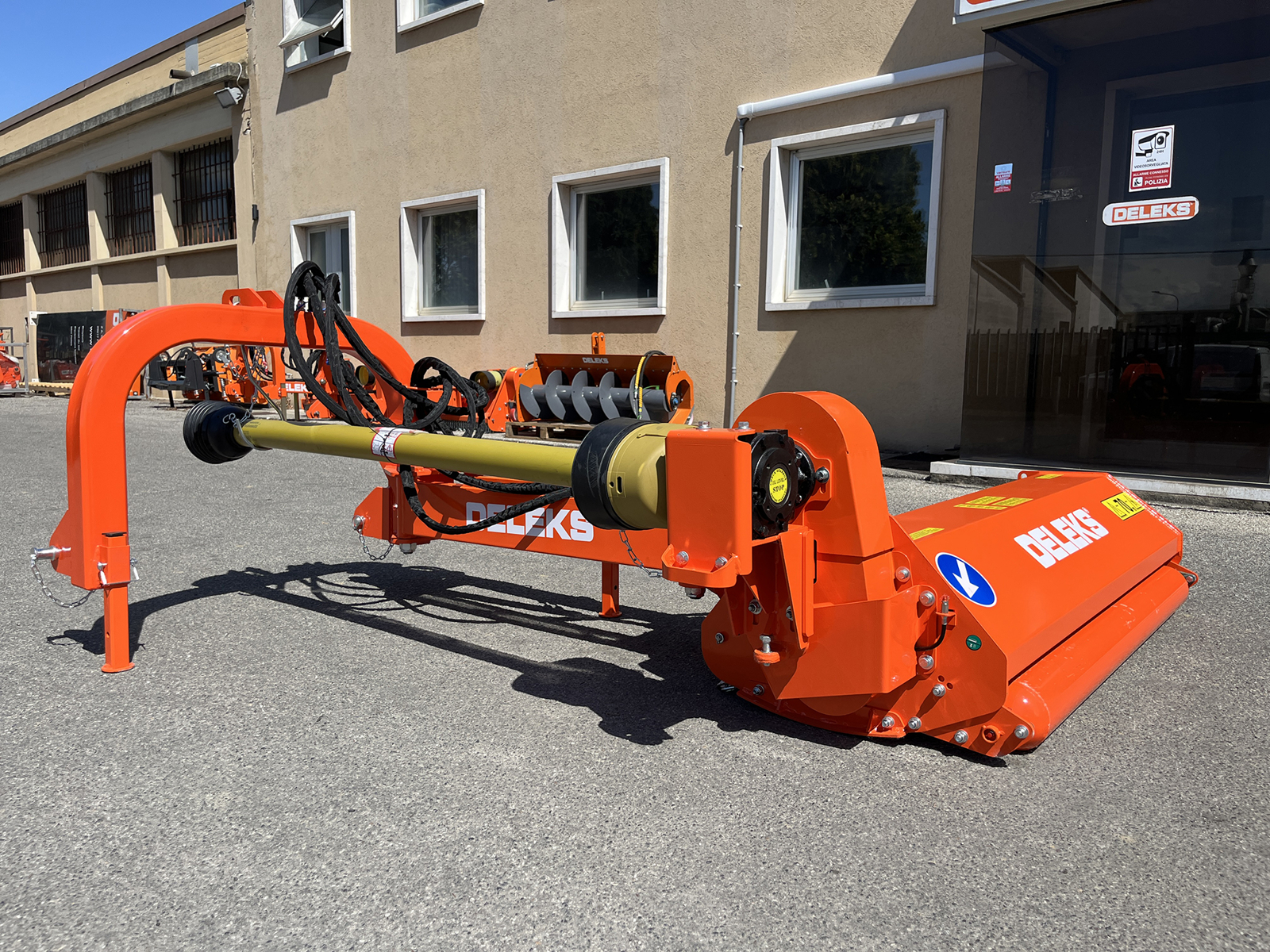

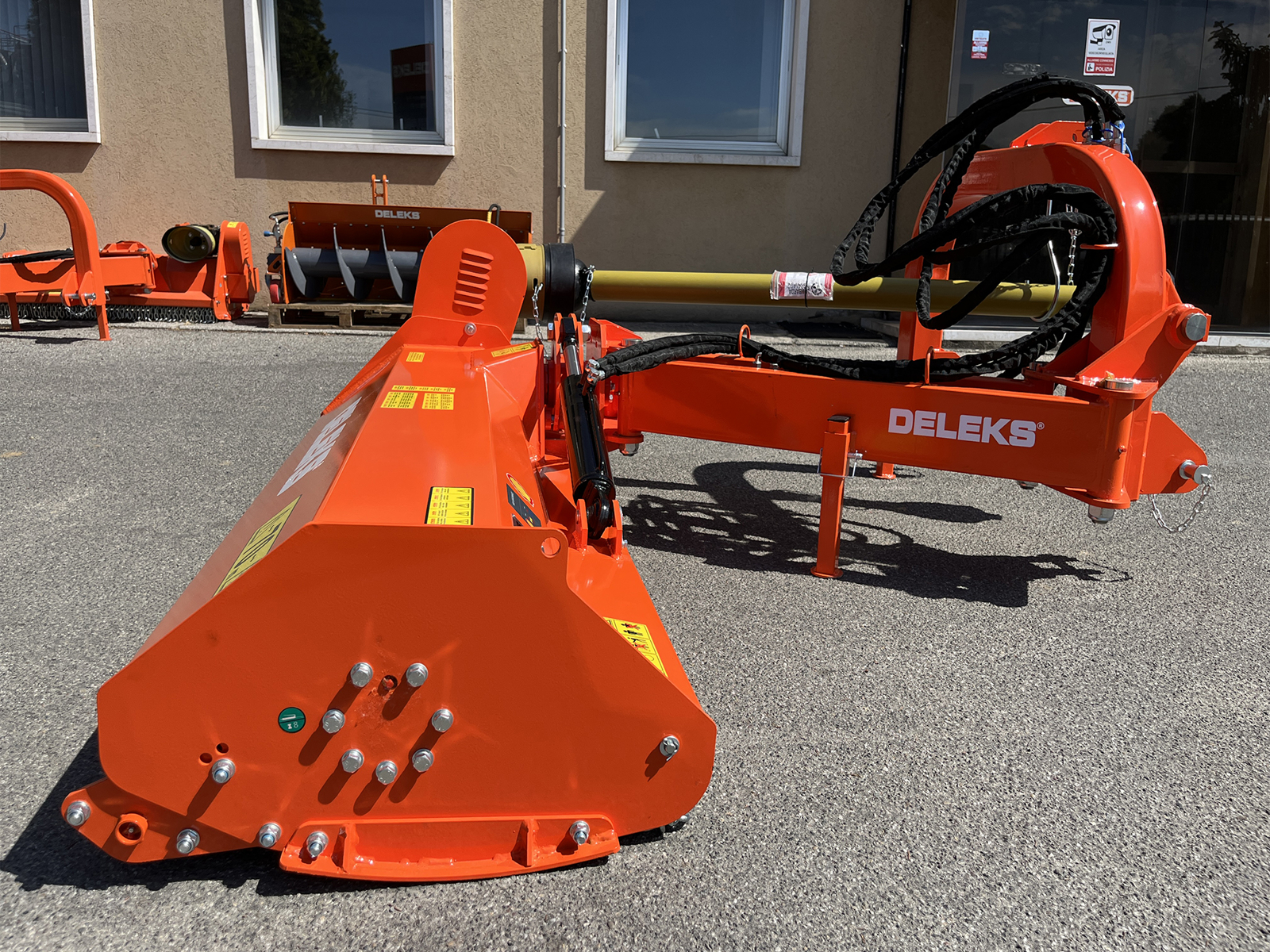

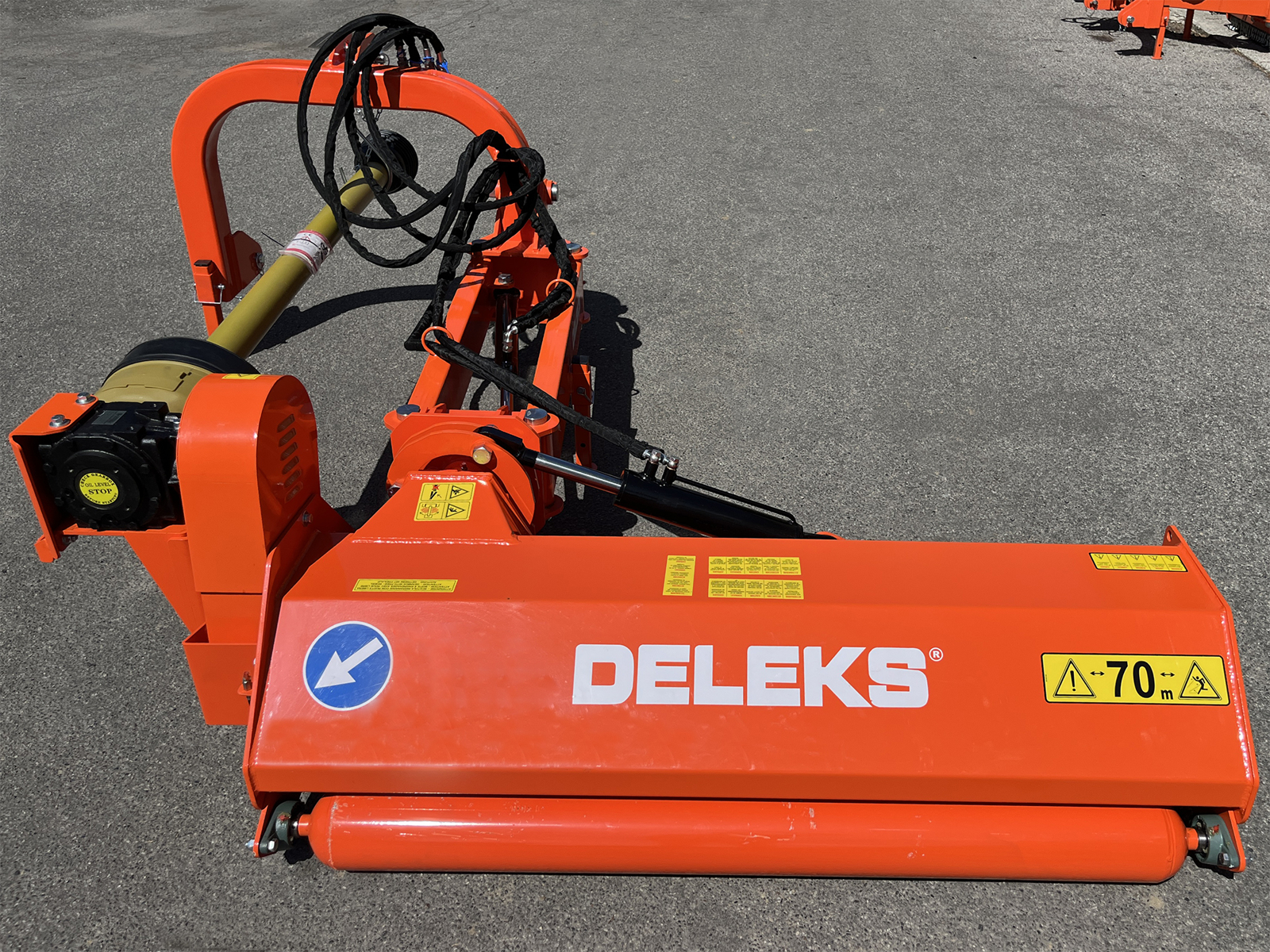

Sideshift Flail Mower 452kg / 130cm, Offset Side Mulcher For Tractors - DELEKS® GIRAFFA-130 - External Gearbox - Wide angle Pto shaft CE included.
OVERVIEW

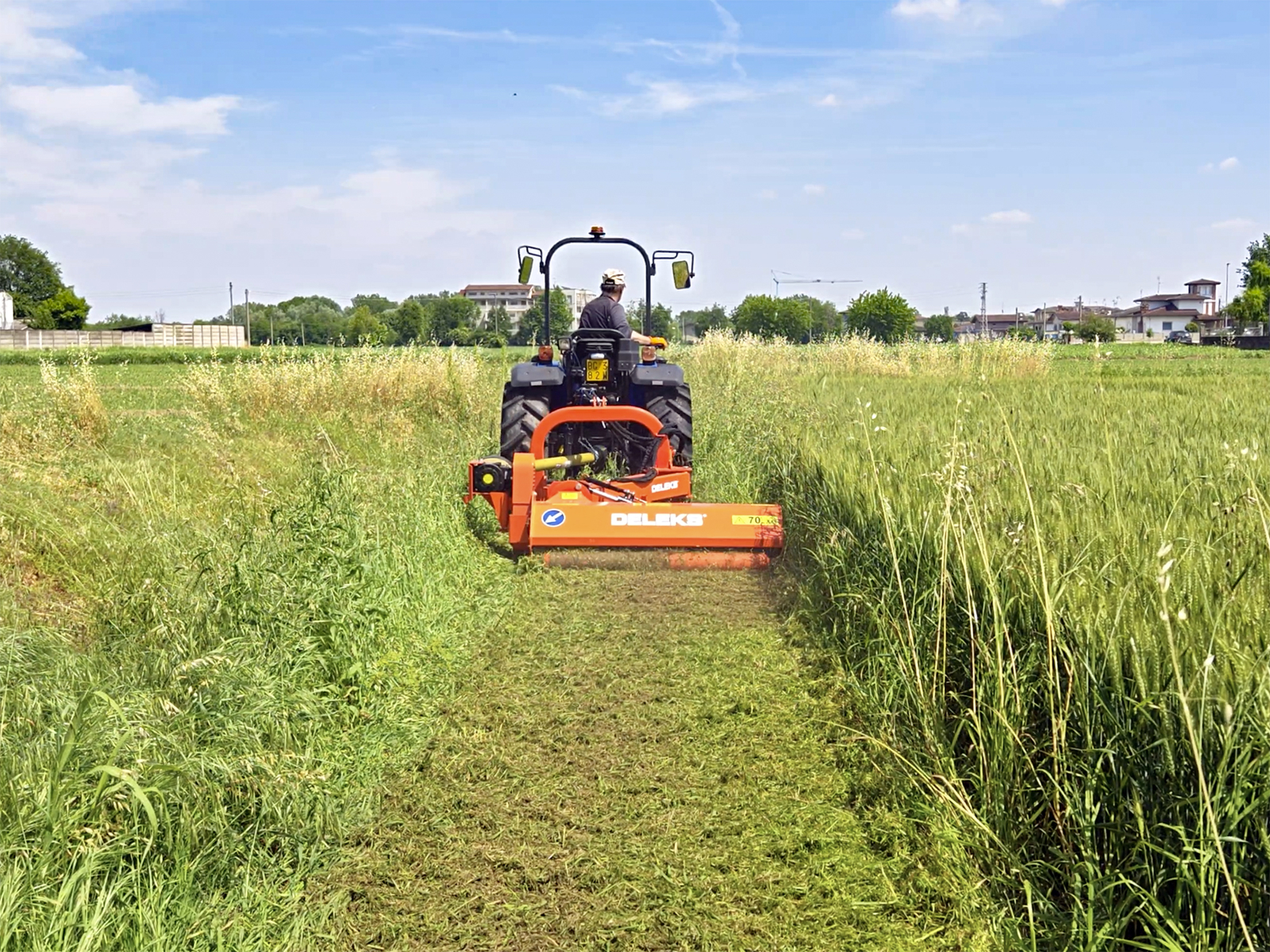

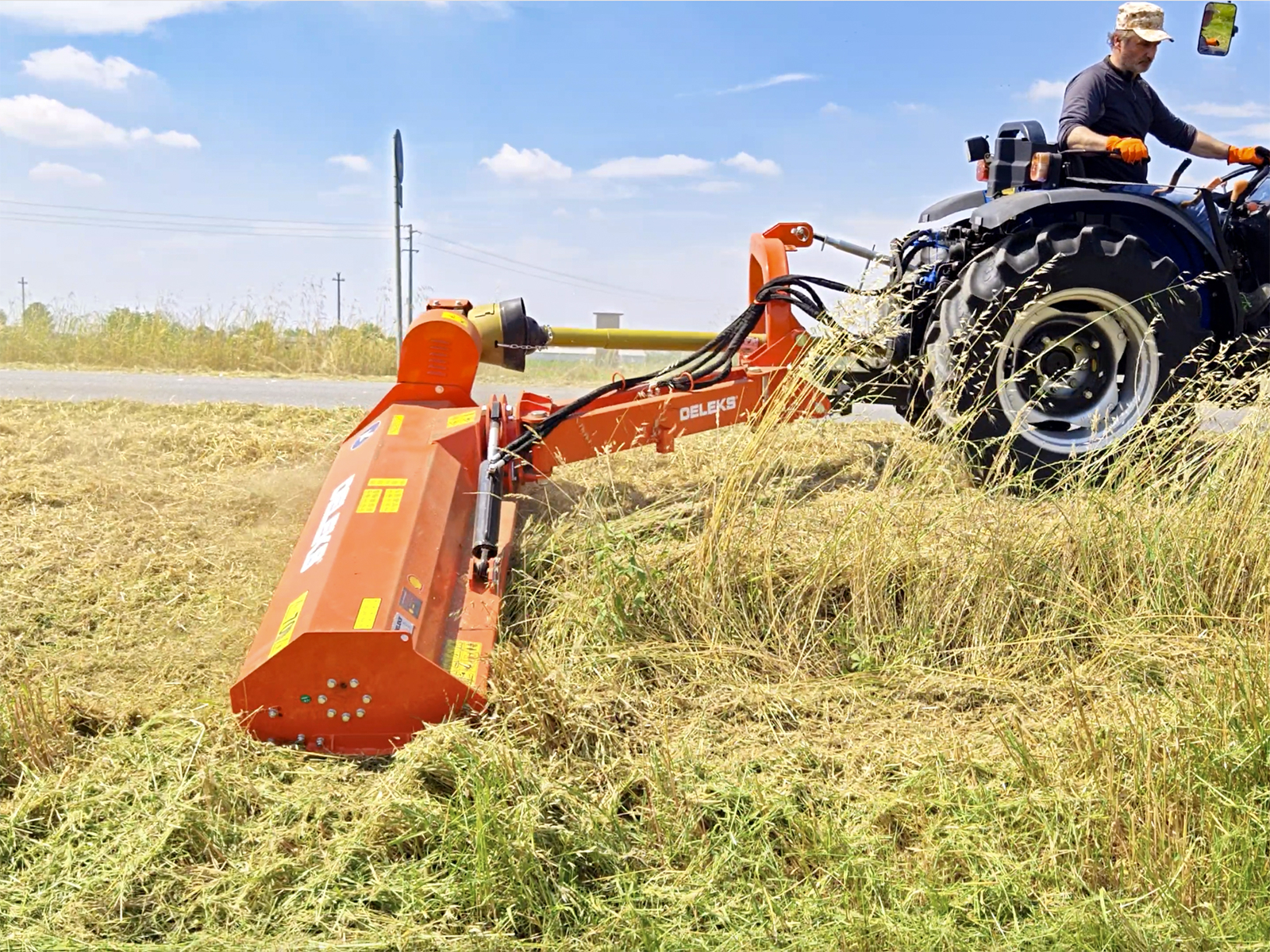

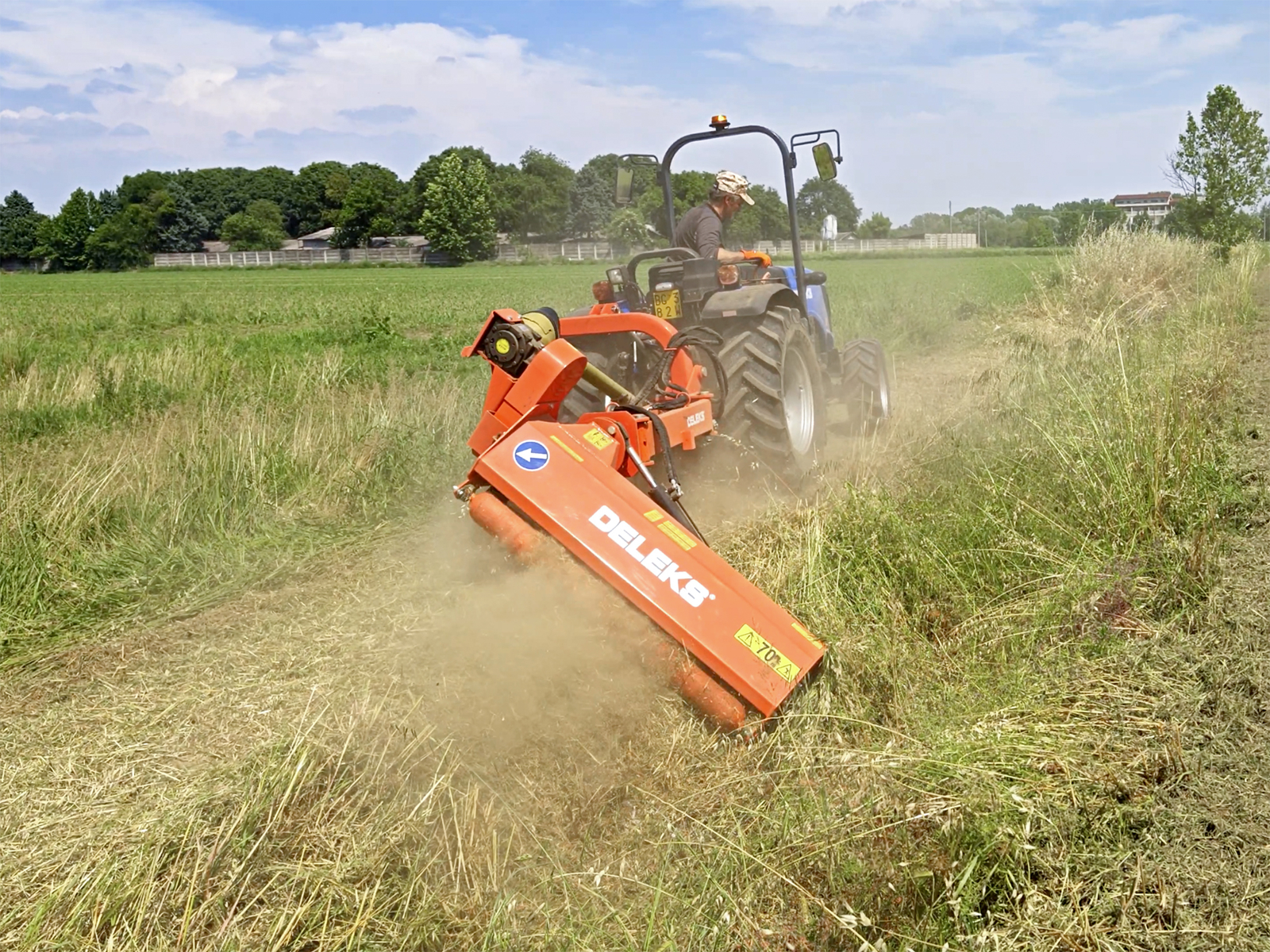

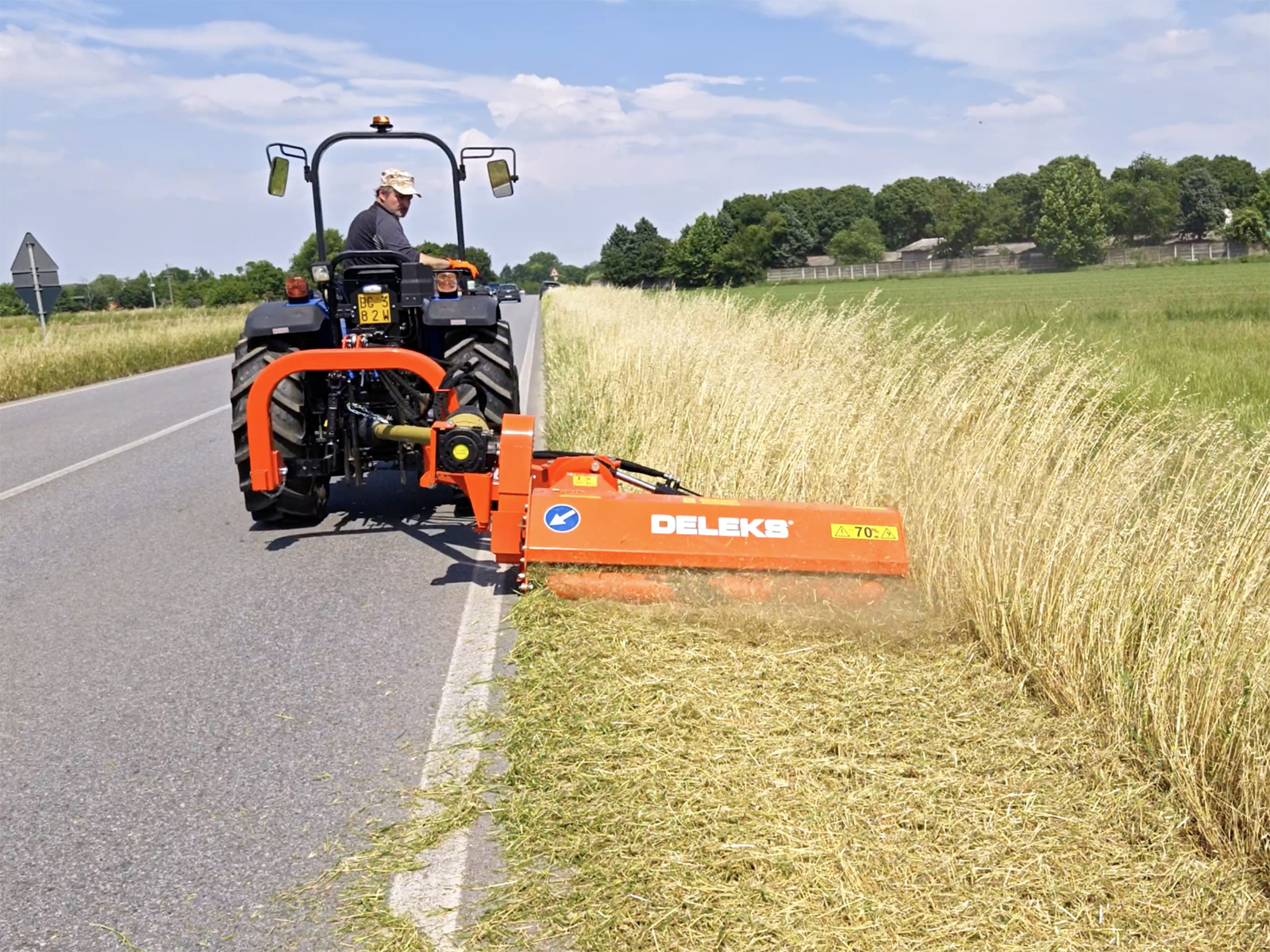

The GIRAFFA-130 multi-purpose mower is for home and professional use and is extremely popular among organic farmers to tackle rushes, brambles and hedges. The GIRAFFA cuts grass, but also shreds small twigs and branches 4-5cm thick making it ideal for docks, thistles and long, thick grass on roadsides. It can also be used for pruning and trimming bushes as it can be hydraulically angled vertically (90º) or down (65º) for riverbanks, verges and ditches. This mower is attached to the tractor using universal three point linkage and fits most 40-70hp tractors e.g Kubota, Ford, New Holland T3F, McCormick, John Deere 3, Ford, Lamborghini.

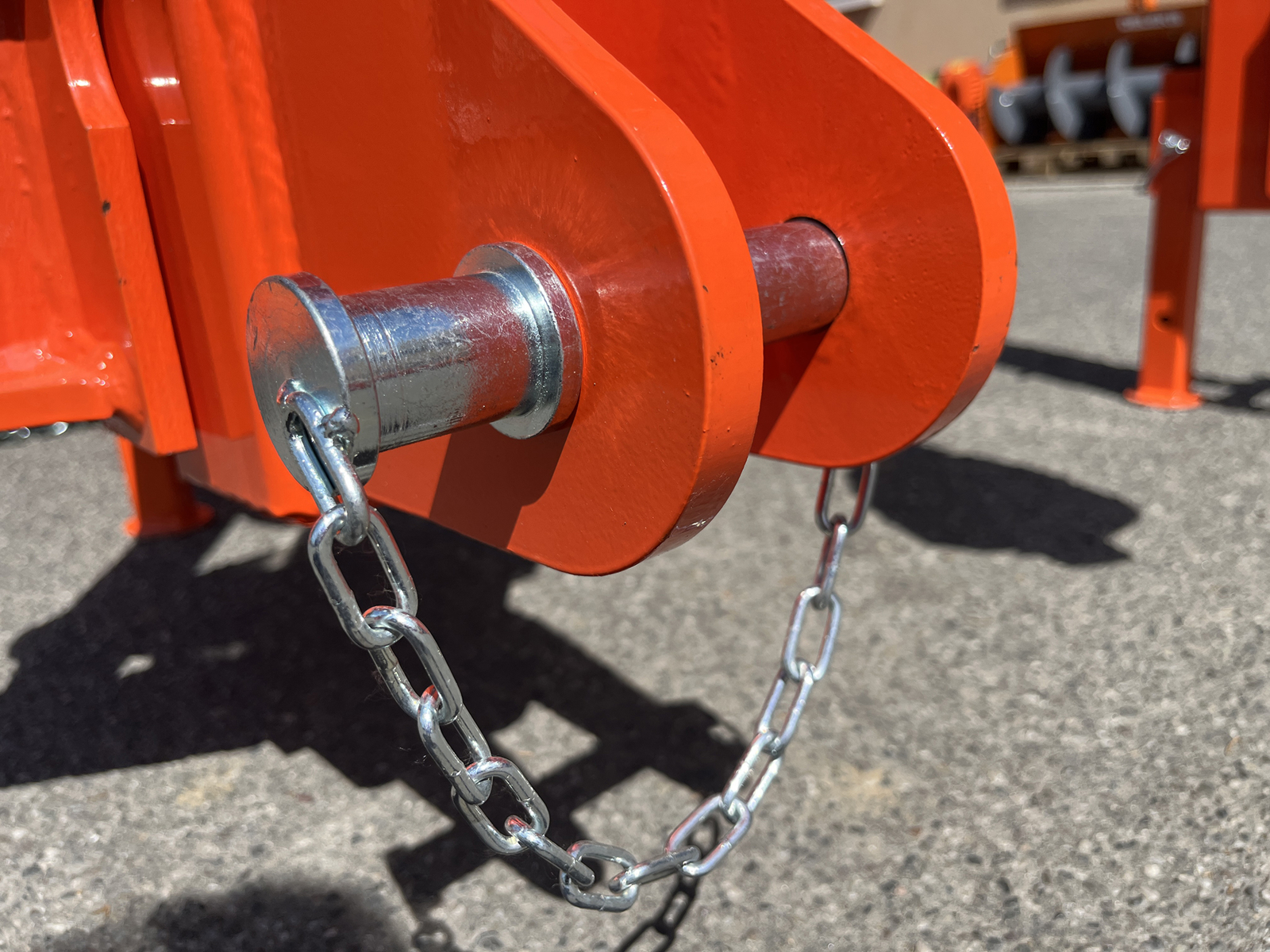

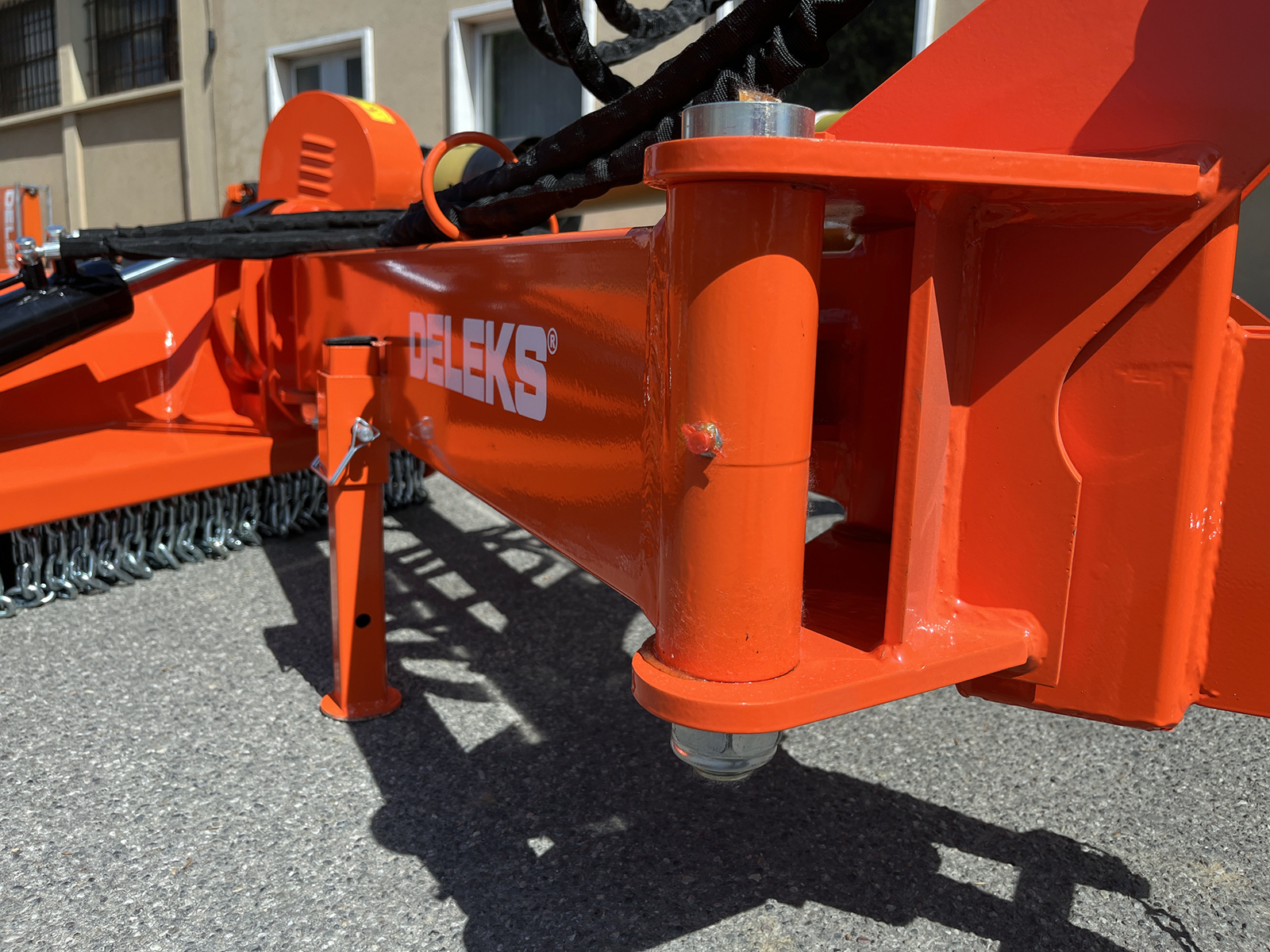

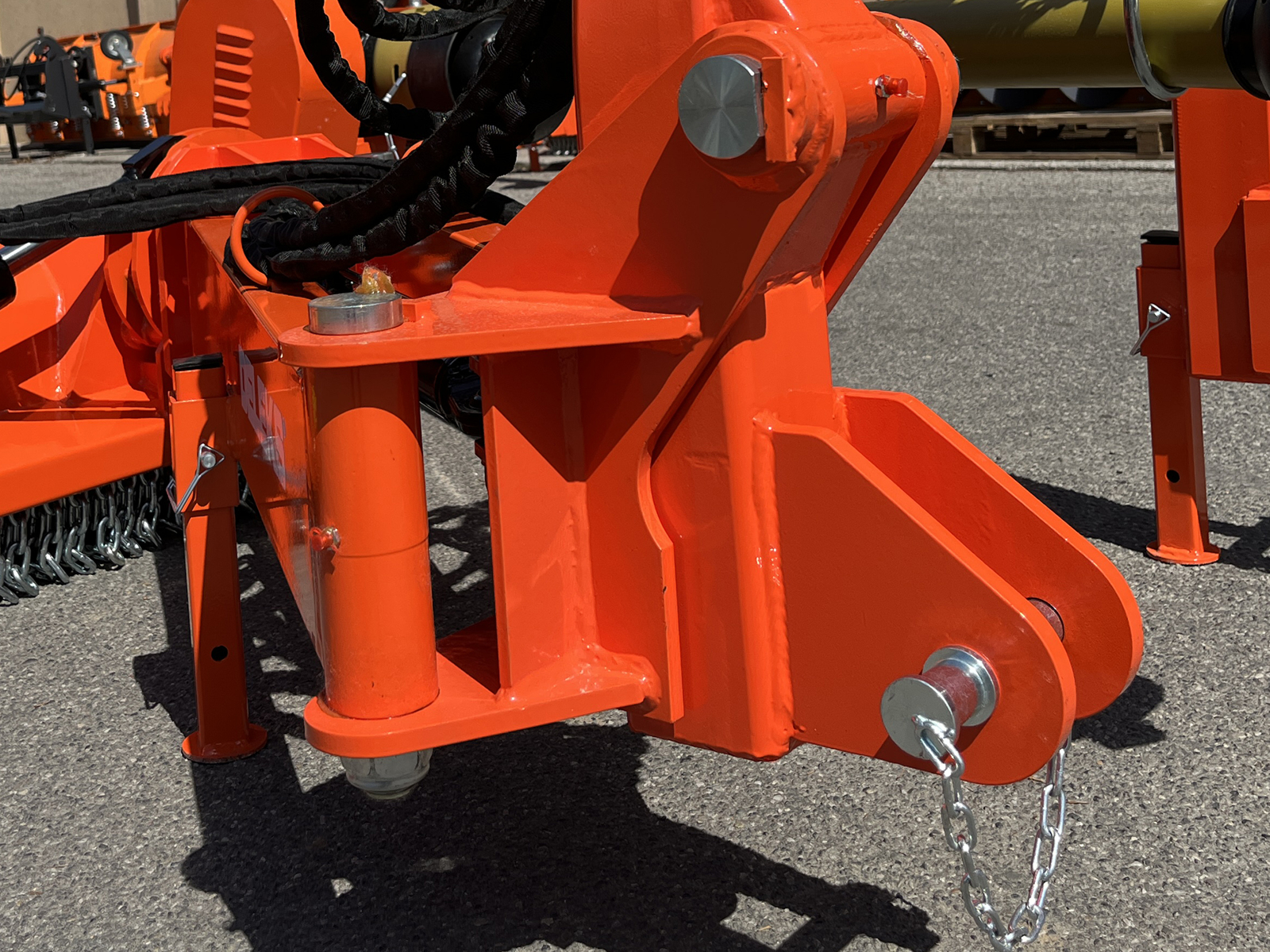

Universal three point hitch with hydraulic offset Cat. 1-2, Wide angle Pto Shaft 180cm CE.
BENEFITS AND FEATURES

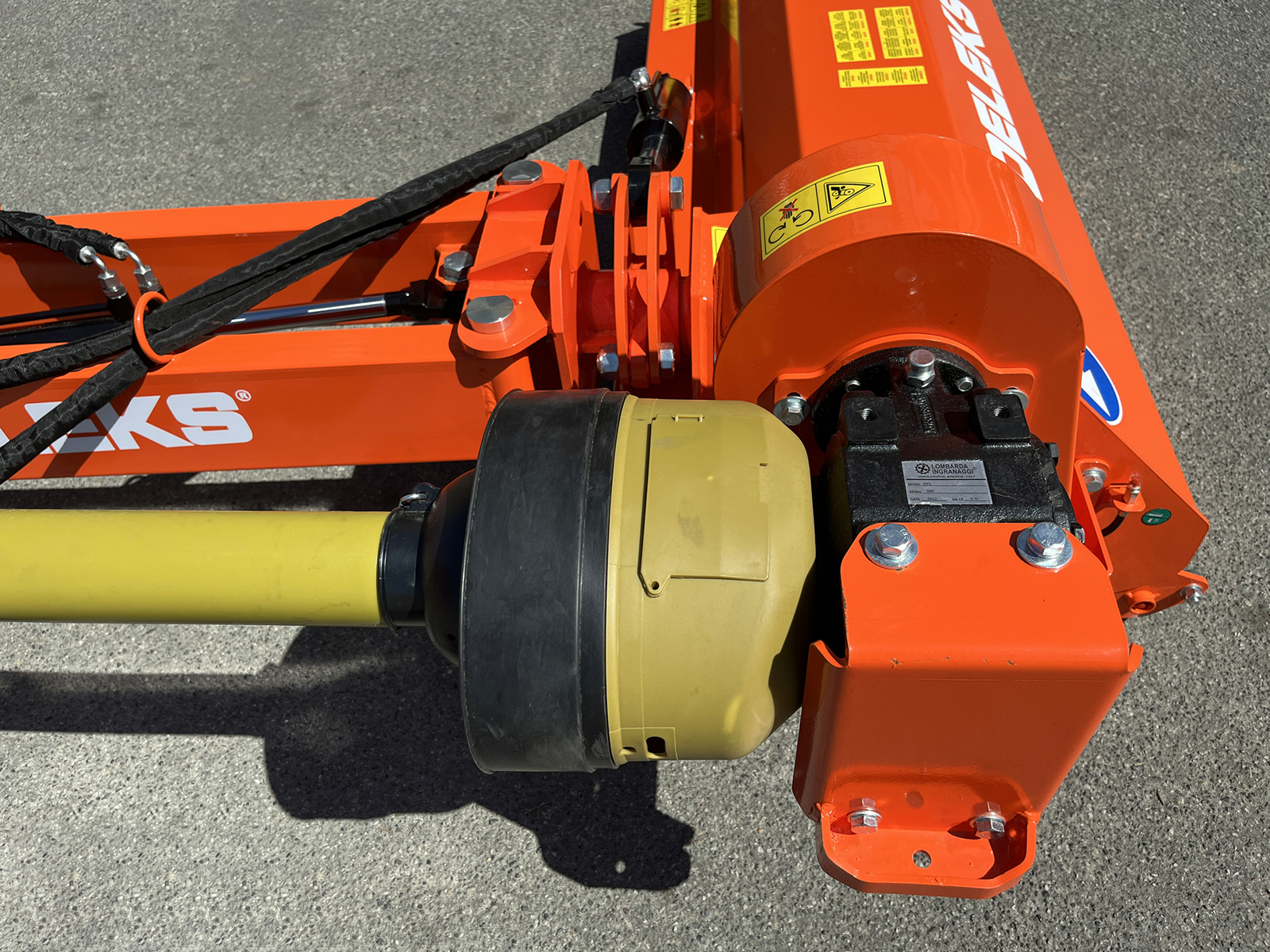

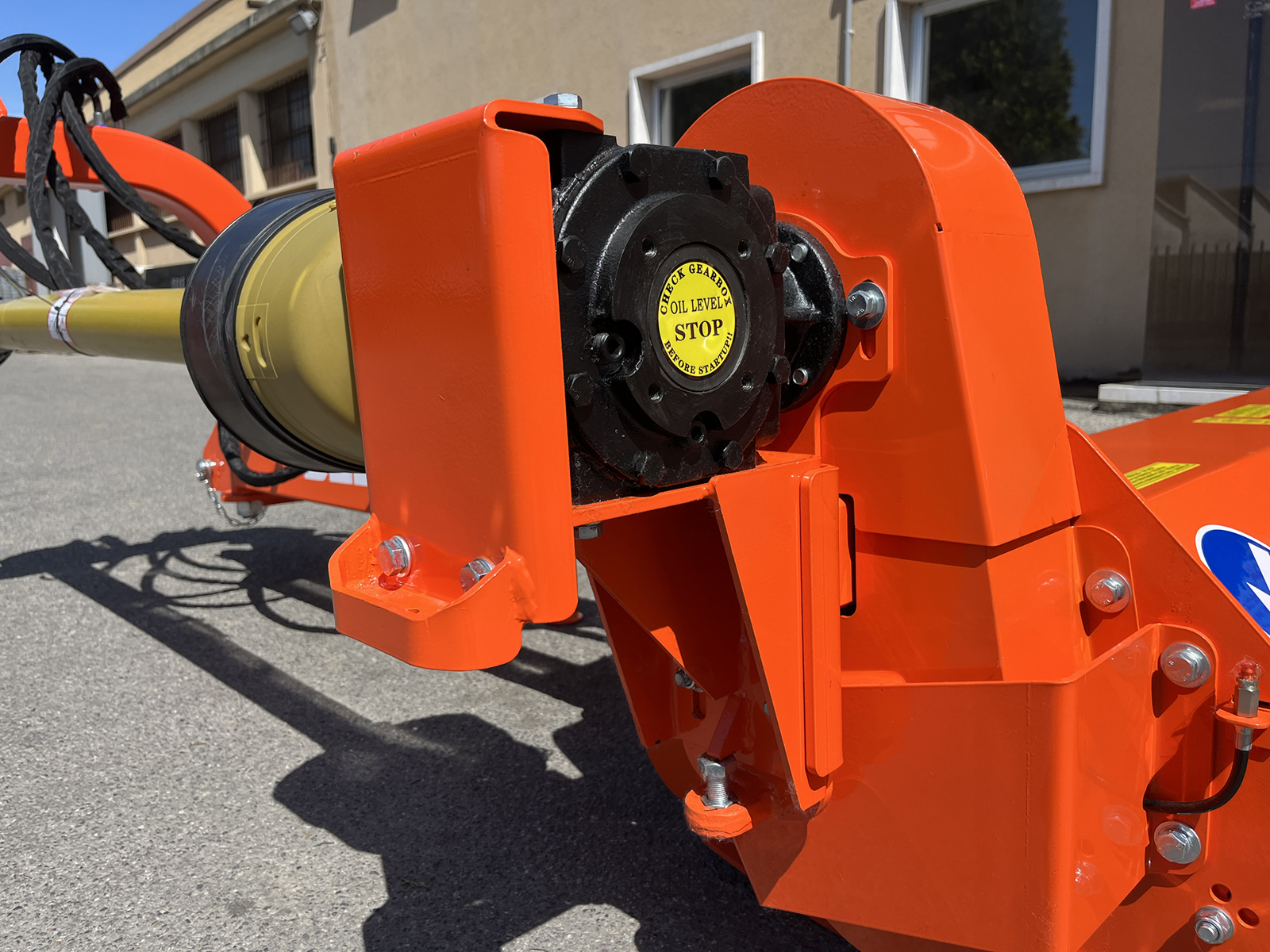

External Gearbox with free wheel with 3 year warranty.
Sturdy and durable design for heavy usage.
Break back system to protected three point linkage.

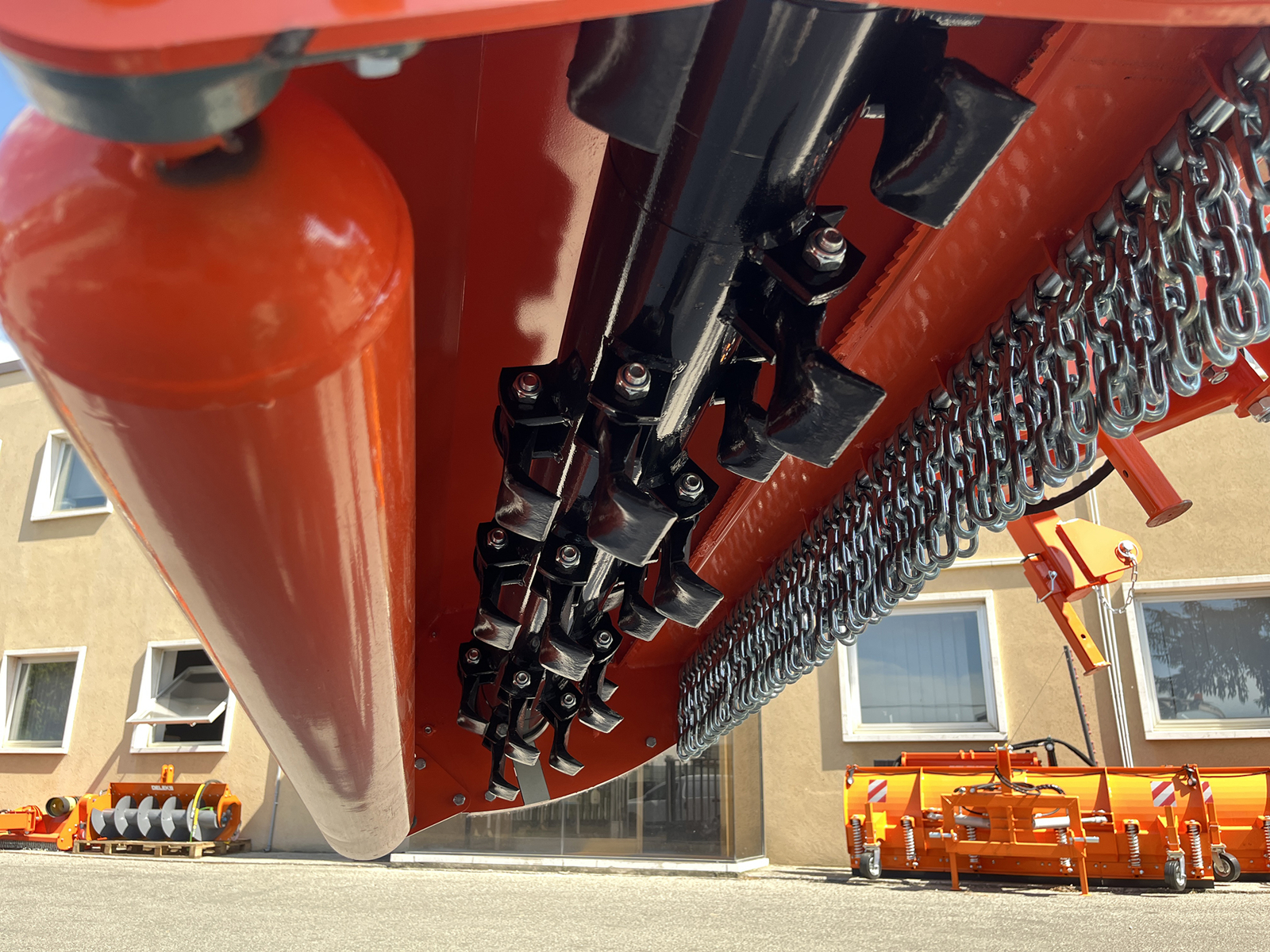

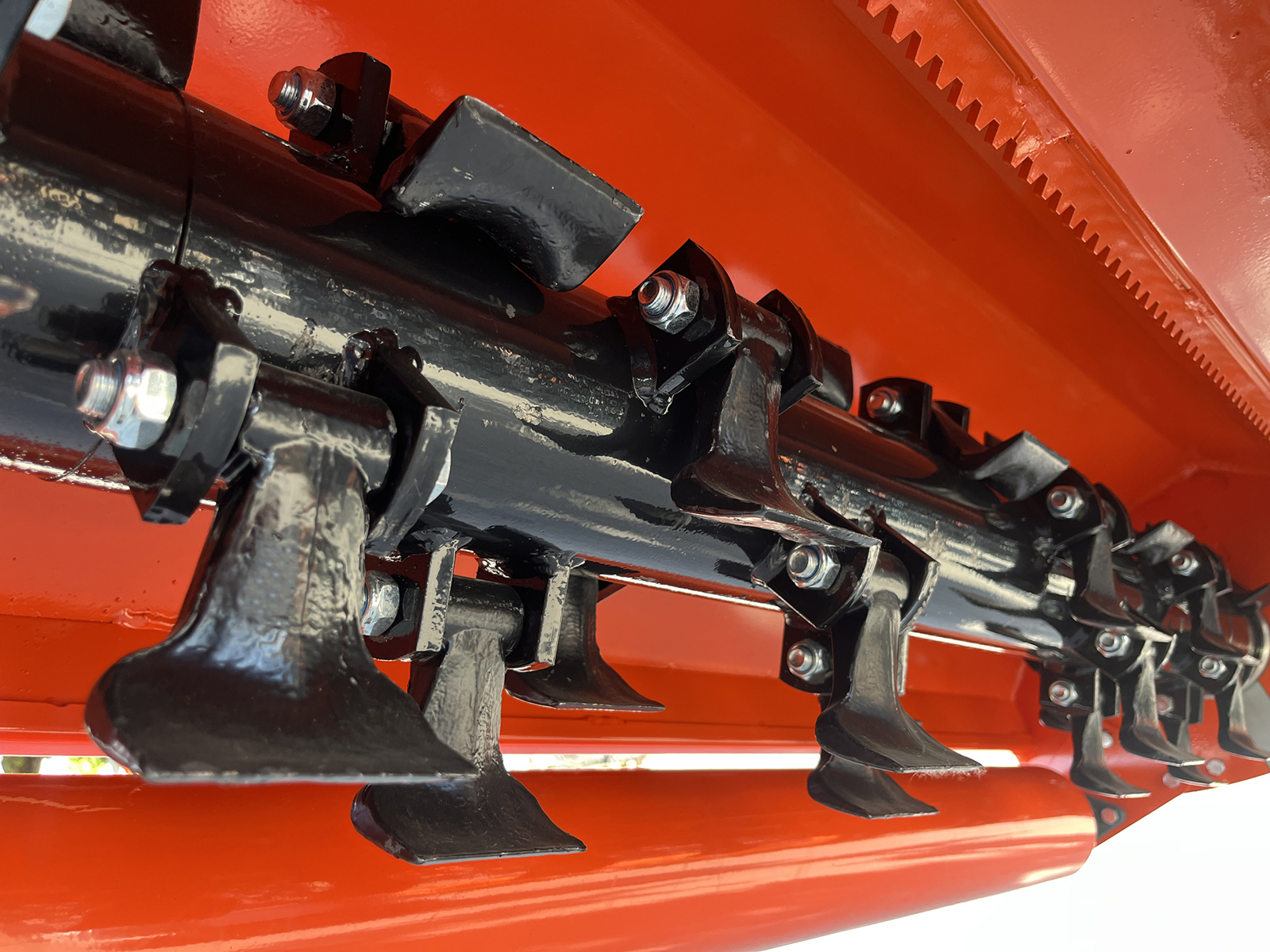

Electronically balanced rotor.

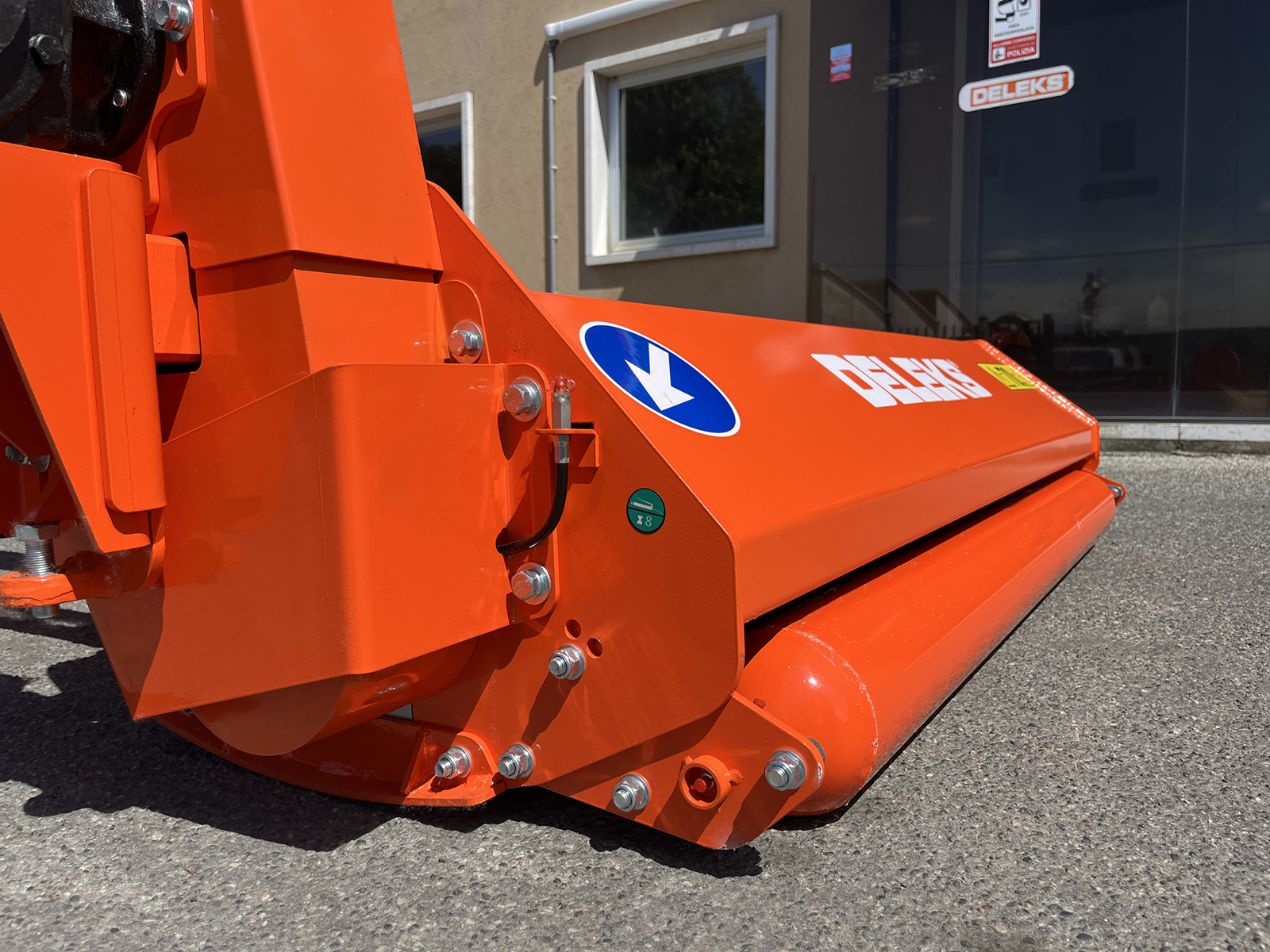

Adjustable roller unit and side skids.
4 high resistance toothed belts, and external belt tensioner.
Electronically balanced rotor.
Wide angle Pto shaft CE included.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1300.0 mm |
| Overall width | 1806.0 mm |
| Min / Max cutting height | 10.0 - 45.0 mm |
| Weight | 452.0 kg |
| Overall height | 975.0 mm |
| Tractor Power Range | 40 - 70 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Hood height | 400.0 mm |
| Spacing between the 2 lower points | 820.0 - 964.0 mm |

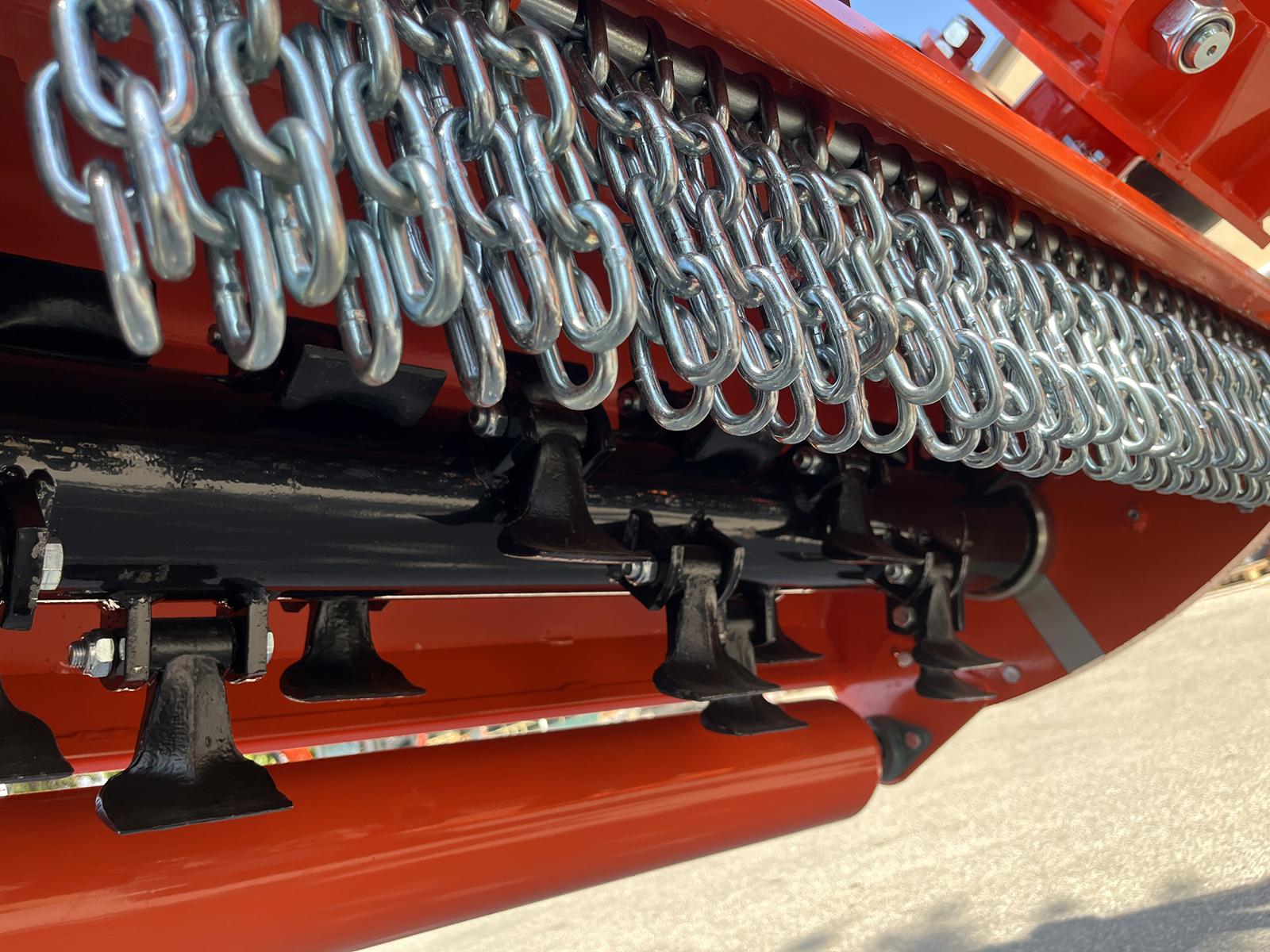

| Number of Hammers | 22 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 1380.0 mm (closed) |
| Distance between pto attachment and ground | 550.0 mm |
| Main hood thickness | 4.0 mm |
| Sides thickness | 8.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2134 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 4 |
| Transmission: V-Belts size | 17x1270 |
| Rotor: diameter | 127.0 mm |
| Rotor: bearings type and size | 1308 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 10.0 mm |
| Hammers: Weight | 820.0 g |
| Hammer: øhole | 15.0 mm |
| Hammer: base width | 82.0 mm |
| Hammer: top width | 45.0 mm |
| Hammer: Diagonal | 95.0 mm |
| Rear roller: diameter | 140.0 mm |
| Rear roller: sheet thickness | 6.0 mm |
| Rear roller: bearings type and size | UCFL206 |

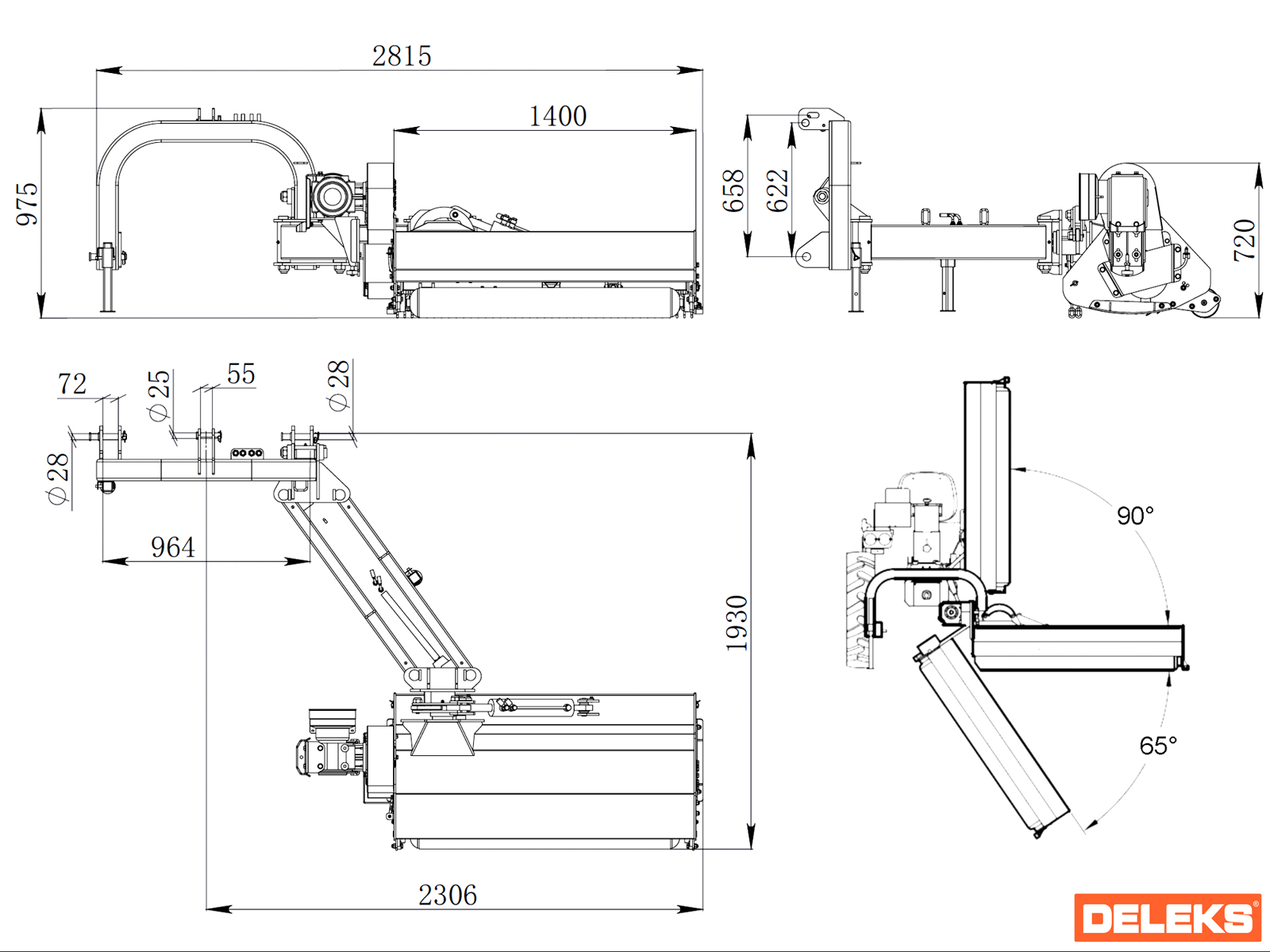

| Displacement and Sizes | See pictures |
| Hydraulic cylinder A diam. | 80.0 - 35.0 mm |
| Hydraulic cylinder B diam. | 60.0 - 30.0 mm |
| Min./Max. Relief Pressure | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Hydraulic Hoses | WP 400 Bar, 1/2" Agri Standard |
| Pto shaft | CE 5x1800 mm wide angle |
| Hood length | 680.0 mm |
| Packing sizes | 1650.0*950.0*950.0 mm |
