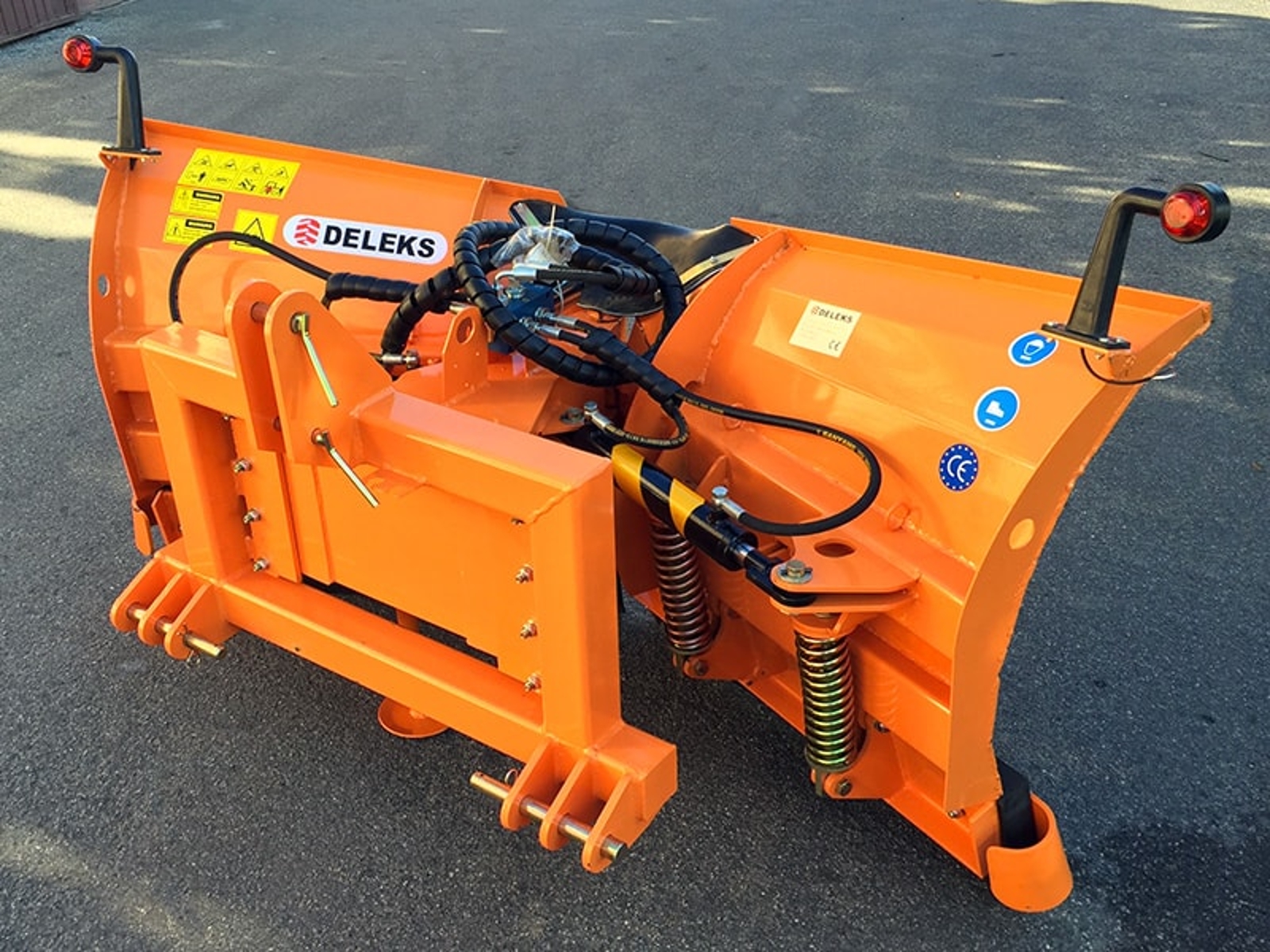

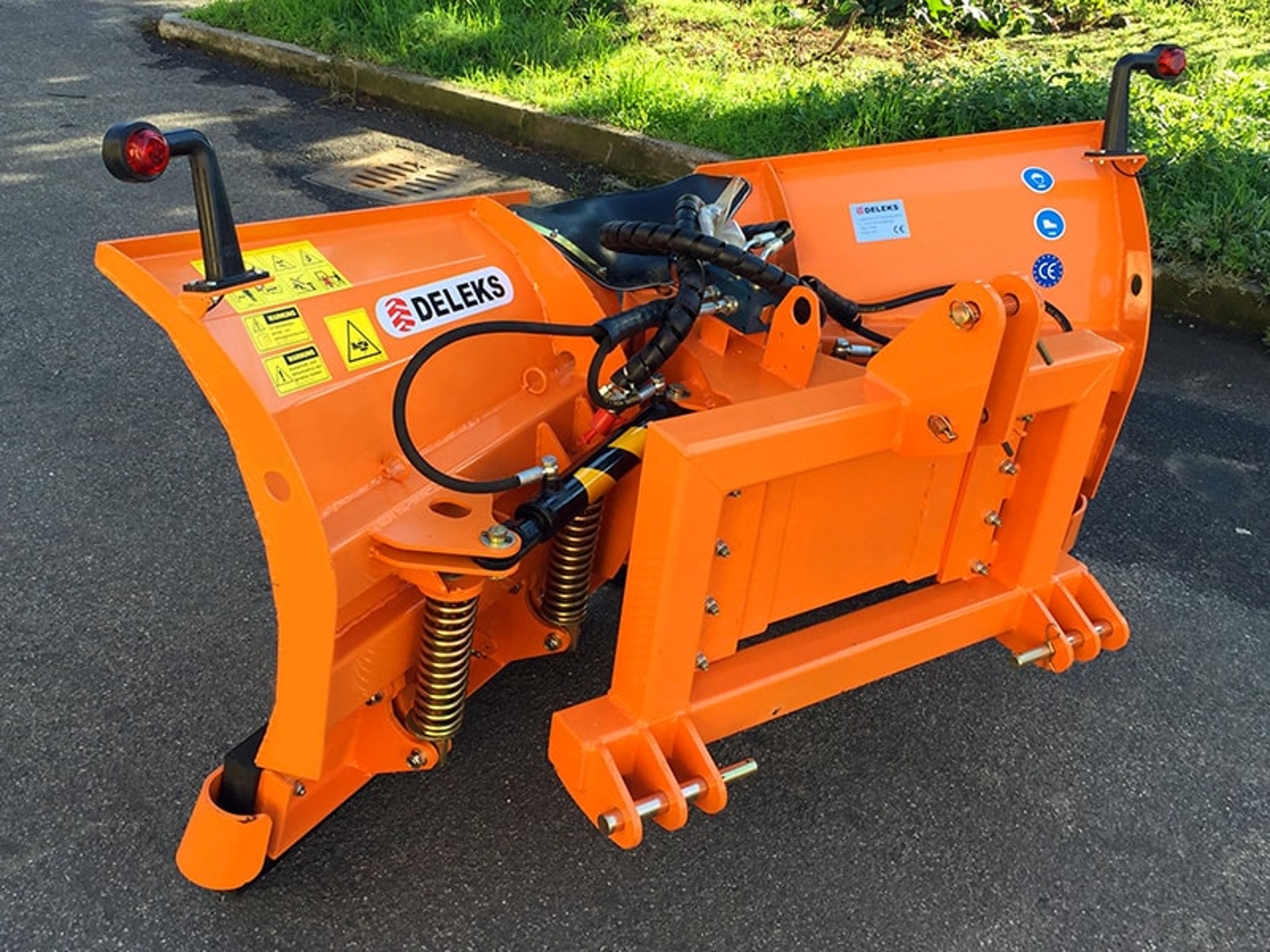

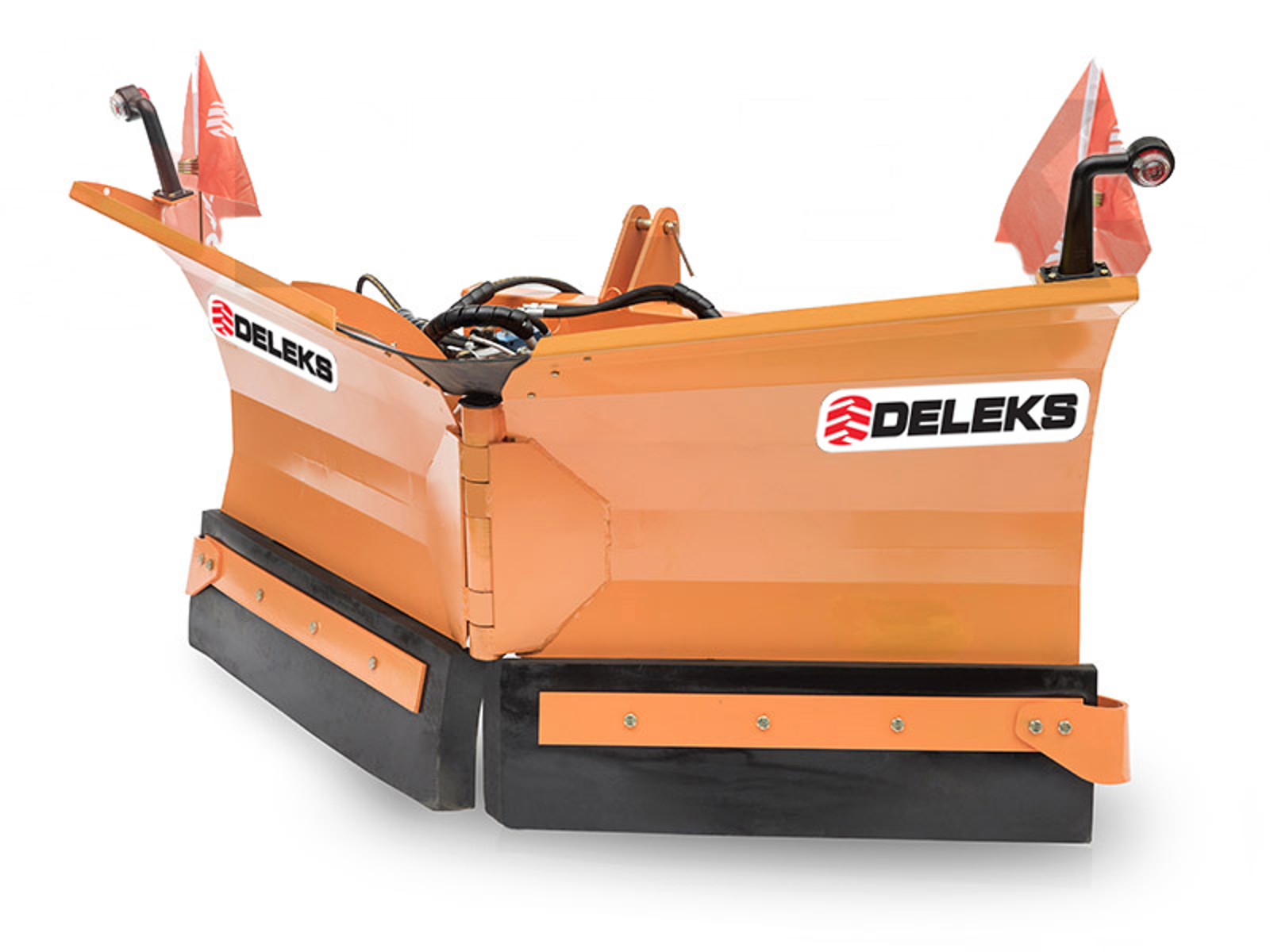

Snowplow with 3 point linkage for tractor, LNV-200-C
DETAILS
Snowplough 200cm - DELEKS® - Snowblade for tractor - 3 point linkage - Rubber blades - Homologated for road use.
OVERVIEW
The LNV-200-C has been designed for 35-70 hp tractors, e.g. Mistral Landini, Kubota L, Goldoni Star, John Deere, or reversible tractors like Ferrari Chrome, Antonio Carraro TTR 4400, BCS Invictus, Pasquali Siena, Valpadana.

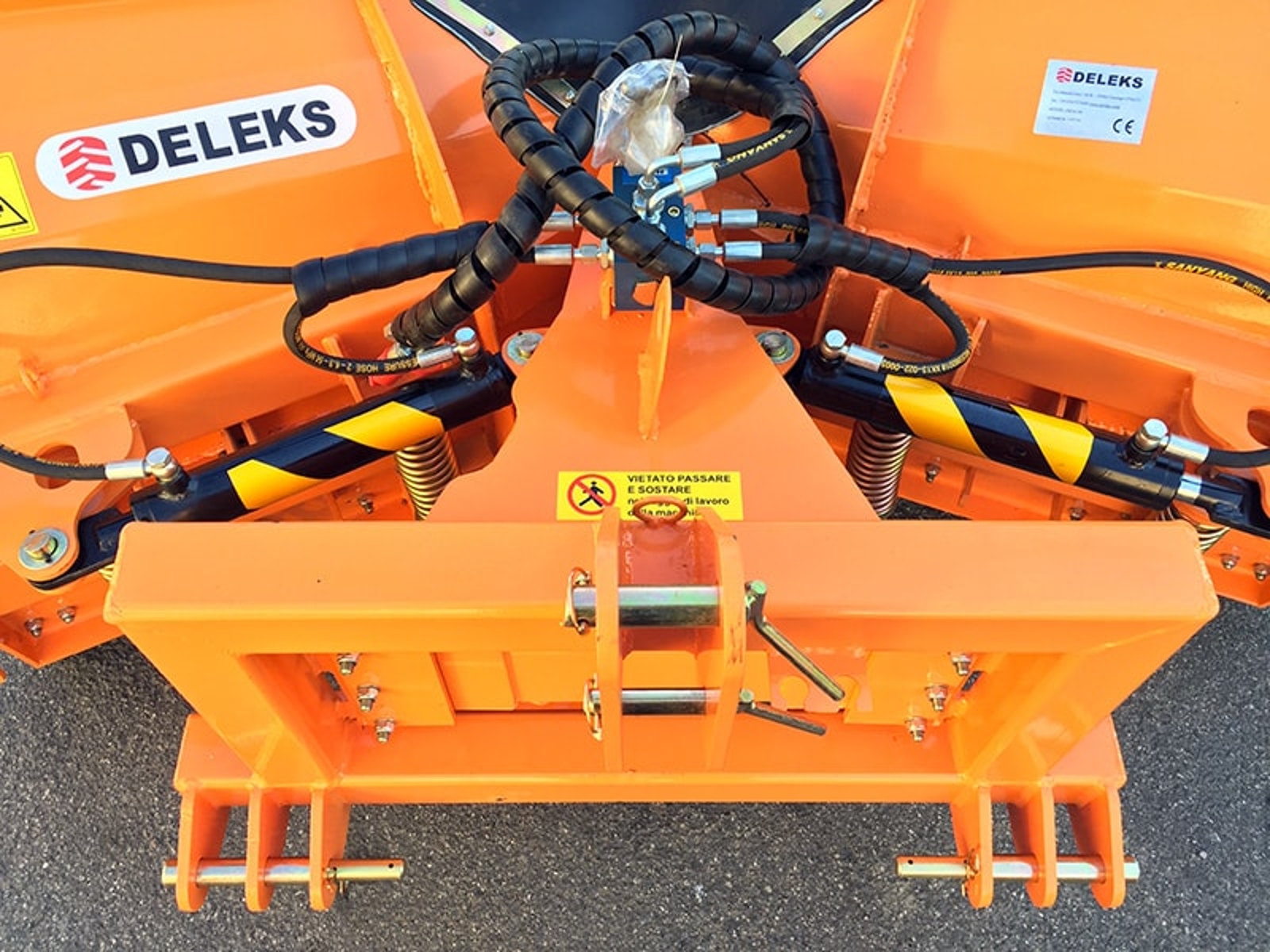

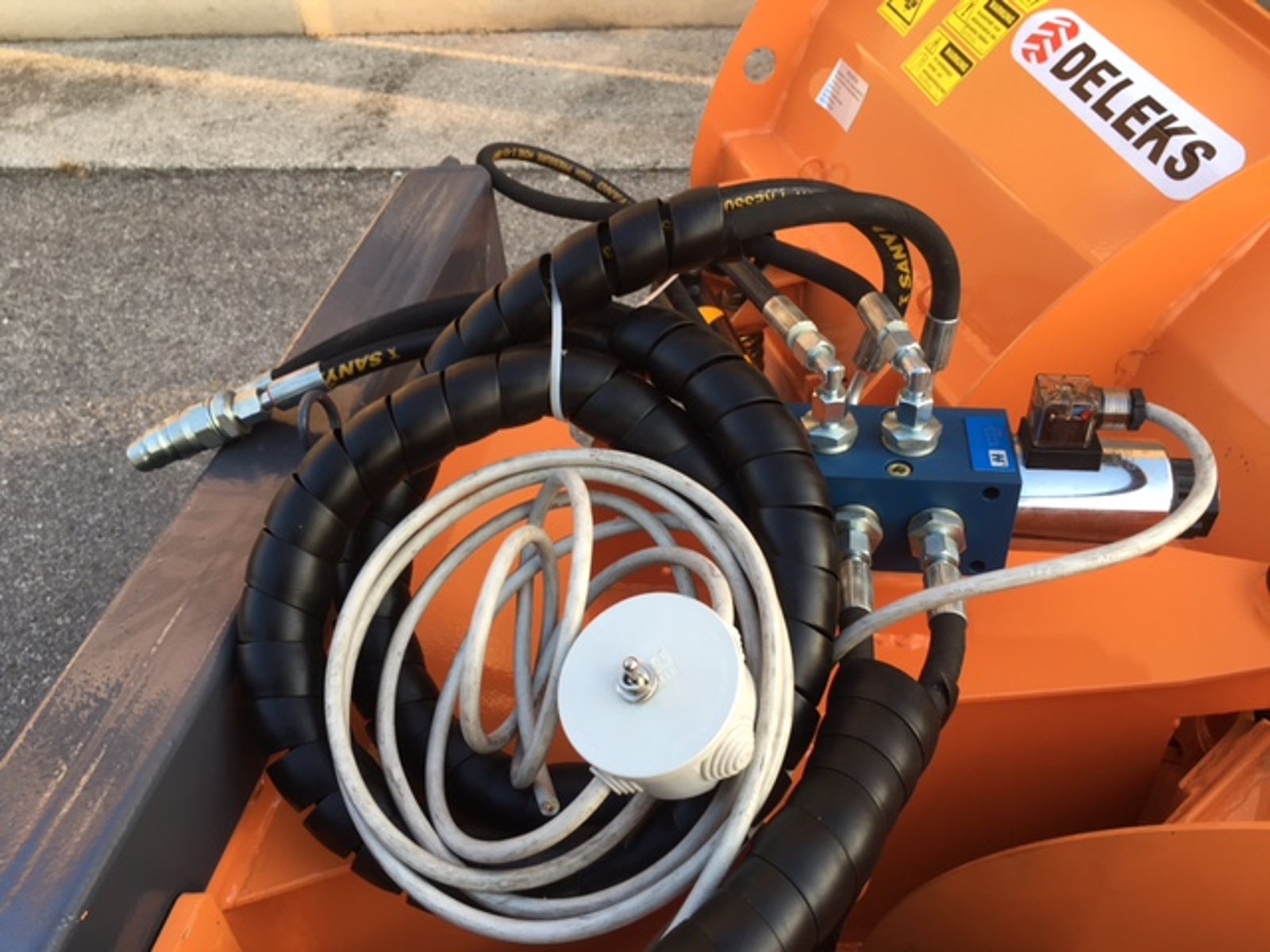

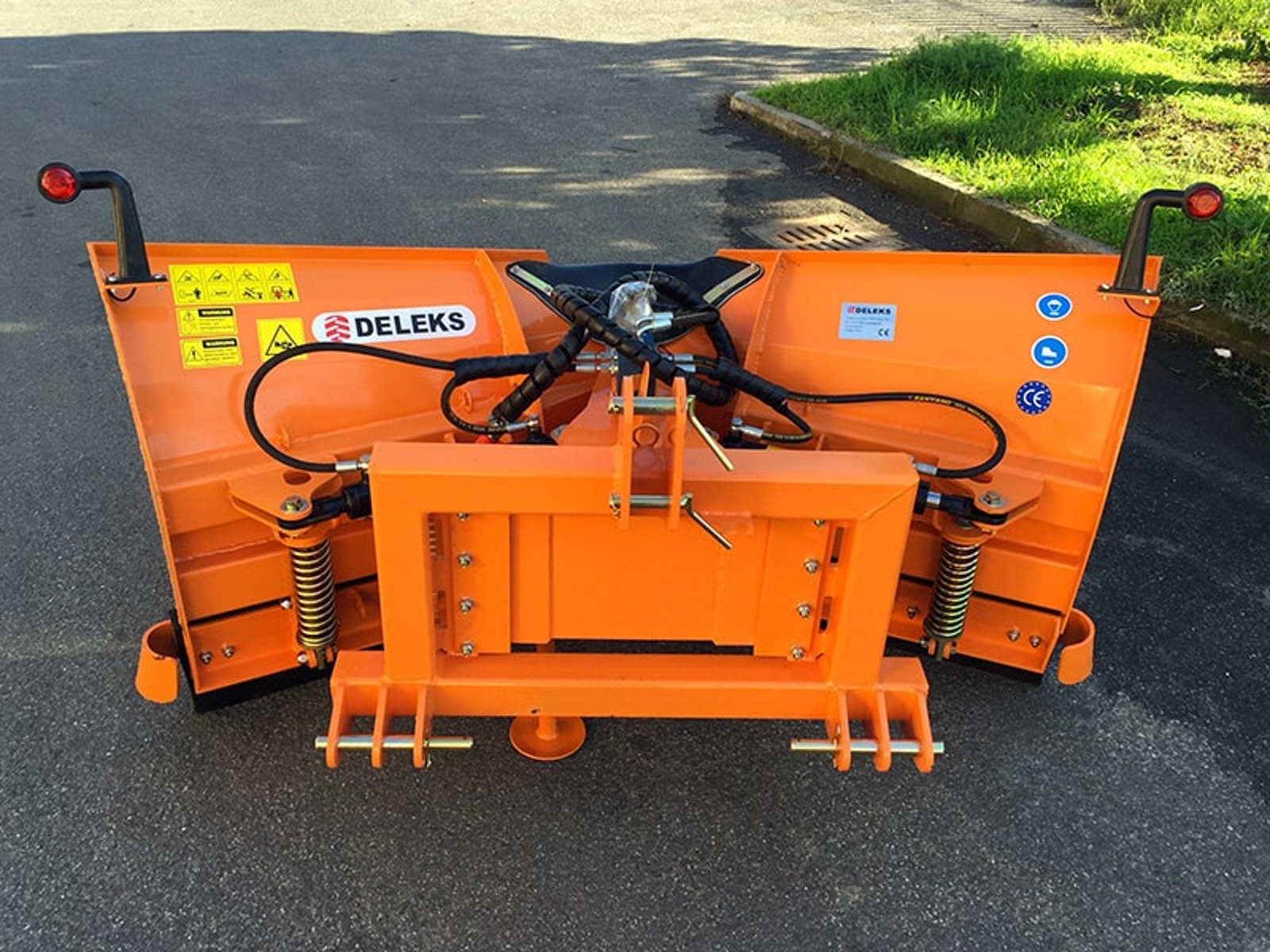

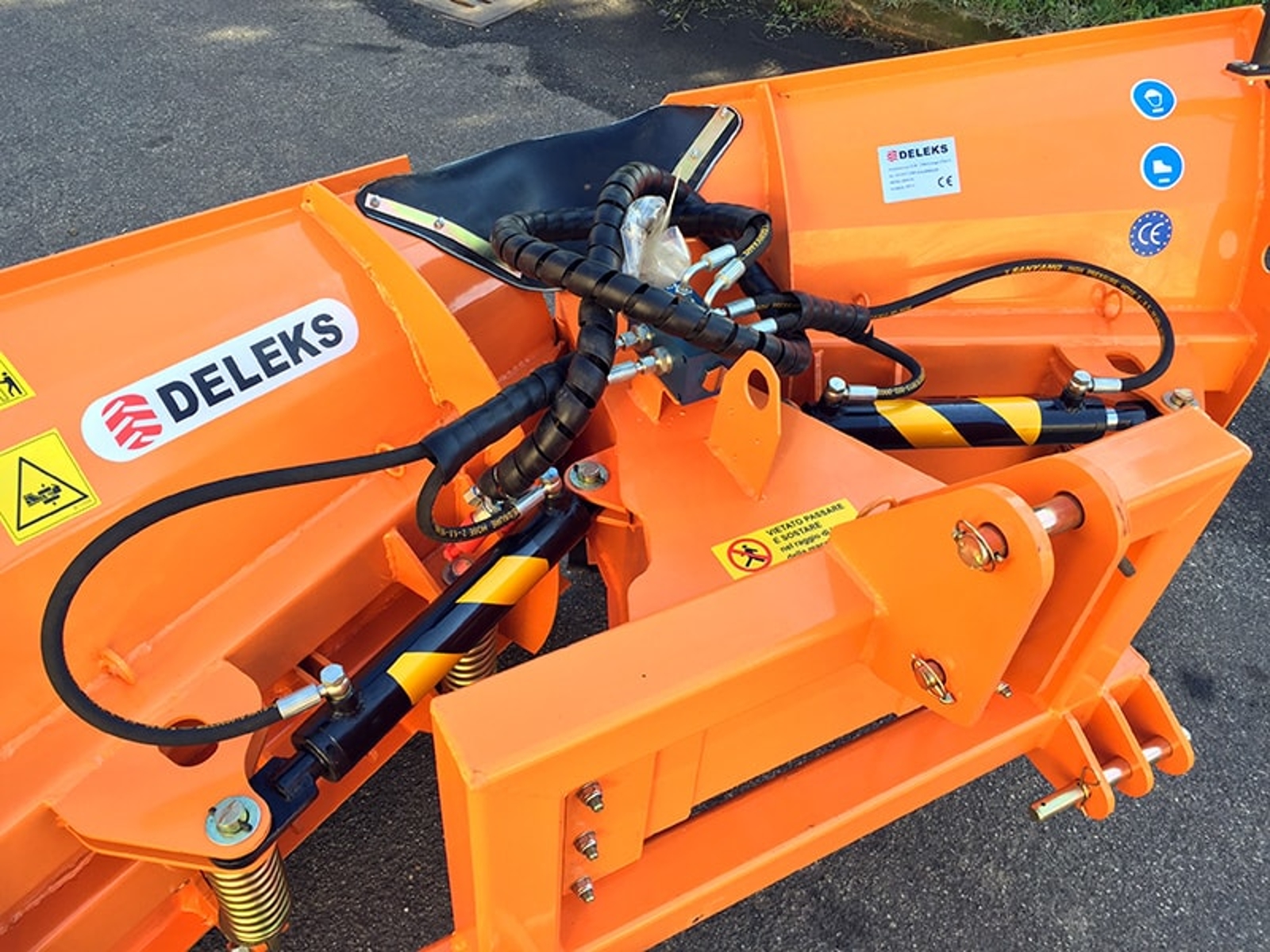

Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).

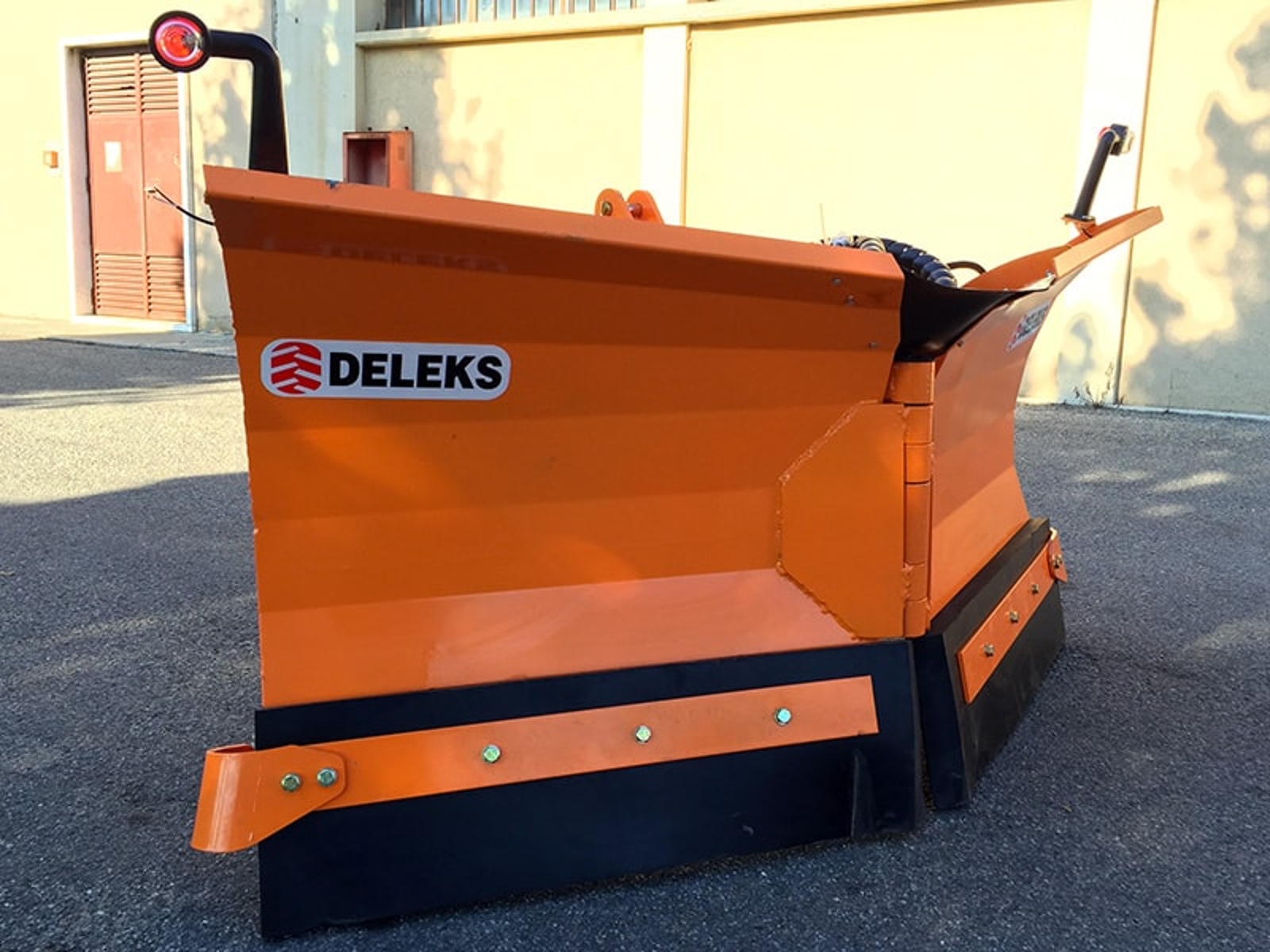

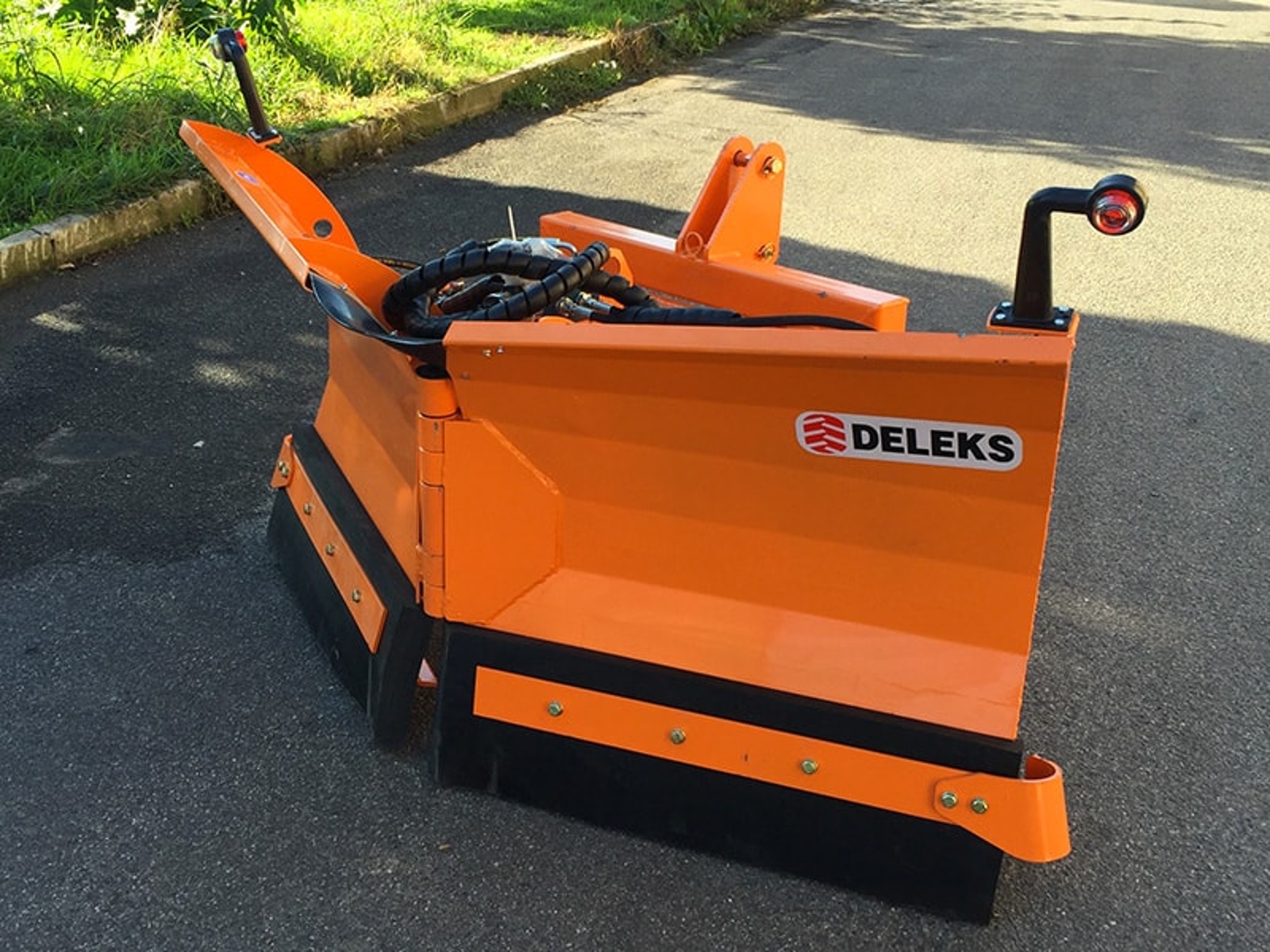

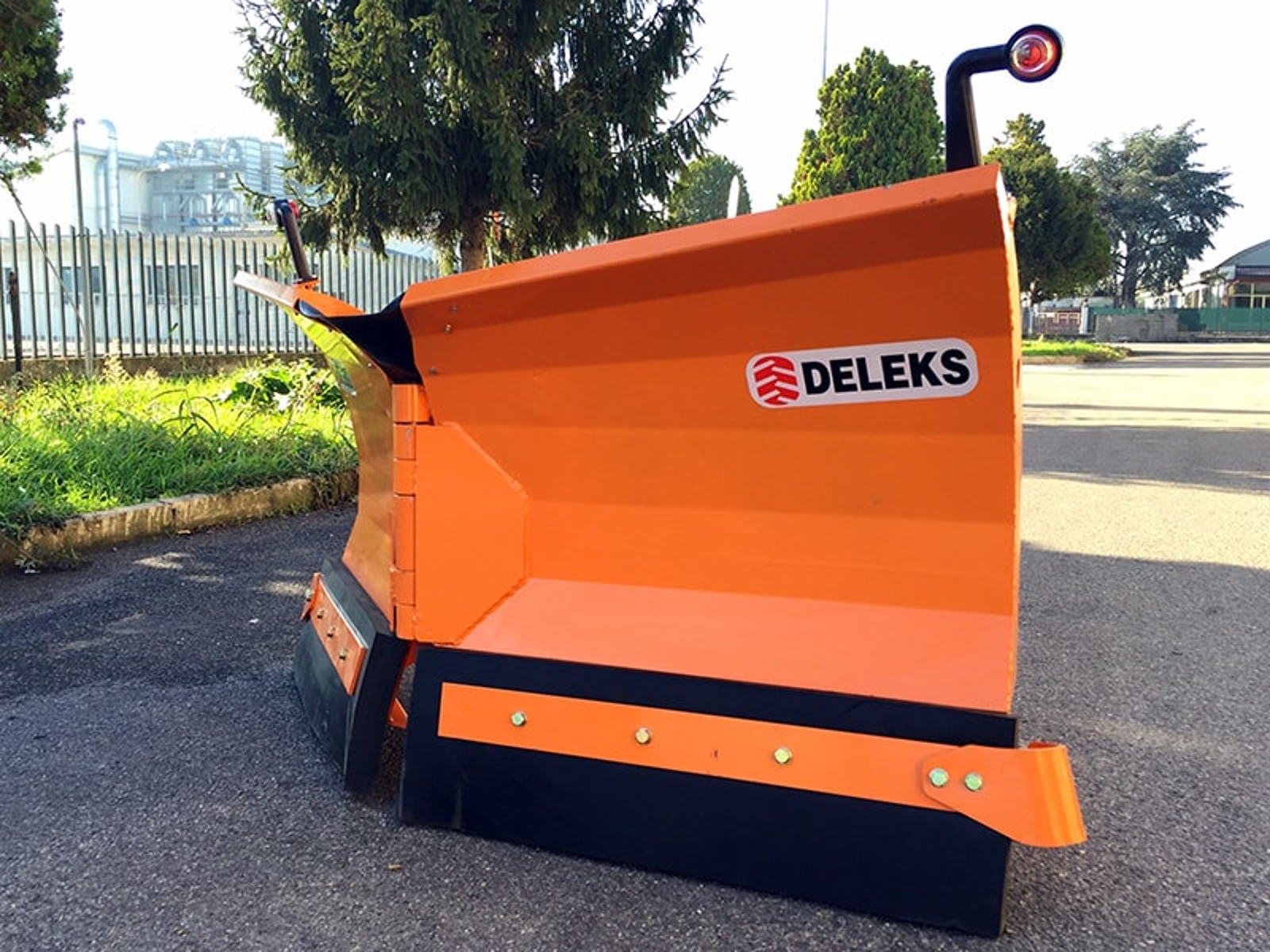

The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES
Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).

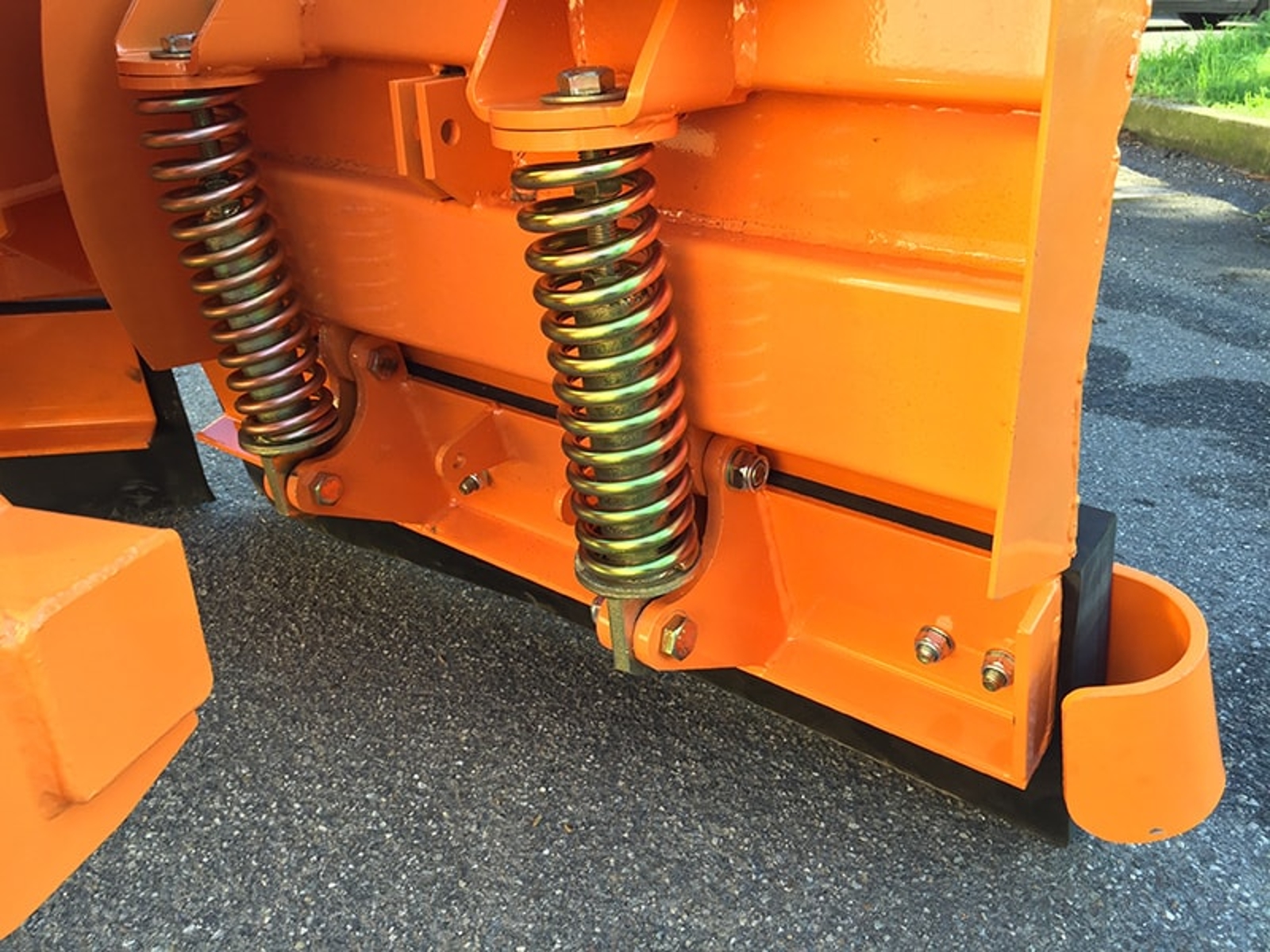

Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.
2 independent plowing elements.
Lateral oscillation system which allows a perfect adherence to the road surface.
Extremely easy installation and usage.

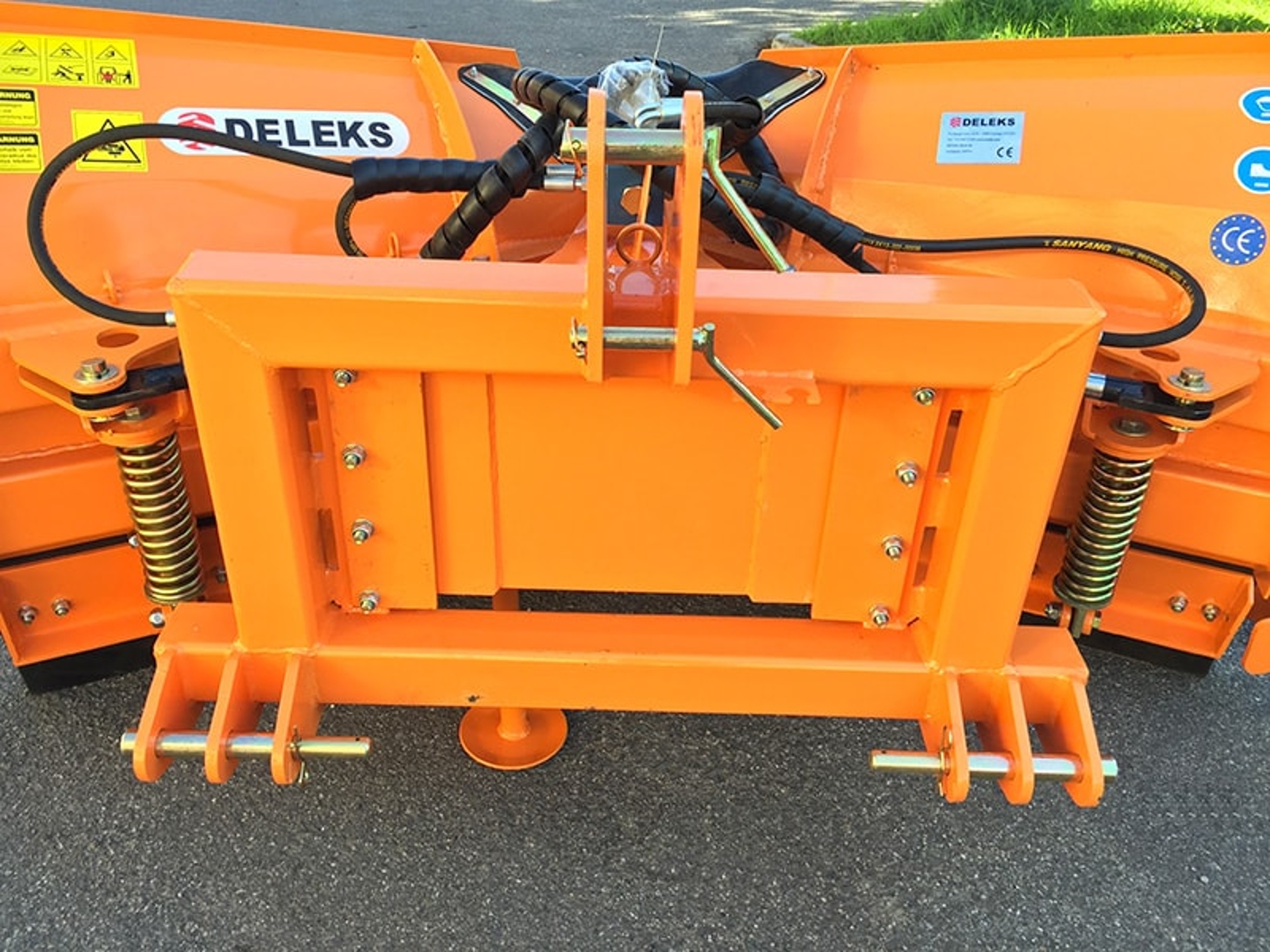

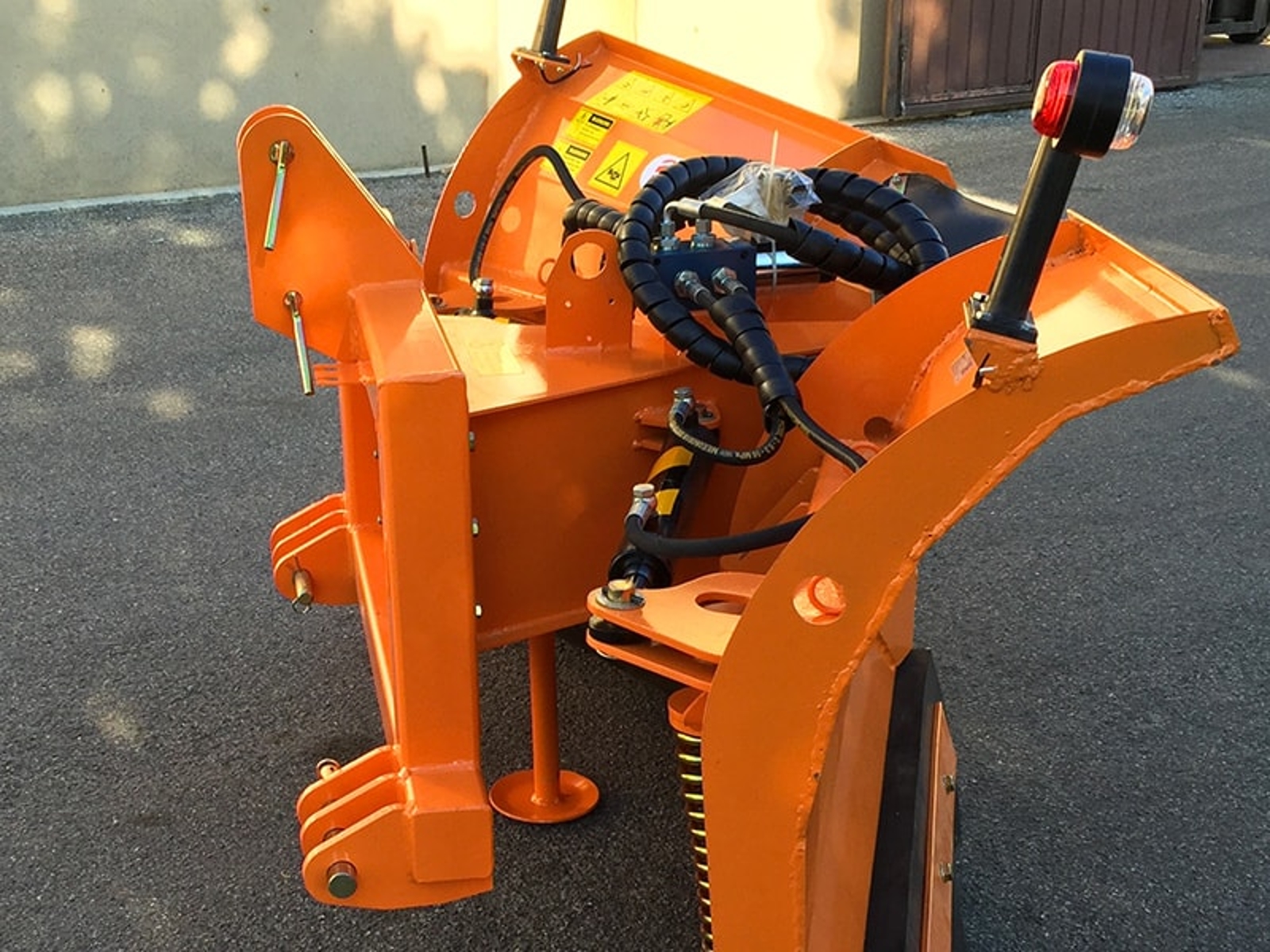

The 3-point hitch is removable and replaceable with EURO or Skid steer attachment.
Perfect adherence to the road surface and homologated for road use.

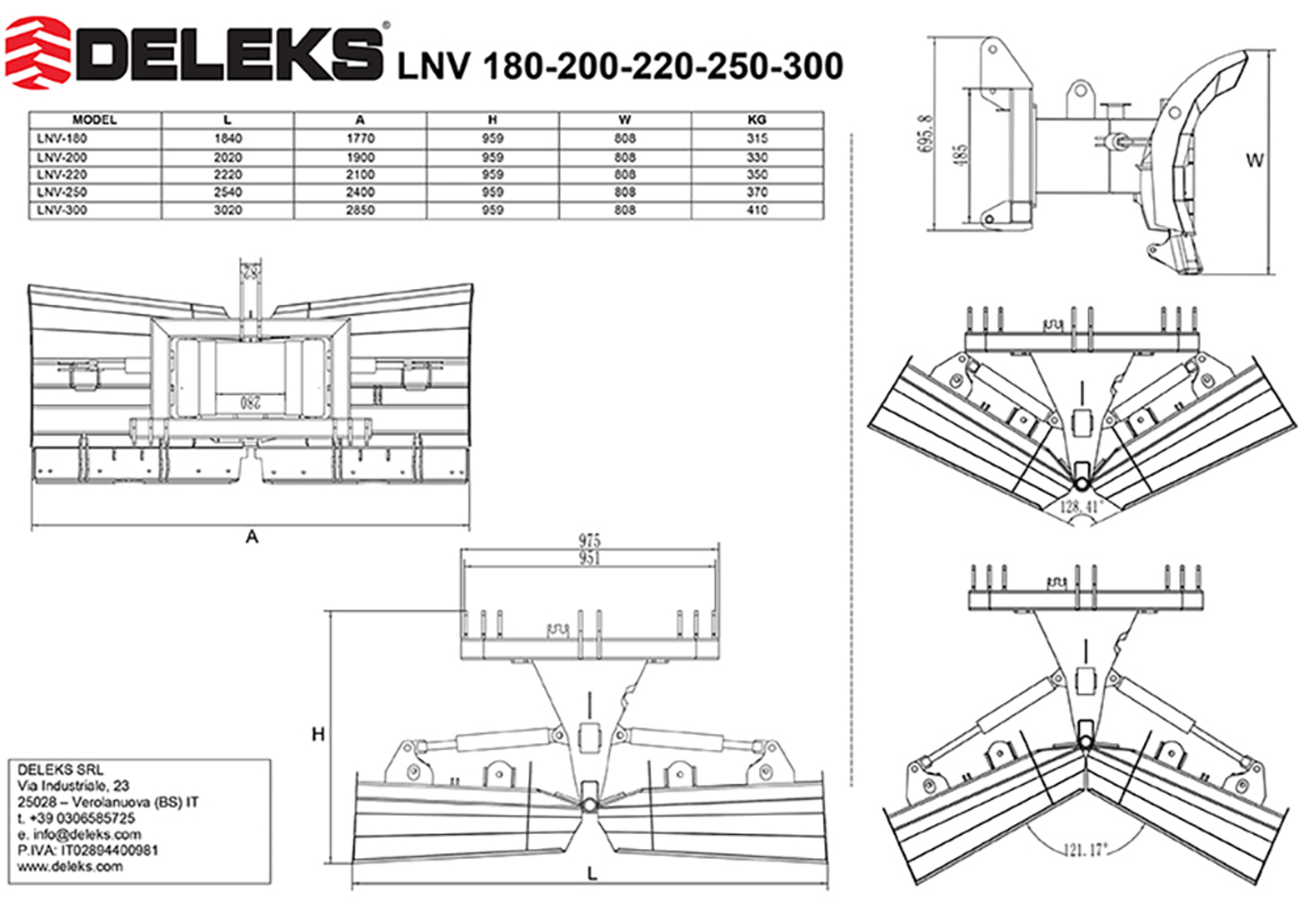

CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 330.0 kg |
| Overall height | 1020.0 mm |
| Tractor Power Range | 35 - 70 Hp |
| Overall Length | 870.0 mm |
| Spacing between the 2 lower points | 635.0 - 970.0 mm |
| Distance between the 2 lower points and ground | 180.0 mm |
| Min./Max. Relief Pressure | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Interface | 3 Point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm) |
| Angling (left/right) | 30° |
| Float | +/- 6° |
| Blade Height | 920.0 mm |
| Side edge thickness | 5.0 mm |
| Shock absorbers | 4 |
| Cutting Edge | Rubber |
| Cutting Edge Height | 265.0 mm |
| Cutting Edge Thickness | 50.0 mm |
| Trip Edge Quantity | 2 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm |
| Lights | √ |
| Removable Skid Shoes | x |
| Working width (angled) | 1900.0 mm |
| Hydraulic Hoses | 2 x 2000.0 mm / connections 1.2" AGRI, WP 400 bar |
| Overall width | 2020.0 mm |
| Main frame thickness | 4.0 mm + reinforces |
| Hydraulic cylinder/s ø | 60.0/30.0 mm |
| Packing sizes | 2050.0*1000.0*800.0 mm |
