DETAILS

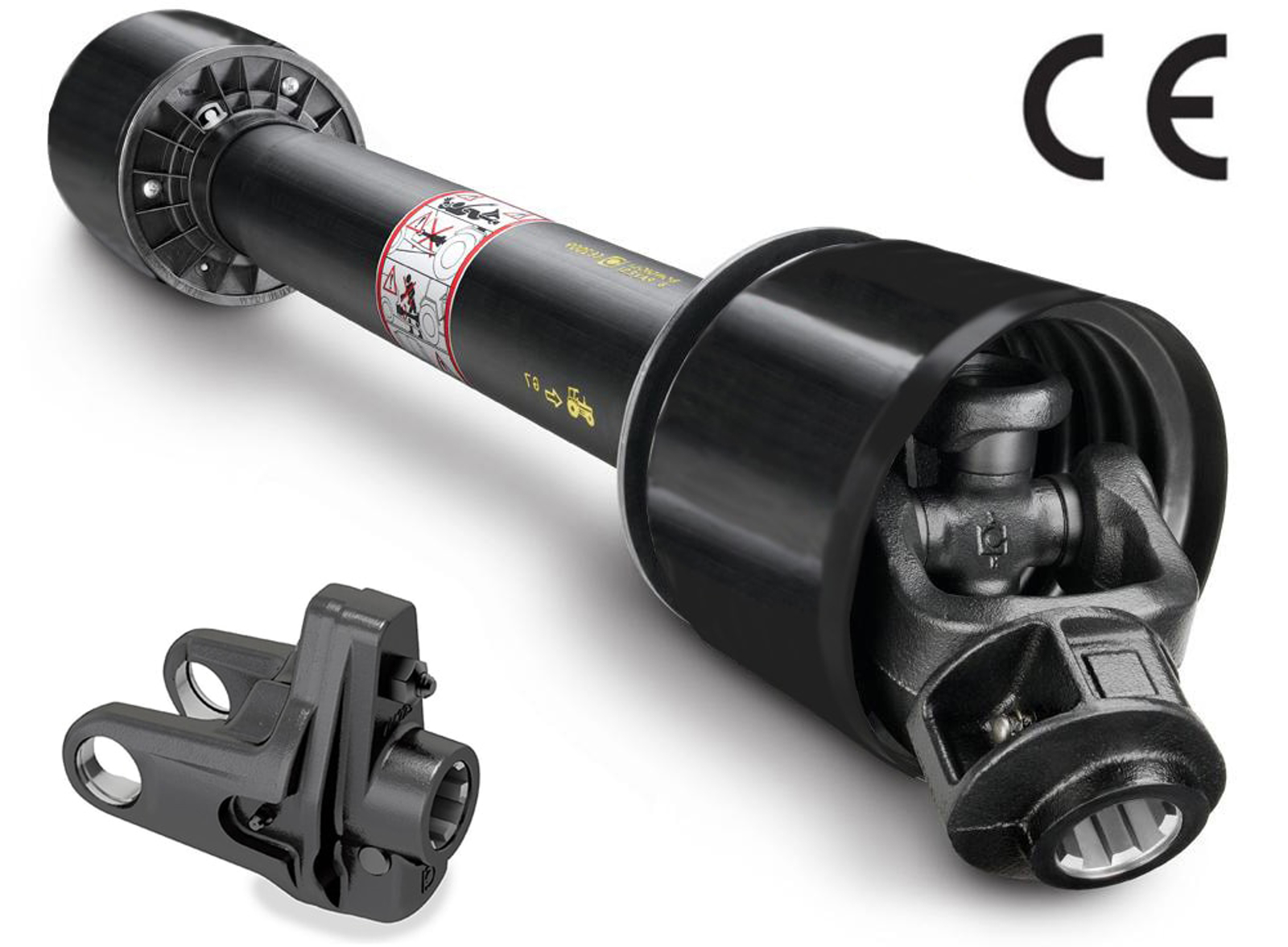

Pto Shaft for tractor.
Dim. 4

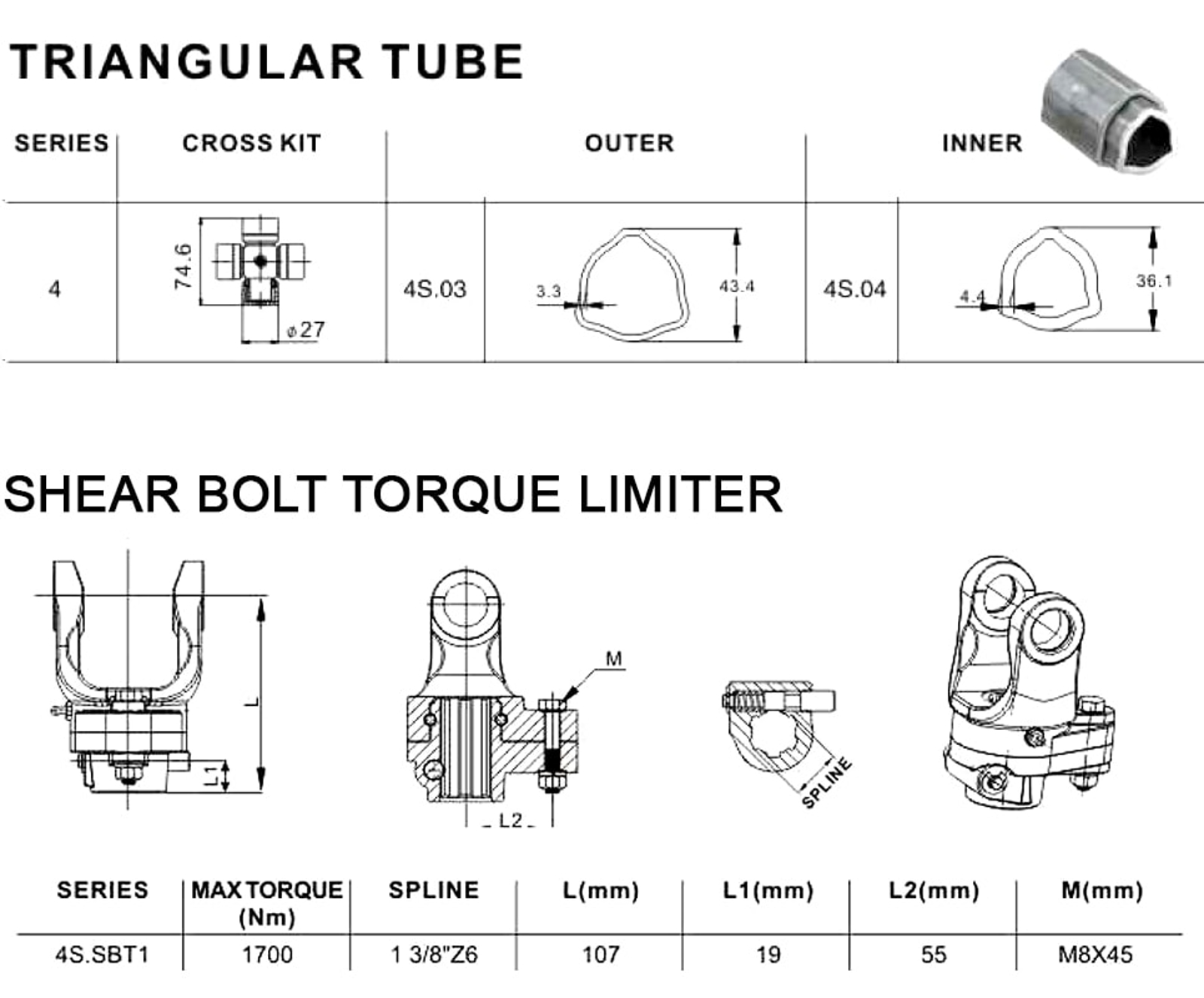

With Shear Bolt Torque Limiter:
This device prevents overloading by means of a shear bolt of specified size. When the bolt shears off, the hub and yoke assembly is kept together by a ball bearing ring which allows the two parts to rotate independent of each other. It is mounted on the implement side.
Min. Length: 800.0 mm
Cross Kit: ø27.0*74.6
Transmission power at 540 r/min: 35HP (26Kw)
Transmission power at 1000 r/min: 55HP (40Kw)
Certification Mark by ECM Ente Certificazione Macchine (Modena - Italy)
User Manual
2 Years warranty
Beware of sellers offering driveshafts without certification.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 10 kg |
DETAILS
CLOSEPto Shaft for tractor.
Dim. 4
With Shear Bolt Torque Limiter:
This device prevents overloading by means of a shear bolt of specified size. When the bolt shears off, the hub and yoke assembly is kept together by a ball bearing ring which allows the two parts to rotate independent of each other. It is mounted on the implement side.
Min. Length: 800.0 mm
Cross Kit: ø27.0*74.6
Transmission power at 540 r/min: 35HP (26Kw)
Transmission power at 1000 r/min: 55HP (40Kw)
Certification Mark by ECM Ente Certificazione Macchine (Modena - Italy)
User Manual
2 Years warranty
Beware of sellers offering driveshafts without certification.
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Weight | 10 kg |
