DETAILS

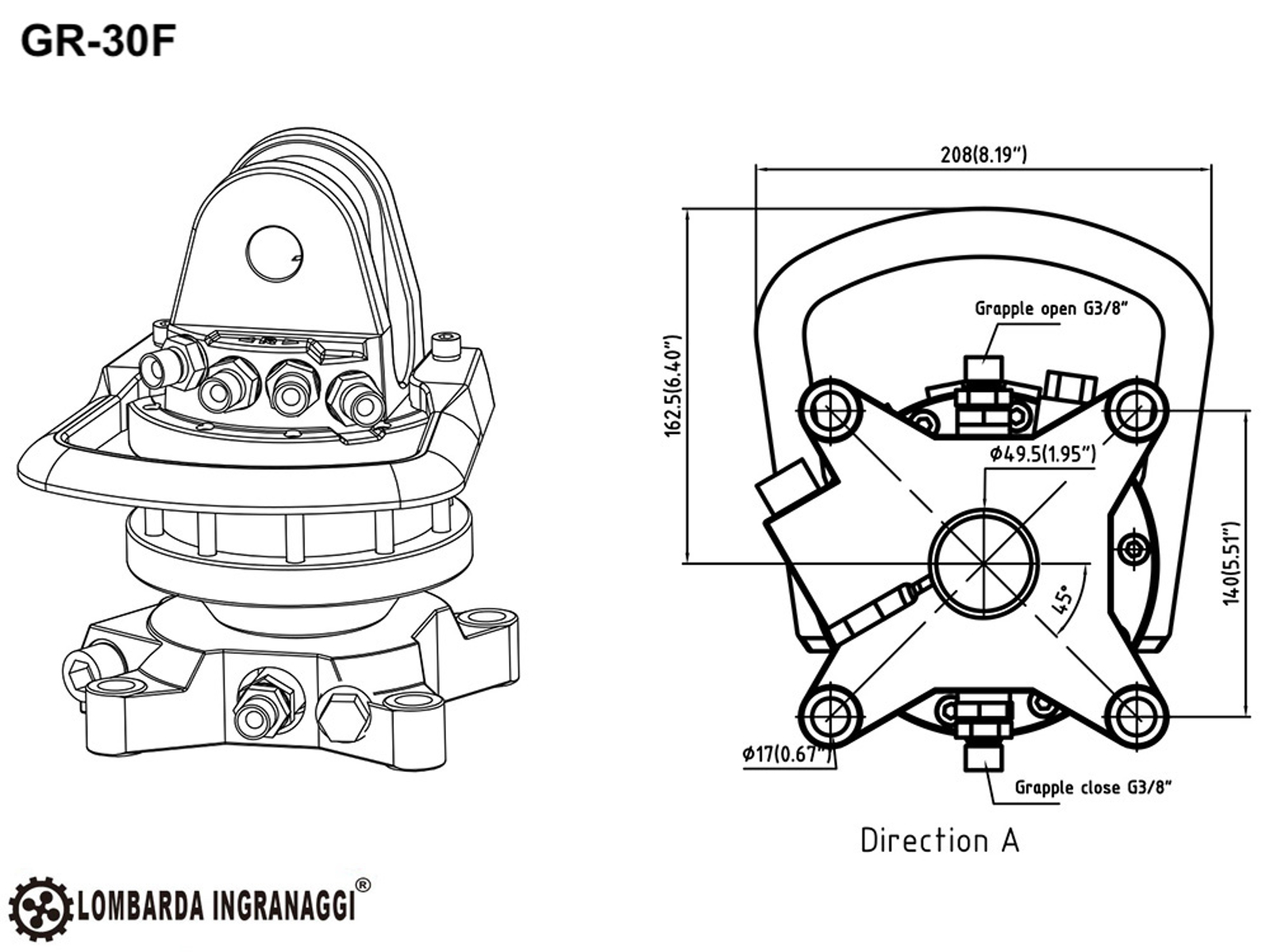

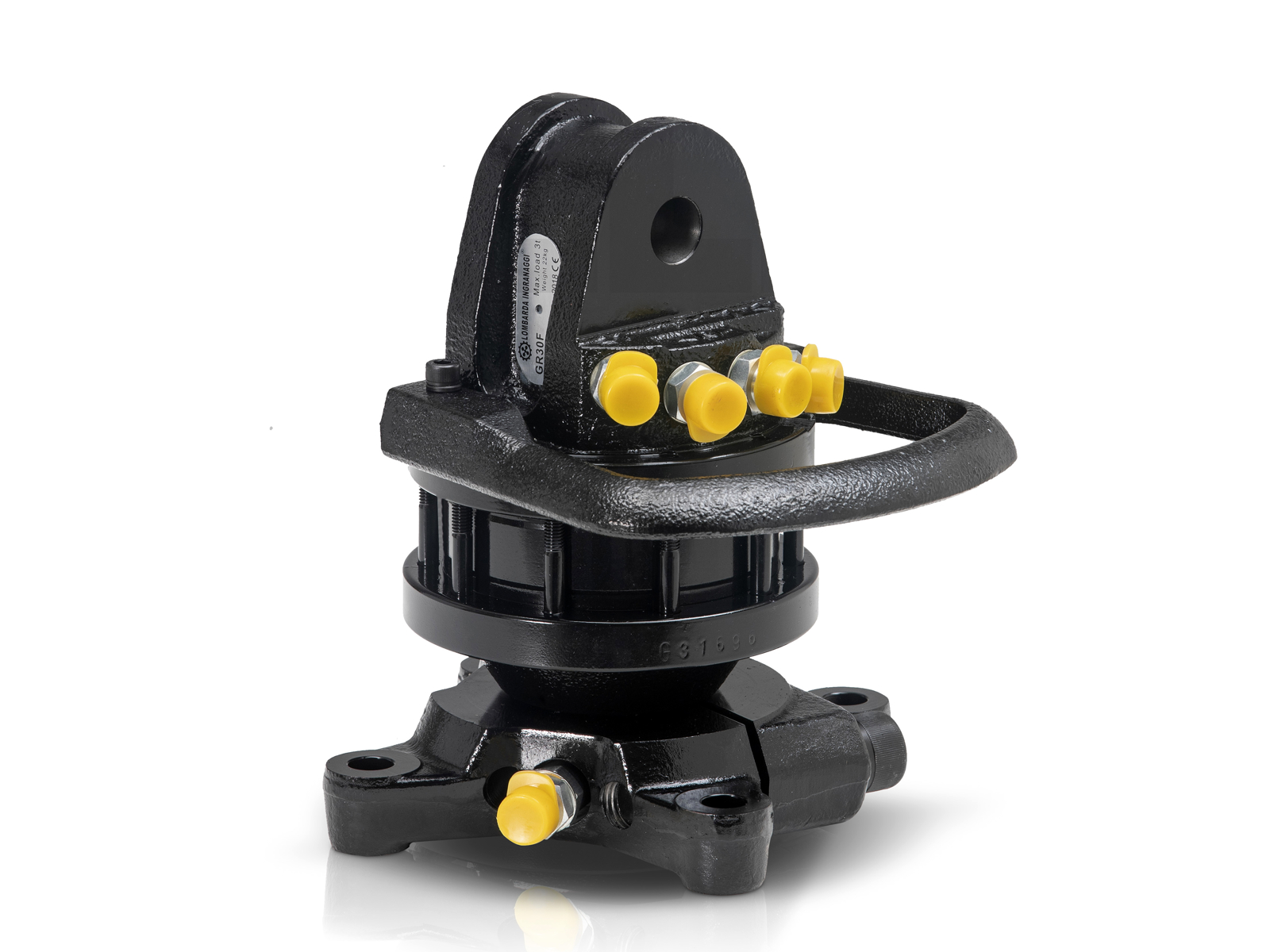

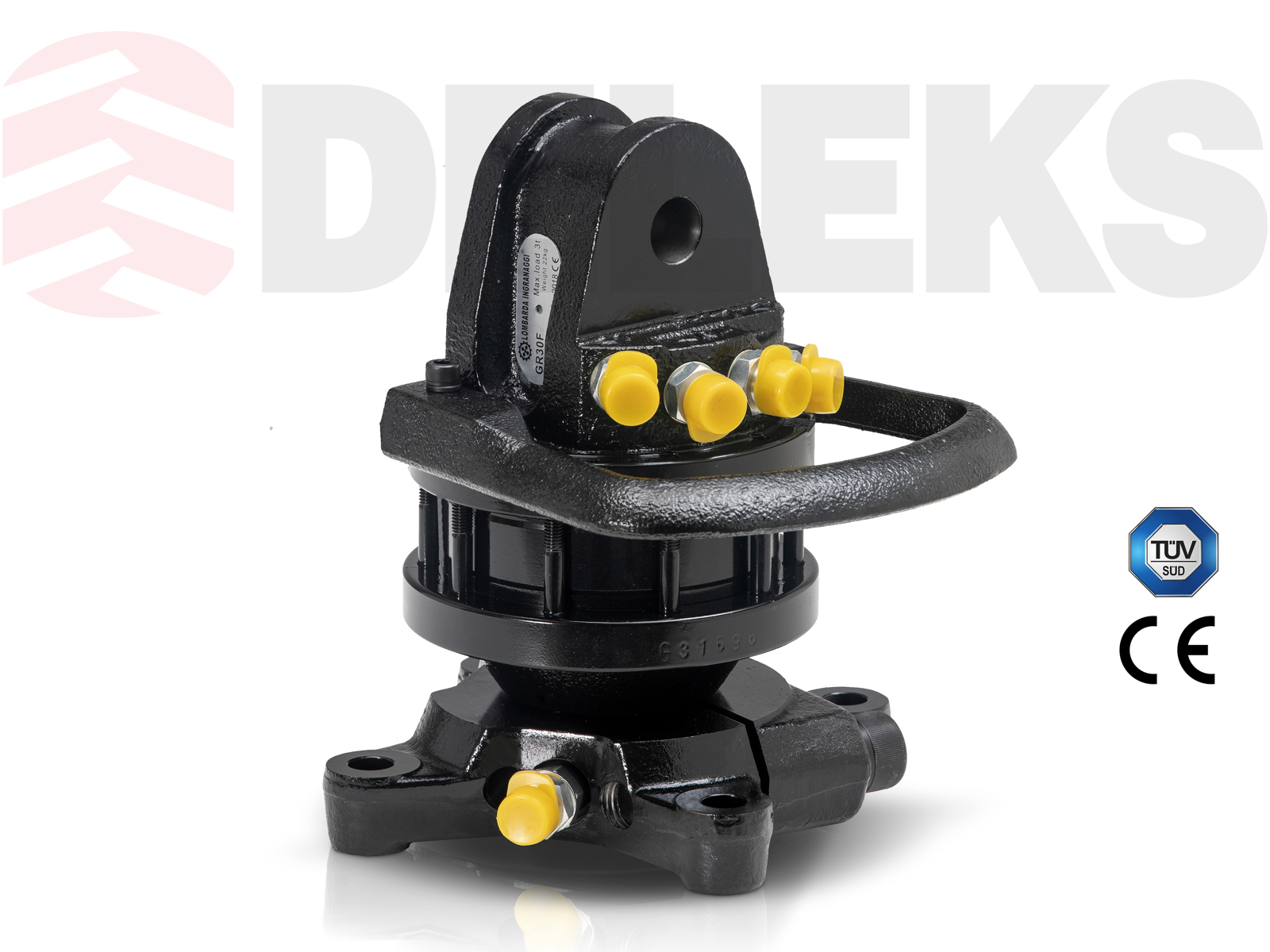

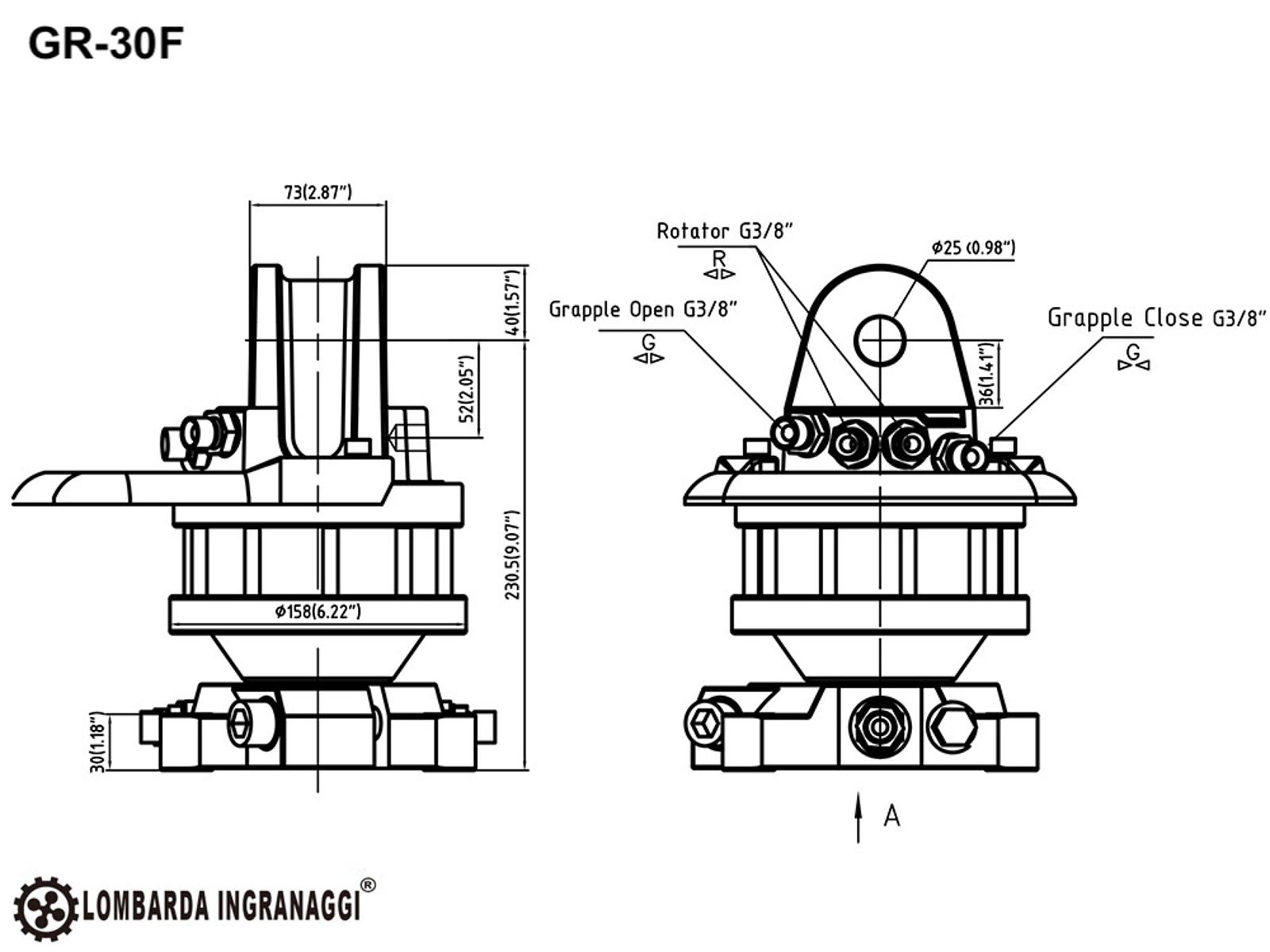

Lombarda Ingranaggi® GR-30F Hydraulic Rotator 3Ton.

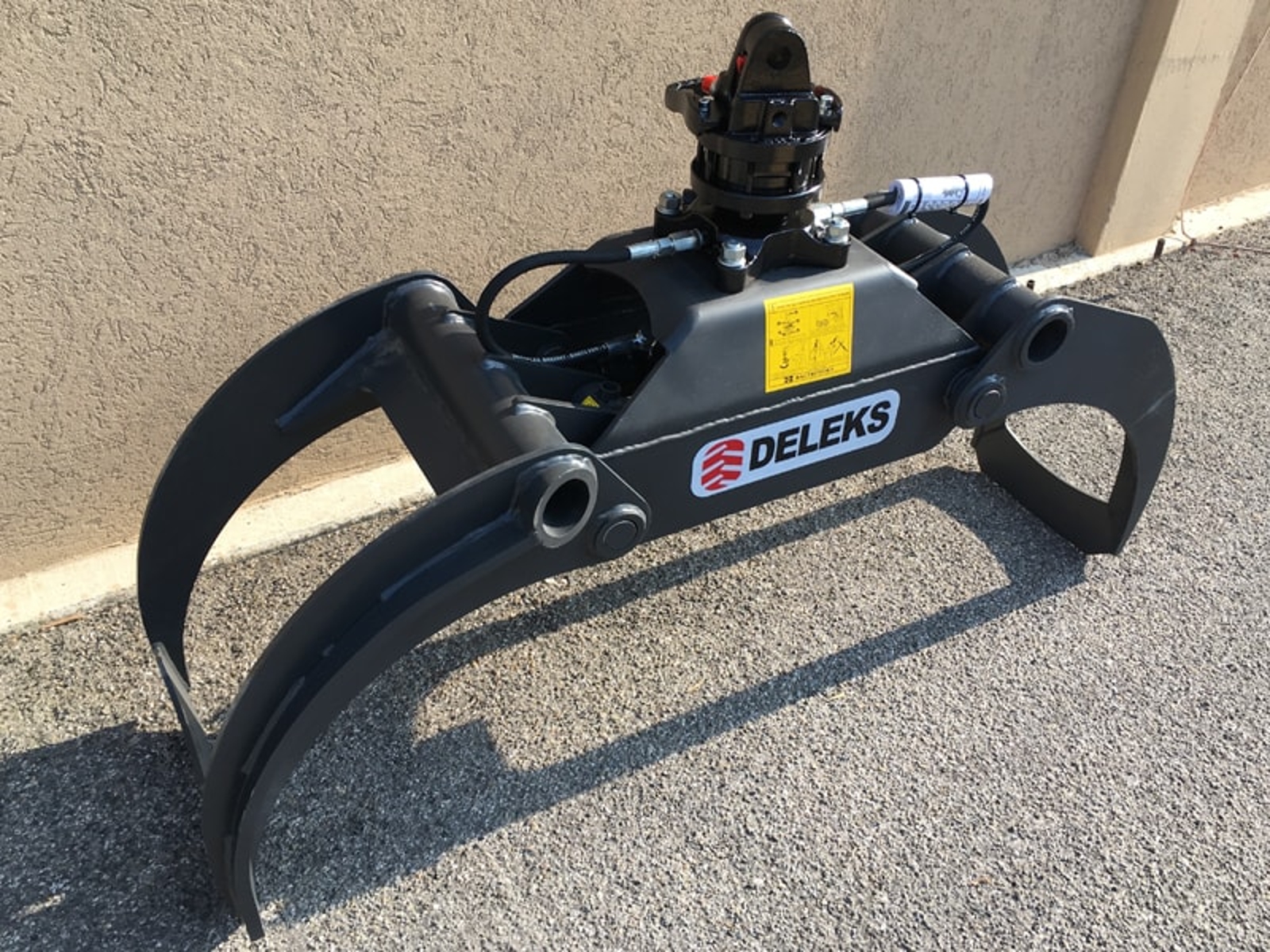

Solution for mounting on crane via link, suitable for small agricultural and forestry vehicles.
ROTATION Unlimited
MAX. AXIAL LOAD STATIC 30 kN (3375 lbf)
MAX. AXIAL LOAD DYNAMIC 15 kN (1687 lbf)
TORQUE @__MPA 800 Nm (590 lb ft)
REC. OILFLOW 20 l/min
WEIGHT 20.5 kg
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 20 kg |
DETAILS
CLOSELombarda Ingranaggi® GR-30F Hydraulic Rotator 3Ton.
Solution for mounting on crane via link, suitable for small agricultural and forestry vehicles.
ROTATION Unlimited
MAX. AXIAL LOAD STATIC 30 kN (3375 lbf)
MAX. AXIAL LOAD DYNAMIC 15 kN (1687 lbf)
TORQUE @__MPA 800 Nm (590 lb ft)
REC. OILFLOW 20 l/min
WEIGHT 20.5 kg
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Weight | 20 kg |
