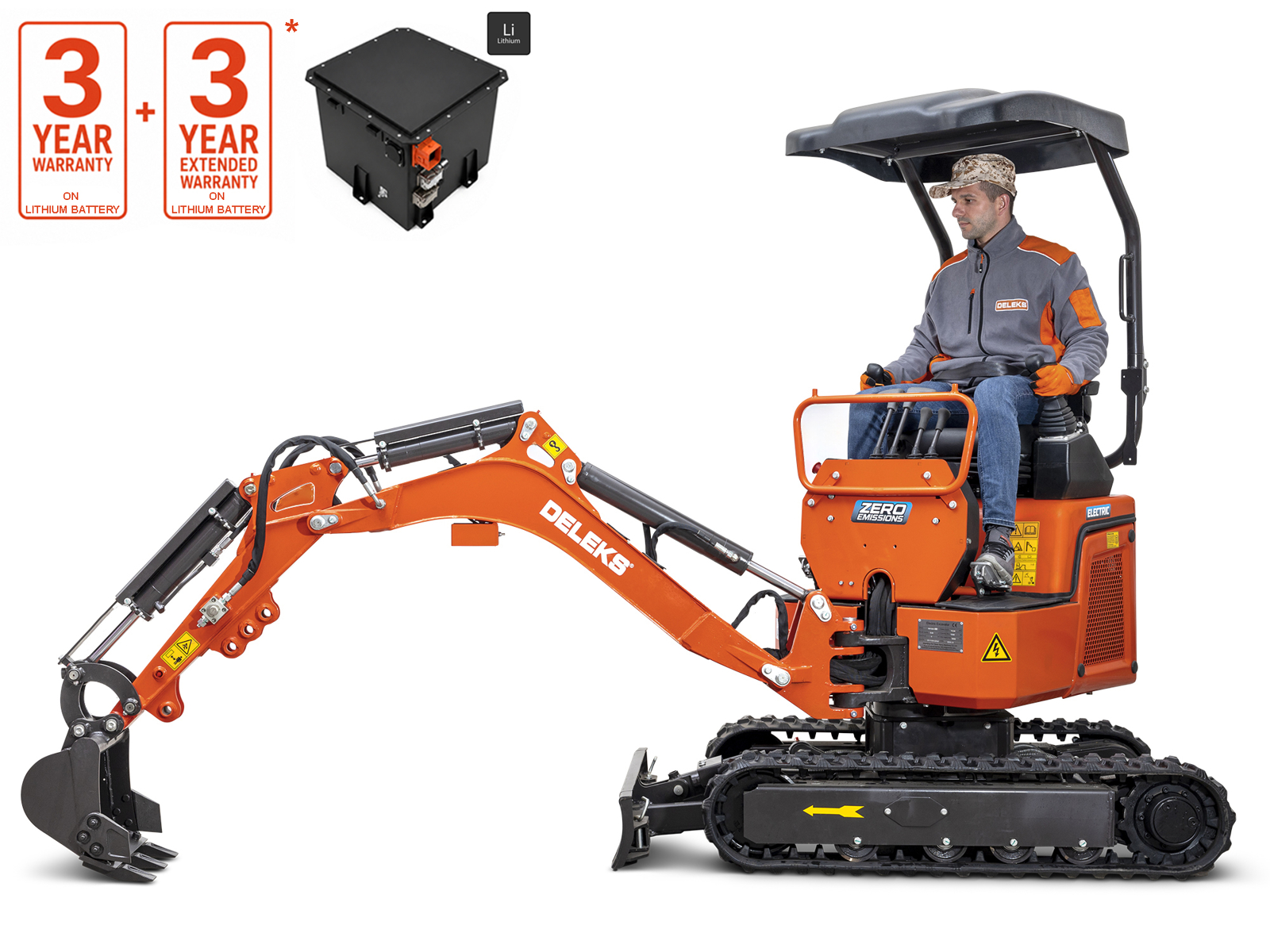

Compact Electric Mini Excavator 1.2 ton – 4000W

100% electric DELEKS® E120 mini excavator (1.2 ton) with piston pump, dual travel speed and advanced boom design, engineered for high precision, digging power and maximum efficiency in urban, residential and zero-emission environments.

APPLICATIONS

Professional machine ideal for construction companies, landscapers and operations in environments where low emissions, reduced noise and high productivity are required.

Main applications:

• urban job sites and areas with limited access
• indoor demolition and renovation works
• gardening, parks and residential areas
• excavation for utilities, irrigation and piping
• greenhouse works

HYDRAULIC SYSTEM AND PERFORMANCE

The DELEKS® E120 is equipped with a piston hydraulic pump, a high-end solution that ensures:

• smooth and precise movements
• simultaneous operation without performance loss
• higher hydraulic efficiency and control

The 4000W electric motor delivers instant torque and consistent performance, even under load.

Breakout force:

• bucket: 13.75 kN
• arm: 6.97 kN

BOOM DESIGN

The modern boom design with the lifting cylinder positioned on top is engineered to:

• reduce the risk of accidental impacts
• protect hydraulic components
• increase durability over time

AUTONOMY AND ELECTRIC SYSTEM

Designed to cover a full working day:

• operating time: approx. 8 hours (average use with standard breaks)
• high-capacity lithium battery
• full charge: approx. 6 hours (220V)

Electric operation allows zero emissions and reduced noise levels.

UNDERCARRIAGE AND STABILITY

Operating weight: 1,190 kg

Extendable tracked undercarriage:

• track length: 1435 mm
• minimum width: 850 mm
• maximum width: 1000 mm

The extended footprint improves stability, safety and precision during excavation.

DUAL TRAVEL SPEED

To optimize movement on site:

• low speed: 1.5 km/h
• high speed: 3.0 km/h

Improves efficiency and reduces working time.

WORKING RANGE AND CAPACITY

Maximum digging depth: 1740 mm
Maximum dumping height: 1884 mm

Optimized geometry for precise operation even in confined spaces.

BATTERY WARRANTY AND TECHNICAL SUPPORT

1) 3-year full battery warranty (*): This warranty applies if the battery capacity falls below 75% of its original capacity during the warranty period or before reaching 1,500 charging cycles, whichever occurs first. The battery warranty is valid provided that the machine and battery are used and maintained according to the operating instructions. The warranty does not cover damage resulting from:

• Deep discharge or prolonged storage in a discharged state
• Use of non-approved chargers or charging equipment
• Improper use, misuse or unauthorized modifications to the battery system
• Water ingress, pressure washing or exposure of electronic components to excessive moisture
• Use outside the specified operating conditions

2) The battery is replaceable.

3) Replacement batteries will remain available for the long term, with a minimum availability period of 10 years.

4) Comprehensive service and technical support through our subsidiaries and headquarters.

(*) We optionally offer an extended battery warranty of up to 3 additional years.

This provides you with long-term protection, greater planning security and reliable service.

For further information about the available options and the terms of the extended warranty, please do not hesitate to contact us.

OPERATOR STATION

Side control levers for precise handling
Height-adjustable armrests
Adjustable mechanical suspension seat
Ergonomic working position for extended use

On-board display for real-time monitoring of:

• machine status
• battery level
• speed
• temperature
• warning systems

Low vibration and noise improve operator comfort and safety.

OPERATIONAL ADVANTAGES

• zero emissions: ideal for indoor and sensitive environments
• high precision thanks to piston pump
• improved stability and control
• reduced operating costs
• simplified maintenance
• increased productivity on site

LONG-TERM RELIABILITY

The DELEKS® E120 is designed for intensive use:

• robust and well-balanced structure
• high-quality hydraulic components
• long-life lithium battery
• reduced maintenance compared to traditional systems

SERVICE AND SPARE PARTS

Original DELEKS® spare parts ensure full compatibility and long-term reliability.
The DELEKS service network coordinates technical support and spare parts availability.

Transport notes:

Delivery location must be accessible to a semi-trailer truck.
Preparation and delivery times may exceed those indicated on the “Shipping” page – please contact our sales office before confirming your order.
