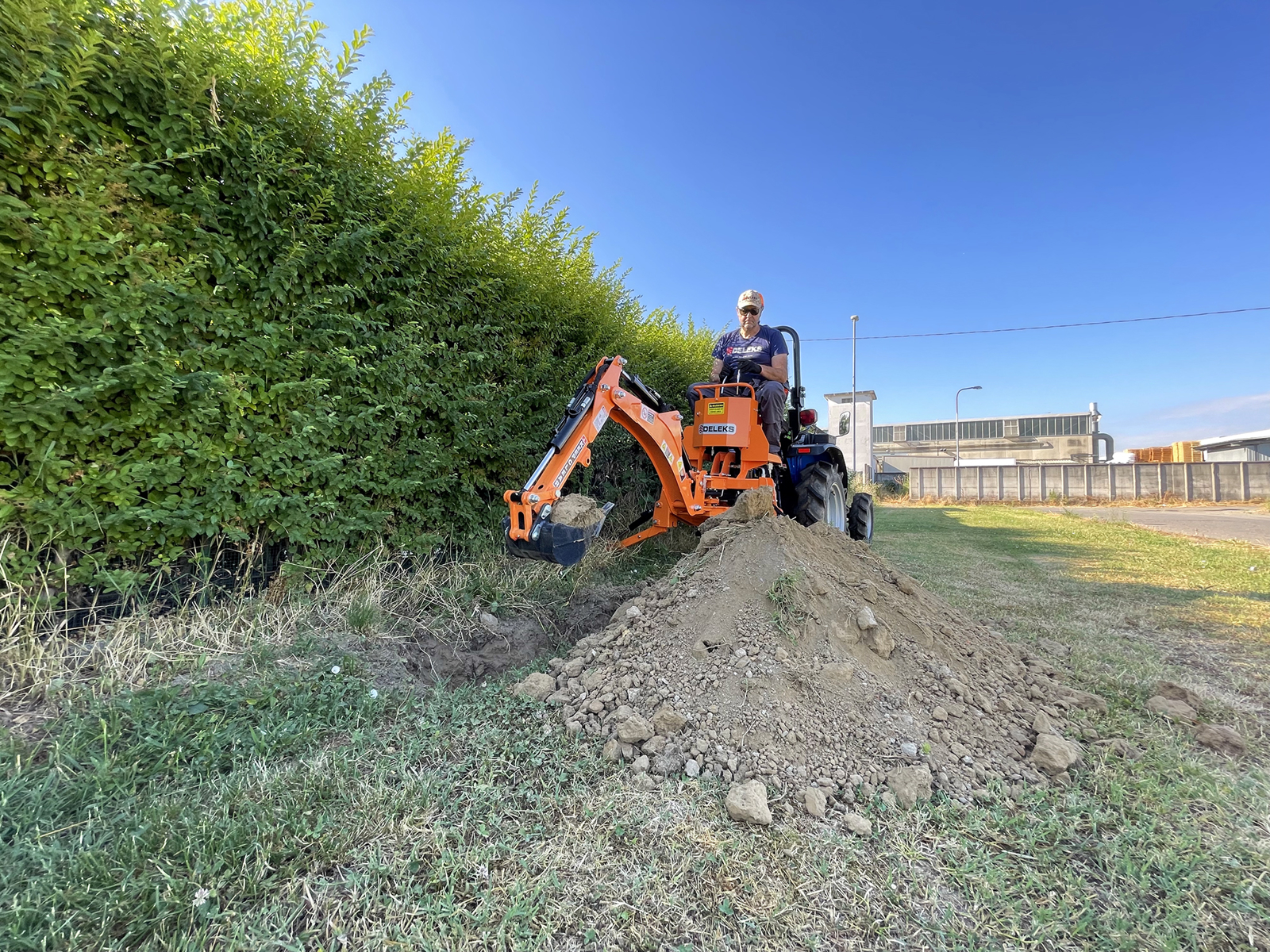

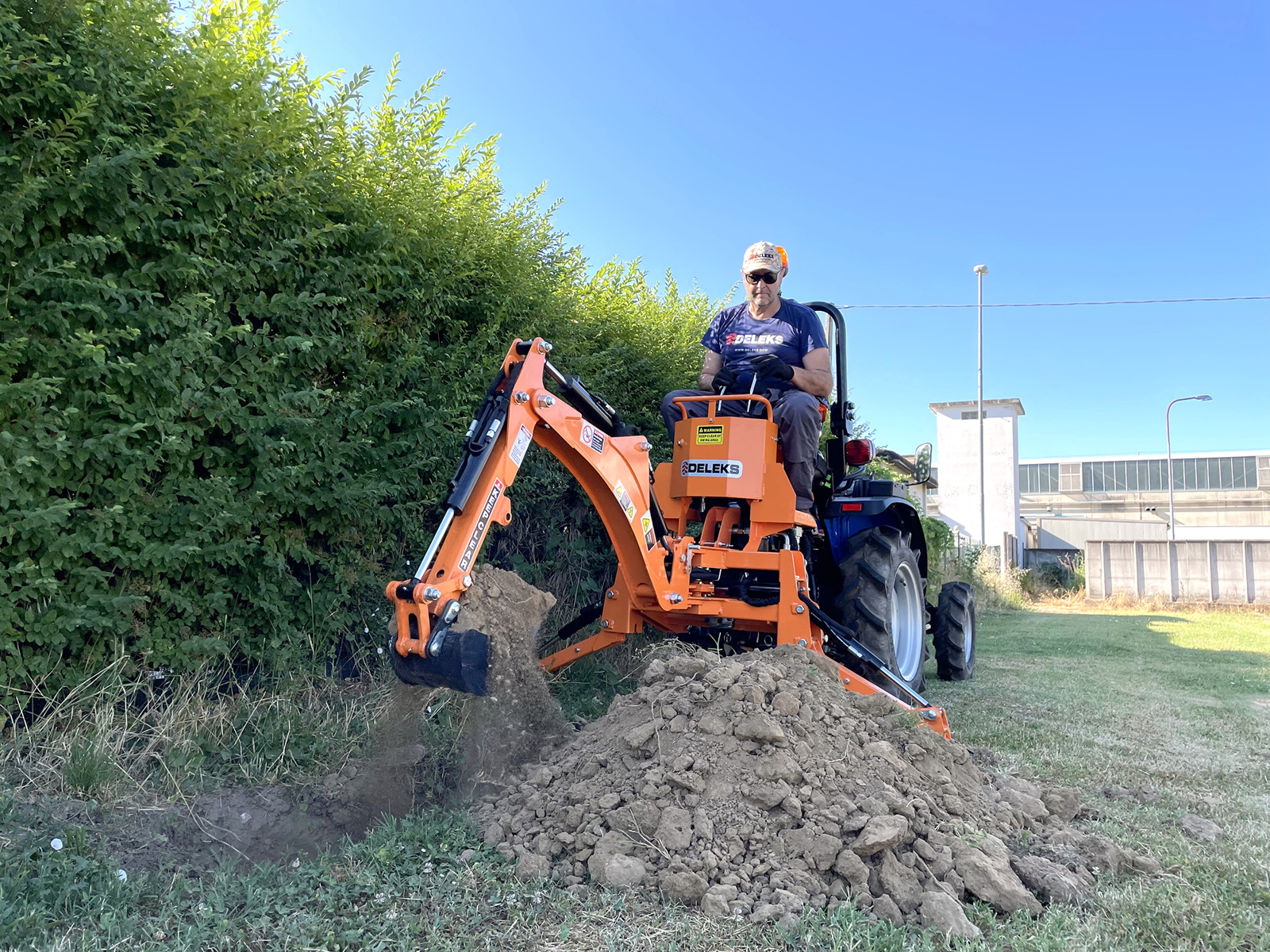

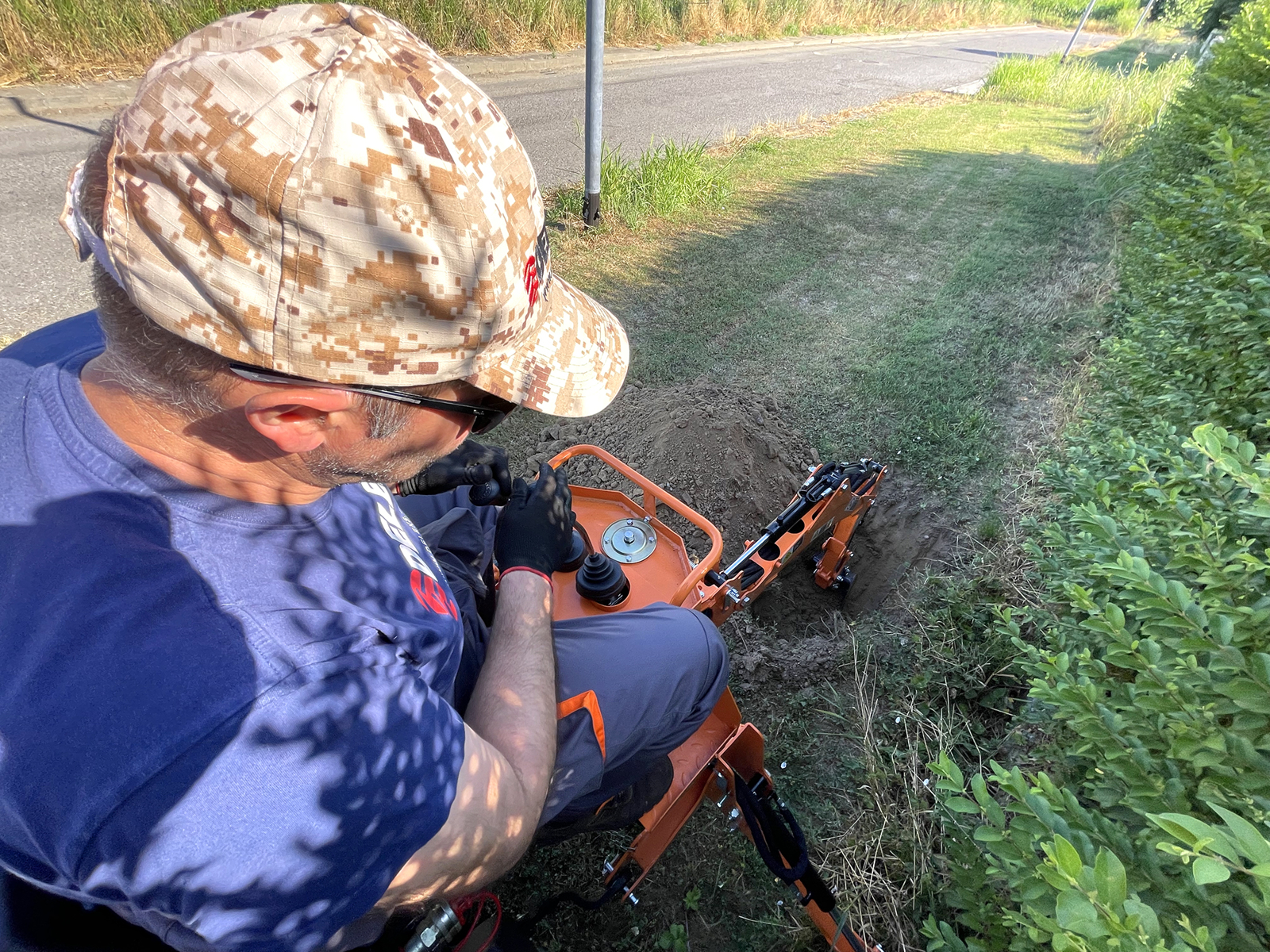

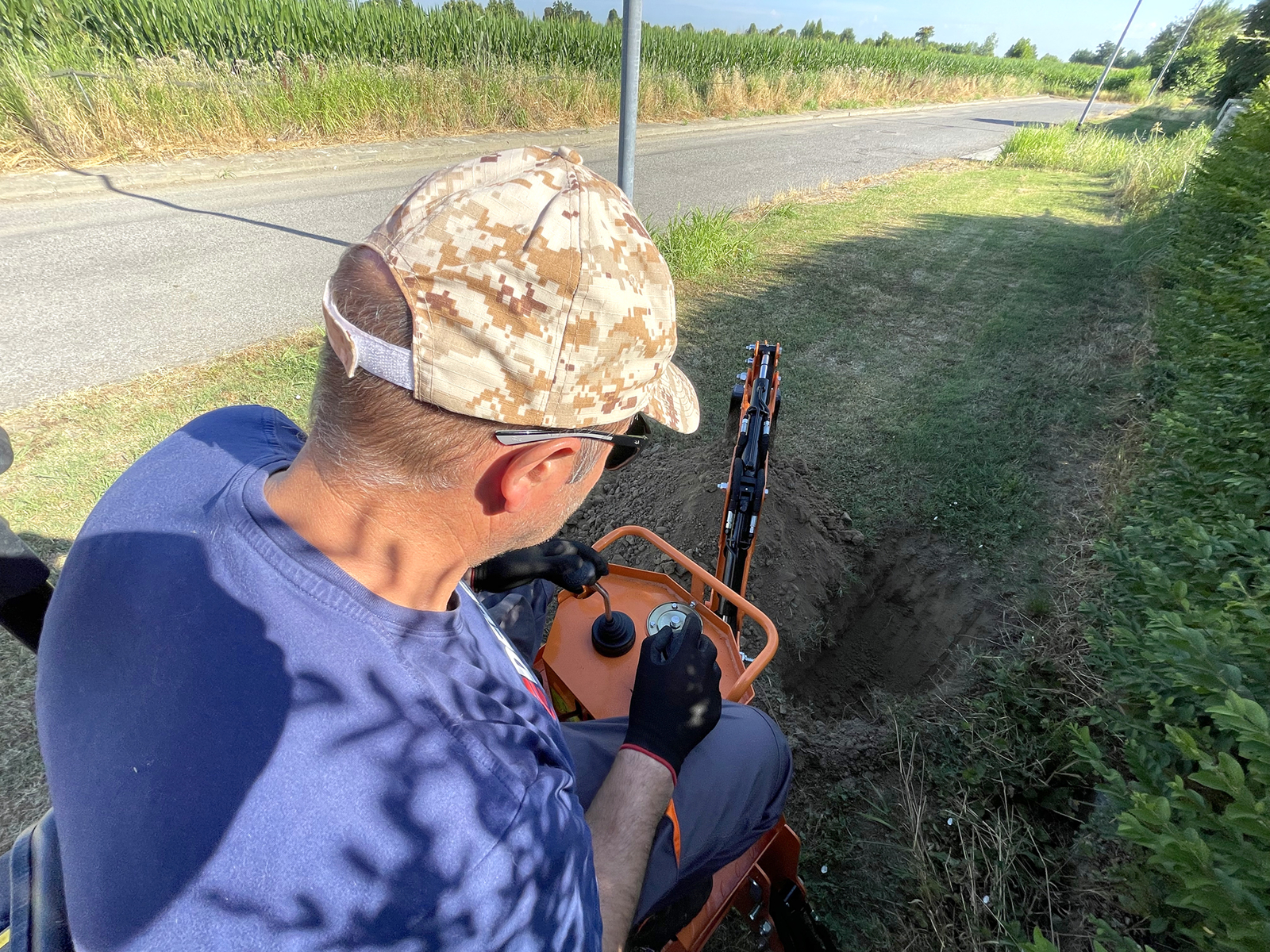

Field test
DETAILS

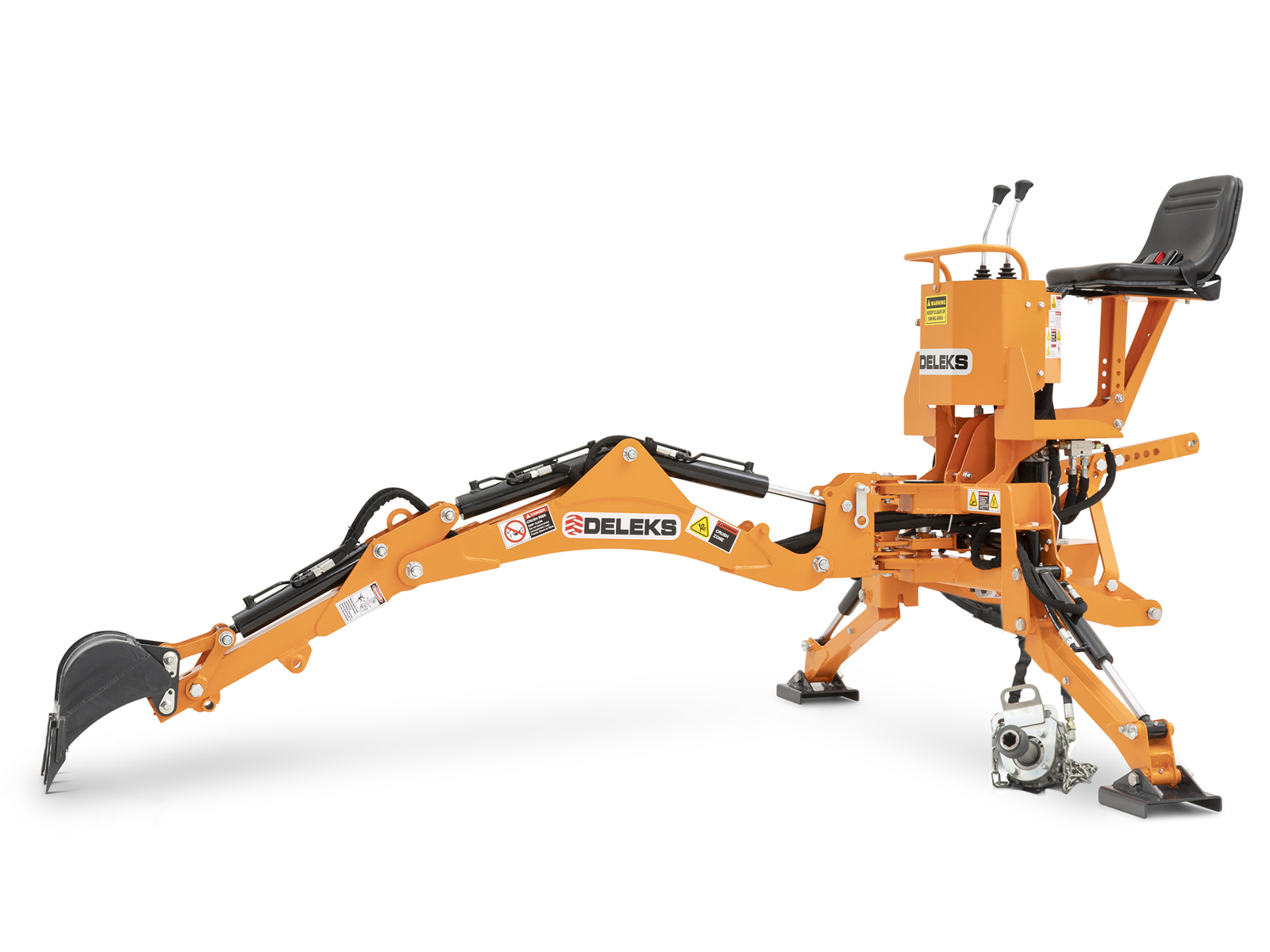

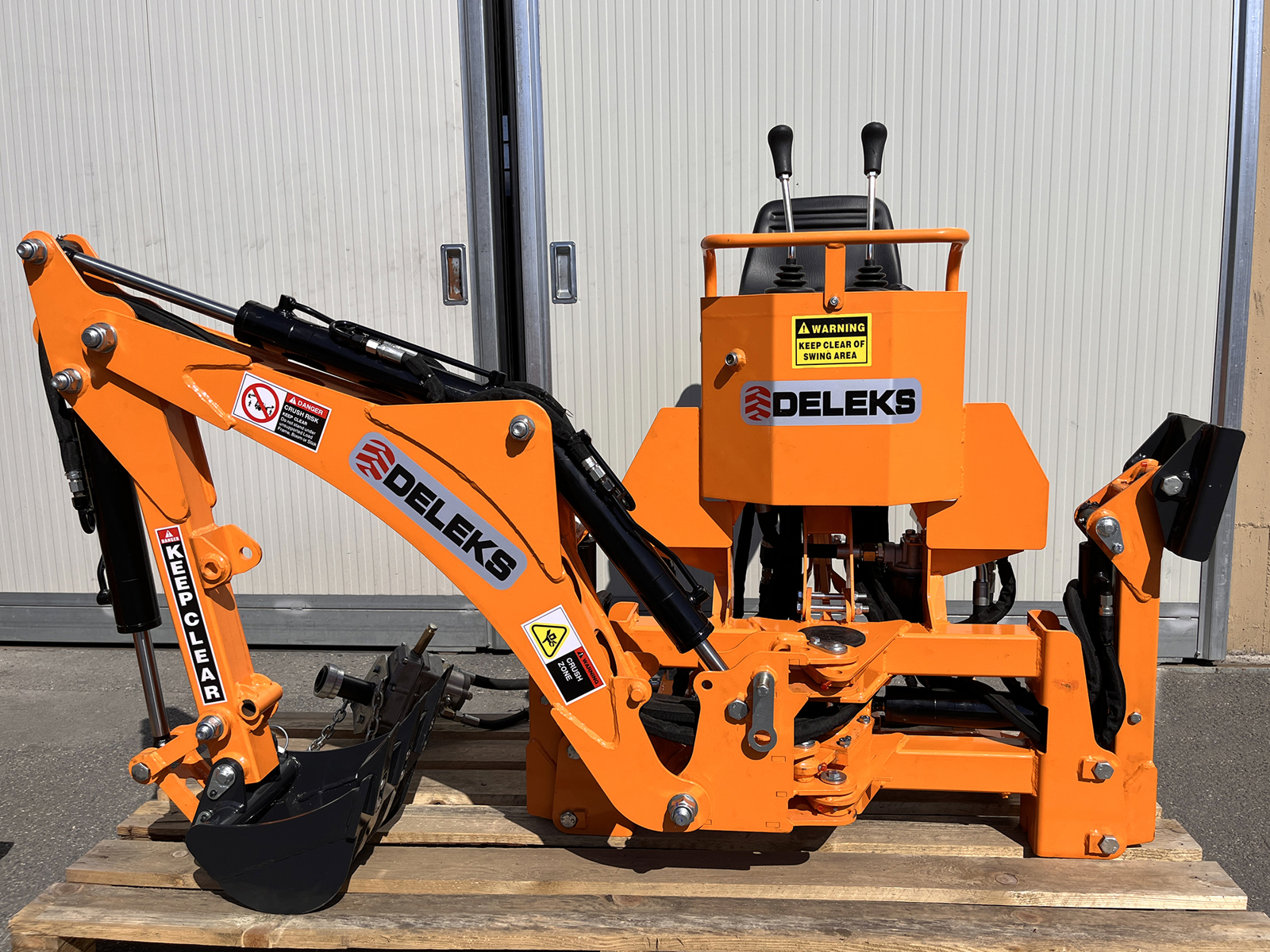

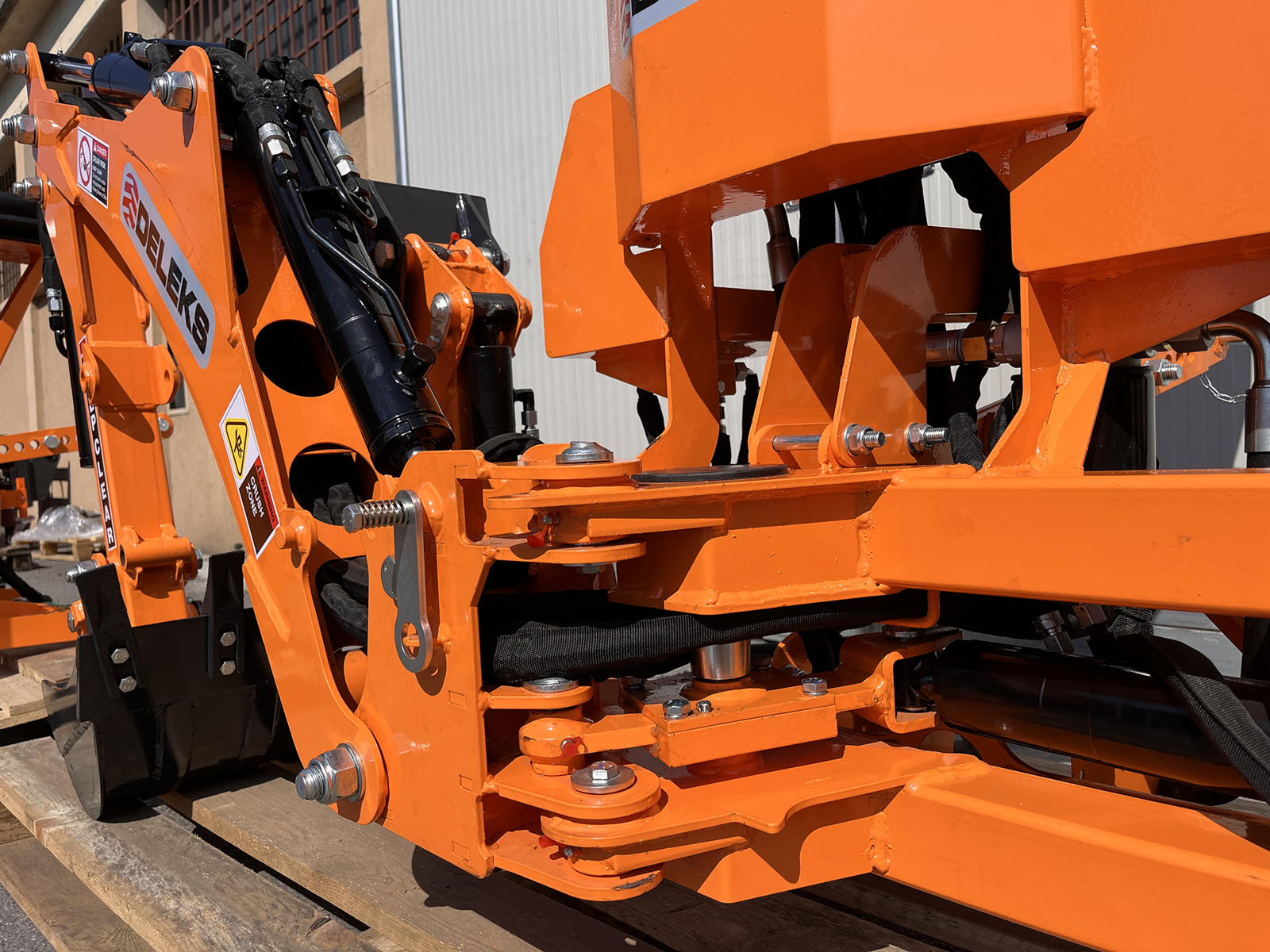

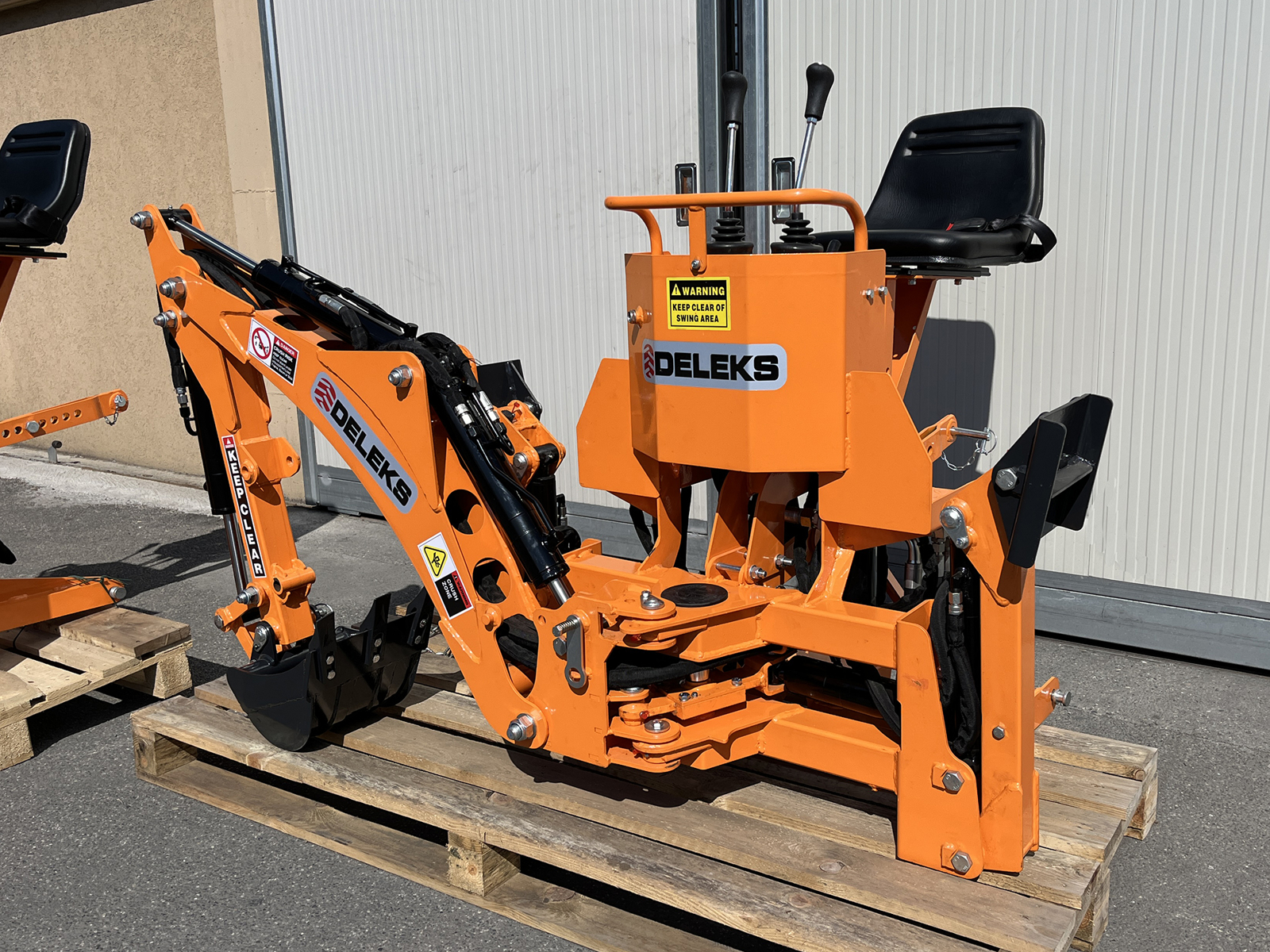

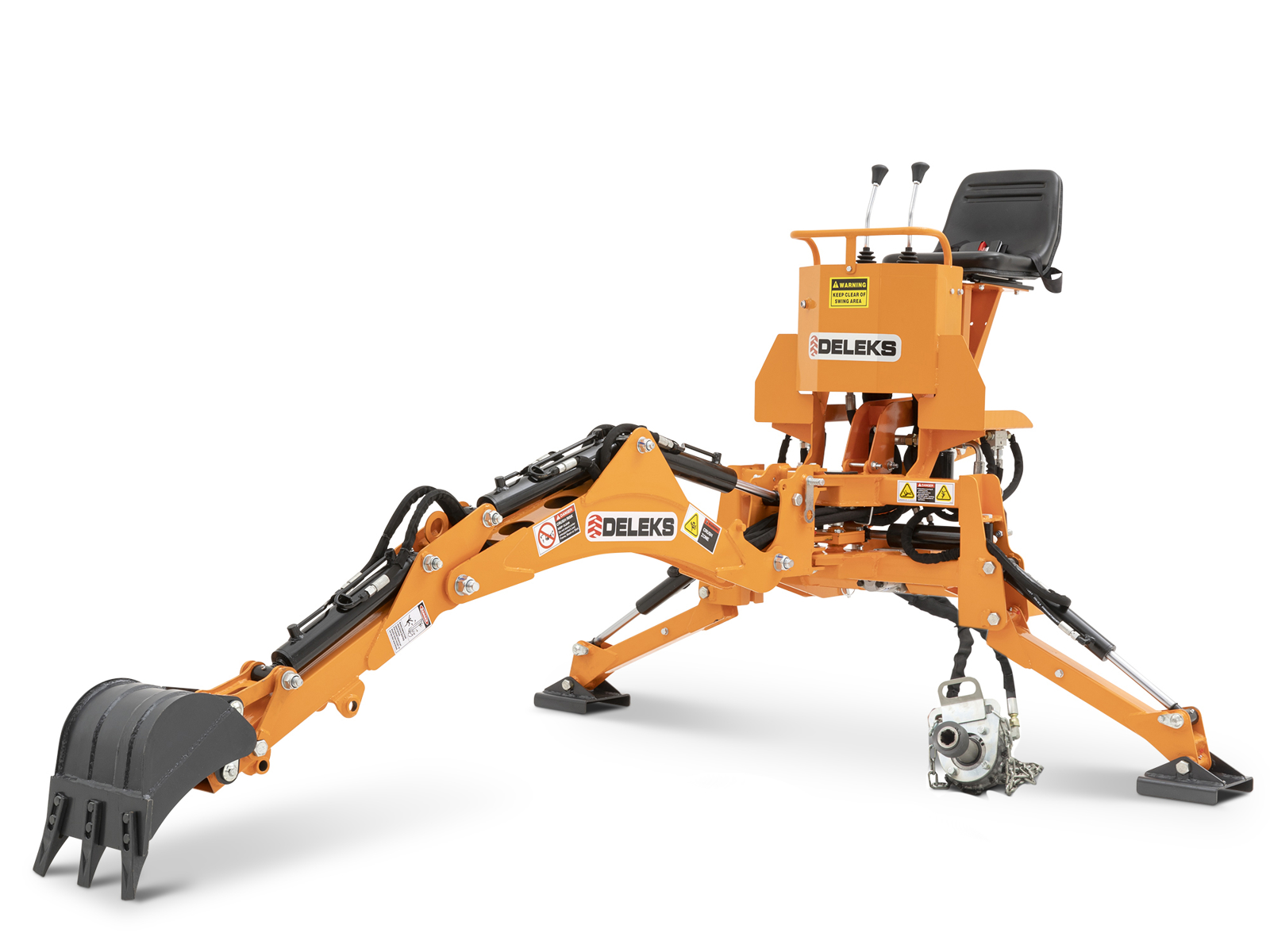

Mini backhoe for universal compact tractors - DELEKS® DRS-1000 - 270kg - Independent hydraulic system.
OVERVIEW

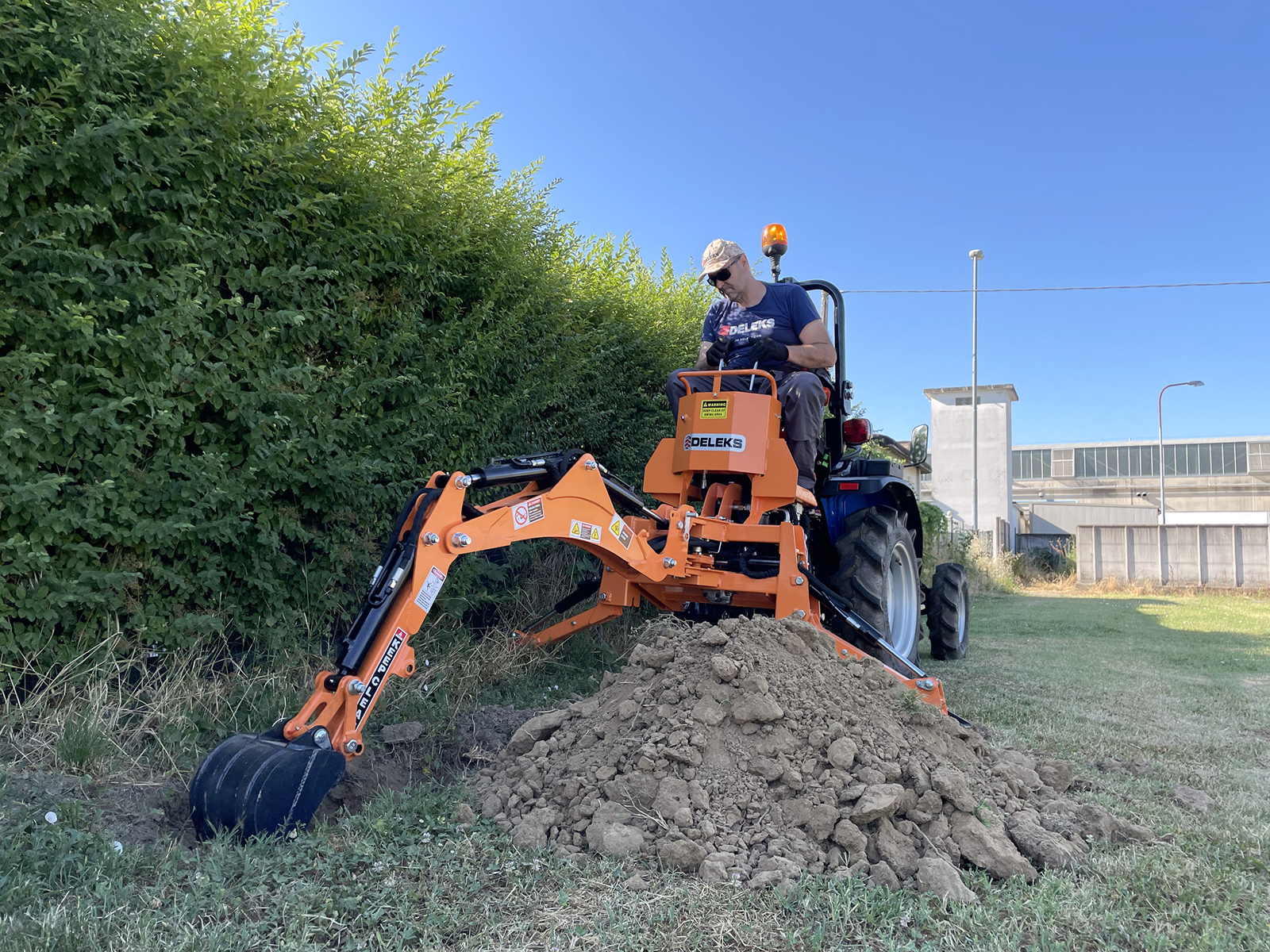

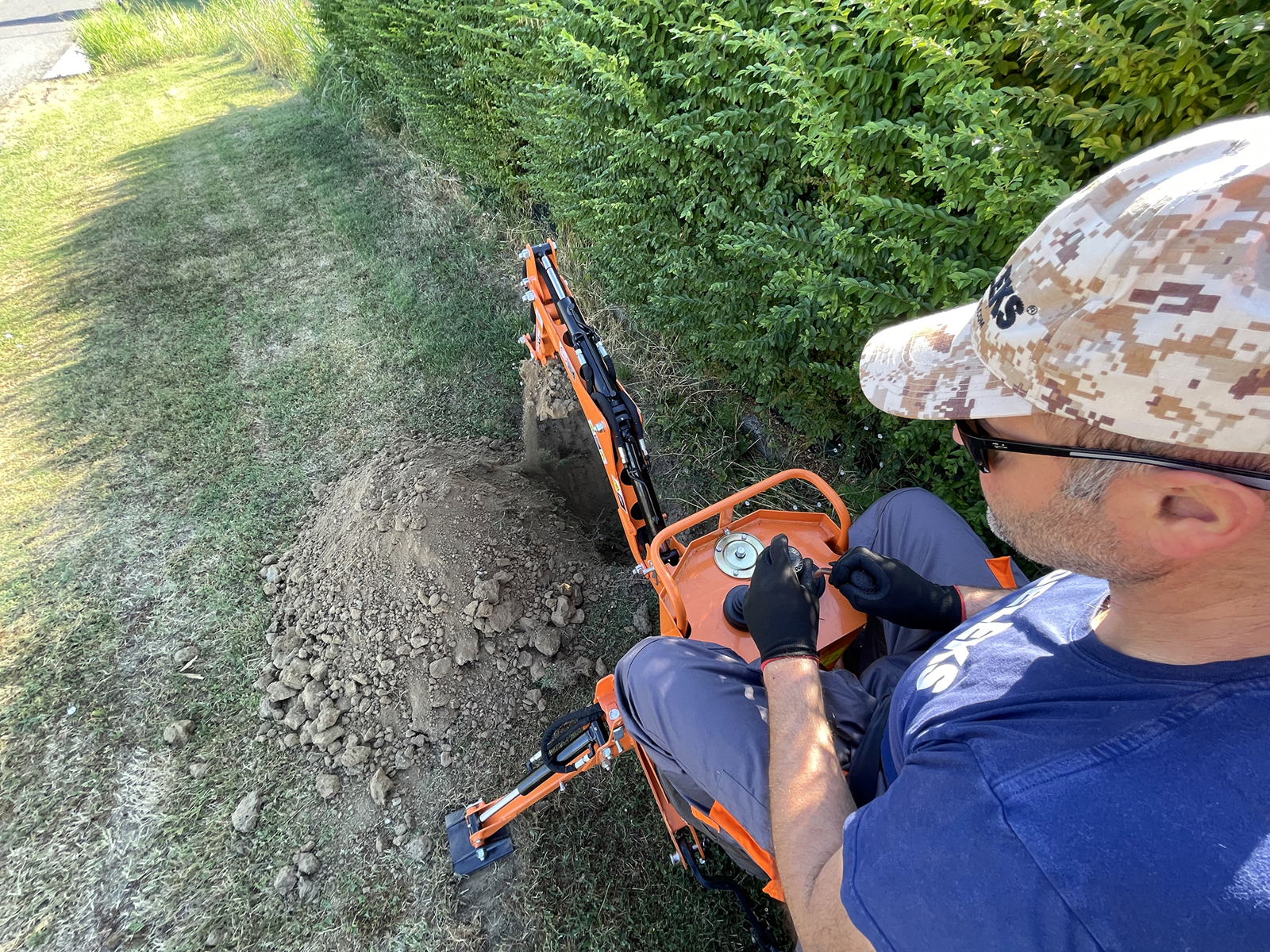

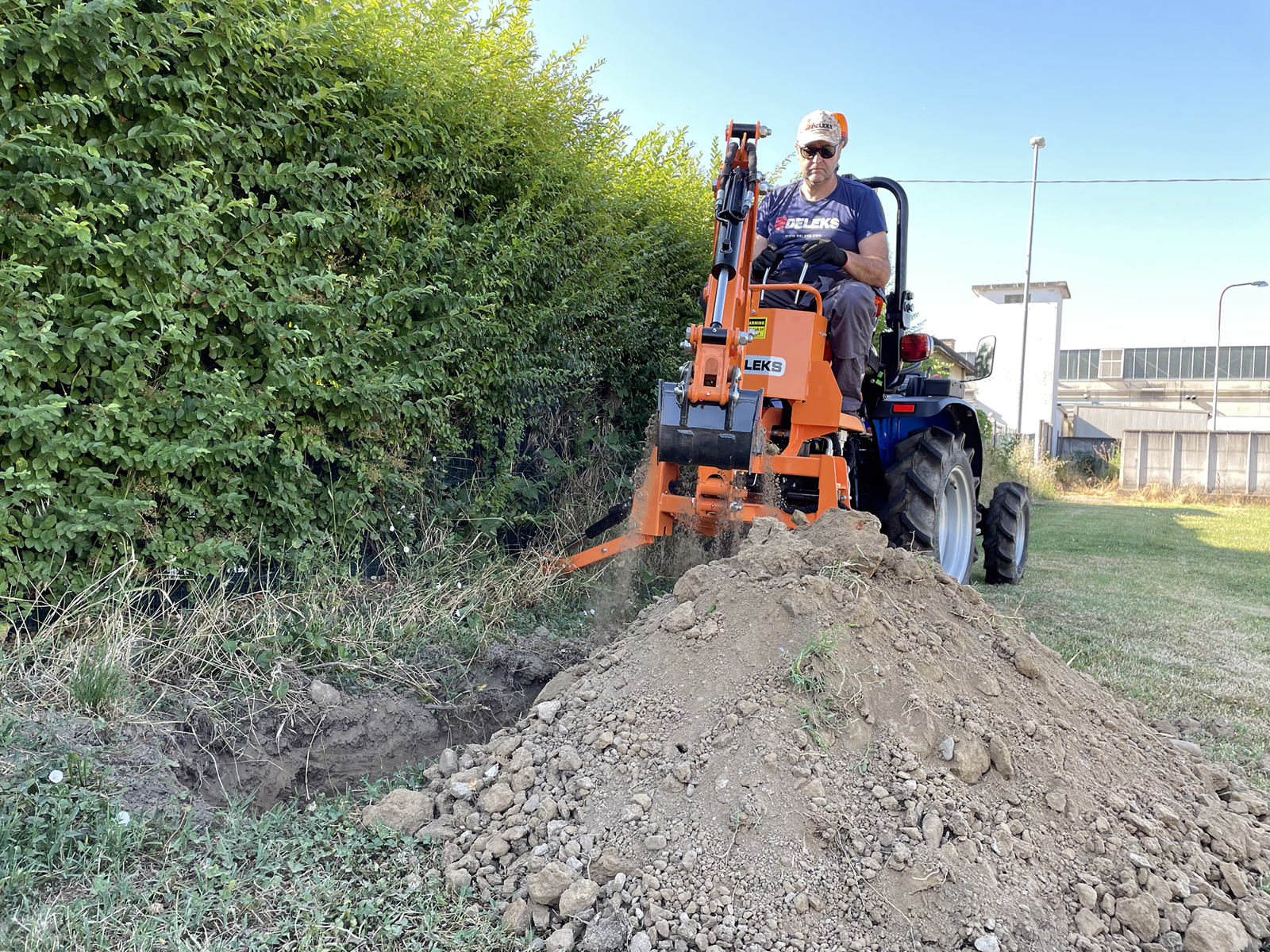

Dig ditches, dig soil, trench plumbing lines, haul piles of dirt or rocks.
Suitable for mounting on all types of tractors 18-45 hp with 3-point attachment cat. 1.
Arm digging force: 1100 kgf
Bucket digging force: 150kgf
BENEFITS AND FEATURES

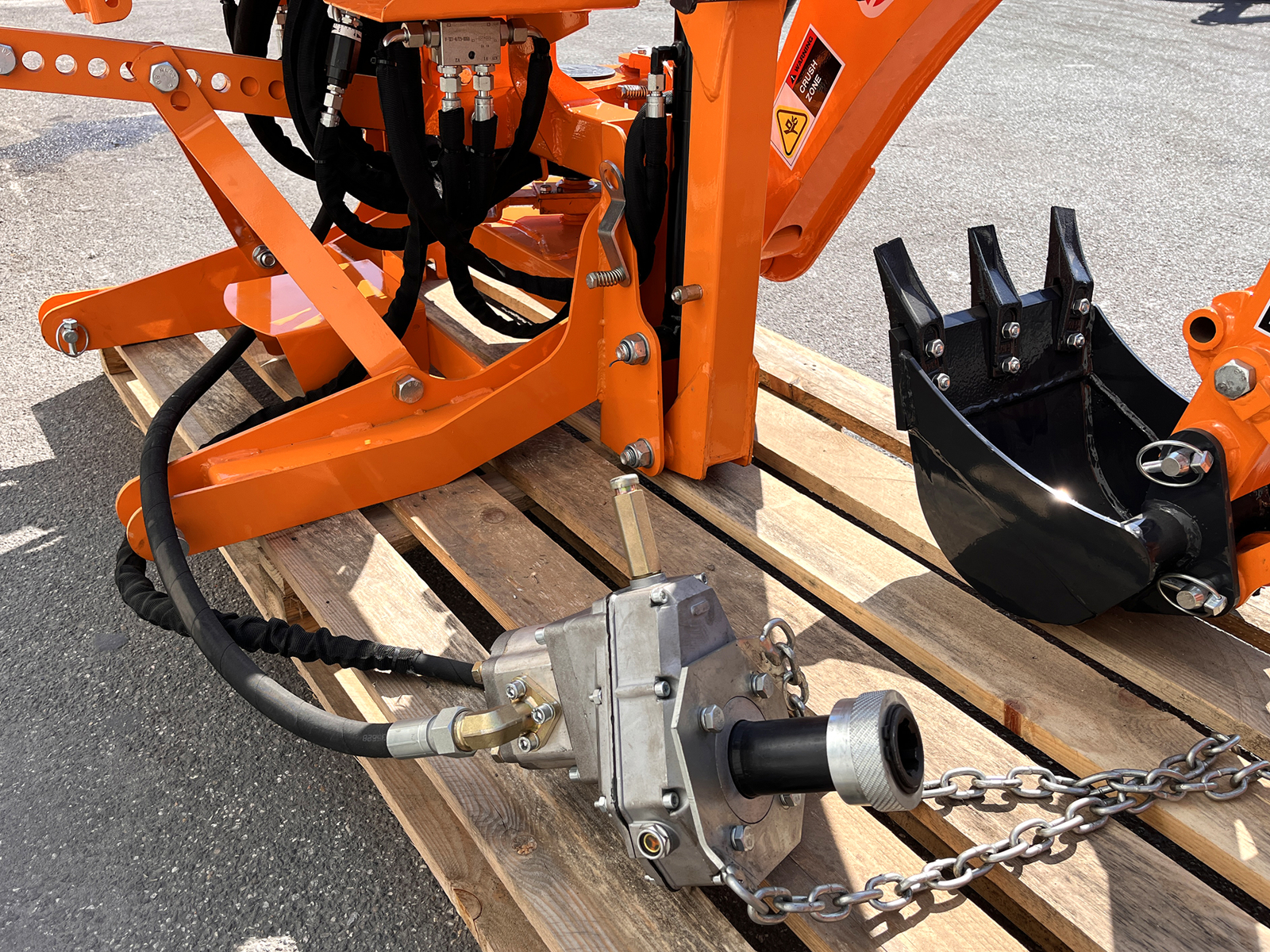

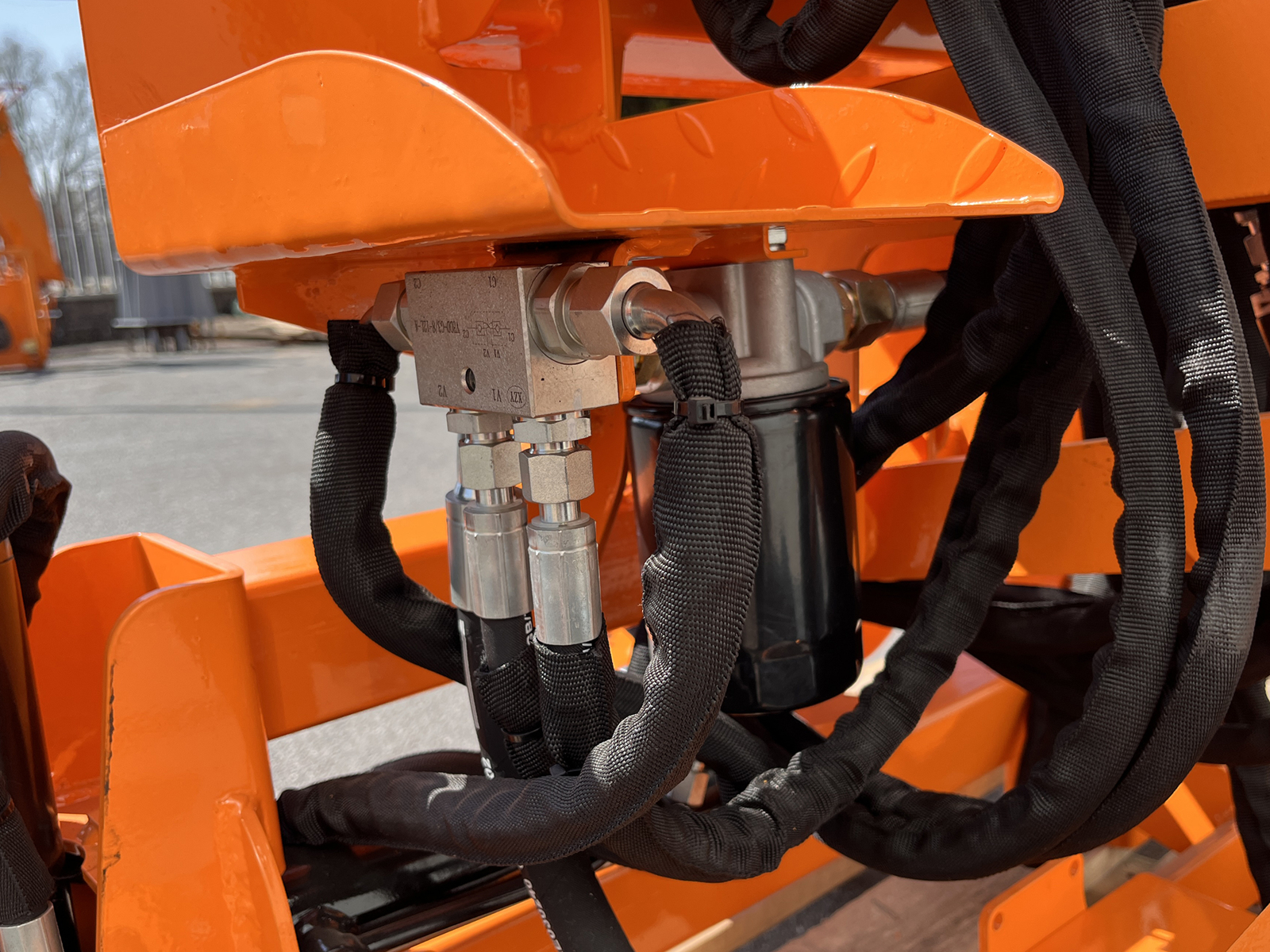

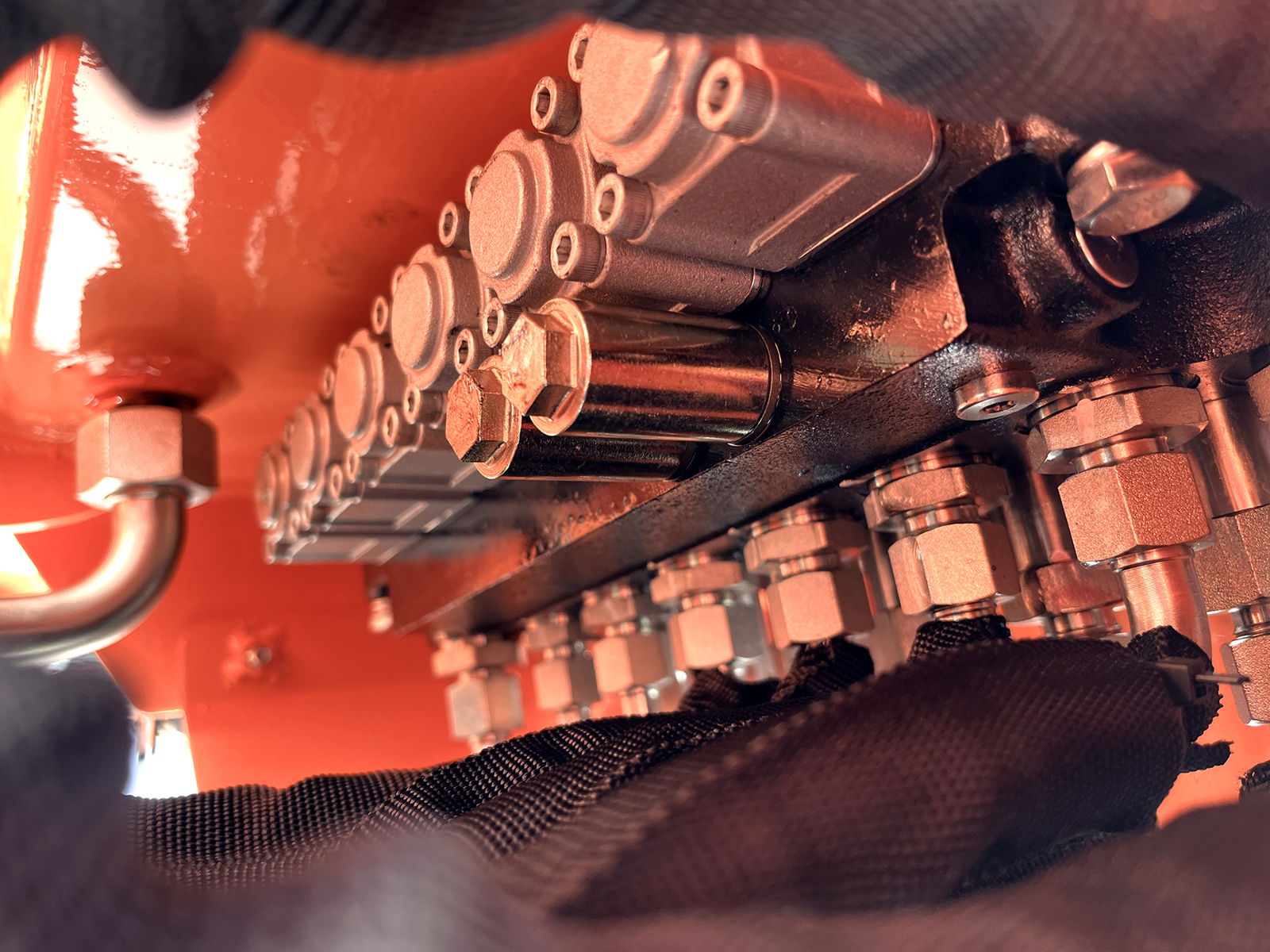

Independent hydraulic system.
Practical deign, comfortable seat and foldable.

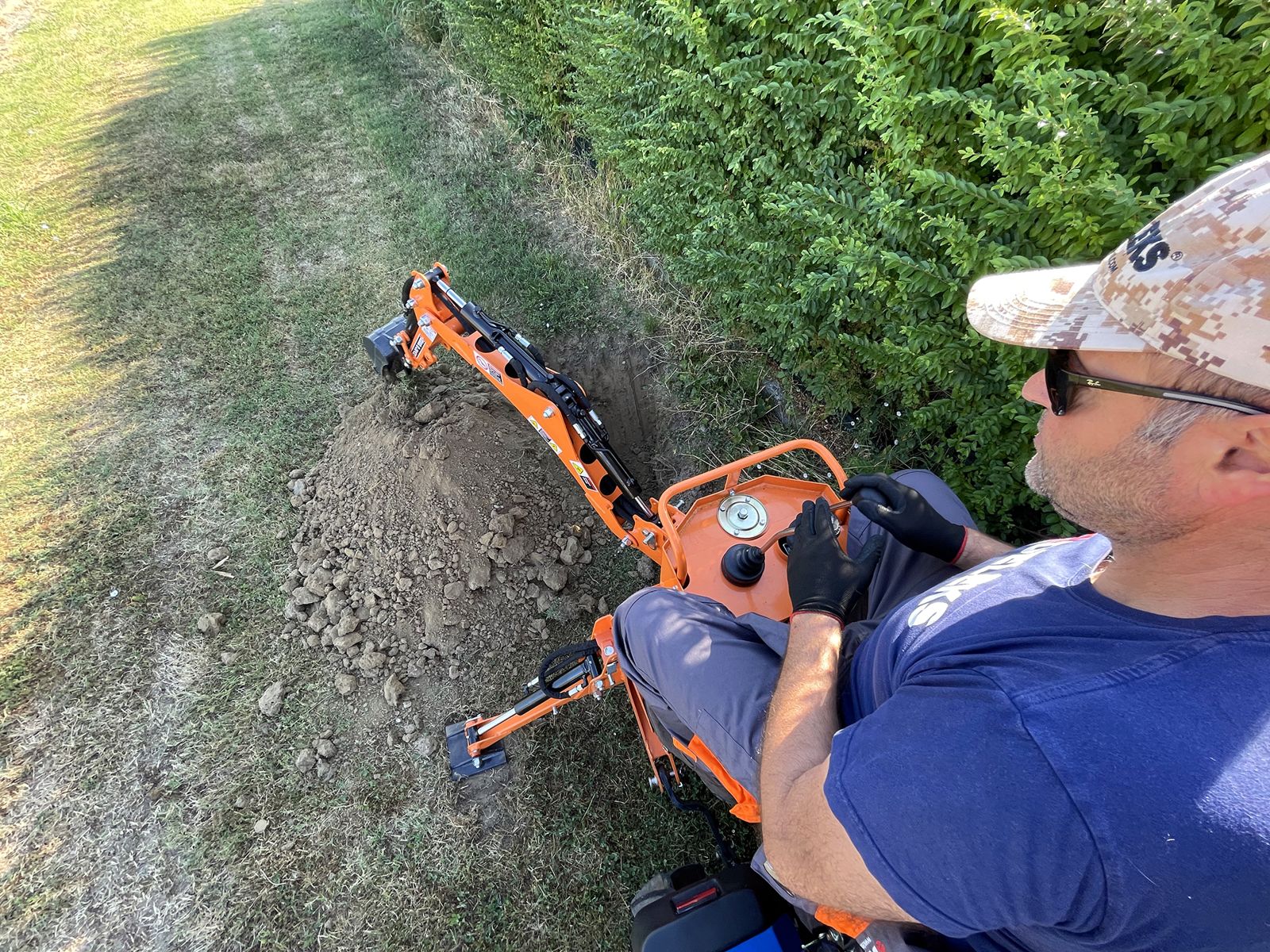

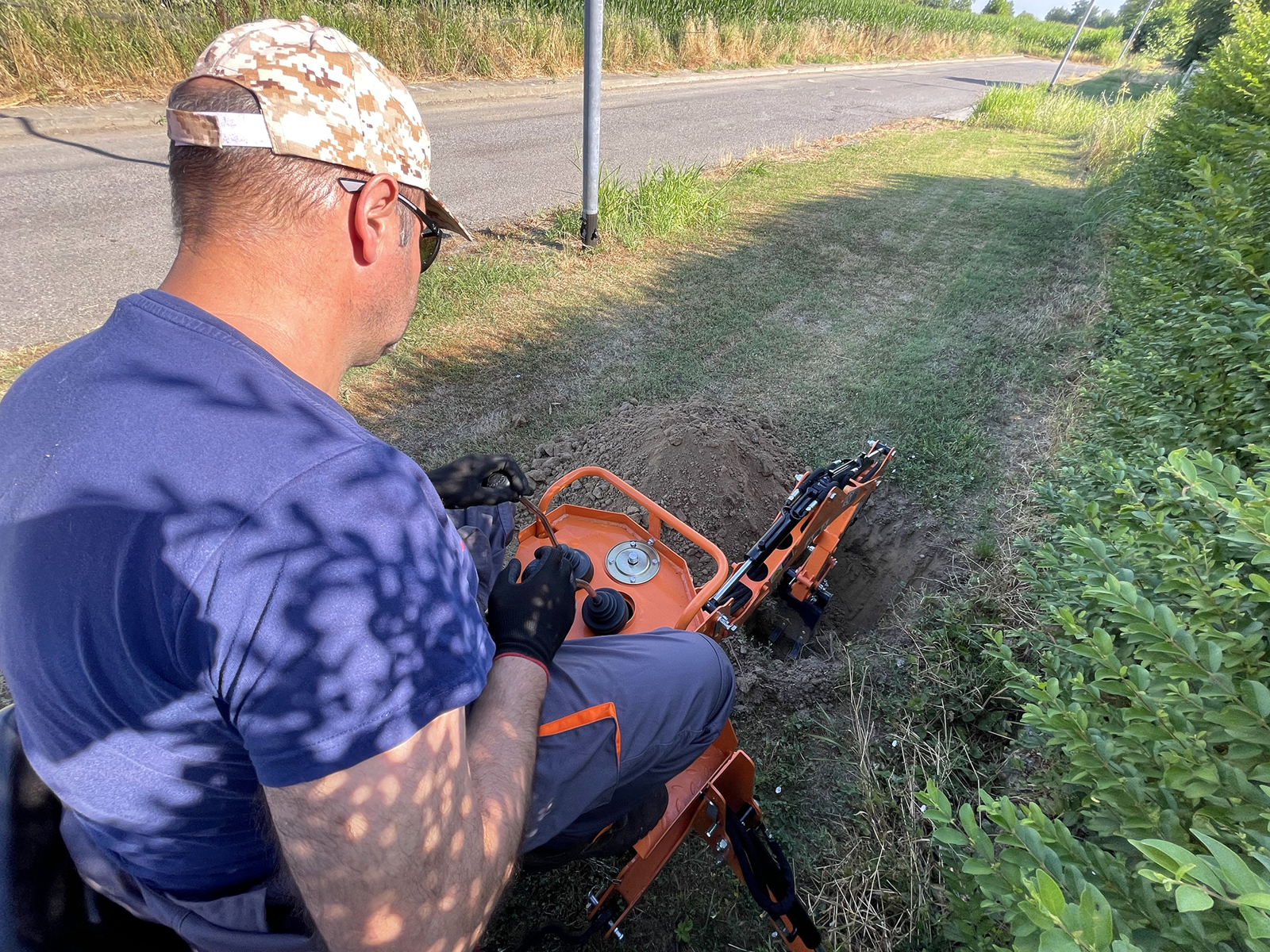

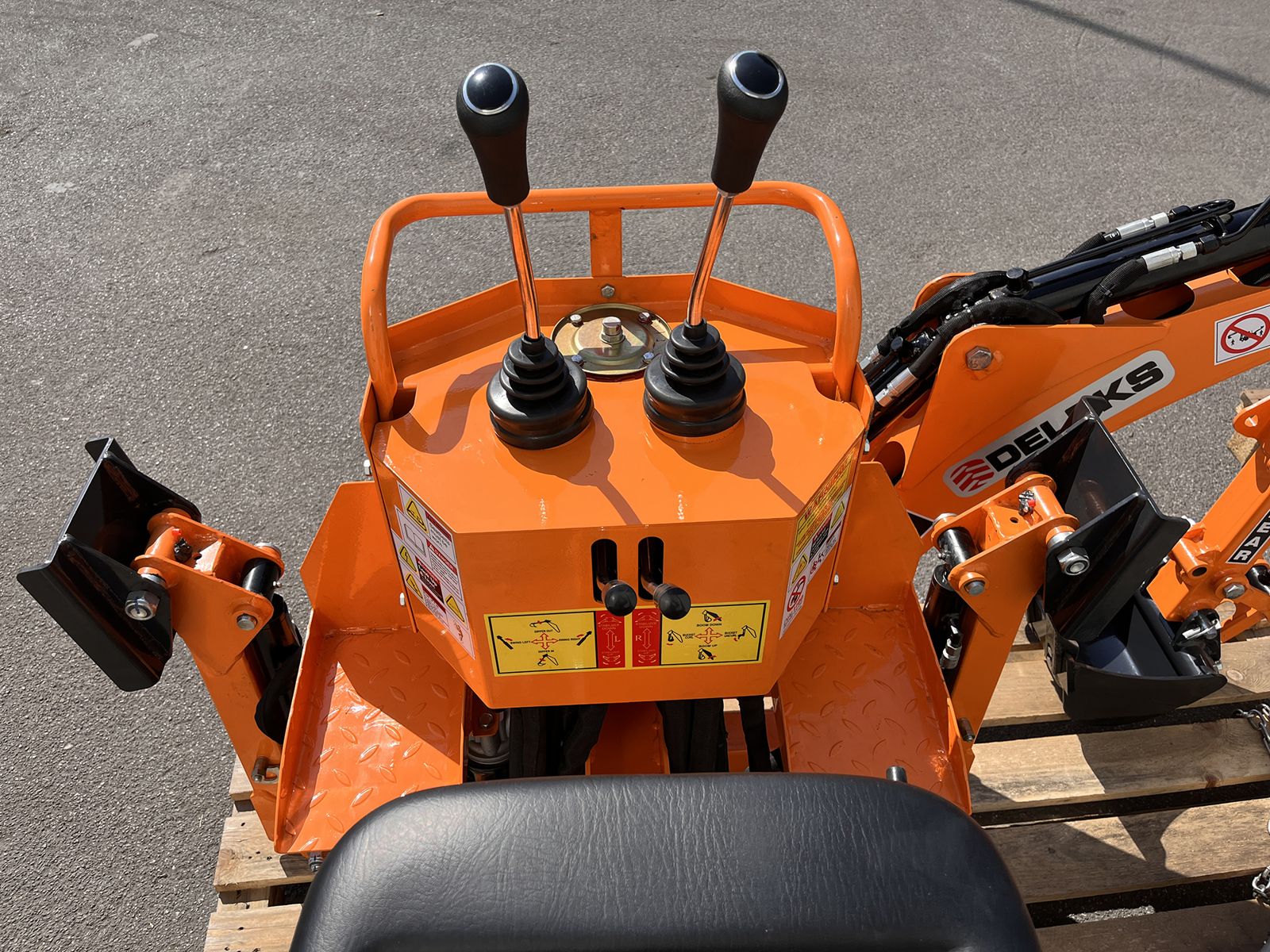

Ergonomic control position.
Blocking kit to prevent uncontrolled lifting of the tractor's 2 arms (UNI EN 16246 standard of January 2013 - International obligation).
Stabilizing legs individually steerable.
Hook lock for safe transport.

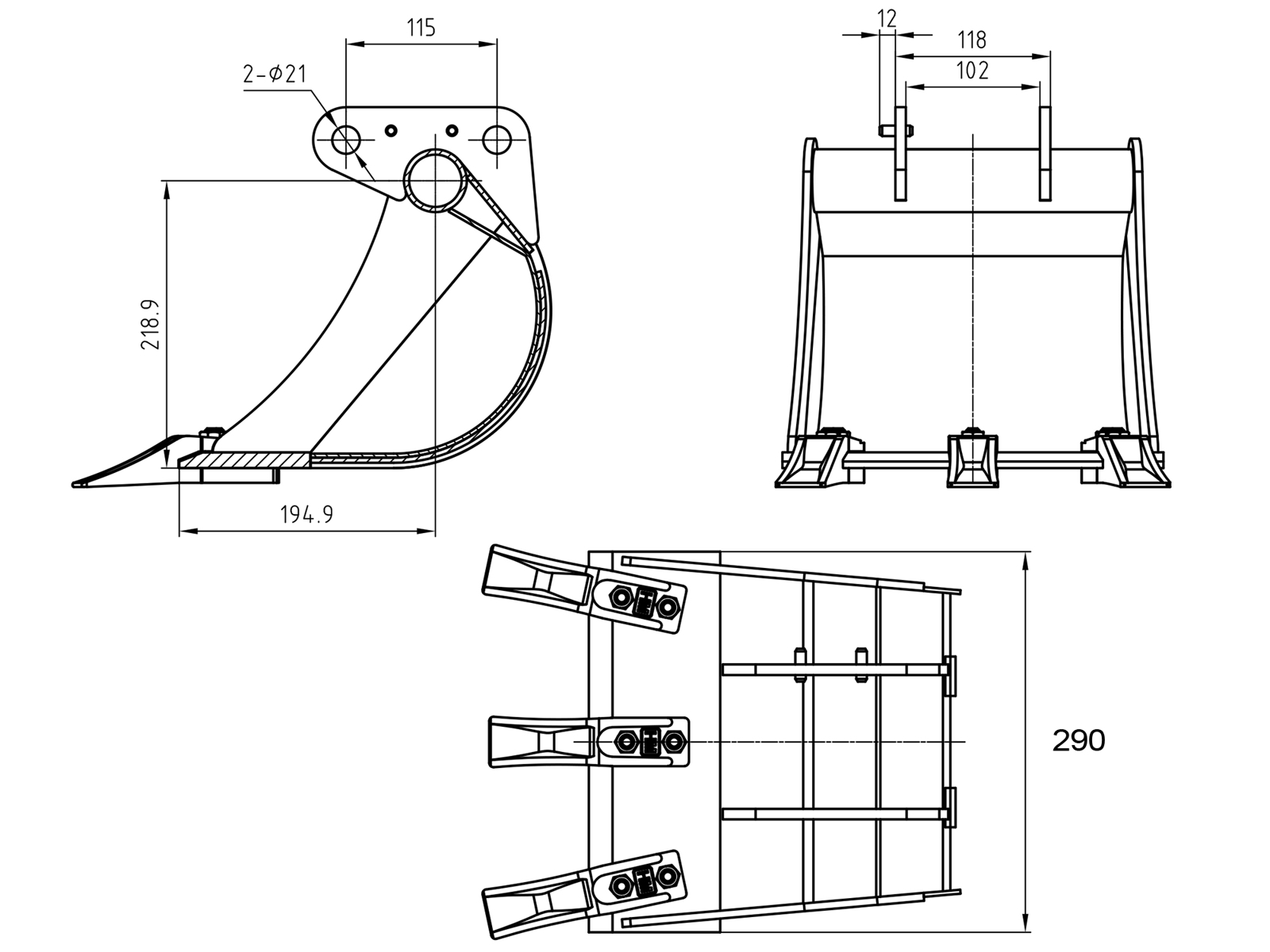

Bucket (11.5 in - 29cm).
Simple to connect to the tractor even by a single person, pins and bushings on seams of high quality guarantee long durability.
Supplied with a two year warranty.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 270.0 kg |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Bucket Width | 290.0 mm |
| Spacing between the 2 lower points | 590.0 - 680.0 mm |
| Hydraulic Pipes (2) | WP-400 bar |
| Min./Max. Relief Pressure | 120 - 200 bar |
| Min./Max. Flow | 25 - 40 l/min |
| Slewing Angle | 180° |
| HP min | 18 Hp |
| Arms cylinders diameter | 63.0 - 25.0 mm |
| Independent Stabilizers | 2 |

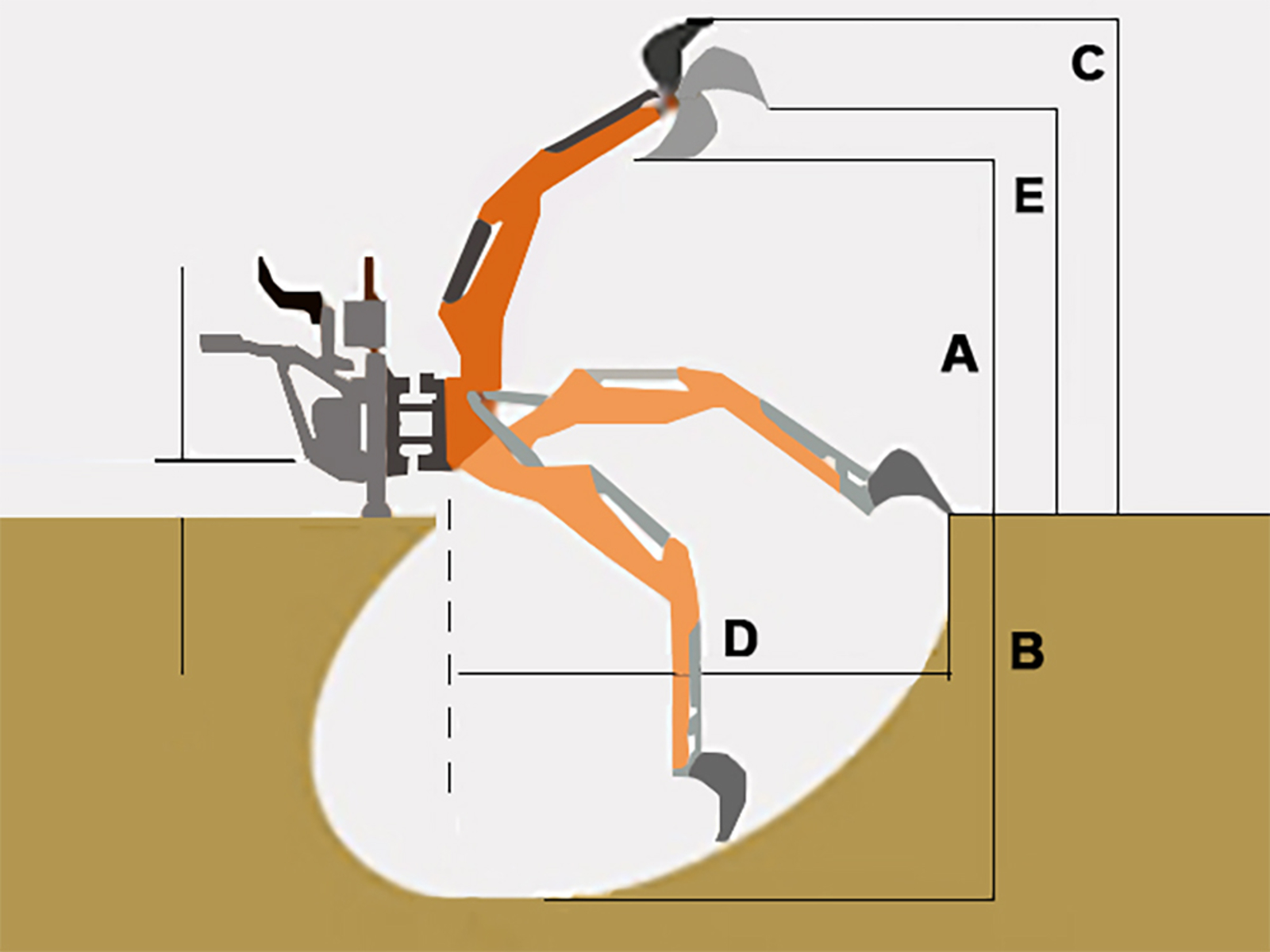

| Digg Depth (B) | 950.0 mm |
| Loading Height (A) | 1690.0 mm |
| Unload Height (E) | 1800.0 mm |
| Max Height (C) | 2280.0 mm |
| Digging Width (D) | 2440.0 mm |
| Leg Spread | 2100.0 mm |
| Packing sizes | 1900*860*1200 mm |
