Flail mower with hydraulic sideshift for traktors
Field test
Field test
DETAILS

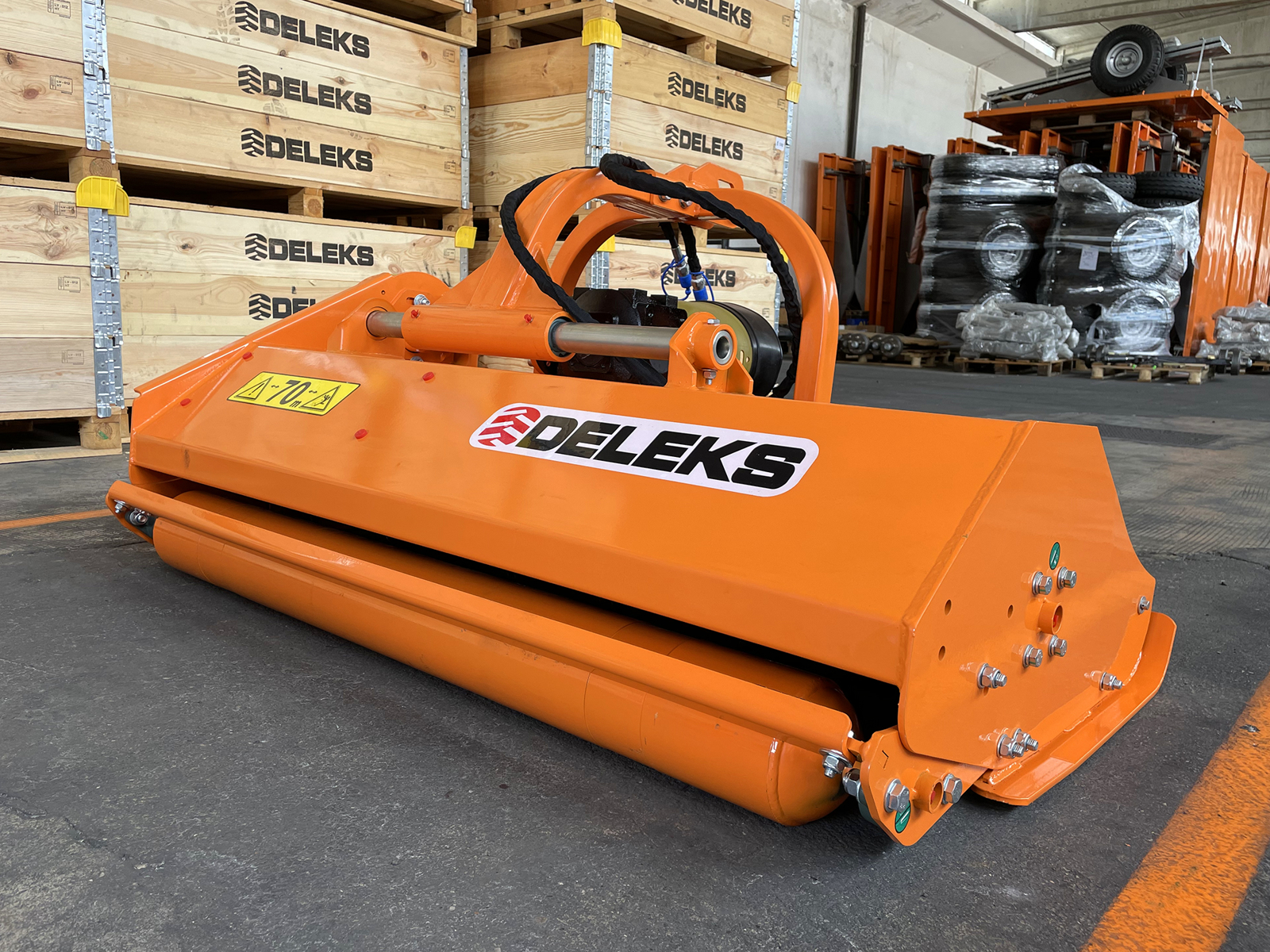

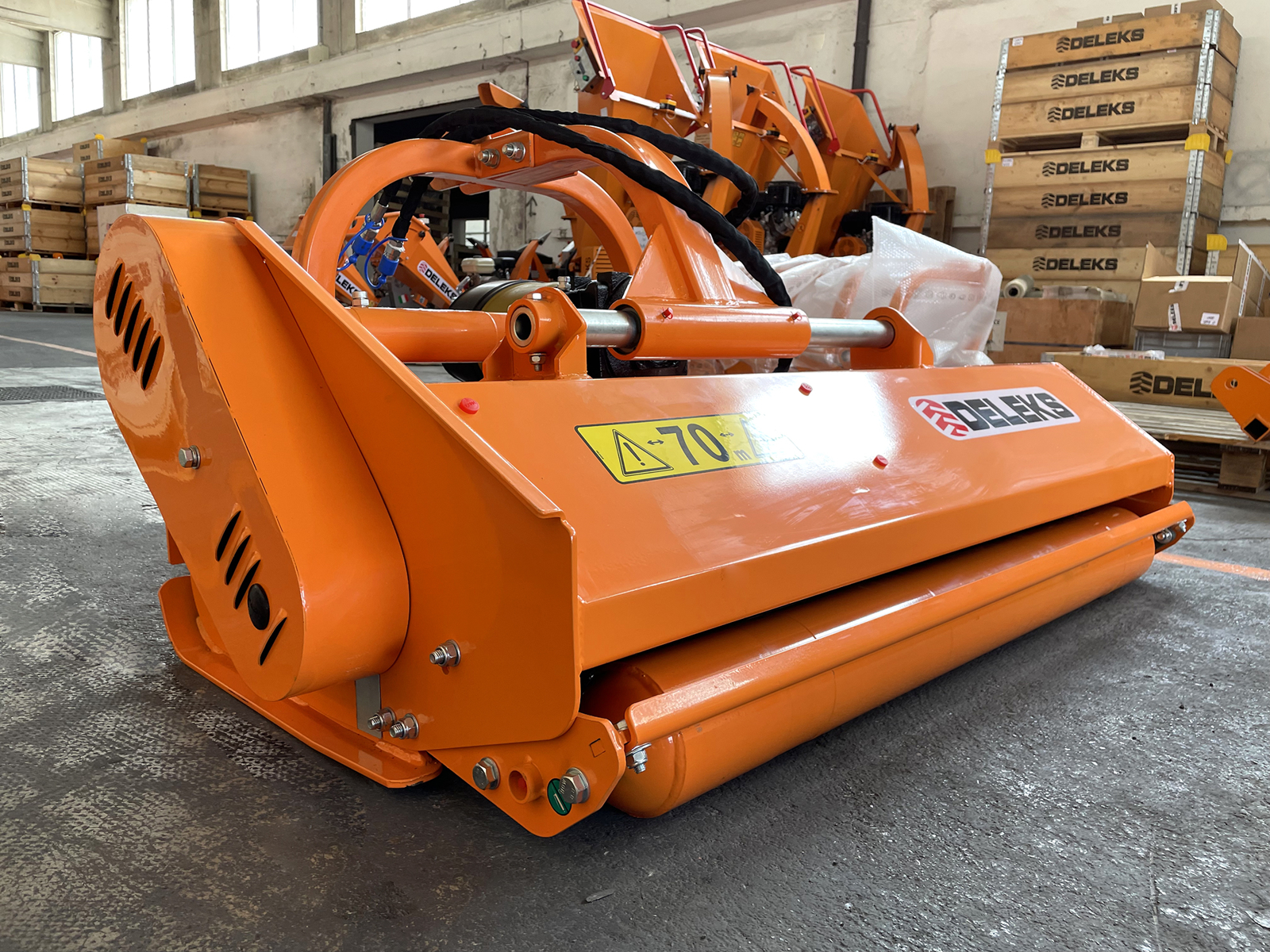

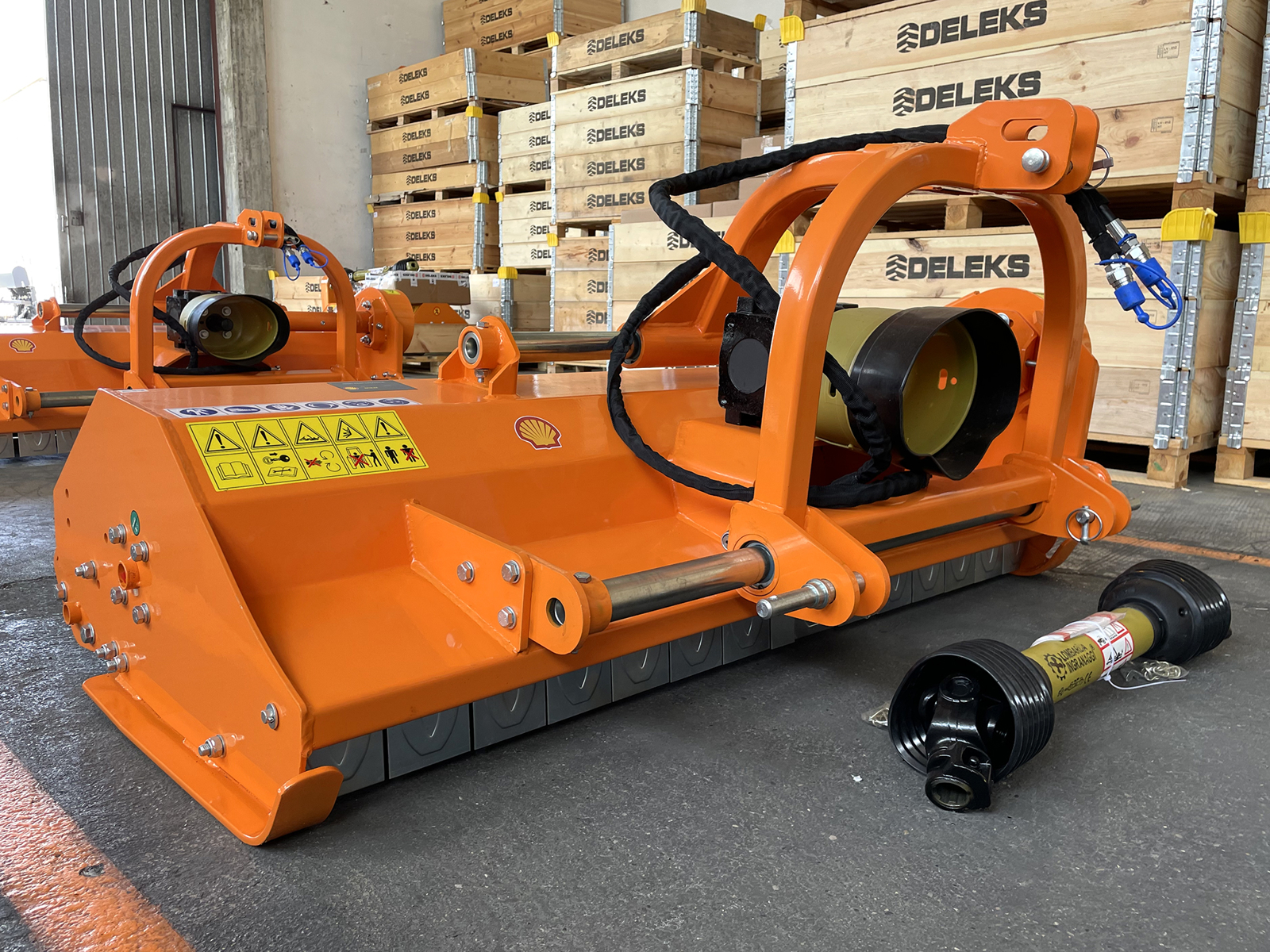

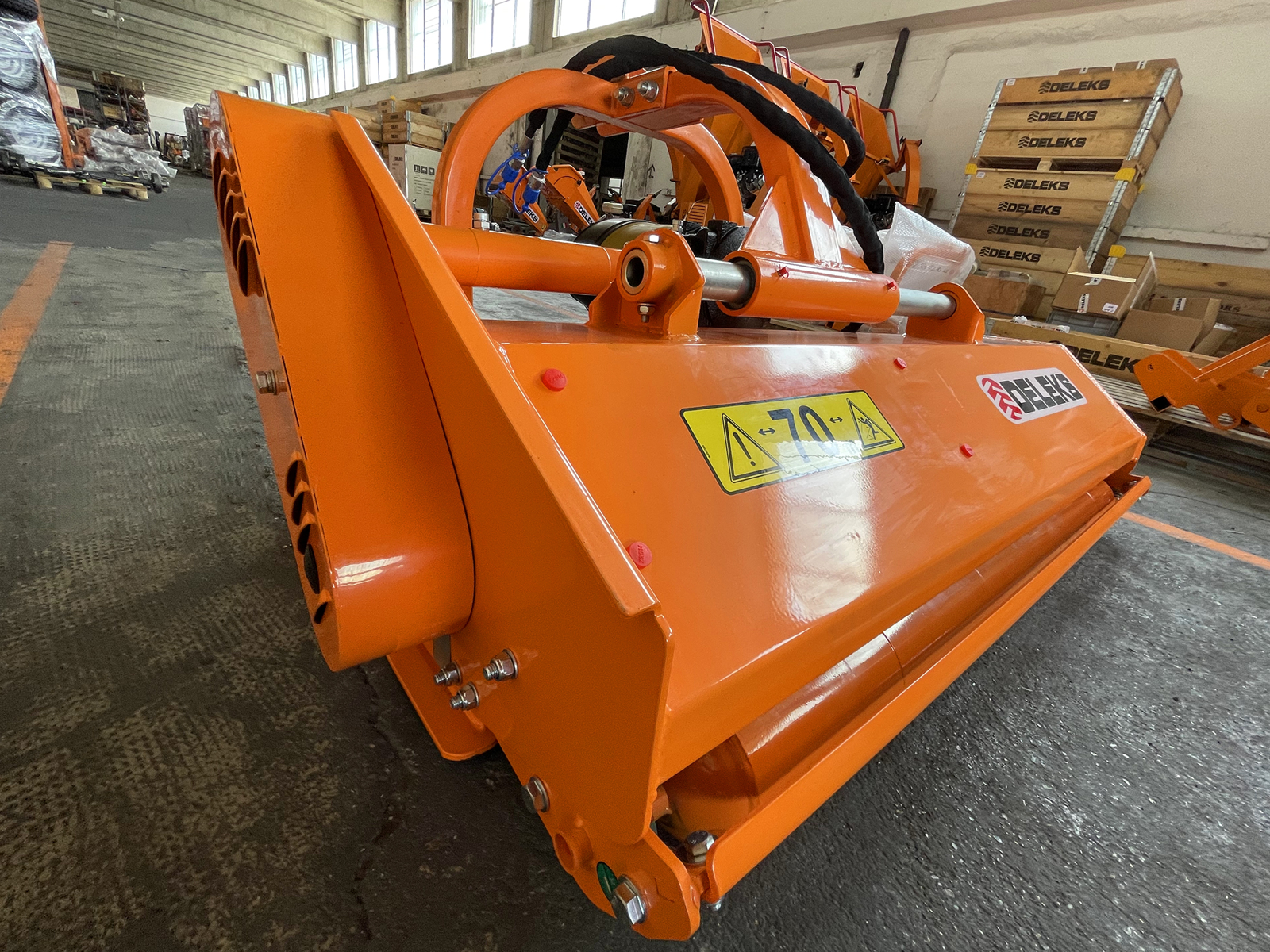

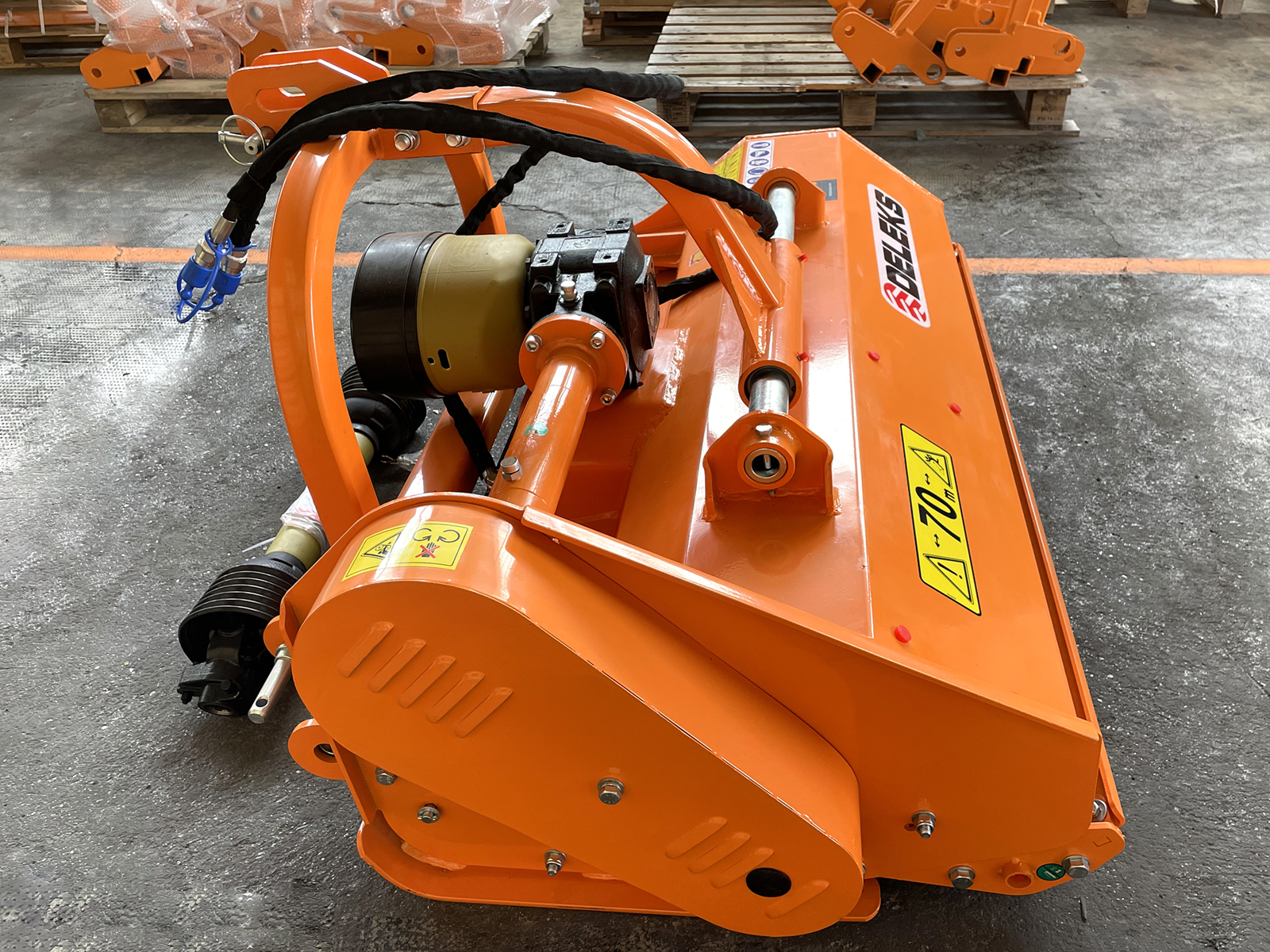

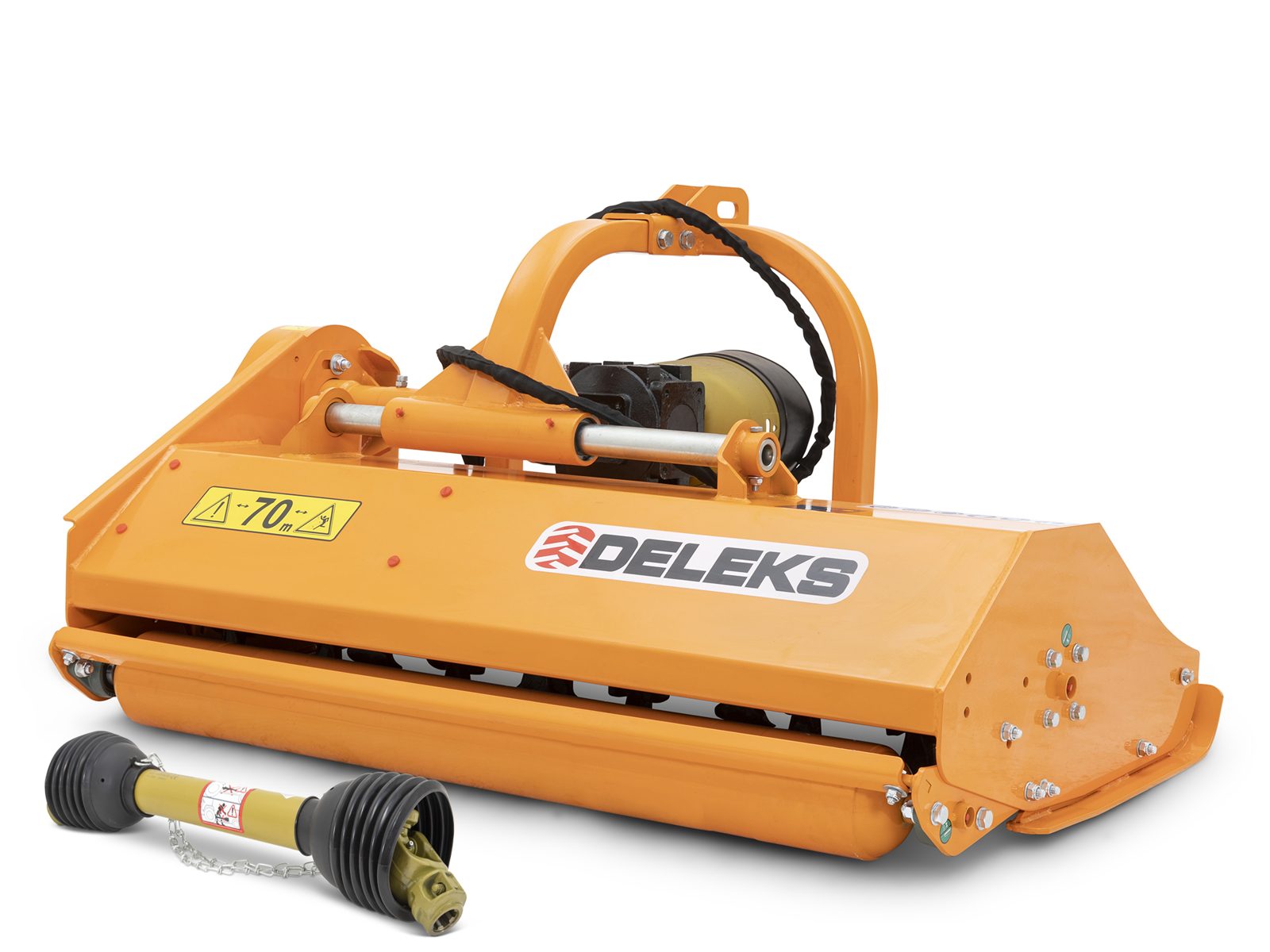

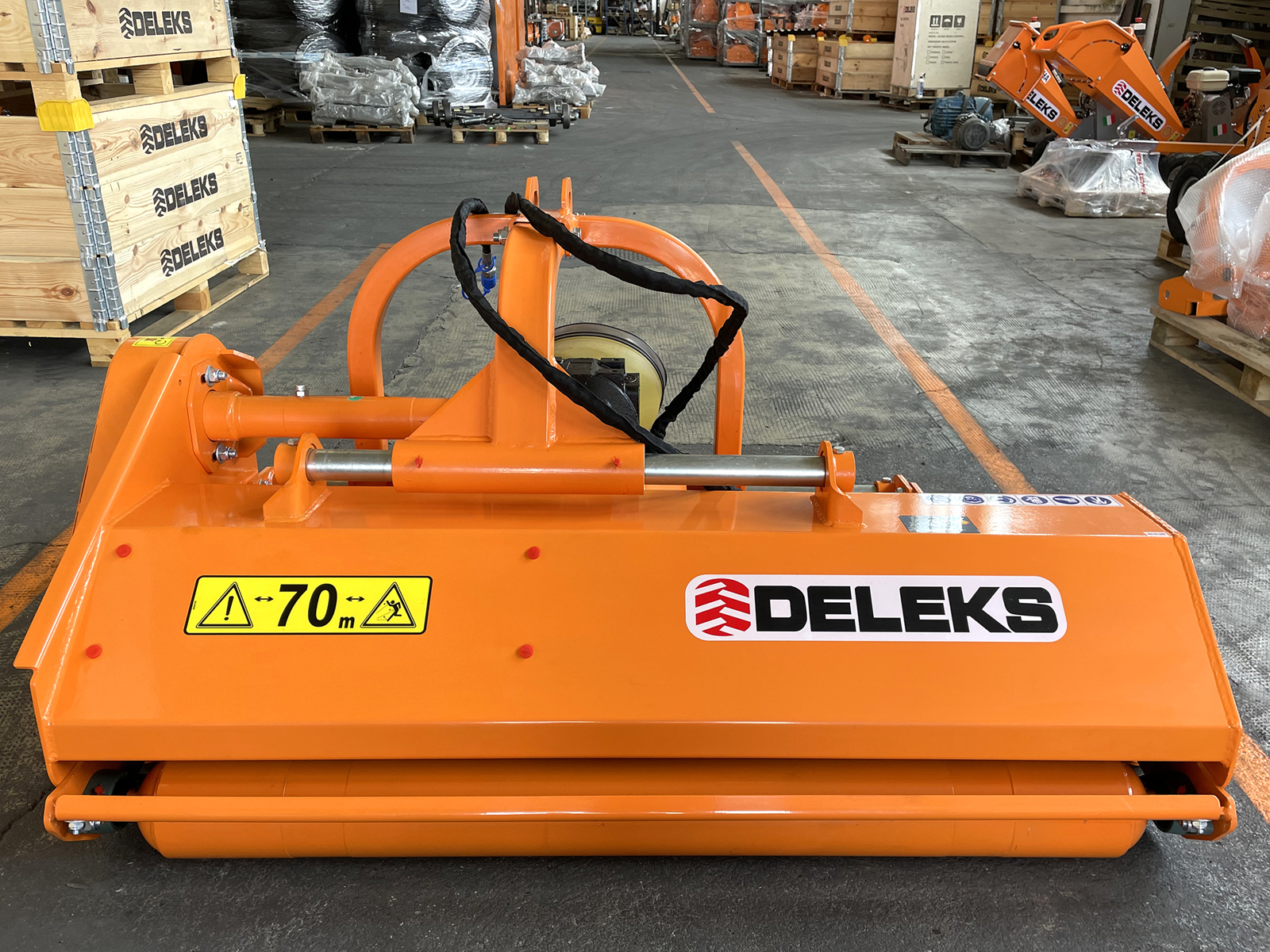

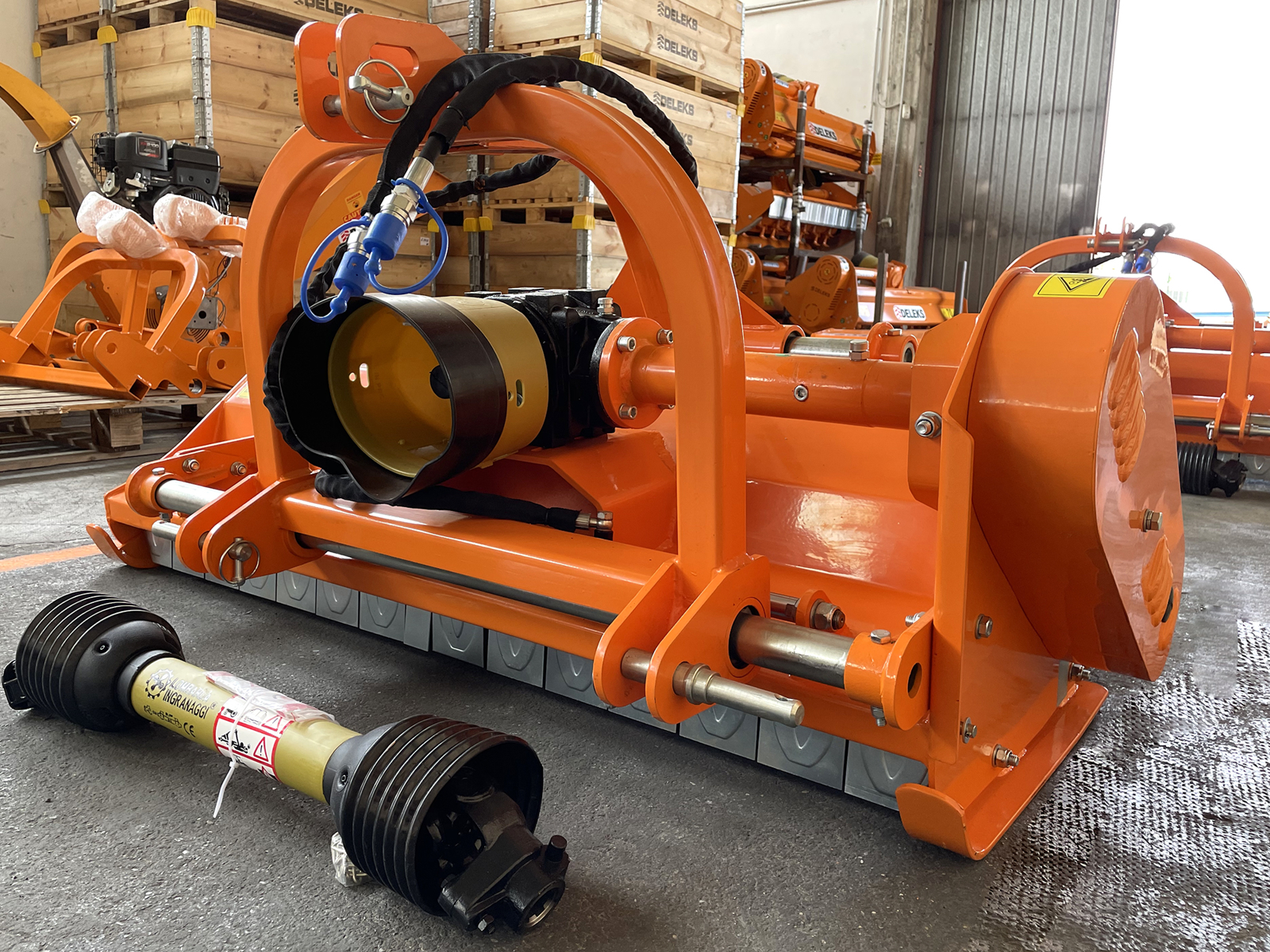

Flail mower for tractors, working width 147cm and 330kg - DELEKS® JAGUAR-150 Shredder with hydraulic side shift for orchard tractors, PTO shaft.
OVERVIEW
JAGUAR-150 Hydraulically movable flail mower, medium series.
Designed for working on grass, leaves, vine shoots and olive groves, maintenance of uncultivated areas.
Compatible with 30-60 hp tractors such as New Holland, John Deere, Landini Mistral, Antonio Carraro Tigrone, Kubota, Same Solaris, etc. Universal 3-point linkage Cat. 1-2.
Conforms to the CE machinery directive, 2 years warranty.
ADVANTAGES
Lombarda Ingranaggi gearbox with freewheel, 3 years warranty.

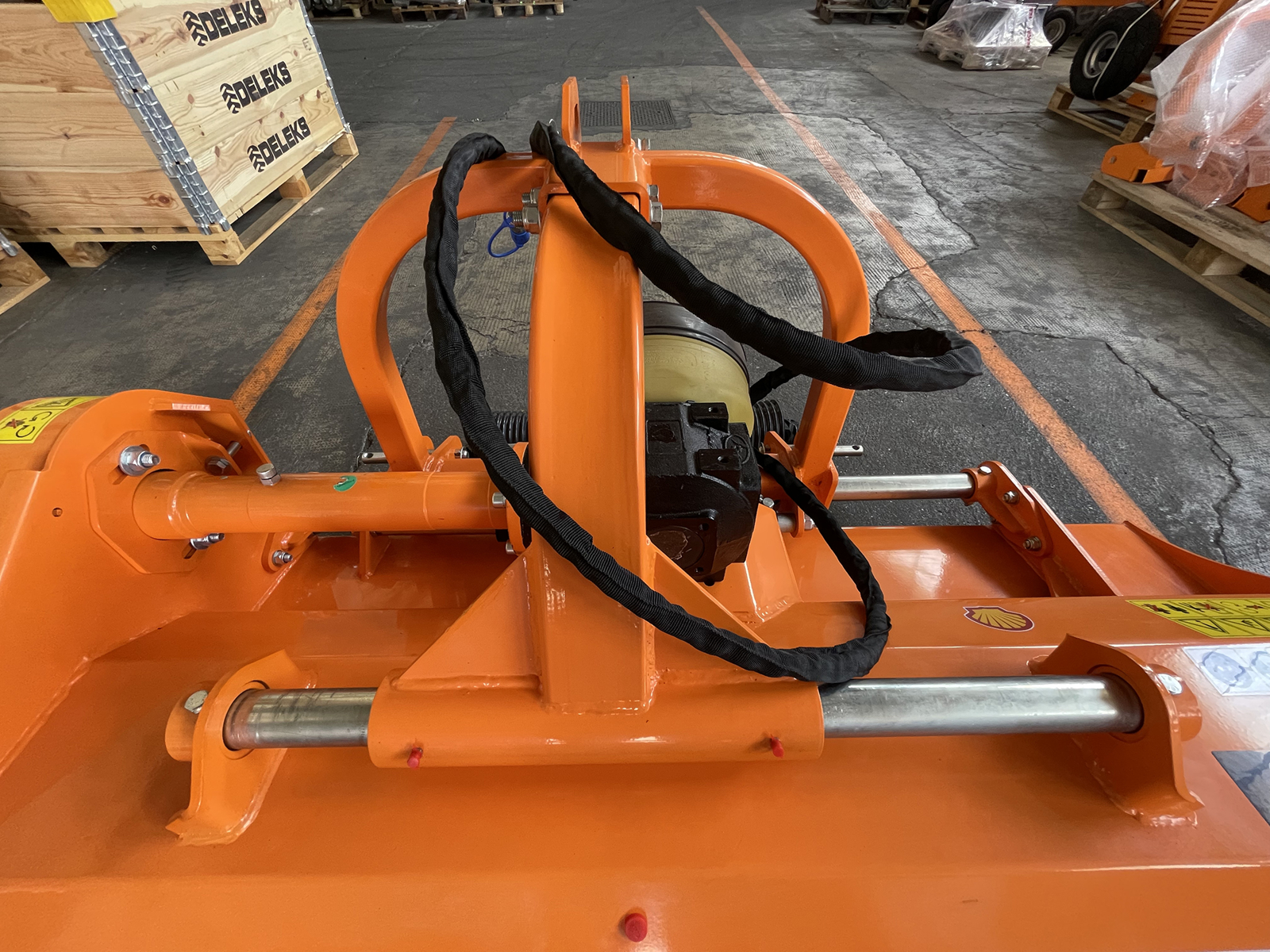

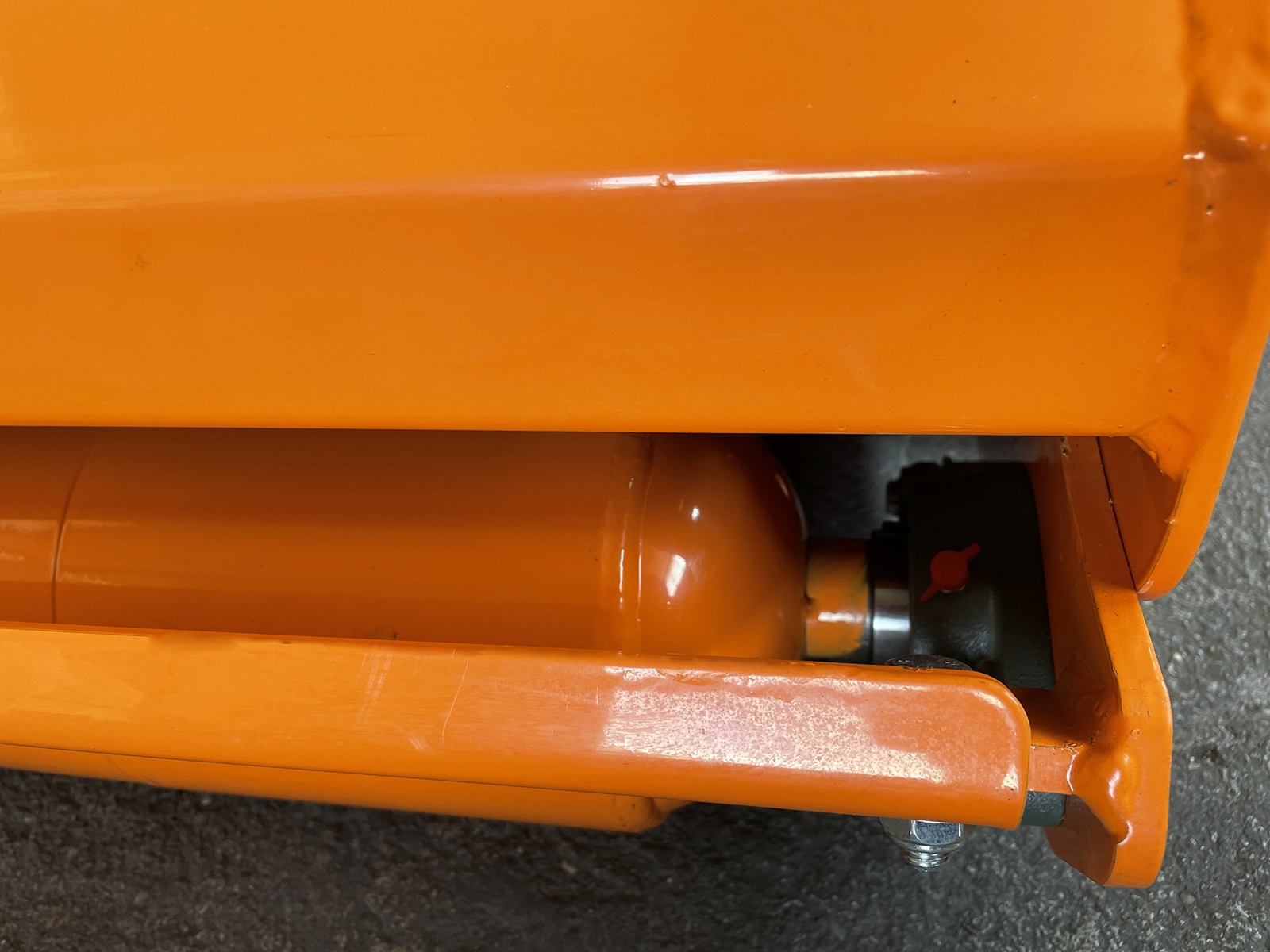

Reinforced hydraulic lateral movement that facilitates work outside the tractors boarder.

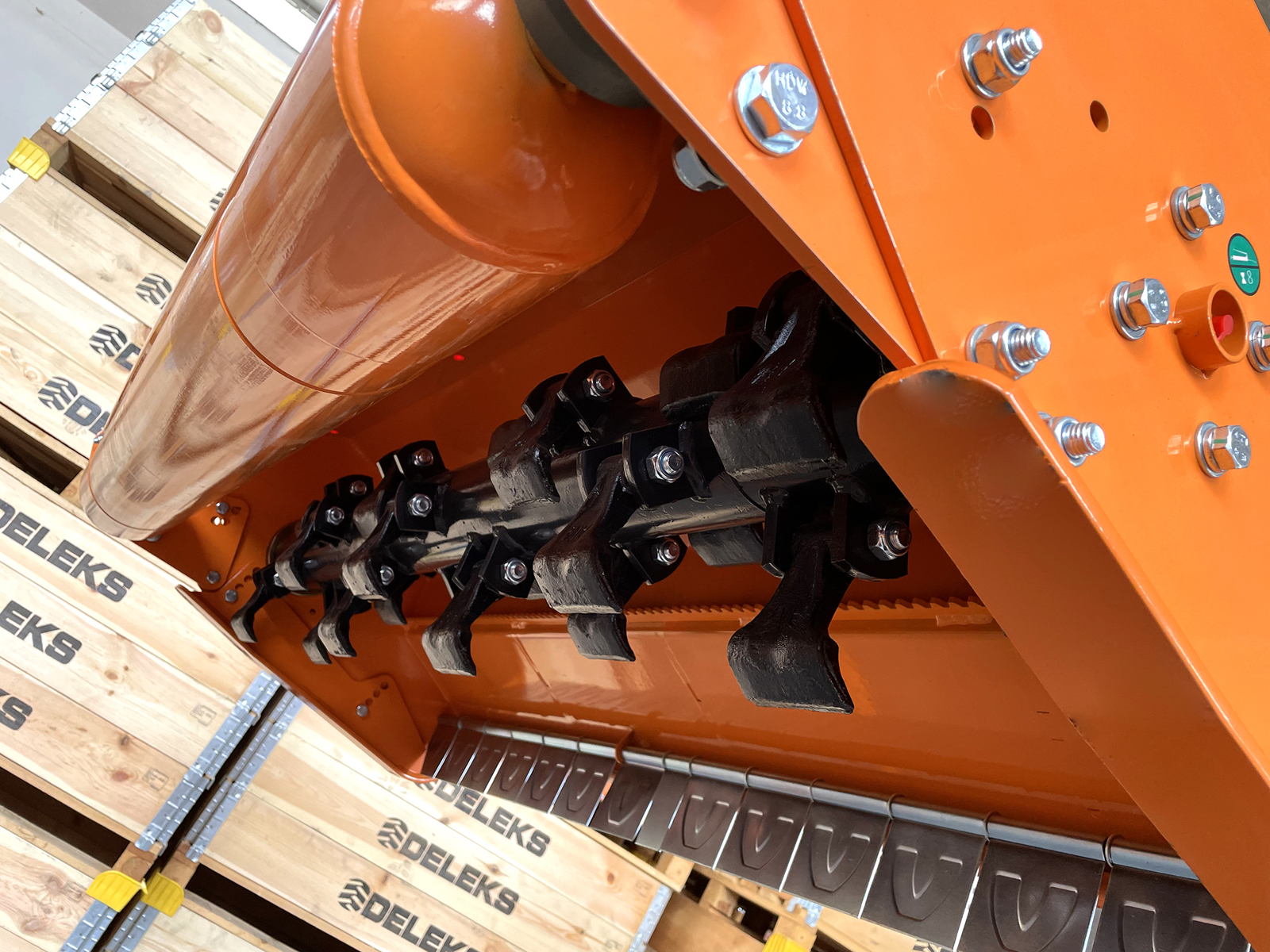

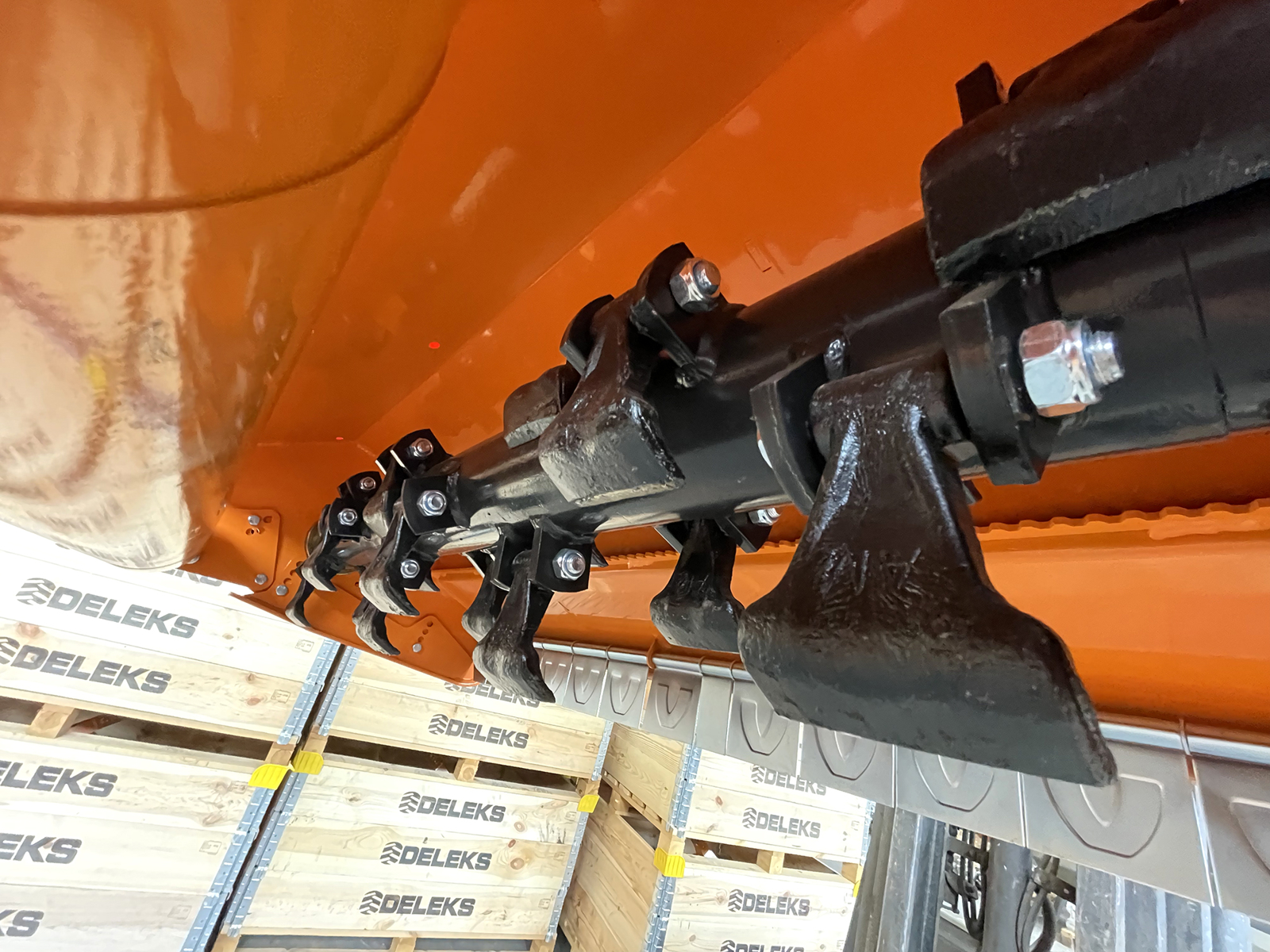

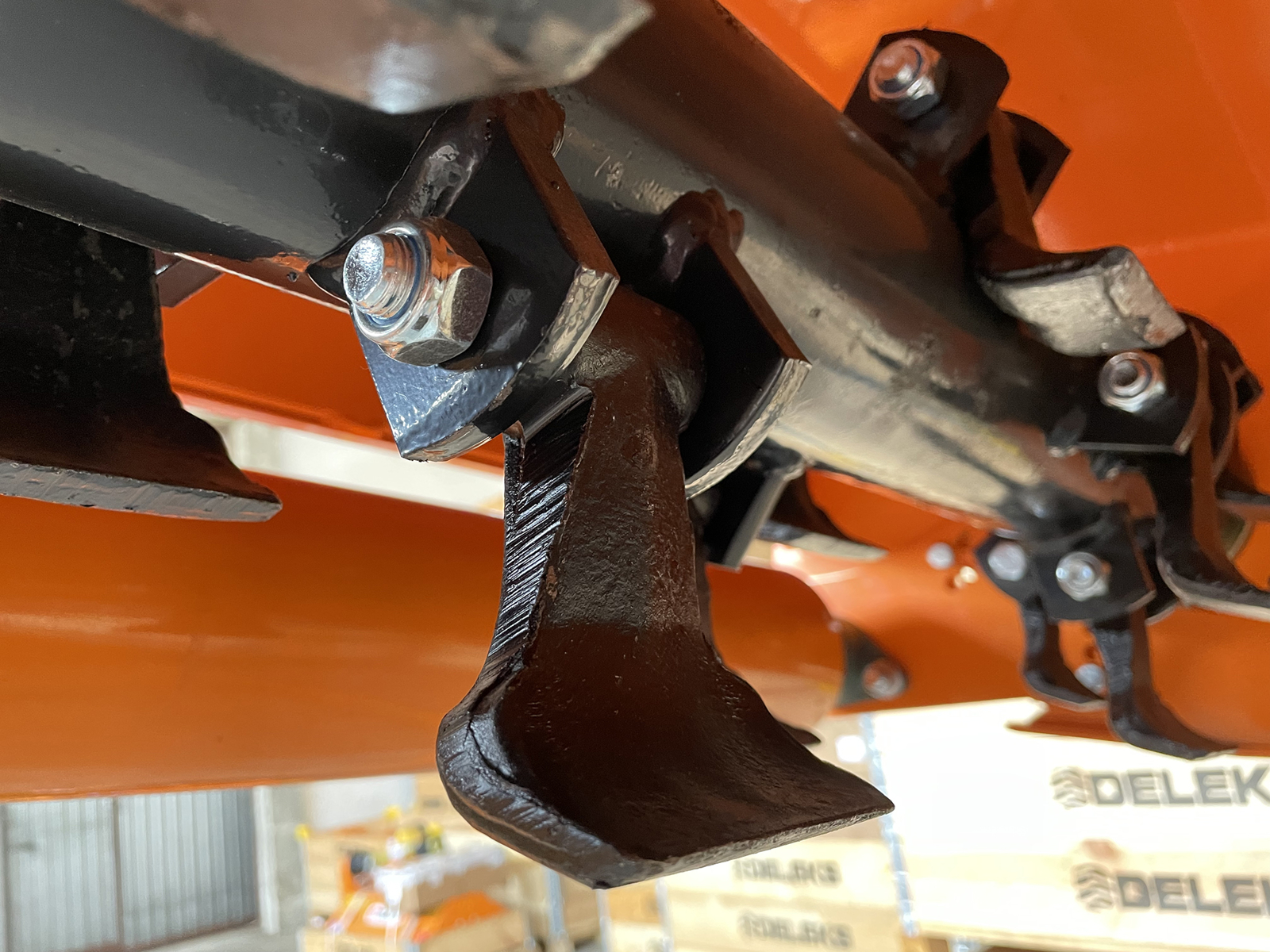

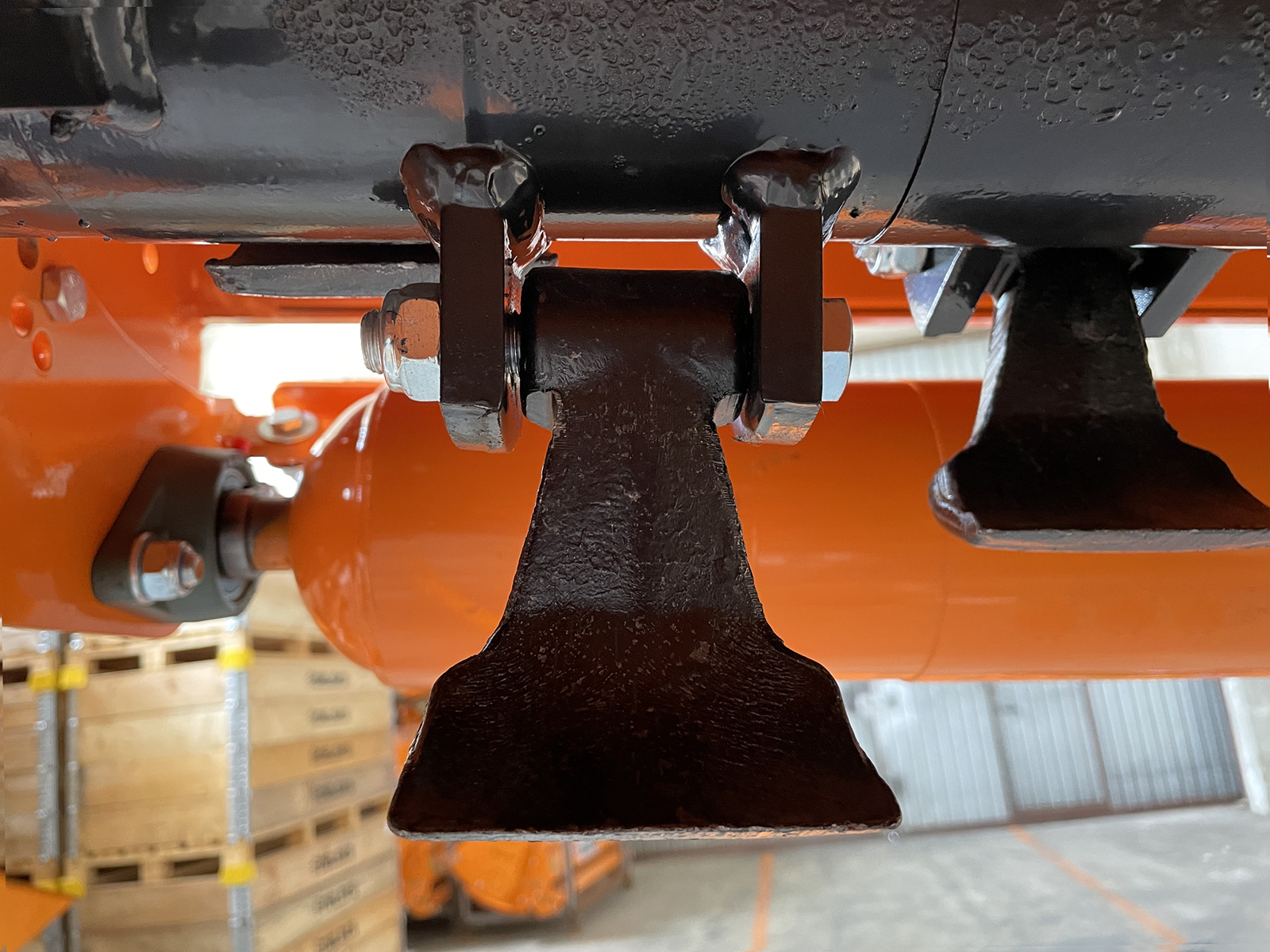

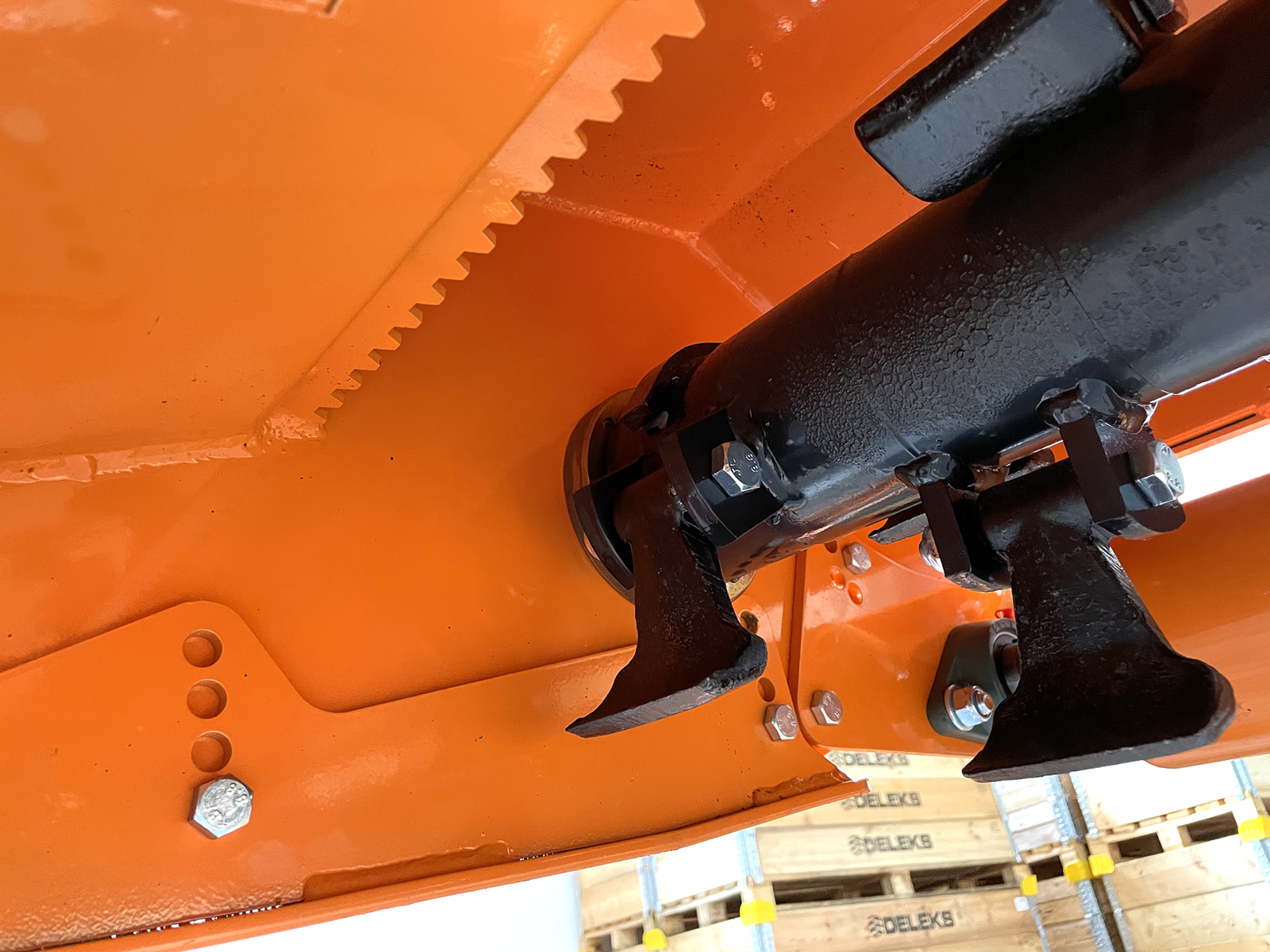

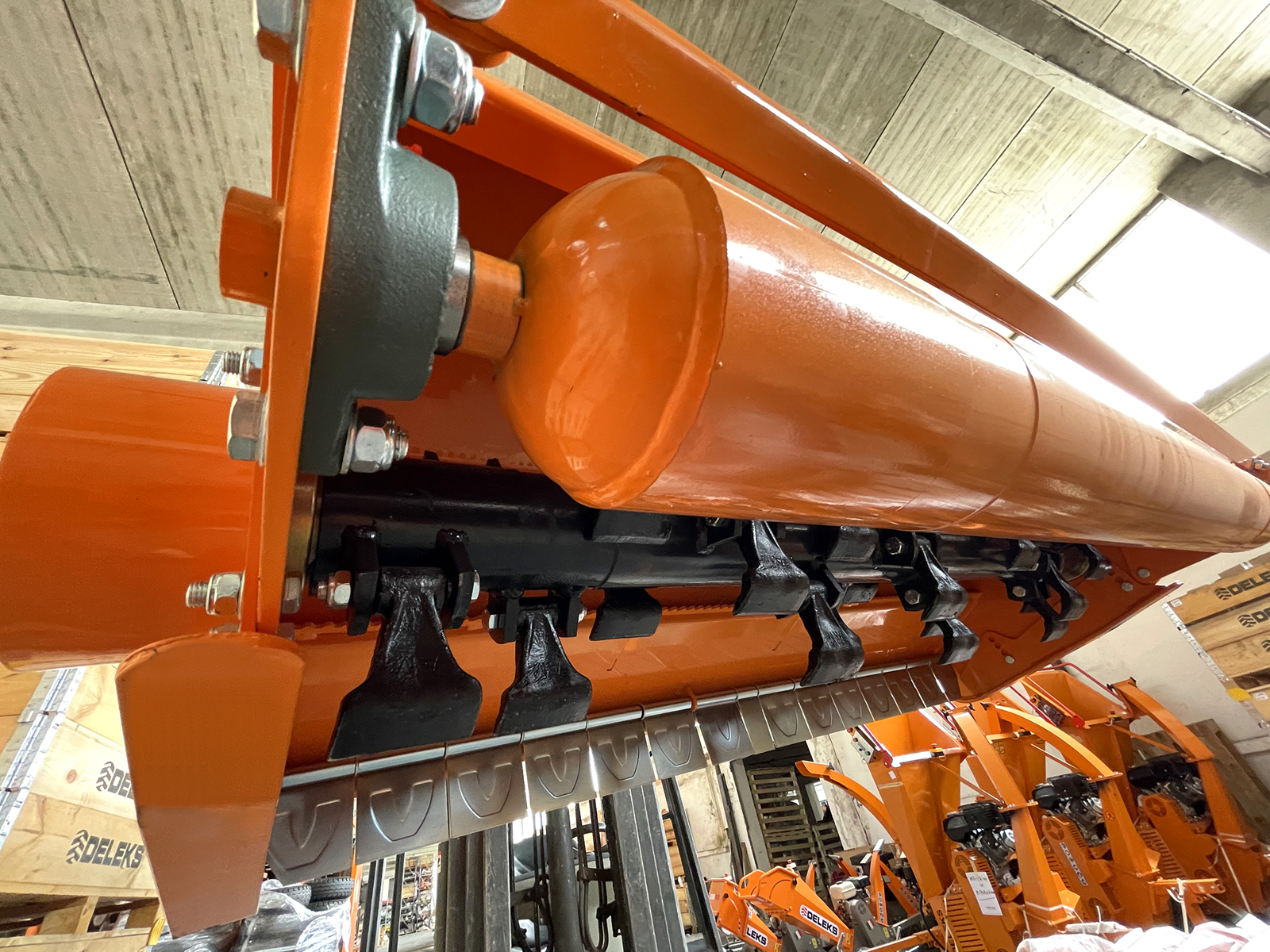

Thick hammers, designed to pulverize grass and pruning’s from vineyards and olive groves, brambles, etc. up to 4-5 cm in diameter.

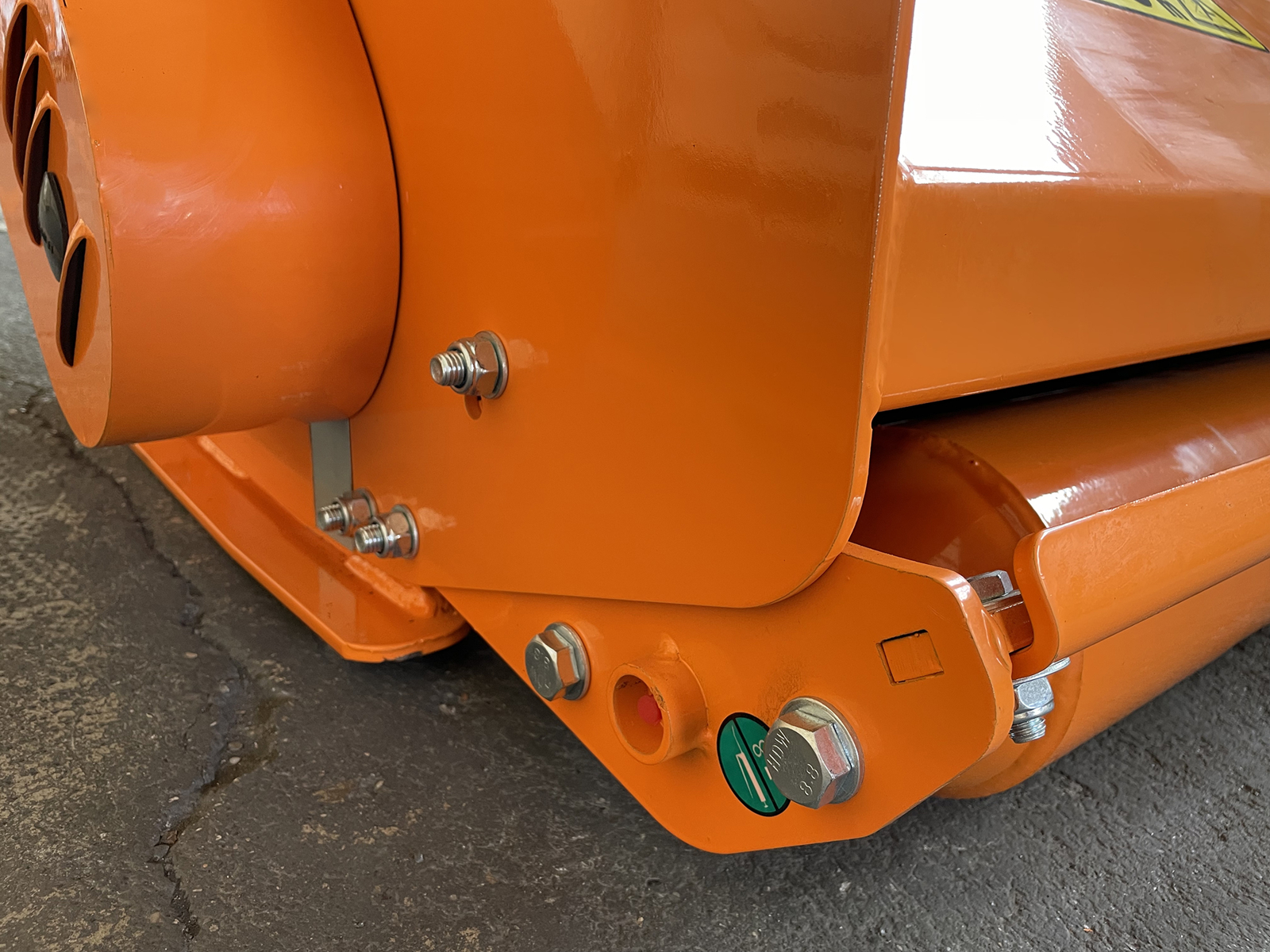

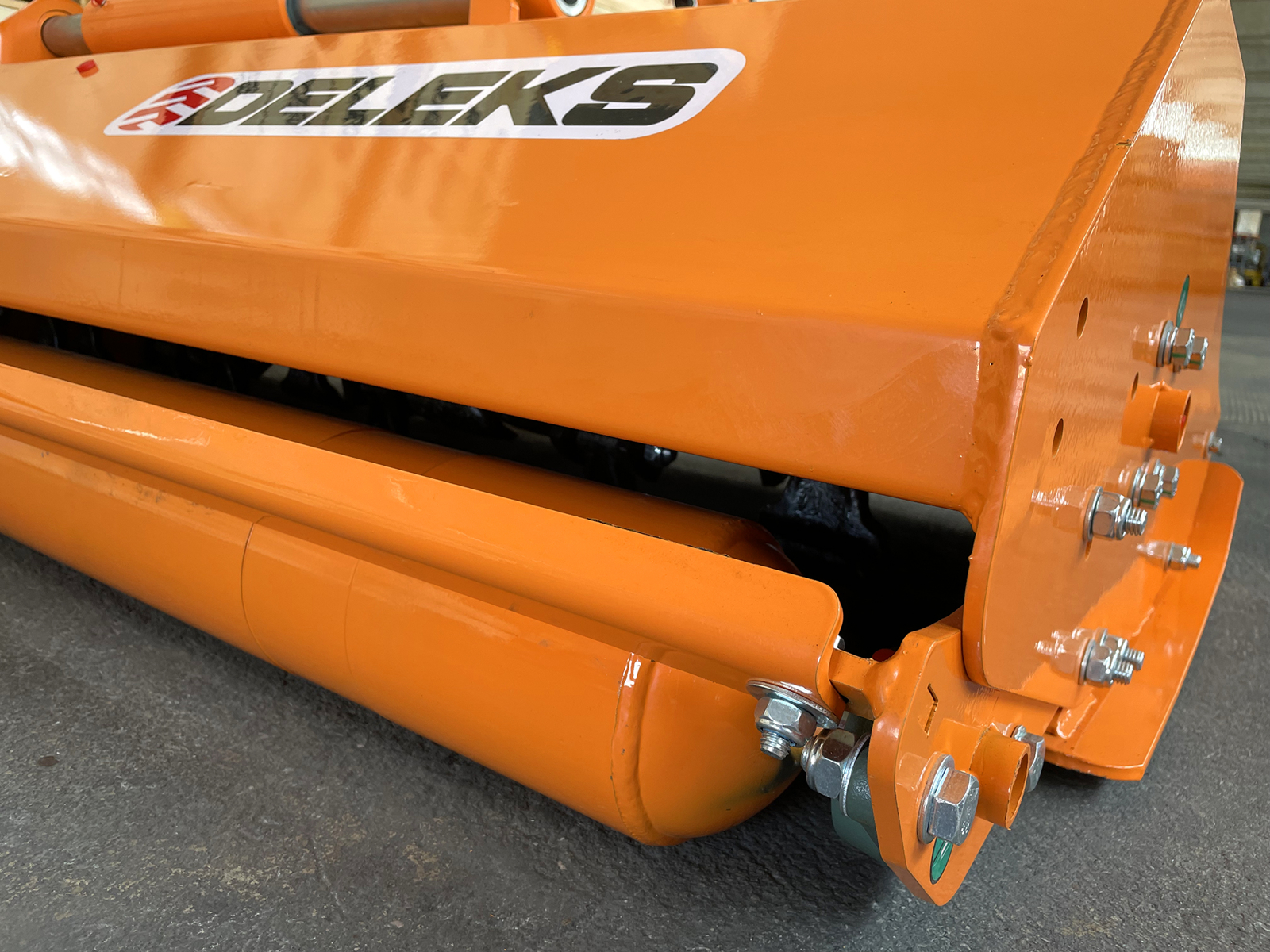

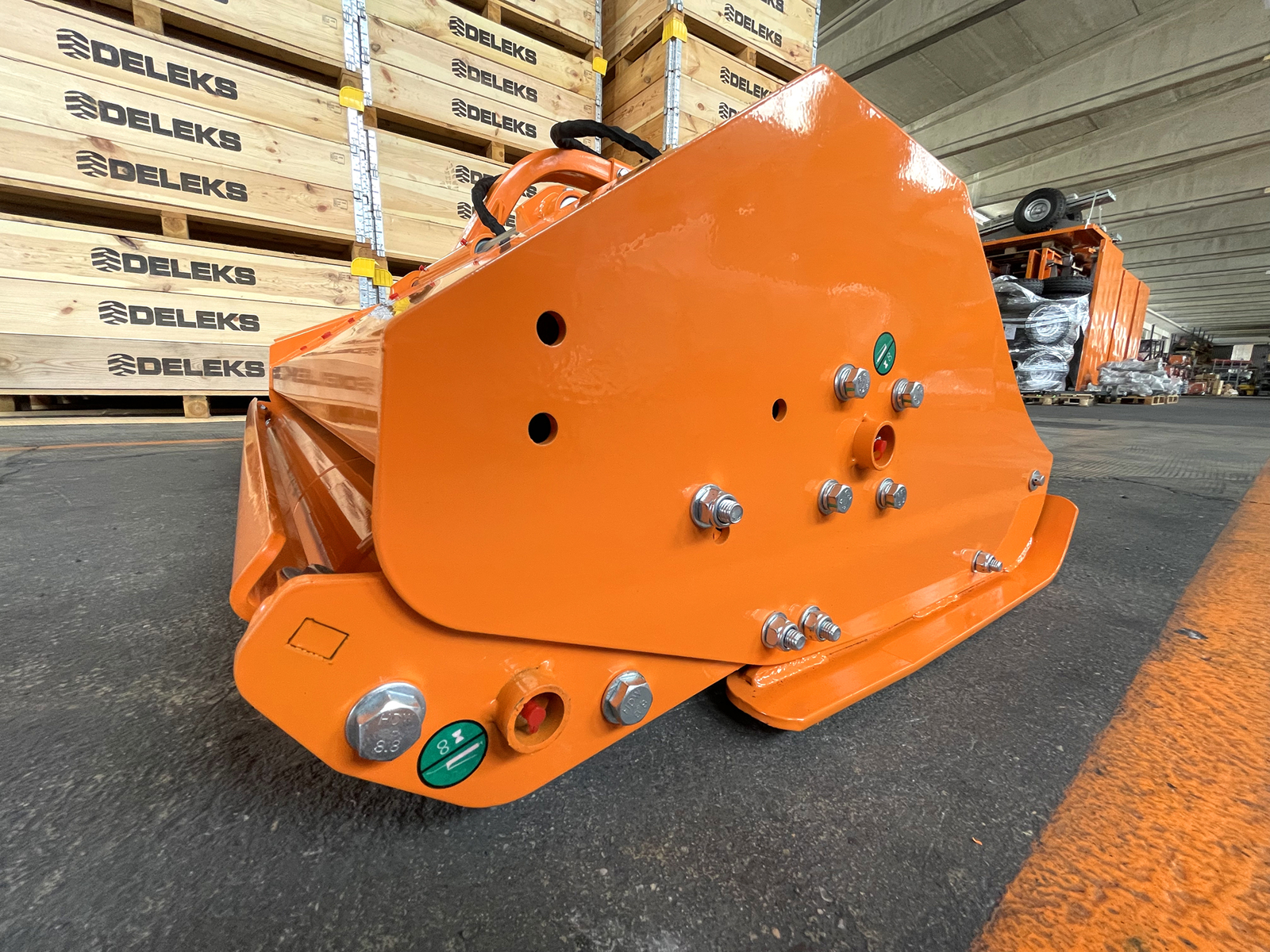

The rear roller and the side slides allow you to adjust the cutting height.
External adjustment of the belts and adjustable tensioner.

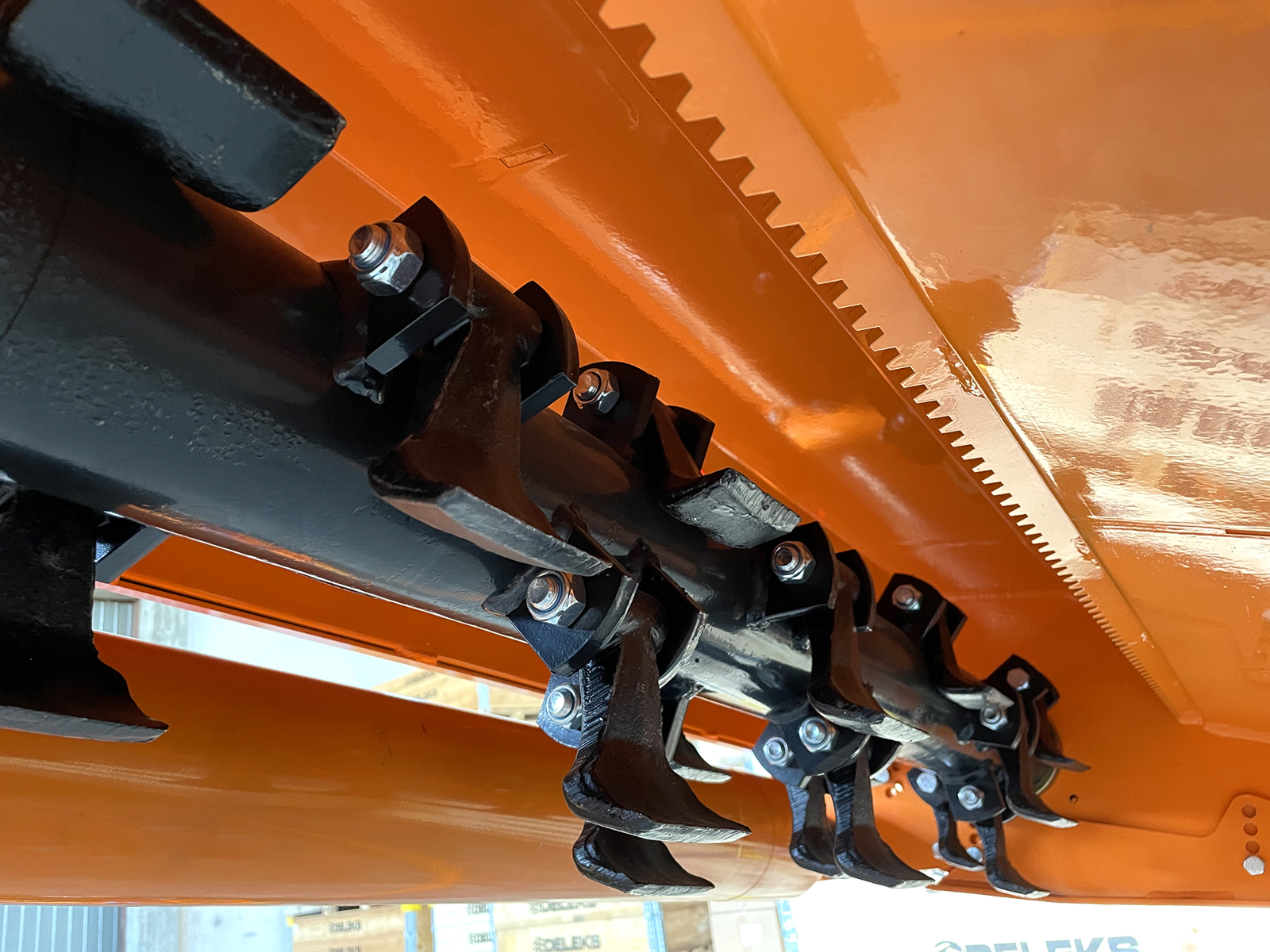

Electronic balanced rotor.
PTO shaft CE included.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1470.0 mm |
| Overall width | 1600.0 mm |
| Min / Max cutting height | 5.0 - 55.0 mm |
| Weight | 330.0 kg |
| Overall height | 830.0 mm |
| Tractor Power Range | 30 - 60 Hp |

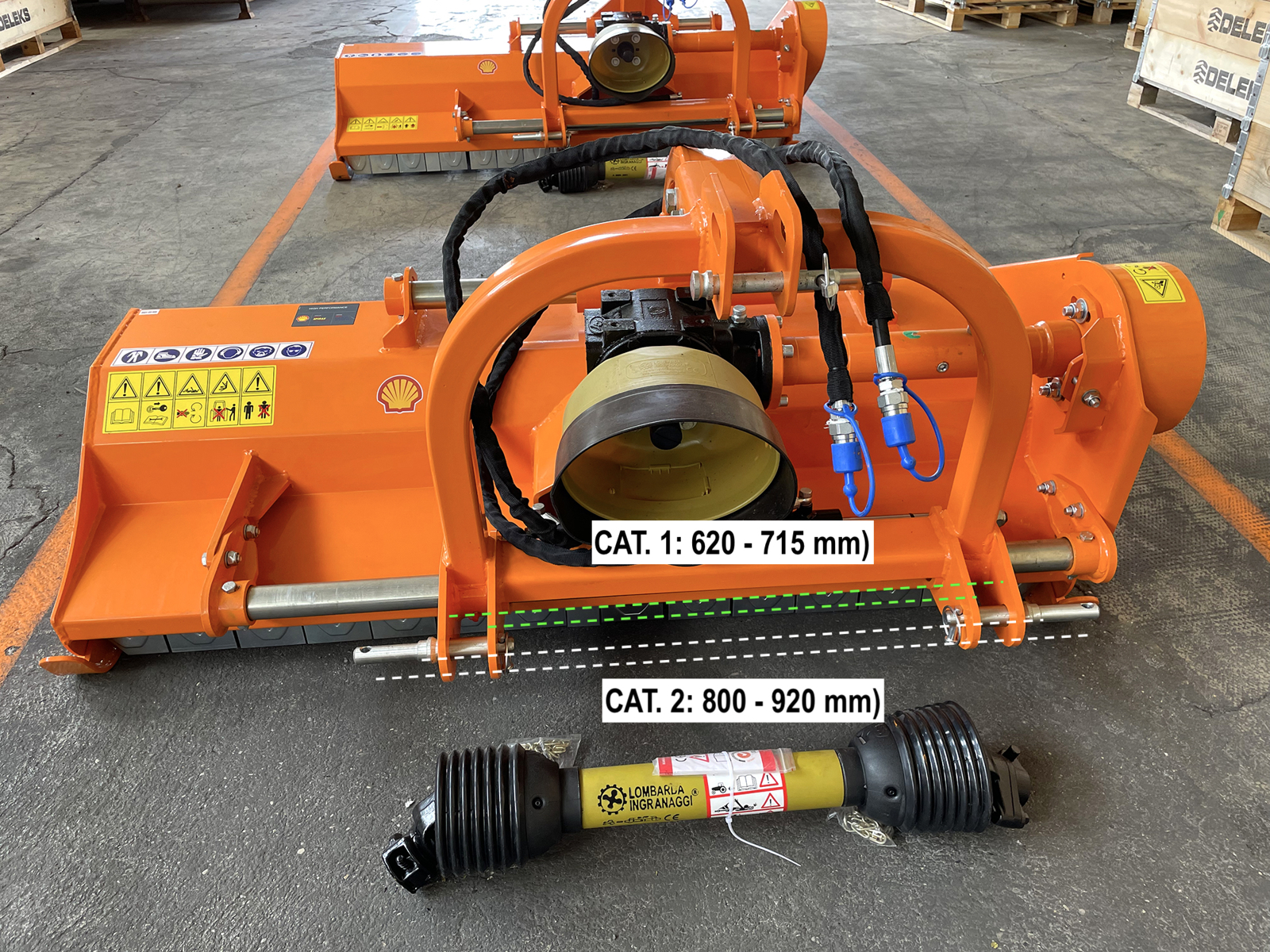

| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Hood height | 370.0 mm |
| Spacing between the 2 lower points | 620.0 - 920.0 mm |
| Number of Hammers | 22 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 1000.0 mm |
| Distance between pto attachment and ground | 400.0 mm |
| Main hood thickness | 5.0 mm |
| Sides thickness | 6.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi 540 r/min - 3 years warranty |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2295 rpm |
| Transmission: Oil in the gearbox | Yes / Shell Spirax S2 A 80W-90 |
| Transmission: Top pulley ø | 170.0 mm |
| Transmission: Lower pulley ø | 120.0 mm |
| Transmission: V-Belts quantity | 3 |
| Transmission: V-Belts size | 17x1092 |

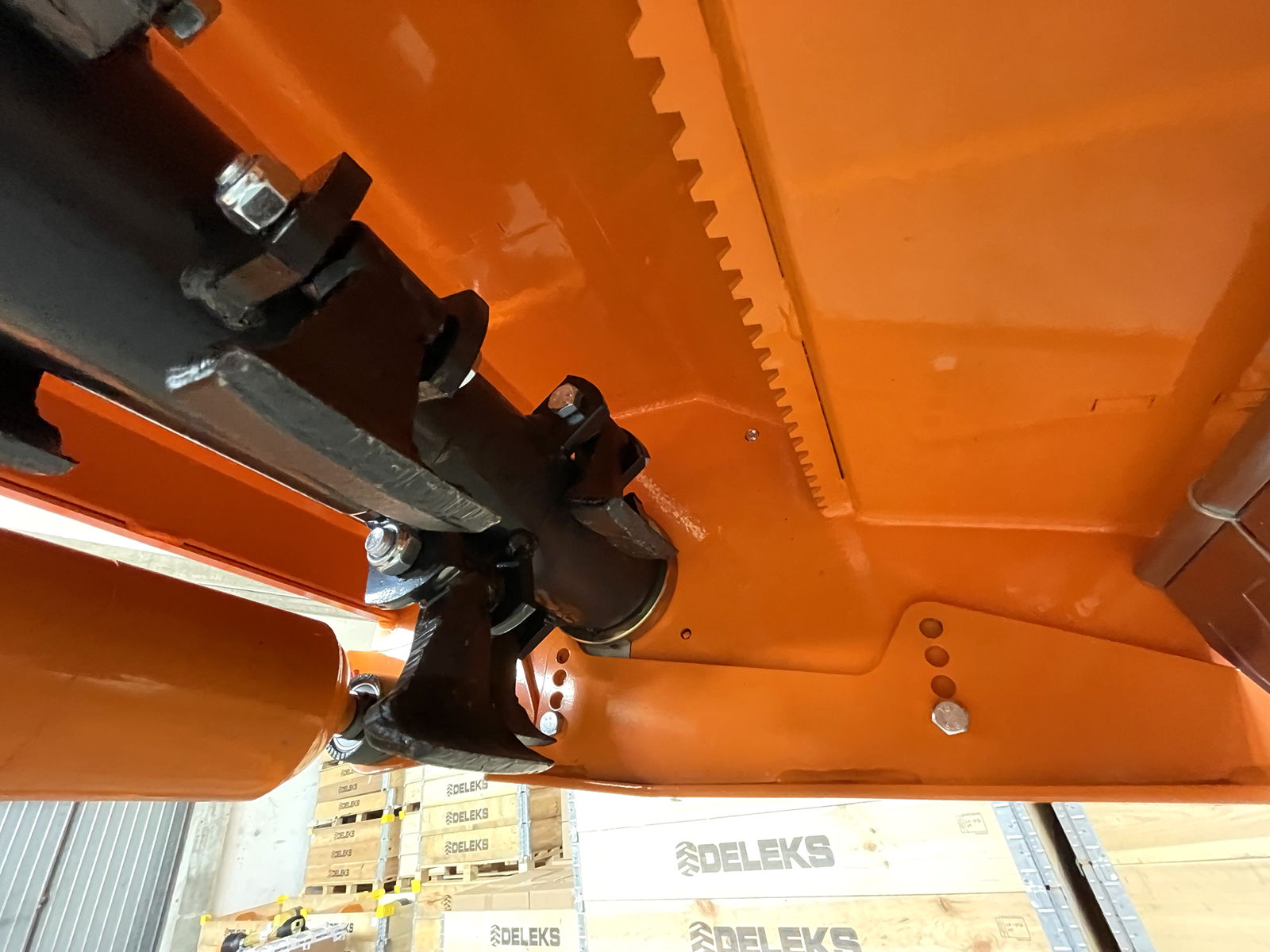

| Rotor: diameter | 108.0 mm |
| Rotor: bearings type and size | UC207 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 820.0 g |
| Hammer: øhole | 15.0 mm |
| Hammer: base width | 82.0 mm |
| Hammer: top width | 45.0 mm |
| Hammer: Diagonal | 95.0 mm |

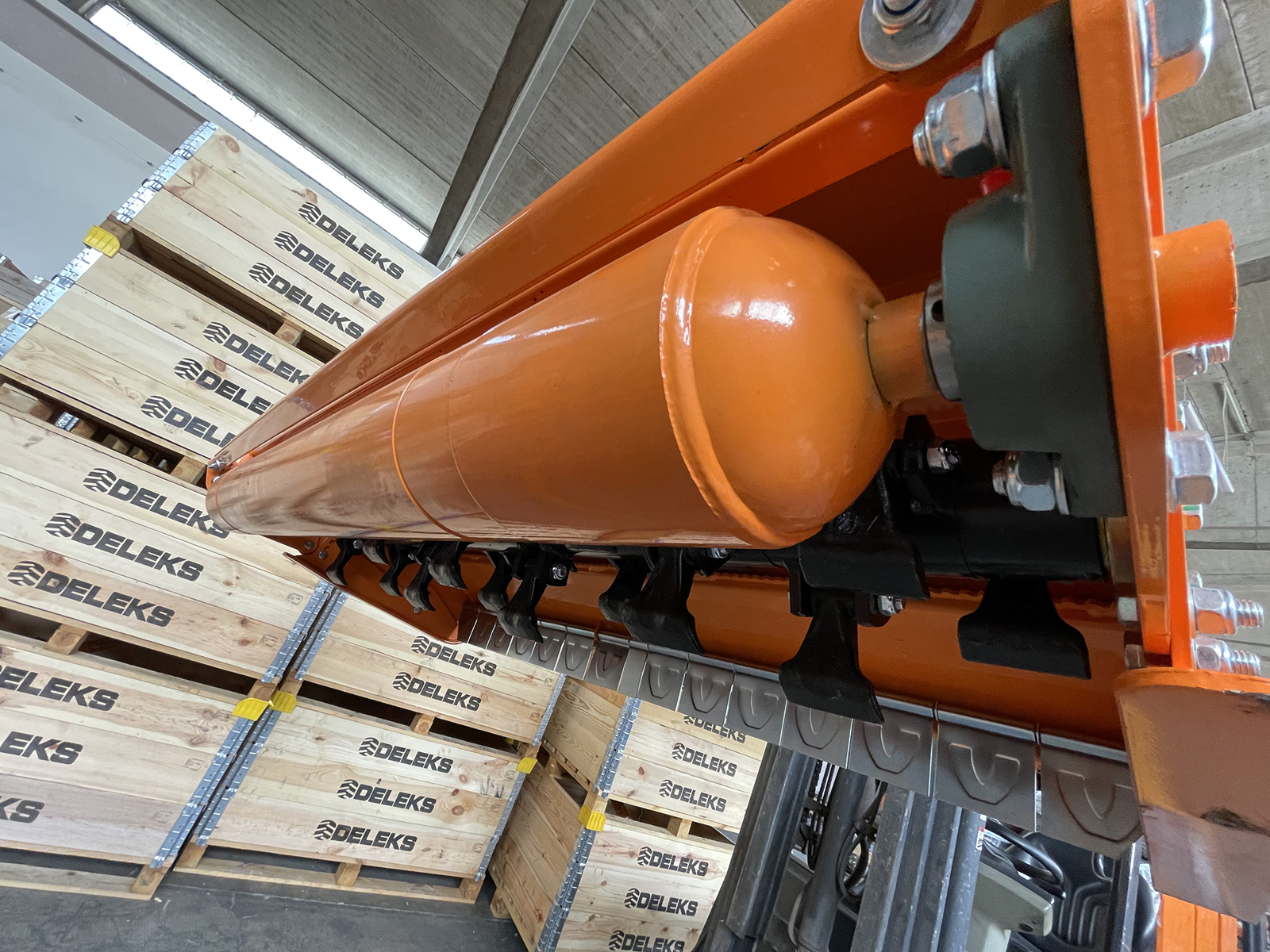

| Rear roller: diameter | 140.0 mm |
| Rear roller: sheet thickness | 4.0 mm |
| Rear roller: bearings type and size | UC205 |
| Pto shaft | CE 4x800 mm |
| Hood length | 750.0 mm |
| Effective Displacement | 280.0 mm (Hydraulic) |
| Packing sizes | 1650.0*1000.0*700.0 mm |
DETAILS
CLOSEFlail mower for tractors, working width 147cm and 330kg - DELEKS® JAGUAR-150 Shredder with hydraulic side shift for orchard tractors, PTO shaft.
OVERVIEW
JAGUAR-150 Hydraulically movable flail mower, medium series.
Designed for working on grass, leaves, vine shoots and olive groves, maintenance of uncultivated areas.
Compatible with 30-60 hp tractors such as New Holland, John Deere, Landini Mistral, Antonio Carraro Tigrone, Kubota, Same Solaris, etc. Universal 3-point linkage Cat. 1-2.
Conforms to the CE machinery directive, 2 years warranty.
ADVANTAGES
Lombarda Ingranaggi gearbox with freewheel, 3 years warranty.
Reinforced hydraulic lateral movement that facilitates work outside the tractors boarder.
Thick hammers, designed to pulverize grass and pruning’s from vineyards and olive groves, brambles, etc. up to 4-5 cm in diameter.
The rear roller and the side slides allow you to adjust the cutting height.
External adjustment of the belts and adjustable tensioner.
Electronic balanced rotor.
PTO shaft CE included.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Working width | 1470.0 mm |
| Overall width | 1600.0 mm |
| Min / Max cutting height | 5.0 - 55.0 mm |
| Weight | 330.0 kg |
| Overall height | 830.0 mm |
| Tractor Power Range | 30 - 60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Hood height | 370.0 mm |
| Spacing between the 2 lower points | 620.0 - 920.0 mm |
| Number of Hammers | 22 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 1000.0 mm |
| Distance between pto attachment and ground | 400.0 mm |
| Main hood thickness | 5.0 mm |
| Sides thickness | 6.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi 540 r/min - 3 years warranty |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2295 rpm |
| Transmission: Oil in the gearbox | Yes / Shell Spirax S2 A 80W-90 |
| Transmission: Top pulley ø | 170.0 mm |
| Transmission: Lower pulley ø | 120.0 mm |
| Transmission: V-Belts quantity | 3 |
| Transmission: V-Belts size | 17x1092 |
| Rotor: diameter | 108.0 mm |
| Rotor: bearings type and size | UC207 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 820.0 g |
| Hammer: øhole | 15.0 mm |
| Hammer: base width | 82.0 mm |
| Hammer: top width | 45.0 mm |
| Hammer: Diagonal | 95.0 mm |
| Rear roller: diameter | 140.0 mm |
| Rear roller: sheet thickness | 4.0 mm |
| Rear roller: bearings type and size | UC205 |
| Pto shaft | CE 4x800 mm |
| Hood length | 750.0 mm |
| Effective Displacement | 280.0 mm (Hydraulic) |
| Packing sizes | 1650.0*1000.0*700.0 mm |
