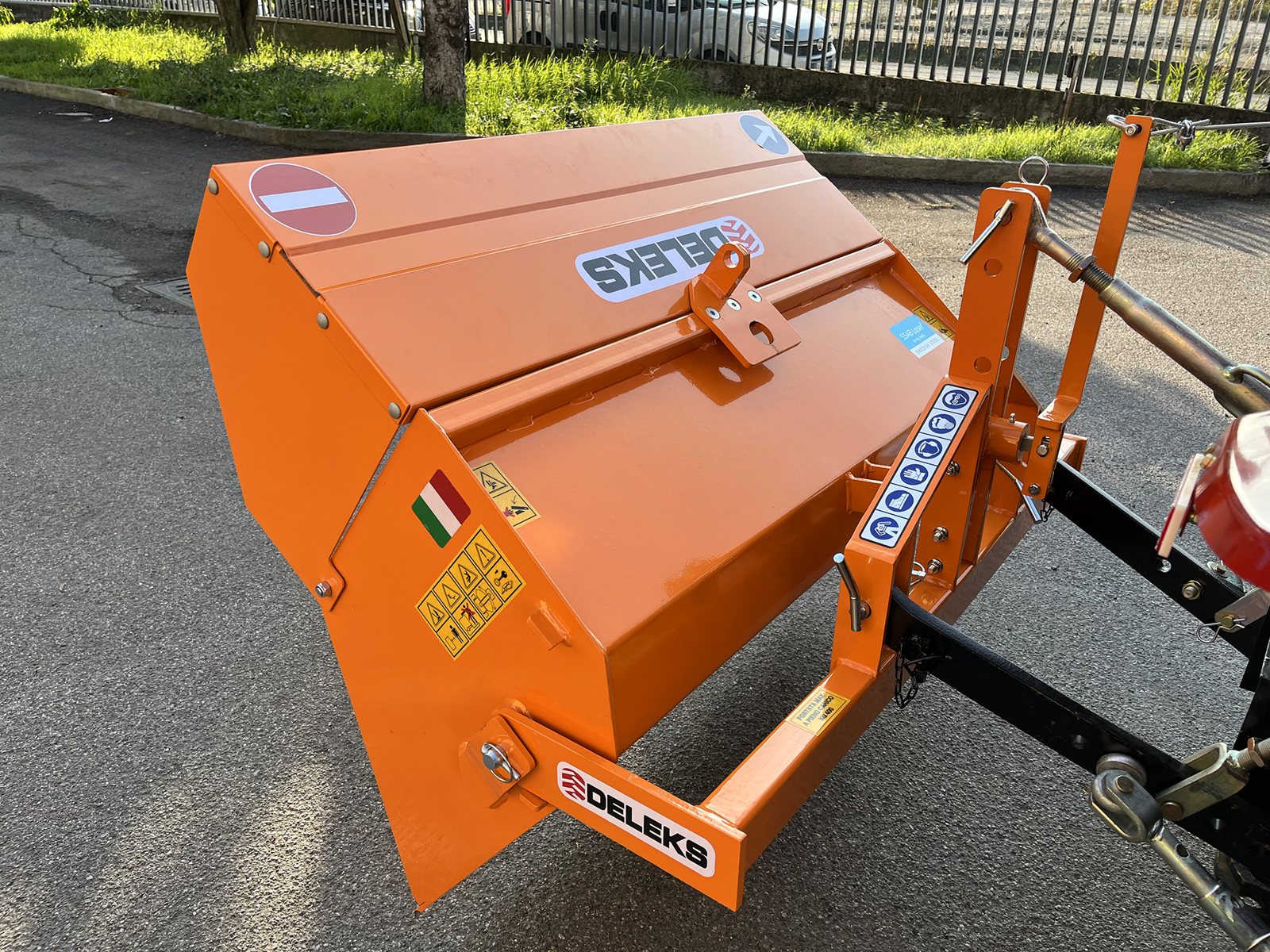

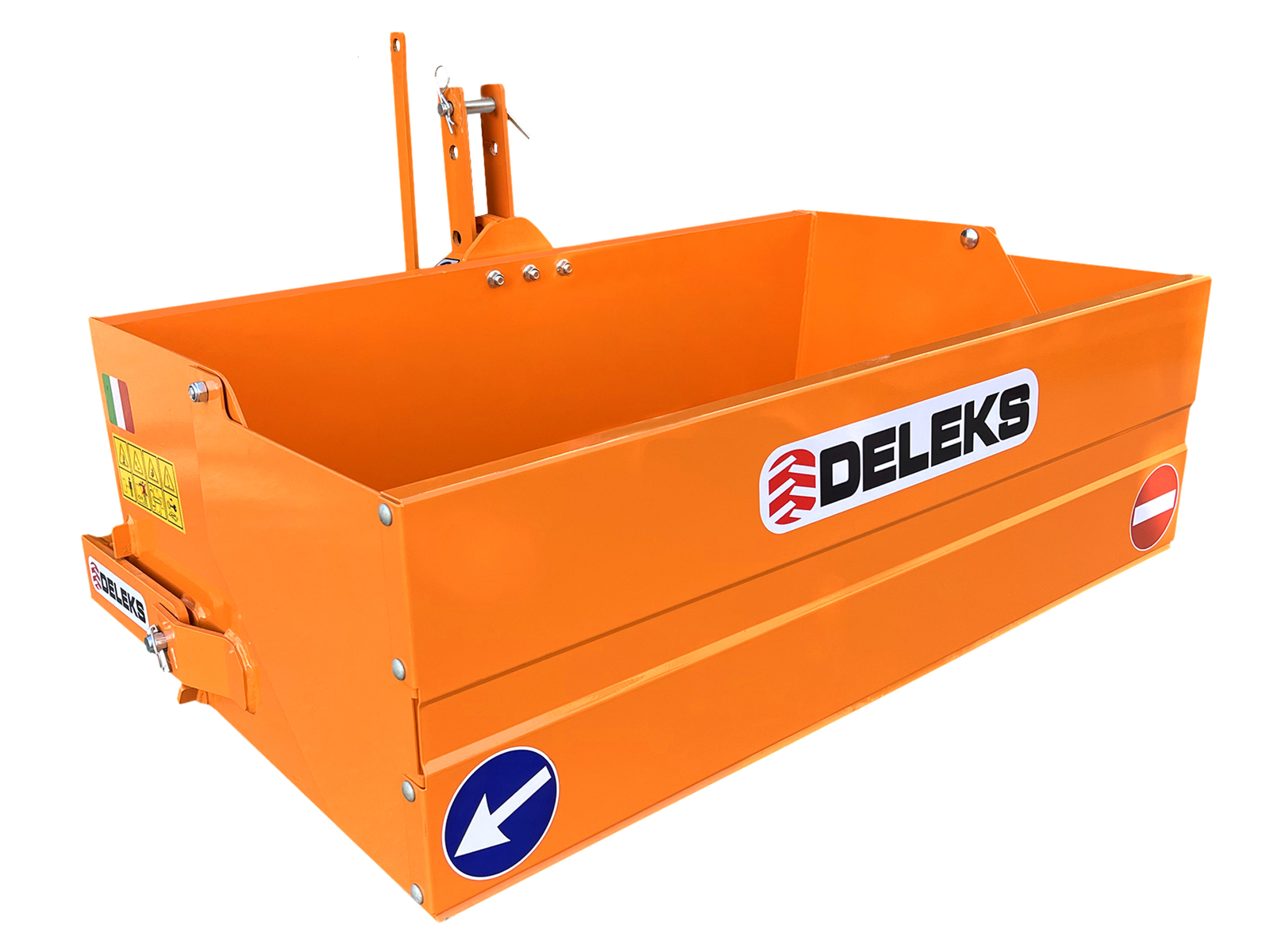

Tipping Transportbox 140cm in HARDOX & SSAB steel for tractor, with rear panel
DETAILS
Tipping Transportbox 140cm DELEKS® - max load 400kg, made by Hardox and SSAB steel, for compact tractors John Deere, New Holland, or Japanese tractors
OVERVIEW

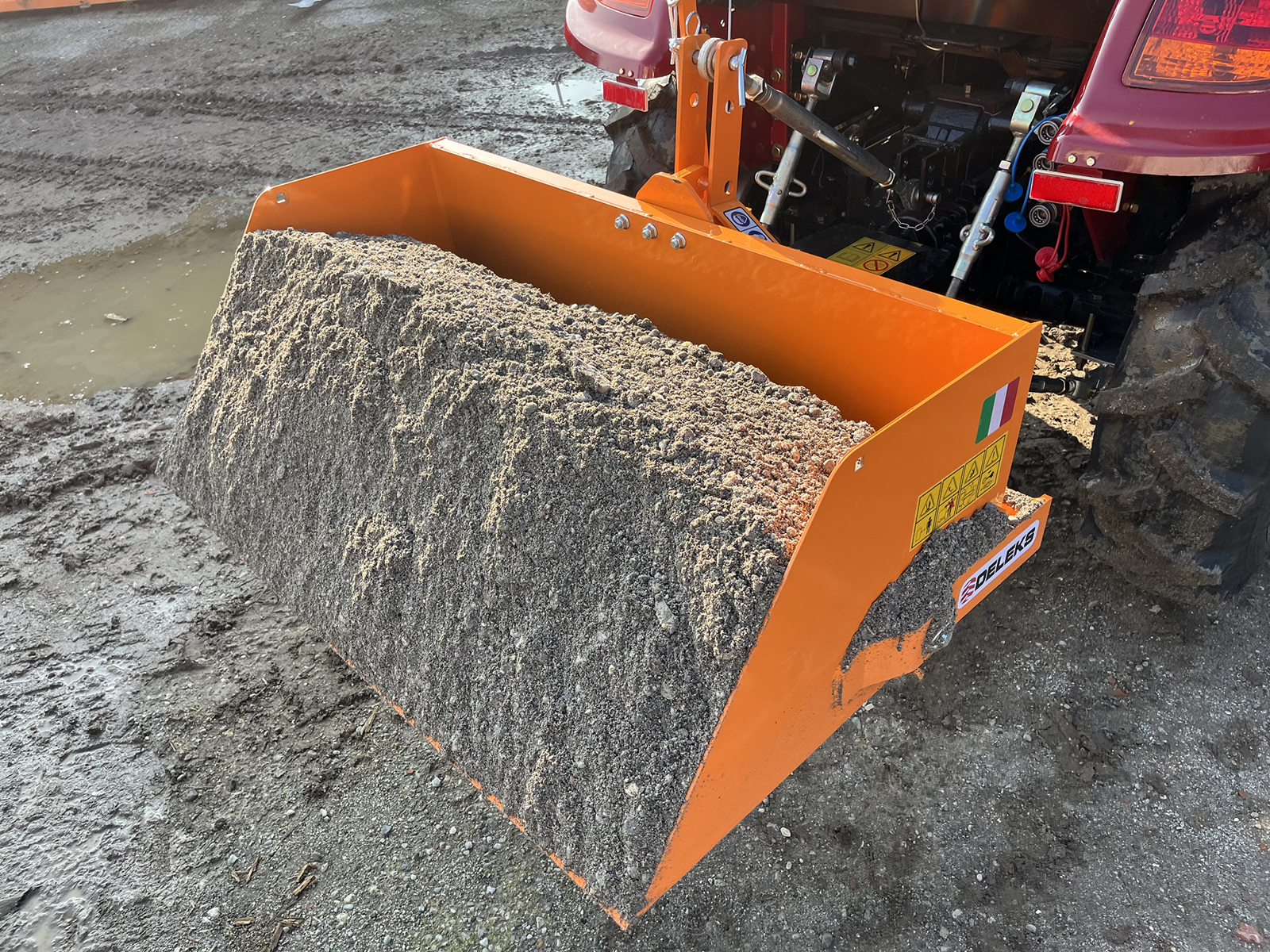

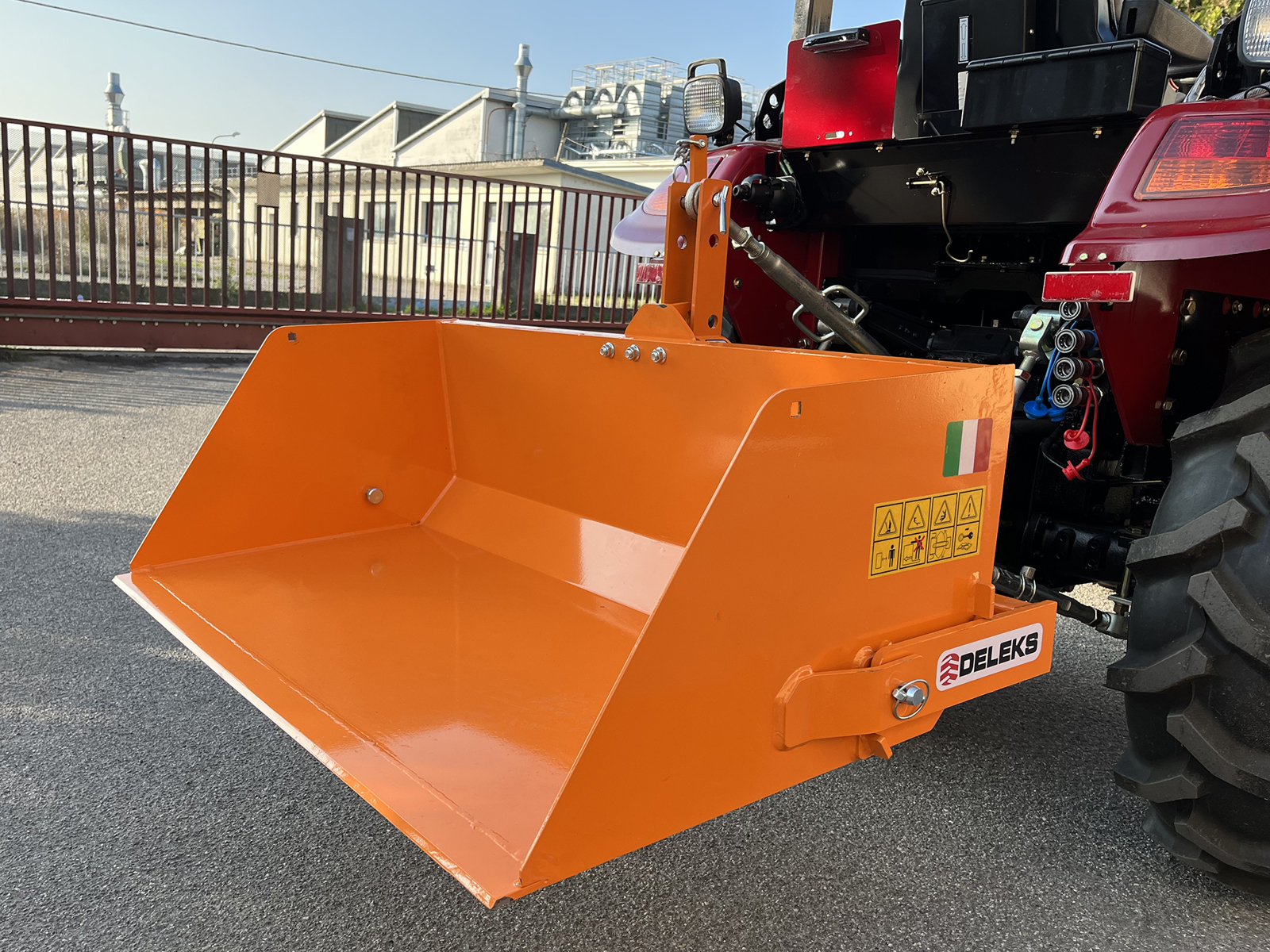

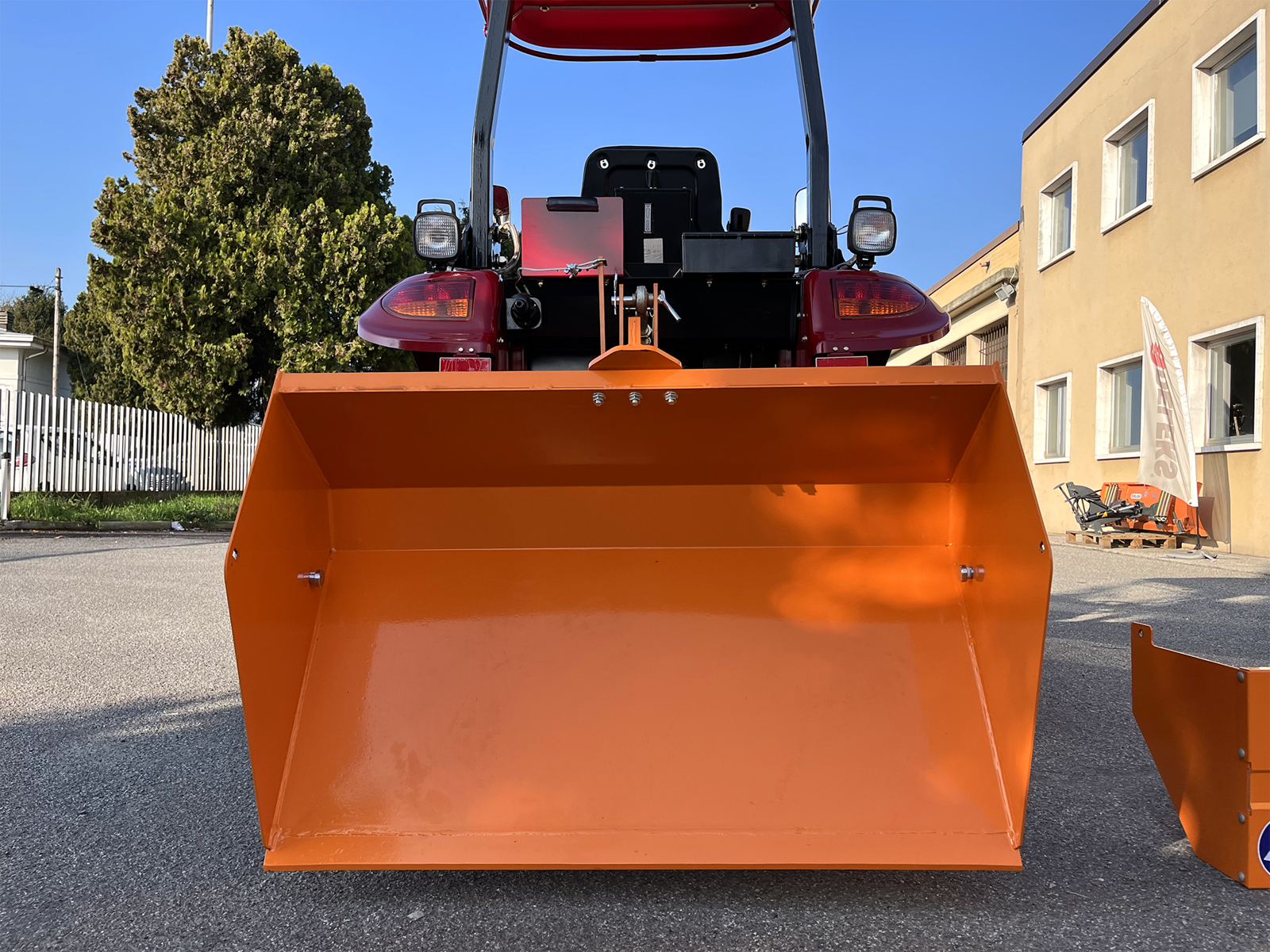

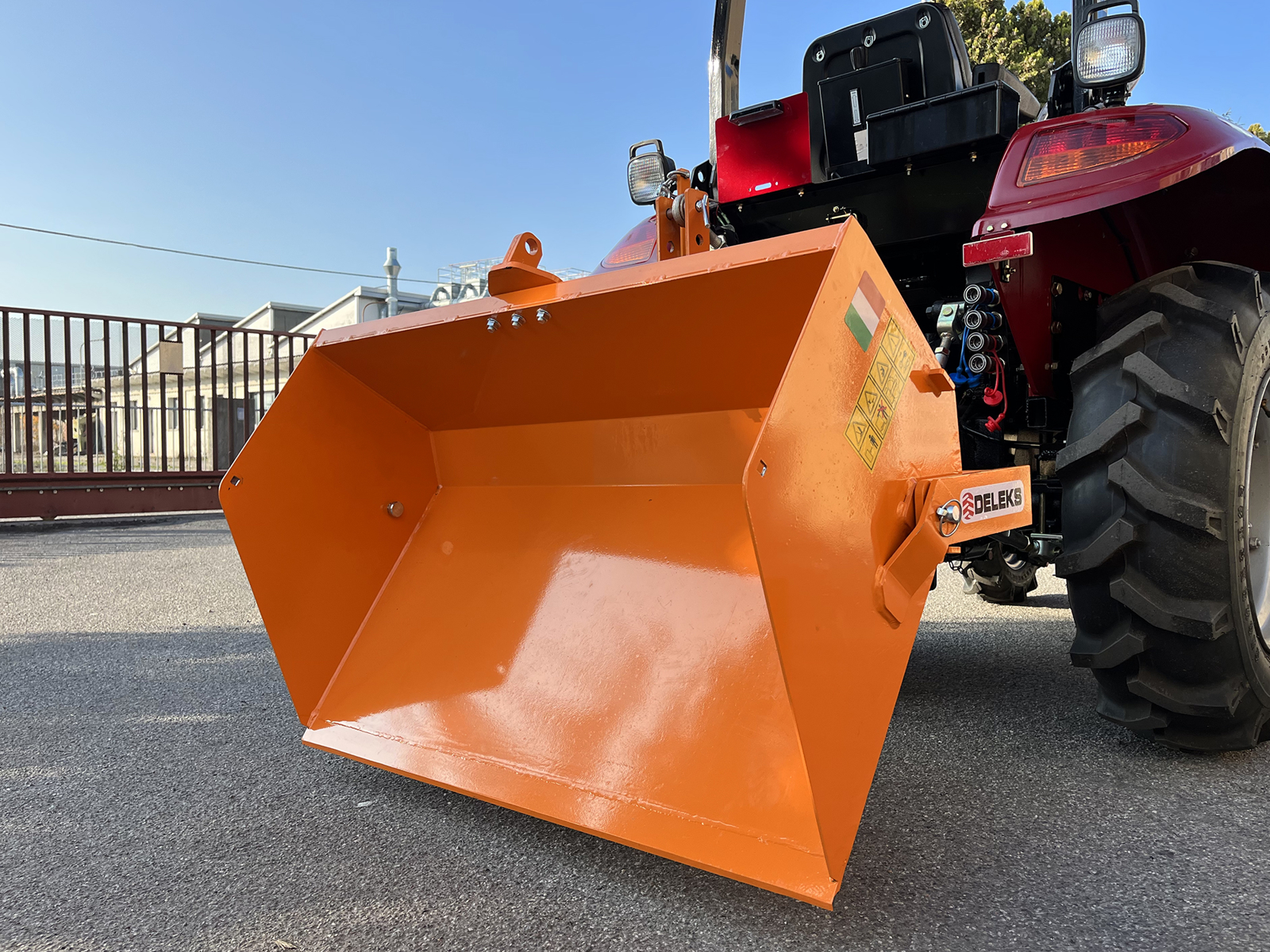

BUCKET-140 "Made in Italy" light multiple use transport box is made from reinforced steel so can handle loading and transporting everything from sand to snow and Ice. It can also be used for digging, leveling, grading and dumping a variety of applications and materials. Pull chord manual tipping. Suitable for 18-40HP tractors e.g New Holland Boomer 25-30 or TI13, John Deere 1-2 Series, or Japanese tractors e.g. Kubota B and BX, Iseki TM–TH, Yanmar, etc. EC Conformity, 2 Year warranty.
BENEFITS & FEATURES

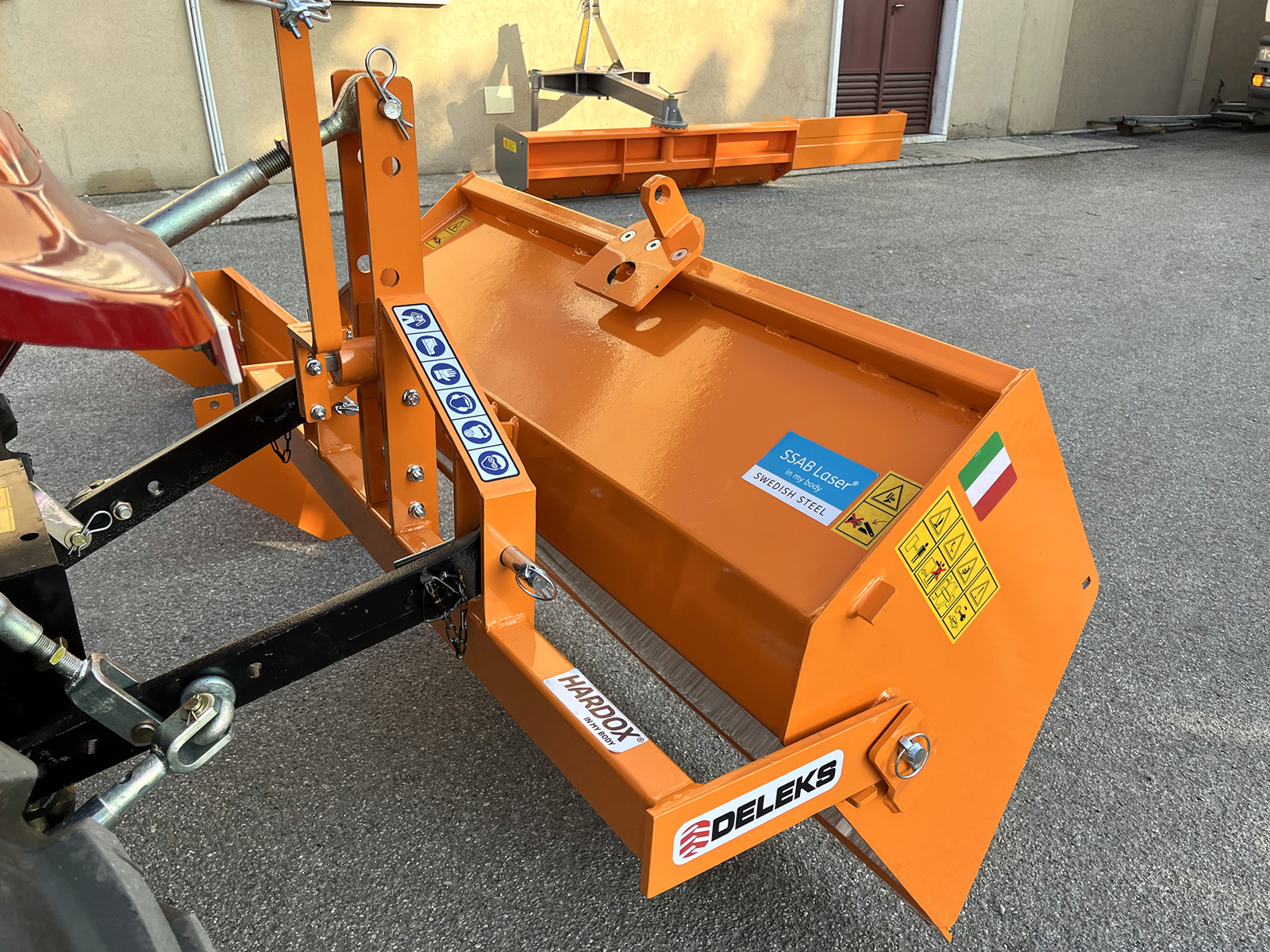

3 point linkage made by HARDOX
Bucket made by SSAB Swedish steel
Light but efficient design especially for small compact tractors.

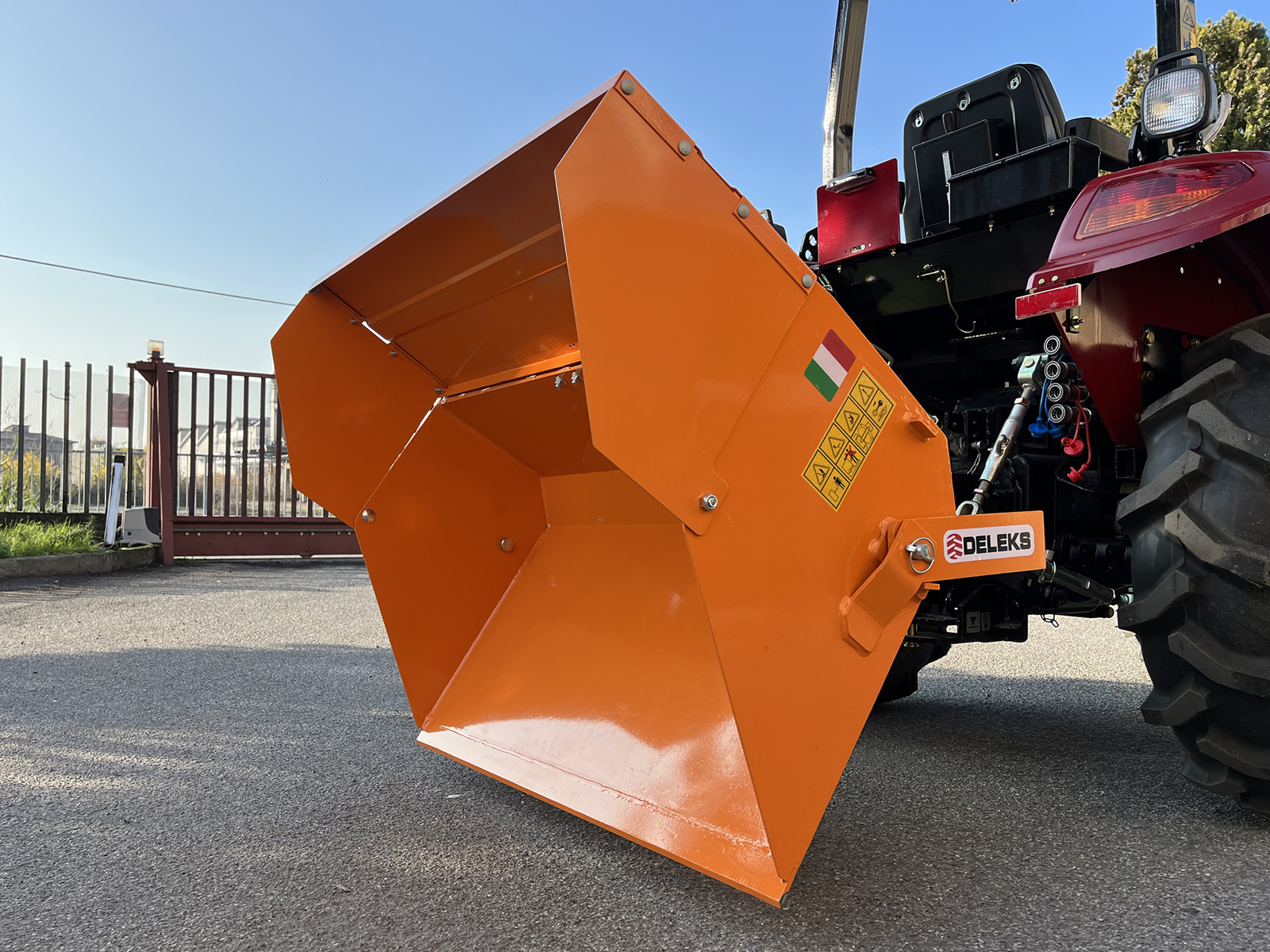

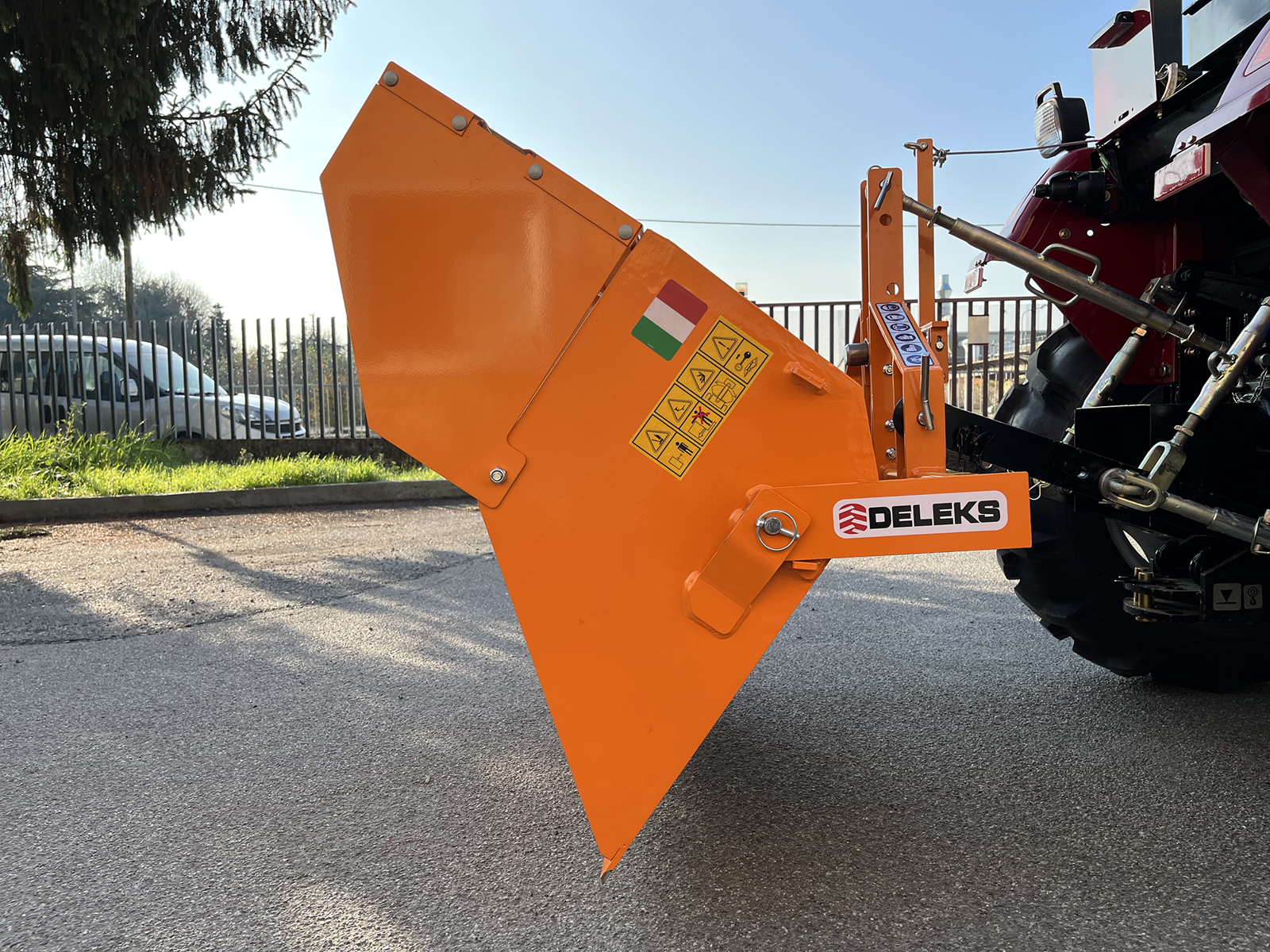

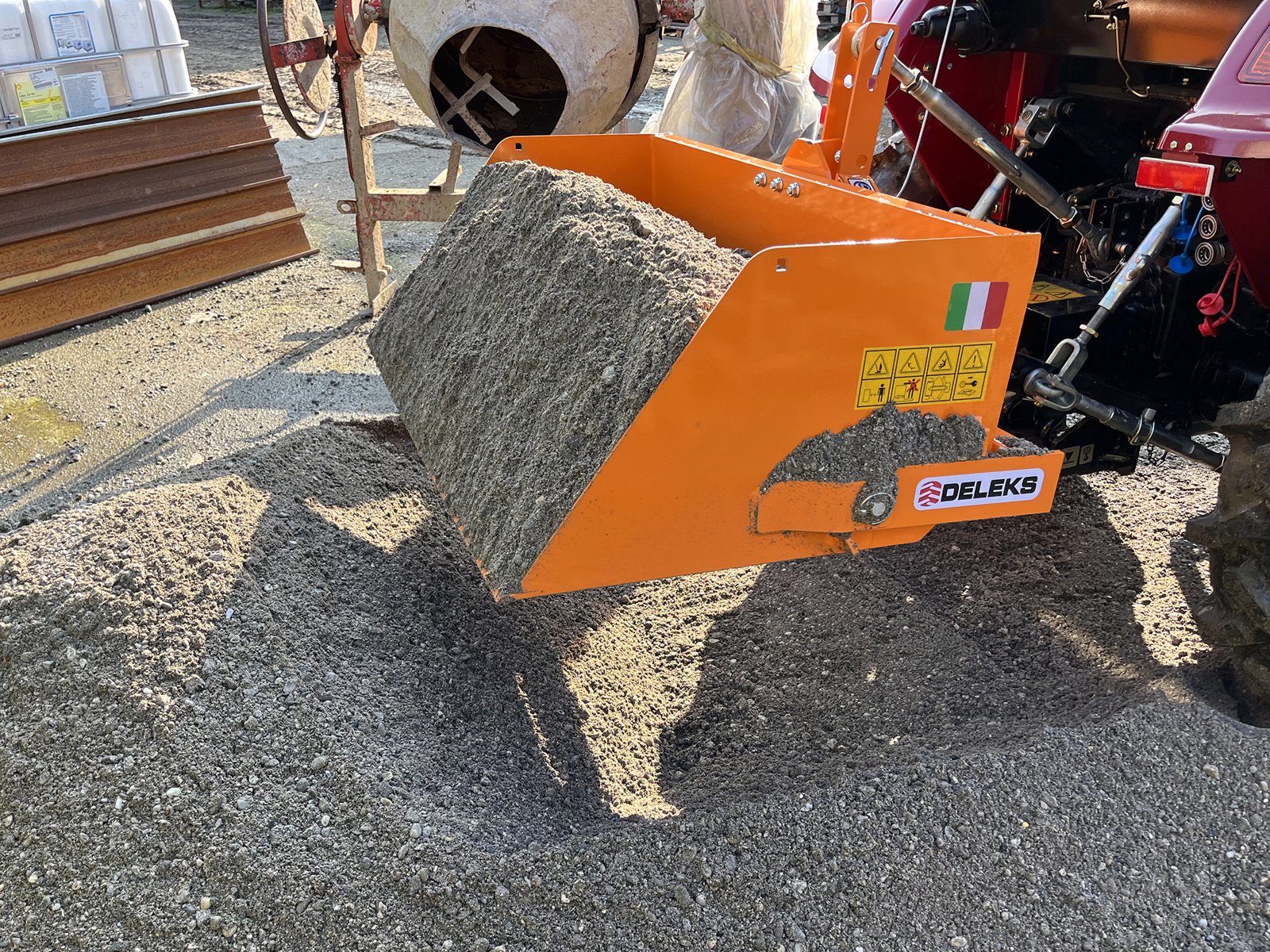

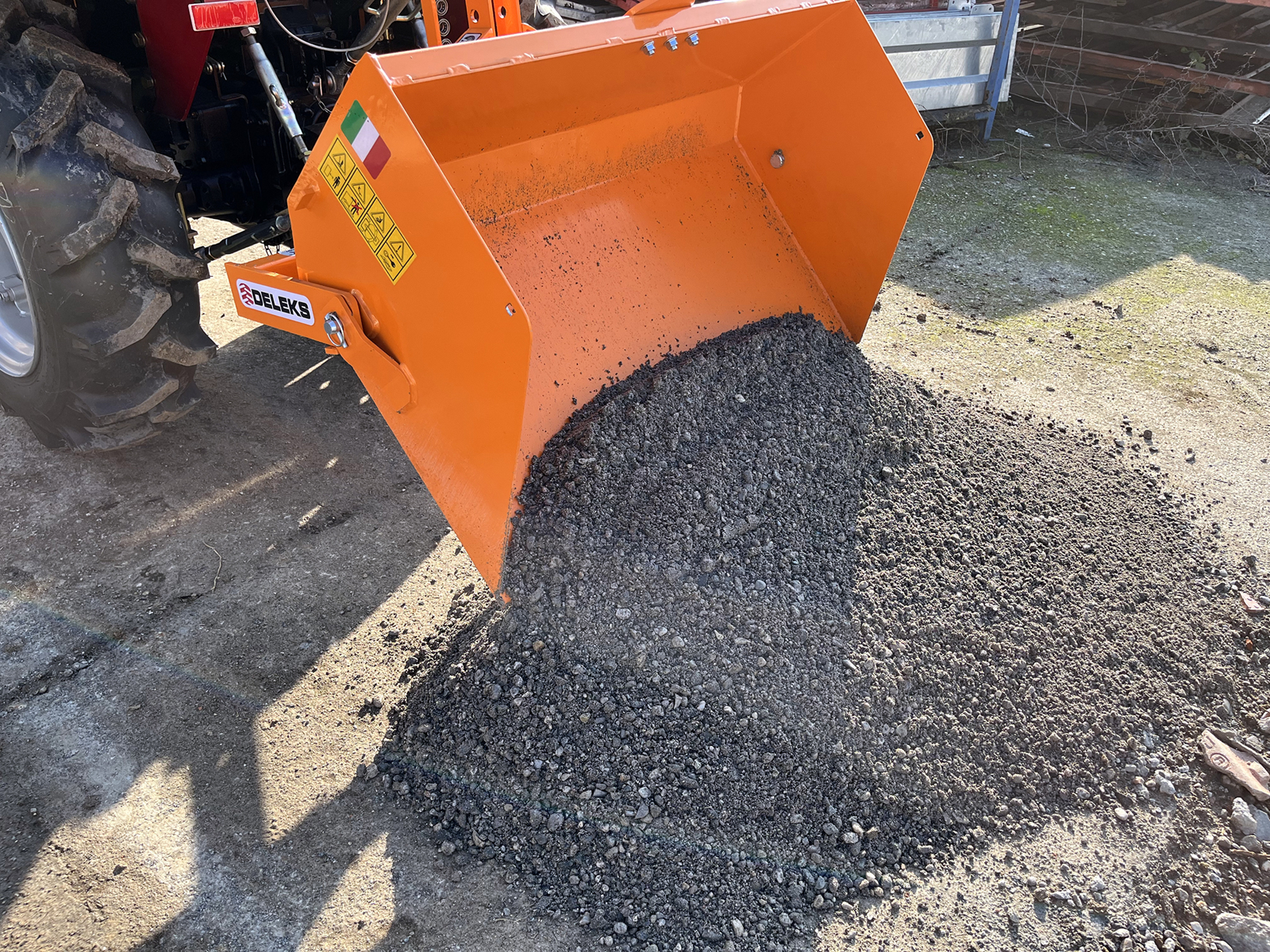

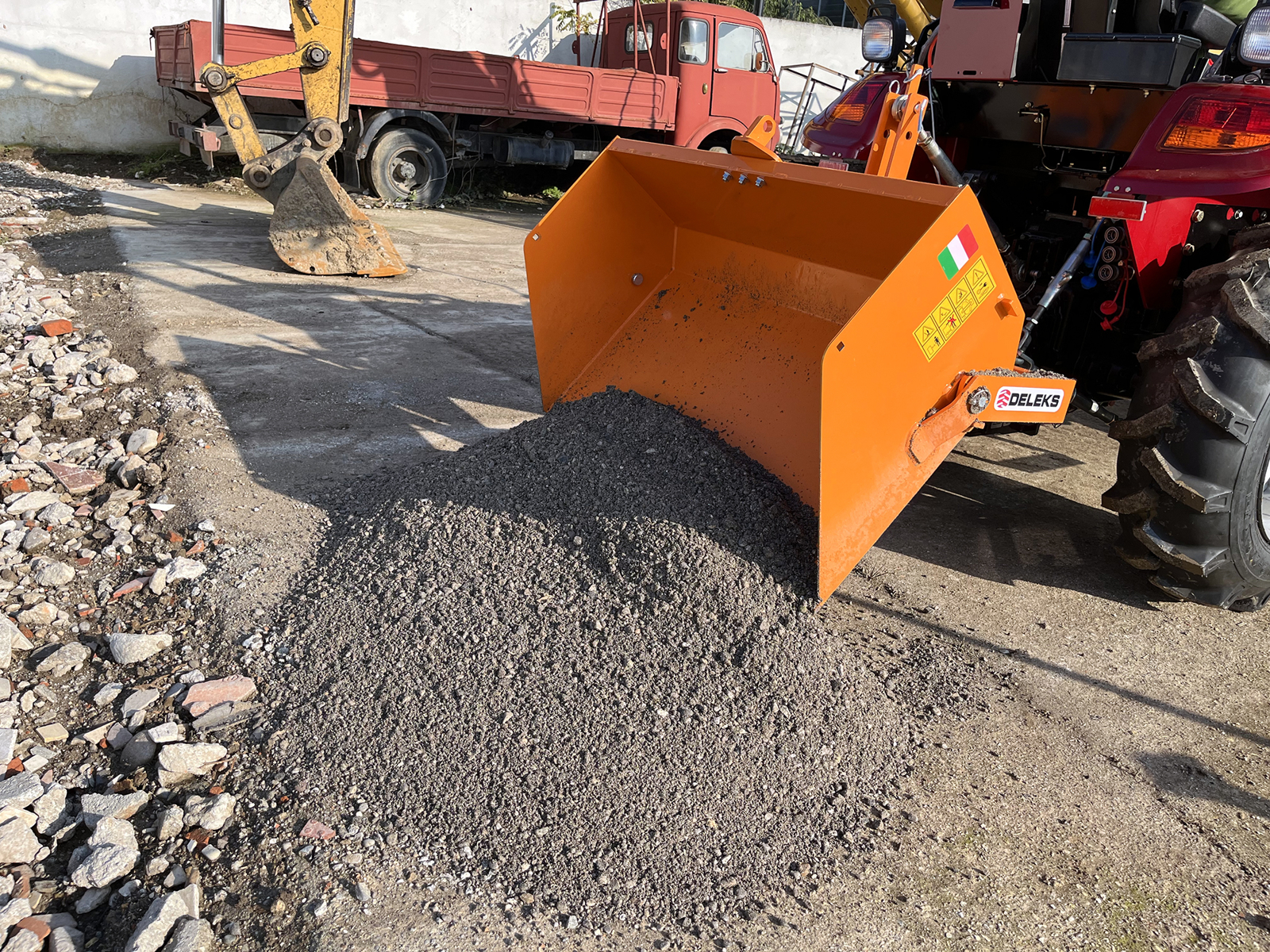

Effective pull-chord trip mechanism means seamless tipping and loading in one motion, ready for the next load.
8 mm HARDOX steel base and side cutting edges provide excellent penetration and durability.
DELEKS® innovative weight distribution design lifts the box for the middle rather than the rear decreasing stress placed on the box. It does not need to be lifted as high for goods to be tipped, simplifying the job and giving the box longevity.

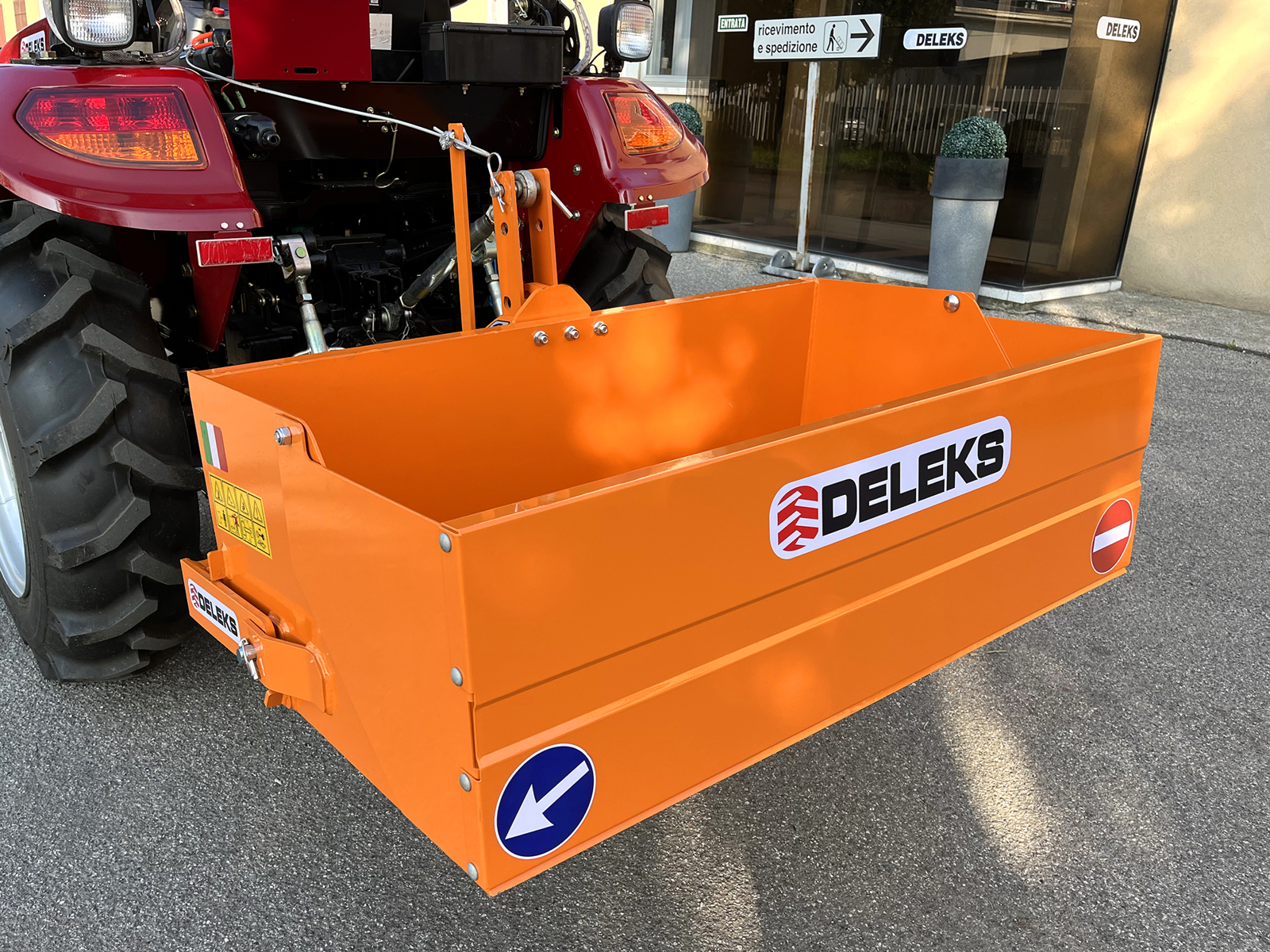

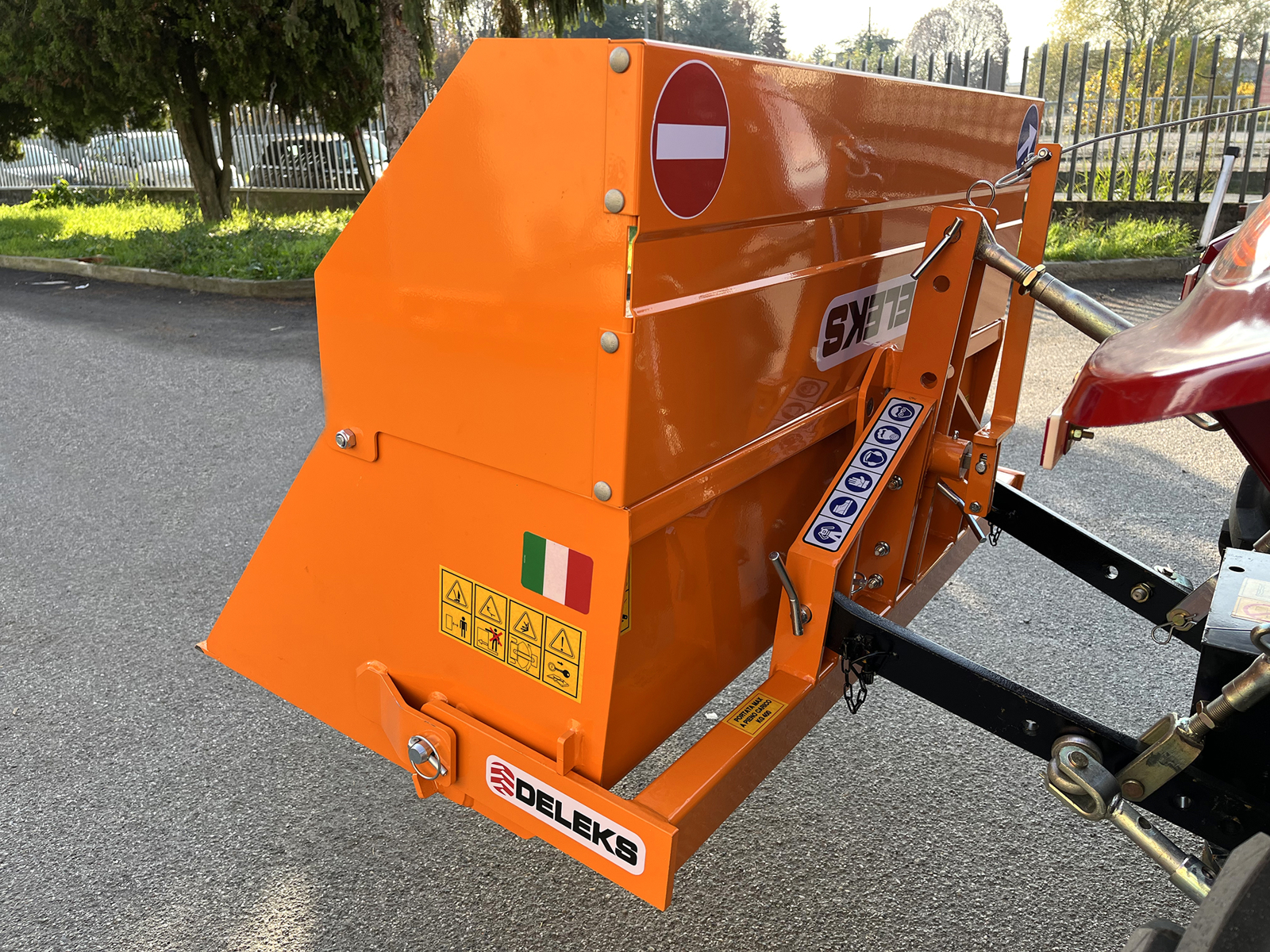

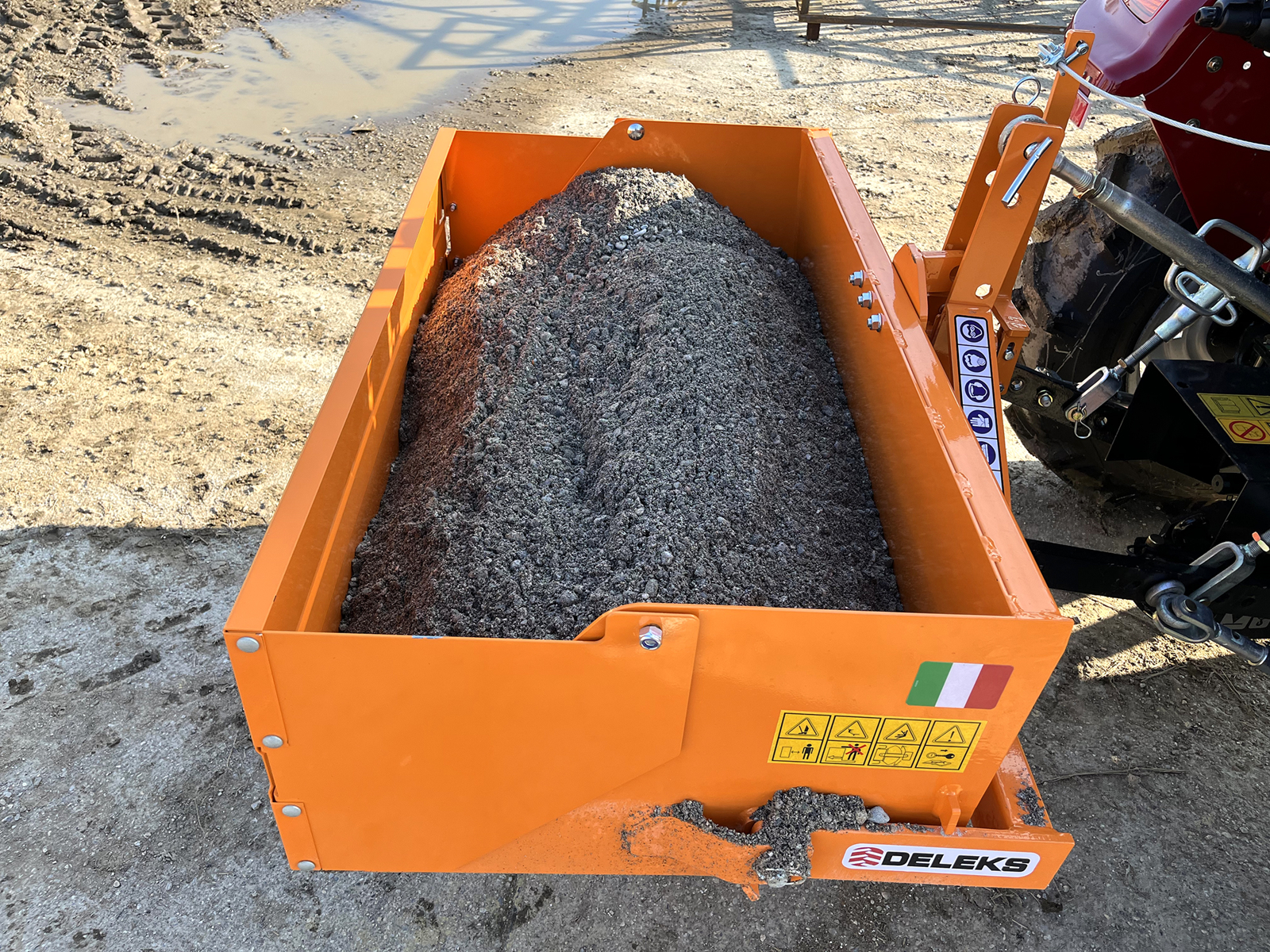

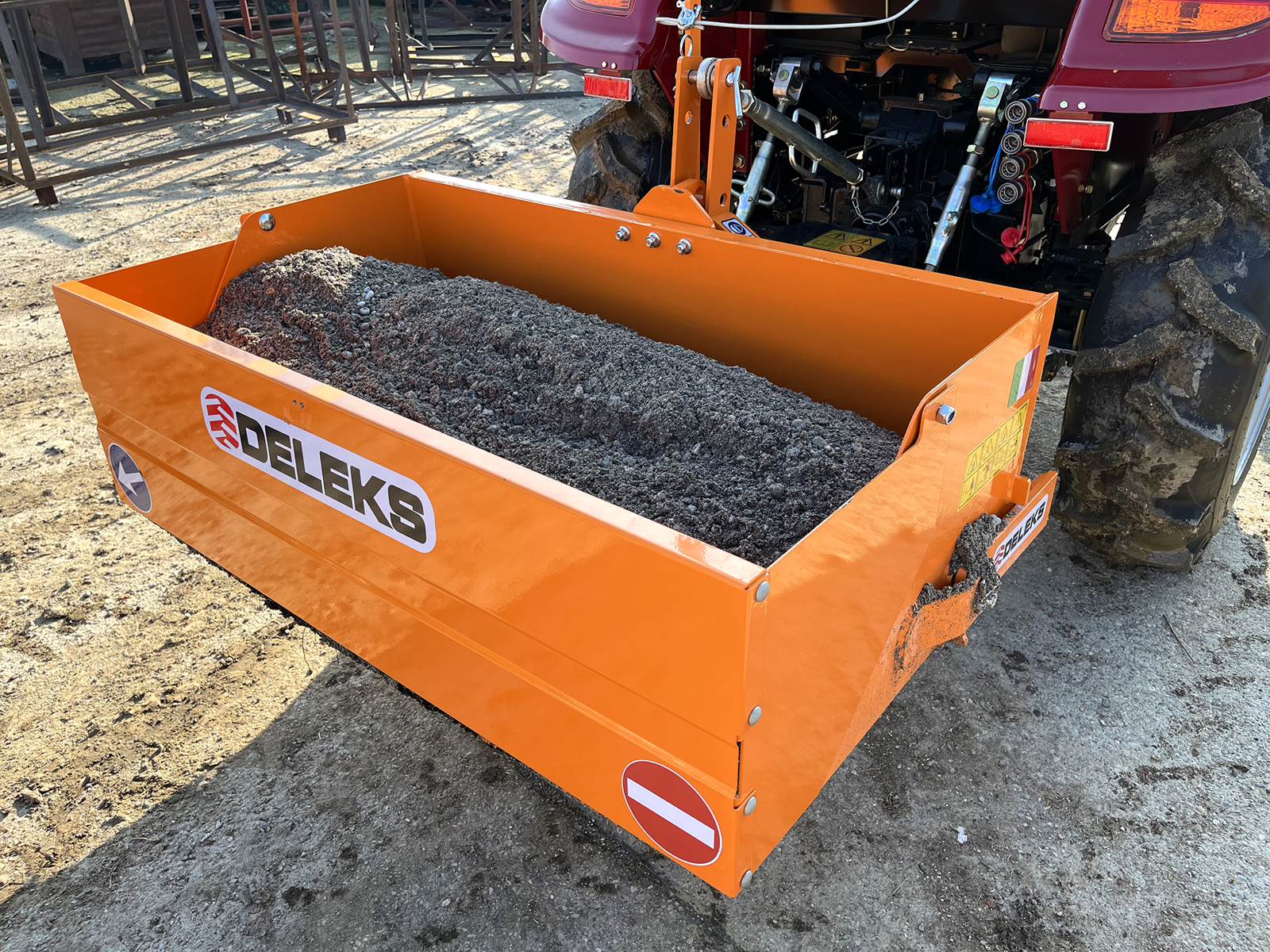

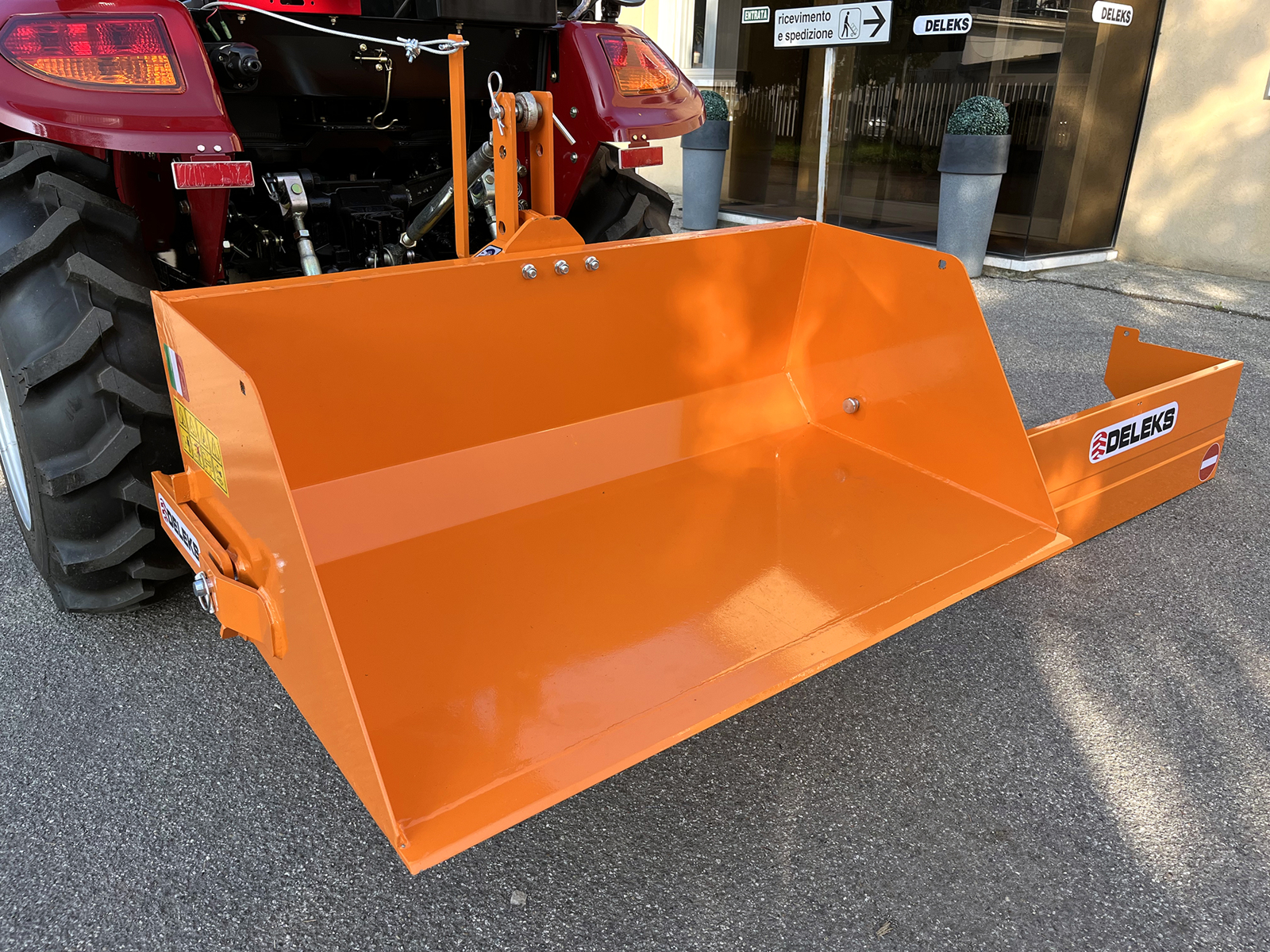

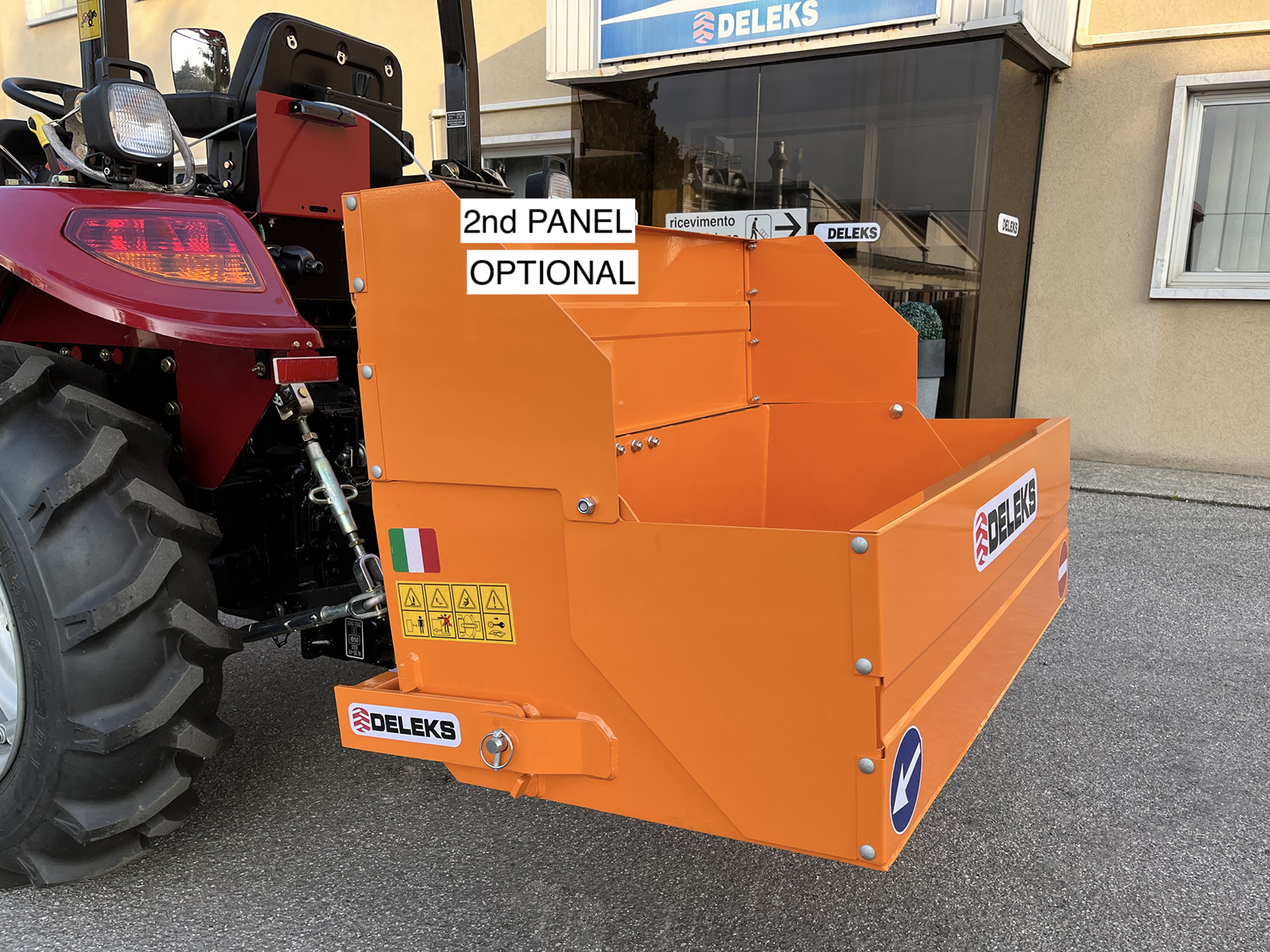

+ 30 to 50% increased load volume capacity with the rear panel.
CHARACTERISTICS

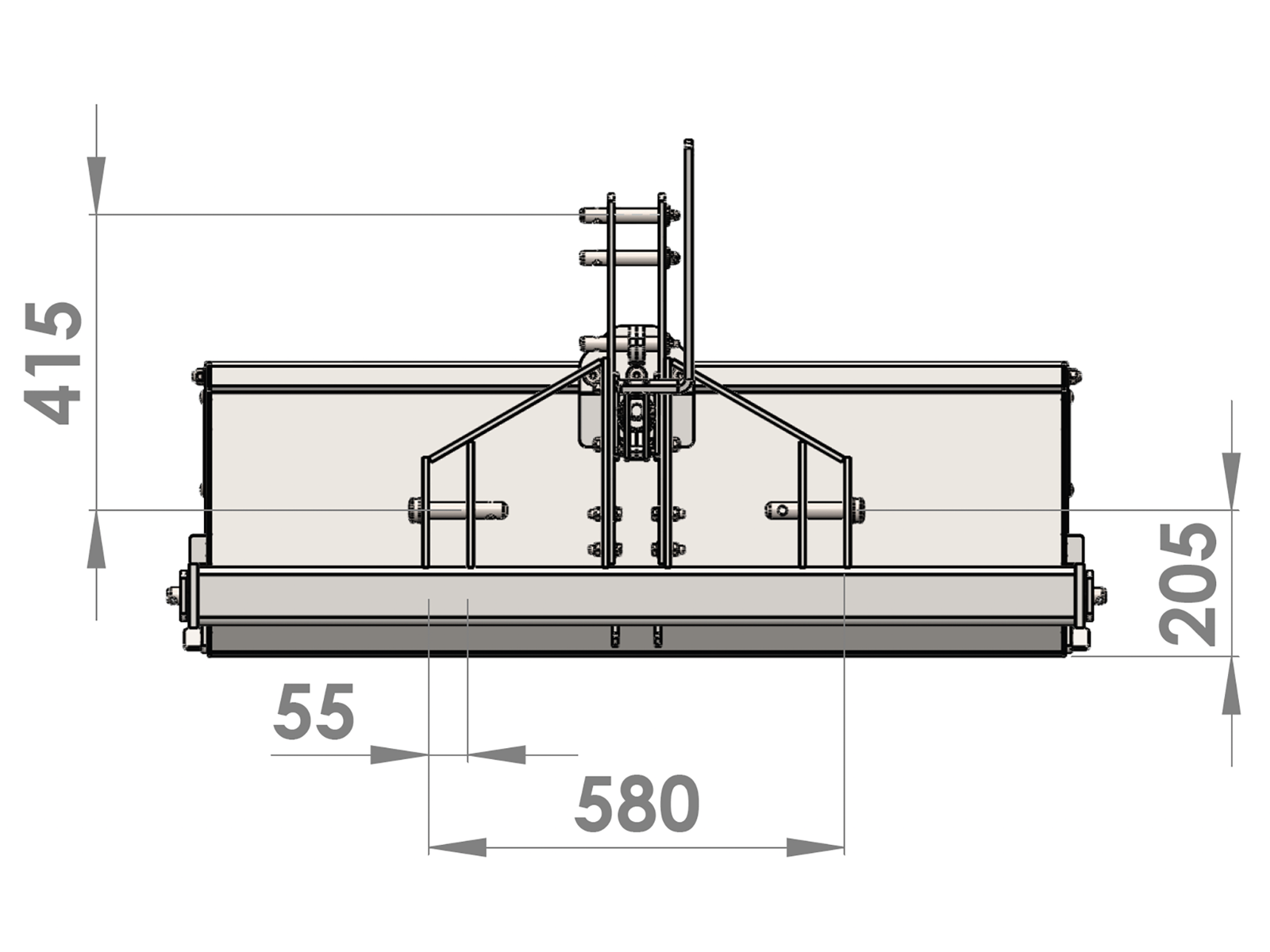

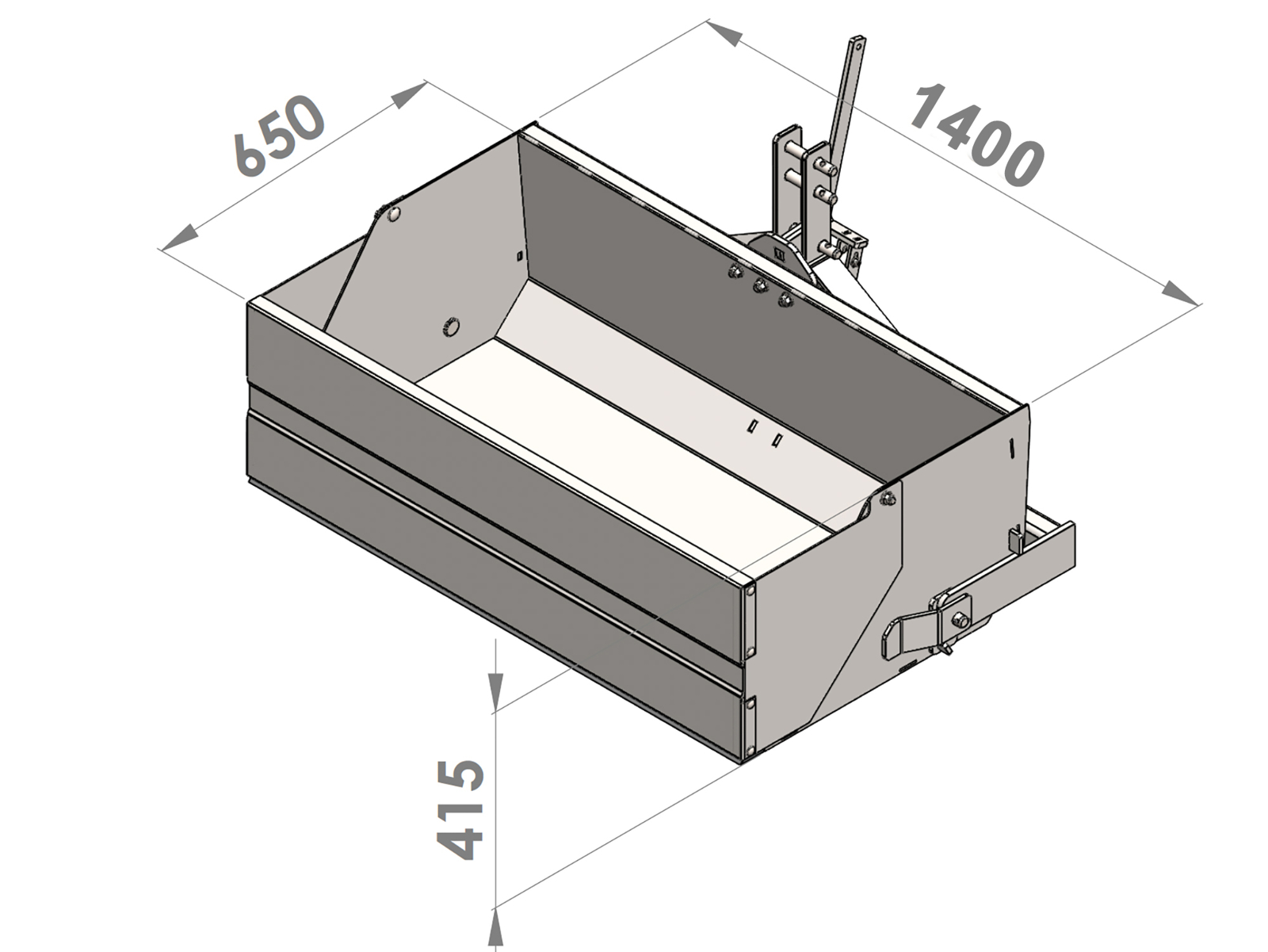

| Characteristic | Units metric |
|---|---|
| Overall width | 1480.0 mm |
| Weight | 125.0 kg |
| Overall height | 640.0 mm |
| Tractor Power Range | 18 - 40 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Bucket Width | 1400.0 mm |
| Load capacity | 400.0 Kg |
| Rated bucket Capacity | 0.38 m3 |
| Cutting Edge Thickness | 8.0 mm (SSAB) |
| Base Edge Thickness | 4.0 mm (SSAB) |
| Bucket Height | 415.0 mm |
| Bucket Length | 650.0 mm |
| Overall Length | 950.0 mm |
| 3 point linkage Thickness | 8.0 mm (HARDOX) |
| Spacing between the 2 lower points | 470.0 - 580.0 mm |
| Dumping | Manual |
| Tipping degrees | 80° |
| Packing sizes | 1500.0*800.0*550.0 mm |
DETAILS
CLOSETipping Transportbox 140cm DELEKS® - max load 400kg, made by Hardox and SSAB steel, for compact tractors John Deere, New Holland, or Japanese tractors
OVERVIEW
BUCKET-140 "Made in Italy" light multiple use transport box is made from reinforced steel so can handle loading and transporting everything from sand to snow and Ice. It can also be used for digging, leveling, grading and dumping a variety of applications and materials. Pull chord manual tipping. Suitable for 18-40HP tractors e.g New Holland Boomer 25-30 or TI13, John Deere 1-2 Series, or Japanese tractors e.g. Kubota B and BX, Iseki TM–TH, Yanmar, etc. EC Conformity, 2 Year warranty.
BENEFITS & FEATURES
3 point linkage made by HARDOX
Bucket made by SSAB Swedish steel
Light but efficient design especially for small compact tractors.
Effective pull-chord trip mechanism means seamless tipping and loading in one motion, ready for the next load.
8 mm HARDOX steel base and side cutting edges provide excellent penetration and durability.
DELEKS® innovative weight distribution design lifts the box for the middle rather than the rear decreasing stress placed on the box. It does not need to be lifted as high for goods to be tipped, simplifying the job and giving the box longevity.
+ 30 to 50% increased load volume capacity with the rear panel.
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Overall width | 1480.0 mm |
| Weight | 125.0 kg |
| Overall height | 640.0 mm |
| Tractor Power Range | 18 - 40 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Bucket Width | 1400.0 mm |
| Load capacity | 400.0 Kg |
| Rated bucket Capacity | 0.38 m3 |
| Cutting Edge Thickness | 8.0 mm (SSAB) |
| Base Edge Thickness | 4.0 mm (SSAB) |
| Bucket Height | 415.0 mm |
| Bucket Length | 650.0 mm |
| Overall Length | 950.0 mm |
| 3 point linkage Thickness | 8.0 mm (HARDOX) |
| Spacing between the 2 lower points | 470.0 - 580.0 mm |
| Dumping | Manual |
| Tipping degrees | 80° |
| Packing sizes | 1500.0*800.0*550.0 mm |
Certifications
CLOSE| SSAB Laser 355MC | Download PDF |
| HARDOX | Download PDF |
