Flail mower for mini diggers 100 cm (39 in) ARS-100, Made in Italy hydraulic flail head for 1 to 2 tonne mini excavators and tractor reach arms
DETAILS
Hydraulic flail mower for mini diggers with a 100 cm (39 in) cut, the DELEKS® ARS-100: the flail head with blades, Made in Italy and built by DELEKS, for 1 to 2 tonne mini excavators such as Kubota, Takeuchi, Yanmar, Caterpillar, JCB and DELEKS mini diggers, and for tractor-mounted reach arms. The Caproni hydraulic gear motor, designed for DELEKS flail heads, has 2 hoses: it needs no third case drain hose and runs on 20-22 l/min of oil. 5 mm Swedish SSAB steel frame, electronically balanced rotor in ARVEDI tube with 48 blades of 130 g (4.6 oz), HARDOX brackets and SKF bearings. It shreds grass, brambles, reeds, bushes and branches up to 2 cm (0.8 in) thick along ditches, banks, embankments and slopes; it weighs 100 kg (220 lb) and the cutting height adjusts from 20 to 80 mm (0.8 to 3.1 in). 2-year warranty and free delivery within the EU.
Which mini diggers it fits
The ARS-100 is built for 1 to 2 tonne mini diggers and mini excavators with an auxiliary hydraulic line: Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu and Yanmar, as well as DELEKS mini diggers. With a 100 cm (39 in) cut and an overall width of 130 cm (51.2 in) it weighs 100 kg (220 lb). Always check the weight of the head against the lifting capacity of the arm at full reach. The same series also includes the ARS-60 (60 cm, 76 kg) and the ARS-80 (80 cm, 87 kg): on the same excavator, a narrower head weighs less and is easier to handle with the arm fully extended. The ARS-100 needs 20-22 l/min of oil, less than the AR series, and no case drain line. It also fits tractor-mounted reach arms that deliver 20-22 l/min of oil.

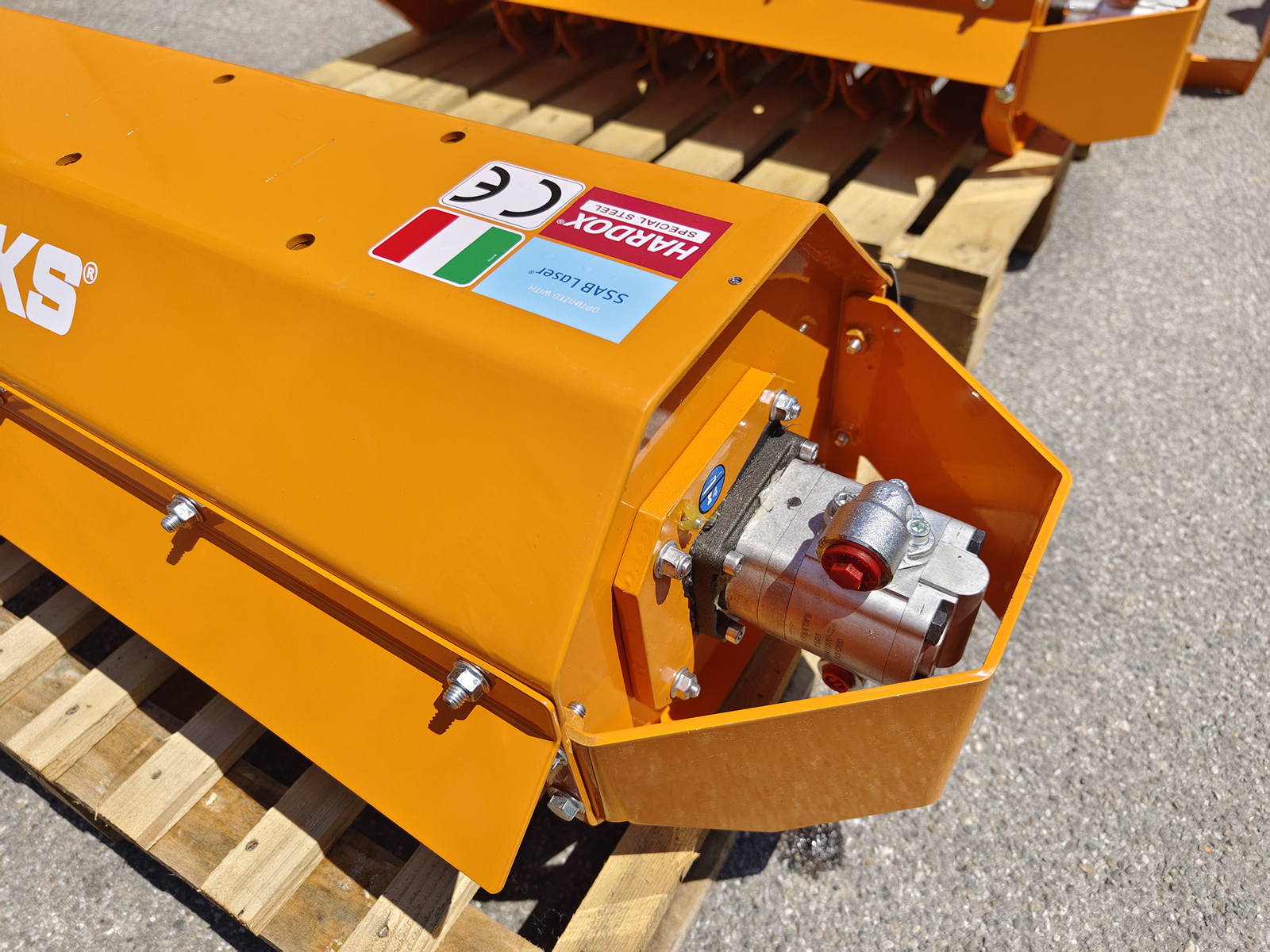

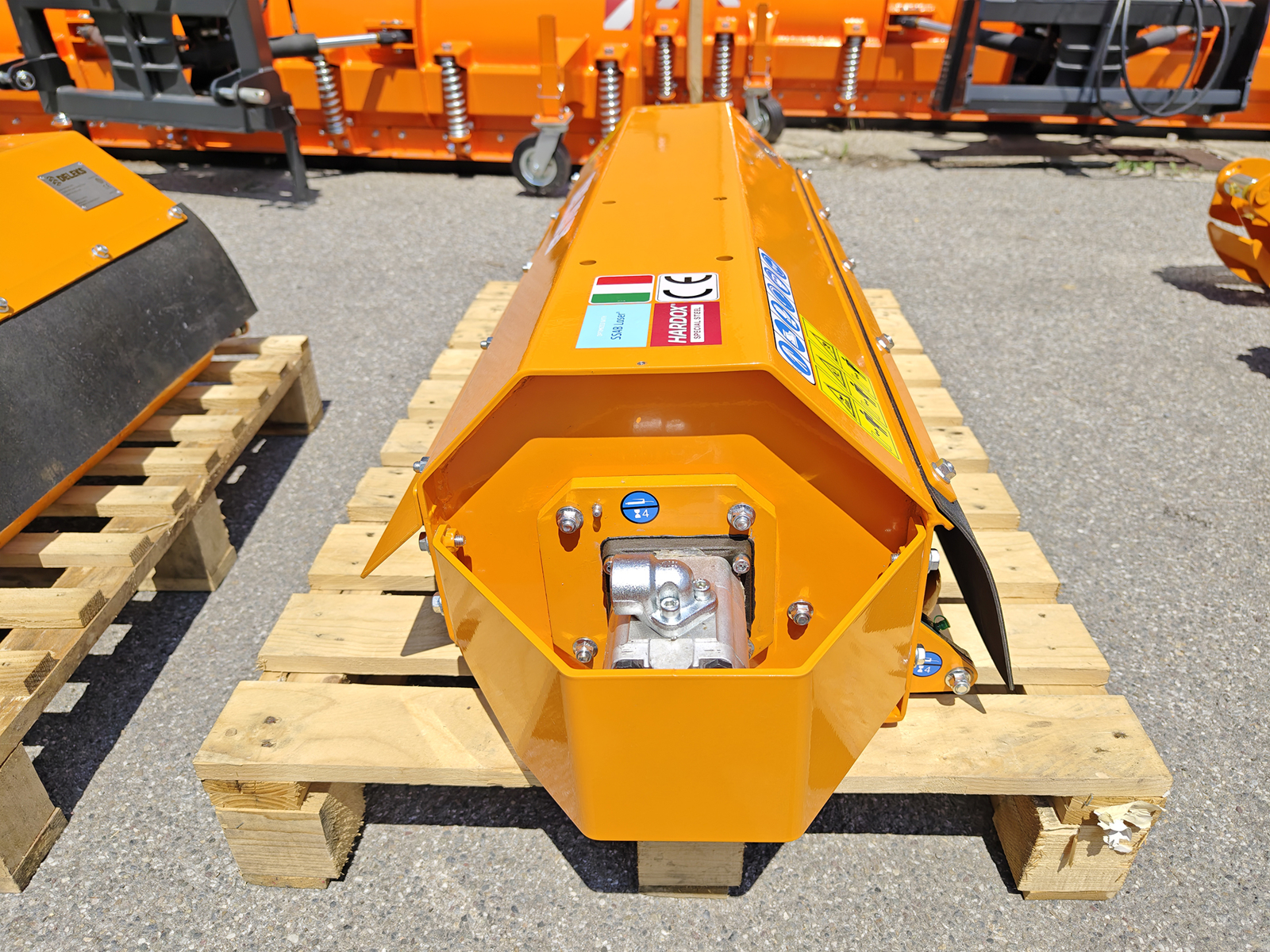

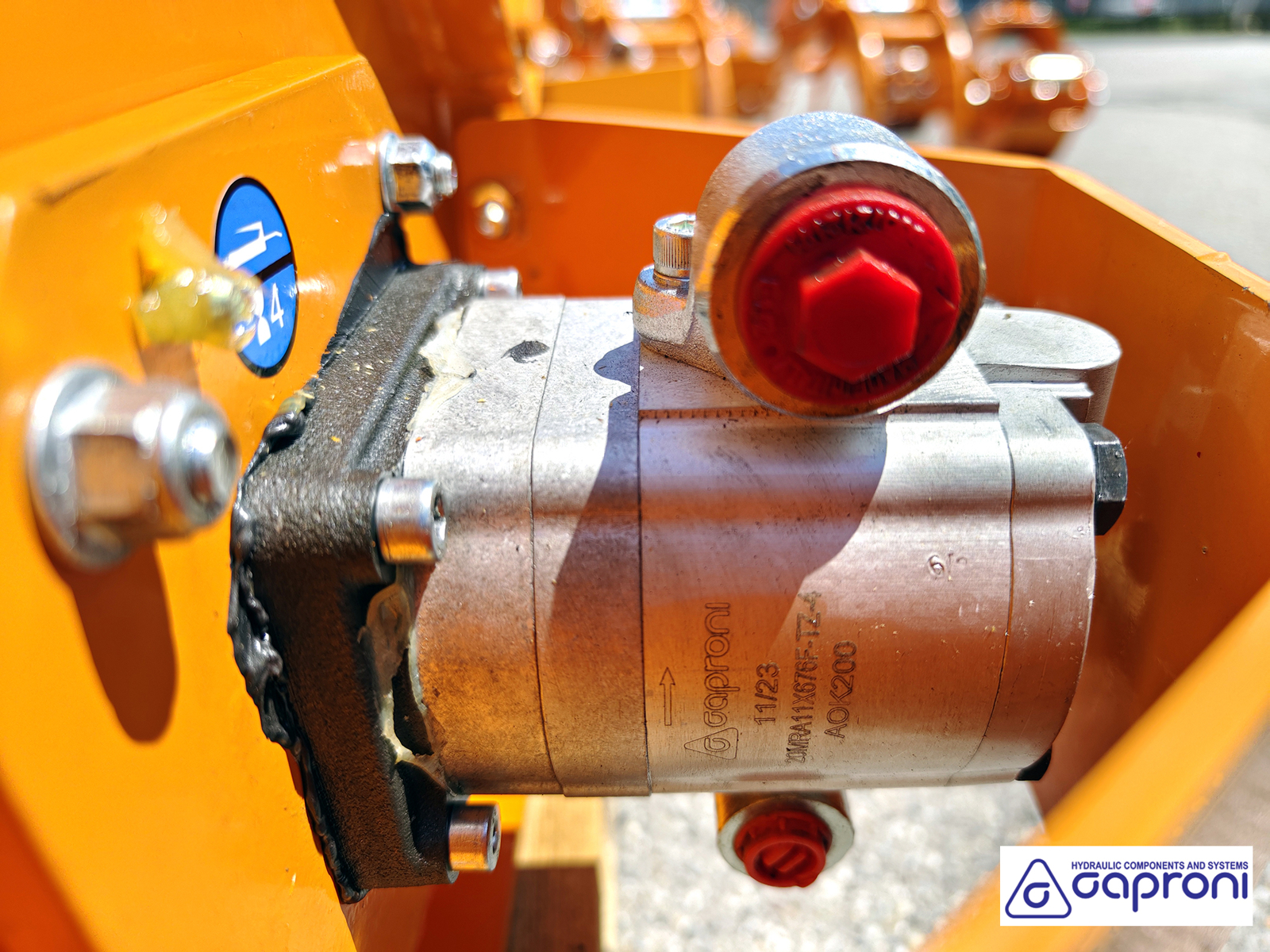

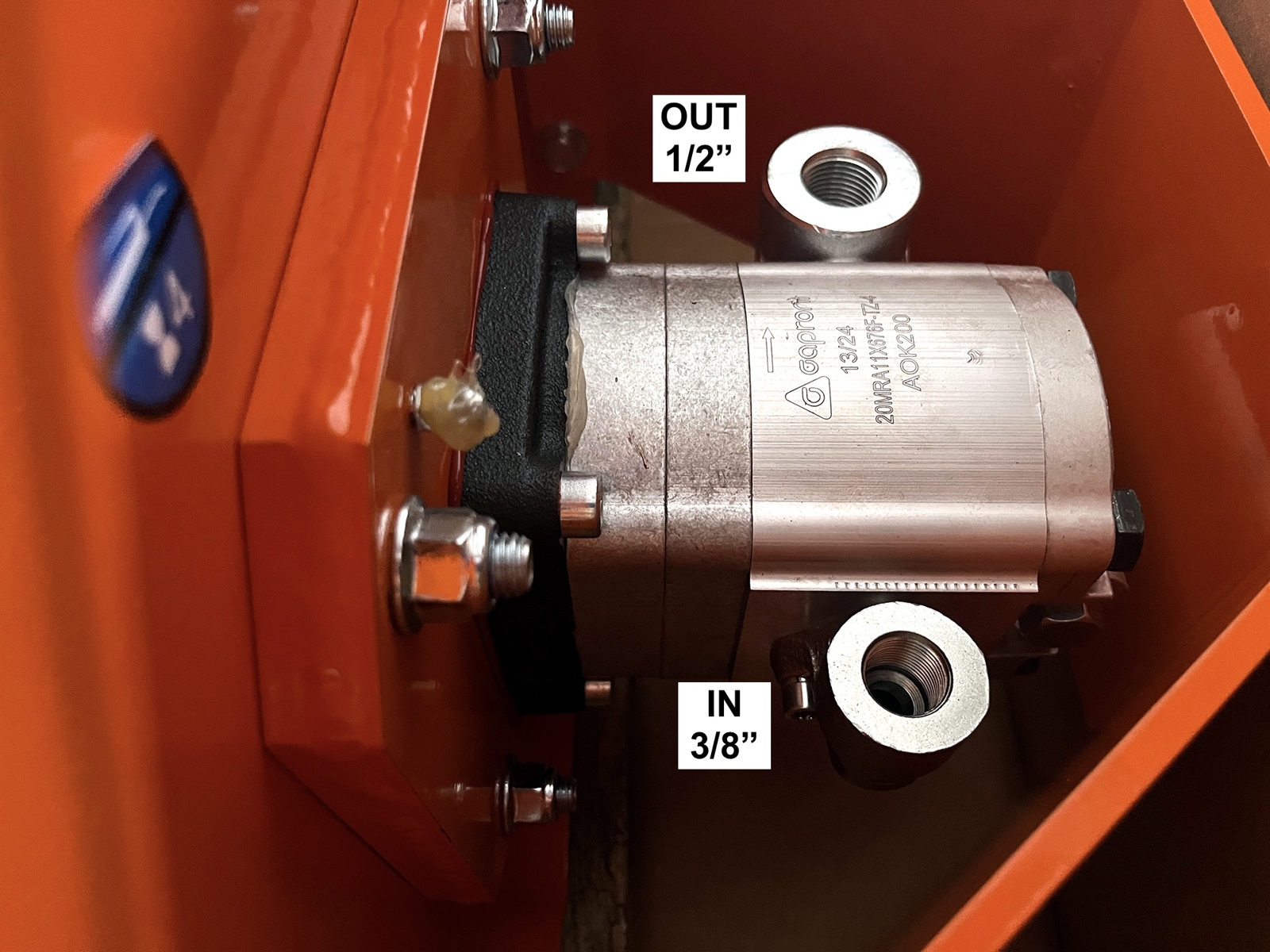

2-hose Caproni motor, no case drain
The Caproni hydraulic gear motor is designed specifically for DELEKS flail heads. It is single-direction and has 2 hoses: it connects to the auxiliary line with feed and return and needs no third case drain hose. It has a support bearing on the shaft, a reinforced oil seal and a built-in pressure relief valve. It runs on an oil flow of 20-22 l/min (4.4-4.8 UK gal/min) and a working pressure of 200 bar (2,900 psi), with a maximum of 220 bar (3,190 psi). Ideally the excavator has two pumps, one for travel and one for the auxiliary services. Technical data and drawings are among the attachments on this page.

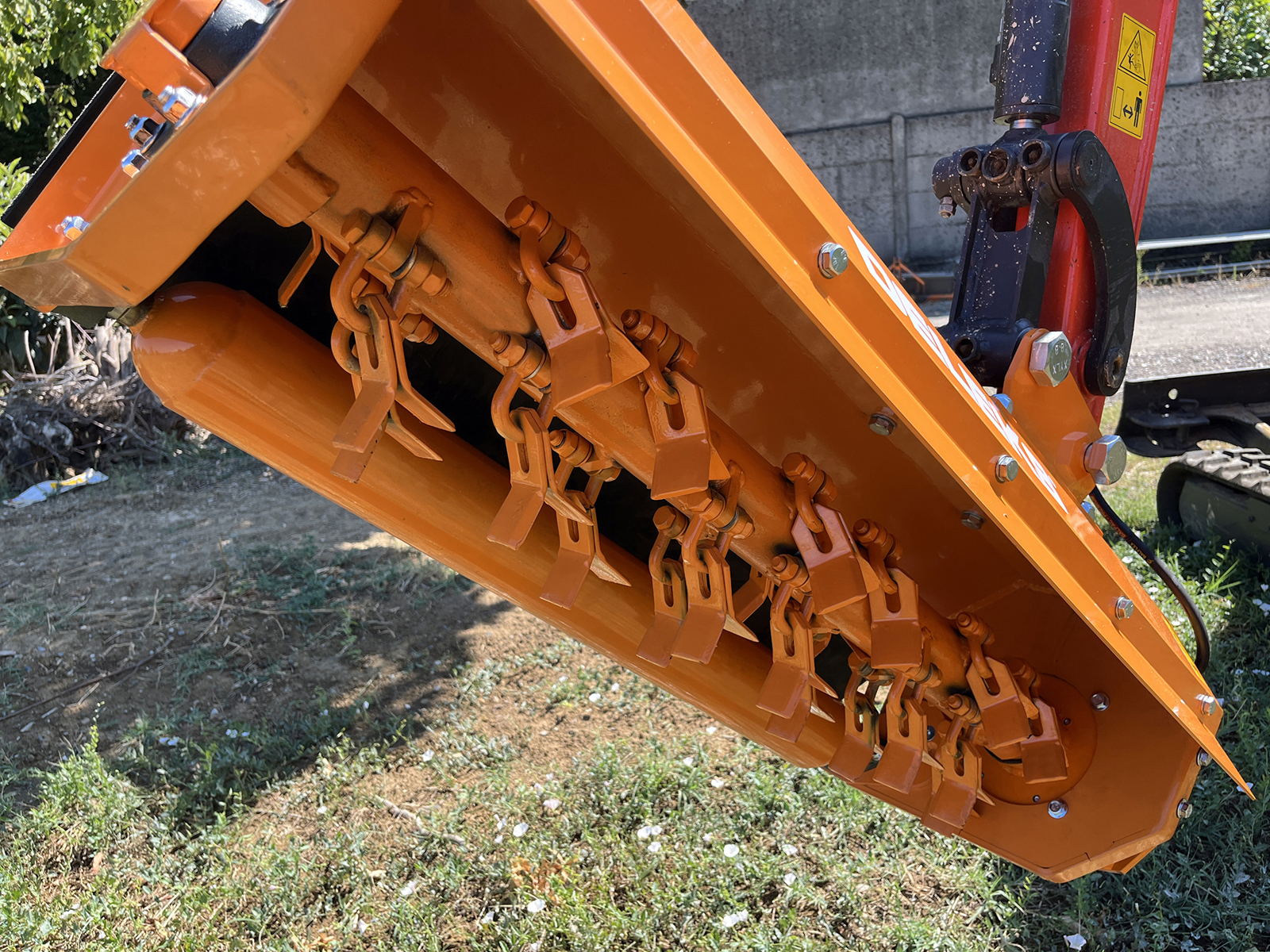

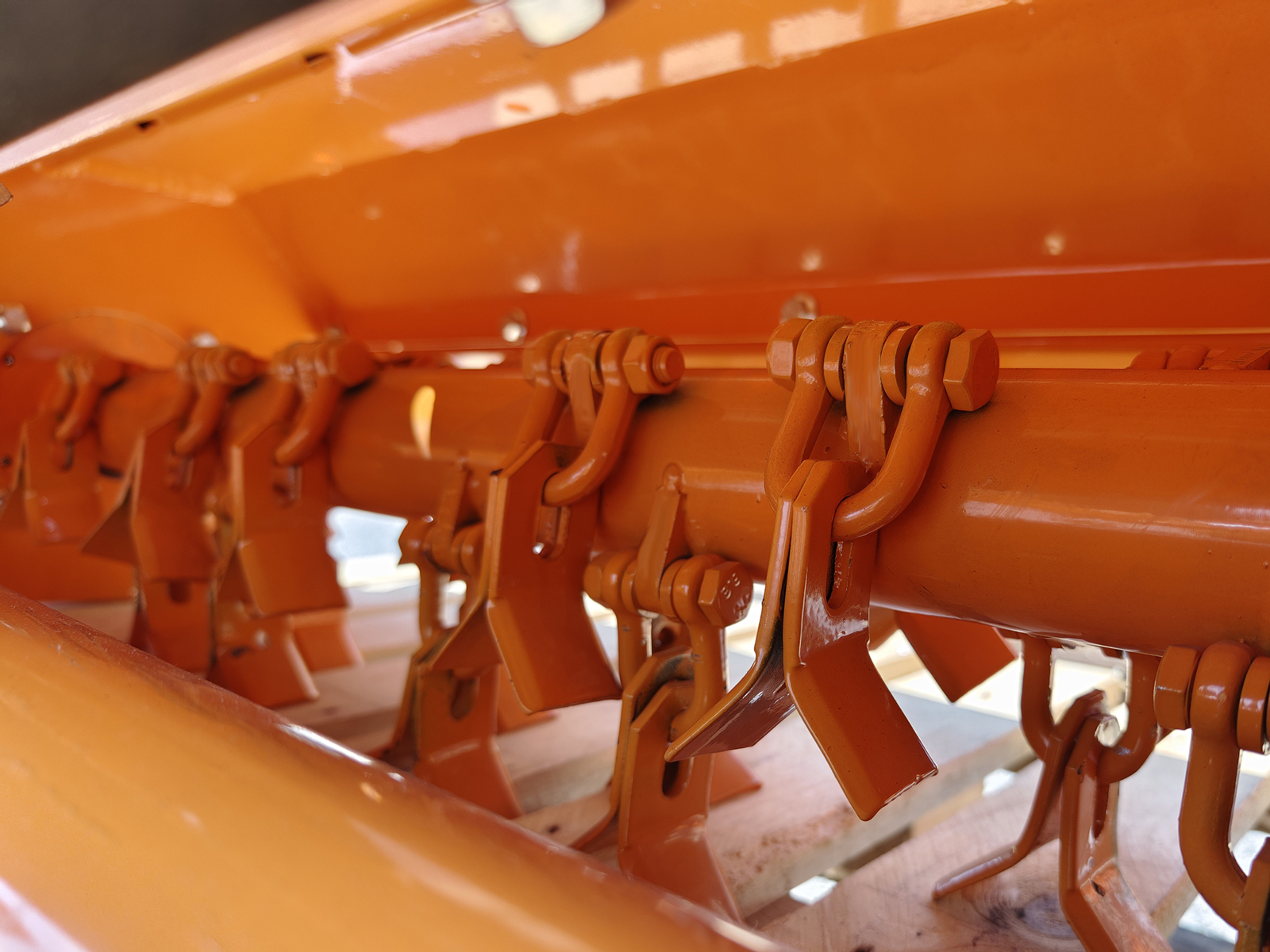

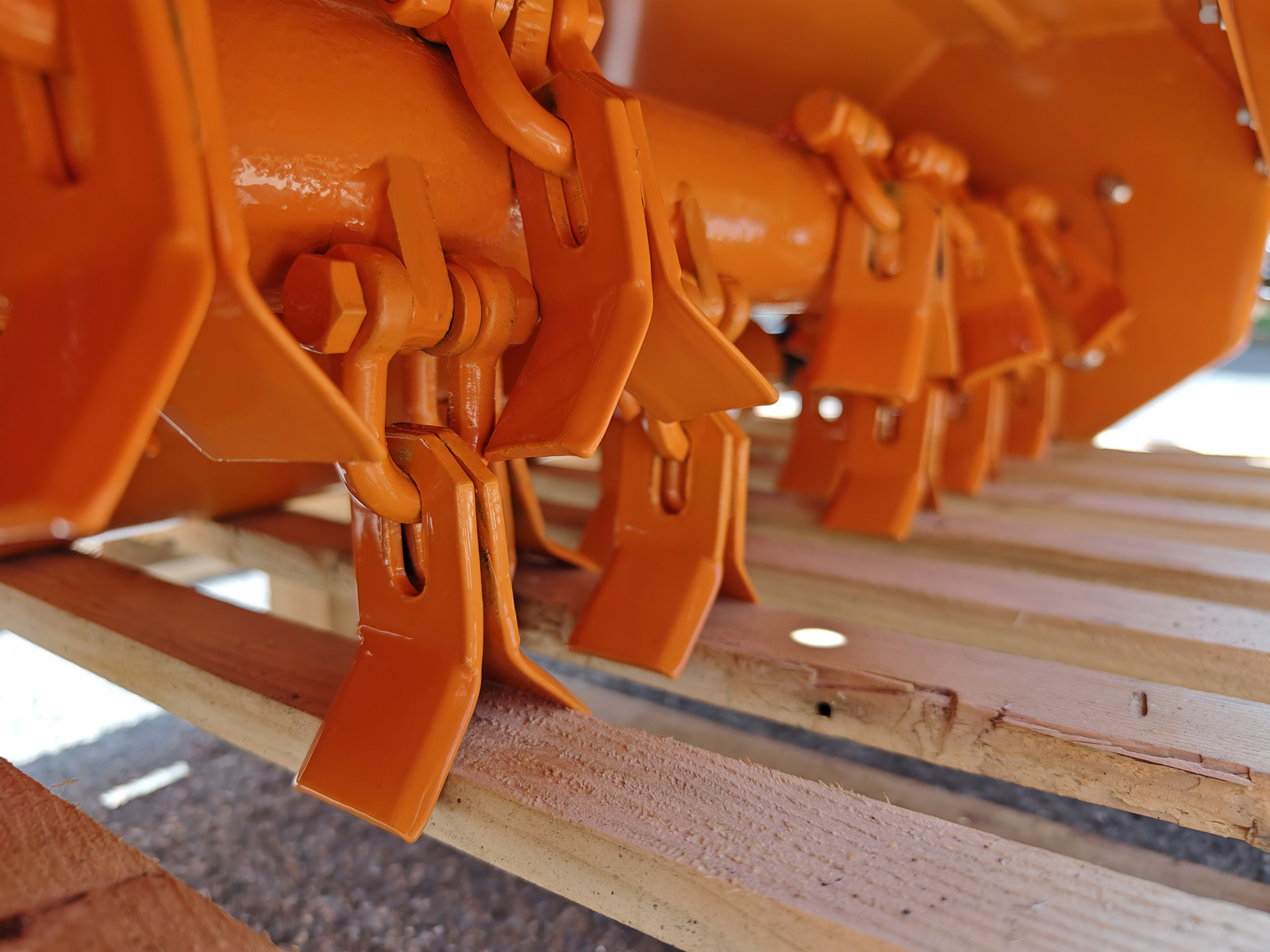

Rotor with 48 blades in ARVEDI tube
The rotor, 76 mm (3 in) in diameter, is made from ARVEDI tube in S355 steel, 8 mm thick, turned along its full length for perfect straightness and electronically balanced; it spins at 1,500 rpm on SKF bearings. The 48 blades of 130 g (4.6 oz) are mounted on brackets in HARDOX wear-resistant steel and cut grass, brambles, reeds, bushes and branches up to 2 cm (0.8 in) thick. The blades are replaced with the COLTELLI30AI set.

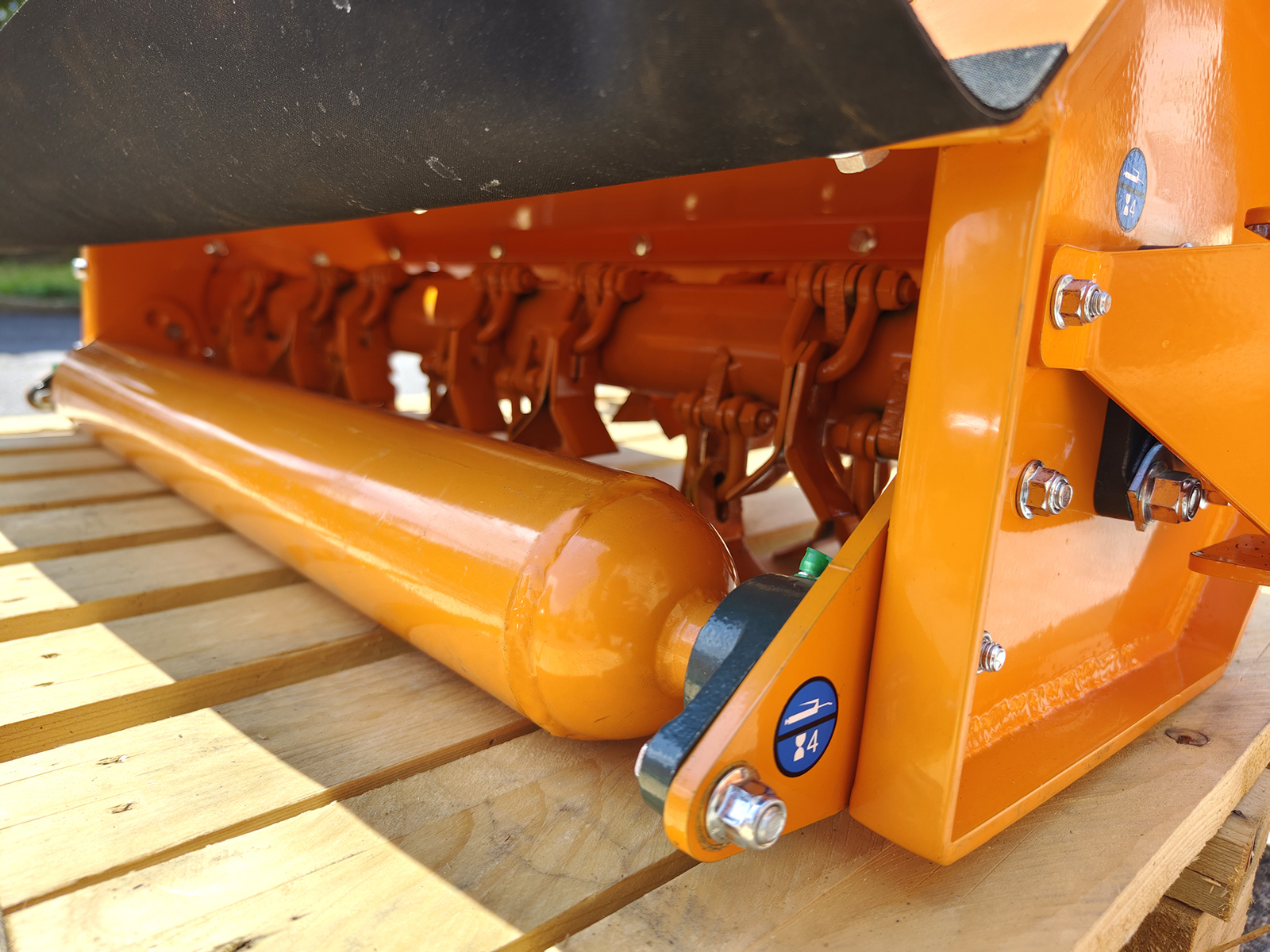

Roller and cutting height
The cutting height is adjustable from 20 to 80 mm (0.8 to 3.1 in). The rear roller, 102 mm (4 in) in diameter and 5 mm thick, rests the head on the ground and keeps the height constant: low for a fine finish on grass, higher on stony or uneven ground.

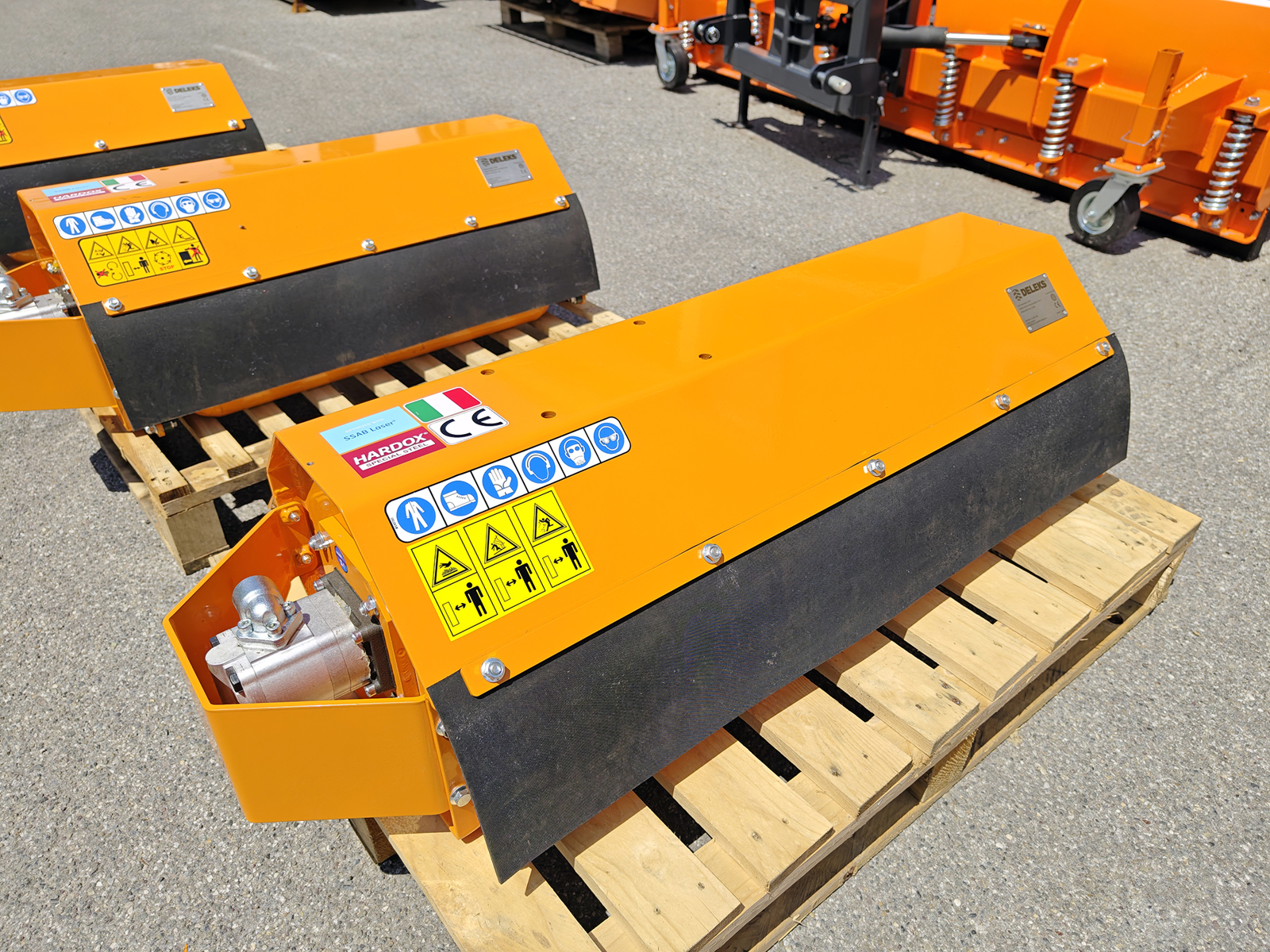

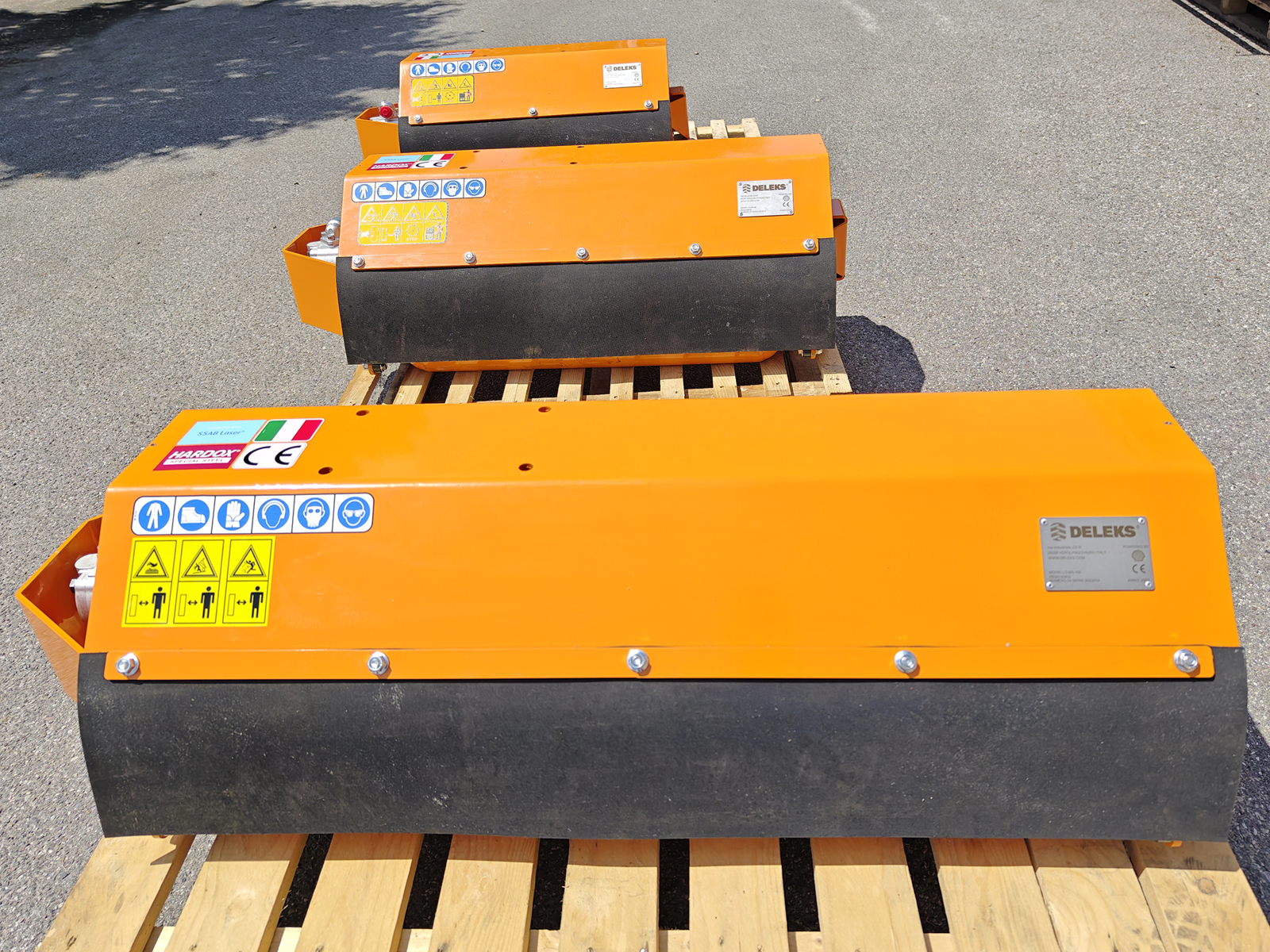

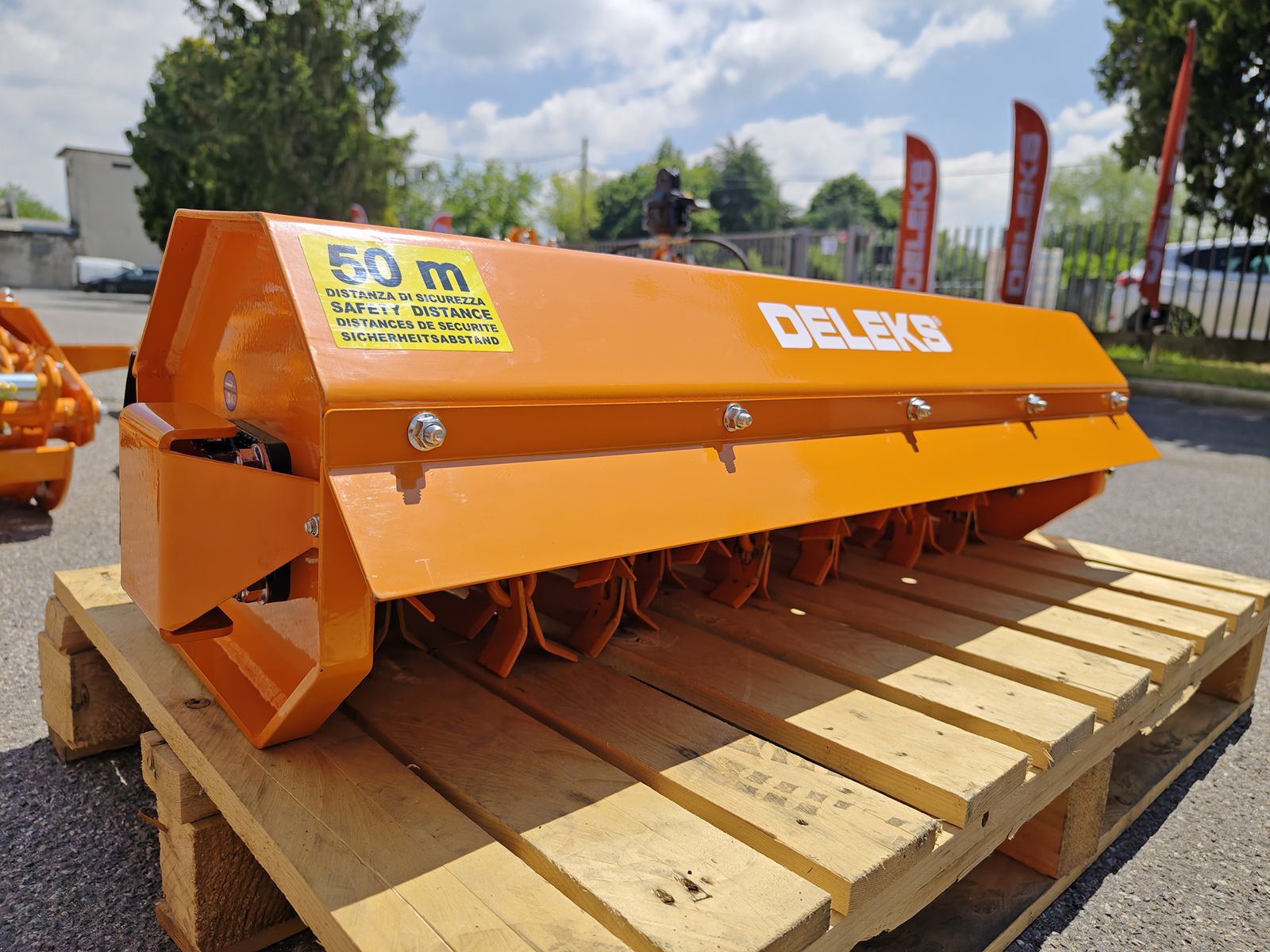

SSAB steel frame, Made in Italy
The frame is made entirely from Swedish SSAB steel, 5 mm thick. The ARS-100 is Made in Italy, built by DELEKS. For this product the sheet steel is purchased in Italy and processed at a production plant located in the European Union.

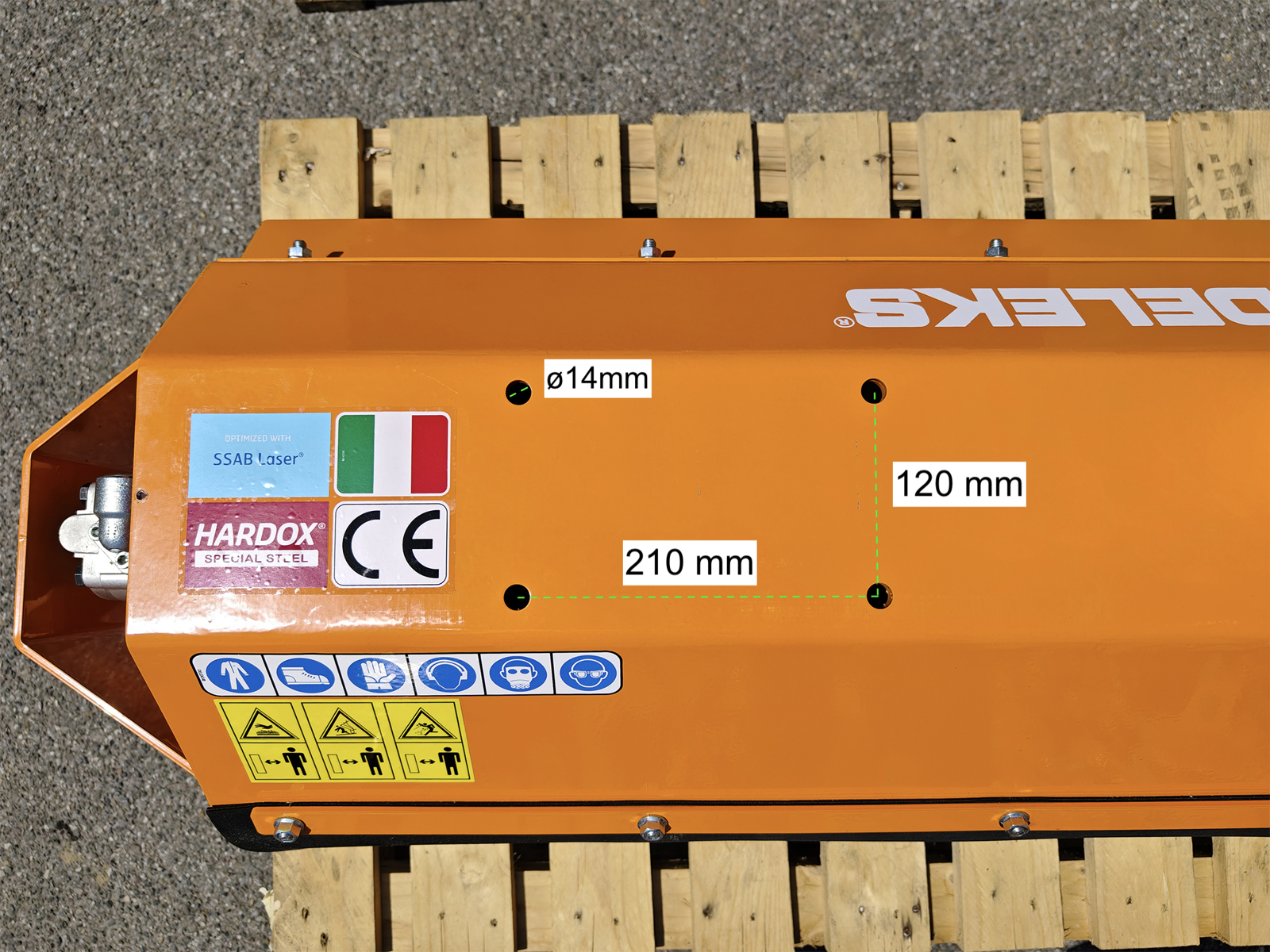

Hitch for the excavator arm
The dimensions of the standard hitch are shown in the product images: check them against the arm of your mini digger. Alternatively you can order one of the optional hitches (MS01, S40, Morin-type ACB+ M0 and M1) or a hitch made to measure for your machine, at a surcharge.
Dimensions, weight and delivery
Working width 1,000 mm (39.4 in), overall width 1,300 mm (51.2 in), length 520 mm (20.5 in), height 340 mm (13.4 in), weight 100 kg (220 lb); 5 mm steel frame. It ships in a package of 130 × 60 × 50 cm (51 × 24 × 20 in), 120 kg (265 lb) gross and 0.39 m³, with free delivery within the EU. It complies with the EC Machinery Directive and carries a 2-year warranty.

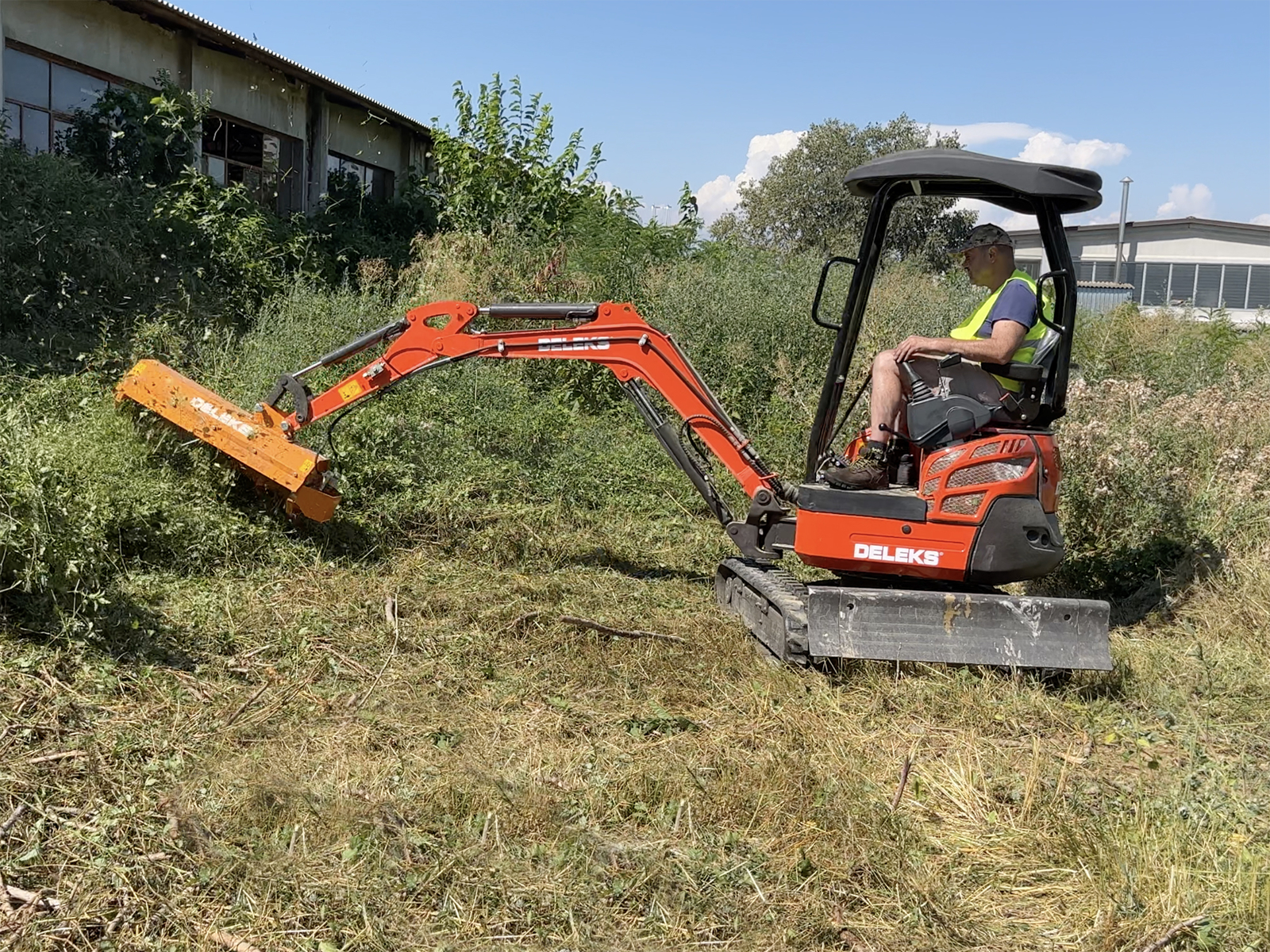

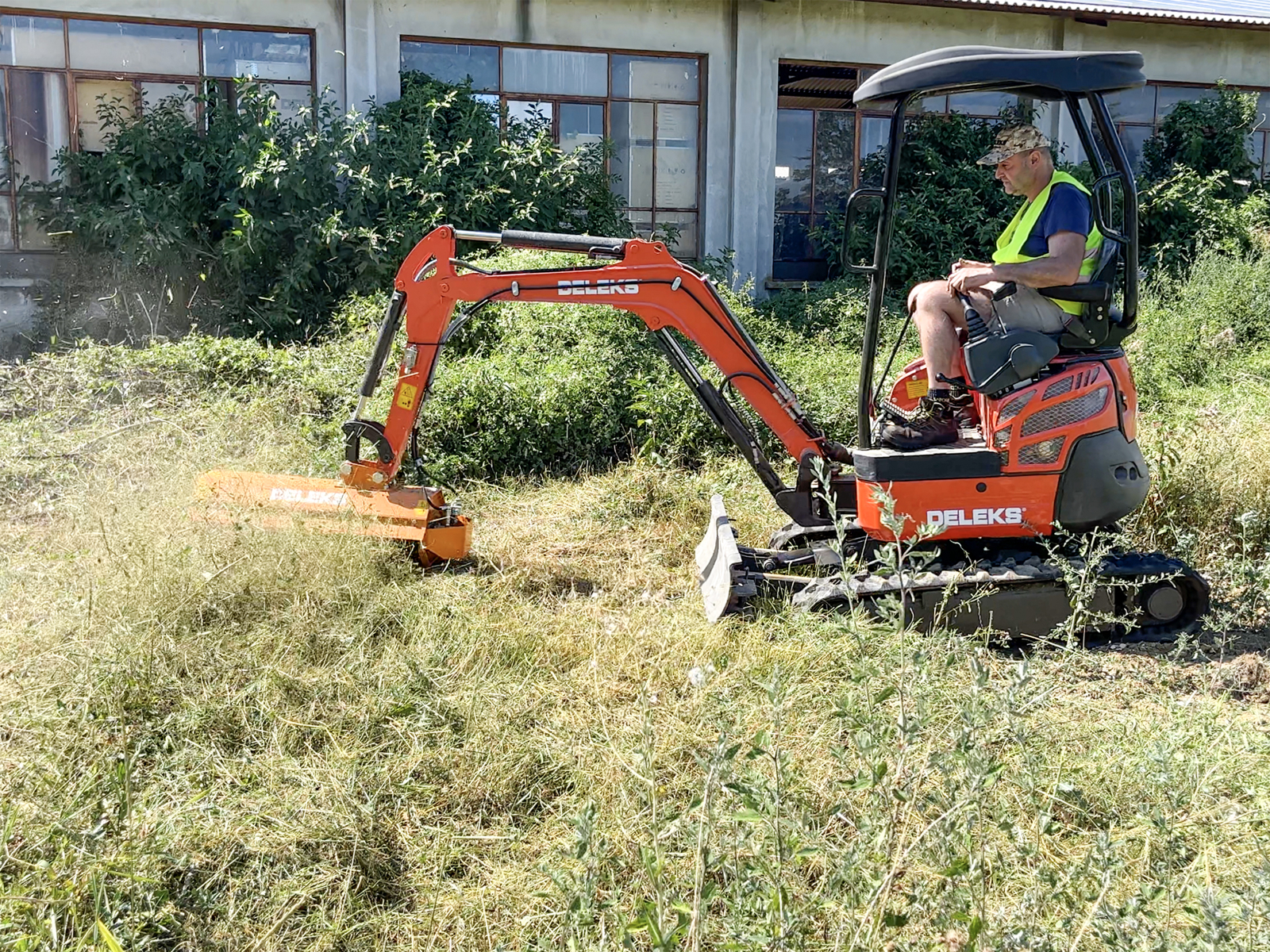

Where it works
- Ditches, banks and embankments: grass, reeds and brambles where a tractor cannot reach
- Slopes and roadside verges: mowing with the excavator arm
- Overgrown land and undergrowth: brambles, bushes and branches up to 2 cm (0.8 in) thick
- Hedges, fences and boundaries: clearing along walls and wire fencing
- 1 to 2 tonne mini diggers and mini excavators with an auxiliary hydraulic line and tractor-mounted reach arms
Options and spares
From this page you can add to your order the spare set of 30 blades with fixings (COLTELLI30AI) and the 10 nuts and bolts with rings (DB10AI). For mounting on the arm you can choose the MS01 hitch (ATTACCOMS01), the S40 hitch (ATTACCOS40), the Morin-type ACB+ M0 hitch (ATTACCOMORINM0), the Morin-type ACB+ M1 hitch (ATTACCOMORINM1AR) and the made-to-measure hitch (ATTACCOAR). Other spares are identified on the exploded diagrams with our technical team.
FAQ
Which mini digger does the ARS-100 suit?
1 to 2 tonne mini diggers and mini excavators with an auxiliary hydraulic line delivering 20-22 l/min. The head weighs 100 kg (220 lb): check it against the lifting capacity of the arm at full reach.
Is it suitable for a 1.5 tonne mini digger?
Yes: the ARS series covers mini diggers from 1 to 2 tonnes. A 1.5 tonne machine can take the ARS-60, ARS-80 or ARS-100: choose the width to suit the lifting capacity of the arm.
What oil flow does it need?
20 to 22 l/min, at a working pressure of 200 bar (220 bar maximum). Ideally the excavator has two pumps, one for travel and one for the auxiliary services.
Does it need a case drain line?
No: the Caproni motor has 2 hoses, feed and return, and needs no third case drain hose.
What thickness of branch will it cut?
Grass, brambles, reeds, bushes and branches up to 2 cm (0.8 in) thick. For branches up to 3 cm (1.2 in) there is the ARK series; for excavators of 2 tonnes and over, the ARM, ARJ and ARH hammer-flail heads handle 4-5 cm (1.6-2 in).
Does it fit a tractor reach arm as well?
Yes: the ARS-100 also suits tractor-mounted reach arms, provided the hydraulics deliver 20-22 l/min of oil.

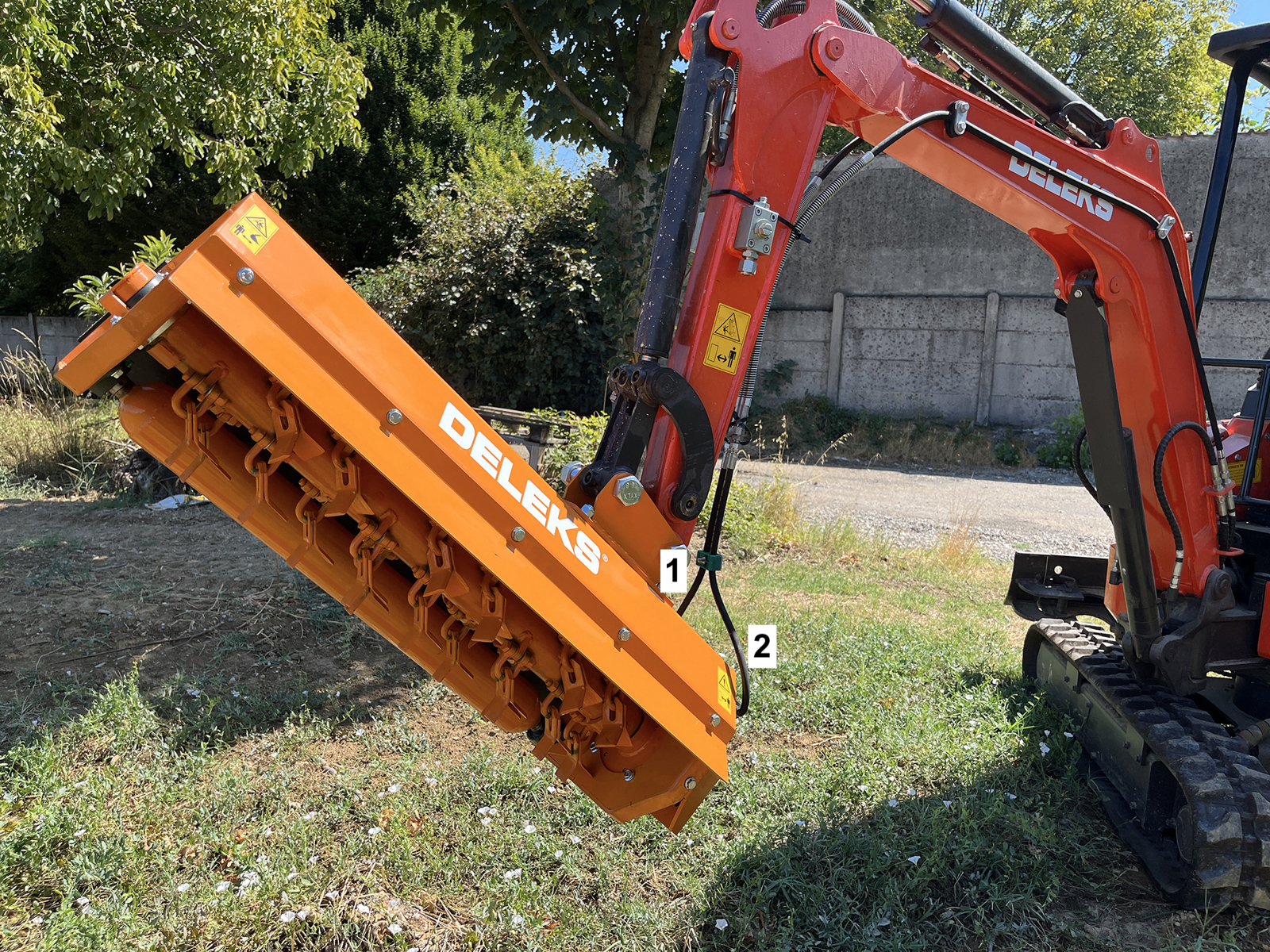

How does it mount on the arm?
In place of the bucket, with the standard hitch (dimensions in the product images), one of the optional hitches or a made-to-measure hitch; the hoses connect to the auxiliary hydraulic line.
How do the ARS and AR differ?
The ARS is Made in Italy, with a 5 mm SSAB steel frame and a 2-hose Caproni motor that runs on 20-22 l/min with no case drain line. The AR is lighter, from 66 to 93 kg, and needs 25-30 l/min, a double-acting circuit and a case drain.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blades, hammer flails, fixings, bearings, roller, hydraulic motor and hoses are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and a check that the head matches your excavator's hydraulics and hitch. The head comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1000.0 mm |
| Overall width | 1300.0 mm |
| Min / Max cutting height | 20.0 - 80.0 mm |
| Weight | 100.0 kg |
| Hood height | 340.0 mm |
| Maximum cutting diameter | 20.0 mm |
| Main hood thickness | 5.0 mm |
| Transmission: RPM Rotor speed | 1500 r/min |
| Rotor: diameter | 76.0 mm |
| Rotor: bearings type and size | SKF 6207 + SKF UCF206 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Rear roller: diameter | 102.0 mm |
| Rear roller: sheet thickness | 5.0 mm |
| Rear roller: bearings type and size | UCFL205 |
| Working pressure | 200 bar |
| Min./Max. Flow | 20 - 22 l/min |
| Max Pressure | 220 bar |
| Hood length | 520.0 mm |
| Number of Blades | 48 |
| Blades: Weight | 130.0 g |
| Blades: Diameter of the hole | 13.0 mm |
| Blades: base width | 50.0 mm |
| Blades: Diagonal | 85.0 mm |
| Gross shipping weight | 120 kg |
| Package volume | 0.39 m3 |
| Packing sizes | 1300.0*600.0*500.0 mm |
