Sideshift Flail Mower, Heavy Offset Side Mulcher For Tractors DRAGON-180

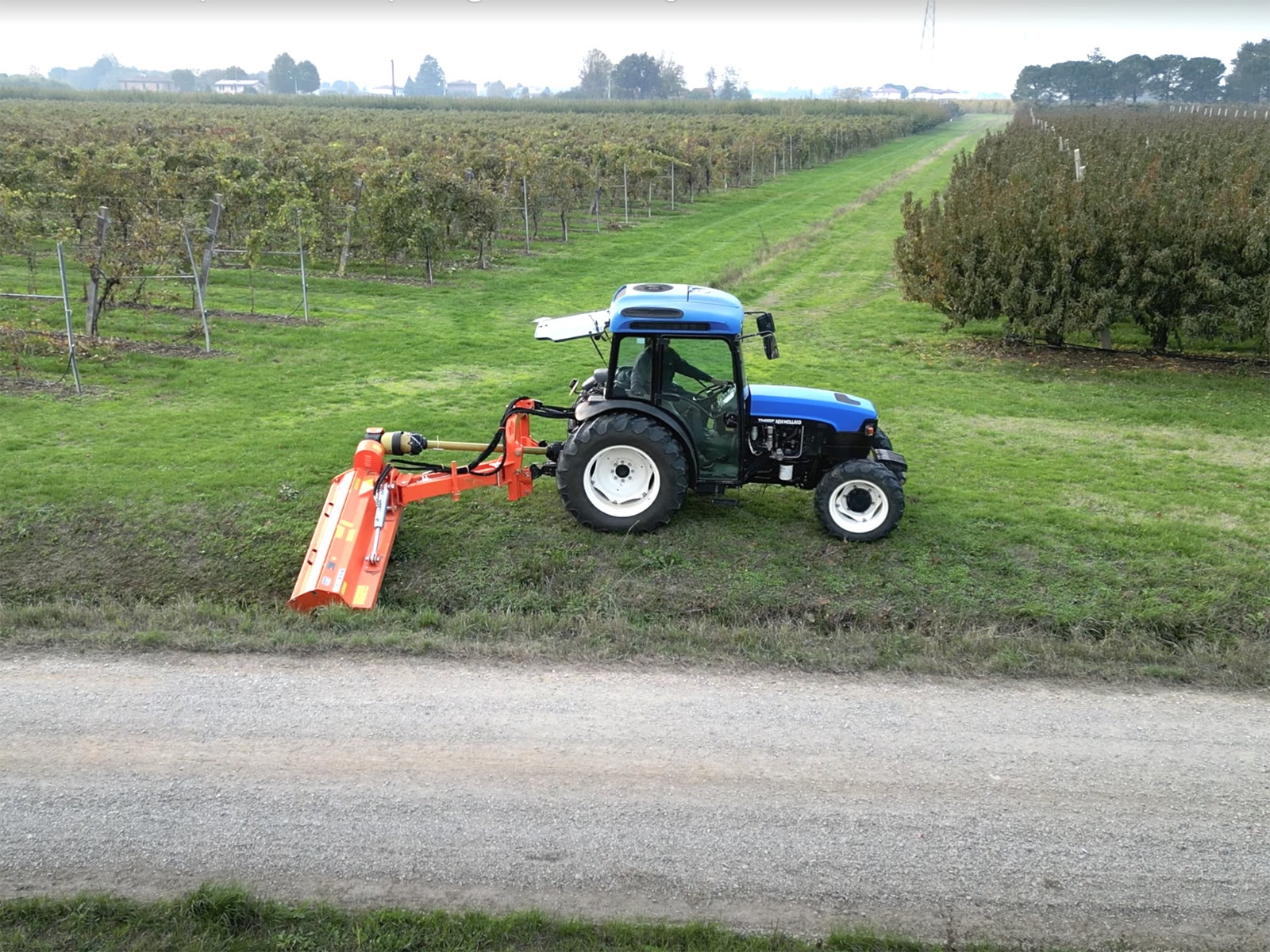

Field test
DETAILS

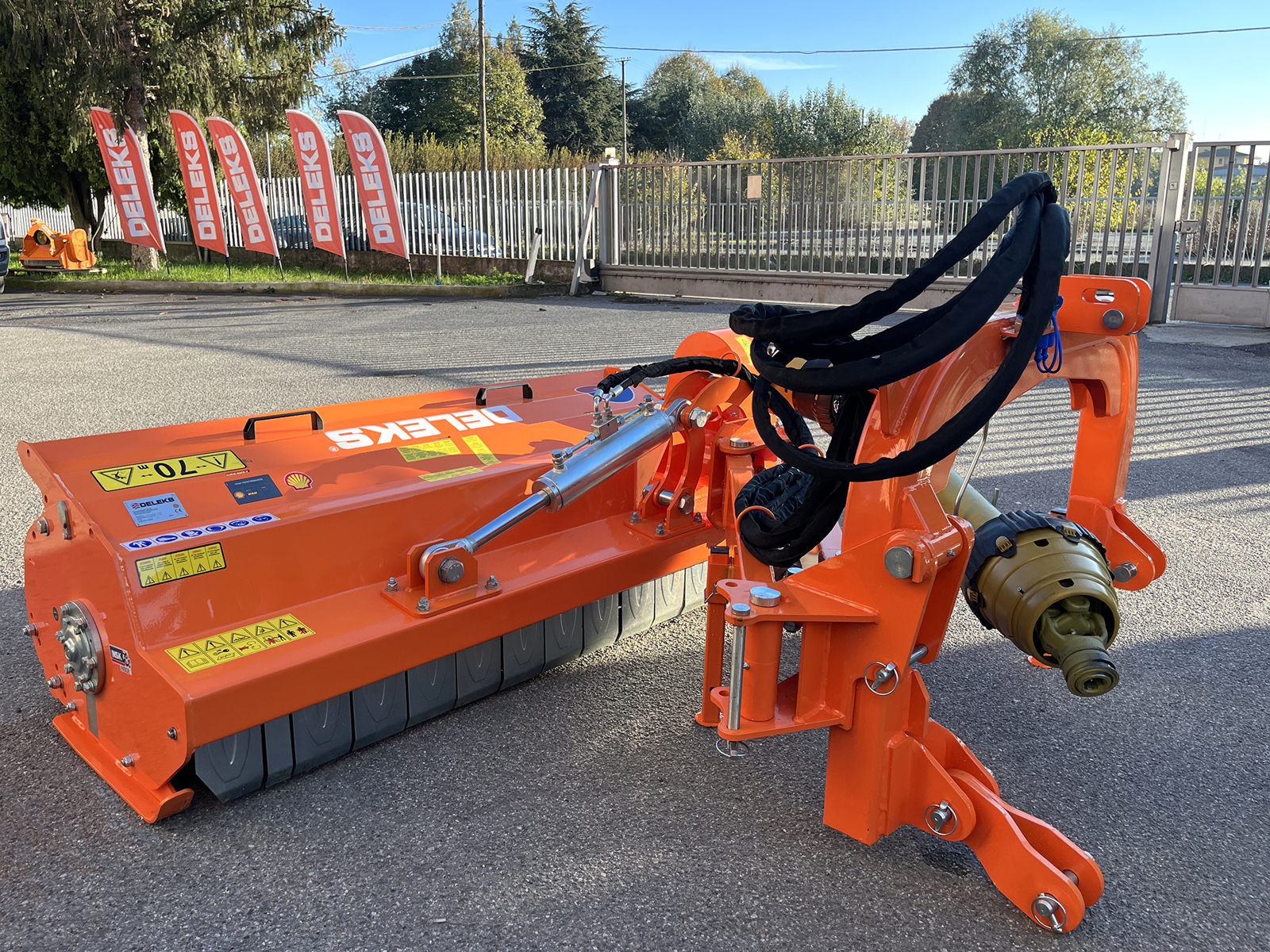

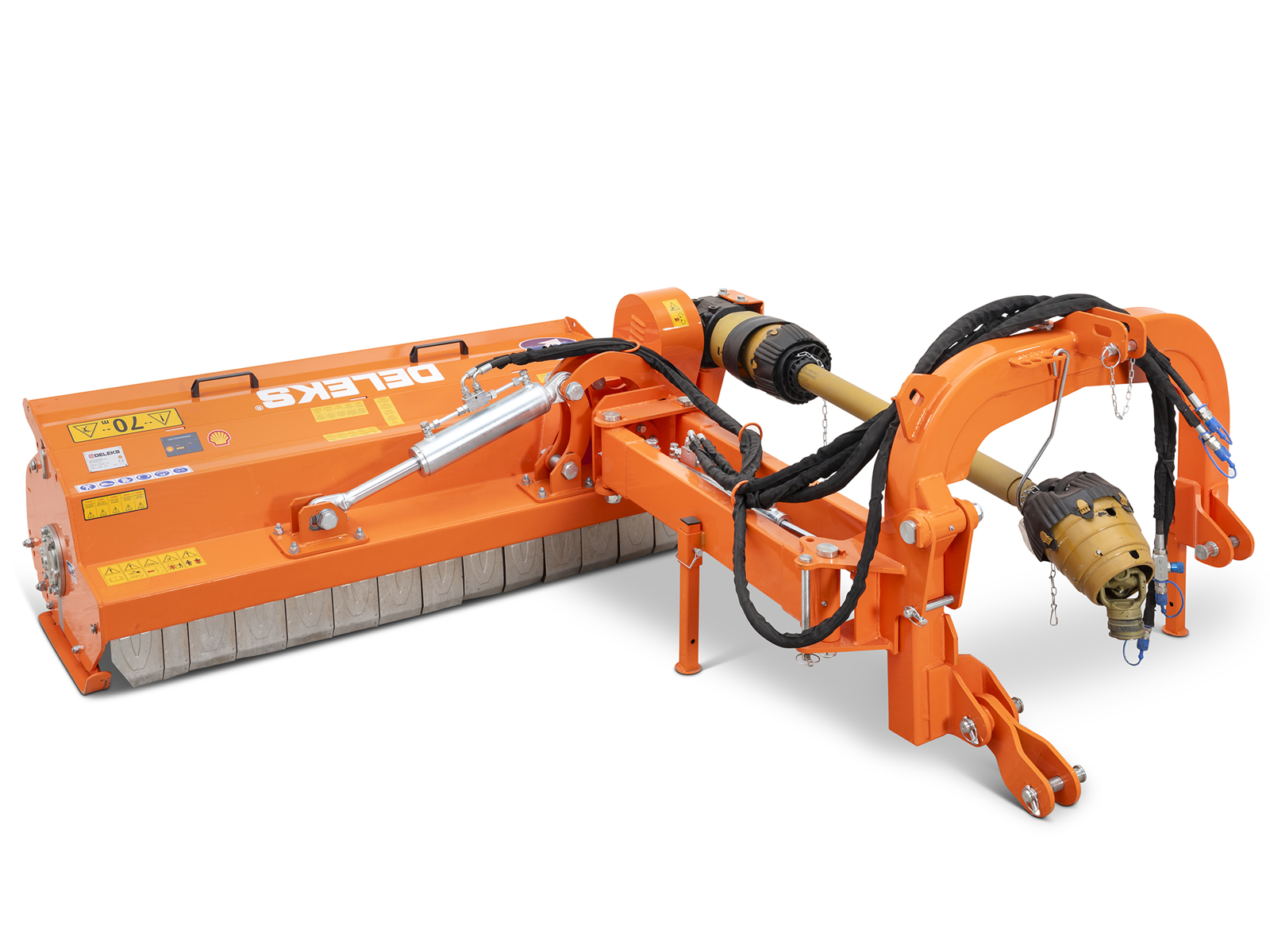

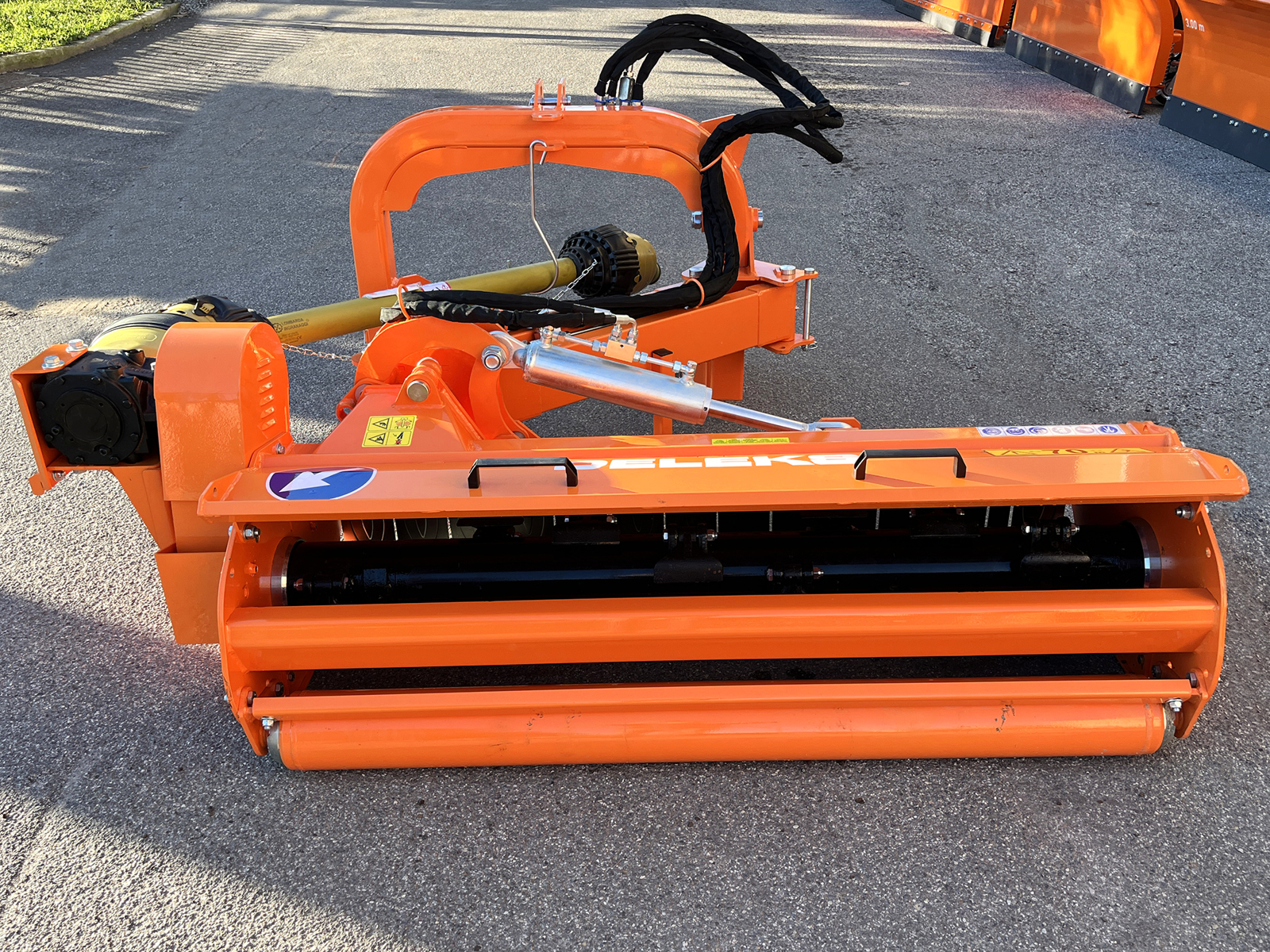

Sideshift Flail Mower 750kg / 180cm, Heavy Offset Side Mulcher For Tractors DELEKS® DRAGON-180 - External gearbox - Wide angle Pto shaft included.
OVERVIEW

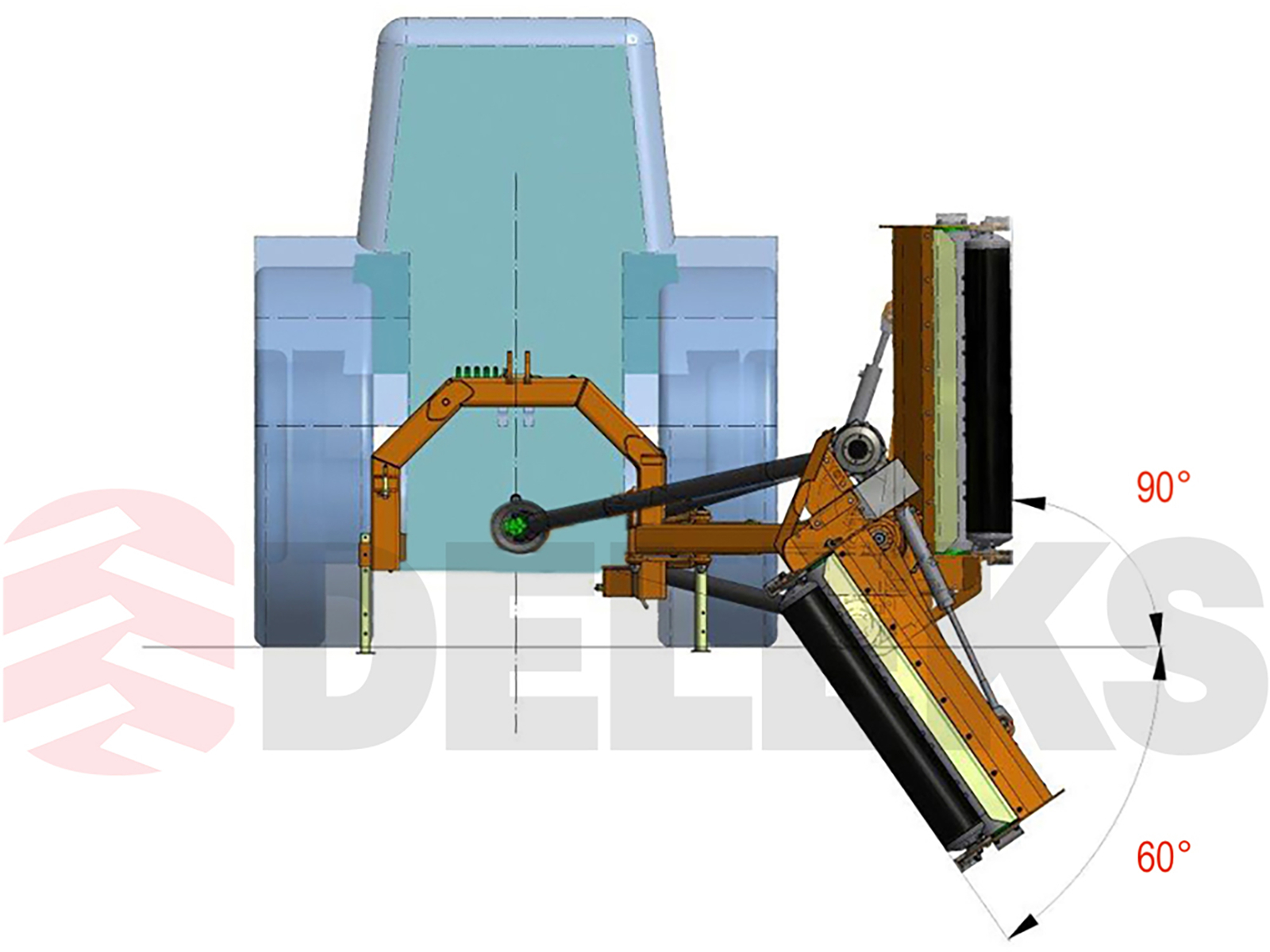

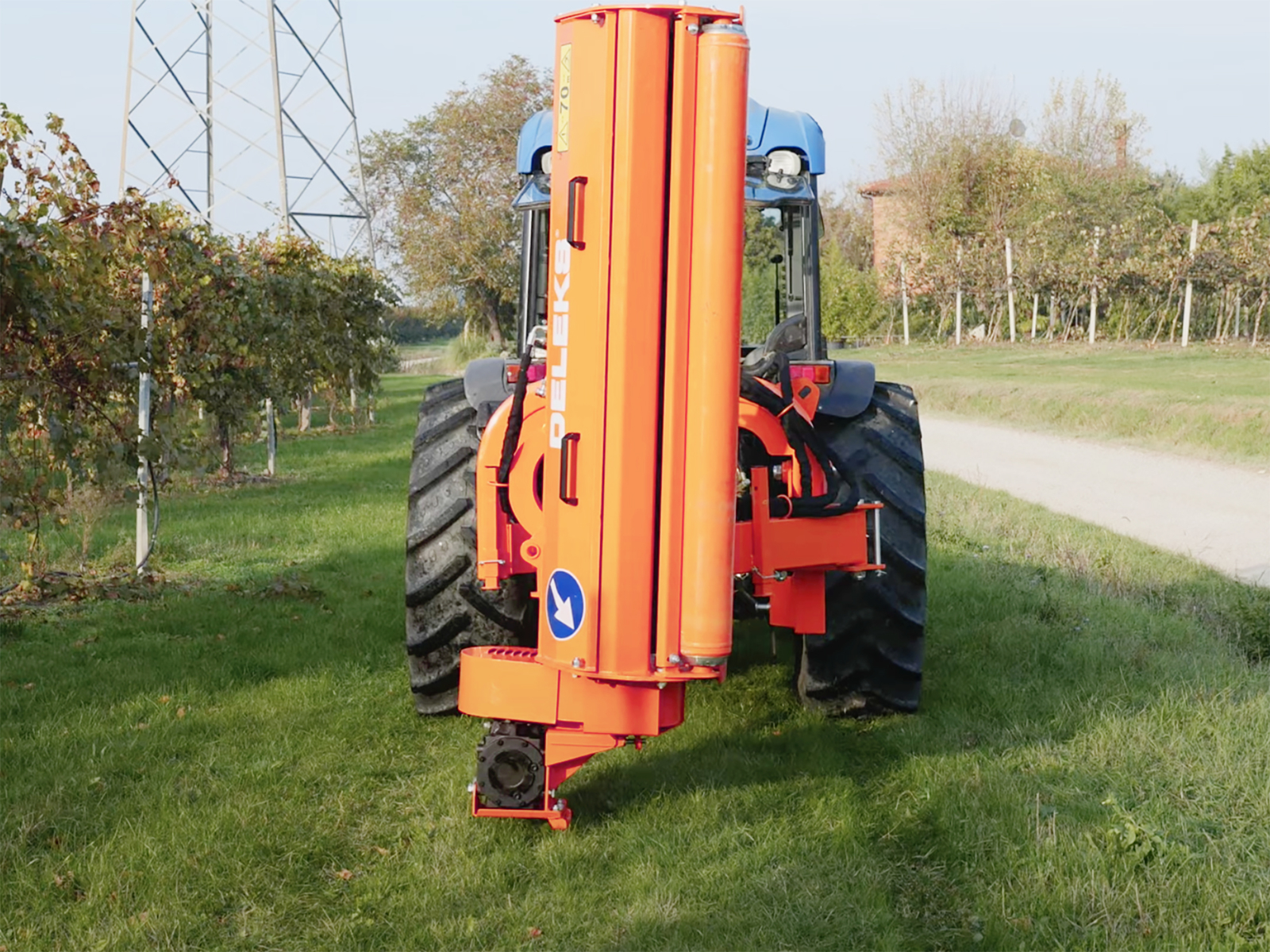

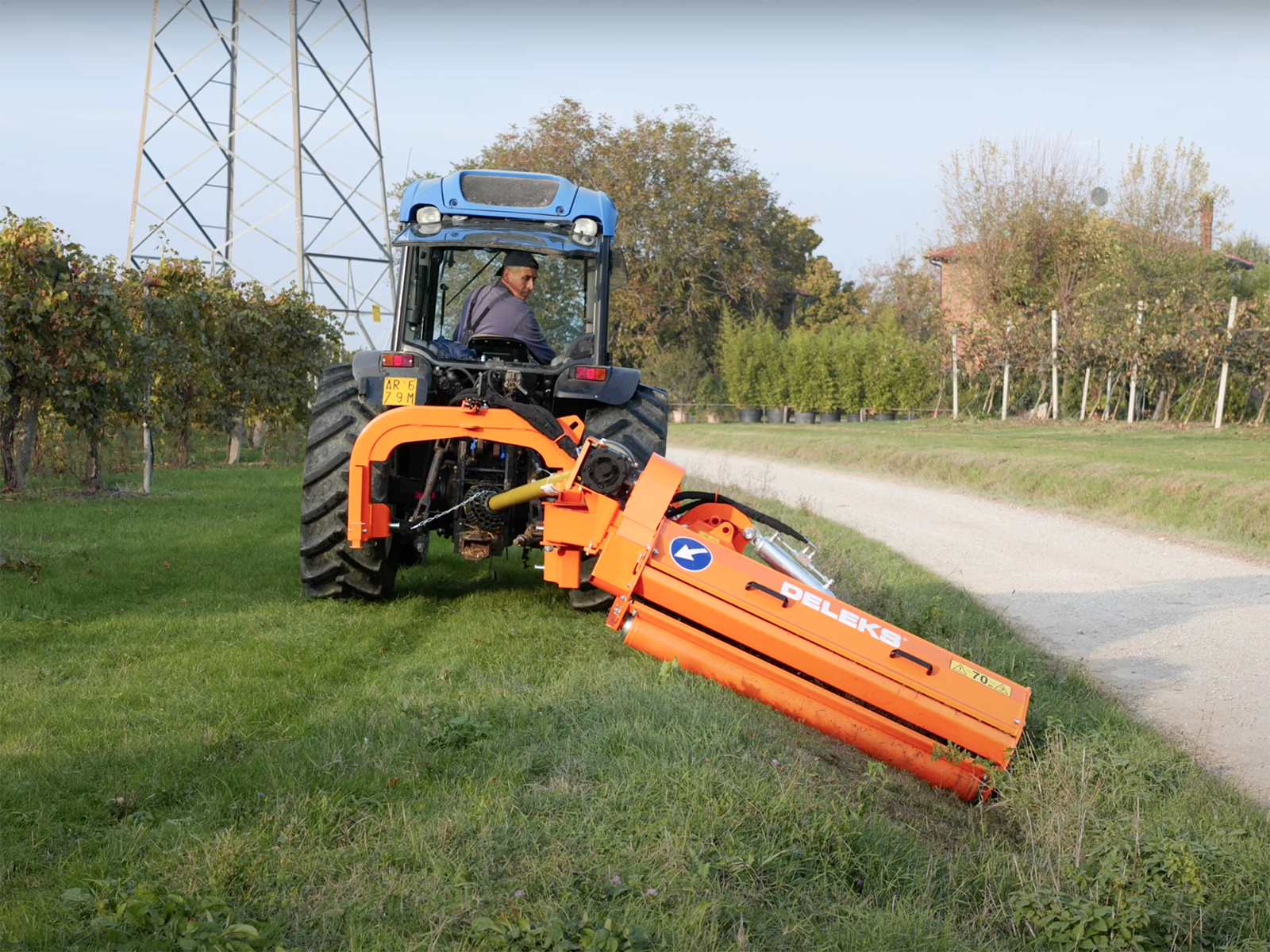

The DRAGON-180 multi-purpose mower is for professional use and is extremely popular among organic farmers to tackle rushes, brambles and hedges. The DRAGON cuts grass, but also shreds small twigs and branches 4-5cm thick making it ideal for docks, thistles and long, thick grass on roadsides. It can also be used for pruning and trimming bushes as it can be hydraulically angled vertically (90º) or down (60º) for riverbanks, verges and ditches.
For 80-130 Hp tractors e.g. Fiat, Same, New Holland, Deutz-Fahr, Massey Ferguson, John Deere, Case, Ford, Kubota M, Lamborghini, etc.Universal three point hitch with hydraulic offset Cat. 2, wide angle pto shaft 180cm CE.
BENEFITS AND FEATURES
Oversized hydraulic pistons with block valve – Made in Italy.
180cm Pto shaft CE included.
Oil flow regulation valve.

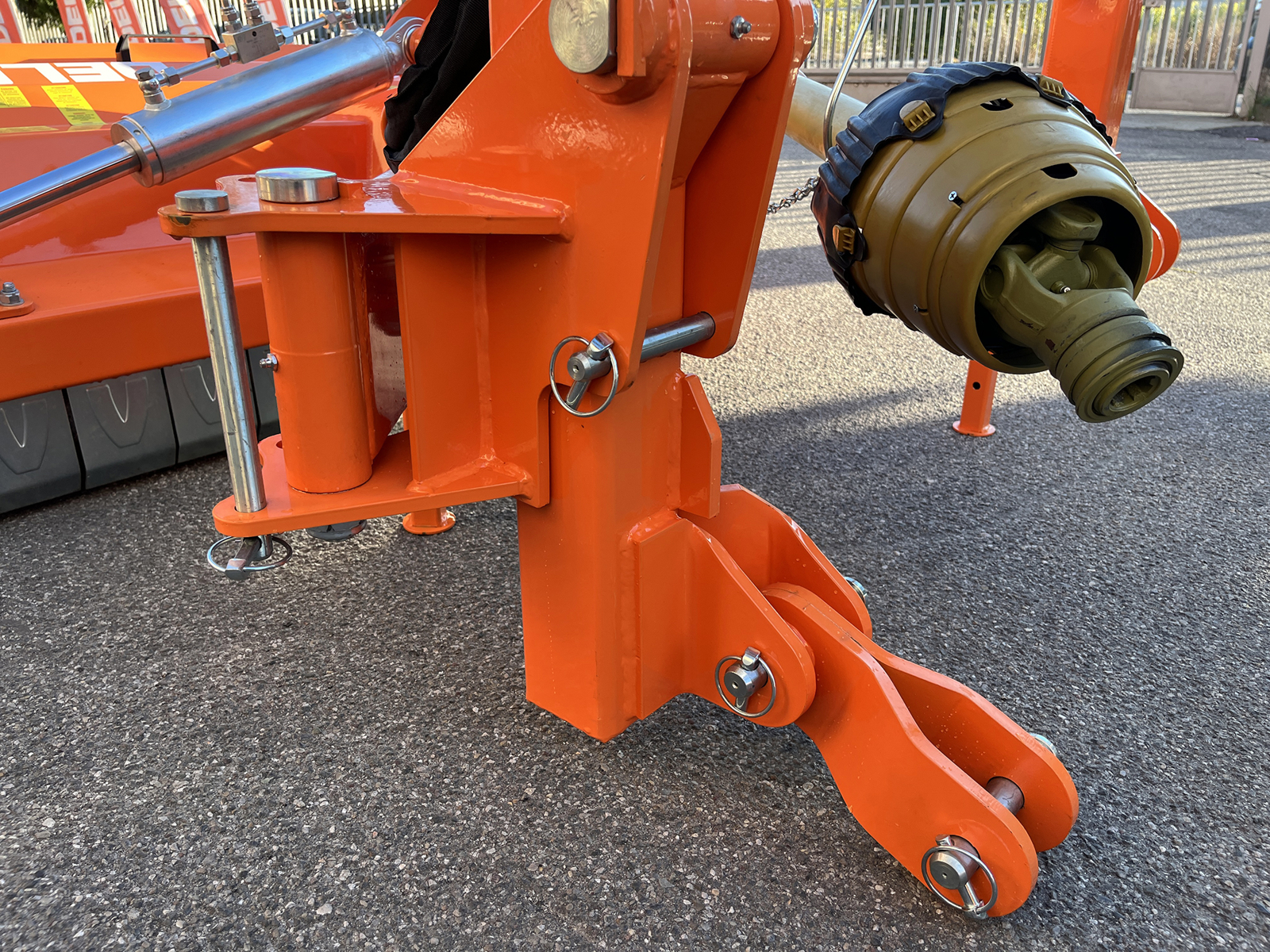

Reinforced 3-point hitch arch.

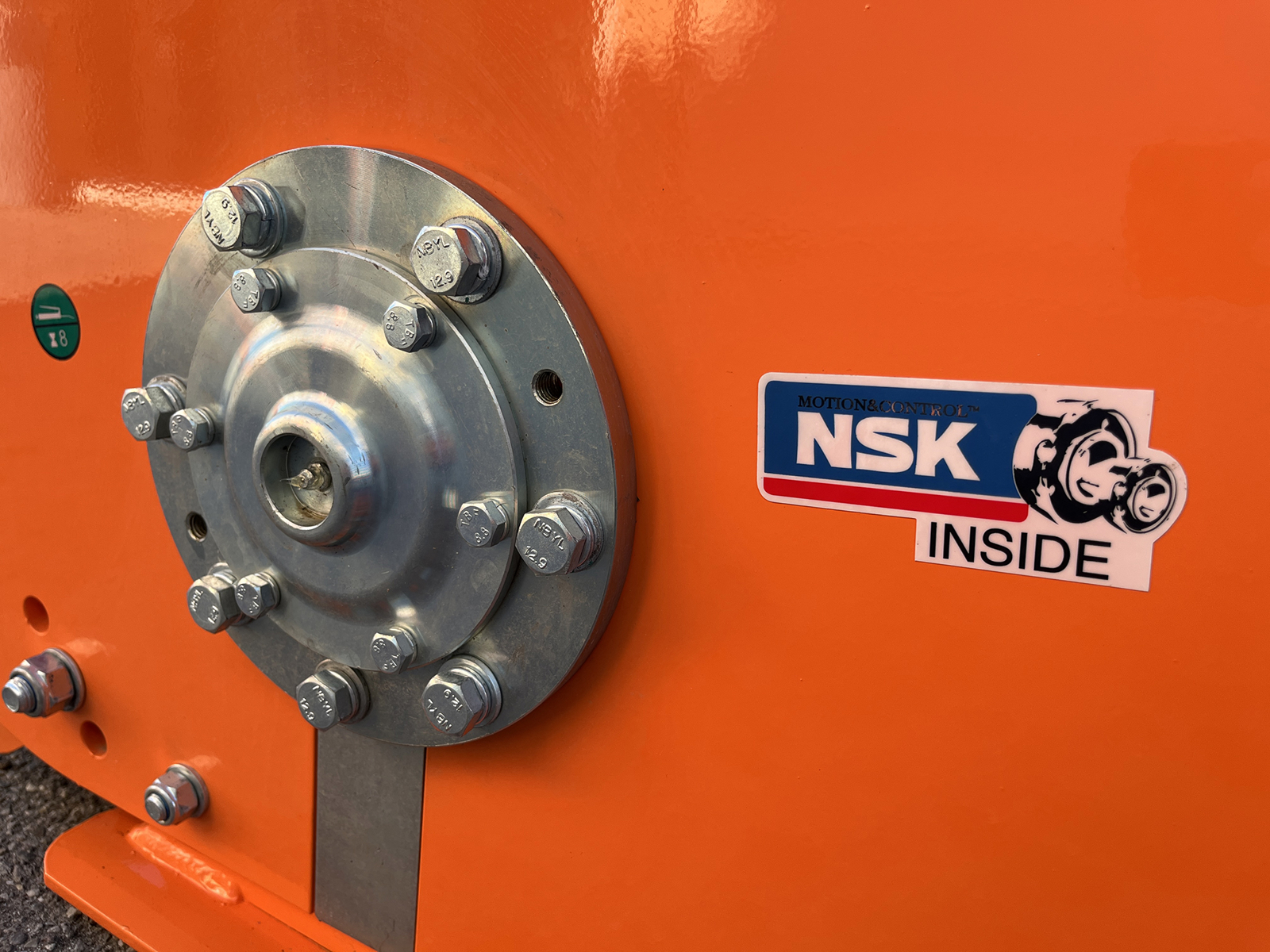

NSK brand rotor bearings Made in Japan.
Can be hydraulically angled vertically (90º) or down (60º).
External gearbox to maximize lateral reach.
Double case.
Sturdy and durable design for heavy usage.
Can operate horizontally inline or offset for verge or paddock.
Gearbox P.T.O. 540 r.p.m. with free-wheel (3 Years warranty).
Break back system to protected three point linkage.
5 high resistance toothed belts, and external belt tensioner.
152.0 mm adjustable roller unit and skids.

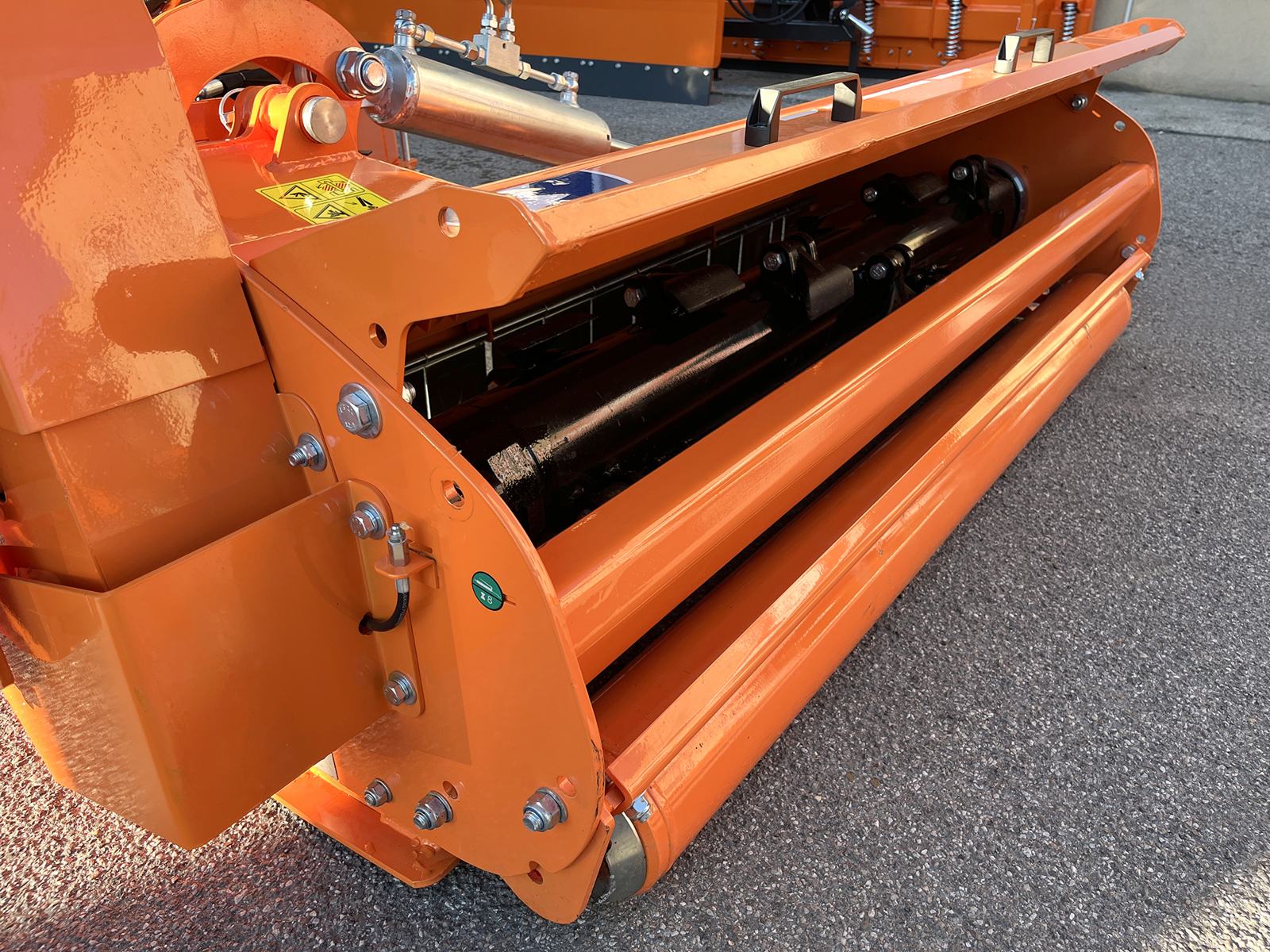

Electronically balanced rotor.
2 locking pins for road transport.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1795.0 mm |
| Overall width | 2190.0 mm |
| Min / Max cutting height | 35.0 - 95.0 mm |
| Weight | 750.0 kg |
| Overall height | 1150.0 mm |
| Tractor Power Range | 80 - 130 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0 mm) |
| Position of the gearbox | external |
| Hood height | 470.0 mm |
| Spacing between the 2 lower points | 840.0 - 970.0 mm |
| Number of Hammers | 16 |
| Maximum cutting diameter | 40.0-50.0 mm |
| Overall length | 1750.0 mm (closed) |
| Distance between pto attachment and ground | 650.0 mm |
| Main hood thickness | 5.0 mm + reinforcements |
| Sides thickness | 10.0 mm |
| Side plates thickness | 8.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (3 years warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2134 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 220.0 mm |
| Transmission: Lower pulley ø | 165.0 mm |
| Transmission: V-Belts quantity | 5 |
| Transmission: V-Belts size | 17x1300 |
| Rotor: diameter | 168.0 mm |
| Rotor: bearings type and size | NSK 22309 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |

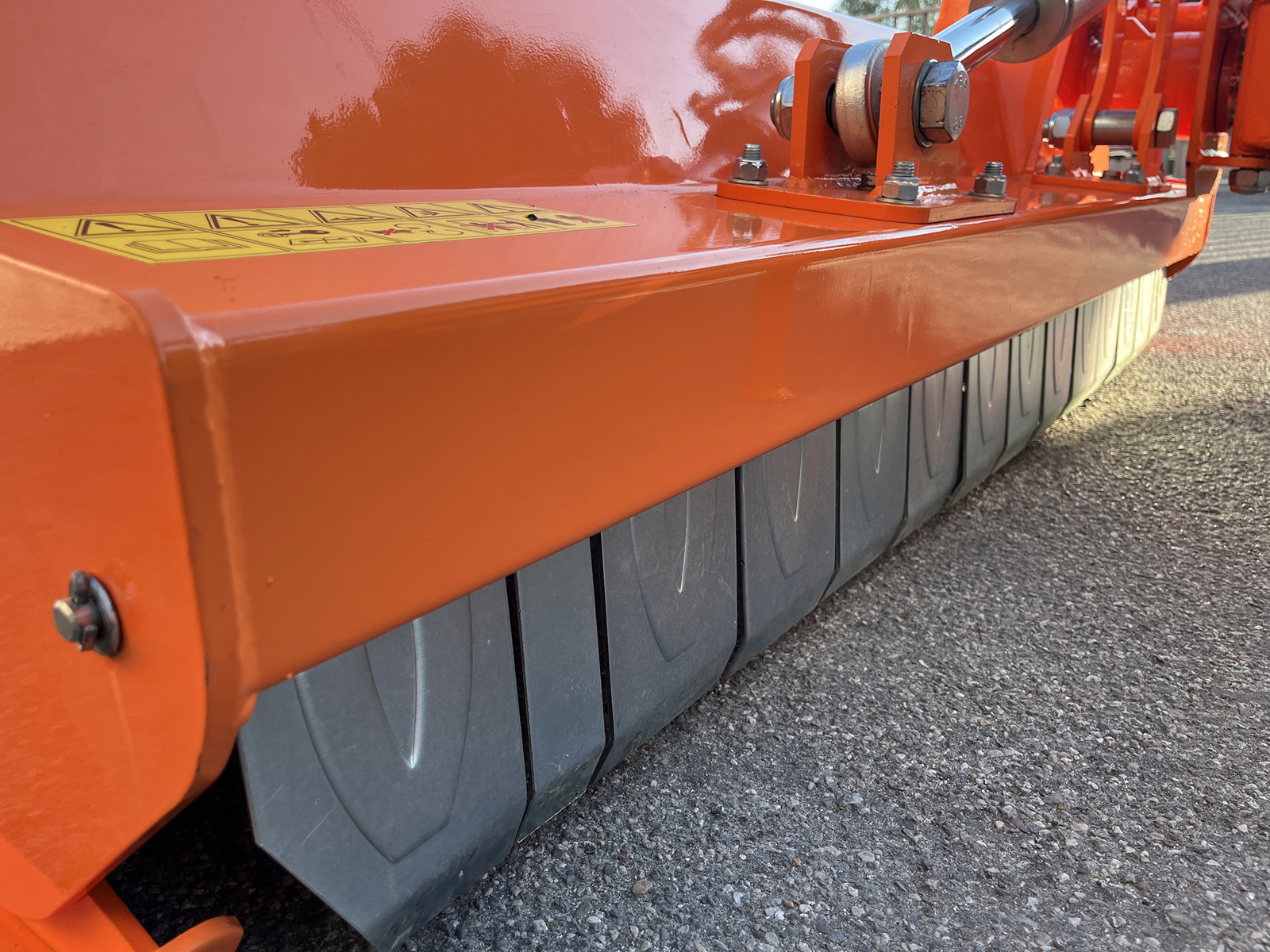

| Hammers: Weight | 1100.0 g |
| Hammer: øhole | 16.0 mm |
| Hammer: base width | 140.0 mm |
| Hammer: top width | 40.0 mm |
| Hammer: Diagonal | 97.0 mm |
| Rear roller: diameter | 152.0 mm |
| Rear roller: sheet thickness | 6.0 mm |
| Rear roller: bearings type and size | 90x40 mm - GB276-6308 |

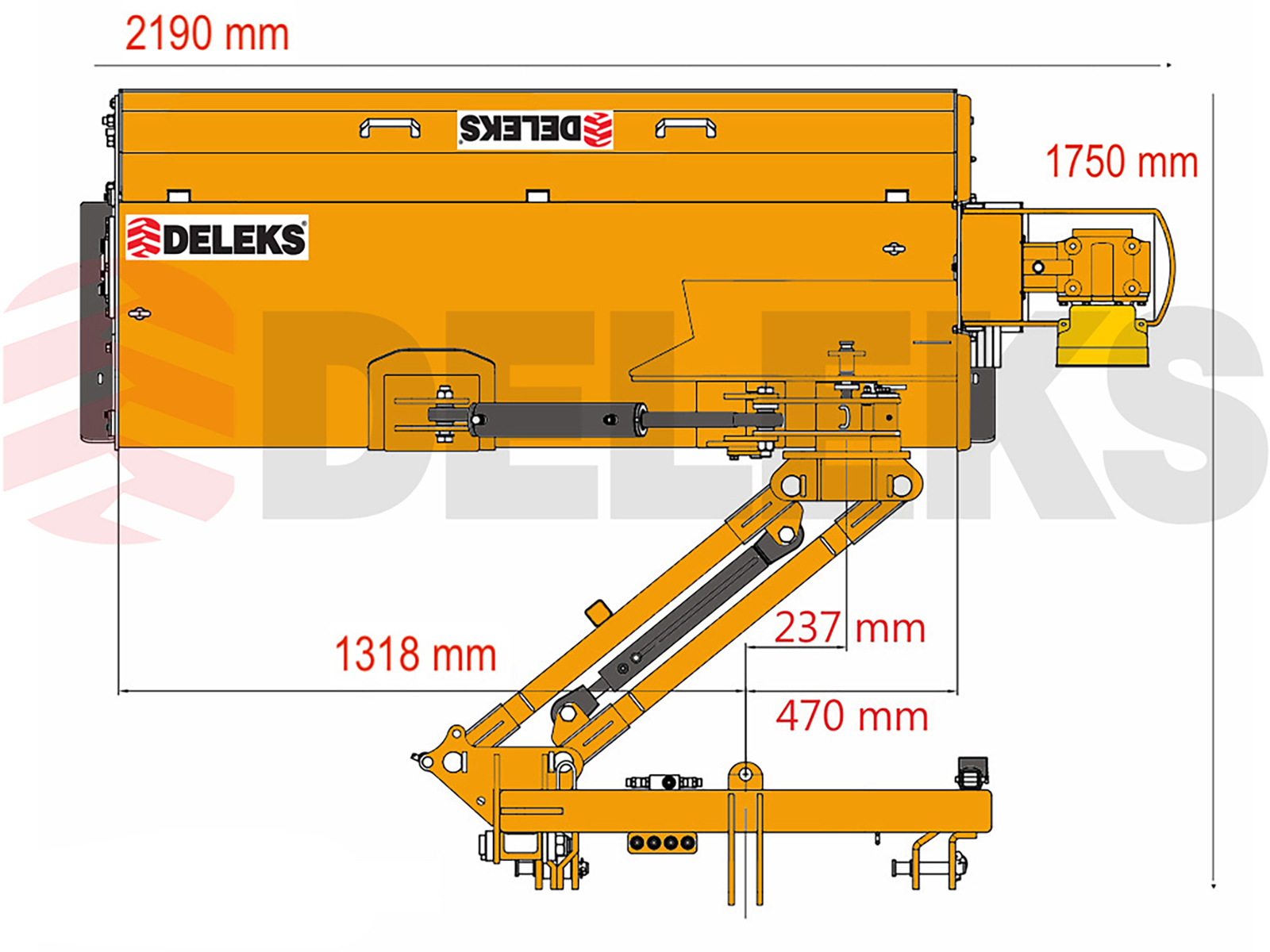

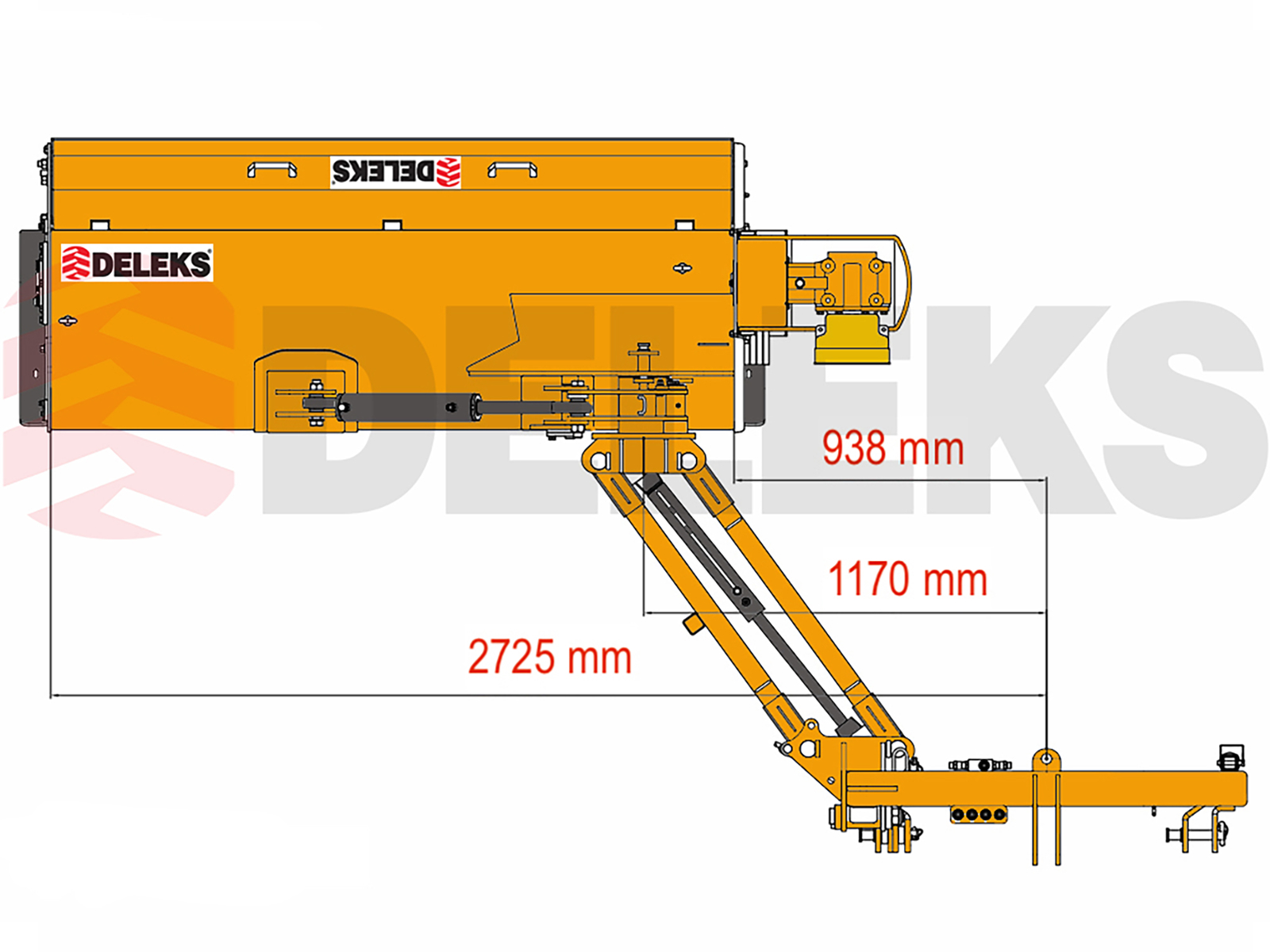

| Displacement and Sizes | See pictures |
| Hydraulic cylinder A diam. | 80.0-35.0 mm |
| Hydraulic cylinder B diam. | 60.0-30.0 mm |
| Min./Max. Relief Pressure | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |

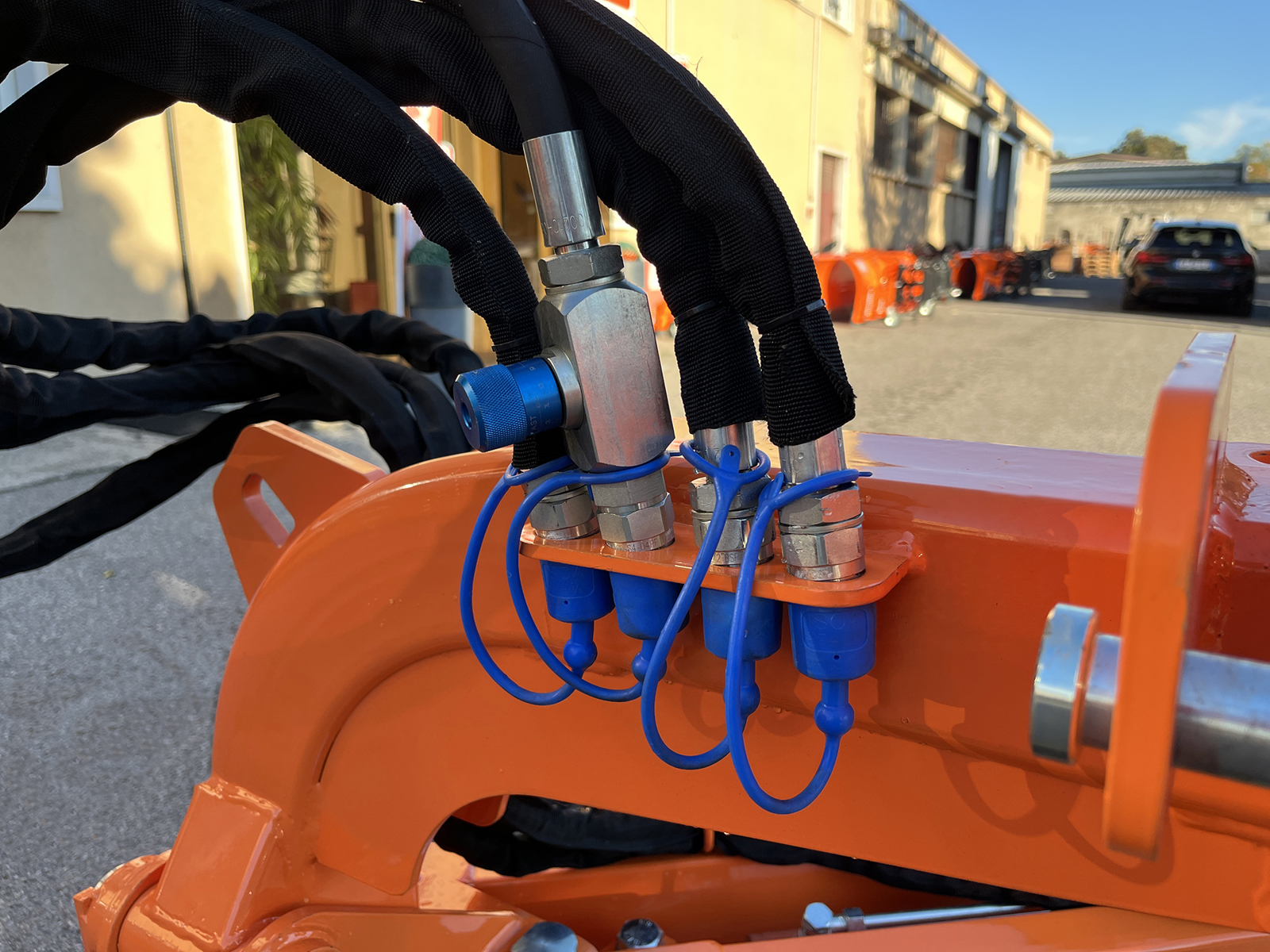

| Hydraulic Hoses | WP 400 Bar, 1/2" Agri Standard |
| Pto shaft | CE 5x1800 mm |
| Hood length | 770.0 mm |
| Packing sizes | 2200.0*1000.0*1000.0 mm |
