Hydraulic Earth Drill for mini excavator - with reducer
DETAILS

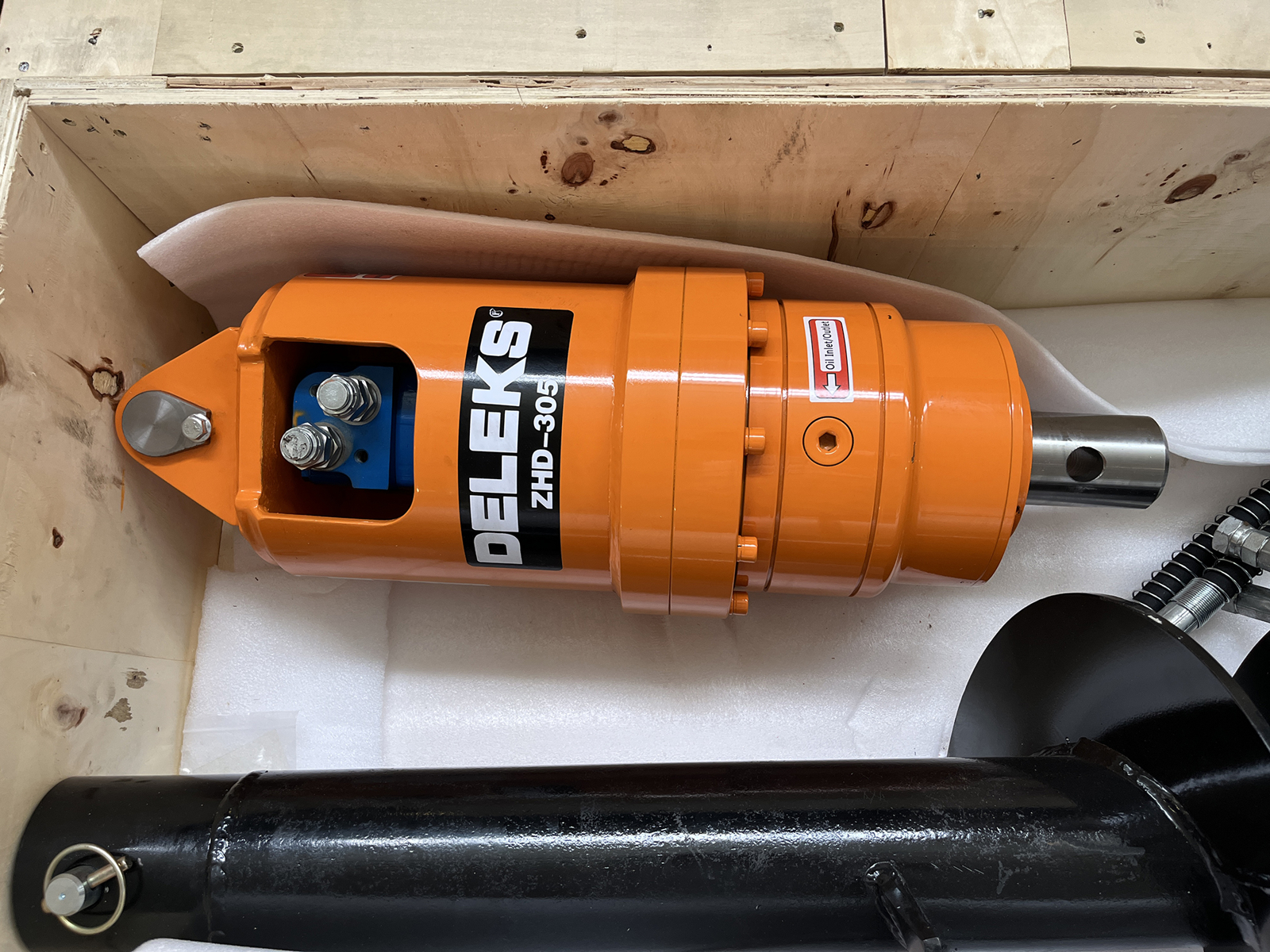

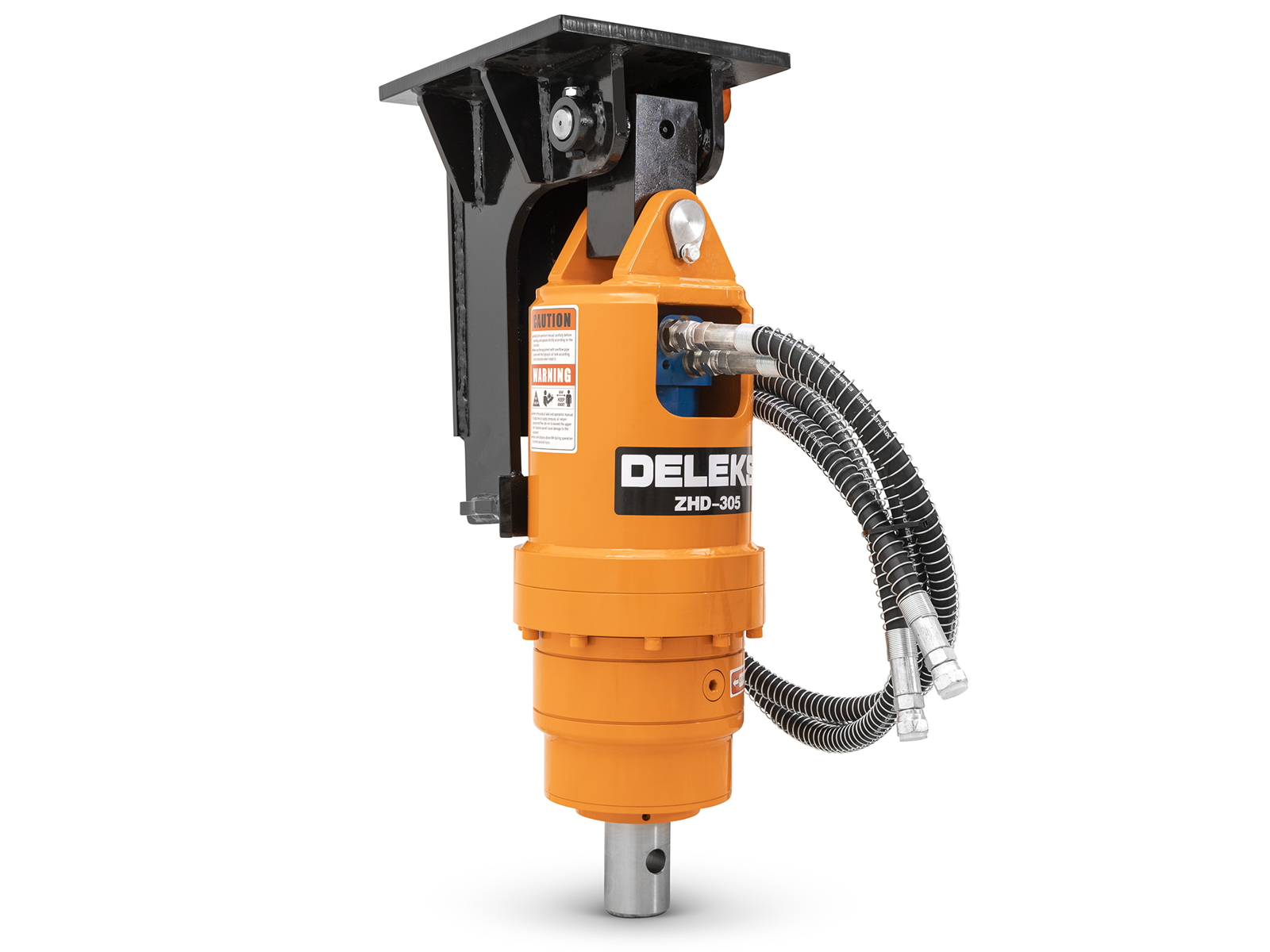

The DELEKS® ZHD-305 hydraulic earth drill / rotator is suitable on 3.0-6.0 ton excavators, wheel loaders, farm loaders or tractors with front loaders.
MAIN APPLICATIONS
Gardening and landscaping
Digging plant hole
Installing posts and masts
Fence construction
Road signs
Building industry
Forestry, etc…
The earth drill can be connected up quickly to various carrier devices. This makes it suitable for a wide range of applications in the fields of gardening and landscaping, forestry, public works and the construction industry.

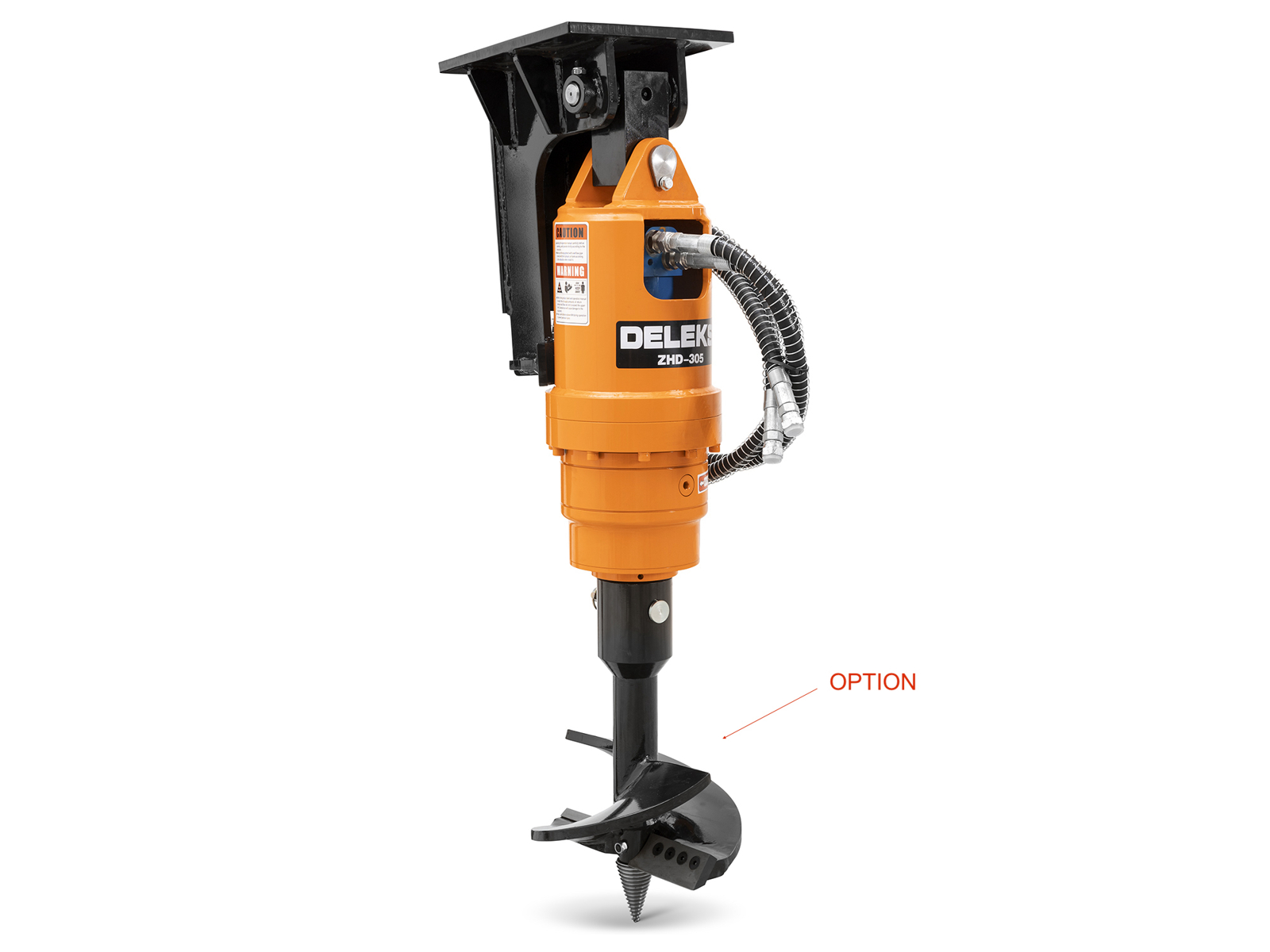

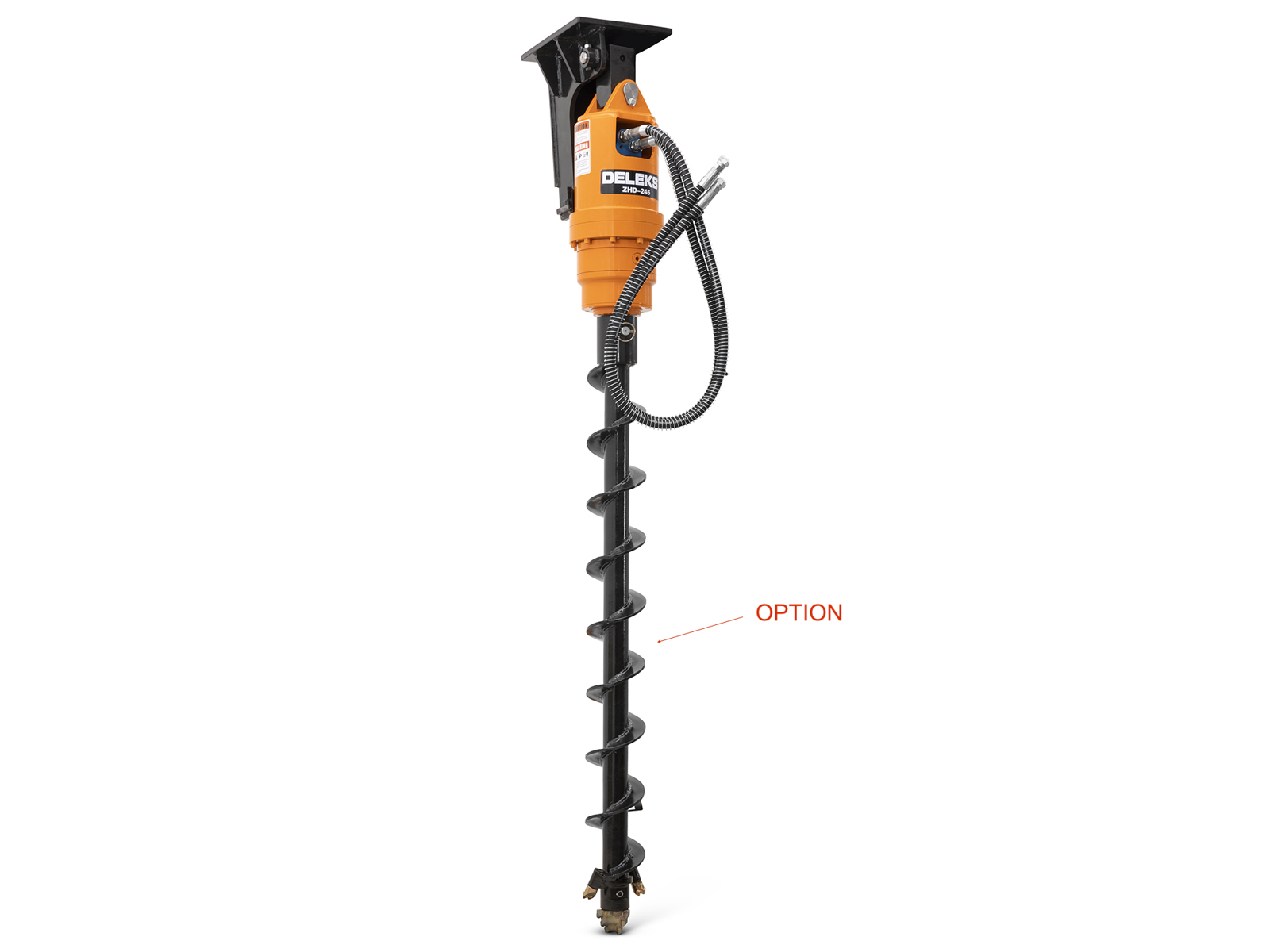

Optional:
auger Ø 150 mm
auger Ø 300 mm
Stump planer
TECHNICAL SPECIFICATIONS
Drill drive: hydraulic via mini excavator, wheel loader, tractor etc.

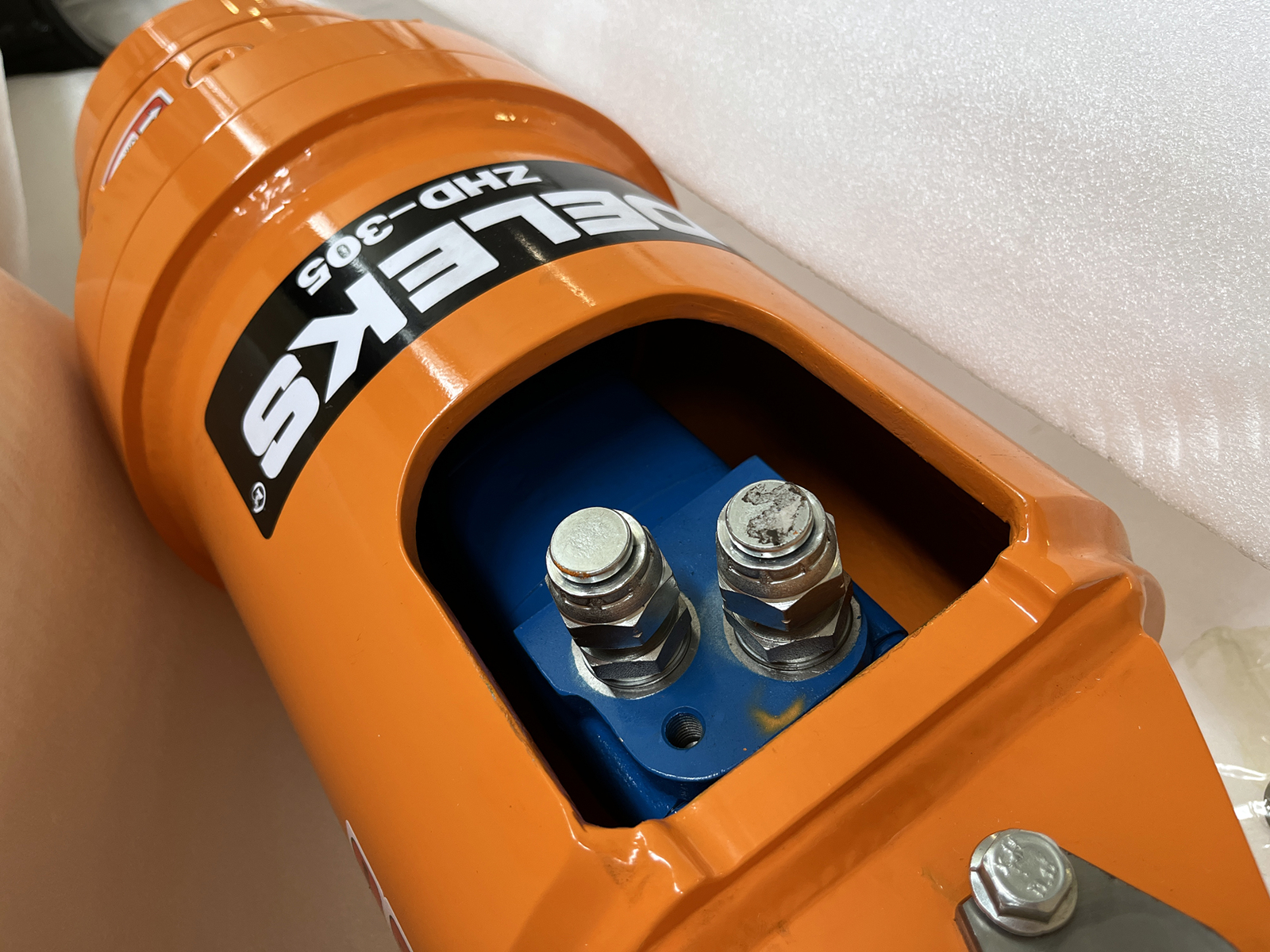

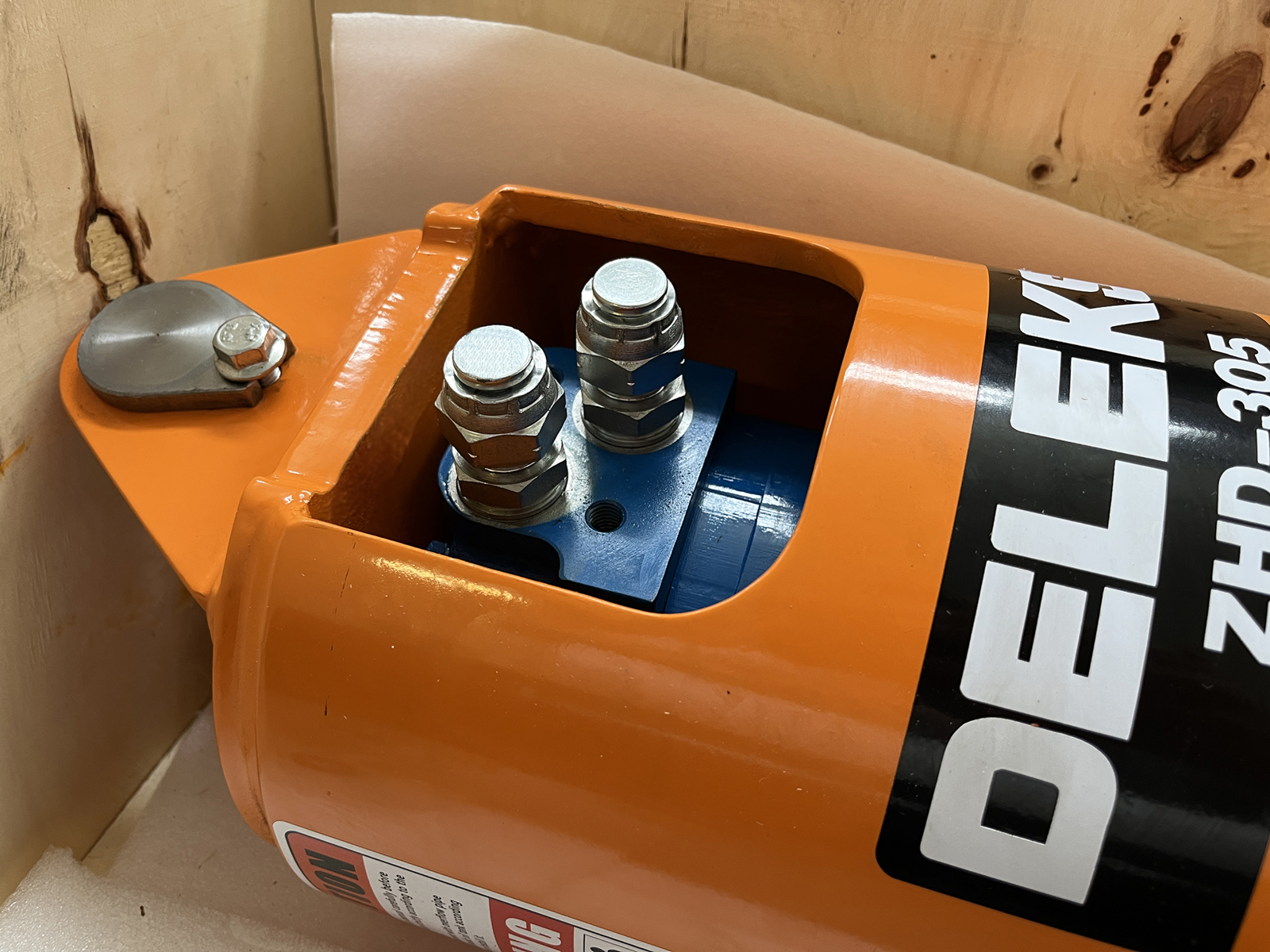

Orbit hydraulic motor: 305cc

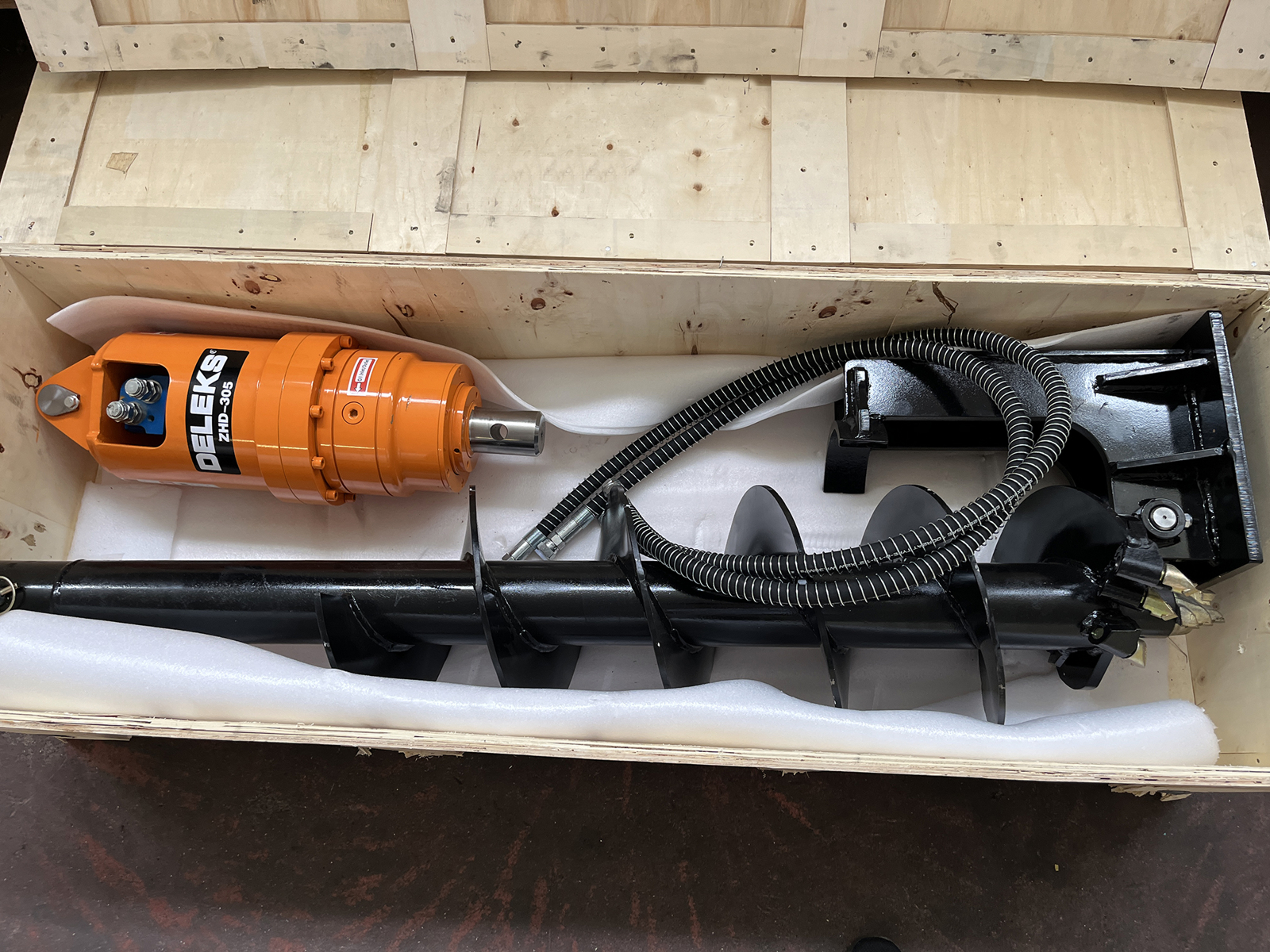

Incl. 2 hydraulic pipes
Drilling depth (augers until 30cm diameter): approx. 4.0 m (soft); 3.5 m (medium); 3.0 m (hard)
Rotation speed: 28-57 rpm
Torque: 1608-4890 Nm

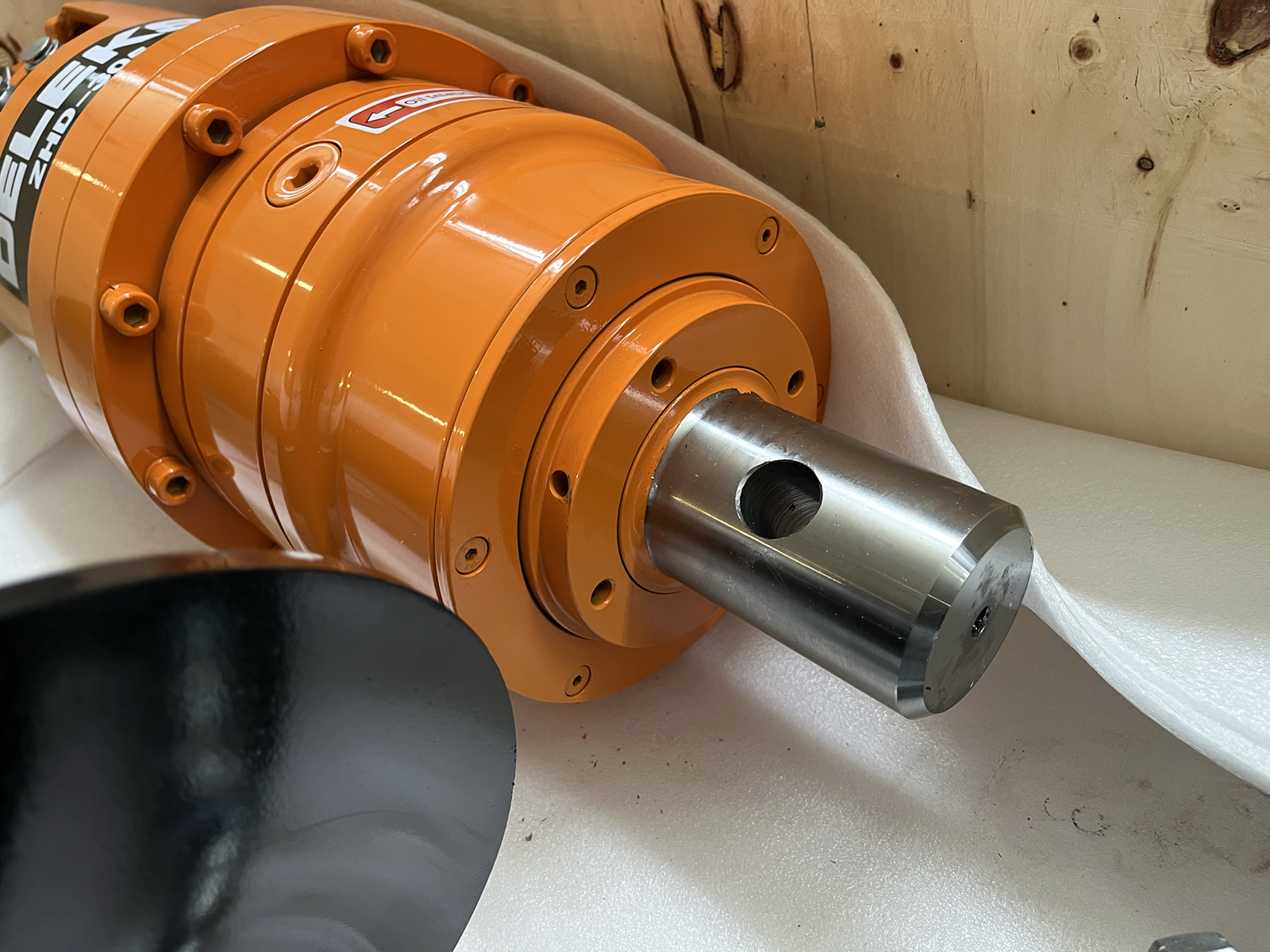

Output shaft: 65 rd
Operating pressure: 60-210 Bar
Oil flow rate: 40-95 Lpm
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 88 kg |
| Min./Max. Flow | 40-95 l / min |
| Compact Excavators Range | 3.0-6.0 ton |
