DETAILS

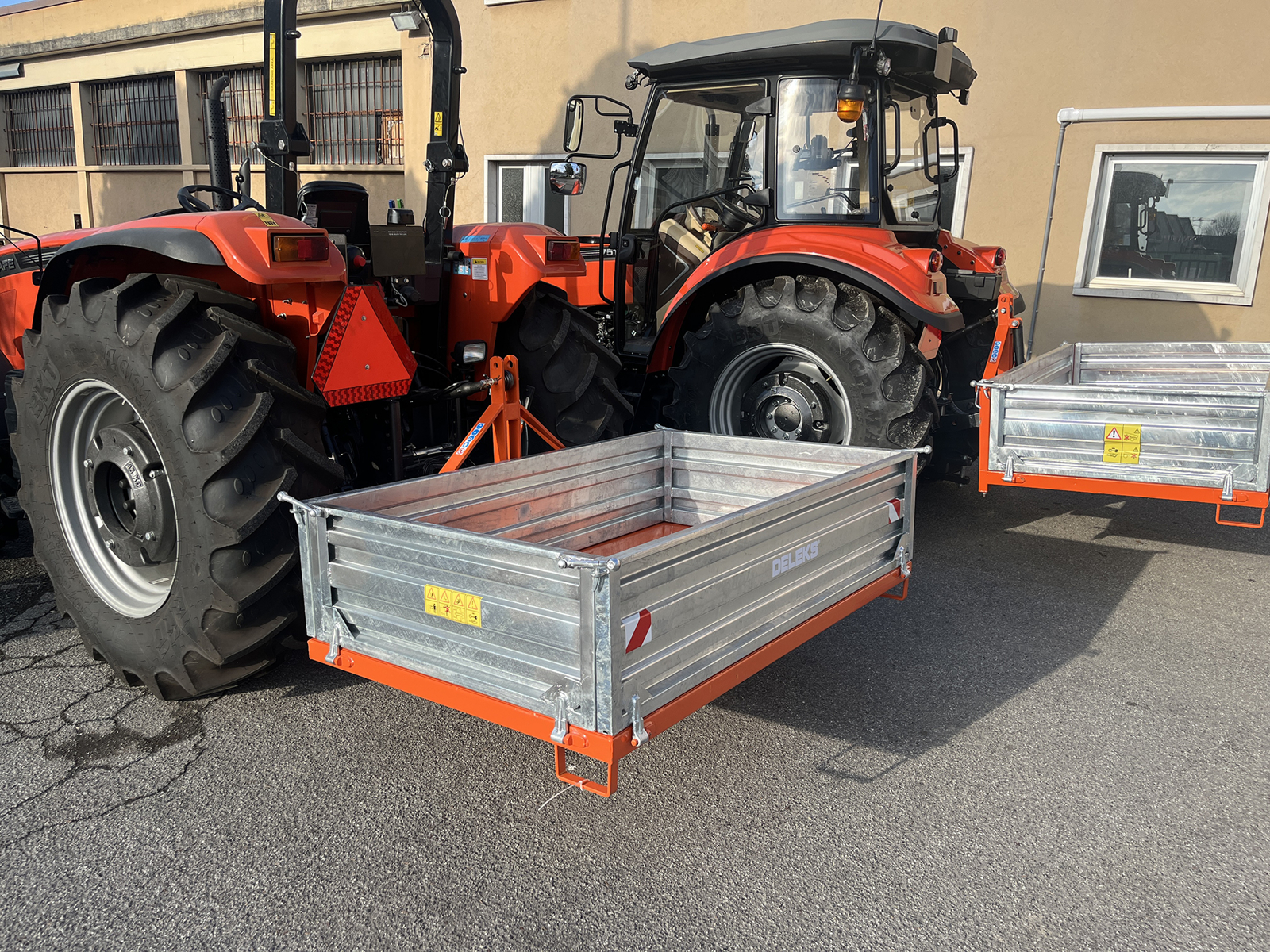

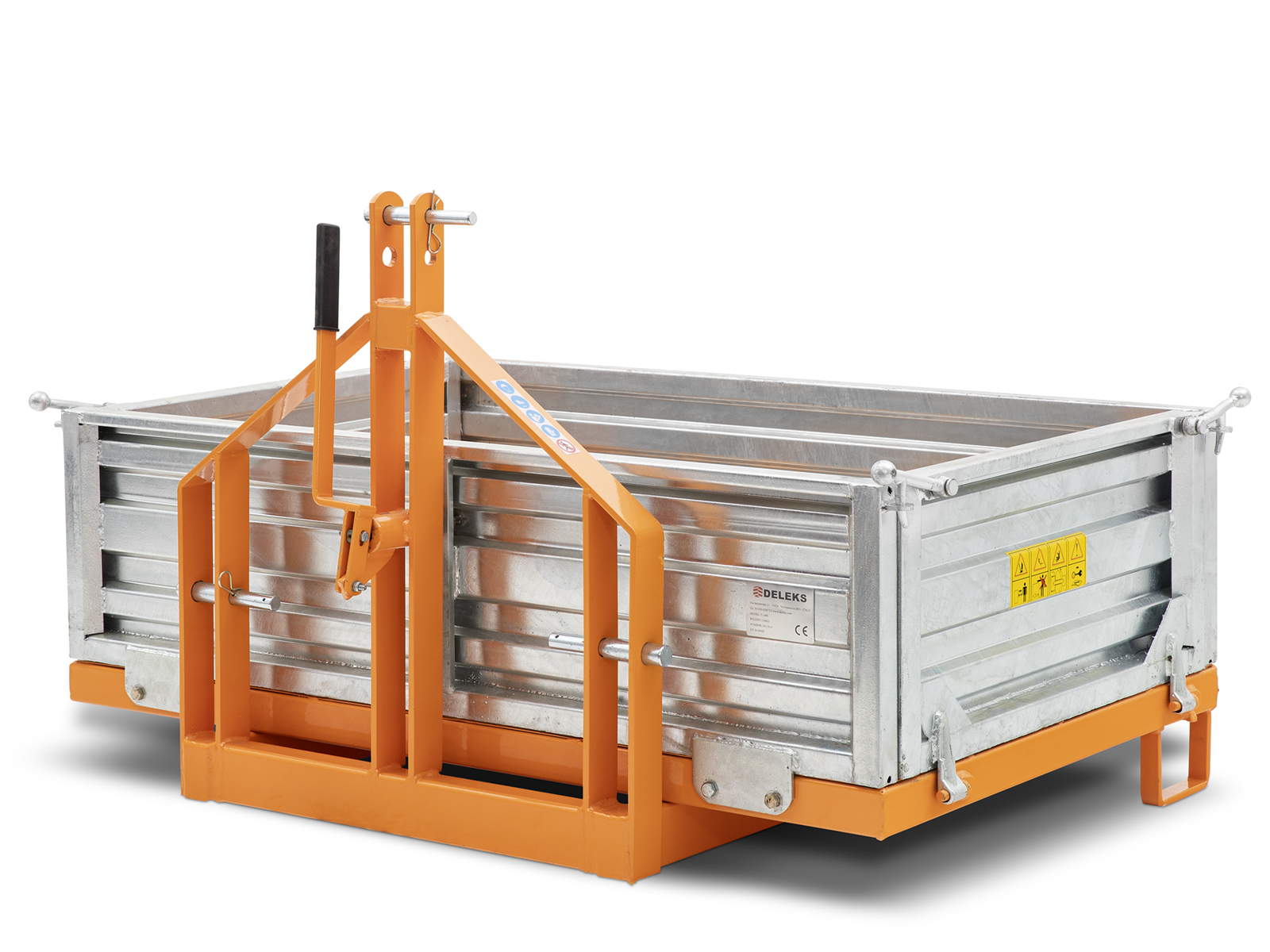

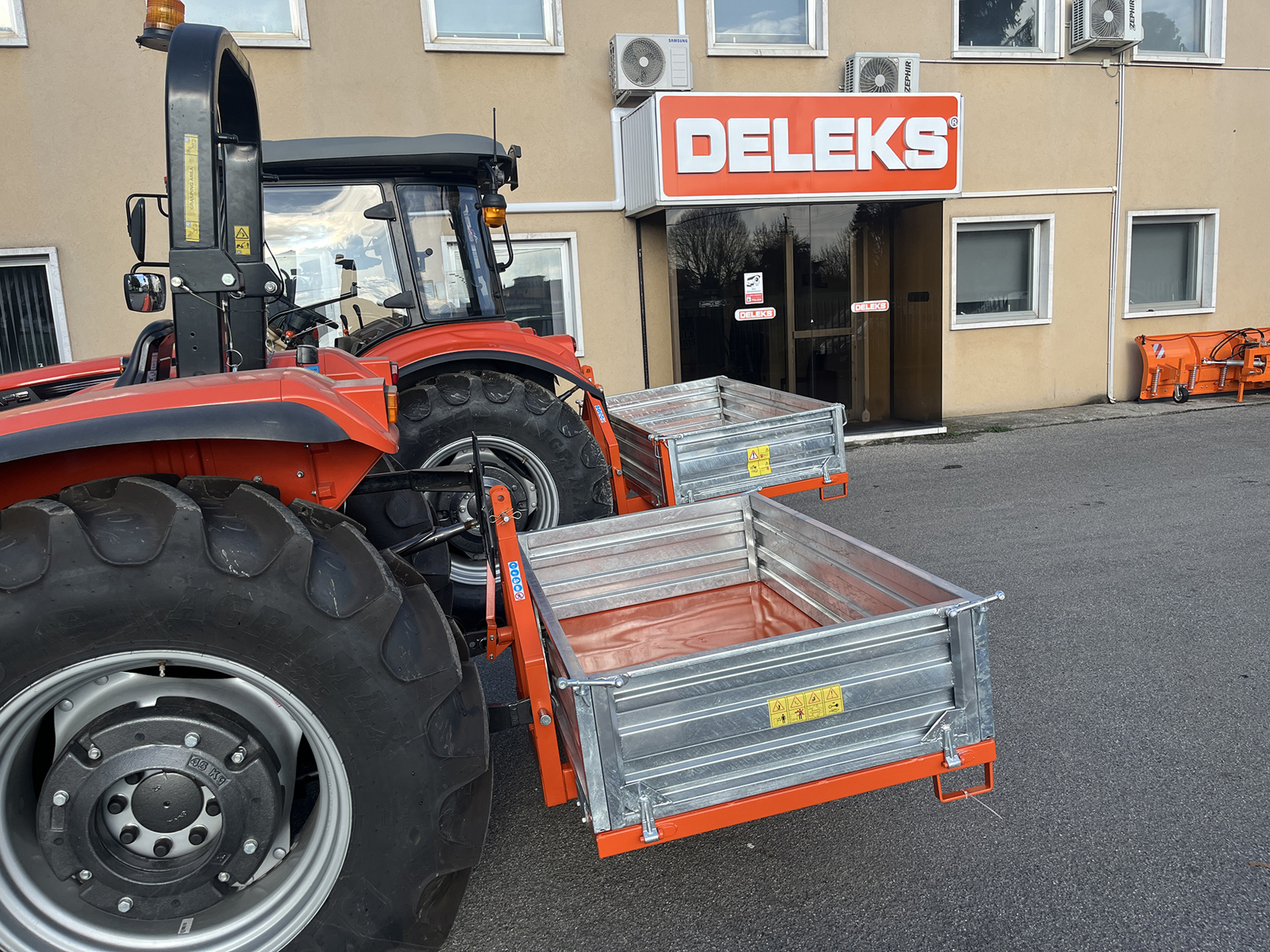

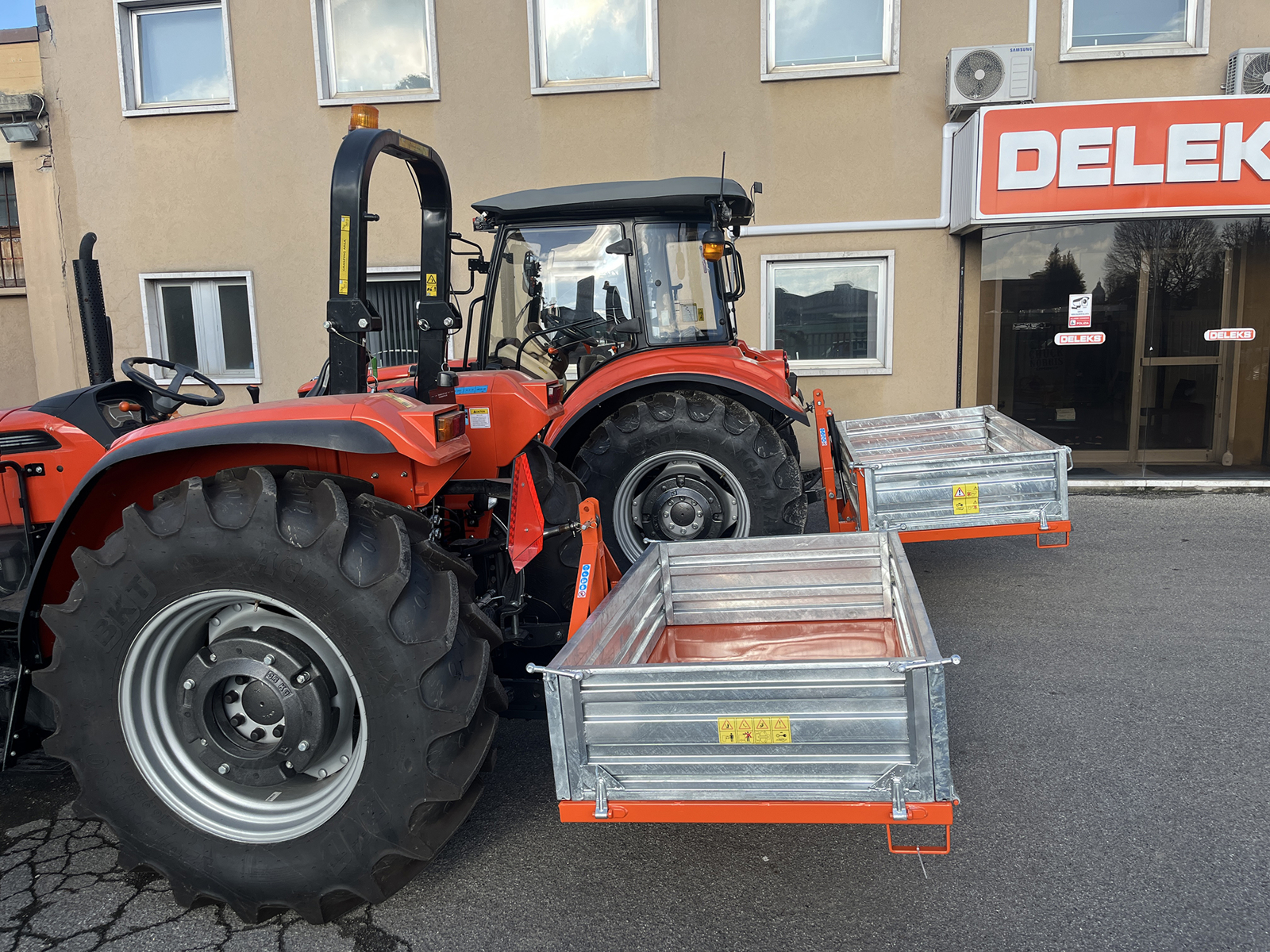

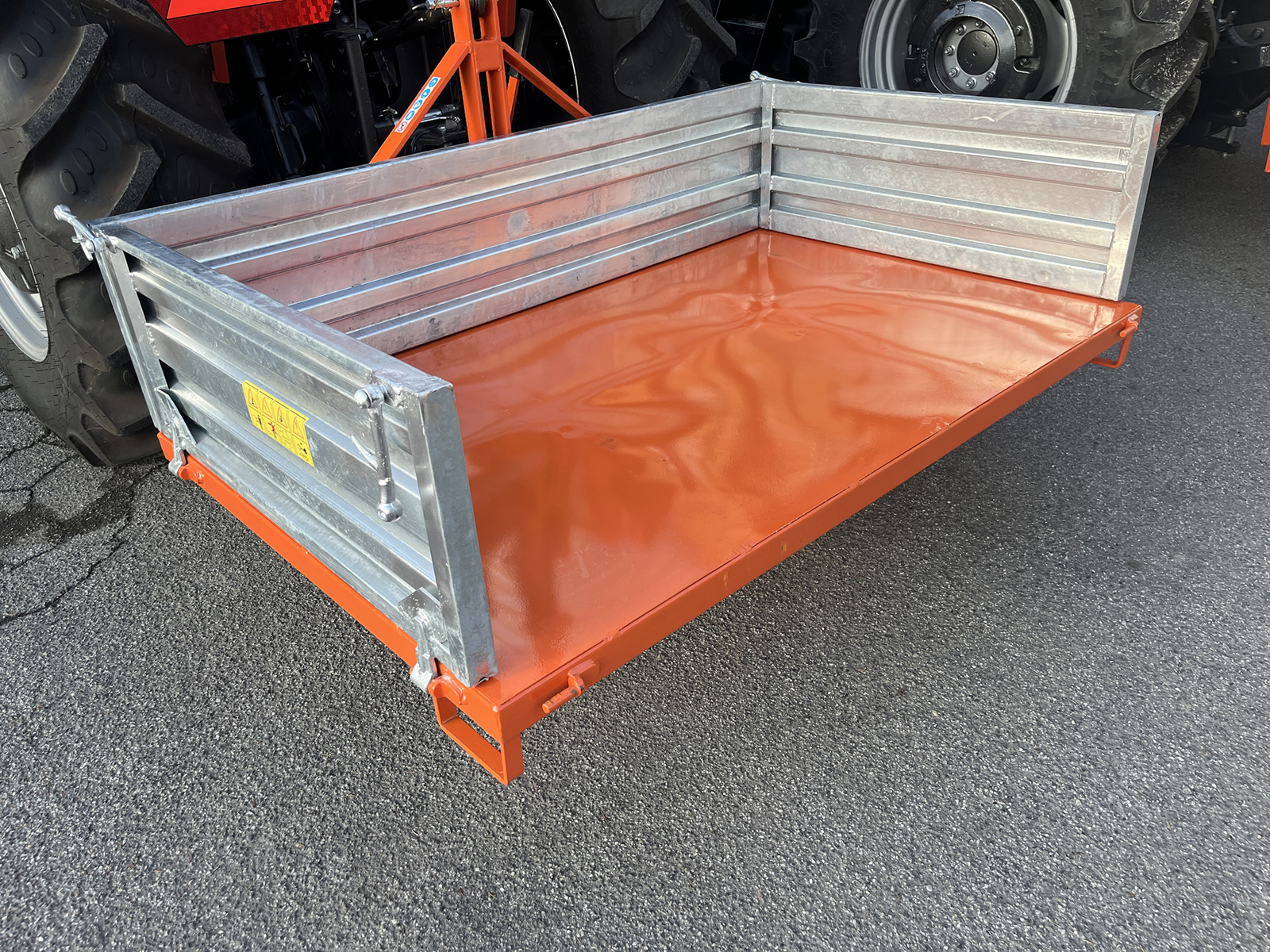

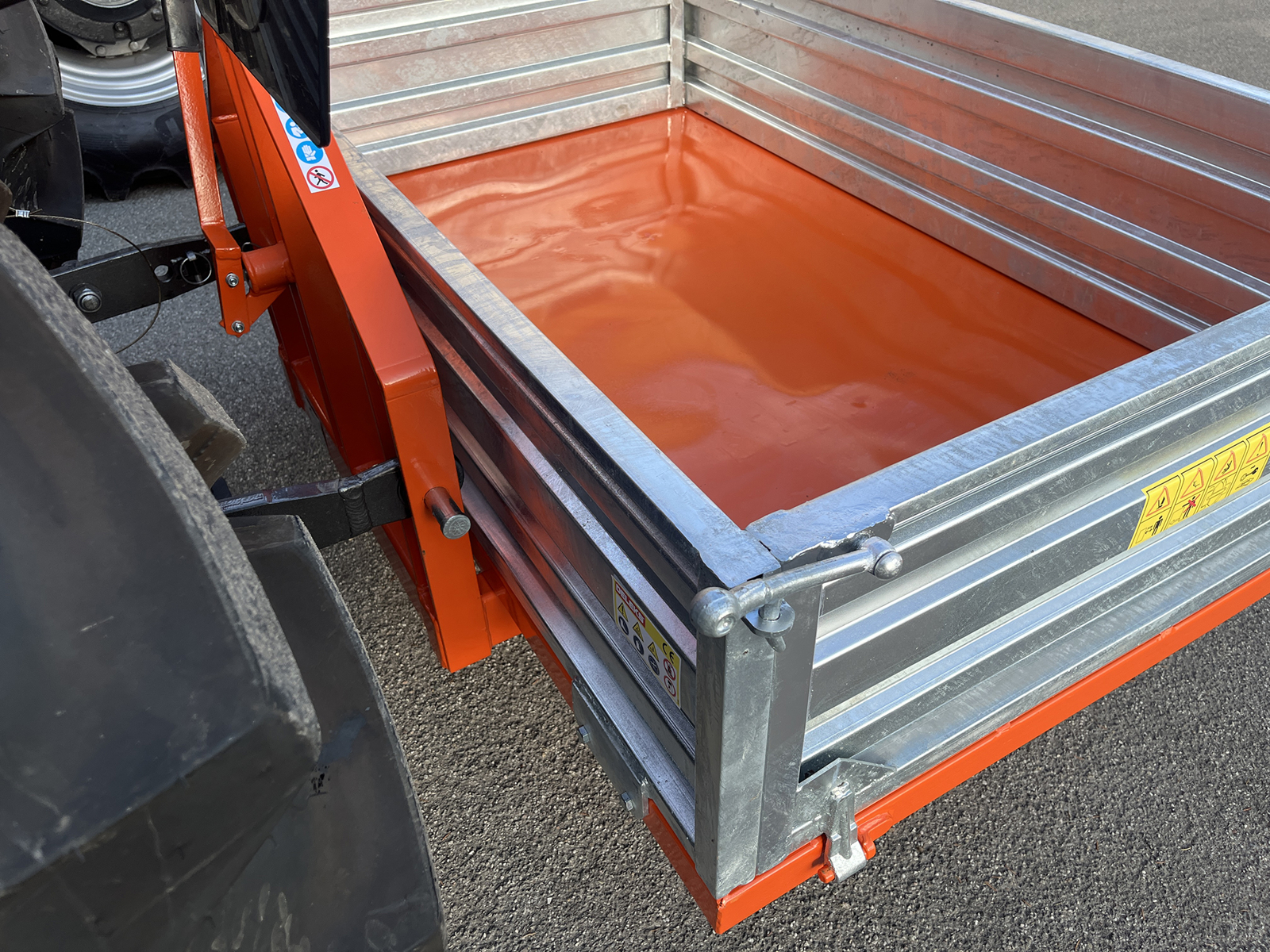

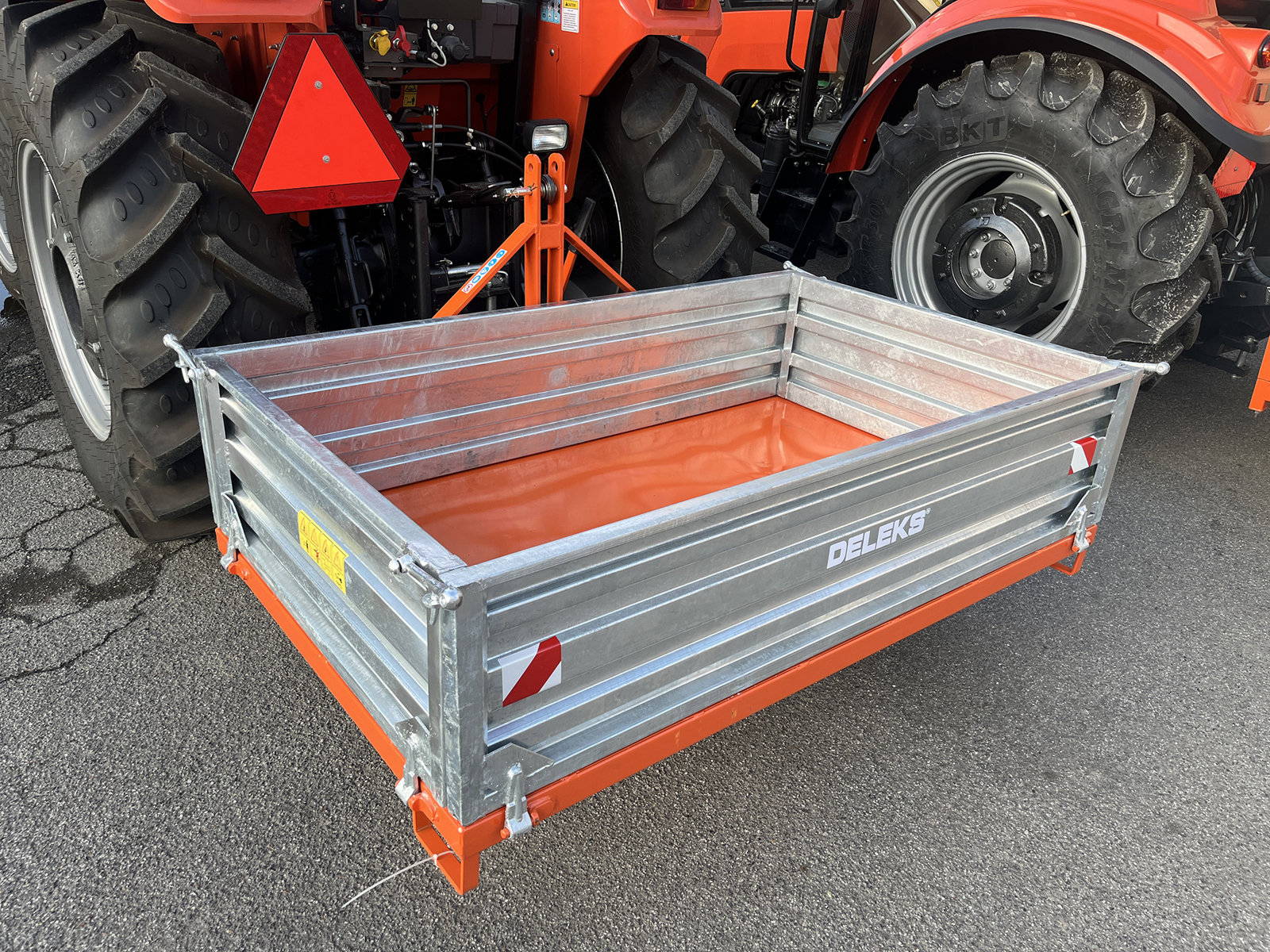

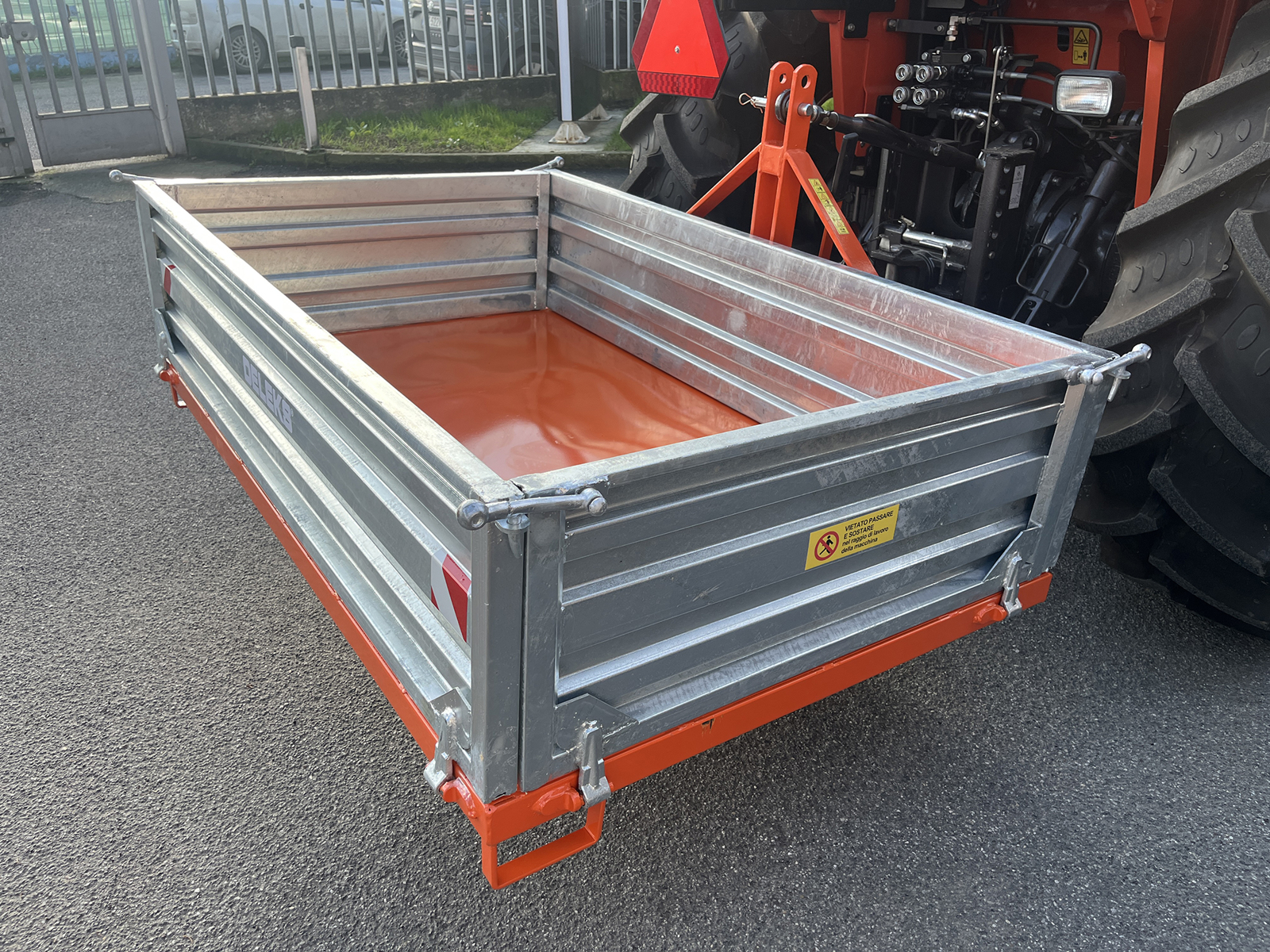

Transport Box for tractor - DELEKS® - Max load 700kg - 180x110cm. Ideal for transporting fruits, wood/debris, tools, manure, etc..
OVERVIEW
Ideal for transporting fruits, wood/debris, tools, manure, ect up to 700kg. Unlike the PRM/PRI series these boxes cannot be used to scoop up material, however the 'T' series have a higher loading capacity. The T-1800 is attached to the tractor using universal 3 point linkage Cat. 1-2 and fits all 30-70hp tractors e.g Ford, FIAT, New Holland T4, T5,John Deere 4-5 Series, Kubota L-M, McCormick, Goldoni, CASE, Deutz-Fahr, Lamborghini Ego 55, etc. EC Conformity, 2 Year warranty.
BENEFITS & FEATURES

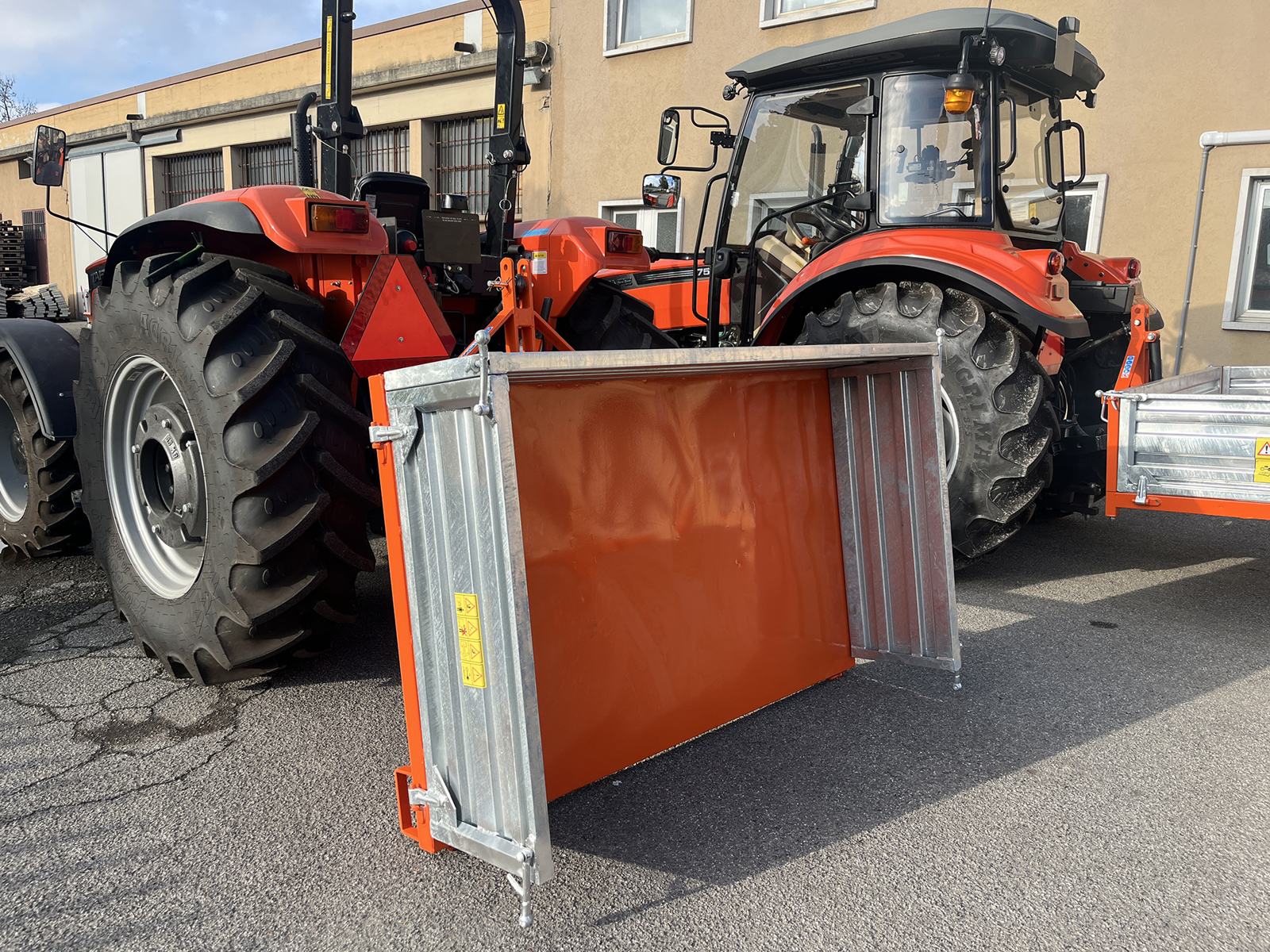

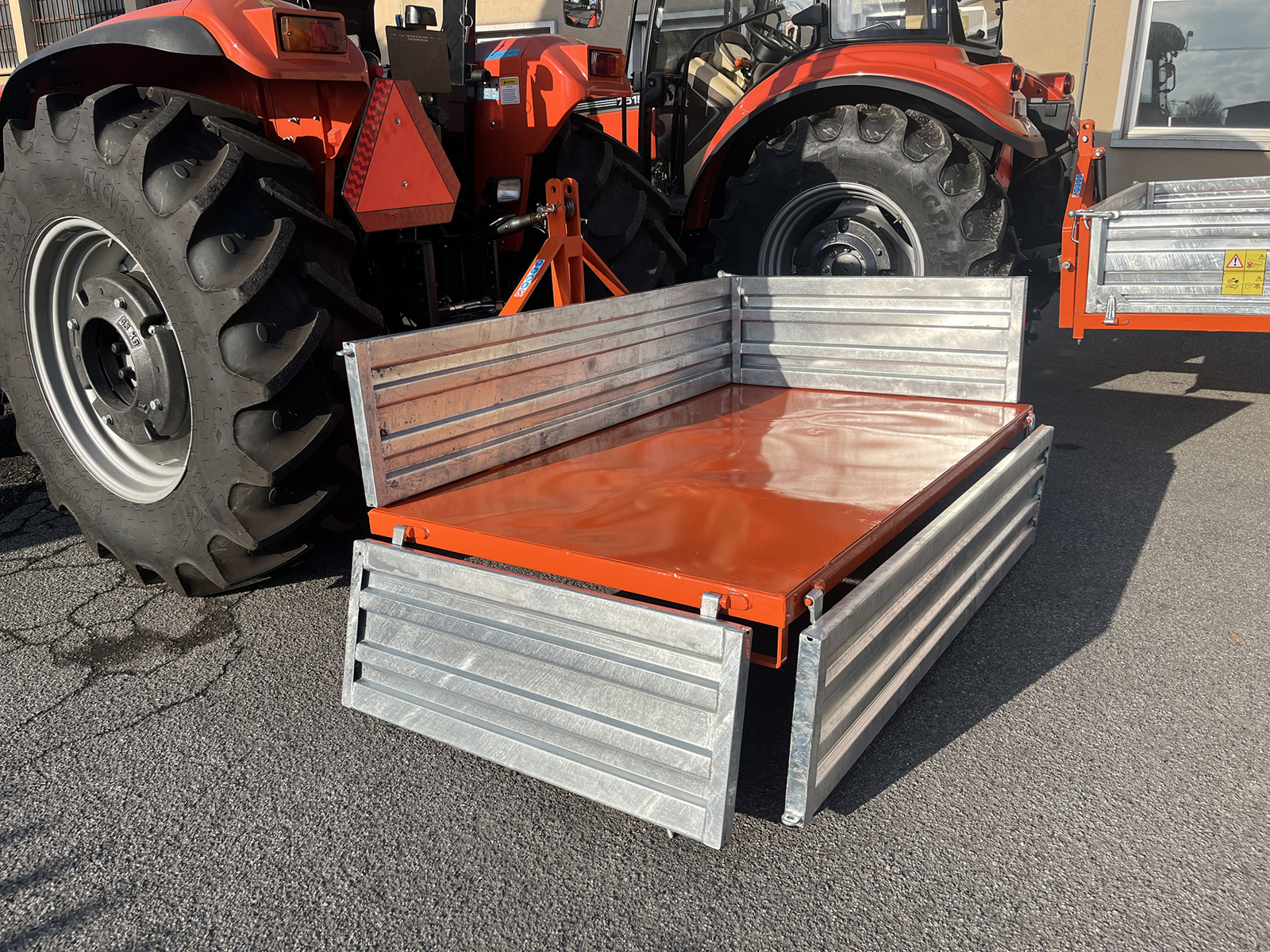

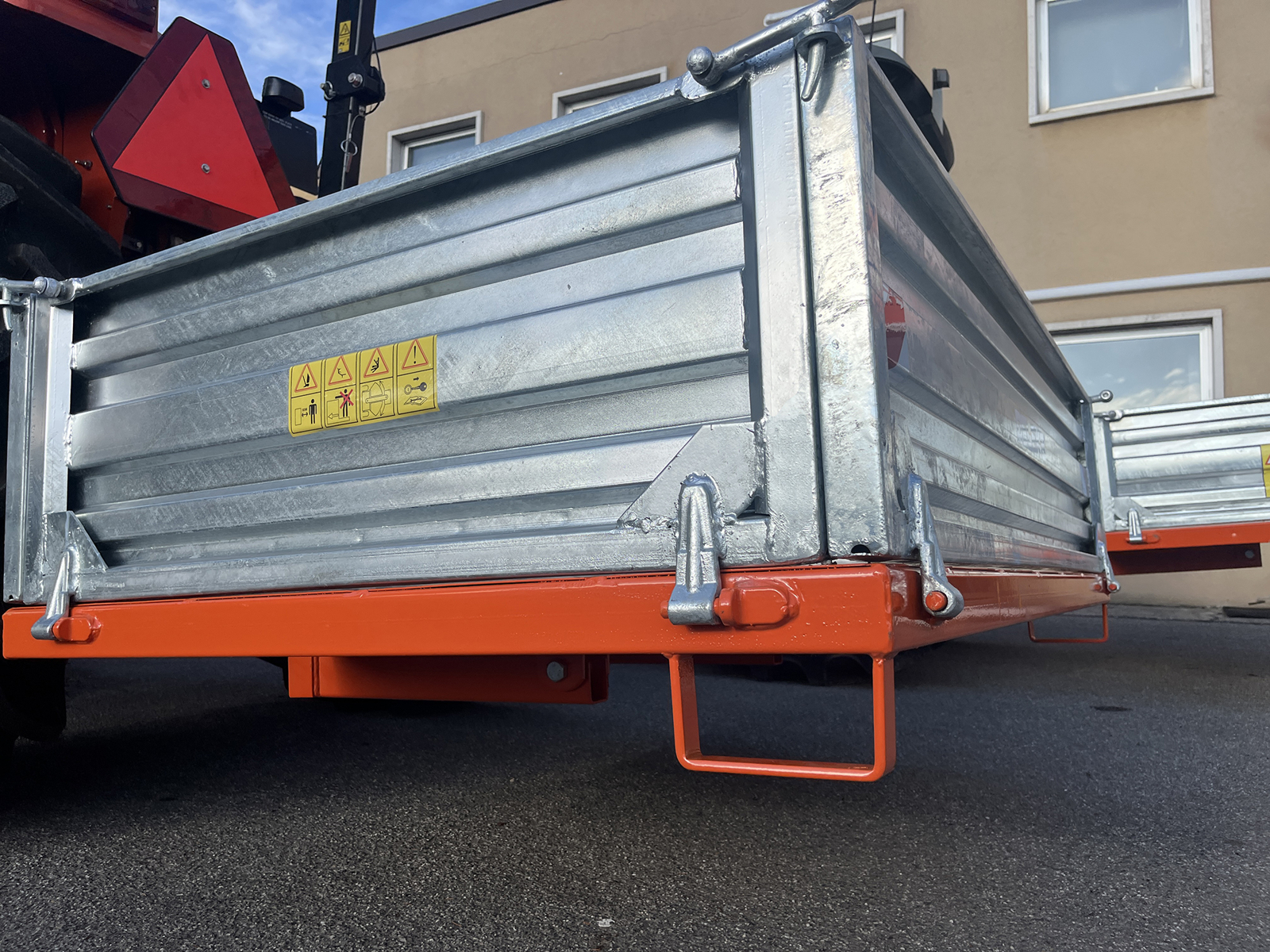

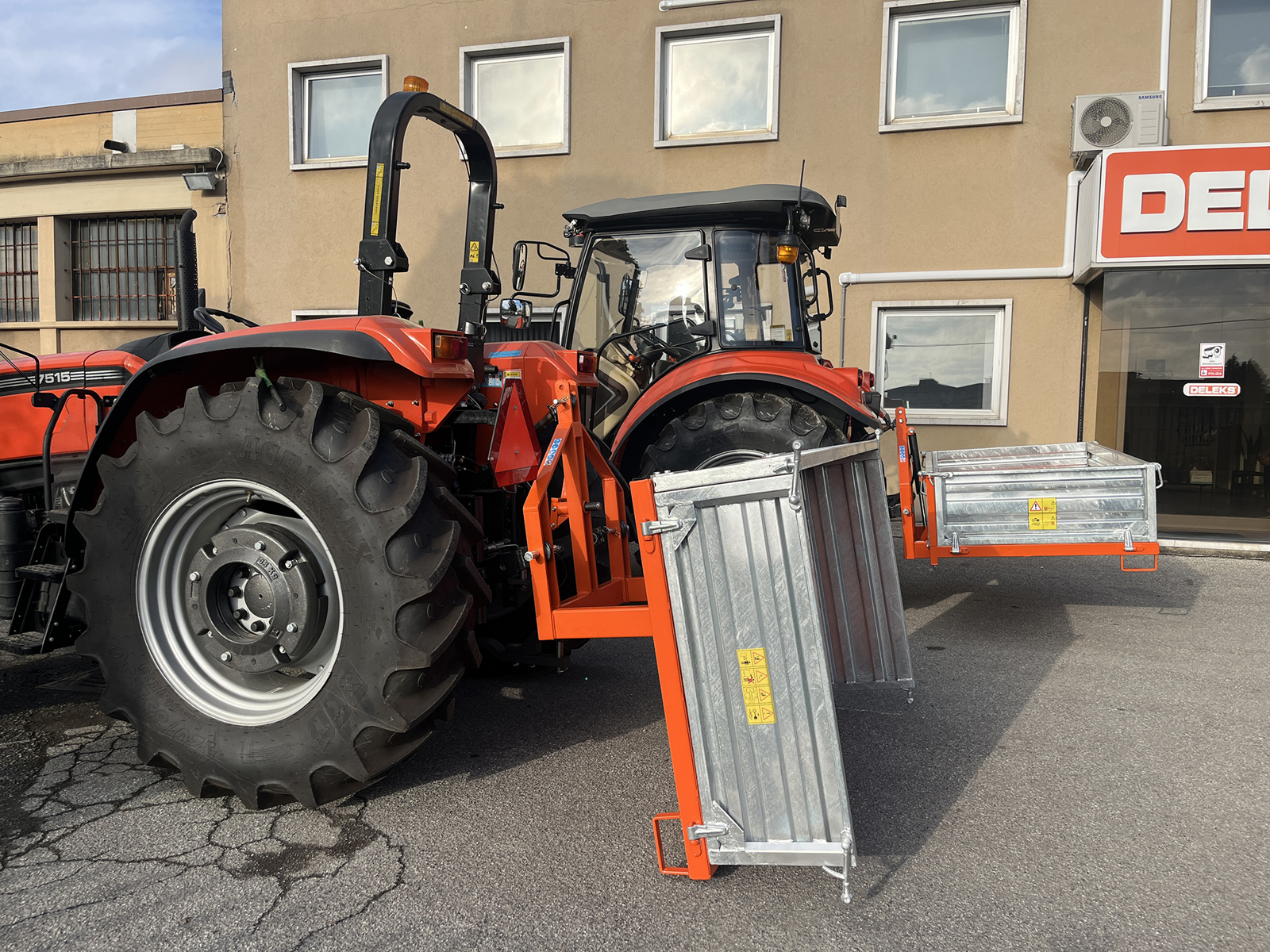

Three removable side doors for easy loading.
Large enough to fit standard pallets.

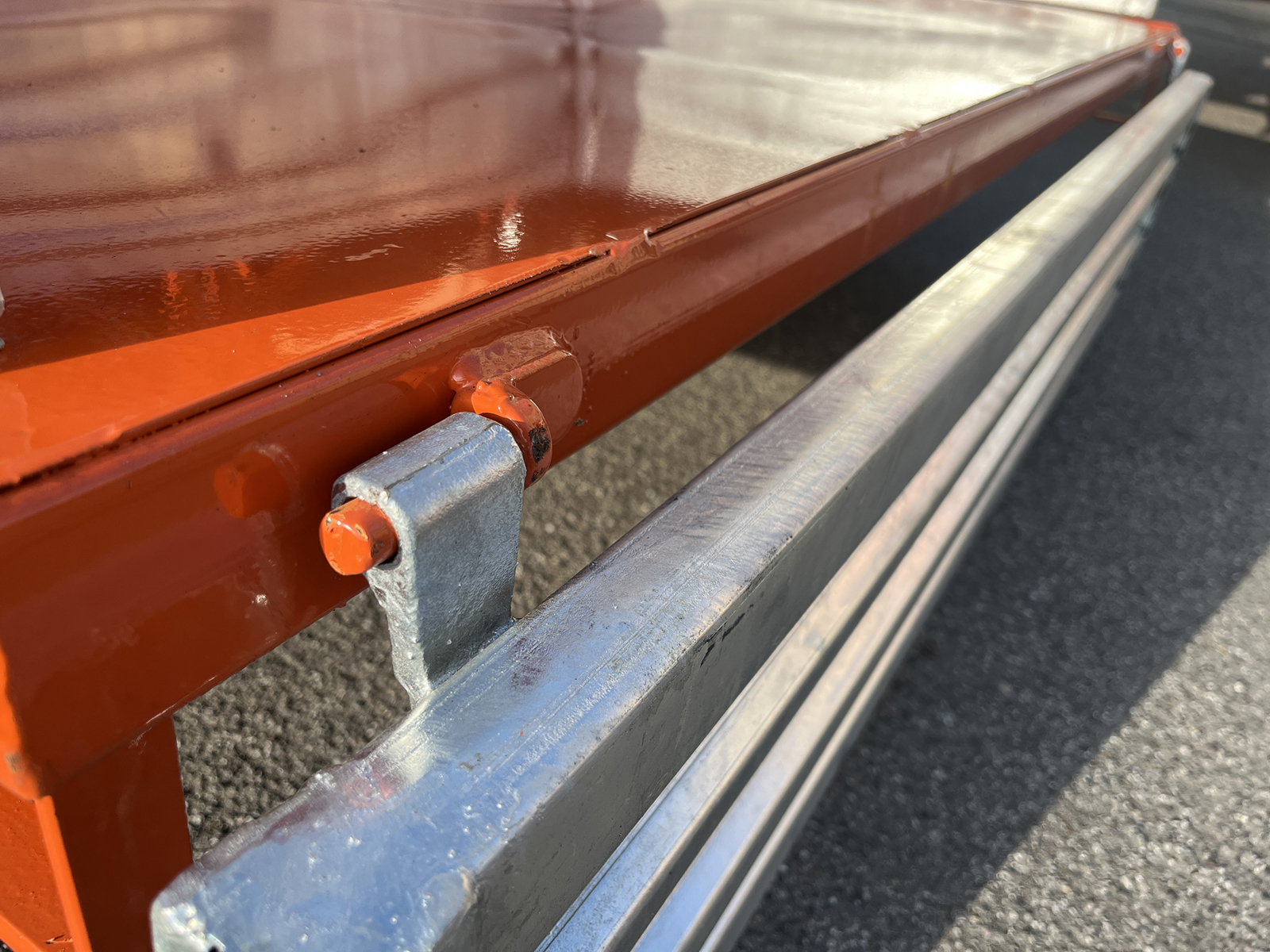

Reinforced at all stress points.

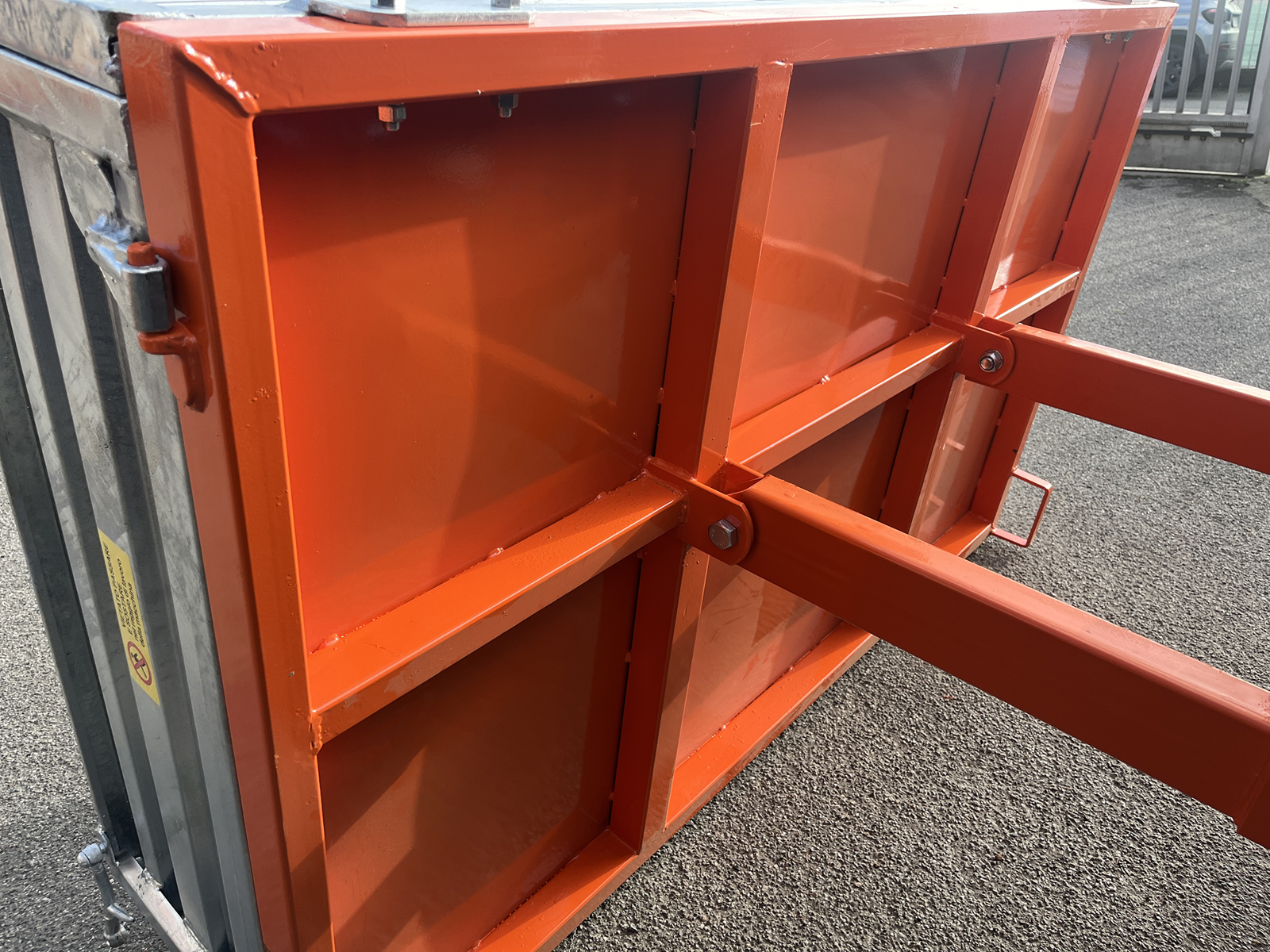

Reinforced floor for wear resistance and strength.

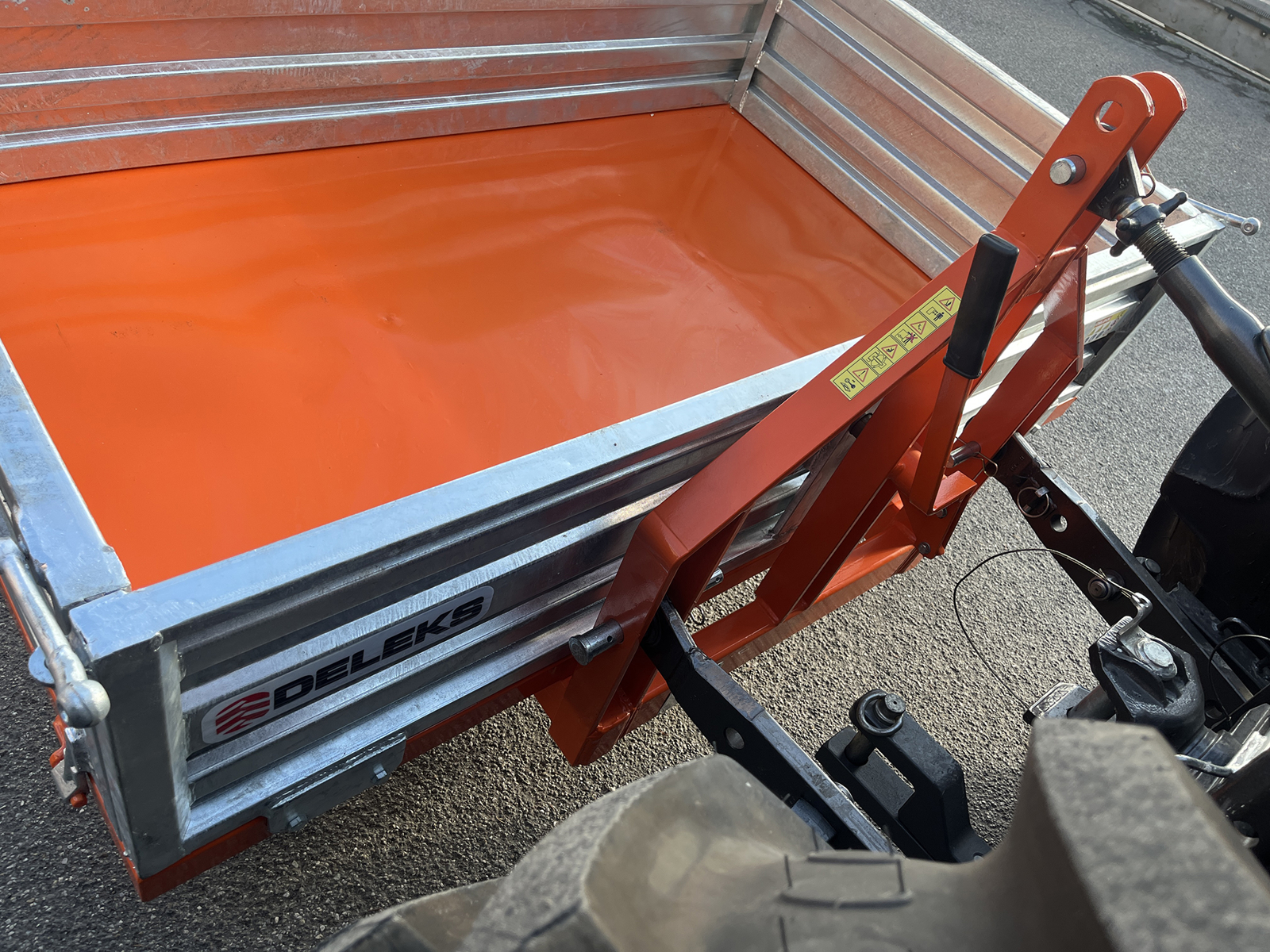

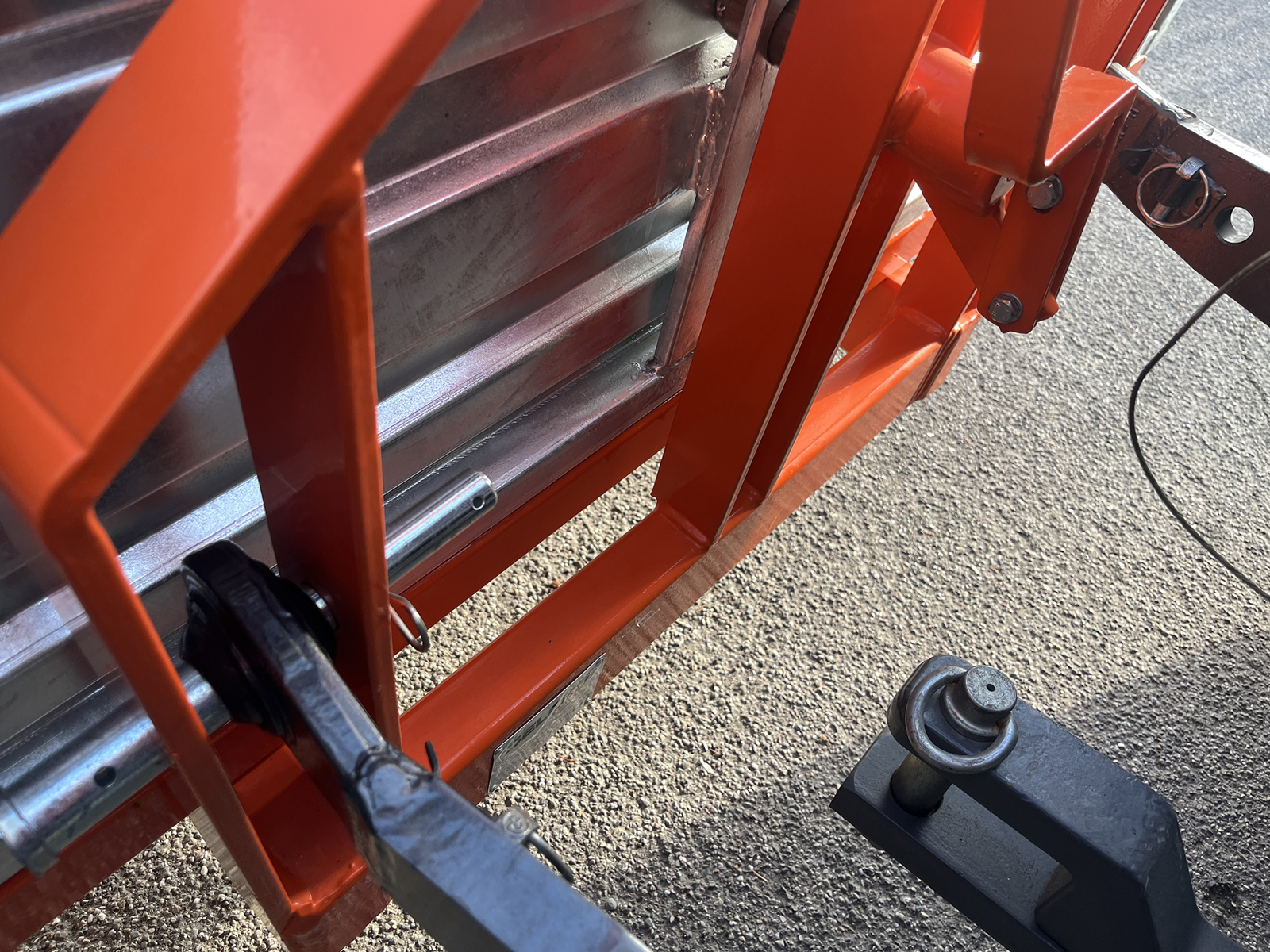

Cat I or II lower and top links.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Width | 1800.0 mm |
| Weight | 182.0 kg |
| Tractor Power Range | 30 - 90 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Load capacity | 700.0 Kg |
| Rated bucket Capacity | 0.70 m3 |
| 3 point linkage Thickness | 11.0 mm |
| Spacing between the 2 lower points | 500.0 - 765.0 mm |

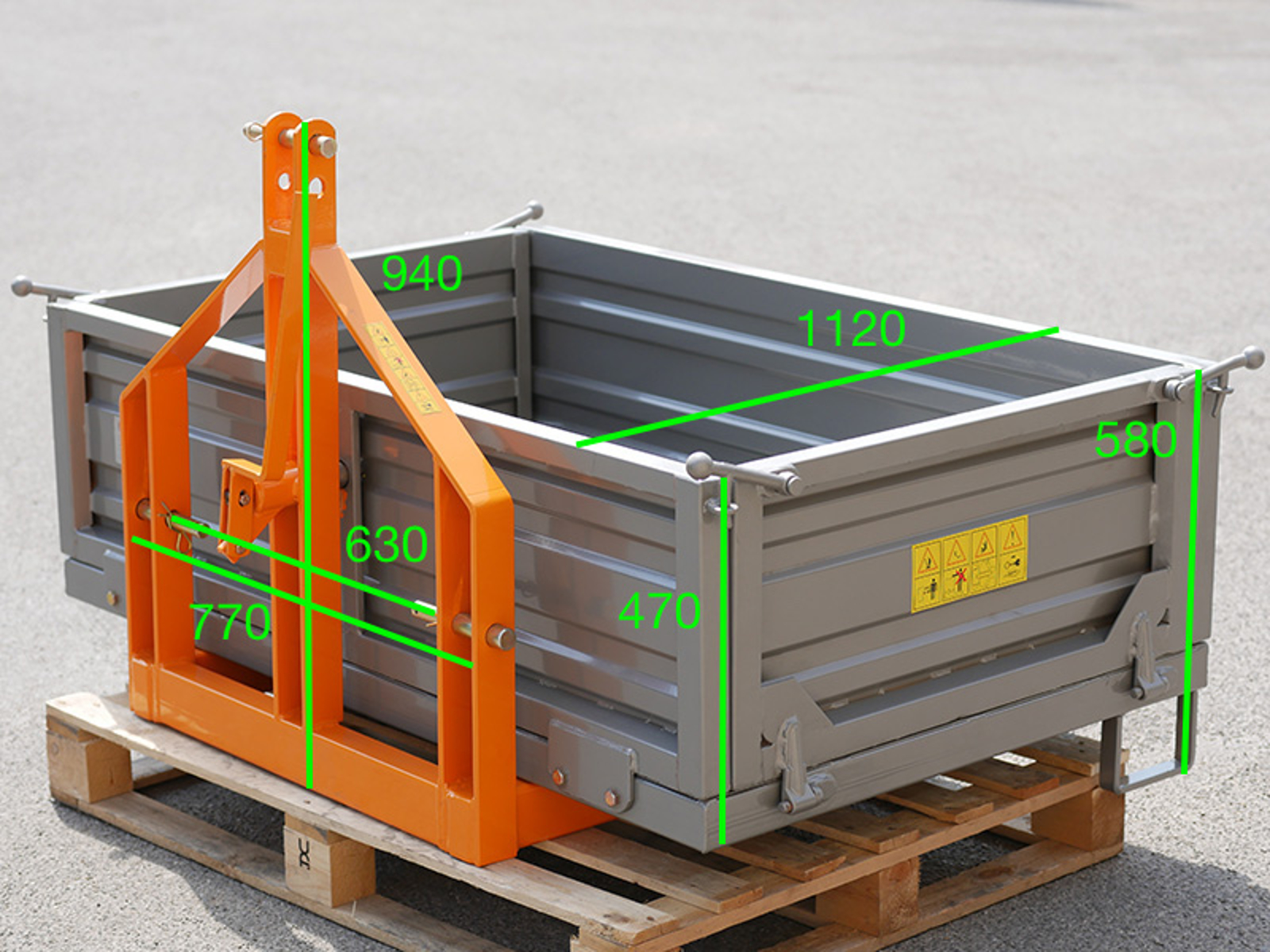

| External sizes of the box | 1800.0*1120.0*460.0 mm |

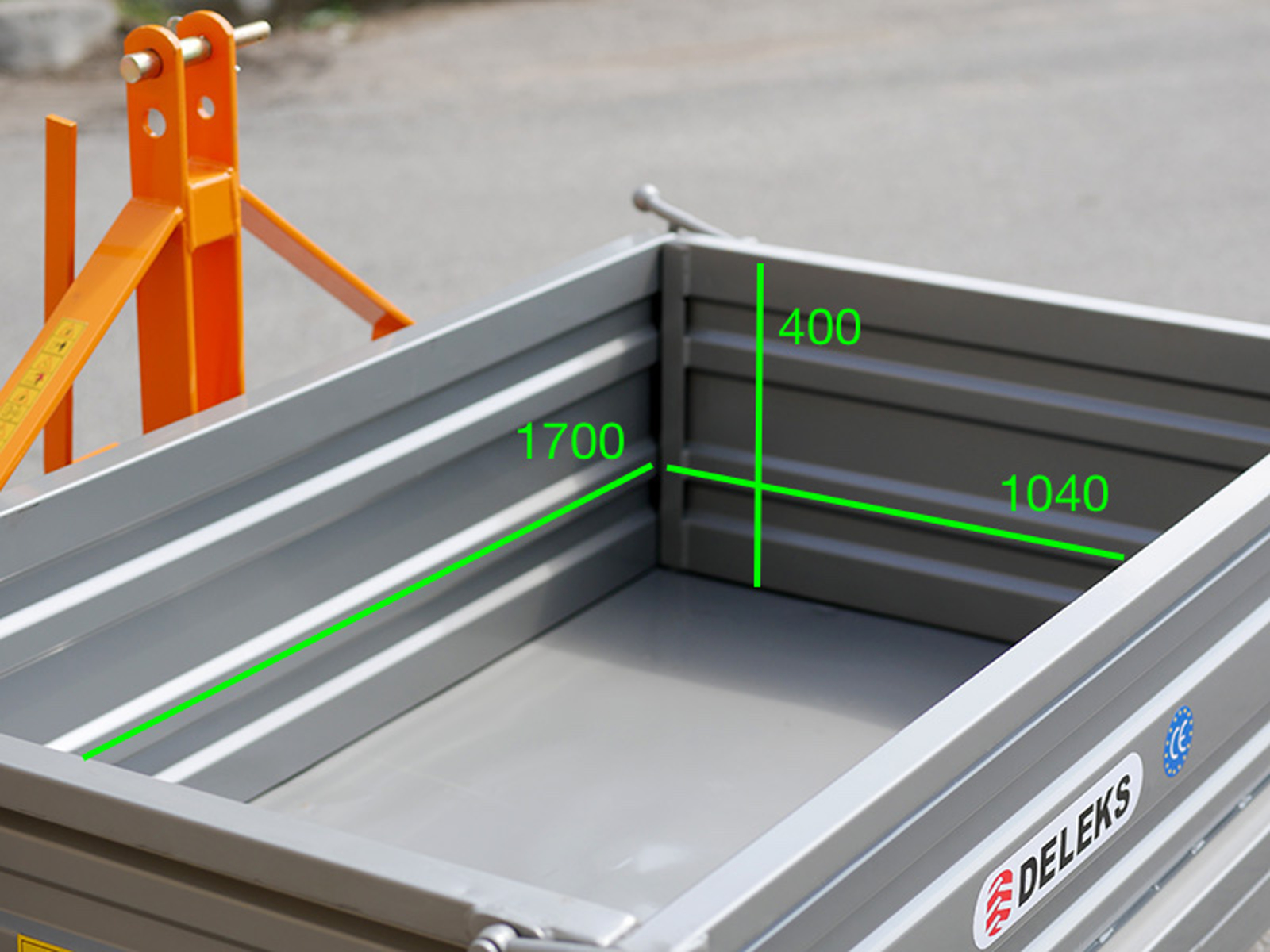

| Internal sizes of the box | 1700.0*1020.0*400.0 mm |
| Overall sizes | 1900.0*1230.0*940.0 mm |
| Sheet thickness | 2.0 mm |
| Dumping | Manual |

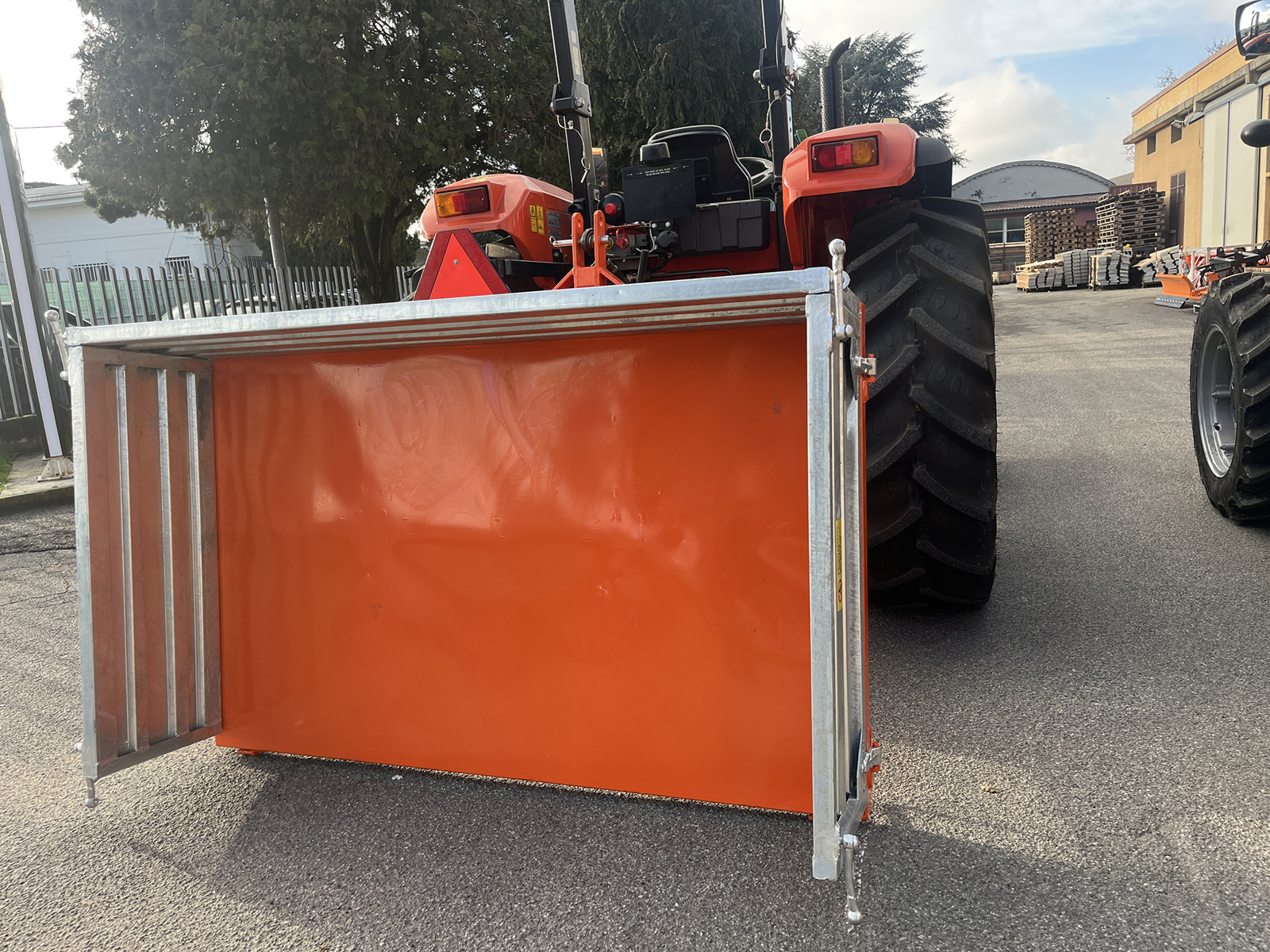

| Tipping degrees | 90° |
| Openable doors | 3 |
| Packing sizes | 1900.0*1120.0*700.0 mm |
